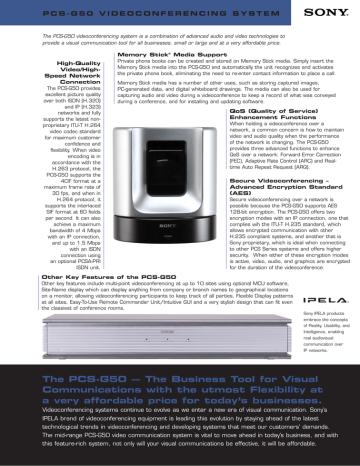

PCS-G50 Specifications
PCS-G50 VIDEOCONFERENCING SYSTEM
The PCS-G50 videoconferencing system is a combination of advanced audio and video technologies to
provide a visual communication tool for all businesses, small or large and at a very affordable price.
Memory Stick® Media Support
High-Quality
Video/HighSpeed Network
Connection
The PCS-G50 provides
excellent picture quality
over both ISDN (H.320)
and IP (H.323)
networks and fully
supports the latest nonproprietary ITU-T H.264
video codec standard
for maximum customer
confidence and
flexibility. When video
encoding is in
accordance with the
H.263 protocol, the
PCS-G50 supports the
4CIF format at a
maximum frame rate of
30 fps, and when in
H.264 protocol, it
supports the interlaced
SIF format at 60 fields
per second. It can also
achieve a maximum
bandwidth of 4 Mbps
with an IP connection,
and up to 1.5 Mbps
with an ISDN
connection using
an optional PCSA-PRI
ISDN unit.
Private phone books can be created and stored on Memory Stick media. Simply insert the
Memory Stick media into the PCS-G50 and automatically the unit recognizes and activates
the private phone book, eliminating the need to re-enter contact information to place a call.
Memory Stick media has a number of other uses, such as storing captured images,
PC-generated data, and digital whiteboard drawings. The media can also be used for
capturing audio and video during a videoconference to keep a record of what was conveyed
during a conference, and for installing and updating software.
QoS (Quality of Service)
Enhancement Functions
When holding a videoconference over a
network, a common concern is how to maintain
video and audio quality when the performance
of the network is changing. The PCS-G50
provides three advanced functions to enhance
QoS over a network: Forward Error Correction
(FEC), Adaptive Rate Control (ARC) and Realtime Auto Repeat Request (ARQ).
Secure Videoconferencing –
Advanced Encryption Standard
(AES)
Secure videoconferencing over a network is
possible because the PCS-G50 supports AES
128-bit encryption. The PCS-G50 offers two
encryption modes with an IP connection, one that
complies wih the ITU-T H.235 standard, which
allows encrypted communication with other
H.235 compliant systems, and another that is
Sony proprietary, which is ideal when connecting
to other PCS Series systems and offers higher
security. When either of these encryption modes
is active, video, audio, and graphics are encrypted
for the duration of the videoconference.
Other Key Features of the PCS-G50
Other key features include multi-point videoconferencing at up to 10 sites using optional MCU software,
Site-Name display which can display anything from company or branch names to geographical locations
on a monitor, allowing videoconferencing participants to keep track of all parties, Flexible Display patterns
at all sites, Easy-To-Use Remote Commander Unit/Intuitive GUI and a very stylish design that can fit even
the classiest of conference rooms.
Sony IPELA products
embrace the concepts
of Reality, Usability, and
Intelligence, enabling
real audiovisual
communication over
IP networks.
The PCS-G50 — The Business Tool for Visual
Communications with the utmost Flexibility at
a very affordable price for today’s businesses.
Videoconferencing systems continue to evolve as we enter a new era of visual communication. Sony’s
IPELA brand of videoconferencing equipment is leading this evolution by staying ahead of the latest
technological trends in videoconferencing and developing systems that meet our customers’ demands.
The mid-range PCS-G50 video communication system is vital to move ahead in today’s business, and with
this feature-rich system, not only will your visual communications be effective, it will be affordable.
PCS-G50 Features
High-Quality Video/High-Speed Network Connection: The PCS-G50 provides
excellent picture quality over both ISDN (H.320) and IP (H.323) networks and
fully supports the latest non-proprietary ITU-T H.264 video codec standard for
maximum customer confidence and flexibility.
Superb Sound: The PCS-G50 reproduces clear and natural-sounding audio
using MPEG-4 AAC (Advanced Audio Coding) at 14KHz.
Multi-Point Videoconferencing at up to 10 Sites: Using optional MCU
software, the PCS-G50 can be configured to communicate with up to 5
remote videoconferencing sites (6 sites total) simultaneously using either
an IP (H.323 protocol) or ISDN (H.320 protocol) connection.
Flexible Display Patterns at all Sites: In addition to conventional patterns
of display – such as showing the far-end site on a full screen or displaying
near-end and far-end sites in picture-in-picture mode – a variety of other
display patterns are available with the PCS-G50.
Memory Stick recording: Audiovisual (A/V) Recording to Memory Stick®
Media. Capturing audio and video during a videoconference is important
to keep a record of what was conveyed during a conference. With the
PCS-G50, audio and video displayed on the main monitor can be recorded*
directly to Memory Stick® media in MPEG-4 format and can be played back
on any PC using QuickTime® media player.
Data-Sharing Capabilities/Digital Whiteboard Support: Data originated on
your PC can be shared with your videoconferencing counterparts, making
communication even more effective.
Site-Name Display: During multi-point videoconferences, it can be difficult to
keep track of all of the participants; however, with the PCS-G50 site-name
display function, this is no longer the case.
Built-in Streaming Function: To broadcast* your videoconferences to a
large audience, i.e. with educational lectures or live corporate speeches,
the PCS-G50 features a built-in streaming function that allows remote
users to log on from any PC using an Internet browser.**
VIDEO
CAMERA UNIT
Signal system
Standards
Resolution
Frame rate
Bit rate
PCS-G50: NTSC
H.261 (Annex D), H.263 (Annex D,F), H.263+ (Annex J),
H.263++ (Annex U,W), H.264, MPEG-4 [email protected], H.239 Video
and Presentation Data Support***
SQCIF (128 x 96, reception only), QCIF (176 x 144),
CIF (352 x 288), 4CIF (704 x 576, H.263 only), Interlaced SIF
(H.263, H.264 only)
Max. 30 frames/s (H.261, H.263, H.263+, H.263++, H.264,
and MPEG-4 [email protected])
Interlaced SIF Mode (PCS-G50: 60 fields/s)
Up to 4 Mb/s in H.323 (Incl. audio)****
UP to 2 Mb/s in H.320 (Incl. audio) when configured with the
PCSA-PRI
Up to 768 Kb/s in H.320 (Incl. audio) when configured with the
PCSA-B768S
Up to 384 Kb/s in H.320 (Incl. audio) when configured with the
PCSA-B384S
AUDIO
Bandwidth and coding
Echo cancellation
GRAPHICS
G.711: 3.4 kHz at 56/64 Kb/s
G.722: 7.0 kHz at 48/56/64 Kb/s
G.722.1: 7.0 kHz at 24/32 Kb/s (H.323)
G.728: 3.4 kHz at 16 Kb/s
G.723.1: 3.4 kHz at 5.3/6.3 Kb/s (H.323)
G.729: 3.4 kHz at 8 Kb/s (H.323)
MPEG-4 AAC (mono) 14 kHz at 64/96 Kb/s (H.323)
at 48 Kb/s (H.320)
Noise Suppressor included, Automatic Gain Control included
XGA
1024 pixels x 768 lines (H.263), with PCSA-DSB1S
4CIF
704 pixels x 576 lines (H.261 Annex D and H.263)
PICTURE IN PICTURE
Sub screen size
4.3" (256 x 192), One of four corners
I T U - T S TA N D A R D S ( E X C L U D E S A U D I O / V I D E O
S TA N D A R D S )
H.320, H.323
H.221
Bonding
H.281 FECC
H.225.0
H.239
H.233, H.234, H.235
H.242
H.243
H.245
T.120
NETWORK PROTOCOLS
TELNET (Server), HTTP (Server), FTP (Server), SNMP (Agent),
DNS (Client), DHCP (Client), RTP/RTCP, TCP/UDP, ARP, SIP
M U LT I P O I N T C A PA B I L I T I E S
Up to 6 sites (H.320/H.323)*****
Up to 10 sites (H.320/H.323)******
L I P S Y N C H R O N I Z AT I O N
Manual On/Off
SECURITY
H.233, H.234, H.235
Sony Proprietary AES Encryption, Password Protection
N E T W O R K F E AT U R E S
QoS (Quality of Service)
NAT
FireWall
UPnP
ARC (Adaptive Rate Control), FEC (Forward Error Correction),
Real-time ARQ (Auto Repeat reQuest), IP Precedence, DiffServ
Network Address Translation
Port setting for TCP/UDP
Universal Plug and Play
Image device
1/4 type CCD
Horizontal resolution
NTSC: 470 TV lines
Focal length
3.1 to 31 mm (F1.8 to 2.9)
Focus
Auto/Manual
IRIS
Auto
Zoom ratio
x10 Optical zoom (x40 with digital zoom)
Pan angle
-100° to +100° (Max. 300°/sec)
Tilt angle
-25° to +25° (Max. 125°/sec)
Preset
Up to 6 positions
S/N
More than 50 dB
Others
Back light compensation, Auto white balance
REMOTE COMMANDER UNIT
Format
Wireless SIRCS
I N T E R FA C E S ( C O M M U N I C AT I O N T E R M I N A L )
Video
D-Sub 15-pin Dedicated Camera I/F x1
S-video or Composite input x1
(switchable with conversion connector)
S-video output x2 (for main/sub monitor)
Composite output (AUX)
RGB output
Audio
Line input RCA
AUX input RCA (bypassess echo cancellor)
External analog microphone input, Mini-jack (Plug in power) x2
External digital microphone input x2
Line output RCA x2 (one mixed output)
Network
10Base-T/100Base-TX
External ISDN Unit I/F
Control
SIRCS IR Out x2
Wired SIRCS In (Control-S)
RS-232C
DSB I/F
Dedicated D-Sub 15
RGB I/F
RGB output
Memory Stick Media
Memory Stick® slot
Digital whiteboard
Dedicated connector
I N T E R FA C E S ( C A M E R A U N I T )
Video
Terminal
AUX camera
GENERAL
IR for DS150
Dedicated 23-pin
8-pin Mini-DIN
Operating temperature
5 °C to 35 °C
Operating humidity
30% to 70%
Storage temperature
-20 °C to +55 °C
Storage humidity
25% to 75%
Power Requirements
PCS-G50: AC 120 V, 50/60 Hz
Power Consumption
DC 19.5 V, 5 A
Communication Terminal
16 5/8 x 2 5/8 x 10 inches (420 x 66 x 254 mm),
Dimensions (W x H x D)
excluding projections
Camera Unit
5 1/4 x 5 5/8 x 5 1/8 inches (131 x 141 x 130 mm),
Dimensions (W x H x D)
excluding projections
Remote Commander Unit
1 7/8 x 1 3/4 x 7 3/4 inches (47 x 43 x 195 mm),
Dimensions (W x H x D)
excluding projections
Communication Terminal Weight
10 lbs 2 oz (4.6 kg)
Camera Unit Weight
2 lbs 3 oz (1.0 kg)
Remote Commander Unit Weight
6.3 oz (180 g), incl. batteries
SYSTEM COMPONENTS AND SUPPLIED
ACCESSORIES
Communication Terminal
Camera Unit (includes dedicated 3 m camera cable)
Remote Commander Unit
AC Adaptor/Power Cord
Omnidirectional Microphone
IR Repeater x2
Manganese Battery for Remote Commander Unit x2
Operation Manual CD-ROM (Japanese, English,
French, Spanish, Italian, German, Portugese,
Simplified Chinese)
Operation Guide
Quick Connection Guide
Cable Connection Guide
Worldwide Warranty Booklet
Audio Cable (1.0 m)
S-Video Cable (1.5 m)
Mini DIN 7-pin to RCA Conversion Connector
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
www.sony.com/conferencesolutions
* AV recording is not supported when AES is active. Also presentation data cannot be recorded.
** Recommended system requirements: Microsoft Windows® XP, Microsoft Internet Explorer® 6.0 or higher, and QuickTime® 6.0 or higher.
*** The optional PCSA-DSB1S Data Solution Box is required to send presentation data.
**** When the H.261 video standard is used, up to 2 Mb/s is supported.
***** Requires optional MCU software. IP/ISDN Bridging is possible.
****** Requires optional MCU software. Connections between base units must be IP (H.323). IP/ISDN Bridging is possible.
VC-0135
Printed in USA 3/06
© 2006 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and specifications are subject
to change without notice. All non-metric weights and measurements are approximate. Sony, IPELA, Remote Commander and Memory Stick are trademarks of Sony.
QuickTime is a trademark of Apple Computer, Inc. Windows XP and Internet Explorer are trademarks of Microsoft Corp.
