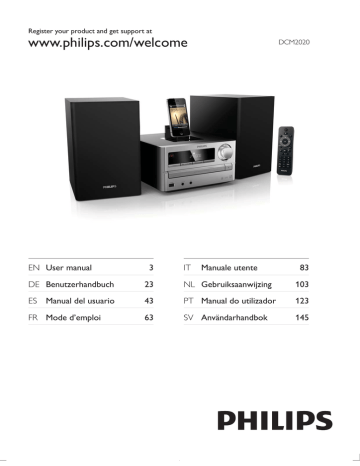

Register your product and get support at
www.philips.com/welcome
EN User manual
3
IT
DCM2020
Manuale utente
83
DE Benutzerhandbuch
23
NL Gebruiksaanwijzing
103
ES Manual del usuario
43
PT Manual do utilizador
123
FR Mode d’emploi
63
SV Användarhandbok
145
1
2
3
4
5
6
Important
4
Safety
Notice
4
4
Your Micro Music System
6
Introduction
What’s in the box
Overview of the main unit
Overview of the remote control
6
6
7
8
Get started
10
Connect speakers
Connect power
Prepare the remote control
Demonstrate the unit’s features
Connect FM aerial
Set clock
Turn on
Store radio stations automatically
10
10
10
11
11
11
12
12
Play
12
Basic play operations
Play from disc
Play from USB
Adjust sound
12
13
13
13
Play iPod/iPhone/iPad
14
iPod/iPhone/iPad compatible
Load the iPod/iPhone/iPad
Listen to the iPod/iPhone/iPad
Charge the iPod/iPhone/iPad
Remove the iPod/iPhone/iPad
14
14
14
15
15
Listen to FM radio
15
Tune to FM radio stations
Program radio stations automatically
Program radio stations manually
Tune to a preset radio station
Show RDS information
15
15
16
16
16
7
8
9
Other features
17
Set alarm timer
Set sleep timer
Listen to external audio device
Listen through headphone
17
17
17
18
Product information
18
USB playability information
Supported MP3 disc formats
19
19
Troubleshooting
20
Sound
Play
Others
20
20
20
21
EN
3
E n gl i sh
Contents
1 Important
Safety
Do no place any source of danger on the
Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Hearing Safety
Caution
To avoid hearing damage, limit the time you use the
headphones at high volume and set the volume to a
safe level. The louder the volume, the shorter is the
safe listening time.
This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The ‘exclamation point’ calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
"#$%$&'(
)
*
shock, this apparatus should not be exposed to
!
-;
such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Be sure to observe the following guidelines
when using your headphones.
Listen at reasonable volumes for
reasonable periods of time.
Be careful not to adjust the volume
continuously upwards as your hearing
adapts.
Do not turn up the volume so high that
you can’t hear what’s around you.
You should use caution or temporarily
discontinue use in potentially hazardous
situations.
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Notice
Warning
Never remove the casing of this apparatus.
Never lubricate any part of this apparatus.
Never place this apparatus on other electrical
equipment.
Keep this apparatus away from direct sunlight, naked
<!
Ensure that you always have easy access to the power
cord, plug or adaptor to disconnect the apparatus from
the power.
The device shall not exposed to dripping
or splashing.
4
EN
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC
!
!
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
!'
>;
*
!**
;
*
!
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
E n gl i sh
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
The making of unauthorized copies of copyprotected material, including computer
!;;
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
“Made for iPod,” “Made for iPhone,” and “Made
for iPad” mean that an electronic accessory
iPod, iPhone, or iPad, respectively, and has
!
Apple performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and regulatory
standards. Please note that the use of this
accessory with iPod, iPhone, or iPad may affect
wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad
is a trademark of Apple Inc.
This apparatus includes this label:
Note
The type plate is located on the bottom of the
apparatus.
Norge
()?
Observer: Nettbryteren er sekundert innkoplet.
Den innebygde netdelen er derfor ikke
*)
?
nettkontakten.
@
?**
))
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
EN
5
2 Your Micro
Music System
Congratulations on your purchase, and
-
!
JX(
**
!
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this unit, you can:
enjoy audio from discs, USB devices, iPod,
iPhone, iPad, and other external devices
listen to radio stations
You can enrich sound output with these sound
effects:
Z
[
Z[
Z!\\
Z\\
The unit supports these media formats:
6
EN
What’s in the box
Check and identify the contents of your
package:
Main unit
Remote control
)
>GH
FM antenna
User manual
Quick start guide
E n gl i sh
Overview of the main unit
a
o
b
n
c
d
e
f
m
g
h
l
i
j
a Dock for iPod/iPhone/iPad
b Disc compartment
Hold the disc.
c
USB socket.
d MP3 LINK
Connect external audio device.
k
g IR sensor
Detect signals from the remote
control. Always point the remote
control at the IR sensor.
h SOURCE
Select a source.
i
e
Headphone socket.
/
Skip to previous/next track.
Search within a track/disc.
Tune to a radio station.
Start or pause play.
Stop play.
Erase a program.
j
f
Turn on the apparatus, switch to
standby mode, or Eco Power standby
mode.
k
EN
7
l - PRESET/ALBUM+
Skip to previous/next album.
Select a preset radio station.
Navigate through iPod/iPhone/iPad
menu.
m Display panel
Show current status.
n
Open or close the disc tray.
o VOLUME
Adjust volume.
Adjust time.
Overview of the remote
control
a
b
c
CD
FM
PRESET/ALBUM
s
r
q
d
OK
MP 3 LINK
e
DOCK
USB
MENU
DISPLAY
f
p
o
RDS
g
h
1
2
3
4
5
6
7
8
9
j
PROG/
CLOCK SET
0
REPEAT/
SHUFFLE
n
k
SLEEP/
TIMER
DSC
DBB
m
i
l
8
EN
VOL
o
Turn on the unit.
Switch to standby or Eco Power
standby mode.
b
Mute volume.
c CD
Select CD source.
d
/
Skip to previous/next track.
Search within a track/disc.
Tune to a radio station.
e USB/ MP3 LINK
f RDS/DISPLAY
For selected FM radio stations: display
RDS information.
Synchronize clock with RDS station.
Display play information.
/MENU
Stop play.
Erase a program.
Access iPod/iPhone/iPad menu.
E n gl i sh
a
p DOCK
Select the dock source for iPod/
iPhone/iPad.
q OK
[
!
Select FM stereo or FM mono.
r PRESET/ALBUM /
Skip to previous/next album.
Select a preset radio station.
Navigate through iPod/iPhone/iPad
menu.
s FM
Select FM radio source.
g
Start or pause play.
h VOL +/ Adjust volume.
i Numeric keypad
Select a track directly.
j PROG/CLOCK SET
Program tracks.
Program radio stations.
Set clock.
k SLEEP/TIMER
Set sleep timer.
Set alarm timer.
l DSC
Select a preset sound setting.
m DBB
Turn on or off dynamic bass
enhancement.
n REPEAT/SHUFFLE
Play tracks randomly.
Select a repeat play mode.
EN
9
3 Get started
Connect power
Caution
Caution
Risk of product damage! Ensure that the power supply
Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
bottom of the apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
voltage corresponds to the voltage printed on the back
or the underside of the unit.
Risk of electric shock! When you unplug the AC power
cord, always pull the plug from the socket. Never pull
the cord.
Before you connect the AC power cord, ensure that
you have completed all other connections.
Connect speakers
1
Note
For optimal sound, use the supplied speakers only.
Connect only speakers with impedance that is the
same or higher than the supplied speakers. Refer to the
*!
1
Insert the speaker wires completely into
the speaker input sockets on the back of
the unit.
Connect the power cable to the wall
socket.
Prepare the remote control
Caution
Risk of explosion! Keep batteries away from heat,
;
$
To insert the remote control battery:
10
EN
1
2
Open the battery compartment.
3
Close the battery compartment.
Insert 2 AAA batteries with correct
_`{
Connect FM aerial
b
FM
E n gl i sh
a
c
Tip
For optimal reception, fully extend and adjust the
position of the antenna.
For better FM stereo reception, connect an outdoor
FM antenna to the FM AERIAL socket.
Note
If you are not going to use the remote control for a
long time, remove the batteries.
Do not use old and new or different types of batteries
in combination.
Batteries contain chemical substances, so they should
be disposed of properly.
The unit does not support MW radio reception.
1
Set clock
1
In standby mode, press PROG/CLOCK
SET for 3 seconds to activate clock setting
mode.
» [CLOCK SET] scrolls on the display,
then the time format [24H] and [12H]
appears.
2
Press / to select 24H or 12H, then
press PROG/CLOCK SET
!
» The hour digits begin to blink.
3
Press / to set hour, then press
PROG/CLOCK SET again.
» The minute digits begin to blink.
4
5
Press
Demonstrate the unit’s
features
1
In the standby mode, press until
“DEMO ON” is displayed.
» This system’s features are displayed
one by one.
To turn off the demonstration, press
again.
Connect the supplied FM antenna to the
FM AERIAL socket on the main unit.
/
to set minute.
Press PROG/CLOCK SET
!
clock setting.
EN
11
Note
4 Play
To exit clock setting mode without storing, press .
If no button is pressed in 90 seconds, the system exits
clock setting mode automatically.
Basic play operations
You can control play through following
operations.
Turn on
1
Press .
» The unit switches to the last selected
source.
Switch to standby mode
1
Press for over 3 seconds to switch the
unit to Eco Power Standby mode.
» The backlight on the display panel
turns off.
To switch the unit to standby mode:
1
In Eco Power Standby mode, press for
over 3 seconds.
» (
)*
display panel.
Store radio stations
automatically
If no radio stations are stored, the unit can store
radio stations automatically.
1
2
Turn on the unit.
Press FM.
» [AUTO INSTALL -- PRESS PLAY -STOP CANCEL] (press
to start
automatic installation, or press to
3
Press
.
» The unit automatically stores radio
-*
» After all available radio stations are
;
broadcast automatically.
12
EN
Key
/
Function
(
)
Press and hold to fast-forward/
fast-reverse the track during
playback, then release to resume
play.
To pause/resume play during
playback.
DISPLAY To select different play information.
REPEAT/ To select a repeat play mode:
SHUFFLE [REP]')
repeatedly.
[REP ALL]'
tracks repeatedly.
[SHUF]*<')
randomly.
Press repeatedly to return to
normal play.
Note
You can also use numeric keys to select a track. If you
want to select a track number larger than 10, press the
!;
!-
3 seconds. For example, if you want to select track 15,
press the numeric key “1”, and then press “5” within 3
seconds.
Adjust sound
1
2
During play, you can adjust volume through
following operations.
Press CD to select the CD source.
Press OPEN/CLOSE.
» The disc compartment opens.
3
Place a disc with the printed side facing up,
then press .
4
Play starts automatically.
If play does not start, press
to select a track, then press
Key
VOL +/DBB
/
.
DSC
Play from USB
E n gl i sh
Play from disc
Function
To increase/decrease the volume.
To mute/restore sound.
To turn on or off dynamic bass
enhancement.
If DBB is activated, [DBB] is
displayed.
To select your desired sound
effect:
[POP
[JAZZ€€
[ROCK
)
[FLAT]<
[CLASSIC
Ensure that the USB device contains playable
audio contents for supported formats.
1
2
Insert the USB device into the USB socket.
Press USB to select the USB source.
» Play starts automatically. If not, press
PRESET/ALBUM to select a folder and
/ (OK
to start play.
EN
13
5 Play iPod/
iPhone/iPad
This system is equipped with a dock for iPod/
iPhone/iPad. You can enjoy audio from the
docked system through the powerful speakers.
Load the iPod/iPhone/iPad
1
Push the lock key to open the lid of the
dock.
2
Load the iPod/iPhone/iPad onto the dock.
iPod/iPhone/iPad compatible
The unit supports these iPod, iPhone and iPad
models:
Made for:
iPod touch (1st, 2nd, 3rd, and 4th
iPod classic
iPod with video
iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th
iPod with color display
iPod mini
iPhone 4
iPhone 3GS
iPhone 3G
iPhone
iPad 2
iPad
Note
iPod with color display, iPod classic, and iPod with video
are not compatible with dock charging.
14
EN
Listen to the iPod/iPhone/
iPad
1
2
3
Press the button DOCK on your RC.
Load your iPod/iPhone/iPad.
Play the selected track on your iPod/
iPhone/iPad.
To pause/resume the play, press
.
To search during play: press and hold
/ , then release to resume
normal play.
To scroll through the menu, press
/ .
(
!
;OK to
!
When the unit is connected to power, the
docked iPod/iPhone/iPad starts charging.
Tip
6 Listen to FM
radio
E n gl i sh
Charge the iPod/iPhone/iPad
Tune to FM radio stations
For certain iPod models, it may take up to a minute
before the charging indication appears.
Note
Ensure that you have connected and fully extended the
supplied FM antenna.
Remove the iPod/iPhone/iPad
1
Unload the iPod/iPhone/iPad from the
dock.
2
Flip down the lid to hide the dock.
1
2
Press FM.
Press and hold
station.
/
to tune to a radio
3
When the frequency starts to change,
release the button.
» The FM tuner tunes to a station with
strong reception automatically.
4
Repeat steps 2-3 to tune to more stations.
To tune to a weak station:
Press
/ !
reception.
Program radio stations
automatically
Note
You can program a maximum of 20 preset radio
stations.
1
In FM tuner mode, press PROG/CLOCK
SET for 3 seconds to activate automatic
programming.
» [AUTO]
» The unit stores all the FM radio
stations automatically and then
station.
EN
15
Program radio stations
manually
2
Press RDS repeatedly to scroll through the
*
-*
!
*'
» Station name
» Program type such as [NEWS]-;
[SPORT]
;[POP M] (pop
!
Note
You can program a maximum of 20 preset radio
» RDS clock
stations.
» Frequency
1
2
3
4
Tune to a radio station.
Press PROG/CLOCK SETto activate
programming mode.
Press / to select a number from
1–20 for this radio station, then press
PROG/CLOCK SET
!
» The preset number and the frequency
of the preset station are displayed.
Repeat steps 2-3 to program other
stations.
Synchronize clock with RDS
You can synchronize time shown on the unit
with that on the RDS station.
1
Tune to a RDS radio station that transmits
time signals.
2
Press RDS for over 2 seconds.
» [CT SYNC] is displayed and the unit
reads RDS time automatically.
» If no time signal is received, [NO CT]
is displayed.
Note
To overwrite a programmed station, store another
Note
station in its place.
The accuracy of the transmitted time depends on the
RDS station that transmits the time signal.
Tune to a preset radio station
1
Press
/
to select a preset number.
Show RDS information
#Z#
Z!
that allows FM stations to show additional
information. If you tune to an RDS station, an
RDS icon and the station name are displayed.
1
Tune to an RDS station.
16
EN
Activate/deactivate alarm timer
1
Set alarm timer
This unit can be used as an alarm clock. You can
select DISC, iPod/iPhone/iPad, playlist, TUNER
or USB as alarm source.
Note
Alarm timer is not available in MP3 LINK mode.
If DISC/USB/iPod/iPhone/iPad source is selected, yet no
Note
Make sure that you have set the time correctly.
1
2
In standby mode, press and hold SLEEP/
TIMER until [TIMER SET]!
on the display.
» [SELECT SOURCE]
scrolls on the screen.
Press SOURCE repeatedly to select a
source: DISC, USB, TUNER, iPod/iPhone/
iPad or playlist.
If iPod/iPhone/iPad playlist is selected
as the alarm source, you need create
a playlist called “PHILIPS” in your
iPod/iPhone/iPad.
If no playlist called “PHILIPS” is created
in the iPod/iPhone/iPad or no track is
stored in the playlist, the unit switches
to TUNER alarm source.
3
Press SLEEP/TIMER
!
» The hour digits are displayed and begin
to blink.
4
Press / repeatedly to set hour, then
press SLEEP/TIMER
!
» The minute digits are displayed and
begin to blink.
5
6
Press / to set minute, then press
SLEEP/TIMER
!
» VOL
!
to blink.
Press / to adjust volume, then press
SLEEP/TIMER
!
»
is displayed.
In standby mode, press SLEEP/TIMER
repeatedly to activate or deactivate timer.
» If timer is activated, is displayed.
disc is placed or no USB/iPod/iPhone/iPad connected,
the system switches to the tuner source automatically.
If iPod/iPhone/iPad playlist is selected as the alarm
source, you need create a playlist called “PHILIPS” in
your iPod/iPhone/iPad.
If no playlist called “PHILIPS” is created in the iPod/
iPhone/iPad or no track is stored in the playlist, the unit
switches to TUNER alarm source.
1
2
3
4
#H
Press PROG/CLOCK SET
into playlist.
Press MENU to view the detailed
information about playlist.
Set sleep timer
1
When the unit is turned on, press SLEEP/
TIMER repeatedly to select a time period
!
» When sleep timer is activated, is
displayed.
» To deactivate sleep timer, press
SLEEP/TIMER again until disappears.
Listen to external audio
device
You can listen to an external audio device such
as MP3 player through this unit.
EN
17
E n gl i sh
7 Other features
1
Connect the audio device.
For audio device with headphone
sockets:
Connect MP3 Link cable to the MP3
LINK socket and to the headphone
socket on the audio device.
2
3
Select MP3 LINK source.
8 Product
information
Note
Play the device.
Product information is subject to change without prior
notice.
Listen through headphone
1
Plug a headphone into the
unit.
socket on the
Rated Output Power
Frequency Response
Signal to Noise Ratio
MP3-Link Input
2X10W RMS
40Hz-20kHZ, ±3dB
>77dB
600mV RMS 22 kohm
Disc
Laser Type
Disc Diameter
Support Disc
Audio DAC
Total Harmonic
Distortion
Frequency Response
S/N Ratio
18
EN
Semiconductor
12cm/8cm
CD-DA, CD-R,
CD-RW, MP3-CD,
WMA-CD
24Bits / 44.1kHz
†‡ˆ)‰€
4Hz - 20kHz
ŠŠ)‰€
>75dBA
Tuning Range
Tuning grid
Sensitivity
- Mono, 26dB S/N Ratio
- Stereo, 46dB S/N Ratio
Search Selectivity
Total Harmonic
Distortion
Signal to Noise Ratio
87.5 - 108MHz
50 KHz
< 22 dBf
< 43 dBf
>28 dBf
<2%
>55 dB
Speakers
Speaker Impedance
Speaker Driver
Sensitivity
6 ohm
10 cm full range
>84dB/m/W ±
4dB/m/W
General information
AC power
Operation Power
Consumption
Eco Standby Power
Consumption
USB Direct
Dimensions
- Main Unit
">‰>Z
- Speaker Box
">‰>Z
Weight
- Main Unit
- Speaker Box
220-240V ~,
50/60Hz
25W
memory cards (requires an additional card
-
)-
Supported formats:
‹\
!!
*
[email protected](H;@(Œ;
@(‘H
€'’H
“J‘'‘H{‘H‡”
variable bit rate
WMA v9 or earlier
Directory nesting up to a maximum of 8
levels
Number of albums/ folders: maximum 99
Number of tracks/titles: maximum 999
ID3 tag v2.0 or later
File name in Unicode UTF8 (maximum
'ŒŠ
Unsupported formats:
Empty albums: an empty album is an album
“J‘`"“;
is not be shown in the display.
‹
*
!)@
>!;"
!
“J‘
->
*
not played.
[;"•;J[“
Z#“
"“-;!Š;
!Š;!Š;
"“–
*
!
œ‡’"
Version 2.0 HS
Supported MP3 disc formats
200 x 118 x 210mm
140 x 224 x 144mm
1.35 kg
1.05 kg x 2
ISO9660, Joliet
Maximum title number: 512 (depending on
!
Maximum album number: 255
Supported sampling frequencies: 32 kHz,
44.1kHz, 48 kHz
\{'‘H˜‘H‡);
variable bit rates
USB playability information
Compatible USB devices:
‹\<!!
‹\H‡
‹\
‹\<‹\H‡
‹\
EN
19
E n gl i sh
Tuner (FM)
9 Troubleshooting
Warning
Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site
---
!`-
!"
contact Philips, ensure that the apparatus
is nearby and the model number and serial
number are available.
No power
Ensure that the AC cord of the apparatus
is connected properly.
Ensure that there is power at the AC
outlet.
As a power-saving feature, the system
switches off automatically 15 minutes after
track play reaches the end and no control
is operated.
No picture
Check the video connection.
Turn on the TV to the correct Video-In
channel.
Progressive scan is activated but the TV
does not support progressive scan.
Black and white or distorted picture
The disc does not match the TV color
!J–`$([
Sometimes a slight picture distortion may
appear. This is not a malfunction.
Clean the disc.
A distorted picture may appear during
progressive scan setup.
20
EN
The aspect ratio of the TV screen cannot be
changed even though you have set the TV
display format.
(
>
DVD disc.
The aspect ratio may not be changed for
some TV systems.
Make sure that the disc contains
Make sure that the TV supports
Sound
No audio output from the TV.
Ensure that the audio cables are connected
to the audio input of the TV.
Assign the audio input of the TV to the
corresponding video input. See the TV user
manual for details.
No sound or poor sound
Adjust the volume.
Disconnect the headphones.
Check that the speakers are connected
correctly.
No audio output from the loudspeakers of
receiver).
Ensure that the audio cables are connected
to the audio input of the audio device.
Turn on the audio device to its correct
audio input source.
Play
No disc detected
Insert a disc.
Check if the disc is inserted upside down.
Wait until the moisture condensation at
the lens has cleared.
Replace or clean the disc.
‹€[Z
*
!
Remote control does not work
\*
*
;
select the correct source with the remote
control instead of the main unit.
Reduce the distance between the remote
control and the unit.
Insert the battery with its polarities (+/–
Replace the battery.
Aim the remote control directly at the
sensor on the front of the unit.
the video content onto a supported disc
E n gl i sh
Disc does not play
Insert a readable disc with the label side
facing you.
Check the disc type, color system and
regional code. Check for any scratches or
smudges on the disc.
Press SYSTEM MENU to exit the system
setup menu.
Disable the password for parental control
or change the rating level.
Moisture has condensed inside the system.
Remove the disc and leave the system
turned on for about an hour. Disconnect
and reconnect the AC power plug, and
then turn on the system again.
As a power-saving feature, the system
turns off automatically 15 minutes after
disc play reaches the end and no control is
operated.
Others
Poor radio reception
Increase the distance between the
apparatus and your TV or VCR.
Fully extend the FM antenna.
Connect an outdoor FM antenna instead.
(!
**
‹\
device has exceeded a certain limit. This
phenomenon is not a malfunction.
(*
!
*
supported.
USB device not supported
The USB storage device is incompatible
with the unitr. Try another one.
Timer does not work
Set the clock correctly.
Switch on the timer.
Clock/timer setting erased
Power has been interrupted or the power
cord has been disconnected.
Reset the clock/timer.
Audio or subtitle languages cannot be set
The disc is not recorded with sound or
subtitles in multiple languages.
The audio or subtitle language setting is
prohibited on the disc.
!"
#
“)Z
complete.
“)>
Due to Digital Rights issue, the
Z#“
USB storage device cannot be played
through an analog video connection (e.g.
!
;
!
;(*
EN
21
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
DCM2020_12_UM_V2.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
