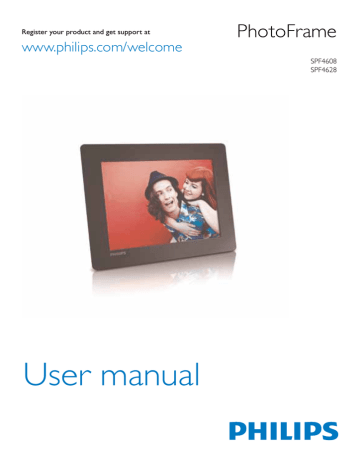

Register your product and get support at
www.philips.com/welcome
PhotoFrame
SPF4608
SPF4628
User manual
North Europe Information (Nordic Countries)
VARNING:
FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH
UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER
DIN UTRUSTNING PÅPLATS.
Placering/Ventilation
ADVARSEL:
S Ø R G V E D P L A C E R I N G E N F O R , AT
NETLEDNINGENS STIK OG STIKKONTAKT ER
NEMT TILGÆNGELIGE.
Paikka/Ilmankierto
VAROITUS:
SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO
VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA
PISTORASIASTA.
Plassering/Ventilasjon
ADVARSEL:
NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE
PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER
LETTE Å NÅ.
Contents
1Important
2
Safety2
Notice2
Banned Substance Declaration
3
2 Your PhotoFrame
4
Introduction4
What's in the box
4
Overview of your PhotoFrame
5
3 Get started
Install the stand
Connect power
Turn on the PhotoFrame
Transfer your media
Quick menu
Know these keypad icons
7
7
7
7
8
9
10
4Play
11
11
5Browse
13
13
13
6Clock
17
17
17
7Message
18
18
19
21
Display photos
Browse albums and photos
Manage albums and media
Display the clock
Clock menu
Create a message
Edit a message
View a created message
8Settings
22
22
22
22
23
24
24
24
25
27
27
9 Upgrade the PhotoFrame
28
10 Product information
29
11 Frequently asked questions
30
Select an on-screen language
Adjust brightness
Set time/date
Set SmartPower timer
Hibernate the PhotoFrame
Set auto orientation
Turn on/off button sound
Slideshow setting
View information of the PhotoFrame
Reset all settings to factory default
Need help?
Please visit www.philips.com/welcome where
you can access a full set of supporting materials
such as user manual, the latest software updates
and answers to frequently asked questions.
EN
1
1Important
Safety
Safety precautions and maintenance
•
•
•
•
•
•
•
•
•
2
Never touch, push, rub or strike the screen
with hard objects as this may damage the
screen permanently.
When the product is not used for long
periods, unplug it.
Before you clean the screen, turn off
and unplug the power cord. Only clean
the screen with a soft, water-damp cloth.
Never use substances such as alcohol,
chemicals or household cleaners to clean
the product.
Never place the product near naked
flames or other heat sources, including
direct sunlight.
Never expose the product to rain or
water. Never place liquid containers, such
as vases, near the product.
Never drop the product. When you drop
the product, it will be damaged.
Ensure that you install and use services or
software only from trustworthy sources
free of virus or harmful software.
This product is designed for indoor use
only.
Only use the supplied power adaptor for
the product.
EN
Notice
This product is in compliance with the essential
requirements and other relevant provisions
of Directives 2006/95/EC (Low Voltage),
2004/108/EC (EMC).
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
End of life disposal
•
Your new product contains materials that
can be recycled and reused. Specialized
companies can recycle your product to
increase the amount of reusable materials
and to minimize the amount to be
disposed of.
• Please find out about the local regulations
on how to dispose your old monitor from
your local Philips dealer.
• (For customers in Canada and U.S.A.)
Dispose the old product in accordance to
local-state and federal regulations.
For additional information on recycling contact
www.eia.org (Consumer Education Initiative).
Recycling Information for Customers
Philips establishes technically and economically
viable objectives to optimize the environmental
performance of the organization's product,
service and activities.
From the planning, design and production
stages, Philips emphasizes the importance of
making products that can easily be recycled. At
Philips, end-of-life management primarily entails
participation in national take-back initiatives
and recycling programs whenever possible,
preferably in cooperation with competitors.
There is currently a system of recycling up and
running in the European countries, such as The
Netherlands, Belgium, Norway, Sweden and
Denmark.
In U.S.A., Philips Consumer Lifestyle North
America has contributed funds for the
Electronic Industries Alliance (EIA) Electronics
Recycling Project and state recycling initiatives
for end-of-life electronics products from
household sources. In addition, the Northeast
Recycling Council (NERC) - a multi-state
non-profit organization focused on promoting
recycling market development - plans to
implement a recycling program.
In Asia Pacific, Taiwan, the products can be taken
back by Environment Protection Administration
(EPA) to follow the IT product recycling
management process, detail can be found in
web site www.epa.gov.tw.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Banned Substance
Declaration
This product complies with RoHS.
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert innkoplet.
Den innebygde netdelen er derfor ikke
frakoplet nettet så lenge apparatet er tilsluttet
nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
EN
3
2Your
PhotoFrame
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With Philips Digital PhotoFrame, you can
• display JPEG photos
• create gift messages.
What's in the box
•
Philips Digital PhotoFrame
•
Stand
•
AC-DC power adaptor
•
USB cable
4
EN
Register your product and get support at
www.philips.com/welcome
PhotoFrame
Quick Start Guide
•
User manual
Overview of your
PhotoFrame
a
b
c
d
k
j
i
e
f
a
MODE / POWER
• Press to turn on the PhotoFrame.
• Press and hold to turn off the
PhotoFrame.
• Press to switch modes: slideshow/
clock/calendar.
b
/ BACK / HOME
• Press to return to the previous step.
• Press and hold to go to the home
screen.
g
h
c OK (Joystick)
• Press to confirm a selection.
• Press to pause or resume play.
• Move up/down/left/right to select the
upper/lower/right/left option.
d MENU
• Press to enter/exit the menu.
e
• Slot for a USB cable to PC
EN
5
f SD/MMC/MS/MS Pro Duo
• Slot for an SD/MMC/MS/MS Pro Duo
card
g Stand hole
h DC IN
• Socket for the AC-DC power adaptor
i
Kensington lock
j Speaker
k Stand hole
6
EN
3 Get started
Caution
•• Use the controls only as stated in this user manual.
Connect power
Note
•• When you position the PhotoFrame, make sure that
the power plug and outlet are easily accessible.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
back of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install the stand
1
2
Place the PhotoFrame on a flat surface.
Insert the supplied stand to the stand hole
of the PhotoFrame.
Connect the supplied power adaptor to:
• the DC IN socket of the PhotoFrame
• the AC outlet
»» A few seconds later, the PhotoFrame
turns on automatically.
Turn on the PhotoFrame
Note
•• When you connect the PhotoFrame to a power supply,
the PhotoFrame turns on automatically.
When the PhotoFrame is turned off and
connected to the power supply, press and hold
to turn on the PhotoFrame.
EN
7
For the first time you turn on the
PhotoFrame:
• The screen prompts you to select a
language. Select a language, and then press
OK.
Turn off the PhotoFrame
Note
•• You can only turn off the PhotoFrame after all copy and
save actions are complete.
•
To turn off the PhotoFrame, press and hold
for about 2 seconds.
Transfer your media
Transfer photos from a storage device
•
The screen prompts you to set time and
date. Move the joystick to set time and
date, and then press OK.
Caution
•• Do not disconnect the storage device from the
PhotoFrame during media transfer.
The PhotoFrame supports most types of the
following storage device:
• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• Multimedia Card (MMC)
• Memory Stick (MS)
• Memory Stick Pro Duo (MS Pro Duo)
1
Insert a storage device into the
PhotoFrame.
»» An option menu is displayed.
Tip
•• If the PhotoFrame is disconnected from the power
supply for a long time, you need set time and date again
after you turn on the PhotoFrame.
[Play Photos]: Select it to play media on
the storage device.
8
EN
2
[Browse]: Select it to browse media on the
storage device.
[Copy to PhotoFrame]: Select it to start
transfer operation.
Select [Copy to PhotoFrame], and then
press OK.
»» A confirmation message is displayed.
2
»» You can drag and drop the media from
the computer to an album on the
PhotoFrame.
When the transfer is complete, disconnect
the USB cable from the computer and the
PhotoFrame.
Tip
•• You can transfer media from the PhotoFrame to a
computer.
•• The transfer speed depends on the operating system
and the software configuration of the computer.
Quick menu
1
3
•
In the home screen, press MENU.
»» The quick menu is displayed.
Select [Yes], and then press OK.
To remove a storage device, pull it out of
the PhotoFrame.
Transfer photos from a computer
Caution
•• Do not disconnect the PhotoFrame from the computer
during media transfer.
1
Connect the USB cable to the PhotoFrame
and the computer.
2
3
•
Select an option, and then press OK.
Follow the on screen instructions to adjust
the brightness or view the status of the
PhotoFrame.
To exit the quick menu, press MENU
repeatedly.
EN
9
Know these keypad icons
/ ABC
aA
10
EN
Input in English
Input in supported
European languages
Input in Simplified Chinese
Input in Russian
Switch to select symbols,
punctuations, alphabet or
numbers
Switch between upper and
lower case
Enter a blank space
Enter a line break
4Play
Display photos
Manage slideshow and photos
You can take the following steps to manage
the photo in slideshow mode or change
slideshow settings:
1
Press MENU.
»» An option menu is displayed.
Note
•• You can display JPEG photos in slideshow mode on the
PhotoFrame.
2
•
•
Select [Play], and then press OK.
»» Photos are displayed in slideshow mode.
•
• To select the previous/next photo, move
the joystick to the left/right.
• To pause the slideshow, press OK.
• To resume the slideshow, press OK again.
•
•
•
•
•
Select an option, and then press OK.
[View Mode]: Select the view mode.
[Add to Favorites]: Add the photo to the
[Favorites] album on the PhotoFrame.
[Slideshow Settings]
• [Interval]: Set the time interval
between consecutive photos.
• [Shuffle]: Play photos randomly or not.
• [Color Tone]: Select a color setting for
the photo.
• [Transition Effect]: Select a transition
effect.
• [Background Color]: Select a
background color.
[Rotate]: Select an orientation to rotate
the photo.
[Copy]: Copy the photo to another album.
[Delete]: Delete the photo.
[Zoom]: Zoom and crop the photo.
[Brightness]: Move the joystick up/down to
adjust the brightness of display.
EN
11
Zoom and crop a photo
7
Select [Yes], and then press OK.
When the view mode is selected as single, you
can zoom in a photo, crop it, and save it as a
new photo as follows:
1
2
In slideshow mode, press MENU.
»» An option menu is displayed.
Move the joystick downwards repeatedly
to select [Zoom].
8
3
4
5
6
Press OK repeatedly to zoom in the photo
(or exit the zoom mode).
Move the joystick to pan the photo.
Press MENU.
Select [Crop and Save], and then press
OK.
»» A confirmation message is displayed.
12
EN
• To cancel the operation, select [No]
and then press OK.
Select an album or storage device to save
the new photo, and then press OK.
»» After the photo is saved, the
PhotoFrame goes back to the
slideshow mode.
5Browse
Browse albums and photos
You can browse and manage albums and media
in wave mode or album mode.
• Wave mode:
•
1
2
3
Album mode:
In the home screen, select [Browse] and
then press OK.
»» Albums are displayed in wave mode.
Press to switch between wave mode and
album mode.
View photos.
• Press OK once: A photo is displayed in
pause mode.
• Press OK twice: Slideshow is started.
Manage albums and media
PhotoFrame
1
2
3
Select [PhotoFrame].
Press MENU.
»» An option menu is displayed.
Select an option, and then press OK to
continue.
• [Add to Favorites]: Copy all photos
from the [PhotoFrame] album to the
[Favorites] album
• [Create New Album]: Create an album
• [Copy]: Copy all photos from the
[PhotoFrame] album to another album
• [Move]: Move all photos from the
[PhotoFrame] album to another album
• [Delete]: Delete all photos from the
[PhotoFrame] album
• [Multiple-select]: Select multiple
photos to manage
SD/MMC Card
1
2
3
Select [SD/MMC Card].
Press MENU.
»» An option menu is displayed.
Select an option, and then press OK to
continue.
• [Add to Favorites]: Copy all photos
from the card to the [Favorites] album
• [Copy]: Copy all photos from the card
to another album
EN
13
• [Move]: Move all photos from the card
to another album
• [Delete]: Delete all photos from the
card
Album
1
2
Select an album under [PhotoFrame].
Press MENU.
»» An option menu is displayed.
3
3
Select an option, and then press OK to
continue.
• [Add to Favorites]: Copy all photos
from the album to the [Favorites]
album
• [Create New Album]: Create an album
• [Copy]: Copy all photos from the
album to another album
• [Move]: Move all photos from the
album to another album
• [Delete]: Delete all photos from the
album
• [Rename]: Rename the album
• [Multiple-select]: Select multiple
photos to manage
Thumbnail
1
2
14
Select a thumbnail in album mode.
Press MENU.
»» An option menu is displayed.
EN
Select an option, and then press OK to
continue.
• [Add to Favorites]: Copy the photo to
the [Favorites] album
• [Copy]: Copy the photo to another
album
• [Move]: Move the photo to another
album or card
• [Delete]: Delete the photo from the
album
• [Rotate]: Rotate the photo in the
album
• [Color Tone]: Select a color setting for
the photo
• [Multiple-select]: Select multiple
photos to manage
Favorites
1
2
Select [Favorites].
Press MENU.
»» An option menu is displayed.
3
Select an option, and then press OK to
continue.
• [Copy]: Copy all photos from the
album to another album
• [Delete]: Delete all photos in the
album
2
Rename an album
Add media to the favorite album
1
To add a photo or all photos in an album to
the [Favorites] album:
Select [Add to Favorites], and then press OK.
2
Create an album
3
1
2
3
4
Select [Create New Album], and then
press OK.
To enter the name (about 24 characters),
select an alphabet/number and then press
OK.
• To switch between uppercase and
lowercase, select aA on the displayed
keypad and then press OK.
When the name is complete, select
then press OK.
and
Press OK to start the saving process.
4
1
2
Select [Copy], and then press OK.
Select a destination album, and then press
OK to start copy.
Move media
1
2
Select [Move], and then press OK.
Select a destination album, and then press
OK to start move.
Delete media
1
Select [Delete], and then press OK.
»» A confirmation message is displayed.
Select [Rename], and then press OK to
confirm.
»» A keypad is displayed.
Move the joystick downwards twice to
enter the keypad.
To enter the name (about 24 characters),
select an alphabet/number and then press
OK.
• To switch between uppercase and
lowercase, select aA on the displayed
keypad and then press OK.
When the name is complete, select
then press OK.
and
Select multiple media to manage
Copy media
1
2
Select [Yes], and then press OK to start
deletion.
• To cancel the operation, hold
/
BACK / HOME.
3
4
Select [Multiple-select], and then press
OK.
Select media.
• To select all media in the album, press
OK.
• To select some of the media: Move
the joystick and press OK to select a
medium. Then repeat this step to select
others.
• To de-select a medium, select it and
then press OK again.
After selection is complete, press MENU
to continue.
»» An option menu is displayed.
Select an option to continue.
• [Add to Favorites]: Add the selected
photos to the [Favorites] album
• [Copy]: Copy the selected photos to
another album
• [Move]: Move the selected photos to
another album
EN
15
• [Delete]: Delete the selected photos
• [Rotate]: Rotate the selected photos
• [Play Slideshow]: Play the selected
photos in slideshow mode
Rotate photos
1
2
16
Select [Rotate], and then press OK.
Select an angle to rotate, and then press
OK.
EN
6Clock
Display the clock
In the home screen, select [Clock] and then
press OK.
»» A clock/calendar is displayed.
•
[Time and Date]: Move the joystick up/
down/left/right to set time/date or to
select a time/date format. For details, see
"Settings" > "Set time and date".
Select a clock/calendar style
1
2
In the clock menu, select [Select Clock]
and then press OK.
Move the joystick left/right to select a clock
or calendar template, and then press OK.
• To go back to the home screen, hold
/ BACK / HOME.
Clock menu
When a clock/calendar is displayed, press
MENU to enter the clock menu.
•
[Select Clock]: Move the joystick left/right
to select another clock or calendar to be
displayed.
EN
17
7Message
3
Move the joystick right or left to select a
message template, and then press OK.
Create a message
1
In the home screen, select [Message] and
then press OK.
4
2
Select [Done].
Select [Add a message to your photo],
and then press OK.
»» The screen prompts you to schedule
the message.
18
EN
5
6
•
•
Schedule the message.
• [Message Name]: Enter the message
name. For details, see "Enter the name
of a message".
• [Repeat]: Select a repeat frequency
• [Set Date]: Set the date or day
• [Set Time]: Set the time
After you complete the message, select
[Done] and then press OK.
To view the available messages, select
[View Message].
To go back to the home screen, hold
BACK / HOME.
2
3
4
1
2
3
/
In the home screen, select [Message] and
then press OK. Move the joystick to select
one of the following options to edit a
message.
Select [Add a message to your photo],
and then press OK.
Move the joystick right or left to select a
message template, and then press OK.
• [Change Image]: Change the photo of
the message.
• [Edit Text]: Edit the text of message.
To change the photo of a message:
Enter the name of a message
1
Edit a message
Select [Message Name], and then press
OK.
Move the joystick downward twice to
enter the keypad.
1
2
Select [Change Image], and then press OK.
Select a photo available on the
PhotoFrame, and then press OK.
To enter the name (about 24 characters),
select an alphabet/number and then press
OK.
• To switch between uppercase and
lowercase, select aA on the displayed
keypad and then press OK.
When the name is complete, select
then press OK.
and
EN
19
To edit the text of a message:
1
2
3
4
5
6
20
Select [Edit Text], and then press OK.
Select a preset template, and then press
OK.
»» The keypad is displayed.
7
Move the joystick up/down/right/left to
select the color or font of the text, and
then press OK.
8
Move to
9
Select [Done], and then press OK.
, and then press OK.
Move the joystick downwards twice to
enter the keypad.
To enter the text, select an alphabet/
number and then press OK.
• Select an input method, see "Know
these keypad icons".
• To switch between uppercase and
lowercase, select aA on the displayed
keypad and then press OK.
After you enter the text, select
press OK.
and then
Move the joystick up/down/right/left to
position the text, and then press OK.
EN
View a created message
1
2
3
Select a message template, and then press
OK.
»» A message template is displayed.
In the home screen, select [Message] and
then press OK.
•
To reschedule or delete the message,
press MENU and then select an option to
continue.
•
To go back to the message browser screen,
select [Done] and then press OK.
Select [View Message], and then press OK.
EN
21
8Settings
Adjust brightness
Select an on-screen language
You can adjust the brightness of the
PhotoFrame to achieve the best view.
In the home screen, select [Settings] and then
press OK.
1
In the home screen, select [Settings] and
then press OK.
1
2
2
Select [Brightness], and then press OK.
Move the joystick up/down to adjust
brightness, and then press OK.
Select [Language], and then press OK.
Set time/date
1
2
3
Select a language, and then press OK.
22
EN
In the home screen, select [Settings] and
then press OK.
Select [Time and Date], and then press
OK.
3
4
Select [Set Time] / [Set Date], and then
press OK.
Move the joystick up/down/right/left to
adjust minute/hour/day/month/year, and
then press OK.
1
2
3
Set time/date format
1
2
3
4
In the home screen, select [Settings] and
then press OK.
Select [SmartPower], and then press OK.
Select [Set On-Time] / [Set Off-Time],
and then press OK.
»» To switch off the SmartPower function,
select [Off] and then press OK.
In the home screen, select [Settings] and
then press OK.
Select [Time and Date], and then press
OK.
Select [Select Time Format] / [Select Date
Format], and then press OK.
Select a format, and then press OK.
4
Move the joystick up/down/right/left to set
time, and then press OK.
Tip
•• When the PhotoFrame is in standby (sleep) mode, you
can press
to wake up the PhotoFrame.
Set SmartPower timer
With the SmartPower timer, you can configure
the time for the display of the PhotoFrame to
turn on or turn off automatically. When the
display automatically turns off, the PhotoFrame
goes to standby (sleep) mode.
Note
•• Ensure that the current time of the PhotoFrame is set
correctly.
EN
23
Hibernate the PhotoFrame
Set auto orientation
1
With the auto orientation function, you can play
photos in the correct orientation depending
on the horizontal/vertical orientation of the
PhotoFrame.
2
3
In the home screen, select [Settings] and
then press OK.
Select [Hibernate], and then press OK.
Select an option, and then press OK.
1
2
3
In the home screen, select [Settings] and
then press OK.
Select [Auto-orientate], and then press
OK.
Select [On], and then press OK.
»» After the selected period, the
PhotoFrame hibernates.
•
To disable the hibernation function, select
[Never] and then press OK.
• To disable the auto orientation
function, select [Off] and then press
OK.
Turn on/off button sound
1
2
•
To wake up the PhotoFrame, press .
24
EN
In the home screen, select [Settings] and
then press OK.
Select [Set Beep], and then press OK.
3
To turn on the button sound, select [On]
and then press OK.
Select slideshow sequence
1
2
3
4
In the home screen, select [Settings] and
then press OK.
Select [Slideshow], and then press OK.
Select [Shuffle], and then press OK.
To display slideshow randomly, select [On]
and then press OK.
• To display slideshow in sequence,
select [Off] and then press OK.
Select view mode for slideshow
• To turn off the button sound, select
[Off] and then press OK.
1
In the home screen, select [Settings] and
then press OK.
Slideshow setting
2
3
4
Select slideshow interval
Select transition effect
1
2
3
4
In the home screen, select [Settings] and
then press OK.
1
Select [Interval], and then press OK.
2
3
Select a slideshow interval, and then press
OK.
4
Select [Slideshow], and then press OK.
Select [Slideshow], and then press OK.
Select [View Mode], and then press OK.
Select a view mode for slideshow, and then
press OK.
In the home screen, select [Settings] and
then press OK.
Select [Slideshow], and then press OK.
Select [Transition Effect], and then press
OK.
Select a transition effect, and then press
OK.
EN
25
Select background color
You can select a background border color for
photos that are smaller than the PhotoFrame
display.
1
2
3
4
»» If you select a background color, the
PhotoFrame displays a photo with a
background color.
In the home screen, select [Settings] and
then press OK.
Select [Slideshow], and then press OK.
Select [Background Color], and then press
OK.
Select [RadiantColor] / a background
color/ [Auto-fit], and then press OK.
»» If you select [Auto-fit], the
PhotoFrame extends a photo to fill the
screen with picture distortion.
»» If you select [RadiantColor], the
PhotoFrame extends the color on the
edges of a photo that is smaller than
the full screen to fill the screen without
black bars or aspect ratio distortion.
26
EN
View information of the
PhotoFrame
Reset all settings to factory
default
You can find the model name, the firmware
version of the PhotoFrame, and the memory
status of the PhotoFrame and other storage
device available on the PhotoFrame.
1
1
2
2
In the home screen, select [Settings] and
then press OK.
In the home screen, select [Settings] and
then press OK.
Select [Default Settings], and then press
OK.
Select [Info].
»» The information of the PhotoFrame is
displayed on the screen.
3
4
•
Select [Yes], and then press OK.
»» A confirmation message is displayed.
Select [Yes], and then press OK.
»» All settings on the PhotoFrame are set
to factory default.
To cancel the operation, select [No] in the
prompt message and then press OK.
EN
27
9 Upgrade the
PhotoFrame
Caution
•• Do not power off the PhotoFrame during software
upgrade.
If there is a software update, you can download
the latest software from www.philips.com/
support to upgrade your PhotoFrame. The
earlier software is unavailable on line.
1
2
3
4
5
6
28
Visit www.philips.com/support.
Search for your PhotoFrame and go to the
software section.
Download the latest software onto the
root directory of an SD card.
Insert the SD card into the PhotoFrame.
Turn on the PhotoFrame
»» A confirmation message is displayed.
Select [Yes], and then press OK to
confirm.
»» When the upgrade is complete, the
PhotoFrame reboots.
EN
10Product
information
Note
•• Product information is subject to change without prior
notice.
Picture/Display
• Viewing angle: @ C/R > 10, 140° (H)/120°
(V)
• Lifetime, to 50% brightness: 20000 hr
• Aspect ratio: 4:3
• Panel resolution: 800 x 600
• Brightness (typical): 160 cd/m²
• Contrast ratio (typical): 400:1
• Photo format support:
• JPEG photo (maximum: 8000 x 8000
pixel resolution)
• Progressive JPEG photo (Up to 1024 x
768 pixels)
Storage media
• Internal memory capacity: 2 GB
• Memory Card Types:
• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
• Multimedia Card (MMC)
• Memory Stick (MS)
• Memory Stick Pro Duo (MS Pro Duo)
Temperature range
• Operation: 0 °C - 40 °C
• Storage: -20 °C - 70 °C
Power
• Power mode supported: AC powered
• Efficiency level: V
• Average consumption (system on): 4 W
• Power adaptor:
• Model number: ASUC12x-050100 (x
= E, B, C, I)
• Input: AC 100-240V ~ 50-60Hz 0.3A
• Output : DC 5V
1A
Adaptor
ASUC12E-050100
ASUC12B-050100
ASUC12C-050100
ASUC12I-050100
Region
Europe, Russia, and
Singapore
U.K. and Hong Kong
Australia and New
Zealand
China
Accessories
• AC-DC adaptor
• USB cable
• User manual
Connectivity
• USB: USB 2.0 Slave
Dimensions and weight
• Set dimensions without stand (W x
H x D): 211.6 x 171.3 x 21.4 mm
• Set dimensions with stand (W x H x D):
211.6 x 171.3 x 58 mm
• Weight withstand: 0.418 kg
EN
29
11Frequently
asked questions
Is the LCD screen touch-enabled?
The LCD screen is not touch-enabled. Use the
buttons on the back to control the PhotoFrame.
Can I use the PhotoFrame to delete photos
on a memory card?
Yes, it supports operations to delete photos
on an external device, such as a memory card.
Ensure that you enable the deletion function on
a memory card available on the PhotoFrame.
Why does my PhotoFrame not show some of
my photos?
• The PhotoFrame plays only JPEG photos
(maximum: 8000 x 8000 pixel resolution)
and Progressive JPEG photo (Up to 1024
x 768 pixels).
• Ensure that these photos are not damaged.
Why does the PhotoFrame not go into autooff status after I set it?
Ensure that you set the real time, auto-off time,
and auto-on time correctly. The PhotoFrame
automatically turns off its display exactly at the
auto-off time. If the time has already passed for
the day, it starts to go into auto-off status at the
specified time from the next day.
Can I increase the memory size to store more
pictures on the PhotoFrame?
No. The internal memory of the PhotoFrame is
fixed and cannot be expanded. However, you
could switch between different photos by using
different storage devices on the PhotoFrame.
30
EN
Specifications are subject to change without notice
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
UM_V1.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
