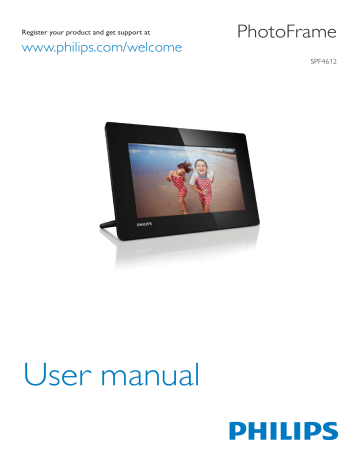

Register your product and get support at

www.philips.com/welcome

PhotoFrame

SPF4612

User manual

Contents

1 Important

2

Safety 2

Notice 2

Banned Substance Declaration 3

4

Introduction 4

Playable media

What's in the box

4

4

Overview of your PhotoFrame 5

Install the stand

Connect power

Turn on the PhotoFrame

Transfer photos

Quick menu

6

6

7

6

6

8

Manage slideshow and photos

Manage albums and media

9

9

10

11

6 Clock and calendar

Clock menu

7 Setup

Select an on-screen language

Adjust display brightness

Set time and date

Set SmartPower timer

Hibernate the PhotoFrame

Slideshow setting

View the status of the PhotoFrame

Restore factory defaults

12

12

13

13

13

13

14

14

14

15

15

8 Upgrade the PhotoFrame

10 Frequently asked questions

11 Glossary

Need help?

Please visit www.philips.com/welcome where you can access a full set of supporting materials such as user manual, the latest software updates and answers to frequently asked questions.

EN 1

18

20

16

17

1 Important

Safety

Safety precautions and maintenance

Never touch, push, rub or strike the screen with hard objects as this may damage the screen permanently.

When the product is not used for long periods, unplug it.

Before you clean the screen, turn off and unplug the power cord. Only clean the screen with a soft, water-damp cloth.

Never use substances such as alcohol, chemicals or household cleaners to clean the product.

Never place the product near naked direct sunlight.

Never expose the product to rain or water. Never place liquid containers, such as vases, near the product.

Never drop the product. When you drop the product, it will be damaged.

Ensure that you install and use services or software only from trustworthy sources free of virus or harmful software.

This product is designed for indoor use only.

Only use the supplied power adaptor for the product.

Notice

This product is in compliance with the essential requirements and other relevant provisions of Directives 2006/95/EC (Low Voltage),

2004/108/EC (EMC).

2 EN

The making of unauthorized copies of copyprotected material, including computer recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

End of life disposal

Your new product contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

on how to dispose your old monitor from your local Philips dealer.

(For customers in Canada and U.S.A.)

Dispose the old product in accordance to local-state and federal regulations.

For additional information on recycling contact www.eia.org (Consumer Education Initiative).

Recycling Information for Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities.

From the planning, design and production stages, Philips emphasizes the importance of making products that can easily be recycled. At

Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.

There is currently a system of recycling up and running in the European countries, such as The

Netherlands, Belgium, Norway, Sweden and

Denmark.

In U.S.A., Philips Consumer Lifestyle North

America has contributed funds for the

Electronic Industries Alliance (EIA) Electronics

Recycling Project and state recycling initiatives for end-of-life electronics products from household sources. In addition, the Northeast

Recycling Council (NERC) - a multi-state recycling market development - plans to implement a recycling program.

! " #$ back by Environment Protection Administration

(EPA) to follow the IT product recycling management process, detail can be found in web site www.epa.gov.tw.

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive

2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.

Banned Substance

Declaration

This product complies with RoHS.

EN 3

4 EN

2 Your

PhotoFrame

Congratulations on your purchase, and

# %"& support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this Philips Digital PhotoFrame, you can display photos in high quality and play videos

&& *+; drive.

Playable media


JPG, JPEG

Baseline: < 8000 x 8000 pixels

Progressive: < 800 x 600 pixels

BMP

> 64 x 64 pixels

Video

Resolution: 1080p

Bitrate: 20 Mbps

Frame rate: 30 fps

AVI

Video codec: MPEG-4 (Part 2), H.264,

M-JPEG

Audio codec: PCM (128–536 kbps,

8–48 kHz), ADPCM (32–384 kbps,

8–48 kHz), AAC (8–256 kbps, 8–48 kHz)

TS, TMS

Video codec: H.264

Audio codec: LPCM (192–448 kbps,

48–96 kHz), AAC (8–256 kbps, 8–48 kHz)

MOV, MP4

Video codec: MPEG-4, H.264

Audio codec: PCM (128–536 kbps,

8–48 kHz), ADPCM (32–384 kbps,

8–48 kHz), AAC (8–256 kbps, 8–48 kHz)

DivX, Xvid, and VC1 are not supported.

What's in the box

Stand

Philips Digital PhotoFrame

AC-DC power adaptor

USB cable

Register your product and get support at www.philips.com/welcome

User Manual

PhotoFrame

User manual

Overview of your

PhotoFrame

Press and hold to go to the home screen a

MODE / POWER a b c d e f g

Press to turn on the PhotoFrame

Press and hold to turn off the

PhotoFrame

Press to switch modes: slideshow/ clock/calendar b

BACK / HOME

OK h i

Press to return to the previous step c

/ / /

Press to select the upper/lower/right/ left option.

d

OK

Press to start/pause/resume play.

= e

MENU

Press to enter/exit a menu.

f

Speaker g

Kensington lock h

DC

Socket for the AC-DC power adaptor.

i

SD/MMC/MS/MS Pro

Slot for an SD/MMC/MS/MS Pro card j

USB socket k

Stand hole l

Wall mounting hole j l k

EN 5

6 EN

Caution

Use the controls only as stated in this user manual.

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the back of the apparatus. Write the numbers here:

Model No. __________________________

Serial No. ___________________________

Install the stand

"?

attach the supplied stand to the back of the

PhotoFrame.

1

Insert the stand into the PhotoFrame.

2

Turn the stand anti-clockwise 45 degrees

$ ?&=

Connect power

Note

When you position the PhotoFrame, make sure that the power plug and outlet are easily accessible.

Connect the supplied power adaptor to: the DC socket of the PhotoFrame the AC outlet

»

A few seconds later, the PhotoFrame turns on automatically.

Turn on the PhotoFrame

Note

When you connect the PhotoFrame to a power supply, the PhotoFrame turns on automatically.

When the PhotoFrame is turned off and connected to the power supply, you can press to turn on the PhotoFrame.

»

A few seconds later, the home screen is displayed.

PhotoFrame :

The screen prompts you to select a language.

Press / to select a language, and then press OK =

Turn off the PhotoFrame

Note

You can only turn off the PhotoFrame after all copy and save actions are complete.

To turn off the PhotoFrame, press and hold

for 2 seconds.

Transfer photos

Caution

Do not remove a storage device from the PhotoFrame when you are transferring photos from the storage device.

Philips does not guarantee the compatibility with all types of storage device media.

Neither multiple card reader nor MP3/MP4 player can be read.

You can play photos on one of the following storage device that is connected to the

PhotoFrame:

Secure Digital (SD)

Secure Digital High Capacity (SDHC)

Multimedia Card (MMC)

Memory Stick (MS)

Memory Stick Pro (MS Pro, with adaptor)

*+; @ *+; cable)

1

Insert a storage device into the slot.

________________________________

»

! &=

[Play Photos] : Select it to play media on the storage device.

[Browse] : Select it to browse media on the storage device.

[Copy to PhotoFrame] : Select it to start transfer operation.

EN 7

8 EN

2

Select [Copy to PhotoFrame] , and then press OK .

»

! &=

To copy photos to the PhotoFrame :

Select [Yes] , and then press OK =

To display photos directly :

1

Select [No] , and then press OK to

=

2

Select [Photo] , and then press OK .

To remove a storage device , pull it out.

Quick menu

1

In the home screen, press MENU .

»

The quick menu is displayed.

repeatedly.

2

Select an option, and then press OK .

3

Follow the on-screen instructions to adjust the brightness or view the status of the

PhotoFrame.

To exit the quick menu , press MENU

1

In the home menu, press / to select

[Photo] and then press OK .

»

The [Browse] interface is displayed.

mode.

2

Select a storage device and then select a photo thumbnail.

3

Press OK .

»

Photos are displayed in slideshow

During slideshow, press / to display the next/previous photo.

Manage slideshow and photos

You can take the following steps to manage the photo in slideshow mode or change the slideshow settings :

1

Press MENU .

»

An option menu is displayed.

2

Select an option, and then press OK .

[Slideshow Settings]

[Interval] : Set the interval in slideshow.

: Play media randomly or not.

[Color Tone] : Select the color for the photo.

[Transition Effect] : Select the transition effect.

[Background Color] : Select the background color.

[Zoom] : Zoom and crop a photo.

[Rotate] : Select an orientation to rotate the photo.

[Copy] : Copy the photo to another album.

[Delete] : Delete the photo.

[Brightness] : Move the joystick up/down to adjust the brightness of display.

EN 9

Manage albums and media

Storage device

1

Select a storage device: [PhotoAlbum] ,

[SD/MMC Card] , or [USB Drive] .

2

Press MENU .

»

An option menu is displayed.

continue.

3

Select an option, and then press OK to

[Copy] : Copy media on the storage device to another one

[Delete] : Delete media on the storage device

Thumbnail

1

Select a photo thumbnail.

2

Press MENU .

»

An option menu is displayed.

10 EN

3

Select an option, and then press OK to continue.

[Copy] : Copy this photo to another storage device

[Delete] : Delete this photo

[Color Tone] : Select a color for this photo

Copy media

1

Select [Copy] , and then press OK .

2

Select a destination storage device, and then press OK to start copy.

Delete media

1

Select [Delete] , and then press OK .

»

! &=

2

Select [Yes] , and then press OK to start deletion.

To cancel the operation, press .

Note

See " Your PhotoFrame " > " Playable media " for supported video formats.

+ & compatibility.

1

In the home menu, press / to select

[Video] , and then press OK .

»

The following interface is displayed.

To pause/resume play, press OK .

2

+ OK .

»

The video starts play.

To adjust the volume, press / .

1

+ MENU .

2

Select an option, and then press OK .

[Copy] \]& storage device

[Delete] \^

[Repeat] : Select a play mode between

[Play Once] and [Play in Loop]

EN 11

calendar

12 EN

You can display clock and calendar in slideshow or display the clock separately.

1

Make sure that you have set the time and date correctly.

2

In the home menu, press / to select

[Clock] , and then press OK .

3

Press / to select different clock/ calendar display mode.

Clock menu

1

With the clock displayed, press MENU .

»

An option menu is displayed.

2

Select an option and then press OK .

[Select Clock] : Press / to preview clock/calendar styles, and then press

OK to select the highlighted one.

[Time and Date] : Set the time and date.

7 Setup

In the home menu, press / to select

[Settings] , and then press OK .

Select an on-screen language

1

Select [Language] , and then press OK .

2

Select a language, and then press OK .

Adjust display brightness

1

Select [Brightness] , and then press OK .

2

Press / to select a brightness level, and then press OK .

Set time and date

1

Select [Time and Date] , and then press

OK .

2

Select [Set Time] , [Set Date] , [Select Time

Format] , or [Select Date Format] , and then press OK .

3

Press / / / to set the value, and then press OK .

EN 13

Note

If the PhotoFrame is disconnected from the power supply for a long time, you need set time and date again after you turn on the PhotoFrame.

14 EN

Set SmartPower timer

` +# & the time for the display of the PhotoFrame to turn on or turn off automatically. When the display automatically turns off, the PhotoFrame goes to standby (sleep) mode.

Note

Make sure that the current time of the PhotoFrame is set correctly.

1

Select [SmartPower] , and then press OK .

2

Select [Set On-Time] / [Set Off-Time] , and then press OK .

3

Move the joystick up/down/right/left to set time, and then press OK .

To switch off the SmartPower function, select [Off] and then press OK .

Tip

When the PhotoFrame is in standby (sleep) mode, you can press to wake up the PhotoFrame.

Hibernate the PhotoFrame

1

Select [Hibernate] , and then press OK .

PhotoFrame hibernates.

2

Select an option, and then press OK .

»

After the selected period, the

To disable the hibernation function, select [Never] and then press OK .

To wake up the PhotoFrame, press .

Slideshow setting

1

Select [Slideshow] , and then press OK .

2

Select an item and then press OK .

[Interval] : Select a time interval for two consecutive photos

: Display photos randomly

[Transition Effect] : Select a transition effect

[Background Color] : Select a background type for slideshow

3

Select an option, and then press OK .

View the status of the

PhotoFrame

Select [Info] .

»

The information of the PhotoFrame is displayed on the right of the screen.

Restore factory defaults

1

Select [Default Settings] , and then press

OK .

»

! &=

2

Select [Yes] , and then press OK .

EN 15

PhotoFrame

Caution

Do not power off the PhotoFrame during upgrade.

If there is a software update, you can download the latest software from www.philips.com/ support to upgrade your PhotoFrame. The earlier software is unavailable on line.

1

Visit www.philips.com/support.

2

Search for your PhotoFrame and go to the software section.

3

Download the latest software onto the root directory of an SD card.

4

Insert the SD card into the PhotoFrame.

5

Turn on the PhotoFrame

»

! &=

6

Select [Yes] , and then press OK to

=

»

When the upgrade is complete, the

PhotoFrame reboots.

16 EN

9 Product information

Note

Product information is subject to change without prior notice.

Picture/Display

Viewing angle: @ C/R > 10, 120° (H)/100°

(V)

Lifetime, to 50% brightness: 20000 hr

Aspect ratio: 16:9

Panel visible resolution: 1024 x 600

; \}~€}}

Brightness (typical): 180 cd/m²

Contrast ratio (typical): 300:1

Photo format supported:

Baseline JPEG photo (Up to 20 MB

‚ƒ„* €†

Progressive JPEG photo (Up to 800 x

600 pixels)

BMP photo (Higher than 64 x 64 pixels)

Storage media

Memory card types:

Secure Digital (SD)

Secure Digital (SDHC)

Multimedia Card (MMC)

Memory Stick (MS)

Memory Stick Pro (MS Pro)

USB storage device:

Compatibility: USB 2.0

Class support: MSC (Mass Storage

Class)

Maximum memory: 64 GB

File system: FAT32

€ \}}}}

Maximum level of directory: 5

Built-in memory capacity: 2 GB

Dimensions & Weight

Set dimensions without stand (W x H x D): 286 x 189 x 16.5 mm

Weight without stand: 0.31 kg

Power

Power mode supported: AC powered

ƒ &\‡

Average consumption (system on): 5 W

Power adaptor:

Model number: ASSA1I-090100

Input: AC 100-240 V~, 50/60 Hz, 0.3 A

Output: DC 9 V 1000 mA

Temperature

Operation: 0°C - 40°C/32°F - 104°F

Storage: -10°C - 60°C/14°F - 140°F

EN 17

10 Frequently asked questions

Is the LCD screen touch-enabled?

The LCD screen is not touch-enabled. Use the buttons on the back to control the PhotoFrame.

Can I switch different slideshow photos by using different memory cards?

Yes. When a memory card is connected to the PhotoFrame, you can play photos on the

& #=

Will the LCD be damaged, if I keep showing the same photo for a long time?

No. The PhotoFrame can display the same photo continuously for 72 hours without any damage to the LCD screen.

Why does my PhotoFrame not show some of my photos?

The PhotoFrame supports only JPEG and BMP photos. Make sure that these photos are not damaged.

Why does my PhotoFrame not show some of

The PhotoFrame plays most video clips of a digital still camera in M-JPEG (*.avi/*.

mov), MPEG-1 (*.mpg/*.dat/*.avi/*.mov), and MPEG-4 (*.avi/*.mov/*.mp4) format.

Some video clips might have compatibility issues when played on your PhotoFrame.

Before playing, make sure that these video clips are compatible with your PhotoFrame.

(For details, see "Your PhotoFrame" >

"Playable media" in the User Manual)

$ are applicable to your PhotoFrame.

$ damaged.

Can I use the PhotoFrame during its display auto-off periods?

Yes. You can press and hold to wake up the

PhotoFrame.

Why does the PhotoFrame not go into autooff status after I set it?

Ensure that you set the current time, autooff time, and auto-on time correctly. The

PhotoFrame automatically turns off its display exactly at the auto-off time. If the time has already passed for the day, it starts to enter next day.

Can I increase the memory size to store more pictures on the PhotoFrame?

No. The internal memory of the PhotoFrame is

€€=Š#& could switch between different photos by using different storage devices on the PhotoFrame.

After I insert a memory card and transfer all folder structure saved on the PhotoFrame is different from the original structure on the memory card. Why?

The PhotoFrame can only read a folder structure up to 3 levels and write on only

1-level folder structure. In that case, photos on a memory card, which are in folders with the same name but in different levels, will be saved in the same folder on the PhotoFrame.

For example, photos in folders " \AA ", " \01\

AA " and " \02\AA " on a memory card will all be copied into the folder named " \AA " on the

PhotoFrame.

What is the best resolution of photos to be displayed on the PhotoFrame?

The best resolution is 1024 x 600 pixels, or a similar aspect ratio.

18 EN

Why does the PhotoFrame automatically turn off?

If you enable the SmartPower function, the

PhotoFrame automatically turns off at the preset time. For details, see section "Set display auto on/off".

EN 19

11 Glossary

A

Aspect ratio

Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3,

# # "‡ is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard

4:3 screen.

J

JPEG

A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are

& € ‹=Œ=Œ=Ž

K

Kbps

Kilobits per second. A digital-data-rate measurement system which is often used with highly compressed formats such as AAC, DAB,

MP3 etc. The higher the amount, the better the quality generally is.

Kensington lock

A Kensington Security Slot (also called a K-Slot or Kensington lock). Part of an anti-theft system.

It is a small, metal-reinforced hole found on almost all small or portable computer and electronics equipment, particularly on expensive and/or relatively light ones, such as laptops, computer monitors, desktop computers, gaming consoles, and video projectors. It is used for attaching a lock-and-cable apparatus, in particular those from Kensington.

M

Memory Stick

&+ $=!& storage on cameras, camcorders and other handheld devices.

MMC Card

]=!& provides storage for cellphones, PDAs and

=" memory for read/write applications or ROM chips (ROM-MMC) for static information, the latter widely used for adding applications to a

Palm PDA.

S

SD Card

+^ &]=!& card that provides storage for digital cameras, cellphones and PDAs. SD Cards use the same

32 x 24mm form factor as the MultiMediaCard

(MMC), but are slightly thicker (2.1mm vs.

1.4mm), and SD Card readers accept both formats. Cards up to 4GB are available.

T

Thumbnail

A thumbnail is reduced-size versions of a picture that is used to make it easier to recognize an them. Thumbnails serve the same role for images as a normal text index does for words.

20 EN

EN 21

© 2011 Koninklijke Philips Electronics N.V.

All rights reserved.

UM_V1.0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
