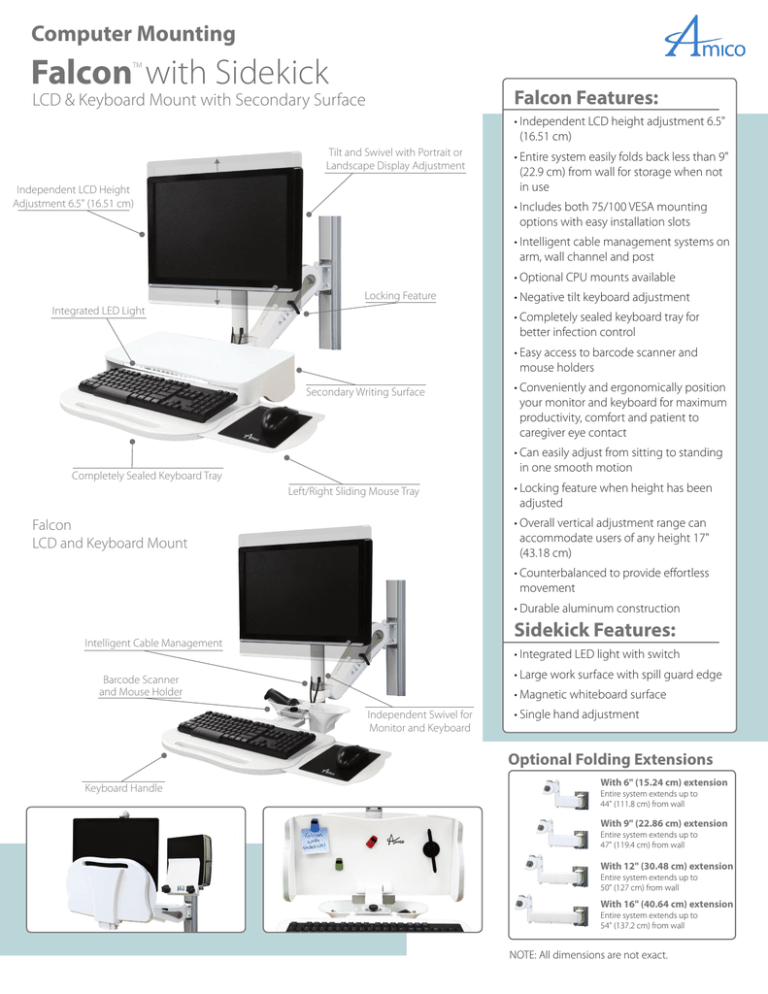

spec sheets
Computer Mounting
Falcon with Sidekick
TM
Falcon Features:
LCD & Keyboard Mount with Secondary Surface
•Independent LCD height adjustment 6.5"
(16.51 cm)
Tilt and Swivel with Portrait or
Landscape Display Adjustment
Independent LCD Height
Adjustment 6.5" (16.51 cm)
•Entire system easily folds back less than 9"
(22.9 cm) from wall for storage when not
in use
•Includes both 75/100 VESA mounting
options with easy installation slots
•Intelligent cable management systems on
arm, wall channel and post
•Optional CPU mounts available
Locking Feature
Integrated LED Light
•Negative tilt keyboard adjustment
•Completely sealed keyboard tray for
better infection control
•Easy access to barcode scanner and
mouse holders
Secondary Writing Surface
•Conveniently and ergonomically position
your monitor and keyboard for maximum
productivity, comfort and patient to
caregiver eye contact
•Can easily adjust from sitting to standing
in one smooth motion
Completely Sealed Keyboard Tray
Left/Right Sliding Mouse Tray
•Locking feature when height has been
adjusted
•Overall vertical adjustment range can
accommodate users of any height 17"
(43.18 cm)
Falcon
LCD and Keyboard Mount
•Counterbalanced to provide effortless
movement
•Durable aluminum construction
Sidekick Features:
Intelligent Cable Management
•Integrated LED light with switch
•Large work surface with spill guard edge
Barcode Scanner
and Mouse Holder
•Magnetic whiteboard surface
Independent Swivel for
Monitor and Keyboard
•Single hand adjustment
Optional Folding Extensions
Keyboard Handle
With 6" (15.24 cm) extension
Entire system extends up to
44" (111.8 cm) from wall
With 9" (22.86 cm) extension
Entire system extends up to
47" (119.4 cm) from wall
With 12" (30.48 cm) extension
Entire system extends up to
50" (127 cm) from wall
With 16" (40.64 cm) extension
Entire system extends up to
54" (137.2 cm) from wall
NOTE: All dimensions are not exact.
AHM Falcon Part Matrix
AHM-FIT
-
-
-
Color
Track Adapter
W
White
X
Custom
M
Monitor Channel
Keyboard Tray
F
Falcon
M
Mini
X
Custom
Spring Strength
25
5.5-8 lbs (2.5-3.6 kg) Monitors
35
7.5-10 lbs (3.4-4.5 kg) Monitors
AB
*Amico Horizontal
Direct Mount - Bottom
50
13-15.5 lbs (5.8-7 kg) Monitors
60 **
15.5-18 lbs (7-8.1 kg) Monitors
75
18-22 lbs (8.1-10 kg) Monitors
XX
Custom
For Monitors > 22 lbs (10 kg) or Fixed Height
AT
*Amico Horizontal
Direct Mount - Top
D
Sidekick Secondary Surface
Additional Extension Length
Extension Type
0
No Extension
7
6" (15.24 cm) Extension
F
Folding
V
*Amico Vertical
Direct Mount
G
*Hill-Rom Vertical
Direct Mount
3
9" (22.86 cm) Extension
1
12" (30.48 cm) Extension
5
16" (15.24 cm) Extension
NOTE: All dimensions are not exact.
** Use MON-LCD-HANDLE for displays between 10-13 lbs (4.5-5.8 kg)
R
Reverse Folding
5
N/A (No Extension)
D
Datex/Ohmeda,
Dovetail
Direct Mount
* Direct mount options not available
with extensions.
Schematic Drawings
Shown without Sidekick
EXTENDED POSITION
FOLDED POSITION
WALL
28"/ 70cm
6.5"/ 17cm MONITOR
HEIGHT ADJUSTMENT
4"/ 11cm
21"/ 54cm
25"
64cm
17"/ 44cm ARM HEIGHT
ADJUSTMENT
10"/ 26cm
3"/ 8cm
18"/ 46cm
29.5"-37"
75cm-94cm
NOTE:
MOUSE TRAY MAY ADD 7" ON EITHER SIDE WHEN EXTENDED
ALL MEASUREMENTS ARE ARM IN HORIZONTAL POSITION
38"/ 97cm
Range
8.5"
FLOOR
APPROX 3 ft 6 in/ 107cm
CLEARANCE
RADIUS REQUIRED
(WITHNO EXTENSION)
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES AND
IS LOANED IN CONFIDENCE SUBJECT TO RETURN UPON
REQUEST AND WITH THE UNDERSTANDING THAT NO
COPIES ARE TO BE MADE WITHOUT THE CONSENT OF
AMICO ACCESSORIES
.
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, CANADA
Tel: (905)763-7778
Fax: (905)763-8587
DESCRIPTION:
FALCON IT
AHM-FIT-F0F-M
PART NO:
1:32
SCALE:
DRAWN BY:
5
4
3
6.5"/ 17cm MONITOR
HEIGHT ADJUSTMENT
21"/ 54cm
SHT.
DATE:
03/11/2011
1
OF
1
DRAWING NO:
110311R-06
2
FOLDED POSITION
EXTENDED POSITION
WALL
RANA
4"/ 11cm
4.5"/ 12cm
17"/ 44cm ARM HEIGHT
ADJUSTMENT
3"/ 8cm
29.5"-37"
75cm-94cm
Range
8.5"
A-9"/23cm
B-12"/31cm
C-15"/39cm
D-19"/49cm
A-24"/61cm
B-27"/69cm
C-30"/77cm
D-34"/87cm A-43"/ 110cm
B-47"/ 120cm
C-50"/ 127cm
D-54"/ 138cm (SHOWN)
27"
69cm
A-18.9"/48cm
B-15.9"/41cm
C-12.9"/33cm
D-8.9"/ 23cm (SHOWN)
26.5"/ 68cm
NOTE:
MOUSE TRAY MAY ADD 7" ON EITHER SIDE WHEN EXTENDED
ALL MEASUREMENTS ARE ARM IN HORIZONTAL POSITION
Floor
APPROX 5 ft/ 153cm
CLEARANCE
RADIUS REQUIRED
(WITH 16" EXTENSION)
EXTENSIONS:
ABCD-
10.2"/ 26cm
6"/15.2cm
9"/22.9cm
12"/30.5cm
PRIVATE AND CONFIDENTIAL
THIS PRINT IS PROPERTY OF AMICO ACCESSORIES AND
IS LOANED IN CONFIDENCE SUBJECT TO RETURN UPON
REQUEST AND WITH THE UNDERSTANDING THAT NO
COPIES ARE TO BE MADE WITHOUT THE CONSENT OF
AMICO ACCESSORIES
.
ALL RIGHTS TO DESIGN OR INVENTION ARE RESERVED
85 Fulton Way
Richmond Hill, Ontario
L4B 2N4, CANADA
Tel: (905)763-7778
Fax: (905)763-8587
16"/40.6cm
DESCRIPTION:
FALCON IT
PART NO:
AHM-FIT-F5F-M
SHT.
SCALE:
DRAWN BY:
5
NOTE: All dimensions are not exact.
4
3
2
RANA
DATE:
3/9/2011
1
OF
1
DRAWING NO:
110309-R02
Computer Mounting Accessories
Power Bar
Power Holder
•Hospital grade, 4 power outlets
•120 VAC, 60Hz
Part Number:
•Holds most power adapters for
PCs, patient monitors and LCDs
PWRBAR4-MON
Part Number: PWRHLD-MON
Cord Wrap
LCD Handle
•Ergonomic handles can be added
to any Amico LCD mount
•Knuckle guard protects walls and
user’s hands
•Weight: 4.3lbs (1.9kg)
•Ideal for Managing wires and
cords
Part Number:
CORDWRAP
Part Number: MON-LCD-HANDLE
Monitor Channel
Channel Covers
•Standard wall channel 34" (48.3
cm)
•Seismic options are available and
custom lengths are welcome
Part Number:
•Easy way to hide wires
•Available in patterns and colors
to match any decor
MRS-S034
Call for part number.
Wire Baskets
10"W x 06"D x 09" H
13"W x 09"D x 07" H
(25.4 cm x 15.24 cm x 22.86 cm)
(33.02 cm x 22.86 cm x 17.78 cm)
White wire basket
BP cuff basket
Part No: 100609-MON-BB
Part No: CUFBASK-MON
Printer Mounts
•Mounts most portable printers
to conveniently print at the
bedside
All baskets can be sterilized
CPU Mounts
•Available Sizes:
1.5"(3.81 cm) - 3"(7.62 cm)
3"(7.62 cm) - 4.5"(11.43 cm)
CPUMNT1-MON
CPUMNT2-MON
4.5"(11.43 cm) - 7"(17.78 cm)
7"(17.78 cm) - 9.5"(24.13 cm)
CPUMNT3-MON
CPUMNT4-MON
Part No:
Part No:
Part No:
Part No:
•Tangent Rugged
Mini mount
•Thin client
mount behind
LCD
NOTE: All dimensions are not exact.
Please visit www.amico.com for all technical
Distributed By:
specifications, installation instructions, detailed
AutoCAD drawings and more
Mounting Solutions.
AA_SP_FALCON 05.30.2016
Amico Accessories Inc. 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada
Toll Free Tel: 1.877.264.2697 | Tel: 905.763.7778 | Fax: 905.763.8587
www.amico.com
