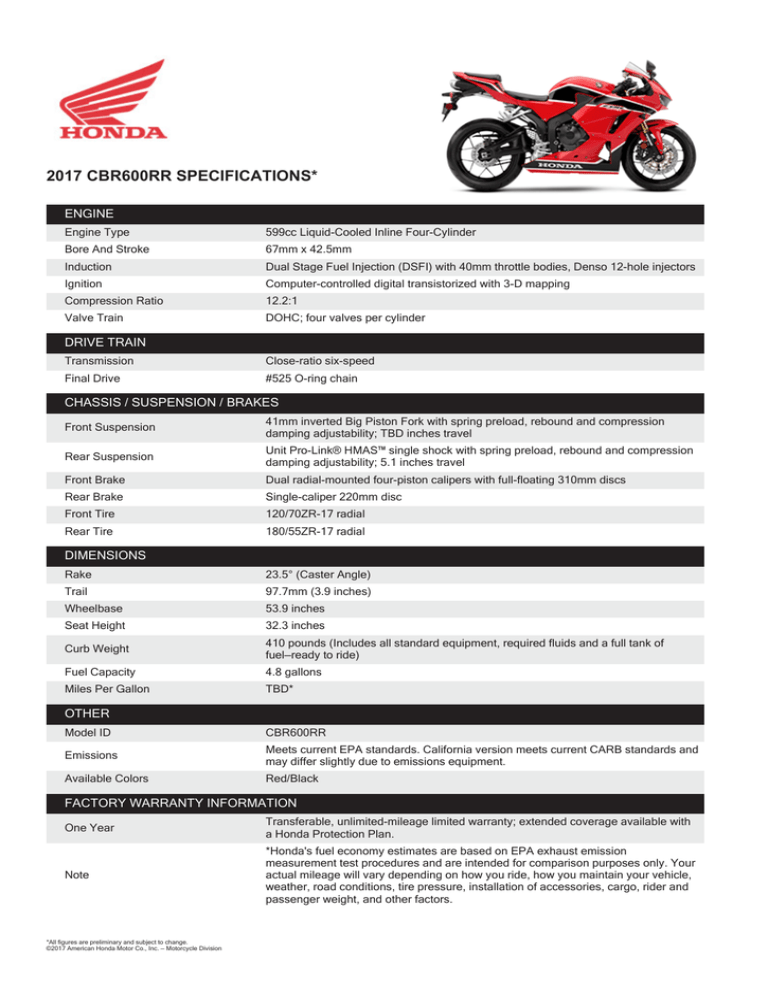

2017 CBR600RR SPECIFICATIONS*

2017 CBR600RR SPECIFICATIONS*
2017 CBR600RR SPECIFICATIONS*
ENGINE
Engine Type
599cc Liquid-Cooled Inline Four-Cylinder
Bore And Stroke
67mm x 42.5mm
Induction
Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Ignition
Computer-controlled digital transistorized with 3-D mapping
Compression Ratio
12.2:1
Valve Train
DOHC; four valves per cylinder
DRIVE TRAIN
Transmission
Close-ratio six-speed
Final Drive
#525 O-ring chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension
41mm inverted Big Piston Fork with spring preload, rebound and compression
damping adjustability; TBD inches travel
Rear Suspension
Unit Pro-Link® HMAS™ single shock with spring preload, rebound and compression
damping adjustability; 5.1 inches travel
Front Brake
Dual radial-mounted four-piston calipers with full-floating 310mm discs
Rear Brake
Single-caliper 220mm disc
Front Tire
120/70ZR-17 radial
Rear Tire
180/55ZR-17 radial
DIMENSIONS
Rake
23.5° (Caster Angle)
Trail
97.7mm (3.9 inches)
Wheelbase
53.9 inches
Seat Height
32.3 inches
Curb Weight
410 pounds (Includes all standard equipment, required fluids and a full tank of
fuel—ready to ride)
Fuel Capacity
4.8 gallons
Miles Per Gallon
TBD*
OTHER
Model ID
CBR600RR
Emissions
Meets current EPA standards. California version meets current CARB standards and
may differ slightly due to emissions equipment.
Available Colors
Red/Black
FACTORY WARRANTY INFORMATION
One Year
Transferable, unlimited-mileage limited warranty; extended coverage available with
a Honda Protection Plan.
Note
*Honda's fuel economy estimates are based on EPA exhaust emission
measurement test procedures and are intended for comparison purposes only. Your
actual mileage will vary depending on how you ride, how you maintain your vehicle,
weather, road conditions, tire pressure, installation of accessories, cargo, rider and
passenger weight, and other factors.
*All figures are preliminary and subject to change.
©2017 American Honda Motor Co., Inc. — Motorcycle Division
