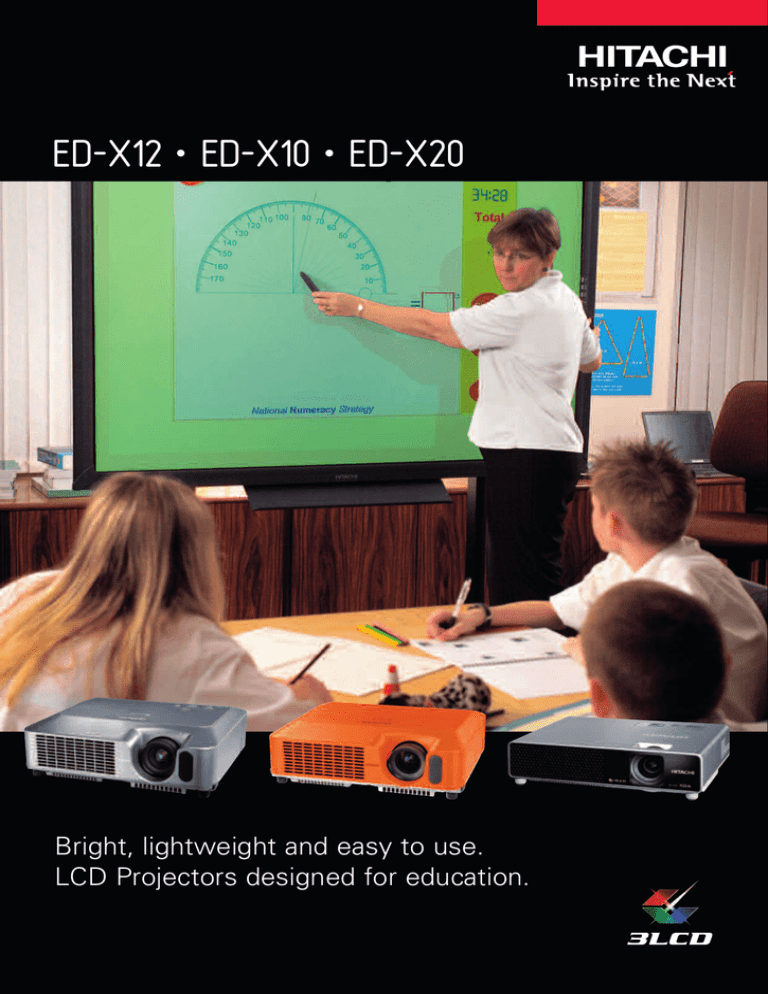

ED-X12 • ED-X10 • ED-X20

ED-X12 • ED-X10 • ED-X20
ED-X12 • ED-X10 • ED-X20
Bright, lightweight and easy to use.
LCD Projectors designed for education.
The ED-X10, ED-X12 and ED-X20 educational range are highly compact and affordable 3LCD Projectors.
Delivering high performance, excellent connectivity and impressive functionality. These Education projectors
come with a market leading range of security features which are effective, reliable and user-friendly.
Operation Features
Lightweight and portable
Ready when you are
Lightweight and compact design, the EDX projectors are built for
portability. The ED-X20 weighs just 1.7kg and is smaller than a sheet
of A4 paper.
The ED-X20 starts up in just 3 seconds. And
with its instant off function there’s no waiting
when you’ve finished either. Plus, you don’t
have to wait for it to cool down, as soon
as you’re ready to leave it is too.
3-Sec
Start-up
Direct Power On and Off
EDX projectors turn on without going into stand-by when the projector is
switched on and will display the selected signal.
Auto Vertical Keystone Correction
Keystone distortion occurs when the projector is inclined. This is
automatically detected by a gravity sensor inside the projector and
corrected. It’s one more way the EDX projectors make your preparation
for a presentation run smoother.
Quiet operation
The ED-X20 has a noise level of 29dB and its internal fan is one of the
quietest in its class, so all your audience will hear is what you have to say,
not the operating noise of the projector.
Whiteboard/Blackboard/Greenboard Modes
In rooms with no screen, the EDX projectors can project on a whiteboard,
blackboard or greenboard. Projector brightness should be limited when
using an interactive whiteboard due to the high gain of the screen.
However, Hitachi’s EDX projectors have a special ‘whiteboard mode’
which limits the peak white by changing the gamma curve. This means
that you can enjoy the benefits of a brighter projector while limiting its
brightness when used with a whiteboard to protect the health and safety
of teachers and pupils in schools.
‘Blackboard mode’ gives better colour balance when displaying an image on
a coloured background. Green and pure blackboard modes are supported.
Gamma Curve
60”
100%
Brightness
Whiteboard Mode
Normal Mode
Whiteboard Mode
Normal Mode
Without Vertical
Keystone Correction
With Vertical
Keystone Correction
Infra-red remote frequency change
Fluorescent lights can interfere with the operation of the IR remote
control. From the menu of the EDX projectors the frequency of the IR
remote may be changed to avoid this problem.
Limited space? No problem!
The ED-X20 has one of the shortest
throw distances on the market,
allowing
min you to use the projector
in the1.5m
tightest of spaces.
60”
0%
Input Level
min
1.5m
ED-X12
ED-X10
ED-X20
No space? No problem
Security Features
The EDX range have been designed to combat projector theft in schools. The projectors have several
security layers making it near impossible for a thief to break through.
PIN lock & Startup screen lock
Anti-theft security labels
The EDX projectors have two layers of PIN code security:
As an added security layer we will provide you with an Anti-Theft Security
Pack, which includes stickers to provide a visual deterrent to potential
intruders. Window and door stickers are provided to deter thieves before
they enter the building or classroom, “WARNING, The projector in this room
is inoperative once disconnected”. Should the thief be undeterred by the
classroom stickers a sticker is provided for the actual projector. These
stickers are made with an extremely aggressive adhesive, which cannot be
removed as it bonds with the chassis of the unit, “The projector is
safeguarded against theft – it will not operate once disconnected”.
• PIN Lock protection will prevent startup from power on until the pin code
is input. (Does not need input from standby)
• My Screen PIN lock keeps captured images on startup screen.
PIN Lock
My Screen PIN Lock
Anti-theft security bar
The ED-X10 and ED-X12 feature a security bar which enables them to be
tethered securely within the ceiling installation.
Easy lamp and filter access
The easy lamp and filter access add security ensuring that the projector
does not need to be removed from the ceiling or classroom for service and
maintenance. This also means limited disruption to your classroom and
down time of the projector.
Bright orange colour deterent
The ED-X10 has been designed in a distinctive bright ‘orange-for-education’
colour. The colour will make it difficult for thieves to sell an orange projector
as they are only sold to education and everyone will know they are taken
from a educational institution. This deters the thief from the outset.
Transition Detector
A transition detector saves the projectors installed settings, so if it is stolen
and attempted to be used on a coffee table etc, it will not work!
Technical Specifications
MODEL
LCD Panel
Resolution
Brightness
ED-X10
ED-X20
0.63" P-Si TFT x 3 with MLA
0.63" P-Si TFT x 3 with MLA
XGA: 1024 dots x 768 lines
XGA: 1024 dots x 768 lines
1024 dots x 768 lines
Normal Mode
1500 ANSI Lumens
1500 ANSI Lumens
1500 ANSI Lumens
Bright Mode
2000 ANSI Lumens
2000 ANSI Lumens
2000 ANSI Lumens
500:1
500:1
500:1
F1.7~1.9, f=18.9~22.6mm, Manual Zoom x 1.2, Manual Focus
F1.7~1.9, f=18.9~22.6mm, Manual Zoom x 1.2, Manual Focus
F1.8~1.9, f=16.4~19.7mm, Manual Zoom x 1.2, Manual Focus
Contrast Ratio
Lens
Lamp
Focus Distance
Distance to Width Ratio (:1)
200W UHB
200W UHB
160W UHB
0.9~9.3m (Wide), 1.1m~10.8m (Tele)
0.9~9.3m (Wide), 1.1m~10.8m (Tele)
0.8~7.8m (Wide), 0.9m~9.3m (Tele)
1.52 (Wide), 1.7 (Tele) with standard lens
1.52 (Wide), 1.7 (Tele) with standard lens
1.3 (Wide), 1.5 (Tele)
Diagonal Display Size
30"~300" ([email protected]", wide)
30"~300" ([email protected]", wide)
30"~300" ([email protected]")
Computer Compatibility
IBM Compatible VGA, SVGA, XGA, SXGA/SXGA+,
UXGA Capability, MAC 13", MAC 16" (Pixelworks chip)
IBM Compatible VGA, SVGA, XGA, SXGA/SXGA+,
UXGA Capability, MAC 13", MAC 16" (Pixelworks chip)
IBM Compatible VGA, SVGA, XGA, SXGA/SXGA+,
UXGA Capability, MAC 16" (Pixelworks chip)
Video Compatibility
NTSC/PAL(-BGDHI)/SECAM/PAL-M,N/NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p ([email protected]/60Hz), 1125i([email protected]/60Hz)
NTSC/PAL(-BGDHI)/SECAM/PAL-M,N/NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p ([email protected]/60Hz), 1125i([email protected]/60Hz)
NTSC/PAL(-BGDHI)/SECAM/PAL-M,N/NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p ([email protected]), 1125i([email protected]/60Hz)
Plug & Play
DDC2B
DDC2B
DDC2B
FV 56~120Hz, FH 31.5~106KHz
FV 56~120Hz, FH 31.5~106KHz
FV 50~120Hz, FH 31.5~106KHz
9:1 upward shift, fixed
9:1 upward shift, fixed
6:1 upward shift, fixed
1 x 1W
1 x 1W
1 x 1W
MENU: 17 Languages (English, French, German, Spanish,
Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified
Chinese, Korean, Traditional Chinese, Swedish, Russian,
Finnish, Polish, Turkish), Freeze, Magnifying, Blank,
Auto Adjustment, Search, Page Up & Down (for USB
mouse function), Equalizing Digital Gamma Correction,
Colour Balance, 2-3 pull down, Progressive Scan,
Noise Reduction, Auto V Keystone +/- 30 degrees, MyScreen,
My Memory, My Button, Blackboard/Whiteboard/
Greenboard Modes, Input Source Naming (English), Easy Lamp
replace from Top, Easy Filter Change with sliding system,
Serial Number label on side, Quick On (3 sec target), Direct On,
Direct Off, Security Bar, PIN Lock, MyScreen PIN lock,
Keypad Lock, Kensington Slot, Transition Detector
MENU: 17 Languages (English, French, German, Spanish,
Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified
Chinese, Korean, Traditional Chinese, Swedish, Russian,
Finnish, Polish, Turkish), Freeze, Magnifying, Blank,
Auto Adjustment, Search, Page Up & Down (for USB
mouse function), Equalizing Digital Gamma Correction,
Colour Balance, 2-3 pull down, Progressive Scan,
Noise Reduction, Auto V Keystone +/- 30 degrees, MyScreen,
My Memory, My Button, Blackboard/Whiteboard/
Greenboard Modes, Input Source Naming (English), Easy Lamp
replace from Top, Easy Filter Change with sliding system,
Serial Number label on side, Quick On (3 sec target), Direct On,
Direct Off, Security Bar, PIN Lock, MyScreen PIN lock,
Keypad Lock, Kensington Slot, Transition Detector
MENU: 17 Languages (English, French, German, Spanish,
Italian, Norwegian, Dutch, Japanese, Portuguese, Simplified
Chinese, Korean, Traditional Chinese, Swedish, Russian,
Finnish, Polish, Turkish), Freeze, Magnifying, Blank,
Auto Adjustment, Search, Page Up & Down (for USB
mouse function), Equalizing Digital Gamma Correction,
Colour Balance, 2-3 pull down, Progressive Scan,
Noise Reduction, Auto V Keystone +/- 30 degrees, MyScreen,
My Memory, My Button, Blackboard/Whiteboard/Greenboard
Modes, Input Source Naming (English), Easy Lamp replace
from Top, Easy Filter Change with sliding system, Serial
Number label on side, Quick On (3 sec), Direct On, Direct Off,
PIN Lock, MyScreen PIN lock, Keypad Lock,
Kensington Slot, Transition Detector
Computer Input
2 x 15-pin Mini D-sub
2 x 15-pin Mini D-sub
2 x 15-pin Mini D-sub
Computer Output
1 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
Video Input
1 x RCA Jack
1 x 4-pin Mini DIN
3 x RCA Jack for component
1 x RCA Jack
1 x 4-pin Mini DIN
3 x RCA Jack for component
1 x RCA Jack
1 x 4-pin Mini DIN
Component to be supported through Computer Input
(15-pin Mini D-sub) with a special cable
Audio Input
2 x Stereo Mini Jack
1 x Pair RCA (L/R) (Selectable on OSD)
2 x Stereo Mini Jack
1 x Pair RCA (L/R) (Selectable on OSD)
2 x Stereo Mini Jack
1 x Pair RCA (L/R) (Selectable on OSD)
Frequency Range
Keystone Correction
Speakers
Other
Audio Output
Control
1 x Stereo Mini Jack
1 x Stereo Mini Jack
1 x Stereo Mini Jack
1 x 9-pin D-sub for RS232C Control
1 x 9-pin D-sub for RS232C Control
1 x 9-pin D-sub for RS232C Control
Mouse
Power Supply
1 x USB for Mouse Control
1 x USB for Mouse Control
1 x USB for Mouse Control
100~120/220~240V, 50/60Hz, 3.3A/1.4A
100~120/220~240V, 50/60Hz, 3.3A/1.4A
100~120/220~240V50/60Hz, 2.8A/1.4A
Power Consumption
Dimensions (W x H x D)
310W
310W
250W
306 x 86 x 249mm (excluding feet and extrusions)
306 x 86 x 249mm (excluding feet and extrusions)
274 x 59 x 205mm (excluding feet and extrusions)
Weight
3.0Kg
3.0Kg
1.7Kg
Noise Level
32dB Normal Mode/37dB Bright Mode
32dB Normal Mode/37dB Bright Mode
29dB Normal Mode/35dB Bright Mode
Certification
UL60950-1/C-UL, FCC Part 15, Class B, EN61000-3-2,
EN61000-3-3, EN55022, EN55024, EN60950-1, WEEE
UL60950-1/C-UL, FCC Part 15, Class B, EN61000-3-2,
EN61000-3-3, EN55022, EN55024, EN60950-1, WEEE
UL60950-1/C-UL, FCC Part 15, Class B, CE, EN61000-3-2,
EN61000-3-3, EN55022, EN55024, EN60950-1, WEEE
DT00757
DT00757
DT00781
Replacement Lamp
b
(Top)
a: Projection Distance
b: Lens centre to the higher edge of the screen
c: Lens centre to the lower edge of the screen
c
(Bottom)
The specification above and photography is for reference only and may be subject to change.
HITACHI DIGITAL MEDIA, Hitachi Europe Ltd, Whitebrook Park, Lower Cookham Road,
Maidenhead, Berkshire SL6 8YA UNITED KINGDOM
Tel: +44 (0)1628 585 000 Fax:+44 (0)1628 585 500 www.hitachidigitalmedia.com
ED-X12
0.63" P-Si TFT x 3 with MLA
12/06
a
ED-X12/ED-X10 – Image Size 4:3
Screen Size
(Diagonal)
40" (1.0)
60" (1.5)
100" (2.5)
150" (3.8)
200" (5.1)
300" (7.6)
Projection Distance (a)
max. (m)
min. (m)
1.2
1.4
1.8
2.1
3.0
3.6
4.5
5.4
7.2
6.0
9.0
10.8
Screen Height (cm)
b (top)
c (bottom)
55
6
82
9
137
15
206
23
30
274
411
46
ED-X20 – Image Size 4:3
Screen Size
(Diagonal)
30" (0.8)
60" (1.5)
100" (2.5)
150" (3.8)
200" (5.1)
300" (7.6)
Projection Distance (a)
max. (m)
min. (m)
0.8
0.9
1.5
1.9
2.6
3.1
4.7
3.9
6.2
5.2
7.8
9.3
Screen Size
(Diagonal)
30" (0.8)
60" (1.5)
100" (2.5)
150" (3.8)
200" (5.1)
300" (7.6)
Projection Distance (a)
max. (m)
min. (m)
0.8
1.0
2.0
1.7
2.8
3.4
5.1
4.2
6.8
5.6
8.5
10.2
ED-X12/ED-X10 – Image Size 16:9
Screen Size
(Diagonal)
40" (1.0)
60" (1.5)
100" (2.5)
150" (3.8)
200" (5.1)
300" (7.6)
Projection Distance (a)
max. (m)
min. (m)
1.3
1.5
2.3
1.9
3.2
3.9
5.8
4.9
7.8
6.5
9.8
11.7
Screen Height (cm)
b (top)
c (bottom)
51
-2
-2
77
129
-4
193
-6
-8
257
386
-12
Screen Height (cm)
b (top)
c (bottom)
39
7
78
13
131
22
196
33
44
261
392
65
ED-X20 – Image Size 16:9
Screen Height (cm)
b (top)
c (bottom)
37
1
2
73
122
3
183
4
5
243
365
8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
