3

. INSPECTION/ADJUSTMENT

XCITING 500/250

3

__________________________________________________________________________________

__________________________________________________________________________________

__________________________________________________________________________________

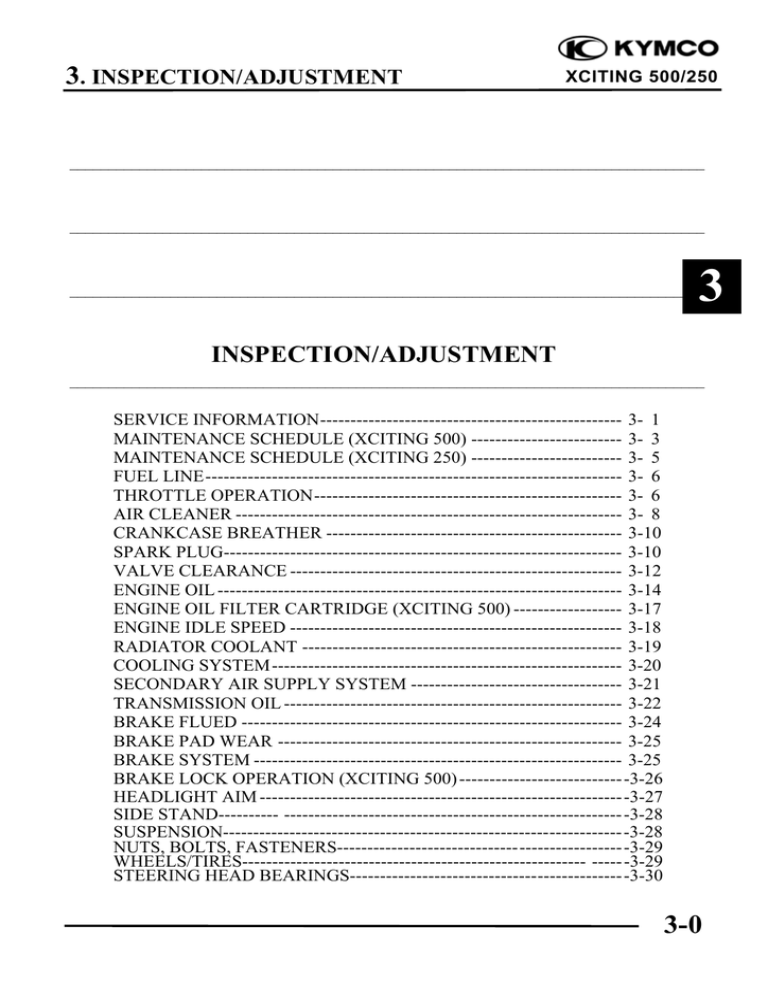

3

INSPECTION/ADJUSTMENT

__________________________________________________________________________________

SERVICE INFORMATION-------------------------------------------------- 3- 1

MAINTENANCE SCHEDULE (XCITING 500) ------------------------- 3- 3

MAINTENANCE SCHEDULE (XCITING 250) ------------------------- 3- 5

FUEL LINE--------------------------------------------------------------------- 3- 6

THROTTLE OPERATION--------------------------------------------------- 3- 6

AIR CLEANER ---------------------------------------------------------------- 3- 8

CRANKCASE BREATHER ------------------------------------------------- 3-10

SPARK PLUG------------------------------------------------------------------ 3-10

VALVE CLEARANCE ------------------------------------------------------- 3-12

ENGINE OIL ------------------------------------------------------------------- 3-14

ENGINE OIL FILTER CARTRIDGE (XCITING 500) ------------------ 3-17

ENGINE IDLE SPEED ------------------------------------------------------- 3-18

RADIATOR COOLANT ----------------------------------------------------- 3-19

COOLING SYSTEM---------------------------------------------------------- 3-20

SECONDARY AIR SUPPLY SYSTEM ----------------------------------- 3-21

TRANSMISSION OIL -------------------------------------------------------- 3-22

BRAKE FLUED --------------------------------------------------------------- 3-24

BRAKE PAD WEAR --------------------------------------------------------- 3-25

BRAKE SYSTEM ------------------------------------------------------------- 3-25

BRAKE LOCK OPERATION (XCITING 500) --------------------------- -3-26

HEADLIGHT AIM ------------------------------------------------------------ -3-27

SIDE STAND---------- -------------------------------------------------------- -3-28

SUSPENSION------------------------------------------------------------------ -3-28

NUTS, BOLTS, FASTENERS----------------------------------------------- -3-29

WHEELS/TIRES--------------------------------------------------------- ----- -3-29

STEERING HEAD BEARINGS--------------------------------------------- -3-30

3-0

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

SERVICE INFORMATION

GENERAL

Place the scooter on al level ground before starting any work.

Gasoline is extremely flammable and is explosive under certain conditions.

Work in a well ventilated area. Smoking or allowing flames or sparks in the work area or where the gasoline is stored can cause a fire or explosion.

If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in an enclosed area.

The exhaust contains poisonous carbon monoxide gas that may cause loss of consciousness and may lead to death. Run the engine in an open area or with an exhaust evacuation sustem in and enclosed area.

SPECIFICATIONS (XCITING 500)

Throttle free play

Spark plug

Spark plug gap

Valve clearance

Engine oil capacity

Engine idle speed

Final reduction oil capacity

At draining

Total amount

Recommended final reduction oil

Recommended brake fluid

Parking brake lever stroke

Tire size

Tire air pressure

NGK

IN

EX

ITEM

At draining

At draining/oil filter change

Total amount

Recommended engine oil

Solo riding

Two up riding

Minimum tire tread depth

Front

Rear

Front

Rear

Front

Rear

Front

Rear

SPECIFICATIONS

2-6 mm (1/16 – 1/4 in)

CR8E

0.6 – 0.7 mm (0.024 – 0.028 in)

0.1 mm (0.004 in)

0.1 mm (0.004 in)

2.0 liter (2.1 US pt, 1.8 lmp qt)

2.1 liter (2.2 US pt, 1.9 lmp qt)

2.5 liter (2.6 US pt, 2.3 lmp qt)

KYMCO 4-stroke oil or equivalent motor oil API service classification: SJ

Viscosity: 5W50

1400

±100 rpm

0.45 liter (0.48 US pt, 0.4 lmp qt)

0.55 liter (0.57 US pt, 0.5 lmp qt)

SAE 90

DOT 4

3 – 6 notch

120/70-15

150/70-14

200 kPa (2 kgf/cm

2

, 29 psi)

250 kPa (2.5 kgf/cm

2

, 36 psi)

225 kPa (2.25 kgf/cm

2

, 32 psi)

250 kPa (2.5 kgf/cm

2

, 36 psi)

1.6 mm (0.06 in)

2.0 mm (0.08 in)

3-1

3

. INSPECTION/ADJUSTMENT

SPECIFICATIONS (XCITING 250)

ITEM

Throttle free play

Spark plug

Spark plug gap

Valve clearance

NGK

Engine oil capacity

IN

EX

At draining

Total amount

Recommended engine oil

Engine idle speed

Final reduction oil capacity

At draining

Total amount

Recommended final reduction oil

Recommended brake fluid

Tire size

Tire air pressure

Solo riding

Two up riding

Minimum tire tread depth

XCITING 500/250

Front

Rear

Front

Rear

Front

Rear

Front

Rear

SPECIFICATIONS

2-6 mm (1/16 – 1/4 in)

DPR7EA-9

0.6 – 0.7 mm (0.024 – 0.028 in)

0.1 mm (0.004 in)

0.1 mm (0.004 in)

0.9 liter (0.95 US pt, 0.8 lmp qt)

1.1 liter (1.17 US pt, 0.97 lmp qt)

KYMCO 4-stroke oil or equivalent motor oil API service classification: SJ

Viscosity: 5W50

1600

±100 rpm

0.18 liter (0.19 US pt, 0.16 lmp qt)

0.2 liter (0.21 US pt, 0.18 lmp qt)

SAE 90

DOT 4

120/70-15

150/70-14

200 kPa (2 kgf/cm

2

, 29 psi)

250 kPa (2.5 kgf/cm

2

, 36 psi)

225 kPa (2.25 kgf/cm

2

, 32 psi)

250 kPa (2.5 kgf/cm

2

, 36 psi)

1.6 mm (0.06 in)

2.0 mm (0.08 in)

TORQURE VALUES

Engine oil drain plug

Oil strainer screen cap

Oil filter cartridge

(XCITING 500)

25 N•m (2.5 kgf•m, 18 lbf•ft)

15 N•m (1.5 kgf•m, 11 lbf•ft)

Apply oil to the threads and seating surface.

10 N•m (1 kgf•m, 7 lbf•ft)

Apply oil to the threads and seating surface.

Transmission oil drain bolt 20 N•m (2 kgf•m, 15 lbf•ft)

Transmission oil filler bolt 20 N•m (2 kgf•m, 15 lbf•ft)

Spark plug

Tappet adjust nut

12 N•m (1.2 kgf•m, 9 lbf•ft)

9 N•m (0.9 kgf•m, 6 lbf•ft)

SPECIAL TOOLS

Tappet adjuster

Oil filter cartridge wrench

E036

E052 (XCITING 500)

3-2

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

MAINTENANCE SCHEDULE (XCITING 500)

Perform the pre-ride inspection in the owner’s manual at each scheduled maintenance period.

This interval should be judged by odometer reading or months, whichever comes first.

I: INSPECT AND CLEAN, ADJUST, LUBRICATE OR REPLACE IF NECESSARY

C: CLEAN R: REPLACE A: ADJUST L: LUBRICATE

3-3

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

NOTE:

1 At higher odometer readings, repeat at the frequency interval established here.

2 Service more frequently if the scooter is ridden in unusually wet or dusty areas.

3 Service more frequently when riding in rain or at full throttle.

4 Inspect every 18000 km (12000 mi) after replacement.

5 Replace every 1 year, or every 10000km (6000mi), whichever comes first.

6 Replace every 2 year, or at indicated odometer interval, whichever comes first.

7 Replace every 2 years. Replacement requires mechanical skill.

3-4

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

MAINTENANCE SCHEDULE (XCITING 250)

Perform the periodic maintenance at each scheduled maintenance period.

I: Inspect, and Clean, Adjust, Lubricate or Replace if necessary.

A: Adjust C: Clean R: Replace T: Tighten

Item

Engine oil

Frequency

Whichever comes first

Ö

Ø

1000

R New scooter

300km

Engine oil filter screen

Fuel filter

Gear oil Note 3

R New scooter

300km

Valve clearance

Carburetor

Note 2,3 I

2000

R

Regular Service Mileage (km)

4000

R

C

R

6000

R

8000

R

C

Replace at every 6000km

Air Cleaner

Spark plug

Brake system I

10000

R

R

A A

I

R

A

I

R

Clean at every 3000km and replace if necessary

I I I I I

Drive belt

Suspension

Nut, bolt, fastener

Tire

Steering head bearing

Brake fluid

I

I I

I

I

I

I

I

I

Perform pre-ride inspection daily

Radiator coolant

Radiator core

Radiator cap

Brake lever

Brake shoe wear

Shock absorber

Replace every year or at every 10000km (R)

I

I

I

I

I

I

I

I

I

I

• In the interest of safety, we recommend these items be serviced only by an authorized KYMCO motorcycle dealer.

Note: 1. For higher odometer readings, repeat at the frequency interval established here.

2. Service more frequently when riding in dusty or rainy areas.

3. Service more frequently when riding in rain or at full throttle.

3-5

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

Fuel Lines

XCITING 500

FUEL LINE

Remove the floorboard. (page 2-6).

Check the fuel lines for deterioration, damage or leakage. Replace the fuel line if necessary.

• Do not smoke or allow flames or sparks in your working area.

FUEL FILTER

Visually check the fuel filter. If accumulation of sediment or clogging is found, replace the fuel filter with a new one.

Fuel Filter

Fuel Lines

XCITING 250

THROTTLE OPERATION

Check for smooth throttle grip full opening and automatic full closing in all steering positions.

Check the throttle cables and replace them if they are deteriorated, kinked or damaged.

Lubricate the throttle cables, if throttle operation is not smooth.

Measure the throttle grip free play.

Free Play: 2~6 mm (1/16~1/4 in)

Fuel Filter

3-6

3

. INSPECTION/ADJUSTMENT

Throttle grip free play can be adjusted at either end of the throttle cable.

Minor adjustment is made with the upper adjuster.

Slide the rubber sleeve back to expose the throttle cable adjuster.

Adjust the free play by loosening the lock nut and turning the adjuster.

XCITING 500/250

Major adjustments are made with the lower adjuster.

Remove the seat luggage box (page 2-3).

Adjust the free play by loosening the lock nut and turning the adjuster.

After adjustment, tighten the lock nut securely.

Recheck the throttle operation.

Replace any damaged parts, if necessary.

Adjust Nut

XCITING 500

Lock Nut

XCITING 250

Lock Nut Adjust Nut

3-7

3

. INSPECTION/ADJUSTMENT

AIR CLEANER

The air cleaner should be serviced at regular intervals. Service more frequently when riding in unusually wet or dusty areas.

Install a new air cleaner element. Use the

KYMCO genuine air cleaner element or an equivalent air cleaner element specified for your model. Using the wrong. KYMCO air cleaner element or a non-KYMCO air cleaner which is not of equivalent quality may cause premature engine wear or performance problems.

Air cleaner element removal/installation

(XCITING 500):

Unlock the seat with the ignition key.

Open the seat.

Remove the air cleaner cover.

XCITING 500/250

Air Cleaner Cover

Remove the screws and air cleaner housing cover

Air Cleaner Housing Cover

3-8

3

. INSPECTION/ADJUSTMENT

Remove the air cleaner element by pull it out.

Discard the air cleaner element.

Install the removed parts in the reverse order of removal.

XCITING 500/250

Air cleaner element removal/installation

(XCITING 250):

Remove the luggage box (page 2-3).

Remove the six screws and air cleaner cover.

Screws

Air Cleaner Element

Air Cleaner Cover

Screws

Remove the four screws and air cleaner element from air cleaner cover.

Discard the air cleaner element.

Air Cleaner Element

3-9

3

. INSPECTION/ADJUSTMENT

Install the removed parts in the reverse order of removal

Tighten the screws using a diagonal pattern.

XCITING 500/250

CRANKCASE BREATHER

Remove the crankcase breather tube plug from the tube and drain deposits into a suitable container.

Reinstall the crankcase breather tube plug.

Service more frequently when riding in rain, at full throttle, or after the scooter is washed or overturned. Service if the deposit level can be seen in the transparent section of the drain tube.

SPARK PLUG

REMOVAL

Remove the spark plug maintenance lid

(XCITING 500) (page 2-4).

Remove the luggage box (XCITING 250)

(page 2-3)

Disconnect the spark plug cap and clean around the spark plug

Clean around the spark plug base with compressed air before removing, and be sure that no debris is allowed to enter the combustion chamber.

Spark Plug Cap

Spark Plug Cap

3-10

3

. INSPECTION/ADJUSTMENT

Remove the spark plug using a equipped spark plug wrench or an equivalent tool.

Inspect or replace as described in the maintenance schedule.

INSPECTION

Remove the carbon deposits from the spark plug with a small wire brush or a spark plug cleaning machine.

The spark plug should be replaced periodically. Whenever removing the carbon deposits, be sure to observe the operational color of the spark plug's porcelain tip. This color tells you whether or not the standard spark plug is suitable for your type of usage.

A normal operating spark plug should be light brown or tan color. If the spark plug is very white or glazed appearing, then it has been operating much too hot. This spark plug should be replaced with the colder plug.

Recommended spark plug:

XCITING 500: NGK: CR8E

XCITING 250: NGK: DPR7EA-9

Measure the spark plug gap between the center and side electrodes with the feeler gauge.

If necessary, adjust the gap by bending the side electrode carefully.

Spark plug gap:

0.60.7 mm (0.0240.028 in)

Install the spark plug in the cylinder head and hand tighten, then torque to the specification.

Torque: 12 N•m (1.2kgf•m, 9 lbf•ft)

Install the spark plug cap.

Install the removed parts in the reverse order of removal.

3-11

Spark Plug

XCITING 500/250

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

Timing Hole Cap/O-ring

VALVE CLEARANCE

Inspect and adjust the valve clearance while the engine is cold (Below

35°C/95°F).

To adjust (XCITING 500):

Remove the floorboard (page 2-6).

Remove the cylinder head cover (page 8-7).

Remove the timing hole cap and O-ring.

Remove the crankshaft hole cap and O-ring.

Crankshaft Hole Cap/O-ring

“T” Mark

Turn the crankshaft clockwise and align the

“T” mark on the flywheel with the index mark on the right crankcase cover.

Index Mark

The punch marks on the camshaft should face upward as shown.

If the punch marks on the camshaft are facing downward, turn the crankshaft clockwise one full turn (360°) and the punch marks are facing upward.

Punch Marks

3-12

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

Lock Nut Thickness Gauge

Adjust by loosening the valve adjusting screw lock-nut and turning the adjusting screw until there is a slight drag on the thickness gauge.

Valve clearance (when cold):

IN.: 0.1 mm (0.004 in)

EX.: 0.1 mm (0.004 in)

Apply oil to the valve adjusting screw locknut threads and seating surface.

Hold the adjusting screw and tighten the lock nut.

Special tool:

Valve adjusting wrench E012

Torque: 9N•m (0.9 kgf•m, 6 lbf•ft)

After tightening the lock nut, recheck the valve clearance.

Install the removed parts in the reverse order of removal.

Valve Adjusting Wrench/Adjusting Screw

Index Mark

To adjust (XCITING 250):

Remove the floorboard (page 2-6).

Remove the cylinder head cover (page 8-8).

Remove the timing hole cap and O-ring.

Remove the crankshaft hole cap and O-ring.

Turn the crankshaft clockwise and align the

“T” mark on the flywheel with the index mark on the right crankcase cover.

If the punch marks on the camshaft are facing downward, turn the crankshaft clockwise one full turn (360°) and the punch marks are facing upward.

“T” Mark Punch Mark

3-13

3

. INSPECTION/ADJUSTMENT

Adjust by loosening the valve adjusting screw lock-nut and turning the adjusting screw until there is a slight drag on the thickness gauge.

Valve clearance (when cold):

IN.: 0.1 mm (0.004 in)

EX.: 0.1 mm (0.004 in)

Apply oil to the valve adjusting screw locknut threads and seating surface.

Hold the adjusting screw and tighten the lock nut.

Special tool:

Valve adjusting wrench E012

Torque: 9N•m (0.9 kgf•m, 6 lbf•ft)

After tightening the lock nut, recheck the valve clearance.

Install the removed parts in the reverse order of removal.

ENGINE OIL

OIL LEVEL INSPECTION

Start the engine and let it idle for 2-3 minutes.

Turn off the engine and support the scooter level surface.

Remove the oil filler cap/dipstick and wipe the oil from the dipstick with a clean cloth.

Insert the dipstick into the oil filler hole without screwing it in.

If the oil level is below or near the lower level line (1) he dipstick, add the recommended engine oil until the oil level is to the upper level line (2)

Valve Wrench

XCITING 500/250

Oil Filler Cap/Dipstick

3-14

3

. INSPECTION/ADJUSTMENT

Recommended engine oil:

KYMCO 4-stroke oil or equivalent motor oil API service classification: SJ

Viscosity: SAE 5W50

Other viscosities shown in the chart may be used when the average temperature in your riding area is within the indicated range.

Reinstall the filler cap/dipstick.

ENGINE OIL & STARINER SCREEN

When running in very dusty conditions, oil changes should be performed more frequently than specified in the maintenance schedule.

Please dispose of used engine oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local recycling center or service station for reclamation. Do not throw it in the trash or pour it on the ground or down a drain.

Used engine oil may cause skin cancer if repeatedly left in contact with the skin for prolonged periods. Although this is unlikely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon as possible after handling used oil.

Change the engine oil with the engine at normal operating temperature and the scooter on its center stand to assure complete and rapid draining.

Remove the oil filler cap/dipstick (1) from the right crankcase cover.

3-15

XCITING 500/250

3

. INSPECTION/ADJUSTMENT

Place a drain pan under the crankcase and remove the oil strainer cap.

The setting spring and oil strainer screen will come out when the oil strainer cap is removed.

XCITING 500/250

Strainer Screen

Setting Spring

O-ring

Strainer Cap

Clean the oil strainer screen.

After draining the oil completely, install the strainer screen and setting spring into the engine.

Oil Strainer Screen

Apply clean engine oil to the strainer cap threads, flange surface and a new O-ring.

Install and tighten the strainer cap with a new

O-ring.

Torque: 15N•m (1.5 kgf•m, 11 lbf•ft)

Strainer Screen

Setting Spring

O-ring

Strainer Cap

3-16

3

. INSPECTION/ADJUSTMENT

Fill the crankcase with the recommended engine oil.

Oil capacity (XCITING 500):

2.0 liter (2.1 US qt, 1.8 lmp qt) at draining

2.1 liter (2.2 US qt, 1.9 lmp qt)

at oil filter cartridge change

Oil capacity (XCITING 250):

0.9 liter (0.95 US qt, 0.8 lmp qt)

at draining

Install the oil filler cap/dipstick (1).

Check the engine oil level (page 3-14).

.

Make sure there are no oil leaks

ENGINE OIL FILTER

CARTRIDGE (XCITING 500)

REPLACEMENT

Drain the engine oil (page 3-15).

Remove the rubber sleeve (2) by removing the clip (1).

Remove and discard the oil filter cartridge (3) using the special tool.

Tool:

Oil filter wrench: E052

XCITING 500/250

3-17

3

. INSPECTION/ADJUSTMENT

Apply clean engine oil to the new oil filter cartridge threads, flange surface and a new Oring.

Install the new oil filter cartridge and tighten it to the specified torque.

Tool:

Oil filter cartridge wrench E052

Torque: 10N•m (1 kgf•m, 7 lbf•ft)

Refill the engine oil (page 3-15)

O-ring

ENGINE IDLE SPEED

ΠInspect and adjust the idle speed after all other engine maintenance items have been performed and are within specification.

ΠThe engine must be warm for accurate idle speed inspection and adjustment.

Warm up the engine.

Place the scooter on its center stand.

Unlock the seat with the ignition key.

Open the seat and remove carburetor cover

(1).

Turn the throttle stop screw (2) as required to obtain the specified idle speed.

Idle speed (XCITING 500): 1400±100 rpm

(1)

XCITING 500/250

3-18

3

. INSPECTION/ADJUSTMENT

Idle speed (XCITING 250): 1600±100 rpm

XCITING 500/250

RADIATOR COOLANT

Place the scooter on its center stand.

Check the coolant level through the inspection window at the left floor skirt while the engine is at the normal operating temperature.

The level should be between the “F and “L” level surface.

If the level is low, remove the reserve tank cap and fill the tank to the “F” level line with

1:1 mixture of distilled water and antifreeze

(coolant mixture preparation: page 6-7)

Using coolant with silicate inhibitors may cause premature wear of water pump seals or blockage of radiator passages. Using tap water may cause engine damage.

3-19

3

. INSPECTION/ADJUSTMENT

Remove the left floor mat and remove screw and reserve tank lid.

XCITING 500/250

Reserve Tank Lid

Screw

Remove reserve tank cap.

Check to see if there are any coolant leaks when the coolant level decrease very rapidly.

If reserve tank becomes completely empty, there is a possibility of air getting into the cooling system.

Be sure to remove all air from the cooling system (page 6-8).

Reinstall the filler cap.

Left Floor Mat

Reserve Tank Cap

COOLING SYSTEM

Remove the floorboard (page 2-6).

Check for any coolant leakage from the water pump, radiator hoses and hose joints.

Check the radiator hoses for cracks or deterioration and replace if necessary.

Check that all hose clamps are tight.

Remove the front lower cover (page 2-15).

Radiator Hose

3-20

3

. INSPECTION/ADJUSTMENT

Check the radiator air passages for clogs or damage.

Straighten any bent fins, and remove insects, mud or other obstructions with compressed air or low water pressure.

Replace the radiator if the air flow is restricted over more than 20% of the radiating surface.

XCITING 500/250

SECONDARY AIR SUPPLY

SYSTEM

This model is equipped with a built-in secondary air supply system.

The secondary air supply system introduces filtered air into exhaust gases in the exhaust port. The secondary air is drawn into the exhaust port whenever there is negative pressure pulse in the exhaust system. This charged secondary air promotes burning of the unburned exhaust gases and changes a considerable amount of hydrocarbons and carbon monoxide into relatively harmless carbon dioxide and water.

Check the AICV (air injection control valve) hoses between the AICV control solenoid valve and cylinder head cover for deterioration, damage or loose connections.

Make sure the hoses are not cracked.

If the hoses show any signs of heat damage, inspect the AICV check valve in the AICV reed valve cover damage.

Air Supply Hose AICV Reed Valve

XCITING 500

AICV Control Solenoid Valve

3-21

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

AICV Reed Valve

XCITING 250

TRANSMISSION OIL

OIL CHANGE

Place the scooter in its center stand.

Remove the transmission oil drain bolt (1) and the transmission oil filler bolt (2), slowly turn the rear wheel and drain the oil.

After draining the oil completely, install the oil drain bolt with a new sealing washer and tighten it.

Torque: 20 N•m (2 kgf•m, 15 lbf•ft)

AICV Control Solenoid Valve

3-22

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

Fill the transmission case with recommended oil.

Recommended transmission oil: SAE 90

Oil capacity (at draining):

XCITING 500:

0.45 liter (0.48 US qt, 0.4 lmp qt)

XCITING 500:

0.18 liter (0.19 US qt, 0.16 lmp qt)

Install the transmission oil filler bolt with a new sealing washer and tighten it.

Torque: 20 N•m (2 kgf•m, 15 lbf•ft)

3-23

3

. INSPECTION/ADJUSTMENT

BRAKE FLUID

ΠDo not mix different type of fluid, as they are not compatible with each other.

ΠDo not allow foreign material to enter the system when filling the reservoir.

ΠAvoid spilling fluid on painted, plastic or rubber parts. Place a rag over these parts whenever the system is serviced.

When the fluid level is low, check the brake pads for wear. A low fluid level may be due to wear of the brake pads. If the brake pads are worn, the caliper piston is pushed out, and this accounts for a low reservoir level. If the brake pads are not worn and the fluid level is low, check the entire system for leaks.

FRONT BRAKE

Turn the handlebar so the reservoir is level and check the front brake fluid reservoir level.

If the level is near the lower level line “L”, check brake pad wear.

REAR BRAKE

Place the scooter on a level surface and support it in an upright position.

Check the rear brake fluid reservoir level.

If the level is near the lower level line“L”, check brake pad wear.

XCITING 500/250

3-24

3

. INSPECTION/ADJUSTMENT

BRAKE PAD WEAR

Brake pad wear depends upon the severity of usage, the type of riding, and road conditions.

(Generally, the pads will wear faster on wet and dirty roads.) Inspect the pads at each regular maintenance interval.

FRONT RIGHT/LEFT BRAKE

Check the cutout in each pad.

If either pad is worn to the cutout, replace both pads as a set.

REAR BRAKE

Check the cutout in each pad.

If either pad is worn to the cutout, replace both pads as a set.

XCITING 500/250

BRAKE SYSTEM

INSPECTION

This model equipped with a linked brake system.

Check the rear brake operation as follows:

Place the scooter on its center stand.

Jack-up the scooter to raise the front wheel off the ground.

Do not use the oil filter as a jack point.

3-25

Rear Brake Lever

3

. INSPECTION/ADJUSTMENT

Operate the rear brake lever.

Make sure the front wheel does not turn while the rear brake lever is operated.

XCITING 500/250

Firmly apply the brake lever and check that no air has entered the system.

If the lever feels soft or spongy when operated, bleed the air from the system.

Inspect the brake hose and fittings for deterioration, cracks and signs of leakage.

Tighten any loose fittings.

Replace hoses and fittings as required.

BRAKE LOCK OPERATION

(XCITING 500)

INSPECTION

Stop the engine and put the scooter on its center stand on level ground.

Pull up the parking brake lever slowly and check the parking brake lever stroke.

Parking brake lever stroke: 36 notches

If out of specification, adjust the parking brake lever.

3-26

3

. INSPECTION/ADJUSTMENT

XCITING 500/250

ADJUSTMENT

Place the scooter on its center stand.

Release the parking brake lever lock.

Pull up the parking brake lever until 1 notch.

Loosen the lock nut.

Turn the adjust bolt until you feel resistance when turn the rear wheel by your hand.

Hold the adjust bolt and tighten the lock nut securely.

Release the parking brake lever.

Make sure the rear wheel turns smoothly.

Pull the parking brake lever slowly and check the lever stroke.

Standard: 36 notches

All stroke: 9 notches

If there is out of specification, adjust again.

Lock Nut Adjust Bolt

HEADLIGHT AIM

Place the scooter on a level surface.

Adjust the headlight beam vertically by turning the vertical beam adjuster.

A clockwise rotation moves the beam up and counterclockwise rotation moves the beam down.

Adjust the headlight beam horizontally by turning the horizontal beam adjuster.

A clockwise rotation moves the beam toward the right side of the rider.

Adjust the headlight beam as specified by local laws and regulations.

Horizontally Adjusting Screw

Vertically Adjusting Screw

3-27

3

. INSPECTION/ADJUSTMENT

SIDE STAND

Support the scooter on a level surface.

Check the side stand spring for fatigue or damage.

Check the side stand assembly for smooth movement and lubricate the side stand pivot if necessary.

Check the side stand ignition cut-off system:

9 Start the engine.

9 Fully lower the side stand while running the engine.

9 The engine should stop as the side stand is lowered.

If there is a problem with the system, check the side stand switch (page 20-15).

SUSPENSION

FRONT SUSPENSION INSPECTION

Check the action of the forks by operating the front brakes and compressing the front suspension several times.

Check the entire assembly for signs of leaks, damage or loose fasteners.

Replace damaged components which cannot be repaired.

Tighten all nuts and bolts.

XCITING 500/250

3-28

3

. INSPECTION/ADJUSTMENT

REAR SUSPENSION INSPECTION

Check the action of the shock absorber by compressing it several times.

Check the entire shock absorber assembly for signs of leaks, damage or loose fasteners.

Replace damaged components which cannot be repaired.

Tighten all nuts and bolts.

NUTS, BOLTS, FASTENERS

Check that all chassis nuts and bolts are tightened to their correct torque values (page

1-8).

Check that all safety clips, hose clamps and cable stays are in place and properly secured.

WHEELES/TIRE

S

Tire pressure should be checked when the tires are cold.

Recommended tire pressure:

XCITING 500/250

3-29

3

. INSPECTION/ADJUSTMENT

Recommended tire size:

XCITING 500/250

Check the tires for cuts, embedded nails, or other damage.

Check the front and rear wheels for trueness.

Measure the tread depth at the center of the tires.

Replace the tires when the tread depth reaches the following limits.

Minimum tread depth:

Front: 1.6 mm (0.06 in)

Rear: 2.0 mm (0.08 in)

STEERING HEAD BEARINGS

Check that the control cables do not interfere with handlebar rotation.

Support the scooter securely and raise the front wheel off the ground.

Check that the handlebar moves freely from side to side.

If the handlebar moves unevenly, binds, or has vertical movement, inspect the steering head bearings.

3-30

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
