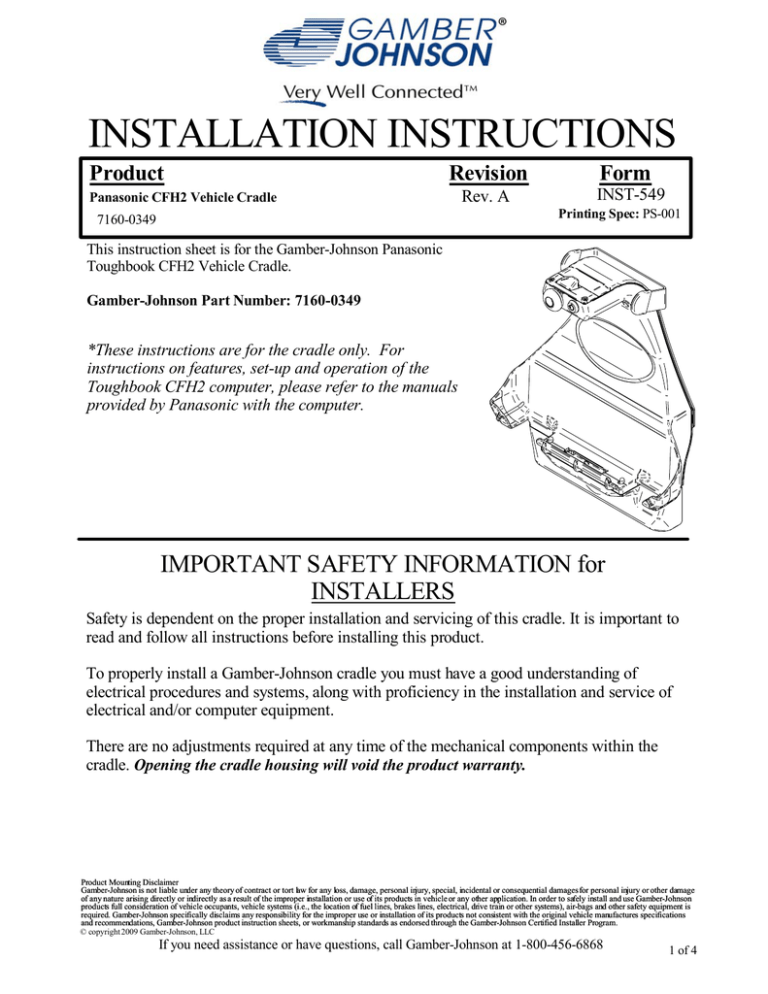

INSTALLATION INSTRUCTIONS
Product
Revision
Panasonic CFH2 Vehicle Cradle
Rev. A
Form
INST-549
Printing Spec: PS-001
7160-0349
This instruction sheet is for the Gamber-Johnson Panasonic
Toughbook CFH2 Vehicle Cradle.
Gamber-Johnson Part Number: 7160-0349
*These instructions are for the cradle only. For
instructions on features, set-up and operation of the
Toughbook CFH2 computer, please refer to the manuals
provided by Panasonic with the computer.
IMPORTANT SAFETY INFORMATION for
INSTALLERS
Safety is dependent on the proper installation and servicing of this cradle. It is important to
read and follow all instructions before installing this product.
To properly install a Gamber-Johnson cradle you must have a good understanding of
electrical procedures and systems, along with proficiency in the installation and service of
electrical and/or computer equipment.
There are no adjustments required at any time of the mechanical components within the
cradle. Opening the cradle housing will void the product warranty.
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© copyright 2009 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
1 of 4
Components
Actuator Button
Latching
Mechanism
Front View
Lock (Optional)
FIG. A
Expansion Bus
Back View
Mounting Holes
75mm VESA
(Use M4 x 0.7 Screws Provided)
FIG. B
2 of 4
Inserting Computer Into Cradle
1. Insert bottom of computer into the cradle (FIG C).
2. Push the top of computer back into the cradle
until an audible "click" is heard and the
computer is secured by the Latching Mechanism (FIG D).
3. (Optional) The Key Lock can now be used for
security purposes.
FIG. C
FIG. D
3 of 4
Removing Computer From Docking Station
1. If docking station is locked, unlock using the key provided.
2. Grasp the computer handle and press the Actuator Button in and down
with the palm of your hand. (FIG E).
3. Pull the computer towards you to remove from the cradle (FIG F).
Actuator Button
FIG. E
FIG. F
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© copyright 2009 Gamber-Johnson, LLC
4 of 4
