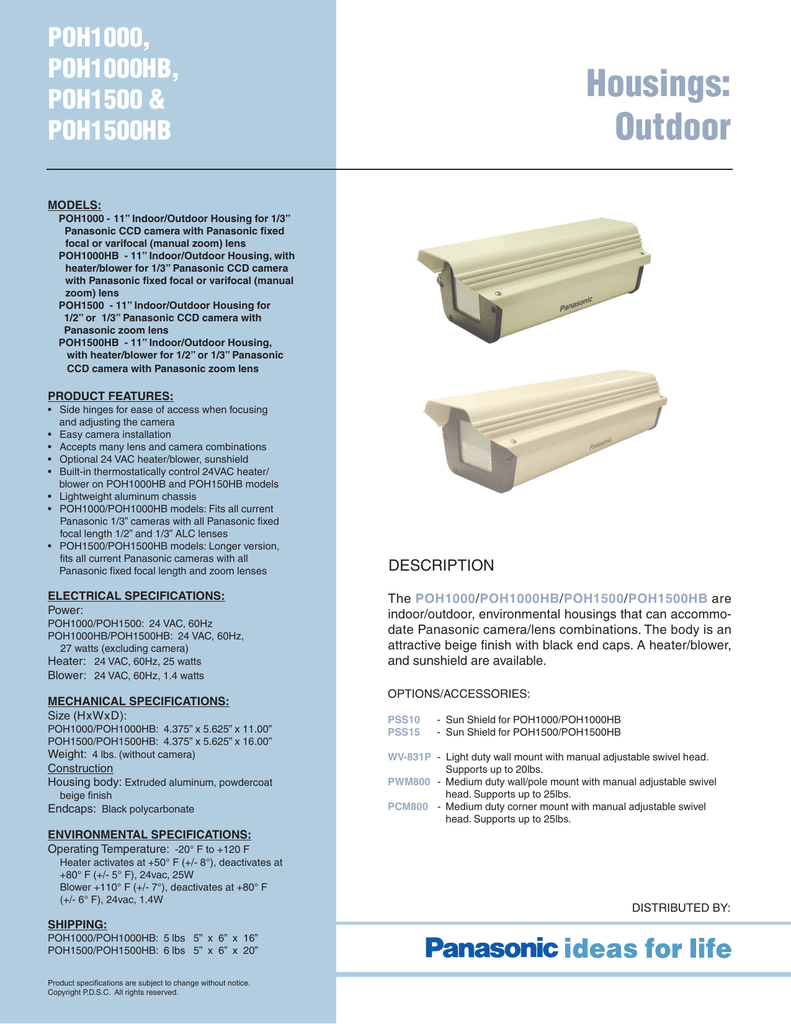

Panasonic POH1500HB Description

POH1000,
POH1000HB,
POH1500 &
POH1500HB
Housings:
Outdoor
MODELS:
POH1000 - 11” Indoor/Outdoor Housing for 1/3”
Panasonic CCD camera with Panasonic fixed
focal or varifocal (manual zoom) lens
POH1000HB - 11” Indoor/Outdoor Housing, with
heater/blower for 1/3” Panasonic CCD camera
with Panasonic fixed focal or varifocal (manual
zoom) lens
POH1500 - 11” Indoor/Outdoor Housing for
1/2” or 1/3” Panasonic CCD camera with
Panasonic zoom lens
POH1500HB - 11” Indoor/Outdoor Housing,
with heater/blower for 1/2” or 1/3” Panasonic
CCD camera with Panasonic zoom lens
PRODUCT FEATURES:
• Side hinges for ease of access when focusing
and adjusting the camera
• Easy camera installation
• Accepts many lens and camera combinations
• Optional 24 VAC heater/blower, sunshield
• Built-in thermostatically control 24VAC heater/
blower on POH1000HB and POH150HB models
• Lightweight aluminum chassis
• POH1000/POH1000HB models: Fits all current
Panasonic 1/3” cameras with all Panasonic fixed
focal length 1/2” and 1/3” ALC lenses
• POH1500/POH1500HB models: Longer version,
fits all current Panasonic cameras with all
Panasonic fixed focal length and zoom lenses
ELECTRICAL SPECIFICATIONS:
Power:
POH1000/POH1500: 24 VAC, 60Hz
POH1000HB/POH1500HB: 24 VAC, 60Hz,
27 watts (excluding camera)
Heater: 24 VAC, 60Hz, 25 watts
Blower: 24 VAC, 60Hz, 1.4 watts
MECHANICAL SPECIFICATIONS:
Size (HxWxD):
POH1000/POH1000HB: 4.375” x 5.625” x 11.00”
POH1500/POH1500HB: 4.375” x 5.625” x 16.00”
Weight: 4 lbs. (without camera)
Construction
Housing body: Extruded aluminum, powdercoat
beige finish
Endcaps: Black polycarbonate
DESCRIPTION
The POH1000/POH1000HB/POH1500/POH1500HB are
indoor/outdoor, environmental housings that can accommodate Panasonic camera/lens combinations. The body is an
attractive beige finish with black end caps. A heater/blower,
and sunshield are available.
OPTIONS/ACCESSORIES:
PSS10
PSS15
- Sun Shield for POH1000/POH1000HB
- Sun Shield for POH1500/POH1500HB
WV-831P - Light duty wall mount with manual adjustable swivel head.
Supports up to 20lbs.
PWM800 - Medium duty wall/pole mount with manual adjustable swivel
head. Supports up to 25lbs.
PCM800 - Medium duty corner mount with manual adjustable swivel
head. Supports up to 25lbs.
ENVIRONMENTAL SPECIFICATIONS:
Operating Temperature: -20° F to +120 F
Heater activates at +50° F (+/- 8°), deactivates at
+80° F (+/- 5° F), 24vac, 25W
Blower +110° F (+/- 7°), deactivates at +80° F
(+/- 6° F), 24vac, 1.4W
SHIPPING:
POH1000/POH1000HB: 5 lbs 5” x 6” x 16”
POH1500/POH1500HB: 6 lbs 5” x 6” x 20”
Product specifications are subject to change without notice.
Copyright P.D.S.C. All rights reserved.
DISTRIBUTED BY:
POH1000, POH1000HB,
POH1500 & POH1500HB
BID SPECIFICATIONS
POH1500/POH1500HB:
The indoor/outdoor extruded aluminum camera housing shall be a Panasonic
Model POH1500/POH1500HB or equivalent.
The housing shall be compatible for use with
a 1/2” or 1/3” Panasonic CCD camera with
Panasonic zoom lens.
The housing shall include a side
hinge for ease of access for focus adjusting
and servicing. The housing shall be suitable
for use with a sun shield (PSS15). The housing shall be compatible for use with the
following mounts: WV-831P light duty mount;
PWM800 medium duty wall/pole mount; and
PCM800 medium duty corner mount.
The housing’s dimensions shall not
exceed 4.375”H x 5.625”W x 16”L. The housing’s weight shall not exceed 3.9 lbs. The
power source shall be 24VAC, 60Hz. The
POH1500 housing shall be compatible for
use with a heater or blower. POH1500HB
housing shall include a factory-installed
heater and blower.
POH1000/POH1000HB:
The indoor/outdoor extruded aluminum camera housing shall be a Panasonic
Model POH1000/POH1000HB or equivalent.
The housing shall be compatible for use with
a 1/3” Panasonic CCD camera with
Panasonic fixed focal or varifocal (manual
zoom) lens.
The housing shall include a side
hinge for ease of access for focus adjusting
and servicing. The housing shall be suitable
for use with a sun shield (PSS10). The housing shall be compatible for use with the
following mounts: WV-831P light duty mount;
PWM800 medium duty wall/pole mount; and
PCM800 medium duty corner mount.
The housing’s dimensions shall not
exceed 4.375”H x 5.625”W x 11”L. The housing’s weight shall not exceed 3.5 lbs. The
power source shall be 24VAC, 60Hz. The
POH1000 housing shall be compatible for
use with a heater or blower. POH1000HB
housing shall include a factory-installed
heater and blower.
A
5.67
2.60
13.25
4.42
2.40
B
11.37
4.09
2.44
.55
1/4-20 THREAED INSERTS
O .24
.88
2.16
POH1000(HB)
POH1500(HB)
Length A Length B
11"
13.25"
16"
18.25"
2.16
