Performance to the Next Power
.....

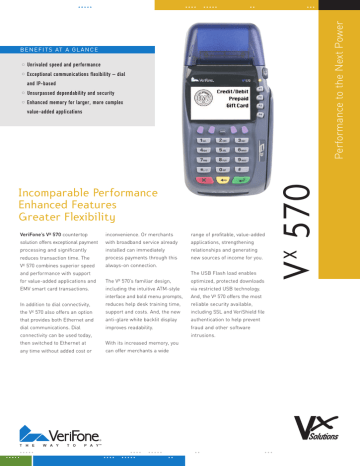

B E N E F I T S AT A G L A N C E
Unrivaled speed and performance
Exceptional communications flexibility – dial
and IP-based
Unsurpassed dependability and security
Enhanced memory for larger, more complex
Incomparable Performance
Enhanced Features
Greater Flexibility
inconvenience. Or merchants
range of profitable, value-added
solution offers exceptional payment
with broadband service already
applications, strengthening
processing and significantly
installed can immediately
relationships and generating
reduces transaction time. The
process payments through this
new sources of income for you.
VX 570 combines superior speed
always-on connection.
X
VeriFone’s VX 570 countertop
The USB Flash load enables
and performance with support
for value-added applications and
The VX 570’s familiar design,
optimized, protected downloads
EMV smart card transactions.
including the intuitive ATM-style
via restricted USB technology.
interface and bold menu prompts,
And, the VX 570 offers the most
In addition to dial connectivity,
reduces help desk training time,
reliable security available,
the VX 570 also offers an option
support and costs. And, the new
including SSL and VeriShield file
that provides both Ethernet and
anti-glare white backlit display
authentication to help prevent
dial communications. Dial
improves readability.
fraud and other software
intrusions.
connectivity can be used today,
then switched to Ethernet at
With its increased memory, you
any time without added cost or
can offer merchants a wide
.....
.....
.... .....
.... .....
..
..
...
V 570
value-added applications
...
.....
.... .....
..
.... .....
..
...
...
S P E C I F I CAT I O N S
Performance to the Next Power
.....
Processor
Printer
200 MHz ARM9 32-bit RISC
microprocessor
Integrated thermal printer with graphics
capabilities, 18 lines per second, 24 or 32
columns, standard paper roll 58 mm (2.25
in.) x 25M, single ply; Optional large paper
roll 58 mm x 35M
Memory
6 MB (4 MB of Flash, 2 MB of SRAM)
Optional 12 MB (8 MB of Flash, 4 MB
of SRAM)
Display
128 x 64 pixel graphical LCD with
backlighting; Supports 8 lines x 21
characters
Modem
Standard 14.4k bps modem supporting
Bell 103/212a, CCITT
V.21/V.22/V.22bis/V.32/V.32bis
(300/1200/2400/9600/14400 bps) and HC
Fast Connect for 1200 bps. Optional: Fast
POS for 9600 bps
Magnetic Card Reader
Triple-track (tracks 1, 2, 3), high
coercivity, bi-directional
Smart Card (Optional)
ISO 7816, 1.8V, 3V, 5V or synchronous and
asynchronous cards; EMV Level 1 and 2
Type Approved
Application selects between asynchronous
protocols (Visa 1, Visa 2, and others) and
synchronous protocols (including ISO
8583/SDLC)
Security
1 or 3 Security Access Modules
SSL v3.0, 3DES encryption, Master/Session
and DUKPT key management; VeriShield
file authentication
Keypad
Physical
3 x 4 numeric keypad, plus 8
soft-function keys and 4 screenaddressable keys; PCI approved
Length: 209 mm (8 in.); Width: 102 mm
(4 in.); Height: 78 mm (3.07 in.) Weight:
Terminal/750 g (1.65 lbs.), Full
shipping/1,377 g (3.03 lbs.)
SAM Card Reader (Optional)
V 570
Protocols
I/O Modules
14.4k modem module; Ethernet and 14.4k
modem combination module
Peripheral Ports
X
One USB 1.1 port supports flash memory
devices; Two RS-232 ports support peripherals including PIN pads and check readers;
One telco port and one Ethernet (with
Ethernet/14.4 I/O module) support
communications
Environmental
0 to 40 C (32 to 104 F) operating
temperature, 5% to 90% relative
humidity, non-condensing
Voltage
AC input 100 - 240 VAC, 50/60 Hz; DC
Output 8.6 - 9.4 VDC, 4.0 Amp
Features & Benefits
Remarkable Power and Performance
• 200 MHz, 32-bit ARM9 processor for
exceptionally fast processing
• Up to 12 MB of memory allows for
multi-application capabilities
• Dial communication module can
be upgraded to dial and Ethernet
without switching devices
• Integrated USB technology port
allows for secure and easy
application downloads from a
Flash memory drive
• Built on the VX Solutions infrastructure and its suite of familiar TCP/IP
tools for smooth migration from
Omni 3700 solutions
Exceptional Flexibility and
Functionality
Sophisticated Security Features
Deter Threats
• Intuitive ATM-style interface, bold
menu prompts, larger pixels and
white backlit display facilitate use
and readability
• Most recent security, including
end-to-end SSL encryption and
sophisticated VeriShield file
authentication
• Integrated thermal printer with
optional support for paper roll that
is 40% larger than the standard size
• PCI approved for debit and
other PIN-based transactions,
and has EMV Level 1 and Level 2
Type Approval
• Internal PIN pad supports debit and
other PIN-based applications
• Triple-track, high-coercivity card
reader accurately handles most
magnetic-stripe cards, including
mini-cards
• Security Access Modules support
multiple smart card solutions and
offer added data protection for EMV
smart card transactions
• Application separation at hardware
and software levels minimizes or
eliminates the need to recertify existing
payment applications every time an
application is added or modified and
third-party applications can coexist
securely
• Integrated high-speed thermal
printer (18 lines per second) speeds
overall transaction times from swipe
to print
© 2006 VeriFone. All rights reserved. VeriFone, the VeriFone logo, Vx 570, Vx Solutions, and VeriShield are either trademarks or registered
trademarks of VeriFone in the United States and/or other countries. All features and specifications are subject to change without notice.
10/06 45438 Rev B 2M/MA
www.verifone.com
