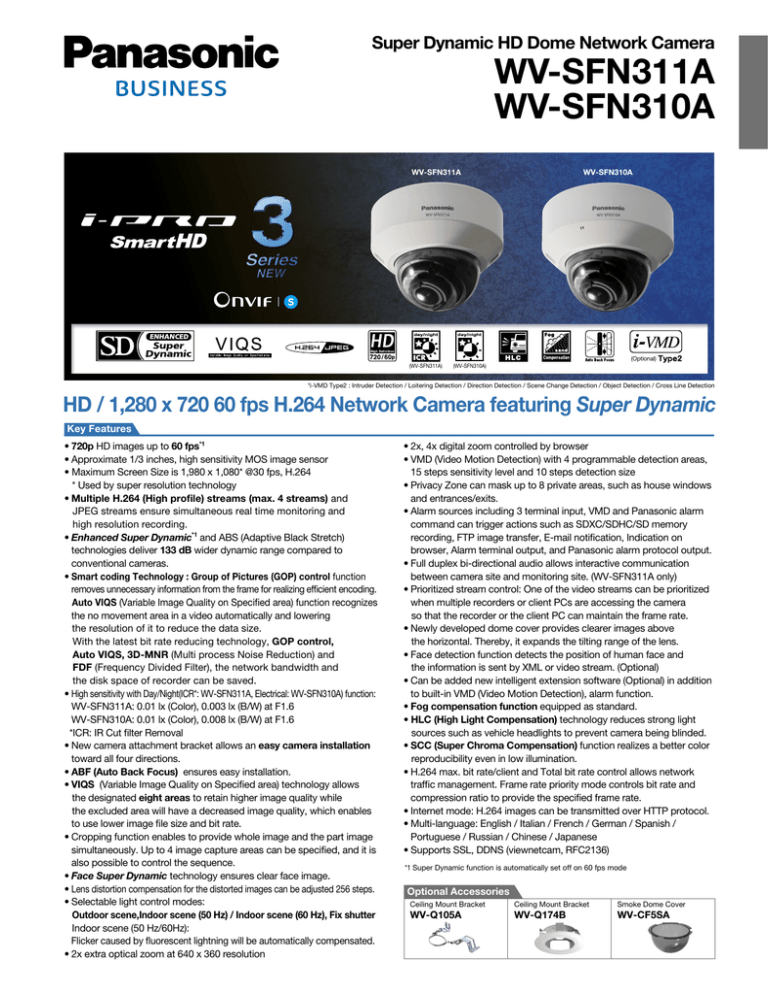

Super Dynamic HD Dome Network Camera
WV-SFN311A
WV-SFN310A
WV-SFN311A
WV-SFN310A
(Optional)
(WV-SFN311A)
(WV-SFN310A)
*i-VMD Type2 : Intruder Detection / Loitering Detection / Direction Detection / Scene Change Detection / Object Detection / Cross Line Detection
HD / 1,280 x 720 60 fps H.264 Network Camera featuring Super Dynamic
Key Features
• 720p HD images up to 60 fps*1
• Approximate 1/3 inches, high sensitivity MOS image sensor
• Maximum Screen Size is 1,980 x 1,080* @30 fps, H.264
* Used by super resolution technology
• Multiple H.264 (High profile) streams (max. 4 streams) and
JPEG streams ensure simultaneous real time monitoring and
high resolution recording.
• Enhanced Super Dynamic*1 and ABS (Adaptive Black Stretch)
technologies deliver 133 dB wider dynamic range compared to
conventional cameras.
• Smart coding Technology : Group of Pictures (GOP) control function
removes unnecessary information from the frame for realizing efficient encoding.
Auto VIQS (Variable Image Quality on Specified area) function recognizes
the no movement area in a video automatically and lowering
the resolution of it to reduce the data size.
With the latest bit rate reducing technology, GOP control,
Auto VIQS, 3D-MNR (Multi process Noise Reduction) and
FDF (Frequency Divided Filter), the network bandwidth and
the disk space of recorder can be saved.
• High sensitivity with Day/Night(ICR*: WV-SFN311A, Electrical: WV-SFN310A) function:
WV-SFN311A: 0.01 lx (Color), 0.003 lx (B/W) at F1.6
WV-SFN310A: 0.01 lx (Color), 0.008 lx (B/W) at F1.6
*ICR: IR Cut filter Removal
• New camera attachment bracket allows an easy camera installation
toward all four directions.
• ABF (Auto Back Focus) ensures easy installation.
• VIQS (Variable Image Quality on Specified area) technology allows
the designated eight areas to retain higher image quality while
the excluded area will have a decreased image quality, which enables
to use lower image file size and bit rate.
• Cropping function enables to provide whole image and the part image
simultaneously. Up to 4 image capture areas can be specified, and it is
also possible to control the sequence.
• Face Super Dynamic technology ensures clear face image.
• Lens distortion compensation for the distorted images can be adjusted 256 steps.
• Selectable light control modes:
Outdoor scene,Indoor scene (50 Hz) / Indoor scene (60 Hz), Fix shutter
Indoor scene (50 Hz/60Hz):
Flicker caused by fluorescent lightning will be automatically compensated.
• 2x extra optical zoom at 640 x 360 resolution
• 2x, 4x digital zoom controlled by browser
• VMD (Video Motion Detection) with 4 programmable detection areas,
15 steps sensitivity level and 10 steps detection size
• Privacy Zone can mask up to 8 private areas, such as house windows
and entrances/exits.
• Alarm sources including 3 terminal input, VMD and Panasonic alarm
command can trigger actions such as SDXC/SDHC/SD memory
recording, FTP image transfer, E-mail notification, Indication on
browser, Alarm terminal output, and Panasonic alarm protocol output.
• Full duplex bi-directional audio allows interactive communication
between camera site and monitoring site. (WV-SFN311A only)
• Prioritized stream control: One of the video streams can be prioritized
when multiple recorders or client PCs are accessing the camera
so that the recorder or the client PC can maintain the frame rate.
• Newly developed dome cover provides clearer images above
the horizontal. Thereby, it expands the tilting range of the lens.
• Face detection function detects the position of human face and
the information is sent by XML or video stream. (Optional)
• Can be added new intelligent extension software (Optional) in addition
to built-in VMD (Video Motion Detection), alarm function.
• Fog compensation function equipped as standard.
• HLC (High Light Compensation) technology reduces strong light
sources such as vehicle headlights to prevent camera being blinded.
• SCC (Super Chroma Compensation) function realizes a better color
reproducibility even in low illumination.
• H.264 max. bit rate/client and Total bit rate control allows network
traffic management. Frame rate priority mode controls bit rate and
compression ratio to provide the specified frame rate.
• Internet mode: H.264 images can be transmitted over HTTP protocol.
• Multi-language: English / Italian / French / German / Spanish /
Portuguese / Russian / Chinese / Japanese
• Supports SSL, DDNS (viewnetcam, RFC2136)
*1 Super Dynamic function is automatically set off on 60 fps mode
Optional Accessories
Ceiling Mount Bracket
WV-Q105A
Ceiling Mount Bracket
WV-Q174B
Smoke Dome Cover
WV-CF5SA
Specifications
Camera Image Sensor
Scanning Mode
Scanning Area
Minimum Illumination
Approx. 1/3 type MOS image sensor
Progressive scan
4.86 mm (H) x 3.89 mm (V) {3/16 inches(H) x 5/32 inches(V) }
WV-SFN311A
Color: 0.01 lx, BW : 0.003 lx (F1.6, Maximum shutter : Max. 1/30s, Gain : On(High))
Color: 0.0007 lx, BW : 0.0002 lx (F1.6, Maximum shutter : Max. 16/30s, Gain : On(High))*1
WV-SFN310A
Color: 0.01 lx, BW : 0.008 lx (F1.6, Maximum shutter : Max. Off (1/30s), Gain : On(High))
Color: 0.0007 lx, BW : 0.0005 lx (F1.6, Maximum shutter : Max. 16/30s, Gain : On(High))*1
White Balance
AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Light Control Mode
Outdoor scene/ Indoor scene (50 Hz)/ Indoor scene (60 Hz)/ Fix shutter
Shutter Speed
[1.3 mega pixel [16 : 9](60 fps mode)]
Off(1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,1/10000
Other than [1.3 mega pixel [16 : 9](60 fps mode)]
Off(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250,1/500,
1/1000,1/2000, 1/4000, 1/10000
On(High) / On(Normal) / Off
Super Dynamic *2
Face Super Dynamic
On / Off (Only when Super Dynamic : On)
Adaptive Black Stretch
On / Off (Only when Super Dynamic : Off)
Fog compensation
On / Off (Only when Super Dynamic / Adaptive black stretch : Off)
AGC
On (Low, Mid, High) / Off
max. 1/1000 s, max. 1/500 s, max. 1/250 s, max. 1/120 s, max. 1/100 s, max. 2/120 s,
Maximum shutter
max. 2/100 s, max. 1/30 s, max. 2/30 s, max. 4/30 s, max. 6/30 s, max. 10/30 s, max. 16/30 s
WV-SFN311A : ICR
Day/Night
Mode : Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC)
WV-SFN310A : Electrical
Mode : Off / AUTO
Dynamic Range
133 dB typ. (Super Dynamic : On, Light Control Mode : indoor)
Digital Noise Reduction
High / Low
Video Motion Detection
4 areas, Sensitivity : 15 steps, Detection size : 10 steps
Privacy Zone
On/ Off (up to 8 zones available)
VIQS
On/ Off (up to 8 zones available)
Camera Title (OSD)
On/ Off, Up to 20 characters (alphanumeric characters, marks)
Electric Zoom
TELE / WIDE , Auto Coarse adjustment of Focus
Focus Adjustment
ABF / MANUAL(Html only)
Lens Distortion Compensation 256 steps
Lens
Vari Focal Length
2.8 - 10 mm {1/8 inches - 25/64 inches}
[16 : 9 mode] Horizontal : 28° (TELE) – 100° (WIDE)
Angular Field of View
Vertical
: 16° (TELE) – 54° (WIDE)
[4 : 3 mode] Horizontal : 28° (TELE) – 100° (WIDE)
Vertical
: 21° (TELE) – 73° (WIDE)
Maximum Aperture Ratio 1 : 1.6 (WIDE) - 1 : 3.4 (TELE)
Focusing Range
0.3 m - ∞
Adjusting Angle
Horizontal : +120° to -240° Vertical : ±85°
Slant : ±100°
H.264(1) / H.264(2) / H.264(3) / H.264(4) / H.264(all) / JPEG(1) / JPEG(2) / JPEG(3)
Browser Cropping
Up to 4 image capture areas can be specified
GUI
Camera Control
Brightness, AUX On / Off
Display Mode
Spot, Quad : Image from 16 cameras can be displayed in 4 different Quad
screens or 16 split screen (JPEG only). 20 characters camera title available.
Digital Zoom
1x, 2x, 4x controlled by browser GUI
Camera Title
Up to 20 alphanumeric characters
Clock Display
Time : 12H/24H, Date : 5 formats on the browser, Summer time (Manual)
Alarm Control
Reset
One Shot Capture
A still picture will be displayed on a newly opened window.
Audio
Mic (Line) Input : On / Off
Volume adjustment : Low / Middle / High
Audio Output (WV-SFN311A only) : On / Off Volume adjustment : Low / Middle / High
SD Memory Data Download Still or motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
System Log
Up to 100 (Internal)
Up to 4,000 (SDXC/SDHC/SD memory when the recording format is set to JPEG.) error logs
Supported OS*3
Microsoft® Windows® 8.1, Microsoft® Windows® 8,
Microsoft® Windows® 7, Microsoft® Windows Vista®
Windows® Internet Explorer® 11 (32 bit), Windows® Internet Explorer® 10 (32 bit),
Windows® Internet Explorer® 9 (32 bit),Windows® Internet Explorer® 8 (32 bit),
Windows®Internet Explorer® 7 (32 bit), Safari, Google Chrome, Mozilla Firefox
Network Network IF
10Base-T / 100Base-TX, RJ45 connector
•1.3 mega pixel [16 : 9] (30/60 fps)
Resolution
1,280 x 720 / 640 x 360 / 320 x 180 / 160 x 90
•1.3 mega pixel [4 : 3] (30 fps)
1,280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240 / 160 x 120
•2 mega pixel [16 : 9] (30 fps) * Used by super resolution technology
1,920 x 1,080* / 640 x 360 / 320 x 180 / 160 x 90
H.264*4 Transmission Mode Constant bitrate / Variable bit rate / Framerate priority / Best effort / Advanced VBR
Frame Rate
1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 / 60 fps
Bit Rate/Client
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 6,144 / 8,192
/ 10,240 / 12,288 / 14,336 / 16,384 / 20,480 / 24,576 / 30,720 / 40,960 kbps
Image Quality
Low / Normal / Fine
Network SDXC/SDHC/SD
Memory Card (Option)
H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
* Manufactured by Panasonic JPEG recording :
(SD speed class 4 or higher)
Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
* Use the SD memory card that
complies with UHS-1 (Ultra Compatible SD (SDHC/SDXC) card :
High Speed-1) in the case of Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
SD Speed Class 10.
Cellular Phone Compatibility
Mobile Terminal Compatibility
Alarm Source
Alarm Actions
Alarm
Alarm Log
Schedule
Monitor Output
(for adjustment)
Input/
Output
JPEG image, AUX control (by access level)
iPad, iPhone, iPod touch (iOS 4.2.1 or later), Android™ mobile terminals
3 terminals input, VMD, Command alarm, Audio detection alarm
SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification
Indication on browser, FTP image transfer, Panasonic protocol output
With SDXC/SDHC/SD memory card : Up to 50,000 logs for each SD memory card
Alarm / VMD / Access permission / H.264 recording / Scene file
VBS : 1.0 V [p-p]/75 Ω, composite, ø3.5 mm monaural mini jack
An NTSC or PAL signal can be outputted from camera
(either press the INITIAL SET switch quickly (within 1 second) or use
software to select NTSC or PAL signal).
Microphone/Line Input
ø3.5 mm monaural mini jack (monaural input)
(WV-SFN311A only)
(Applicable microphone : Plug-in power type)
Supply voltage : 2.5 V ±0.5 V
Input impedance : Approx. 2 kΩ (unbalanced)
Built-in microphone (WV-SFN310A only) Nondirectional electret condenser microphone
Audio Output (WV-SFN311A only) ø3.5 mm stereo mini jack (monaural output) Output impedance: Approx. 600 Ω (unbalanced)
External I/O Terminals
ALARM IN 1 (DAY/NIGHT IN*, Auto time adjustment) ,
ALARM IN 2 (ALARM OUT) , ALARM IN 3 (AUX OUT)
*WV-SFN311A only
General Safety
UL (UL60950-1), C-UL (CAN/CSA C22.2 No.60950-1), CE, IEC60950-1
EMS
FCC (Part15 ClassA), ICES003 ClassA, EN55022 ClassB, EN55024
Power Source and
DC power supply : DC12 V / 370 mA / Approx. 4.5 W
PoE (IEEE802.3af) : DC48 V /90 mA / Approx. 4.3 W (Class 2 device)
Power Consumption
Ambient Operating Temperature -10°C to +50°C (14 °F to 122 °F)
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions
ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)}
Dome radius 40 mm {1-9/16 inches}
Mass (approx.)
0.50 kg {1.1 lbs}
Finish
Main body : ABS resin, sail white / Dome cover : Clear acrylic resin
*1 Converted value
*2 Super Dynamic function is automatically set off on 60 fps mode.
*3 Refer to “Notes on Windows Vista® / Windows® 7 / Windows® 8 / Windows® 8.1” on the provided CD-ROM
for further information about system requirements for a PC and precautions when using
Microsoft® Microsoft® Windows® 8.1 or Windows® 8 or Microsoft® Windows® 7 or Microsoft® Windows Vista®.
*4 Transmission for 4 streams can be individually set.
Part Names and Functions
Auto focus LINK indicator
SD memory card* slot
(The illustrations are WV-SFN311A.)
(AF) button
ACT indicator
Attachment plate External I/O terminal
INITIAL SET button
plug (accessory)
(Initializing / NTSC PAL switch button) (accessory)
SD MOUNT indicator
SD ON/OFF button
SD ERROR/AF indicator
Direction marker for
installation( TOP)
• Points up wheninstallingto a wall.
Two-dimensional barcode
(Data Matrix):
To our website
Camera
Screen display
top (TOP)
Azimuth
adjustment ring
No. of Simultaneous Users
Up to 14 users (Depends on network conditions)
MONITOR OUT
terminal
(factory shipment:
NTSC monitor)
SFN310A
Tilting
table
Inner
cover
Pan table fixing screw
with washer
Direction marker for installation(FRONT
)
SFN311A
Built-in
microphone port
SFN310A
Enclosure
Dome cover
SFN310A
Direction marker for installation
Built-in microphone
(FRONT )
• FRONT must positioned
in front of the camera (on the Panasonic logo side).
* SDXC/SDHC/SD memory card is described as SD memory card.
Appearance
(The illustrations are WV-SFN311A.)
56(2-7/32")
ø129.5(ø5-3/32")
101(3-31/32")
On (Low / Mid / High) / Off (Only when "Variable bit rate" is selected)
0.2 / 0.25 / 0.33 / 0.5 / 1 / 2 / 3 / 4 / 5s
Unicast / Multicast
10 steps
0.1 fps - 30 fps (JPEG frame rate will be restricted when displaying both JPEG and H.264 images.)
Pull / Push
G.726 (ADPCM) 32 kbps / 16 kbps, G.711 64 kbps / AAC-LC
Audio Mode(WV-SFN311A only) Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Level 1 only / Level 2 higher / All users
Authentication for Audio
Total Bit Rate
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 2,048 / 4,096 / 8,192 kbps / Unlimited
Supported Protocol
IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP,
SNMP, DHCPv6, MLD, ICMP, ARP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP,
DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
Alarm image transmission, FTP periodic transmission
FTP Client
(When the FTP transmission is failed, backup on an optional
SDXC/SDHC/SD memory card is available.)
Panning
table
Power cord plug
(accessory)
12 V DC power
supply terminal
Supported Browser
Smart Coding mode
Refresh interval
Transmission Type
JPEG Image Quality
Refresh interval
Transmission Type
Audio Compression
Camera
fixing
screw
SR40(1-9/16")
Unit: mm (inches)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– “i-PRO SmartHD” logo is trademark or registered trademark of Panasonic Corporation.
– ONVIF and the ONVIF logo are trademarks of ONVIF Inc.
– All other trademarks identified herein are the property of their respective owners.
Important
– Safety Precaution: Carefully read the Important Information, Installation Guide and operating instructions before using this product.
– Panasonic cannot be responsible for the performance of the network and/or other manufacturers’ products used on the network.
• Masses and dimensions are approximate. • Specifications are subject to change without notice.
DISTRIBUTED BY :
http://security.panasonic.com
http://www.facebook.com/PanasonicNetworkCamera
(2A-152CL)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
