CARPET EXTRACTORS

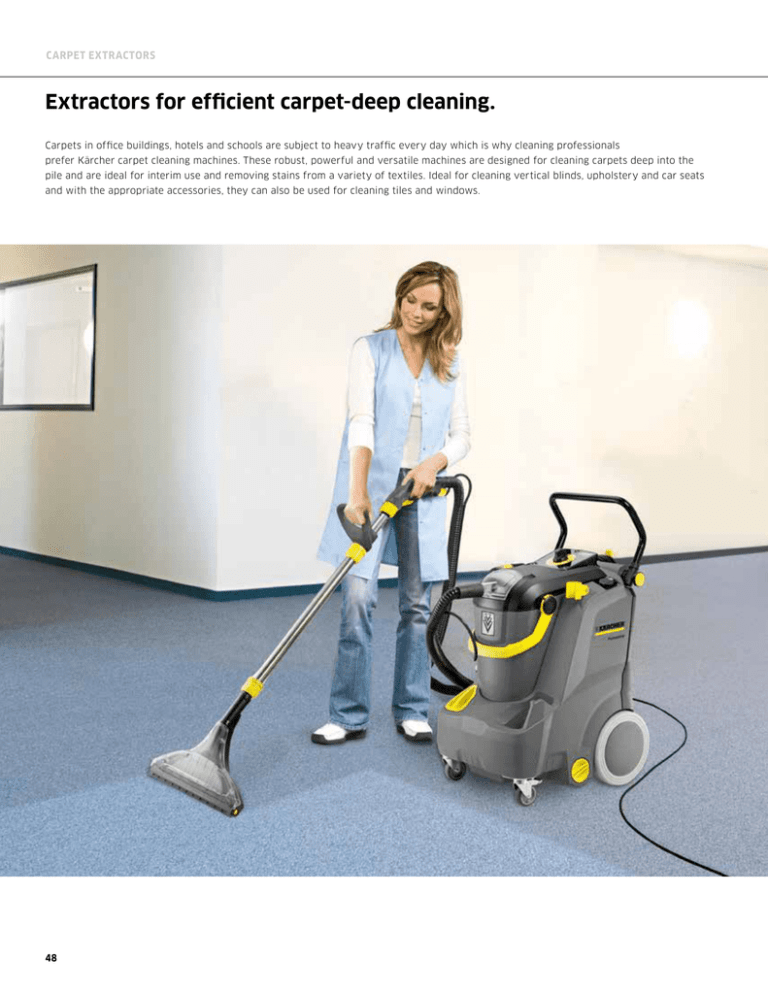

Extractors for efficient carpet-deep cleaning.
Carpets in office buildings, hotels and schools are subject to heavy traffic every day which is why cleaning professionals
prefer Kärcher carpet cleaning machines. These robust, powerful and versatile machines are designed for cleaning carpets deep into the
pile and are ideal for interim use and removing stains from a variety of textiles. Ideal for cleaning vertical blinds, upholstery and car seats
and with the appropriate accessories, they can also be used for cleaning tiles and windows.
48
CARPET EXTRACTORS
1
2
3
Residual moisture in %
4
1
10.2
7.5
6.1
3.8
Puzzi
A
B
C
Kärcher
3
Quick-drying
Kärcher cleaning agents
■■ The powerful suction turbine of the Kärcher Puzzi leaves carpets virtually ■■ Effective against dirt but still environmentally friendly. All cleaning agents touch-dry in minutes. Carpets dry up to 63% faster than comparable
are more than 92% biodegradable. They are highly efficient and help make products and can be walked on in a very short time.
your work easier, faster, and more comfortable. Kärcher cleaning agents optimize the cleaning result saving time and manpower.
2
Spray extraction method
4
■■ With the spray extraction method, the water and cleaning agent are
Thorough cleaning
sprayed deep into the carpet while simultaneously vacuuming the used
■■ Carpet cleaning machines with roller brush system support the cleaning solution back again. Soiling and dirt are removed in one single pass which helps carpets dry very quickly.
action of the cleaning agent and raise the pile.
49
CARPET EXTRACTORS
Puzzi 8/1 C
Handy and compact.
The handy, compact and powerful Puzzi 8/1 C spray extraction
cleaner is ideal for small areas and interim cleaning with excellent
cleaning results.
1
2
3
Lightweight
1
■■ The Puzzi 8/1 C is easy to transport, weighs only 19.8 lbs, making it ideal for interim cleaning, and leaves carpets touch-dry in minutes.
■■ Easy to fill and begin operation in seconds.
2
Compact design
■■ Perfect for cleaning upholstery and vehicle interiors.
50
3
Easy use
■■ Convenient on/off foot switch eliminates bending.
■■ Fold out hook keeps power cord neatly stowed on machine.
■■ CSA listed
CARPET EXTRACTORS
Technical data and equipment
Puzzi 8/1 C
Foldable cable hook
Large foot-operated switches
On-board storage for hand tool
Technical data
Max. area performance
129 – 194 ft2/hr
Air flow rating
115 cfm (58 l / sec)
Spray rate
.26 gallon / min (1 l / min)
Spray pressure/back pressure
14.5 psi (1 bar)
Tank (fresh/dirty)
2 gallon / 1.8 gallon (8 l / 7 l)
Power rating (fan/pump)
1,100 W / 40 W
Vacuum motor
1.5 hp (1,100 W)
Waterlift rating
87” (216 mbar)
Moisture recovery rate
Up to 96%*
Noise
71 dBA
Weight
19.8 lbs (9 kg)
Dimensions (L x W x H)
20.8” x 13” x 17.3” (530 mm x 330 mm x 440 mm)
Equipment
Spray hose with integrated water feed
98.5”
Hand tool
Order No.
1.100-223.0
 Included in delivery.
n
* Varies depending on carpet fiber type or material being cleaned.
Standard Accessories
Product name
Order No.
Description
Hose
6.391-410.0
8’ Hose, Complete with couplings
Hand Tool
4.130-116.0
4.33” Upholstery Hand Tool
Optional Accessories
Floor Wand
4.130-127.0
Floor Wand, 2-Part with Aluminum Tube
Floor Wand
4.130-394.0
Floor Wand, Quick-Action Coupling, Aluminum Tube and Metal Nozzle
Hard Surface Kit
4.762-220.0
Hard Surface Kit (attaches to 4.130-127.0 & 4.130-394.0 wands)
Window Cleaning Kit
2.638-778.0
Window Cleaning Kit with 6.5ft (2M) Hose, (requires 2.389-293.0 Coupler)
Venetian Blind Kit
4.130-083.0
Venetian Blind Kit (requires 6.389-293.0 Coupler)
Stair Cleaning Tool
4.130-128.0
Stair Cleaning Tool, 9”
Solution & vacuum hose
6.391-411.0
13’ High Pressure Solution & vacuum hose
Hose
6.391-410.0
8’ Hose, Complete with couplings
Surface Nozzle
4.130-117.0
Stone & Hard Surface Nozzle
Adaptor
4.762-219.0
Hard Surface Adaptor for Standard Hand Tool
Tablets
6.290-500.0
RM 760 Tablets, 200 Count
Tablets
6.290-828.0
RM 760 Tablets, 16 Count
51
CARPET EXTRACTORS
Puzzi 100
Powerful & Efficient.
A powerful spray extraction unit designed for easy, efficient deep
cleaning of carpets, upholstery and textile flooring. The Puzzi 100 is
an exceptional all rounder, with added features which makes using
the machine even quicker and easier.
1
Powerful
■■ With a powerful 14.5 psi spray rate, the water and detergent solution is
applied to the area being cleaned and picked up immediately by the vacuum nozzle.
■■ Cleaned surfaces can be walked on almost right away as very little residual moisture remains. Carpets dry up to 63% faster than those cleaned with other comparable products.
Technical data and equipment
Puzzi 100
Rubber cushioned pump / turbine module
Detachable wastewater container
Additional handle (adjustable) on the floor nozzle
Technical data
Max. area performance
215-270 ft2/hr
Air flow rating
114 cfm (54 l / sec)
Spray rate
.26 gallon / min (1 l / min)
Spray pressure/back pressure
14.5 psi (1 bar)
Tank (fresh/dirty)
2.6 gallon / 2.3 gallon (10 l / 9 l)
Power rating (fan/pump)
1,250 W / 40 W
Vacuum motor
1.7 hp (1,250 W)
Waterlift rating
88” (220 mbar)
Weight
22.7 lbs (10.3 kg)
Dimensions (L x W x H)
26.2” x 12.6” x 17.1” (665 mm x 320 mm x 435 mm)
Equipment
Spray hose with integrated water feed
98.5”
Hand tool
Order No.
1.100-123.0
Included in delivery.
n
* Varies depending on carpet fiber type or material being cleaned.
Standard Accessories
Product name
Order No.
Description
Hose
6.391-410.0
8’ Hose, Complete with couplings
Hand Tool
4.130-127.0
Floor Wand, 2-Part with Aluminum Tube
Optional Accessories
Hard Surface Kit
4.762-220.0
Hard Surface Kit (attaches to 4.130-127.0 & 4.130-394.0 wands)
Floor Wand
4.130-394.0
Floor Wand, Quick-Action Coupling, Aluminum Tube and Metal Nozzle
52
CARPET EXTRACTORS
Puzzi 200
Double the power.
(available in 220V 50hz only)
The spray rate and pressure of the Puzzi 200 is double that of the
Puzzi 100, giving you increased cleaning performance. The Puzzi
200 is also fitted with a defoaming tank, which when used with
Kärcher anti-foaming chemical, stops the build up of foam in the
dirty water tank. This is particularly helpful for cleaning areas that
have previously been treated with chemical.
1
1
Diverse Applications
■■ Ideal for use in hotels, restaurants, shops and the automotive industry.
Technical data and equipment
Puzzi 200
Foam dosage
Storage compartment for RM tabs
Socket for PW 30/1
Technical data
Max. area performance
323-484 ft2/hr
Air flow rating
114 cfm (54 l / sec)
Spray rate
.52 gallon / min (2 l / min)
Spray pressure/back pressure
29 psi (2 bar)
Tank (fresh/dirty)
2.6 gallon / 2.3 gallon 10 l / 9 l)
Power rating (fan/pump)
1,250 W / 40 W
Vacuum motor
1.5 hp (1,100 W)
Waterlift rating
88” (220 mbar)
Weight
26.7 lbs (12.1 kg)
Dimensions (L x W x H)
26.2” x 12.6” x 17.1” (665 mm x 320 mm x 435 mm)
Equipment
Spray hose with integrated water feed
98.5”
Hand tool
Order No.
1.193-105.0
Included in delivery.
n
* Varies depending on carpet fiber type or material being cleaned.
53
CARPET EXTRACTORS
Puzzi 30/4
More flexibility for cleaning
medium areas.
NEW
This mobile and very quiet machine is specifically designed for
medium sized carpeted areas and represents a user-friendly and
economic cleaning solution. It’s new upright design offers comfortable ergonomic operation and improved productivity. The Puzzi 30/4
also has an integrated HEPA-level filter for optimal health protection. Accessories can be stored directly on the machine.
1
2
1
3
Extremely quiet
■■ Daytime cleaning and operation in noise-sensitive areas possible with the low noise level of 66 dBA.
4
3
Easy use
■■ Easy removal of the fresh water filter.
■■ Solution level indicator.
■■ On-board storage for accessories.
2
Easy transport
■■ Big wheels enable simple and comfortable transport over thresholds and up
and down stairs.
■■ Ergonomic operation and comfortable handling due to upright-concept.
■■ Easy transport – the machine can be moved lying on its back and with
a full solution tank.
54
4
Removable container
■■ Comfortable filling of solution tank.
■■ The container can be removed for emptying.
CARPET EXTRACTORS
Technical data and equipment
Puzzi 30/4
Removable waste water container
Fresh water tank filling level display
Horizontal transport possible with full fresh water tank
Technical data
Air flow rate
cfm
157 (4.5 m3/min)
gpm
0.8 (3 l/min)
102” H2O (2591 mm)
Vacuum
Flow rate
Spray pressure
psi
58 (4 bar)
Tank, fresh water
gallons
8 (30 I)
Tank, dirt water
gallons
4 (15 I)
120 V, 10 amp
Electrical system
66 dBA
Operating noise level
Weight
lbs
61.6 (28 kg)
Dimensions (L x W x H)
inches
22.8” x 18.1” x 36.6” (58 cm x 46 cm x 93 cm)
Equipment
Suction hose (13 ft.)
n
Flexible floor nozzle (13.75”)

Home Base kit (adapter and cable hook)

Handle with sight glass

Floor nozzle
-
Upholstery tool
-
Crevice nozzle
-
Hard surface adapter
-
Order No.
1.101-126.0
Included in delivery.
Standard Accessories
Product name
Order No.
Description
Nozzle
4.130-011.0
Flexible Floor Nozzle (Assy)
Suction Hose
6.394-375.0
Suction Hose, 13 FT
Handle
4.130-000.0
Handle with Sight Glass
Adapter
5.035-488.0
Home Base Adapter
Optional Accessories
Nozzle
4.130-009.0
Floor Nozzle (Separate)
Upholstery Tool
4.130-001.0
Upholstery Tool
Nozzle
4.130-010.0
Crevice Nozzle
Adapter
4.762-017.0
Hard Surface Adapter
55
CARPET EXTRACTORS
BRC 30/15 C
The perfect solution for larger
areas.
Our carpet cleaning machines are ideal for efficient, fiber-deep
cleaning of large areas; roller brushes support the cleaning action of
the water and cleaning agent.
1
1
2
High cleaning performance
2
Compact dimensions
■■ Brush roller assists fiber-deep cleaning action.
■■ Ideal for areas between 2150 ft2 and 8600 ft2.
■■ Floating brush roller for uniform contact pressure.
■■ Easy storage.
■■ Revives pile, giving carpets a fresh new look.
■■ Easy to transport.
56
CARPET EXTRACTORS
Technical data and equipment
BRC 30/15 CUL
ETL listed
For small to medium-sized areas
Working direction, backwards
Constant brush contact pressure
Technical data
Vacuum motor
1.5 hp, 3-stage
Air flow rate
120“ (3050 mm)
Waterlift rate
100” waterlift
Solution pump
58 psi (3.5 bar)
Solution spray
1 quick-connect jet
Brush working width
10“ (254 mm)
Working width, suction
12.5” (315 mm)
Tank (fresh/dirty)
4.6 gallon / 3.9 gallon (17.3 l / 14.71 l)
Noise level
73.7 dBA
Brush motor rating
80 W
Weight
75 lbs (34 kg)
Dimensions (L x W x H)
36.3” x 14” x 30” (920 mm x 360 mm x 750 mm)
Equipment
Working direction
backwards
Number of rollers
1
Order No.
1.008-058.0
Included in delivery.
Standard Accessories
Product name
Order No.
Description
Brush
8.621-604.0
Brush, Chevron, 10”
Brush
8.629-552.0
Brush, Extractor, Natural Bristles
Adapter
8.631-030.0
Assembly, Adapter (1/8”M X 1/4” FPT Nipple)
Optional Accessories
Handtool Kit
8.629-036.0
Handtool Kit with Bag
Adapter
8.600-075.0
Adapter for BRC 30/15 C
57
CARPET EXTRACTORS
BRC 46/38 C
Designed for easy Maintenance
Designed for easy maintenance and servicing, to increase the life of
your equipment investment.
1
1
2
Innovative design
2
Superior performance
■■ No-hose design makes filling and emptying easy.
■■ Designed for easy maintenance and servicing.
■■ Easy adjustment of brush settings.
■■ Easily combine optional accessories for spot, stair and furniture cleaning.
■■ Quick connect ports make attachment of tools quick and easy.
58
CARPET EXTRACTORS
Technical data and equipment
BRC 46/38 C
ETL listed
No-hose design makes it easy to fill and empty
Easily adjusted brush settings
Quick connect ports for easily attached tools
Technical data
Vacuum motor
3 stage, bypass, 1.5 hp
Air flow rate
100 cfm
Waterlift rate
117” waterlift (2972 mm)
Solution pump
100 psi (6.4 bar)
Solution spray
2 quick-connect jets
Brush working width
18” (457 mm)
Working width, suction
21” (530 mm)
Tank (fresh/dirty)
10 gallon / 10 gallon (37 l / 37 l)
Noise level
75 dBA
Brush motor rating
250 W (1/3 hp)
Weight
94 lbs (42.6 kg)
Dimensions (L x W x H)
33” x 21” x 44” (840 mm x 530 mm x 1120 mm)
Equipment
Working direction
backwards
Number of rollers
1
Order No.
1.008-054.0
Included in delivery.
Standard Accessories
Product name
Order No.
Description
Jet
8.600-458.0
Jet, Mini PROMAX 9504
Sp Brush,
8.600-115.0
Sp Brush, 18”
Optional Accessories
Handtool Kit
8.600-001.0
Handtool Kit with Bag
Squeegee assembly
8.602-852.0
Squeegee assembly 18"
Replacement blade
8.622-959.0
Replacement blade, 18" squeegee
MicroFilter™ Kit
9.840-551.0
Air Quality MicroFilter™ Kit (Includes 2 filters and stainless steel bracket)
MicroFilter™ Refill
8.623-611.0
One Air Quality MicroFilter™ Refill
59
CARPET EXTRACTORS
BRC 46/76 W
Deep, restorative extraction.
The most value per gallon capacity in the industry. Performance
breakthroughs and ergonomics create a carpet extractor that
maximizes operator productivity. Exceptional maneuverability and
compact design makes it easy to operate in small areas.
1
■■ Self-propelled design.
■■ Low profile for exceptional
maneuverability.
■■ 20 gallon capacity
Technical data and equipment
BRC 46/76 W
ETL listed
Self-propelled design for operator productivity
Low profile compact design for exceptional maneuverability
20 gallon capacity
Technical data
Vacuum motor
3 stage, bypass, 1.5 hp
Air flow rate
100 cfm
Waterlift rate
120” waterlift
Solution pump
100 psi (6.4 bar)
Solution spray
2 quick-connect jets
Brush working width
18” (460 mm)
Working width, suction
22” (560 mm)
Tank (fresh/dirty)
10 gallon / 10 gallon (37 l / 37 l)
Noise level
75 dBA
Brush motor rating
250 W
Weight
120 lbs (55 kg)
Dimensions (L x W x H)
51” x 22” x 44” (1300 mm x 560 mm x 1110 mm)
Equipment
Working direction
Forwards
Number of rollers
1
Order No.
1.008-650.0
Included in delivery.
60
2
Designed for productivity
Superior performance
■■ Designed for easy maintenance and servicing.
■■ Easily combine optional
accessories for spot, stair and furniture cleaning.
CARPET EXTRACTORS
Accessories
Standard Accessories
Product name
Order No.
Description
Brush
8.600-112.0
Brush, 18 L X 4.5 OD
Jet
8.600-458.0
Jet, Mini PROMAX 9504
Tool Adapter
8.608-908.0
BRC 46/76 Vacuum Accessory Tool Adapter
Carrying Bag
8.600-175.0
Nylon Mesh Hose Carrying Bag
Adapter
8.626-069.0
Fill Hose with Faucet Adapter
Heating System Booster
8.604-105.0
Pro HeaterTM 115V Heating System Booster
hose assembly
8.626-077.0
16 ft high temperature vac/solution hose assembly for use with Pro HeaterTM
Power Sprayer
8.604-106.0
Solution Spotter Adapter
8.600-075.0
Solution Spotter Adapter (1/4” QD Plug X 1/8” FPT Female QD; 13” Long)
Handtool, Spotter Kit
8.621-879.0
Handtool, Spotter Kit with Vacuum and Solution Hoses, 1/8” QD Coupler
Handtool, Spotter Kit
8.629-036.0
Handtool, Spotter Kit with Bag (Includes 8.621-879.0 above)
Deluxe Hand Tool Kit
8.600-001.0
Deluxe Hand Tool Kit (Includes 12’ Hose & Carrying Bag) Requires 8.600-075.0
adapter!
Handtool
8.600-002.0
Handtool - 3” Vacuum Head, 250 PSI
KurveTM Carpet Extraction Wand
8.634-234.0
KurveTM Carpet Extraction Wand, 13”-Wide, 500 PSI, Aluminum Construction with Ergonomic Design
Deluxe Professional Wand
8.600-060.0
Optional Accessories
115V ProSprayTM Power Sprayer (For applying Traffic Lane Cleaner,
soil retardant, etc,)
Deluxe Professional Wand - 500 PSI, 63”-long with S-Bend for Under Desk and
Furniture Cleaning Ships with 100 PSI Nozzles; See Wand Nozzles Below for
Other Pressures
Standard Wand - 100 PSI, 12”-Wide Stainless Steel, Heavy-Duty Wand for Use on
Standard Wand
8.600-061.0
Spotting Wand
8.600-005.0
Hard Floor Flip/Flop Tool
9.840-628.0
Hard Floor Flip/Flop Tool
8.604-148.0
Fastaction Spray Wand
8.604-119.0
Fastaction Spray Wand with 25’ Solution Hose
Extractor Spotting Wand
8.604-118.0
Extractor Spotting Wand - 18” Spray Wand with 4’ Solution Hose for Pre-Spraying while Extracting
Tee-Jet
8.624-157.0
Tee-Jet, Stainless Steel, 11002 (100 PSI Pumps)
Tee-Jet
8.620-176.0
Tee-Jet, Stainless Steel, 110015 (200 PSI Pumps)
Tee-Jet
8.620-167.0
Tee-Jet, Stainless Steel, 9501 (500 PSI Pumps)
Hose Assembly
8.600-414.0
Hose Assembly, 12’,250 PSI
Hose Assembly
8.600-415.0
Hose Assembly, 16’ 250 PSI
Hose Assembly
8.628-416.0
Hose Assembly, 25’, 250 PSI
Any Carpet
Spotting Wand - 100 PSI Lightweight Stainless Steel Spotting Wand, 56.5” in length
Spotting Wand Kit (Includes Spotting Wand, 12’ Vacuum & Solution Hose and
carrying case)
Hard Floor Flip/Flop Tool - Converts BRC to Hard Surface Cleaning Tool. Consists of
15” X 1.5” Scrub brush on one side and Wet Squeegee Pick-up on the Other
61
CARPET EXTRACTORS
Puzzi 50/35 C, Puzzi 50/14 E, Puzzi 64/35 E
Productive & Portable
Puzzi 13 and 17 gallon portable extractors are powerful and versatile. Available in hot and cold water models and adjustable to 1-200
psi and 1-500 psi.
1
1
2
■■ Large transport wheels
■■ Compact size
■■ Handle with upper rear casters assist in loading and unloading
62
2
Easily maneuverable
Innovative design
■■ On-board carrying system provides storage for your wand, cord, bucket and a quart of pre-spray
■■ Convenient easy access control panel
CARPET EXTRACTORS
Technical data and equipment
Puzzi 50/35 C
Puzzi 50/14 E
Puzzi 64/35 E
13 gallon
500 psi
ETL listed
13 gallon
200 psi
1850 W heater
17 gallon
500 psi
1850 W heater
Vacuum motor
One, three stage
Two, three stage
Two, three stage
Water lift
107” ( 2718 mm)
74” (1180 mm)
74” (1180 mm)
Air flow
73 cfm (2.06 m3/min
111 cfm (3.14 m3/min)
111 cfm (3.14 m3/min)
200 psi
500 psi
1850 W
1850 W
Technical data
500 psi
Solution pump
Heater
Tank (fresh/dirty)
13 gallon / 11 gallon (49.2 l / 41.6 l)
13 gallon / 11 gallon (49.2 l / 41.6 l)
17 gallon / 14 gallon (64.3 l / 53 l)
Electrical system
120 v, 15 amp
2 x 120 v, 15 amp
2 x 120 v, 15 amp
Power cable
1 cord
2 cords
2 cords
Wheels
2 x 4” (102 mm)
2 x 12” (305 mm)
2 x 3” (76 mm)
2 x 4” (102 mm)
2 x 12” (305 mm)
2 x 3” (76 mm)
2 x 4” (102 mm)
2 x 12” (305 mm)
2 x 3” (76 mm)
Weight
115 lbs (52.2 kg)
134 lbs (60.8 kg)
139 lbs (63 kg)
Dimensions (L x W x H)
30.5” x 22” x 43.25”
(775 mm x 559 mm x 1098 mm)
30.5” x 22” x 43.25”
(775 mm x 559 mm x 1098 mm)
32.5” x 22.5” x 43.25”
(825.5 mm x 571.5 mm x 1098 mm)
Hose



Wand


Pressure gauge
Heater
Order No.
Equipment
Included in delivery.
n

n
n
–
n
n
1.006-672.0
1.006-673.0
1.006-674.0
 Accessories available.
Optional Accessories
Product name
Order No.
Description
Kurve™ Deluxe Carpet Extraction Wand
8.634-234.0
Kurve™ Deluxe Carpet Extraction Wand, 13”, 500 PSI
Hose Rack
8.632-885.0
Hose Rack
Complete Hose and Wand Kit
9.840-637.0
Complete Hose and Wand Kit (500 PSI Pro Wand, 25’ Hose Set and Bag)
Deluxe Professional Wand
8.600-060.0
Deluxe Professional Wand * & 500 PSI High Temperature Hose
Vacuum Hose Set
8.626-074.0
16.5’, 500 PSI Vacuum Hose Set
Vacuum Hose Set
8.624-189.0
25’, 500 PSI Vacuum Hose Set
Auto detail kit
8.628-466.0
Deluxe Wand Nozzles,
8.624-157.0
Deluxe Wand Nozzles, Tee-Jet, Stainless Steel, 11002 (100 PSI pumps)
Deluxe Wand Nozzles,
8.620-176.0
Deluxe Wand Nozzles, Tee-Jet, Stainless Steel, 110015 (200 PSI pumps)
Deluxe Wand Nozzles,
8.620-167.0
Deluxe Wand Nozzles, Tee-Jet, Stainless Steel, 9501 (500 PSI pumps)
Auto detail kit with 25’ vacuum hose (includes heavy-duty Auto Detail Tool,
Crevice Tool with Detergent Application and Carry bag)
63
STEAMER
DE 4002
Hygienically clean without the
use of chemicals.
Time is money – particularly in commercial cleaning. The DE 4002
equipment an ingenious filling system and convenience, making it
ideal for commercial use.
Technical data and equipment
DE 4002
Optional transport cart
Short heating-up time
Twin tank system with transfer pump for continuous use
Filter funnel
CSA listed
Technical data
110 V
Voltage
Steam temp/pressure
248o (3.2 bar)
Tank capacity
.63 gallon (2.4 l)
Cable length
24.5” (7.5 m)
Weight without accessories
17 lbs (7.5 kg)
Dimensions (L x W x H)
18” x 12” x 10.4” (456 mm x 305 mm x 265 mm)
Equipment
Steam suction hose with handle
n
Steam tubes 2x
n
Floor tool
n
Hand tool
n
Round brush, black
n
Upholstery tool with brush
n
Order No.
1.092-804.0
Included in delivery.
Standard Accessories
Product name
Order No.
Description
Steam Hose
4.321-114.0
Steam Hose
Extension Tube
4.127-023.0
Extension Tube
Floor Tool
2.884-278.0
Floor Tool, 12.4”
Hand Tool
4.130-144.0
Hand Tool
Cloth Set
6.960-019.0
Cloth Set w/ 2 large floor cloths & 3 covers for hand tool
Power Nozzle
2.884-282.0
Power Nozzle, DE 4002
Nozzle
2.884-281.0
Point Jet Nozzle
Window Nozzle
4.130-115.0
Window Nozzle
Brushes
6.962-139.0
Brushes 5 X Per Pack
Wallpaper Stripper
2.863-062.0
Wallpaper Stripper
Round Brush Set
2.863-077.0
Round Brush Set, 2X Red, 1X Black
Round Brass Brush Set
2.863-075.0
Round Brass Brush Set, 3 Nozzles
Microfiber Cloth Set
2.863-171.0
Steam+Clean Microfiber Cloth Set for Bathrooms (Includes 4 different clothes)
Microfiber Cloth Set
2.863-172.0
Steam+Clean Microfiber Cloth Set for Kitchens (Includes 4 different clothes)
Microfiber Cloth Set
2.863-173.0
Steam+Clean Microfiber Velour Floor Cloth Set (Includes 2 cloths)
Microfiber Cloth Set
2.863-174.0
Steam+Clean Microfiber Velour Cloth Covers for the Hand Tool (Includes 2 cloths)
Terry Cloth Towels
6.369-481.0
Extra-Wide, Hard Wearing, Terry Cloth Towels (set of 5)
Cart
6.962-239.0
Two Wheel Transport Cart
Optional Accessories
64
AIR MOVER
AB 84 CUL
Dry within minutes.
The powerful AB 84 air blower moves up to 3,000 cfm of air cutting
drying times by up to 50%! The ideal solution for use in the building
trade and for water damaged areas.
2
1
1
■■ Wheels and push handle make this 2
Built to last
■■ The AB 84 air blower shortens the
air blower easy to transport.
drying time of spray-extracted or
shampooed carpets by up to 50%.
■■ Sturdy, four-point motor mount.
■■ Three standing positions.
Shorter drying times
■■ Built in carpet clip for use with flood restoration.
■■ For use with everything from Technical data and equipment
emergency air removal from
buildings to inflatable play
grounds.
AB 84 CUL
3-speed fan
On-board cable storage
Chassis with folding handle
ETL listed
Technical data
Air flow rate (levels 1/2/3)
56 m³/min / 70 m³/min / 84 m³/min
Fan speed (levels 1/2/3)
1050 rpm / 1350 rpm / 1600 rpm
Cable length
25” (7.62 m)
Max. intake
700 W
Weight
39 lbs (17.6 kg)
Dimensions (L x W x H)
22.8” x 16” x 10.4” (580 mm x 410 mm x 264 mm)
Equipment
Sturdy plastic housing
n
Chassis with wheels
n
Ergonomic carrying handle
n
Folding Handle
n
On-board cable storage
n
Carpet clip
n
Order No.
1.004-053.0
Included in delivery.
65
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
