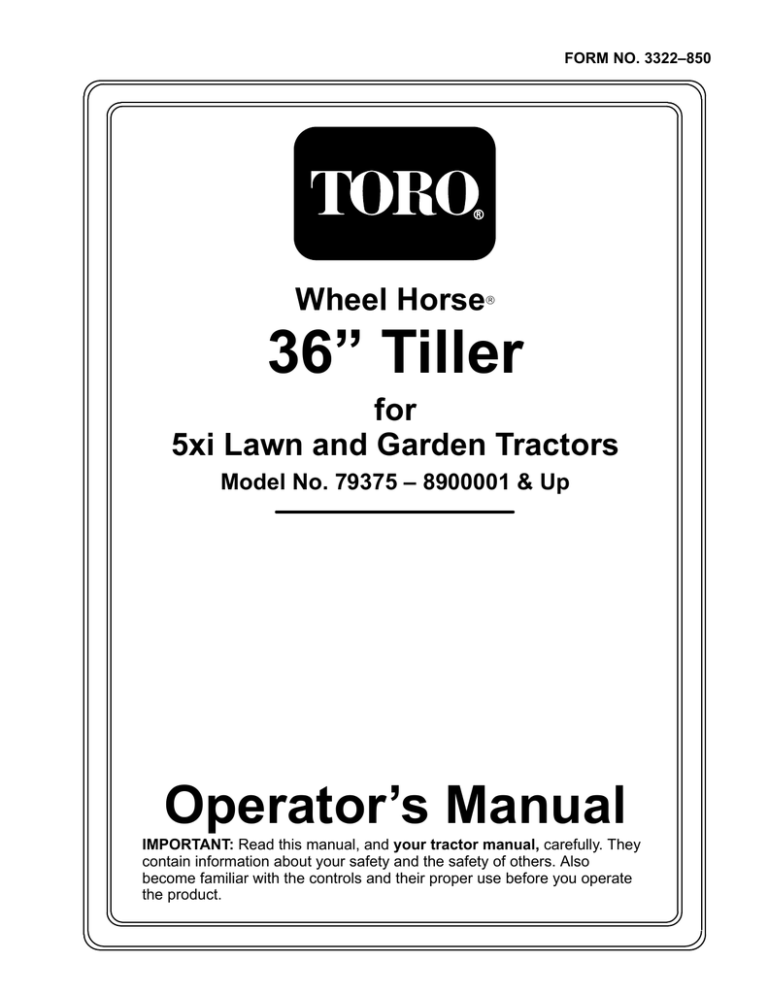

FORM NO. 3322–850
Wheel Horse

36” Tiller
for
5xi Lawn and Garden Tractors
Model No. 79375 – 8900001 & Up
Operator’s Manual
IMPORTANT: Read this manual, and your tractor manual, carefully. They
contain information about your safety and the safety of others. Also
become familiar with the controls and their proper use before you operate
the product.
Introduction
We want you to be completely satisfied with your
new product, so feel free to contact your local
Authorized Service Dealer for help with service,
genuine replacement parts, or other information you
may require.
Whenever you contact your Authorized Service
Dealer or the factory, always know the model and
serial numbers of your product. These numbers will
help the Service Dealer or Service Representative
provide exact information about your specific
product. You will find the model and serial number
plate located in a unique place on the product as
shown below.
The warning system in this manual identifies
potential hazards and has special safety messages that
help you and others avoid personal injury, even death.
DANGER, WARNING and CAUTION are signal
words used to identify the level of hazard. However,
regardless of the hazard, be extremely careful.
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended
precautions are not followed.
WARNING signals a hazard that may cause serious
injury or death if the recommended precautions are
not followed.
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are
not followed.
Two other words are also used to highlight
information. “Important” calls attention to special
mechanical information and “Note” emphasizes
general information worthy of special attention.
The left and right side of the machine is determined
by sitting on the seat in the normal operator’s
position.
1
m–3497
1. Model and Serial Number Plate
For your convenience, write the product model and
serial numbers in the space below.
Model No:
Serial No.
Printed in USA
Contents
Safety and Instruction Decals . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loose Parts . . . . . . . . . . . . . . . . . . . . . . . . .
Assembling the Tiller . . . . . . . . . . . . . . . . .
Tractor Set-Up . . . . . . . . . . . . . . . . . . . . . .
Installing the Tiller to the Tractor . . . . . . .
Removing the Tiller . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attachment Power Lift . . . . . . . . . . . . . . . .
Lowering Attachments . . . . . . . . . . . . . . . .
Tips for Tilling . . . . . . . . . . . . . . . . . . . . . .
Page
2
3
3
4
5
8
12
14
14
15
15
Page
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Interval Chart . . . . . . . . . . . . . . . .
Greasing and Lubrication . . . . . . . . . . . . . .
Checking Tiller Drive Belt Tension . . . . . .
Replacing the Tiller Drive Belt . . . . . . . . .
Checking PTO Drive Belt Tension . . . . . .
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
16
17
17
17
18
19
1
Safety
Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near
any area of potential danger. Replace any decal that is damaged or lost.
ON TINE SHIELD
LEFT and RIGHT SIDE
(Part No. 92–7112)
ON PULLEY BOX
(Part No. 98–8082)
2
Installation
Loose Parts
Note:
A rear–mount Attach–A–Matic, which must be purchased separately, is required for this tiller. Use
the chart below to identify other parts used for assembly.
DESCRIPTION
QTY.
USE
Tiller housing
1
Tiller lift frame
1
Panel guard
1
Cotter pin 1/8” x 1” (25 mm)
3
Pulley
1
Square key
1
Set screw
2
Belt guard
1
Tiller belt (short belt)
1
Idler pulley
1
Bolt, 3/8–16 x 2” (51 mm)
1
Nut, 3/8”
1
Tiller pulley box
1
PTO drive belt (long belt)
1
Clevis pin 3/8” x 1” (25 mm)
2
Hairpin cotter
2
Cable guide
1
Install the cable guide
Jack shaft assembly
1
Connect drive belts
Lift cable
1
Trunnion
1
Clevis pin 5/16” x 1” (25 mm)
1
Locknut
1
Hairpin cotter
2
Washer
1
Operator manual
1
Assemble the tiller
Assemble tiller pulley
Installing the belt guard
Install pulley box
Prepare tractor attachment lift
Install tiller to tractor
Read before operating
3
Installation
Assembling the Tiller
1.
2.
Support the tiller housing so it sets in an upright
position. Remove the 3/8 x 5–1/2” (140 mm)
bolt, 3/8 x 4–1/2” (114 mm) bolt, and (2) 3/8”
locknuts; discard the 1/2” nuts (used as spacers
for shipping).
Attach the tiller lift frame to the tiller housing
with the previously removed 3/8 x 4–1/2” (114
mm) bolt, 3/8–16 x 5–1/2” bolt (140 mm), and
(2) 3/8” locknuts (Fig. 1). Torque the nuts to
30–32 ft–lbs.
3
1
2
m–1282
Figure 2
1. Panel guard
2. Cotter pin (3)
4.
4
3. Slot
Install the pulley by inserting the square key into
the input shaft groove. Slip the pulley onto the
shaft (hub toward the gear case) and align it with
the flat idler pulley. Secure it with two
square–head set screws (Fig. 3).
3
1
3
5
2
m–3506
Figure 1
1. Tiller housing
2. Tiller lift frame
3. Bolt 3/8–16 x 5–1/2” (140
mm)
4. Locknut 3/8”
5. Bolt 3/8–16 x 4–1/2” (114
mm)
2
4
1
m–4423
Figure 3
3.
4
Hook the panel guard into the slots on the end of
the tiller housing (Fig. 2). Insert (3) cotter pins
and bend the ends of the pins to secure the panel
guard.
1. Pulley
2. Key
3. Set screw
4. Input shaft
5.
Remove the nut from the gearcase bolt located
just above the input shaft (Fig. 4). The belt
guard mounts to this bolt.
6.
Install the tiller belt (short belt) over the input
pulley.
7.
Assemble the belt guard to the gearcase bolt
(step 5) and replace the nut loosely.
Installation
8.
Install the ilder pulley on the 3/8–16 x 2” (51
mm) bolt so that the extended hub of the pulley
is toward the tiller lift frame. Route the belt
under the idler pulley, and insert the bolt through
the upper belt guard hole and upper hole in the
tiller lift frame
(Fig. 4). Tighten the nut securely.
Installing the Front Pulley Box to the
Tractor
1.
Attach the pulley box that came with the tiller to
the front Attach–A–Matic.
IMPORTANT: The pulley box for the tiller
and cutter deck are different. Make certain
to always use the tiller pulley box with the
tiller.
3
2.
2
Make sure the latches on the tractor’s front
Attach–A–Matic are open (Fig. 5). Then slide
the pulley box into the Attach–A–Matic
latches and seat it. Close the latches.
4
4
1
6
8
1
5
3
7
6
m–4422
7
Figure 4
1.
2.
3.
4.
9.
Belt cover
Gearcase bolt
Input pulley
Locknut, 3/8”
5.
6.
7.
8.
5
2
Bolt, 3/8–16 x 2” (51 mm)
Upper hole
Tiller Belt (short belt)
Idler pulley
Torque the nut on the gearcase (upper end of belt
guard) to 30–32 ft–lbs.
Tractor Set-Up
Follow the installation instructions that come with the
rear Attach–A–Matic mount.
m–3642
Figure 5
1.
2.
3.
4.
5.
Attach–A–Matic latches
Pulley box
Idler pulley
Belt tension release arm
Belt tension adjustment
knob
6. Belt tension indicators
(one on each side)
7. Attach–A–Matic release
button (one on each side)
Remove the drawbar hitch
1.
Installing the Rear Attach–A–Matic to
the Tractor
4
Remove the snap ring from the pin and slide
from the drawbar and spacers. Remove the hitch
from the tractor (Fig. 6).
Note:
Save all hardware for use when
re-installing the hitch.
5
Installation
1
2
3
2
4
1
2314
Figure 6
1. Snap ring
2. Pin
m–3433
3. Drawbar
4. Spacer (2)
Figure 7
1. Clevis pin 3/8” x 1” (25
mm)
Preparing the Tractor’s Attachment Lift
If you have been using a mower, secure the tractor’s
attachment lift arms in the raised position.
1.
Start the tractor.
2.
Raise the attachment lift.
3.
Set the parking brake and turn the ignition key to
“STOP” to stop the engine. Remove the ignition
key.
4.
Install a 3/8” x 1” (25 mm) clevis pin into each
side of the lift assembly in the positions shown
in Figure 7. Secure them with (2) hairpin
cotters.
6
2. Hairpin cotter
These pins must be installed when operating with a
blade, snowthrower, or tiller attachment.
Note:
The pins are removed to attach a
mower.
Installation
Remove the Rear Transaxle Cover
Remove the transaxle cover from the back of the
tractor (Fig. 8).
1.
POTENTIAL HAZARD
• Rotating shaft or cooling fan can cause
injury.
Remove the two bolts and locknuts securing the
transaxle cover to the tractor frame.
Note:
WHAT CAN HAPPEN
• Fingers, hands, feet, hair, etc. can get
caught by shaft or fan.
• Loose clothing can get caught by shaft.
Save all parts and hardware for use
when reinstalling the transaxle cover.
HOW TO AVOID THE HAZARD
• Do not operate the tractor without the drive
shaft cover in place.
• Keep hands and arms clear of rotating
shaft or fan.
2.
Remove the two bolts in the plastic fan baffle
(Fig. 9) and remove the baffle.
3.
Remove the clip nut from the left side of the
plastic fan baffle and install over the hole in the
bent tab of the cable guide (Fig. 9).
4.
Remove the nut from the pivot bolt on the left
hand attachment lift arm (Fig. 9). Leave the bolt
in place.
5.
Install the rear hole of the cable guide to the left
hand lift arm pivot bolt and replace the nut
loosely (Fig. 9).
6.
Reinstall the plastic fan baffle with one of the
previously removed bolts in the right hand side
only (Fig. 9). Leave the bolt loose.
7.
Align the front of the cable guide with the hole
in the left hand side of the plastic fan baffle and
reinstall the other bolt previously removed.
Tighten all bolts and nuts securely.
1
m–3436
Figure 8
1. Rear transaxle cover
Installing the Cable Guide
The cable guide can be installed from the underside
of the tractor. For more visibilty, the drive shaft
maintenance cover can be removed to aid in
installation.
1.
Disengage the power take off (PTO), set the
parking brake and turn the ignition key to
“STOP” to stop the engine. Remove the ignition
key.
7
Installation
8.
Replace the drive shaft maintenance cover (if
removed).
1
7
3
1
9
6
5
8
2
8
4
4
7
9
m–3491
Figure 10
2
3
5
1.
2.
3.
4.
5.
4.
6
Figure 9
1.
2.
3.
4.
Cable guide
Clip nut
Fan baffle bolt
Left hand lift arm pivot bolt
nut
5. Plastic fan baffle
Tiller
Jack shaft assembly
Lift cable
Tiller belt (short belt)
Idler pulley
6. Tiller hitch bar
7. Smaller jack shaft bar
8. Jack shaft/PTO drive belt
pulley
9. Larger jack shaft bar
Open the latches on the rear Attach–A–Matic.
Place the smaller bar of the jack shaft assembly
into the slots on the front of the rear
Attach–A–Matic (Fig. 11).
6. Right hand attachment lift
arm
7. Rear of tractor
8. Pivot bolt
9. Lift cable
2
3
1
Installing the Tiller to the
Tractor
1.
Position the tiller on a level surface with enough
space behind it to accommodate the tractor.
2.
Start the tractor and back it into position. Lower
the attachment lift and turn the ignition key to
“STOP” to stop the engine. Remove the ignition
key.
3.
Place the jack shaft assembly between the tractor
wheels and oriented with the tiller as shown
(Fig. 10).
8
m–3505
Figure 11
1. Smaller jack shaft bar
2. Rear Attach–A–Matic
3. Rear
Installation
5.
Open the latches on the mid Attach–A–Matic.
Install the larger bar at the other end of the jack
shaft assembly to the mid Attach–A–Matic.
Then turn the lever of the Attach–A–Matic
counterclockwise to lock the jack shaft assembly
to the tractor (Fig. 12).
Note:
3
4
1
The rear Attach–A–Matic may need
to be loosened and realigned with the
mid Attach–A–Matic to accept the
jack shaft assembly. Tighten the rear
Attach–A–Matic bolts securely.
2
Figure 13
1. Smaller jack shaft bar
2. Tiller hitch bar
3
7.
Install the tiller belt (short belt) between the
tiller and jack shaft assembly (Fig. 10). Route
the belt under the ilder pulleys and over the jack
shaft pulley.
8.
Attach the clevis end of the lift cable to the rear
hole in the tractor’s attachment lift arm located
just in front of the previously installed cable
guide (Fig. 14). Insert a clevis pin and hairpin
cotter.
1
2
4
m–3502
Figure 12
1. Attach–A–Matic button
2. Attach–A–Matic lever
6.
3. Lock
4. Larger jack shaft bar
Place the tiller hitch bar into the slots in the rear
of the rear Attach–A–Matic. Press on the
latches at the rear until they lock both the tiller
and the jack shaft assembly in place (Fig. 13).
3. Rear Attach–A–Matic
4. Rear
Note:
Attachment lift arm may be different
than shown in Fig. 14. On some
models there may be only a single hole
in which to mount the clevis.
9
Installation
5
3
4
2
1
3
4
1
2
m–3503
5
Figure 15
m–3504
Figure 14
1. Lift cable
2. Clevis
3. Attachment lift arm
9.
4. Clevis pin 5/16” x 1” (25
mm)
5. Hairpin cotter
Route the lift cable under the cable guide and
over the rear axle (Fig. 9).
1. Lift cable
2. Trunnion
3. Locknut
4. Washer
5. Hairpin cotter
12. Secure the lift cable to the trunnion with a
locknut (Fig. 15).
13. Remove the tractor grille by pulling it out
toward you.
10. Connect the lift cable to the trunnion by
threading the trunnion onto the lift cable
(Fig. 15).
11. Attach the trunnion to the hole in the tiller lift
cable mount with a washer and hairpin cotter
(Fig. 15).
Note:
There should be slack in the cable so
the tiller will drop into the ground.
The amount of cable that is threaded
into the trunnion determines the
maximum depth of tilling and lift
height.
POTENTIAL HAZARD
• Components under the hood will be hot if
the tractor has been running.
WHAT CAN HAPPEN
• Touching hot components can cause burns.
HOW TO AVOID THE HAZARD
• Allow the tractor to cool before performing
maintenance or touching components
under the hood.
14. Route the PTO drive belt around the jack shaft’s
PTO pulley (Fig. 10), then through the center of
the pulley box between the two pulleys.
15. Release the belt tension release arm of the pulley
box housing and swing it out toward you (Fig.
18).
10
Installation
C.
16. Position the end of the PTO belt (long belt) into
the groove of the engine PTO pulley (Fig. 16),
making sure it is also under the pulleys in the
pulley box. The wide, flat surface of the belt
needs to be in contact with the wide, flat surface
of the backside idler pulley (Fig. 17). Additional
belt slack can be obtained (if needed) by turning
the belt tension adjustment knob.
D. Once the indicators are in the same position
on both sides, swing the tension release arm
into the pulley box by moving it into the
position shown in Figure 18.
4
1
If the tension indicators are not in the same
position on both the left and right sides,
release the belt tension, turn the adjustment
knob and repeat steps A and B until the
indicators move to the same position (Fig.
18).
2
3
2
1
5
4
m–3561
Figure 16
1. Jack shaft PTO drive belt
pulley
2. PTO belt (long belt)
ÏÏÏÏÏ
ÏÏÏÏÏ
ÏÏÏÏÏ
ÏÏÏÏÏ
ÏÏÏÏÏ
ÌÌÌÌ
ÏÏÏÏÏ
ÌÌÌÌ
ÏÏÏÏÏ
ÌÌÌÌ
ÏÏÏÏÏ
1. V–Groove pulley
3
3. V–groove idler pulley
4. Engine PTO pulley
5. Backside idler pulley
1
ÏÏÏÏÏÏ
ÏÏÏÏÏÏ
ÏÏÏÏÏÏ
ÏÏÏÏÏÏ
ÏÏÏÏÏÏ
ÌÌÌÌ
ÏÏÏÏÏÏ
ÌÌÌÌ
ÏÏÏÏÏÏ
ÌÌÌÌ
m–3643
Figure 18
1. Belt tension indicator (2)
2. Belt tension adjustment
knob
2
3. Seating position for belt
tension release arm
4. Belt tension released
18. Replace the front grille of the tractor.
m–3633
Figure 17
2. Backside pulley
17. Now adjust the belt tension.
A. Push the belt tension release arm back
toward the pulley box to tension the belt.
B.
Check the tension indicators on each side of
the pulley box.
11
Installation
Removing the Tiller
4
1
2
Note:
Save all hardware, washers and hairpin
cotters for use when installing tiller.
1.
Park the tractor on a level surface with enough
space in front of it to disengage from the tiller.
2.
Lower the attachment lift, set the parking brake,
and turn the ignition key to “STOP” to stop the
engine. Remove the ignition key.
3.
Remove the tractor grille by pulling it out
toward you.
3
5
m–3561
Figure 19
1. Jack shaft PTO drive belt
pulley
2. PTO belt (long belt)
POTENTIAL HAZARD
• Components under the hood will be hot if
the tractor has been running.
6.
Release the tension on the tiller belt by lifting up
on the idler pulley (Fig. 10). Remove the belt
from the pulleys.
7.
Disconnect the lift cable by removing the clevis
pin from the clevis and remove the cable from
the attachment lift arm (Fig. 20).
WHAT CAN HAPPEN
• Touching hot components can cause burns.
HOW TO AVOID THE HAZARD
• Allow the tractor to cool before performing
maintenance or touching components
under the hood.
4.
5.
3. V–groove pulley
4. Engine PTO pulley
5. Backside idler pulley
Release the belt tension release arm (Fig. 18),
then remove the PTO belt from its position
around the PTO pulley (Fig. 19). Additional belt
slack can be obtained (if needed) by turning the
belt tension adjustment knob.
3
Replace the front grille of the tractor.
4
1
2
5
m–3504
Figure 20
1. Lift cable
2. Clevis
3. Attachment lift arm
12
4. Clevis pin 5/16” x 1” (25
mm)
5. Hairpin cotter
Installation
8.
Press the release button and open the rear latches
of the rear Attach–A–Matic. Remove the tiller
hitch bar (Fig. 21).
3
4
1
2
m–3501
Figure 21
1. Smaller jack shaft bar
2. Tiller hitch bar
9.
3. Rear Attach–A–Matic
4. Rear
Press the release button on the mid
Attach–A–Matic and turn the lever clockwise
to open the latches (Fig. 22). Remove the jack
shaft assembly.
1
2
m–3502
Figure 22
1. Attach–A–Matic button
2. Attach–A–Matic lever
10. Replace the rear transaxle cover.
11. Replace the drawbar hitch.
13
Operation
1
POTENTIAL HAZARD
• Contact with rotating tines may cause
injury.
WHAT CAN HAPPEN
• Rotating tines can cut hands, feet or other
body parts.
HOW TO AVOID THE HAZARD
• Keep away from the rotating tines while
operating the tiller.
m–3258
• Keep your hands, feet, and any other part
of your body or clothing away from
rotating parts.
• Before adjusting, cleaning, repairing and
inspecting the tiller, shut off the engine and
wait for all moving parts to stop. Move the
power take off (PTO) to “OFF” and rotate
the ignition key to “OFF.” Remove the
ignition key.
Figure 23
1. Attachment power lift
Raising Attachments
1.
Start the tractor.
2.
Pull the lift lever UP to raise the attachment
(Fig. 24). This will lift and hold the attachment
in the raised position.
Attachment Power Lift
The attachment power lift (Fig. 23) is used to raise
and lower attachments.
POTENTIAL HAZARD
• When the engine is off, attachments in the
raised position can gradually lower.
WHAT CAN HAPPEN
• Someone nearby may be pinned or injured
by the attachment as it lowers.
HOW TO AVOID THE HAZARD
• Always lower the attachment lift each time
you shut off the tractor.
14
Operation
Lowering Attachments
Tips for Tilling
1.
Start the tractor.
Clean area of trash, branches and rocks before tilling
to prevent equipment damage.
2.
Push the lift lever DOWN to lower the
attachment (Fig. 24).
Always begin tilling with the slowest ground speed
possible. Increase speed if conditions permit.
1
Always use full throttle (maximum engine speed)
when tilling.
2
Always engage the power take off (PTO) with tiller in
the raised position.
m–3315
Figure 24
1. Lift lever–Up
2. Lift lever–Down
Till in long, straight passes. Do not make turns while
the tiller is in the ground, as equipment damage may
result.
A small center area will not be tilled due to the gear
case. Overlapping with a second pass will eliminate
this condition.
Avoid excessive tilling of the soil, as finely tilled soil
will not absorb moisture easily and puddles of water
or run-off may occur.
When tilling hard packed, very dry or virgin soil,
raise the tiller so only the very top of the soil is
penetrated. On succeeding passes the depth may be
lowered. This reduces the tiller’s tendency to push the
tractor. If this happens, disengage the power take off
(PTO) and reduce forward speed.
Use low range (on the high–low range lever) for best
performance and smoothest operation.
POTENTIAL HAZARD
• There may be buried power, gas, and/or
telephone lines in the area needing tilling.
WHAT CAN HAPPEN
• Shock or explosion may occur.
HOW TO AVOID THE HAZARD
• Have the property or area to be tilled
marked for buried lines.
15
Maintenance
Service Interval Chart
Service Operation
Each
Use
5
Hours
Oil–check level
Belt tension–check
25
Storage
Hours Service
X
initial
X
X
Fall
Service
X
X
Belt–check for wear/cracks
X
Chipped surfaces–paint
X
X
POTENTIAL HAZARD
• If you leave the key in the ignition switch, someone could start the engine.
WHAT CAN HAPPEN
• Accidental starting of the engine could seriously injure you or other bystanders.
HOW TO AVOID THE HAZARD
• Remove the key from the ignition switch and pull the wire(s) off the spark plug(s)
before you do any maintenance. Also push the wire(s) aside so it does not
accidentally contact the spark plug(s).
16
Notes
Maintenance
Greasing and Lubrication
Service Interval/Specification
Check the gear lubrication level in the gear case after
every 25 operating hours or once a year, whichever
occurs first. Gear lubrication changes are not
required.
Gear lube type: SAE 90-140 API service GL-4 or
GL-5.
1
m–3497
Refill capacity: 1 qt.
Figure 25
Left side of tiller shown in operating position
Checking Gear Lube
1. Pipe plug (hidden)
1.
2.
Position the tractor and tiller on a level surface
and lower the attachment lift so that the tiller
tines are on the ground. Set the parking brake
and turn the ignition key to “STOP” to stop the
engine. Remove the ignition key.
Clean the area around the lower pipe plug
(Fig. 25).
Checking Tiller Drive Belt
Tension
1.
Disengage the power take off (PTO), set the
parking brake, lower the attachment lift and turn
the ignition key to “STOP” to stop the engine.
Remove the ignition key.
3.
Remove the pipe plug carefully because the oil
level may be above the level of the pipe plug.
4.
If gear lube runs from the case when the plug is
removed, the lube in the case is sufficient. Oil
may be added as necessary.
2.
As the drive belt wears and the tiller is raised
and lowered, the spring–loaded idler arm moves
(Fig. 26).
5.
Apply pipe sealant to the plug and reinstall.
3.
Lower the tiller and observe the spring–loaded
idler arm movement as you push on the belt. The
idler arm spring must be under tension. If it is
not under tension, replace the drive belt.
Replacing the Tiller Drive Belt
1.
Disengage the power take off (PTO), set the
parking brake, lower the attachment lift and turn
the ignition key to “STOP” to stop the engine.
Remove the ignition key.
2.
Remove the rear tiller belt (short belt) from the
jack shaft pulley (Fig. 26).
17
Maintenance
3
1
2
2
3
4
m–3491
4
Figure 26
1. Spring loaded idler arm
2. Tiller drive belt (short belt)
1
3. Jack shaft pulley
6
8
5
3.
Remove the belt guard from the gear box and
ilder mounting (Fig. 27).
4.
Remove the belt and replace with a new one.
5.
Reinstall the belt guard (Fig. 27) Refer to
“Assembling the Tiller” under Installation. Be
sure to torque the gear case bolt.
m–4422
7
Figure 27
1.
2.
3.
4.
Belt cover
Gearcase bolt
Input pulley
Locknut, 3/8”
5.
6.
7.
8.
Bolt, 3/8–16 x 2” (51 mm)
Upper hole
Tiller Belt (short belt)
Idler pulley
Checking PTO Drive Belt
Tension
18
1.
Check the tension indicators on each side of the
pulley box. If the tension indicators are not in
the same position on both the left and right
sides, release the belt tension and turn the
adjustment knob. Push the belt tension release
arm back toward the pulley box to tension the
belt (Fig. 28).
2.
Repeat step 1 until the indicators move to the
same position.
3.
Once the indicators are in the same position on
both sides, swing the tension release arm into the
pulley box by moving it into the position shown
in Figure 28.
Maintenance
2
1
4
3
m–3643
Figure 28
1. Belt tension indicator (2)
2. Belt tension adjustment
knob
3. Seating position for belt
tension release arm
4. Belt tension released
Storage
1.
Before long term storage wash the machine with
mild detergent and water to remove dirt and
grime from the entire machine.
2.
Check the condition of the drive belt.
3.
Check gearcase lubrication level; refer to
Greasing and Lubrication, page 17.
4.
Check and tighten all bolts, nuts, and screws.
Repair or replace any part that is damaged or
defective.
5.
Paint all scratched or bare metal surfaces. Paint
is available from your Authorized Service
Dealer.
6.
Store the tiller in a clean, dry garage or storage
area. Cover the tiller to protect it and keep it
clean.
19
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
