D:\DPF series\2010models\DPF-X85.X95\4185902131DPF-X85.X95GB_IM\4185902131\4185902131DPF-X85.X95GB_IM\01GB-
DPFX85.X95.UC.CED_IM\010COV.fm
Master: Right

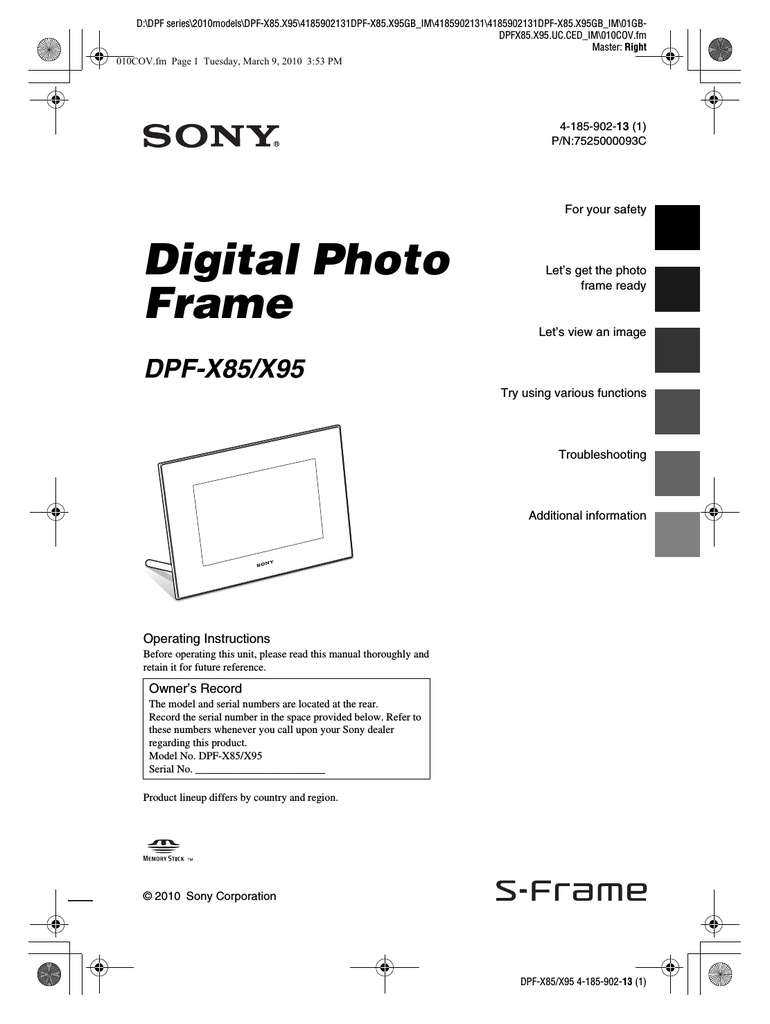

010COV.fm Page 1 Tuesday, March 9, 2010 3:53 PM
4-185-902-13 (1)
P/N:7525000093C
Digital Photo
Frame
DPF-X85/X95
Let’s get the photo frame ready
Operating Instructions
Before operating this unit, please read this manual thoroughly and retain it for future reference.
Owner’s Record
The model and serial numbers are located at the rear.
Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.
Model No. DPF-X85/X95
Serial No. ________________________
Product lineup differs by country and region.
© 2010 Sony Corporation
DPF-X85/X95 4-185-902-13 (1)
2 GB
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
Do not expose the batteries to excessive heat such as sunshine, fire or the like.
CAUTION
Replace the battery with the specified type only. Otherwise, fire or injury may result.
Dispose of used batteries according to the instructions.
For the customers in the U.S.A.
CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
If you have any questions about this product, you may call:
Sony Customer Information Services Center
1-800-222-SONY (7669)
The number below is for the FCC related matters only.
Regulatory Information
Declaration of Conformity
Trade Name:
Model No.:
SONY
DPF-X85
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Declaration of Conformity
Trade Name:
Model No.:
SONY
DPF-X95
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo, San Diego,
CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
For the State of California, USA only
Perchlorate Material - special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate
Perchlorate Material: Lithium battery contains perchlorate.
For the Customer in Europe
This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet).
Attention
The electromagnetic fields at the specific frequencies may influence the picture of this digital photo frame.
Notice
If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc) again.
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European
Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic
Office, your household waste disposal service or the shop where you purchased the product.
Disposal of waste batteries
(applicable in the European Union and other European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol.
The chemical symbols for mercury
(Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact your local Civic
Office, your household waste disposal service or the shop where you purchased the product.
Notice for the customers in the countries applying EU Directives
The manufacturer of this product is Sony Corporation,
1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The
Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61,
70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
3 GB
4 GB
Notice for users
Program © 2010 Sony Corporation
Documentation © 2010 Sony Corporation
All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from
Sony Corporation.
IN NO EVENT SHALL SONY CORPORATION BE
LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
WHETHER BASED ON TORT, CONTACT, OR
OTHERWISE, ARISING OUT OF OR IN
CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice.
The software described herein may also be governed by the terms of a separate user license agreement.
Any design data such as sample pictures provided in this software cannot be modified or duplicated except for the purpose of personal use. Any unauthorized duplication of this software is prohibited under copyright law.
Please note that unauthorized duplication or modification of portraits or copyrighted work could infringe the rights reserved by rights holders.
On the illustrations and screen shots used in this manual
The illustrations and screen shots used in this manual are of the DPF-X85 unless noted otherwise.
The illustrations and screen shots used in this manual may not be identical to those actually used or displayed.
Read this before using
Notes on playback
Connect the AC adaptor to an easily accessible AC outlet. Should you notice an abnormality in it, disconnect it from the AC outlet immediately.
Notes on copyrights
Duplication, edition, or printing of a CD, TV programs, copyrighted materials such as pictures or publications, or any other materials except for your own recording or creation is limited to private or domestic use only. Unless you hold copyright or have permission of copyright holders for the materials to be duplicated, use of those materials beyond this limit may infringe the provisions of the copyright law and be subject to the copyright holders claim for damages.
When using photo images with this digital photo frame, pay special attention not to infringe the provisions of the copyright law. Any unauthorized use or modification of other’s portrait may also infringe their rights.
For some demonstrations, performances, or exhibits, photography may be forbidden.
Recording contents are not guaranteed
Sony shall assume no responsibility for any accidental or consequential damages or loss of the recording contents which may be caused by use or malfunction of the digital photo frame or memory card.
Backup recommendations
To avoid potential risk of data loss caused by accidental operation or malfunction of the digital photo frame, we recommend that you save a backup copy of your data.
Notes on LCD screen
• Do not press against the LCD screen. The screen may be discolored and that may cause a malfunction.
• Exposing the LCD screen to direct sunlight for a long period may cause malfunctions.
• The LCD screen is manufactured using extremely high-precision technology, so over 99.99% of the pixels are operational for effective use. However, there may be some tiny black points and/or bright points (white, red, blue or green in color) that constantly appear on the LCD screen. These points are normal in the manufacturing process and do not affect the viewing in any way.
• Images may trail across on the LCD screen in a cold location. This is not a malfunction.
Table of Contents
For your safety
Let’s get the photo frame ready
Let’s view an image
Try using various functions
Adjusting image size and orientation (Zoom in/Zoom out/Rotate) ................. 20
Changing the settings of the auto power on/off function ............................... 21
Continued
5 GB
6 GB
Troubleshooting
Additional information
o you sa e y
For your safety
Checking included items
Make sure that the following items are included.
Digital photo frame (1)
Stand (1)
Remote control (1)
AC adaptor (1)
,
Attaching to the screw hole
(
,
Removing the protective sheet
(
Connecting to the AC power source
(
,
Operating Instructions (this manual) (1)
CD-ROM (Digital Photo Frame
Handbook) (1)
Warranty (1)
(In some regions, the warranty is not supplied.)
The supplied CD-ROM contains the Digital Photo
Frame Handbook that explains operations and setups of the digital photo frame in detail. To view the handbook, insert the CD-ROM into the computer and double-click the Handbook icon. (To display the handbook, you need Adobe Acrobat Reader. )
7 GB
Identifying the parts
x
Digital photo frame
Front
LCD screen
Remote sensor
Sony logo (
Rear
VIEW MODE button (
Standby indicator
1 (on/standby) button
MENU button
Direction ( B/b/v/V) buttons, ENTER ( ) button
BACK button
Reset switch
Access lamp
Memory card slot (
Holes for hanging unit on the wall
Space for storing the stand
8 GB
x
Remote control
SLIDE-SHOW ( ) button
CLOCK ( ) button
MENU button
BACK button
MARKING ( ) button
SORT button
SELECT DEVICE button
USB B connector (
Stand (
DC IN 5V jack (
VIEW MODE buttons
1 (on/standby) button
SINGLE button
INDEX ( ) button
Zoom in ( ) button
Direction ( B/b/v/V) buttons
ENTER ( ) button
Zoom out ( ) button
IMPORT ( ) button
DELETE ( ) button
ROTATE ( ) button
About descriptions in this manual
The operations described in this manual are based on remote control operation.
When an operation is performed differently, for example, with the remote control and the buttons on the photo frame, it will be explained in a tip.
9 GB
Let’s get the photo frame ready
P Notes
• If the remote control stops working:
Replace the battery (CR2025 lithium battery) with a new one.
• When the lithium battery becomes weak, the operating distance of the remote control may shorten, or the remote control may not function properly. In this case, replace the battery with a Sony CR2025 lithium battery. Use of another battery may present a risk of fire or explosion.
Replacing procedures:
.CD-ROM (Handbook) page 9
P WARNING
Battery may explode if mistreated.
Do not recharge, disassemble or dispose of in fire.
Remote control
Pull out the protective sheet before use as shown in the figure.
Protective sheet
Using the remote control
Point the top end of the remote control towards the remote sensor on the photo frame.
Stand
z Tips x When the photo frame is placed in the portrait orientation
If you set the photo frame with its operations buttons facing upwards, the display is also automatically rotated to the portrait orientation.
x Sony logo
When the photo frame is placed in the portrait orientation or when you turn off the power, the Sony logo doesn't light up.
Screw the stand into the screw hole firmly until the stand stops turning.
You can set the photo frame to portrait or landscape orientation by rotating it without moving the stand.
10 GB
To display the photo frame on the wall
1
Prepare screws (not supplied) suitable for the screw holes on the rear panel.
4mm ( 3 /
16
inch)
More than 25mm (1 inch)
4.2mm
( 3 /
16
inch)
8.6mm
( 11 /
32
inch)
Holes for hanging the unit on the wall
2
Screw the screws (not supplied) into the wall.
Be sure the screws (not supplied) protrude between 2.5 to 3mm
( 1 /
8
inch) from the surface of the wall.
PNotes
• Use screws suitable for the quality of the material of the wall. The screws may be damaged, depending on the type of material used in the wall. Set the screws in a pillar or stud in the wall.
• When you want to re-insert the memory card, remove the photo frame from the wall, then eject and re-insert the memory card while the photo frame is placed on a stable surface.
• Store the stand in the place provided when you hang the photo frame on the wall.
• Connect the DC cable of the AC adaptor to the photo frame and hang the photo frame on the wall.
Then connect the AC adaptor to the wall outlet.
• We take no responsibility for any accidents or damage caused by defects of attachment, misuse, or natural disasters, etc.
Between
2.5mm to 3mm
( 1 /
8
inch)
3
Hang the photo frame on the wall by fitting the hole on the rear panel to the screws on the wall.
11 GB
PNotes
• The socket outlet should be as close as possible to the unit, and easily accessible.
• Do not place the photo frame on an unsteady or tilted surface.
• Connect the AC adaptor to an easily accessible wall outlet close by. If trouble occurs while using the adaptor, immediately shut off the power by disconnecting the plug from the wall outlet.
• Do not short the plug of the AC adaptor with a metal object. Doing so may cause a malfunction.
• Do not use the AC adaptor placed in a narrow space, such as between a wall and furniture.
• Insert the plug of the AC adaptor firmly, if the connection is loose, the photo frame may turn off when it is moved.
• After use, remove the AC adaptor from the DC IN 5V jack of the photo frame, and remove the AC adaptor from the outlet.
• Do not turn the photo frame off or disconnect the AC adaptor from the photo frame before the standby indicator turns red. Doing so may damage the photo frame.
• The AC plug may be removed from the AC adaptor main unit by pushing the “PUSH” tab. When using the AC adaptor, however, you do not have to remove the AC plug.
Make sure to use the AC adaptor with the AC plug firmly attached. If the AC plug is removed, slide it into the AC adaptor main unit until it clicks into place as illustrated.
• The AC plug shape may differ depending on the region you purchase the photo frame.
Turning the photo frame on
1
Insert the plug of the AC adaptor into the DC IN 5V jack on the rear of the photo frame.
2
Connect the AC adaptor to the wall outlet.
The photo frame is automatically turned on.
To the DC IN 5V jack
DC cable
AC adaptor main unit
DC plug
To wall outlet
AC plug
When the AC plug is removed
Attaching the AC plug
Attach the AC plug to the AC adaptor main unit as follows:
PUSH tab clicks when the
AC plug is slid firmly into place.
12 GB
Removing the AC plug from the wall outlet
If the AC plug remains inserted in the wall outlet, remove it as follows, without using a tool:
Metal terminals at the rear of the AC plug.
• If handled roughly, the AC plug may become detached from the AC adaptor main unit and remain in the wall outlet. If this occurs, grasp the
AC plug with dry hands as illustrated and remove it from the wall outlet. Do not use a tool. Be careful not to touch the metal terminals at the rear of the AC plug.
• Check to see if there is no trouble with the AC adaptor main unit and
AC plug, and then slide the AC plug into the AC adaptor main unit until it clicks into place.
• If there is any problem with the
AC adaptor main unit or AC plug, consult with your Sony service facilities for repair.
Operations in an initial state
When the photo frame is turned on, the initial display appears. z Tips x If the photo frame is not operated
If the photo frame is not operated for
10 seconds, the demo mode is displayed.
x Releasing the demonstration mode
If any other button than the power button is pressed, the screen returns to the initial display.
13 GB
Setting the current time
P Tip
The B/b buttons become activated only when the Clock and calendar
view mode (page 16) is not selected.
1
Press MENU, and B/b to select the (Settings) tab.
v/V [Date/time Settings] , (ENTER)
2
Press v/V to select [Time] , v/V to select a value. , B/b (hour, minute, and second)
Setting complete. , (ENTER)
3
Press MENU.
In the same window, you can use the same procedures as time setting to set the following:
Setting items
•Date
•Date Display Order (Y-M-D/M-D-Y/D-M-Y)
•First day of the week (Sunday/Monday)
•12hr/24hr display (12 hours/24 hours)
14 GB
Let’s view an image
Inserting a memory card
Insert the memory card firmly into the corresponding slot with its label side facing toward you (when you are facing the back side of the photo frame).
PNote
When using a memory card of the following types, make sure to insert it in an appropriate adaptor.
If you insert it without an adaptor, you may be unable to remove it. As shown in the right-most illustration below, make sure to insert the following types of memory cards with inserted in the appropriate adaptor.
1 miniSD /miniSDHC xD-Picture Card
(Slot A)
SD memory Card
(Slot A)
1 miniSD/ miniSDHC adaptor
2 microSD/microSDHC
“Memory Stick”
(Slot A)
“Memory Stick Duo”
(Slot B)
2 microSD/ microSDHC adaptor
3 “Memory Stick Micro”
“M2” adaptor
(standard size)
Access lamp
3
“M2” adaptor
(Duo size)
When you insert a memory card
The images on the memory card are automatically displayed.
If you switch off the power while they are being displayed
If you switch the power back on, the same images continue to be displayed.
If the access lamp does not flash
Reinsert the memory card after checking the label side of the memory card.
About the A and B slots
If you insert memory cards both into the A and B slots simultaneously, the photo frame will not work properly.
PNote
In Clock and calendar display, the access lamp does not flash even after you insert a memory card.
15 GB
Changing the display
1
Press the button corresponding to view mode you want to select.
VIEW MODE buttons
PNote
If you do not operate the photo frame for a certain period of time, the style indicated by the cursor is automatically selected.
z Tip
Style descriptions:
.CD-ROM (Handbook) page 16 to page 19
About the calendars:
Lunar Calendar, Arabic Calendar, and Farsi Calendar are displayed only when the relevant language is selected with the Language Setting.
The display changes to selected view mode.
2
Press B/b/v/V to select a desired style, and then
The view mode screen is displayed.
Displays
Slideshow
Clock and calendar
Styles
Single view, Multi image view, Clock view, Calendar view, Time Machine,
Random view
Clock1 to Clock11
Calendar1 to Calendar3, Lunar
Calendar, Arabic Calendar, Farsi
Calendar
Entire image, Fit to screen, Entire image
(with Exif), Fit to screen (with Exif)
Index 1 to Index 3
Index
16 GB
About the information displayed on the LCD screen
The following information is displayed.
1 Display type (In the Single view mode)
– Entire image
– Fit to screen
– Entire image (with Exif)
– Fit to screen (with Exif)
2 Ordinal number of the displayed image/Total number of images
Input media indication for the displayed image is shown as follows:
Icons Meaning
Internal memory
“Memory Stick” input
SD Memory Card input xD-Picture Card input
3 Image details
– File format (JPEG(4:4:4), JPEG(4:2:2),
JPEG(4:2:0), RAW)
– Number of pixels (width × height)
– Manufacturer name of image input device
– Model name of image input device
– Shutter speed (e.g.: 1/8)
– Aperture value (e.g.: F2.8)
– Exposure value (e.g.: +0.0EV)
– Rotation information
4 Setting information
Icons Meaning
Protect indication
Associated file indication
(Displayed when there is an associated file such as a motion file or a miniature e-mail image file.)
Displays when you have registered a mark.
5 Image number (folder-file number)
This is displayed if the image is DCF compliant.
If the image does not comply with DCF, its file name is displayed.
If you named or renamed the file on your computer and the file name includes characters other than alphanumeric characters, the file name may not be able to be displayed properly on the photo frame. Also, for a file created on a computer or other device, a maximum of 10 characters from the beginning of the file name can be displayed.
Note
Only alphanumeric characters can be displayed.
6 Shooting date/time
17 GB
Try using various functions
z Tips x Importing
The number of images to be saved in the internal memory:
• Resize: approx. 4,000 images
• Original: the number of images may vary, depending on the original image file size.
x Exporting
Any memory card that is not recognized by this photo frame is shown in gray and you cannot select it.
PNotes x During exporting/deleting
Avoid doing the following. Doing so may damage this photo frame, memory card, or the data:
• Turning off the power
• Removing an memory card
• Inserting another card x When deleting
If deletion has started, the deleted image cannot be recovered even if you stop deletion. x When marking
• Only marks attached to images on the internal memory are saved.
• Marks attached to images on a memory card will be removed when you turn the power off or change playback devices.
Various functions
• Importing an image (a memory card b the internal memory)
• Exporting an image (the internal memory b a memory card)
• Deleting an image
• Marking an image
1
When a desired image is displayed, press MENU and then B/b to select the (Editing) tab.
2
Select the desired menu item (Import/Export/Delete/
Marking), and then press (ENTER).
3
Press v/V to select [ ... this image]/[... multiple images]/[... all images], and then press (ENTER).
(“...” stands for each command: “Import”, “Export”, “Delete”, or “Mark”.)
[... this image]:
Press v/V to select the destination, and press (ENTER).
[... multiple images]:
Press B/b/v/V to select a desired image in the image list, and then press (ENTER) to add “
✔”.
Repeat this operation to select multiple images.
To clear the selection: Select the image and press
(ENTER). “
✔” disappears from the image.
After you finish selecting the images, press MENU and then select the destination.
[... all images]:
All the images are displayed with “
✔”.
Press MENU and then select the destination.
18 GB
4
Press v/V to select [Yes], and press (ENTER).
Sorting images (Filtering)
1
Press SORT when a desired image is displayed.
2
Select a sort style using v/V and press (ENTER).
z Tip
If using the buttons on the photo frame, press MENU, select the
(Editing) tab with B/b, select [Sort] with v/V, and press .
P Note
During Clock and calendar display, you cannot select the (Editing) tab.
• [Sort by date]: Filters by the shooting date.
• [Sort by folder]: Filters by the folder.
• [Sort by vertical/horizontal]:
Filters by the image orientation.
• [Sort by mark]: Filters by the mark.
3
Press B/b/v/V to select the item you want, and then
To cancel the sort
Press MENU while the sorted images are displayed, select [Exit sort
(show all photos)] and press (ENTER).
To change the sort style
Press BACK while the sorted images are displayed.
PNotes x During sorting
Avoid doing the following. Doing so may damage this unit, memory card, or the data:
• Turning off the power
• Removing an memory card
• Inserting another card x Sort is automatically cancelled
• When the playback device is changed.
• When images on a memory card are sorted and the memory card is removed.
19 GB
z What is “playback device”?
A memory card or the internal memory.
P Note
During Clock and calendar display, you cannot select the (Select device) tab.
Specifying the playback device
Press SELECT DEVICE.
Press v/V to select the playback device, and then press
(ENTER).
P Notes
• Enlarging an image may reduce the quality depending on the image size.
• It is not possible to enlarge an image using the buttons on the photo frame.
P Note
An enlarged image cannot be rotated.
z Tip
When displaying the images in the internal memory, the information used to rotate the image is retained even after the power is turned off.
Adjusting image size and orientation
(Zoom in/Zoom out/Rotate)
Enlarging/Reducing
Press (zoom in) or (zoom out).
Saving an enlarged or a reduced image (Crop and save)
• When you move the enlarged image with B/b/v/V and press
MENU, the image is saved in the trimmed size.
• You can select the saving method by pressing v/V.
Saving methods: [Save as new image], [Overwrite]*
* JPG and JPEG images only
Rotating
Press (ROTATE).
Or:
1
Press MENU, B/b to select the (Editing) tab, v/V to select [Rotate], and then press (ENTER).
2
Press v/V to select the direction to rotate, and then
•
• : Rotates the image 90 degrees clockwise.
: Rotates the image 90 degrees counterclockwise.
3
Press v/V to select [OK], and then press (ENTER).
20 GB
Changing the settings of the auto power on/off function
1
Press MENU, B/b to select the (Settings) tab.
2
Press v/V to select [Auto Power ON/OFF], and press
(ENTER).
3
Press v/V to select [Setup method], and then press
(ENTER). Then, press v/V to select [Simple] or
[Advanced], and then press .
[Simple] z Tips x During operation
The power is turned off automatically at the time you set for
[Power-OFF timer].
x During the standby mode
The power is turned on automatically at the time you set for
[Power-ON timer].
1 Press V to select [Time Setting] , (ENTER).
2 Press v / V to select [Power-ON timer] or [Power-OFF timer]
, (ENTER).
3 Press v / V to select [Enable] , (ENTER).
4 [Auto ON time]/ [Auto OFF time] setting v / V : Set the time.
AM or PM is displayed when you select [12 hours] on the time display setting.
5 [Auto ON day] / [Auto OFF day] setting v / V: Add a check mark to select the day on which you want activate the timer.
Move the cursor to [OK] and press (ENTER).
[Advanced]
Continued
21 GB
D:\DPF series\2010models\DPF-X85.X95\4185902111DPF-X85.X95GB_IM\4185902121\4185902121DPF-X85.X95GB_IM\01GB-
DPFX85.X95.UC.CED_IM\060C04.fm
Master: Left
060C04.fm Page 22 Thursday, February 18, 2010 12:20 PM
1 Press V to select [Time Setting] , (ENTER).
2 Press B/b/v/V to move to a day of the week or a time zone* you want to set or cancel setting the auto power on/off function.
Press (ENTER) to change the time zone color:
* You can set a time zone by one hour units.
Blue time zone: Power ON status
Gray time zone: Power OFF status
3 Press B/b/v/V to select [OK].
PNotes
• Depending on the status on the photo frame, some settings of some items cannot be changed.
They are displayed in gray and cannot be selected.
• During Clock and calendar display, you can make settings in the (Settings) tab only.
Changing the settings
Press MENU, then B/b to select the (Settings) tab.
Press v/V to select the item and setting value, and then
Setting items
•Slideshow Settings
•Auto Power ON/OFF
•Date/time Settings
•General Settings (Listing Order, Sony logo ON/OFF etc,.)
•Language Setting
•Initialize
22 GB
DPF-X85/X95 4-185-902-12 (1)
Refresh mode
The photo frame refreshes the internal memory automatically to prevent possible data errors.
The confirmation screen used for refreshing the internal memory is displayed automatically when the refresh is needed.
The refresh starts when you select [Yes]. The Refresh also starts automatically when no operation is attempted for 30 seconds. If you select [No], the confirmation screen used for refreshing the internal memory is displayed the next time.
PNotes
• Do not turn the photo frame to
OFF while the internal memory is being refreshed. It may cause a malfunction.
• It may take approximately 5 minutes to refresh the internal memory.
23 GB
Connecting to a computer
P Notes
• Use a B-Type USB cable.*
* When you use a commerciallyavailable USB cable, use a
USB cable with a B-type plug
(for the USB B connector of this unit, frame-side connector type) shorter than 3 meters.
• If multiple USB devices are connected to a computer or if a hub is used, a problem may occur.
In such a case, simplify the connection.
• You cannot operate the photo frame from another USB device being used simultaneously.
• Do not disconnect the USB cable during data communication.
• Operation with all computers that satisfy the recommended system requirements is not guaranteed.
• The photo frame has been demonstrated as operable when connected to a computer and a
Sony digital photo printer. When other devices are connected to the photo frame, these devices may not recognize the internal memory of photo frame.
1
Connect the AC adaptor to the photo frame, and to the AC power source.
2
Connect the computer and photo frame with a commercially available USB cable.
3
Turn the photo frame on.
4
Operate the computer to exchange images with the internal memory of the photo frame.
To USB B connector
Computer To USB connector
x Windows
Recommended OS: Microsoft Windows 7/Windows Vista SP2 /
Windows XP SP3
Port: USB port
x Macintosh
Recommended OS: Mac OS X (v10.4 or later)
Port: USB port
24 GB
Troubleshooting
If an error message appears
Error message
Cannot delete a protected file.
Memory card is protected. Remove protection then try again.
Meaning/Solutions
• To delete a protected file, cancel the protection on your digital camera or computer.
• The memory card is write-protected. Slide the writeprotect switch to the enable position. ( .Digital Photo
Frame Handbook, page 45)
Error reading the Memory Stick. /
Error reading the SD Memory
Card. / Error reading the xD-
Picture Card./Error reading the iternal memory.
Write error on the Memory Stick. /
/ Write error on the SD Memory
Card. / Write error on the xD-
Picture Card./ Write error on the internal memory.
• For a memory card:
An error has occurred. Check that the memory card is inserted correctly. If this error message is displayed frequently, check the status of the memory card with a device other than the photo frame.
• For the internal memory:
Initialize the internal memory.
Note
When you initialize the internal memory, please note that all the image files imported to the internal memory are deleted.
Memory card format not supported. • For a memory card, use your digital camera or other device to format the memory card.
Note
When you initialize the memory card, all the files on the memory card will be deleted.
If trouble occurs
Symptom
Some images are not displayed.
Check item
• Are the images displayed in the index view?
• Does the mark displayed below appear in the index view?
• Are there more than 9,999 images in the memory card?
Cause/Solutions c If the image is displayed in the index view but cannot be displayed as single image, the image file may be damaged even though its thumbnail preview data is fine.
c A file that is not compatible with DCF may not be able to be displayed with the photo frame, even if it can be displayed with a computer.
c If a mark is displayed, the thumbnail data or image itself cannot be opened. c The photo frame can play, save, delete, or otherwise handle up to 9,999 image files.
Continued
25 GB
26 GB
Symptom
Some images are not displayed.
Cannot save an image.
Cannot delete an image.
Nothing happens even if you operate the photo frame.
Nothing happens even if you operate the remote control.
Check item
• Did you rename the file with a computer or other device?
• Is there a folder with more than 8 levels in its hierarchy on the memory card?
• Did you save images from a computer to the internal memory without making a folder in the internal memory?
• Is the memory card writeprotected? Or is the writeprotect switch locked?
• Is this image protected?
• Is there a protective sheet inserted?
—
• Is the battery inserted in the remote control properly?
—
Cause/Solutions c If you named or renamed the file on your computer and the file name includes characters other than alphanumeric characters, the image may not be able to be displayed on the photo frame.
c The photo frame cannot display images saved in a folder that is more than 8 levels deep.
c If you do not make a folder, you can only save up to 512 images. In addition, the number of images may be reduced depending on the file name length or character type. When you save images in the internal memory from a computer, be sure to make a folder in the internal memory and save the images in this folder.
c Use the device you are using to cancel write-protection and try deleting again.
c Slide the write-protect switch to the enable position.
c Check the image information from the single view mode. (
c An image with a mark is set to “Read
Only”. You cannot delete it on the photo frame.
c Push the reset switch on the back of the photo frame using a long, thin object such as a pin, etc. (
c Turn off and then on the power.
(
c Replace the battery. (.Digital Photo
Frame Handbook, page 9) c Insert a battery in the proper orientation.
( .Digital Photo Frame Handbook, page 9) c Point the top end of the remote control towards the remote sensor on the photo frame.
c Remove any obstruction between the remote control and the remote sensor.
c Remove the protective sheet.
(
D:\DPF series\2010models\DPF-X85.X95\4185902111DPF-X85.X95GB_IM\4185902121\4185902121DPF-X85.X95GB_IM\01GB-
DPFX85.X95.UC.CED_IM\080ADD.fm
Master: Right.L0
080ADD.fm Page 27 Friday, February 19, 2010 10:37 PM
Additional information
Precautions
Installation
• Avoid placing the photo frame in a location subject to:
– vibration
– humidity
– excessive dust
– direct sunlight
– extremely high or low temperatures
• Do not use electrical equipment near the photo frame. The photo frame will not work properly in electromagnetic fields.
• Do not place heavy objects on the photo frame.
On the AC adaptor
• Even if your photo frame is turned off, AC power (house current) is still supplied to it while it is connected to the wall outlet via the
AC adaptor.
• Be sure to use the AC adaptor supplied with the photo frame. Do not use other AC adaptors, as this may cause a malfunction.
• Do not use the supplied AC adaptor for other devices.
• Do not use an electrical transformer (travel converter), as this may cause overheating or a malfunction.
• In case the cord of the AC adaptor is damaged, do not use it any longer, as this may be dangerous.
On moisture condensation
If the photo frame is brought directly from a cold location to a warm location or placed in an extremely warm or humid room, moisture may condense inside the unit. In such cases the photo frame will probably not work properly and may even develop a fault if you persist in using it. If moisture condensation occurs, unplug the AC adaptor of the photo frame and do not use the photo frame for at least one hour.
On transport
When you transport the photo frame, remove the memory card, AC adaptor, and connected cables from the photo frame and put the photo frame and its peripherals in the original box with the protective packaging.
If you no longer have the original box and packing parts, use similar packing material so that the photo frame will not be damaged while being transported.
Cleaning
If the photo frame is very dirty:
• For cleaning the LCD screen
Do not use water or any type of detergent.
Wipe the LCD screen gently with a soft dry cloth.
• For cleaning the exterior surface other than the
LCD screen
Wipe the exterior surface lightly with a soft cloth slightly moistened with water or tepid water, and then wipe it with a dry cloth. Do not use any type of solvent, such as alcohol or benzine, which may damage the finish.
Restrictions on duplication
TV programs, films, video tapes, portraits of other people, or other materials may be copyrighted.
Unauthorized use of such materials may infringe the provisions of the copyright law.
Disposing of the photo frame
Even if you perform [Format internal memory], the data in the internal memory may not be erased completely. When you dispose of the photo frame, we recommend that you physically destroy the photo frame.
27 GB
DPF-X85/X95 4-185-902-12 (1)
D:\DPF series\2010models\DPF-X85.X95\4185902131DPF-X85.X95GB_IM\4185902131\4185902131DPF-X85.X95GB_IM\01GB-
DPFX85.X95.UC.CED_IM\080ADD.fm
Master: Left
080ADD.fm Page 28 Tuesday, March 9, 2010 3:52 PM
Specifications x Photo frame
LCD screen
LCD panel:
DPF-X85: 20cm/8.0-inch,
TFT active matrix
DPF-X95: 23cm/9.0-inch,
TFT active matrix
Total number of dots:
DPF-X85/X95: 1,152,000
(800 × 3(RGB) × 480) dots
Effective display area
Display aspect ratio: 16:10
LCD screen area:
DPF-X85: 18.7cm/7.3-inch
DPF-X95: 21cm/8.3-inch
Total number of dots:
DPF-X85: 1,012,464
(712 × 3(RGB) × 474) dots
DPF-X95: 1,025,304
(718 × 3(RGB) × 476) dots
LCD backlight life
20,000 hours
(before brightness of the backlight is reduced to half)
Input/Output connectors
USB connector (TypeB, Hi-Speed USB)
Slots
“Memory Stick PRO” (Standard/Duo)/
SD memory card/MMC/ xD-Picture Card slot
Compatible image file formats
JPEG: DCF 2.0 compatible, Exif 2.21 compatible, JFIF *1
RAW (preview only *2 ): SRF, SR2, ARW
(2.0 or lower version)
(Some image file formats are not compatible.)
Maximum number of pixels that can be displayed
8,000 (H) × 6,000 (V) dots *3
File system
FAT12/16/32
Image file name
DCF format, 256 characters within 8th hierarchy
Maximum number of files that can be handled
9,999 files for a memory card
Internal memory capacity *4
2 GB
(Approx. 4,000 images *5 can be saved.)
Power requirements
DC IN jack, DC 5V
Power consumption
Model in operation mode including the
AC adaptor
DPF-X85/X95 at the maximum load normal mode*
8.6 W
6.85 W
* The definition of the normal mode is a status which allows the performance of a slideshow using images stored in the internal memory with the default settings without inserting a memory card or connecting an external device.
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)
28 GB
DPF-X85/X95 4-185-902-13 (1)
Dimensions
DPF-X85:
[With the stand spread out]
Approx. 234.1 × 163.8 × 127 mm
(9 1 /
4
× 6 1 /
2
× 5 inches)
(width/height/depth)
[When the photo frame is hanging on the wall]:
Approx. 234.1 × 163.8 × 41.2 mm
(9 1 /
4
× 6 1 /
2
× 1 5 /
8
inches)
(width/height/depth)
DPF-X95:
[With the stand spread out]
Approx. 263.2 × 181 × 142 mm
(10 3 /
8
× 7 1 /
4
× 5 5 /
8
inches)
(width/height/depth)
[When the photo frame is hanging on the wall]:
Approx. 263.2 × 181 × 41.2 mm
(10 3 /
8
× 7 1 /
4
× 1 5 /
8
inches)
(width/height/depth)
Mass
DPF-X85: Approx. 740 g (26.1 oz)
DPF-X95: Approx. 845 g (30 oz)
(excluding the AC adaptor)
Included accessories
See “Checking included items” on page 7.
x AC adaptor
Power requirements
- 100 V to 240 V, 50/60 Hz
0.3 A
Rated output voltage
5V 2 A
Dimensions
Approx. 45 × 72 × 50 mm
(1 13 /
16
× 2 7 /
8
× 2 inches)
(width/height/depth)
(excluding the protruding parts)
Mass
Approx. 110 g (4 oz)
See the label of AC adaptor for more details.
Design and specifications are subject to change without notice.
*1 : Baseline JPEG with 4:4:4, 4:2:2, or 4:2:0 format
*2 : RAW files are displayed as thumbnail preview.
*3 : 17 bits or more are required both vertically and horizontally. An image with an aspect ratio of 20:1 or more may not be displayed properly. Even if the aspect ratio is less than 20:1, display problem may occur in thumbnails, slideshow or other occasions.
*4 : The capacity is calculated as 1 MB is equivalent to
1,000,000 bytes. The actual capacity is reduced as files for management and applications are included.
Approximately 1.9 GB can be used for your actual operation.
*5 : Approximate number is shown when the images taken by 2,000,000 pixels equivalent camera are saved. The value may vary depending on the shooting condition.
Customer support home page
The latest support information is available at the following home page address: http://www.sony.net/
29 GB
On trademarks and copyrights
•
Stick”,
, Cyber-shot, , “Memory
, “Memory Stick Duo”,
, “MagicGate Memory
Stick”, “Memory Stick PRO”,
, “Memory Stick PRO
Duo”,
PRO-HG Duo”,
, “Memory Stick
,
“Memory Stick Micro”,
, “Memory Stick-ROM”,
,
“MagicGate”, and are trademarks or registered trademarks of Sony
,
Corporation.
• Microsoft, Windows, and Windows Vista are registered trademarks of Microsoft Corporation in the United States and/or other countries.
•
• Macintosh and Mac OS are registered trademarks of Apple Inc.. in the United States and/or other countries.
or xD-Picture Card™ is a trademark of
FUJIFILM Corporation.
• The SD logo is a trademark.
• The SDHC logo is a trademark.
• Contains iType TM and fonts from Monotype
Imaging Inc.
iType TM is a trademark of Monotype Imaging
Inc.
• This software is based in part on the work of the Independent JPEG Group.
• Libtiff
Copyright © 1988 - 1997 Sam Leffler
Copyright © 1991 - 1997 Silicon Graphics, Inc.
• All other companies and product names mentioned herein may be the trademarks or registered trademarks of their respective companies. Furthermore, “™” and “ ® ” are not mentioned in each case in this manual.
30 GB
memo
31 GB
Printed using VOC (Volatile Organic
Compound)-free vegetable oil based ink.
Sony Corporation Printed in China
Advertisement
Key features
- High-resolution display for sharp, clear images
- Built-in clock and calendar
- Can view photos and videos from a variety of sources
- Easy-to-use interface
- Compact and portable
