EPSON EMP-S1
QuickReferenceGide.fm Page 1 Wednesday, April 16, 2003 6:03 PM
QuickReferenceGide.fm
4/16/03

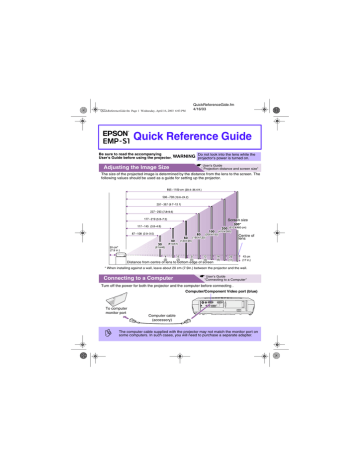

Quick Reference Guide
Be sure to read the accompanying
Do not look into the lens while the
User's Guide before using the projector. WARNING projector's power is turned on.
Adjusting the Image Size
s User's Guide
" Projection distance and screen size"
The size of the projected image is determined by the distance from the lens to the screen. The
following values should be used as a guide for setting up the projector.
Screen size
Centre of
lens
Distance from centre of lens to bottom edge of screen
* When installing against a wall, leave about 20 cm (7.9in.) between the projector and the wall.
Connecting to a Computer
s User's Guide
"Connecting to a Computer"
Turn off the power for both the projector and the computer before connecting .
Computer/Component Video port (blue)
To computer
monitor port
p
Computer cable
(accessory)
The computer cable supplied with the projector may not match the monitor port on
some computers. In such cases, you will need to purchase a separate adapter.
QuickReferenceGide.fm
4/16/03
QuickReferenceGide.fm Page 2 Wednesday, April 16, 2003 6:03 PM
s User's Guide
Connecting to Video Equipment
"Connecting to Video Equipment"
Turn off the power for both the projector and video equipment before connecting.
S-Video port
Video port (yellow)
When connecting to
video equipment with
an S-Video out port
To S-Video
out port
S-Video cable
(commercially available)
To video
out port
yellow
A/V cable
(commercially available)
yellow
white
To audio
out port
When connecting to
video equipment with
an composite video
out port
red
red
Audio port
white
* To output sound from the video equipment through the projector's in-built speaker, connect the video
equipment and the projector with the an A/V cable (white/red), or an RCA audio cable.
p
If connecting a component video source (such as a DVD player), you can use the
optional component video cable to connect the source to the Computer/Component
Video port at the rear of the projector.
s User's Guide
Quick Start
"Turning on the Projector"
Power indicator
5
1
3
2
Remove the lens cover.
Connect the projector's power cable with
the projector.
p
• If no images are projected, change the
input signal.
Insert the power cable into a wall socket.
The Power indicator lights orange.
Turn on the power for the signal input
source.
For video equipment, press [Play] to start
playback.
Press the [Power] button to turn on the
projector's power.
The Power indicator begins to blink green, and
projection will then start (warm-up in progress).
Remote control
Projector
• When using a laptop or a PC with an inbuilt monitor, select external video
output on the computer.
• s User's Guide "Selecting the Input
Source"
QuickReferenceGide.fm Page 3 Wednesday, April 16, 2003 6:03 PM
s User's Guide
Adjustments
"Adjusting the Display"
• Adjusting the image angle
Raise the front of the projector while pressing the
feet buttons on both sides. Extend the front feet.
Front adjustable feet
• Adjusting the image size
and focus
Fine adjustments to image size
Press the [Wide] or [Tele] buttons
on the control panel to adjust the
projection size.
[Wide]: increase the size
[Tele] : reduces the size
Foot adjust button
• Keystone
When the projector is not set right angles to a
screen, the display distorts in the shape of a
trapezoid. This distortion can be corrected.
p
QuickReferenceGide.fm
4/16/03
Adjusting the focus
Turn the focus ring to adjust the
image focus.
The following adjustments can also be made.
• Auto Setup (computer connections)
s User's Guide "Adjusting computer generated images"
When projecting computer images, the input signals are detected automatically and
adjusted so that the optimum images are projected. If the results of automatic
adjustment are not satisfactory, individual settings can also be adjusted manually
using the menus.
• Other adjustments s User's Guide " Configuration Menus "
Press the [Menu] button to display the configuration menu. You can use the
configuration menu functions to adjust settings for brightness, contrast and colour.
Turning off the Projector
Turn off the power for all sources
connected to the projector.
Press the [Power] button twice to turn off
the power.
The Power indicator will flash orange (cooldown in progress/about 20 seconds).
Check that the Power indicator lights
orange, then disconnect the power cable
from the electrical outlet.
s User's Guide
"Turning off the Projector"
Power indicator
Operating problems may occur if the power
cable is disconnected while the Power
indicator is flashing orange.
QuickReferenceGide.fm Page 4 Wednesday, April 16, 2003 6:03 PM
QuickReferenceGide.fm
4/16/03
Useful Functions
Color Mode
A/V Mute
Auto Setup
The following five colour modes can be selected by pressing [Color s User's Guide
"Selecting a colour
Mode] on the remote control.
mode"
•Dynamic •Presentation • Theatre •Living Room •sRGB
Playback of images and sound can be paused and resumed each s User's Guide
time [A/V Mute] is pressed on the remote control.
"A/V Mute"
s
User's
Guide
Automatically adjusts the incoming signals when connected to a
"Adjusting computer
computer to obtain optimum images.
generated Images"
s User's Guide
Troubleshooting
"Troubleshooting"
• No images appear: "No signal"
When using a laptop or a PC with an in-built monitor, select external video output on the computer.
Setup examples
Press and hold the [Fn] key, followed by the appropriate function number key.
NEC
Panasonic
Toshiba
IBM
[Fn]+[F3]
SONY
Fujitsu
[Fn]+[F7]
[Fn]+[F10]
[Fn]+[F5]
[Fn]+[F7]
Macintosh
After start up enable "Mirroring" in
the Monitors Control Panel.
s User's Guide "Laptop connection"
• Checking the indicators
These indicators alert you to problems with projector operation.
s Refer to "When You Suspect a Problem" in the User's Guide for further details.
Warning indicator
Condition
Red
Power indicator
Condition
Orange
Orange
Green
Green
lit
flashing
Cause/Remedy
Standby state
The power cable should only be
disconnected in this condition.
Projection starts when you press
the [Power] button.
Cool-down in progress
The projector changes to
standby (indicator lights orange)
after about 20 seconds.
Projection in progress
Warm-up in progress
After warm-up finishes,
projection starts when an image
signal is input.
Printed in China
03.xx-xx(C01) 404333500 (E)
lit
flashing
Cause/Remedy
High internal temperature (overheating)
The lamp will turn off automatically and
projection will stop. Wait for about 5 minutes,
unplug the power cable and then plug it back
in again. Then press the [Power] button to
turn the projector back on.
Lamp problem
Remove the lamp and check if it is broken. If
the lamp is not broken, re-install it. If the lamp
(0.5 second is broken replace by a new lamp, or contact
interval)
your local dealer for further advise. *1
Red
Red
(1 second
interval)
Orange
Internal problem
Stop using the projector and send it for
service. *2
High-speed cooling in progress
If the temperature rises too high again,
projection will stop automatically.
Check that the air filter and air exhaust vent
are clear, and that the internal room
temperature is not too high.
*1 Contact your dealer for a spare lamp.
*2 For repairs, contact your dealer or the nearest address
provided at "International Warranty Conditions" in
Safety Instructions/World-Wide Warranty Terms.
