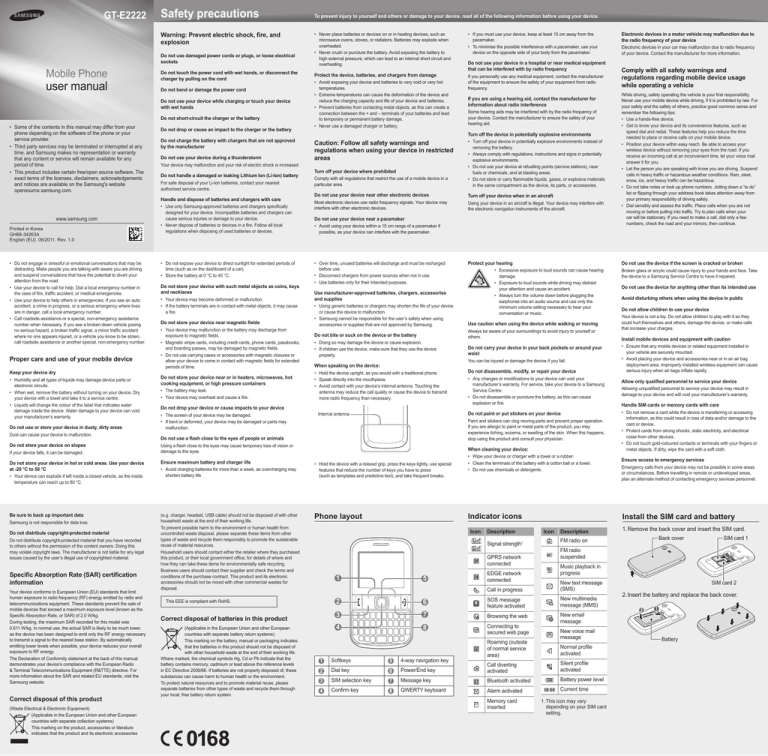

[email protected] 222, GT-E2222, 222 User manualSamsung GT-E2222LKA,
GT-E2222 Safety precautions Warning: Prevent electric shock, fire, and explosion Do not use damaged power cords or plugs, or loose electrical sockets Mobile Phone user manual Do not touch the power cord with wet hands, or disconnect the charger by pulling on the cord Do not bend or damage the power cord Do not use your device while charging or touch your device with wet hands Do not short-circuit the charger or the battery • Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. • Third party services may be terminated or interrupted at any time, and Samsung makes no representation or warranty that any content or service will remain available for any period of time. • This product includes certain free/open source software. The exact terms of the licenses, disclaimers, acknowledgements and notices are available on the Samsung's website opensource.samsung.com. Do not drop or cause an impact to the charger or the battery Do not charge the battery with chargers that are not approved by the manufacturer Do not use your device during a thunderstorm Your device may malfunction and your risk of electric shock is increased. Do not handle a damaged or leaking Lithium Ion (Li-Ion) battery For safe disposal of your Li-Ion batteries, contact your nearest authorised service centre. Handle and dispose of batteries and chargers with care www.samsung.com Printed in Korea GH68-34263A English (EU). 06/2011. Rev. 1.0 • Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that have the potential to divert your attention from the road. • Use your device to call for help. Dial a local emergency number in the case of fire, traffic accident, or medical emergencies. • Use your device to help others in emergencies. If you see an auto accident, a crime in progress, or a serious emergency where lives are in danger, call a local emergency number. • Call roadside assistance or a special, non-emergency assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or another special, non-emergency number. Proper care and use of your mobile device Keep your device dry • Humidity and all types of liquids may damage device parts or electronic circuits. • When wet, remove the battery without turning on your device. Dry your device with a towel and take it to a service centre. • Liquids will change the colour of the label that indicates water damage inside the device. Water damage to your device can void your manufacturer’s warranty. Do not use or store your device in dusty, dirty areas Dust can cause your device to malfunction. Do not store your device on slopes If your device falls, it can be damaged. Do not store your device in hot or cold areas. Use your device at -20 °C to 50 °C • Your device can explode if left inside a closed vehicle, as the inside temperature can reach up to 80 °C. Be sure to back up important data Samsung is not responsible for data loss. Do not distribute copyright-protected material Do not distribute copyright-protected material that you have recorded to others without the permission of the content owners. Doing this may violate copyright laws. The manufacturer is not liable for any legal issues caused by the user’s illegal use of copyrighted material. Specific Absorption Rate (SAR) certification information Your device conforms to European Union (EU) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications equipment. These standards prevent the sale of mobile devices that exceed a maximum exposure level (known as the Specific Absorption Rate, or SAR) of 2.0 W/kg. During testing, the maximum SAR recorded for this model was 0.611 W/kg. In normal use, the actual SAR is likely to be much lower, as the device has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower levels when possible, your device reduces your overall exposure to RF energy. The Declaration of Conformity statement at the back of this manual demonstrates your device’s compliance with the European Radio & Terminal Telecommunications Equipment (R&TTE) directive. For more information about the SAR and related EU standards, visit the Samsung website. Correct disposal of this product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories • Use only Samsung-approved batteries and chargers specifically designed for your device. Incompatible batteries and chargers can cause serious injuries or damage to your device. • Never dispose of batteries or devices in a fire. Follow all local regulations when disposing of used batteries or devices. • Do not expose your device to direct sunlight for extended periods of time (such as on the dashboard of a car). • Store the battery at 0 °C to 40 °C. Do not store your device with such metal objects as coins, keys and necklaces • Your device may become deformed or malfunction. • If the battery terminals are in contact with metal objects, it may cause a fire. Do not store your device near magnetic fields • Your device may malfunction or the battery may discharge from exposure to magnetic fields. • Magnetic stripe cards, including credit cards, phone cards, passbooks, and boarding passes, may be damaged by magnetic fields. • Do not use carrying cases or accessories with magnetic closures or allow your device to come in contact with magnetic fields for extended periods of time. Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers • The battery may leak. • Your device may overheat and cause a fire. Do not drop your device or cause impacts to your device • The screen of your device may be damaged. • If bent or deformed, your device may be damaged or parts may malfunction. To prevent injury to yourself and others or damage to your device, read all of the following information before using your device. • Never place batteries or devices on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. • Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Protect the device, batteries, and chargers from damage • Avoid exposing your device and batteries to very cold or very hot temperatures. • Extreme temperatures can cause the deformation of the device and reduce the charging capacity and life of your device and batteries. • Prevent batteries from contacting metal objects, as this can create a connection between the + and – terminals of your batteries and lead to temporary or permanent battery damage. • Never use a damaged charger or battery. • If you must use your device, keep at least 15 cm away from the pacemaker. • To minimise the possible interference with a pacemaker, use your device on the opposite side of your body from the pacemaker. Do not use your device in a hospital or near medical equipment that can be interfered with by radio frequency If you personally use any medical equipment, contact the manufacturer of the equipment to ensure the safety of your equipment from radio frequency. If you are using a hearing aid, contact the manufacturer for information about radio interference Some hearing aids may be interfered with by the radio frequency of your device. Contact the manufacturer to ensure the safety of your hearing aid. Turn off the device in potentially explosive environments Caution: Follow all safety warnings and regulations when using your device in restricted areas Comply with all regulations that restrict the use of a mobile device in a particular area. • Turn off your device in potentially explosive environments instead of removing the battery. • Always comply with regulations, instructions and signs in potentially explosive environments. • Do not use your device at refuelling points (service stations), near fuels or chemicals, and at blasting areas. • Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the device, its parts, or accessories. Do not use your device near other electronic devices Turn off your device when in an aircraft Turn off your device where prohibited Most electronic devices use radio frequency signals. Your device may interfere with other electronic devices. Using your device in an aircraft is illegal. Your device may interfere with the electronic navigation instruments of the aircraft. Do not use your device near a pacemaker • Avoid using your device within a 15 cm range of a pacemaker if possible, as your device can interfere with the pacemaker. • Over time, unused batteries will discharge and must be recharged before use. • Disconnect chargers from power sources when not in use. • Use batteries only for their intended purposes. Protect your hearing • Using generic batteries or chargers may shorten the life of your device or cause the device to malfunction. • Samsung cannot be responsible for the user’s safety when using accessories or supplies that are not approved by Samsung. Use caution when using the device while walking or moving Do not bite or suck on the device or the battery Always be aware of your surroundings to avoid injury to yourself or others. • Doing so may damage the device or cause explosion. • If children use the device, make sure that they use the device properly. When speaking on the device: • Hold the device upright, as you would with a traditional phone. • Speak directly into the mouthpiece. • Avoid contact with your device’s internal antenna. Touching the antenna may reduce the call quality or cause the device to transmit more radio frequency than necessary. Do not carry your device in your back pockets or around your waist You can be injured or damage the device if you fall. Do not disassemble, modify, or repair your device • Any changes or modifications to your device can void your manufacturer’s warranty. For service, take your device to a Samsung Service Centre. • Do not disassemble or puncture the battery, as this can cause explosion or fire. Do not paint or put stickers on your device Internal antenna Do not use a flash close to the eyes of people or animals Paint and stickers can clog moving parts and prevent proper operation. If you are allergic to paint or metal parts of the product, you may experience itching, eczema, or swelling of the skin. When this happens, stop using the product and consult your physician. Using a flash close to the eyes may cause temporary loss of vision or damage to the eyes. When cleaning your device: Ensure maximum battery and charger life • Avoid charging batteries for more than a week, as overcharging may shorten battery life. (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. • Hold the device with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Phone layout Indicator icons Description Signal strength1 GPRS network connected 1 This EEE is compliant with RoHS. Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. • Wipe your device or charger with a towel or a rubber. • Clean the terminals of the battery with a cotton ball or a towel. • Do not use chemicals or detergents. Icon 5 2 6 3 7 4 8 EDGE network connected Icon Description FM radio on Broken glass or acrylic could cause injury to your hands and face. Take the device to a Samsung Service Centre to have it repaired. Do not use the device for anything other than its intended use Avoid disturbing others when using the device in public Do not allow children to use your device Your device is not a toy. Do not allow children to play with it as they could hurt themselves and others, damage the device, or make calls that increase your charges. Install mobile devices and equipment with caution • Ensure that any mobile devices or related equipment installed in your vehicle are securely mounted. • Avoid placing your device and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Allow only qualified personnel to service your device Allowing unqualified personnel to service your device may result in damage to your device and will void your manufacturer’s warranty. Handle SIM cards or memory cards with care • Do not remove a card while the device is transferring or accessing information, as this could result in loss of data and/or damage to the card or device. • Protect cards from strong shocks, static electricity, and electrical noise from other devices. • Do not touch gold-coloured contacts or terminals with your fingers or metal objects. If dirty, wipe the card with a soft cloth. Ensure access to emergency services Emergency calls from your device may not be possible in some areas or circumstances. Before travelling in remote or undeveloped areas, plan an alternate method of contacting emergency services personnel. 1.Remove the back cover and insert the SIM card. Back cover SIM card 1 Music playback in progress SOS message feature activated New multimedia message (MMS) Browsing the web New email message New voice mail message Normal profile activated 1 Softkeys 5 4-way navigation key 2 Dial key 6 Power/End key Call diverting activated Silent profile activated 3 SIM selection key 7 Message key Bluetooth activated Battery power level 4 Confirm key 8 QWERTY keyboard Alarm activated Memory card inserted While driving, safely operating the vehicle is your first responsibility. Never use your mobile device while driving, if it is prohibited by law. For your safety and the safety of others, practice good common sense and remember the following tips: • Use a hands-free device. • Get to know your device and its convenience features, such as speed dial and redial. These features help you reduce the time needed to place or receive calls on your mobile device. • Position your device within easy reach. Be able to access your wireless device without removing your eyes from the road. If you receive an incoming call at an inconvenient time, let your voice mail answer it for you. • Let the person you are speaking with know you are driving. Suspend calls in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice, and heavy traffic can be hazardous. • Do not take notes or look up phone numbers. Jotting down a “to do” list or flipping through your address book takes attention away from your primary responsibility of driving safely. • Dial sensibly and assess the traffic. Place calls when you are not moving or before pulling into traffic. Try to plan calls when your car will be stationary. If you need to make a call, dial only a few numbers, check the road and your mirrors, then continue. FM radio suspended New text message (SMS) Roaming (outside of normal service area) Comply with all safety warnings and regulations regarding mobile device usage while operating a vehicle Install the SIM card and battery Call in progress Connecting to secured web page Electronic devices in your car may malfunction due to radio frequency of your device. Contact the manufacturer for more information. Do not use the device if the screen is cracked or broken • Excessive exposure to loud sounds can cause hearing damage. • Exposure to loud sounds while driving may distract your attention and cause an accident. • Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Use manufacturer-approved batteries, chargers, accessories and supplies Electronic devices in a motor vehicle may malfunction due to the radio frequency of your device Current time 1.This icon may vary depending on your SIM card setting. SIM card 2 2.Insert the battery and replace the back cover. Battery Charge the battery 1.Plug a travel adapter. 2.When charging is finished, unplug the travel adapter. Insert a memory card (optional) Turn your phone on or off Switch to Silent mode Your phone accepts microSD™ or microSDHC™ memory cards up to 8 GB (depending on memory card manufacturer and type). To turn your phone on or off, press and hold [ ]. In Idle mode, press and hold [ your phone. Formatting the memory card on a PC may cause incompatibility with your phone. Format the memory card only on the phone. Manage your SIM cards To AC power outlet • Do not remove the battery before removing the travel adapter. Doing this may cause damage to the phone. • To save energy, unplug the travel adapter when not in use. The travel adapter does not have a power switch, so you must unplug the travel adapter from the outlet to interrupt the power supply. The travel adapter should remain close to the socket when in use. Access menus Lock or unlock the keys Instructional icons In Idle mode, press and hold [ unlock the keys. ] or [ 1.In Idle mode, press <Menu> to access Menu mode. ] to lock or Note: notes, usage tips, or additional information → Followed by: the order of options or menus you must select to perform a step [ ] Square brackets: phone keys < > Angled brackets: softkeys that control different functions at each screen To activate SIM cards To change the text input mode 1.In Idle mode, press and hold [ ]. • Press <Options> → Writing options → Writing language to change the input language. • Press <Options> → Writing options → Predictive text on to turn on T9 mode. • Press [ ] to open the symbol panel. • Press [ ] and [ ] to open the emoticon panel. 2.Select Network and scroll left or right to a SIM card. 3.Press <Change> to activate the card. Make a call 1.In Idle mode, enter an area code and a phone number. 2.Press [ ] to dial the number. To adjust the volume during a call, press the Navigation key up or down. 3.To end the call, press [ ]. Answer a call 1.When a call comes in, press [ ]. 2.To end the call, press [ ]. Enter text Press appropriate alphanumeric keys to enter characters, numbers, and symbols. To enter characters on the upper half of the keys, press [ ] or [ ]. To use other features for text input • To move the cursor, press the Navigation key. • To change case, press [ ]. • To delete characters one by one, press [ ]. To delete characters quickly, press and hold [ ]. • To insert a space between characters, press [ • To start a new line, press [ ]. Your phone supports Dual SIM mode that enables you to use two SIM cards at the same time without changing them. Learn to activate SIM cards and change the card settings. If the battery is removed for more than a few minutes, the time and date will be reset. With the gold-coloured contact facing down Add a new contact The memory location to save new contacts may be preset depending on your service provider. To change the memory location, in Menu mode, select Contacts → <Options> → Settings → Save new contacts to → a memory location. To switch networks Press [ ] to switch between networks. You may need to press the Confirm key to access Menu mode depending on your region or service provider. 2.Use the Navigation key to scroll to a menu or option. 3.Press <Select>, <Save>, or the Confirm key to confirm the highlighted option. 4.Press <Back> to move up one level; Press [ ] to close the menu or application and return to Idle mode. 1.In Idle mode, enter a phone number and press the Confirm key. 2.Select a memory location (if necessary). 3.Select Create contact. To view text or multimedia messages To make a fake call 1.In Menu mode, select Messages → Inbox. • In Idle mode, press and hold the Navigation key down. • With the keys locked, press the Navigation key down four times. 2.Select a text or multimedia message. 4.Select a number type (if necessary). To use the Bluetooth messenger 5.Enter contact information. 1.In Menu mode, select BT msgr. 6.Press the Confirm key. 2.Press the Confirm key. Send and view messages 3.Press <Yes> to turn on the Bluetooth wireless feature (if necessary). To send a text or multimedia message ]. • When you access a menu requiring the PIN2, you must enter the PIN2 supplied with the SIM card. For details, contact your service provider. • Samsung is not responsible for any loss of passwords or private information or other damages caused by illegal software. ] to mute or unmute 1.In Menu mode, select Messages → Create message. 2.Enter a recipient number and scroll down. 3.Enter your message text. See "Enter text" For sending as a text message, skip to step 5. For attaching multimedia, continue with step 4. 4.Press <Options> → Add multimedia and add an item. 5.Press the Confirm key to send the message. Activate and send an SOS message To activate the SOS message 4.Select a device. 1.In Menu mode, select Messages → Settings → SOS messages → Sending options. 5.Enter your message and press the Confirm key. 2.Press <Change> to turn on the SOS message. 6.Enter a PIN for the Bluetooth wireless feature or the other device’s Bluetooth PIN, and press <OK>. Alternatively, press <Yes> to match the PIN between your phone and the device. 3.Scroll down and press the Confirm key to open the recipient list. 7.Chat with friends and family instantly. Make fake calls You can simulate an incoming call when you want to get out of meetings or unwanted conversations. To activate the fake call feature In Menu mode, select Settings → Call → Fake call → Fake call hot key. 4.Press <Search> to open your contact list. You can also enter phone numbers including a country code (with +) in the recipient list. Skip to step 7. 5.Select a contact. 6.Select a number (if necessary). 7.When you are finished selecting contacts, press the Confirm key to save the recipients. 8.Scroll down and set the number of times to repeat the SOS message. 9.Press <Back> → <Yes>. To send an SOS message 4.Press the Confirm key or [ ] to start recording. Listen to the FM radio Access community websites 1.With the phone locked, press [ ] 4 times. 5.Press the Confirm key, <Stop>, or [ ] to stop recording. 1.Plug a headset into the phone. 1.In Menu mode, select Communities → a website. 2.In Menu mode, select Apps → FM radio. 2.Press <Yes>. We, To view videos 3.Press the Confirm key to turn on the FM radio. declare under our sole responsibility that the product In Menu mode, select My files → Videos → a video file. 4.Press <Yes> to start automatic tuning. The radio scans and saves available stations automatically. 3.Share photos, videos, or messages with friends and family. 2.To exit SOS mode, press [ ]. Use the camera To capture photos 1.In Idle mode, press and hold [ ] to turn on the camera. 2.Aim the lens at the subject and make any adjustments. 3.Press the Confirm key or [ ] to take a photo. To view photos Listen to music 1.In Menu mode, select Music. 2.Select a music category → a music file. 3.Control playback with the following keys: Key Function Confirm Pause or resume playback Navigation • Left: Restart playback; Skip backward (press within 3 seconds); Scan backward in a file (press and hold) • Right: Skip forward; Scan forward in a file (press and hold) • Up/Down: Adjust the volume In Menu mode, select My files → Images → a photo file. To record videos 1.In Idle mode, press and hold [ ] to turn on the camera. 2.Press  to switch to the camcorder. 3.Aim the lens at the subject and make any adjustments. The first time you turn on the FM radio, you will be prompted to start automatic tuning. 5.Control the FM radio with the following keys: Key Function Confirm Turn the FM radio on or off Navigation • Left/Right: Fine-tune the frequency; Search for an available radio station (press and hold) • Up/Down: Adjust the volume Use an instant messenger Declaration of Conformity (R&TTE) GSM Mobile Phone : GT-E2222 to which this declaration relates, is in conformity with the following standards and/or other normative documents. 1.In Menu mode, select IM → an instant messenger. 2.Enter your user name and password, and then press <Sign in>. 3.Send and receive instant messages to friends and family. Samsung Electronics SAFETY EN 60950-1 : 2006+A11:2009 SAR EN 50360 : 2001/AC 2006 EN 62209-1 : 2006 EMC EN 301 489-01 V1.8.1 (04-2008) EN 301 489-07 V1.3.1 (11-2005) EN 301 489-17 V2.1.1 (05-2009) RADIO EN 301 511 V9.0.2 (03-2003) EN 300 328 V1.7.1 (10-2006) We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC. The conformity assessment procedure referred to in Article 10 and detailed in Annex[IV] of Directive 1999/5/EC has been followed with the involvement of the following Notified Body(ies): BABT, Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, UK* Identification mark: 0168 The technical documentation kept at : Samsung Electronics QA Lab. which will be made available upon request. (Representative in the EU) Samsung Electronics Euro QA Lab. Blackbushe Business Park, Saxony Way, Yateley, Hampshire, GU46 6GG, UK* 2011.04.05 (place and date of issue) Joong-Hoon Choi / Lab Manager (name and signature of authorised person) * It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product.
