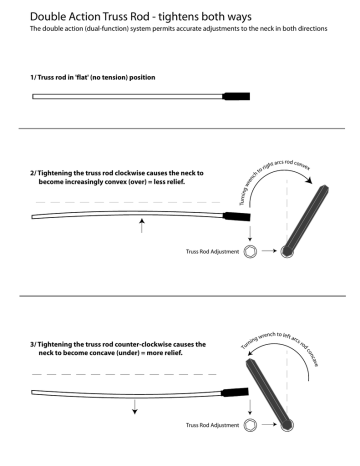

Double Action Truss Rod - tightens both ways
The double action (dual-function) system permits accurate adjustments to the neck in both directions
1/ Truss rod in 'flat' (no tension) position
h
Turning
wr
en
c
2/ Tightening the truss rod clockwise causes the neck to
become increasingly convex (over) = less relief.
t arcs rod conve
igh
x
r
to
ve
nca
co
Truss Rod Adjustment
rench to left ar
gw
cs
n
i
ro
n
ur
d
3/ Tightening the truss rod counter-clockwise causes the
neck to become concave (under) = more relief.
T
Truss Rod Adjustment
