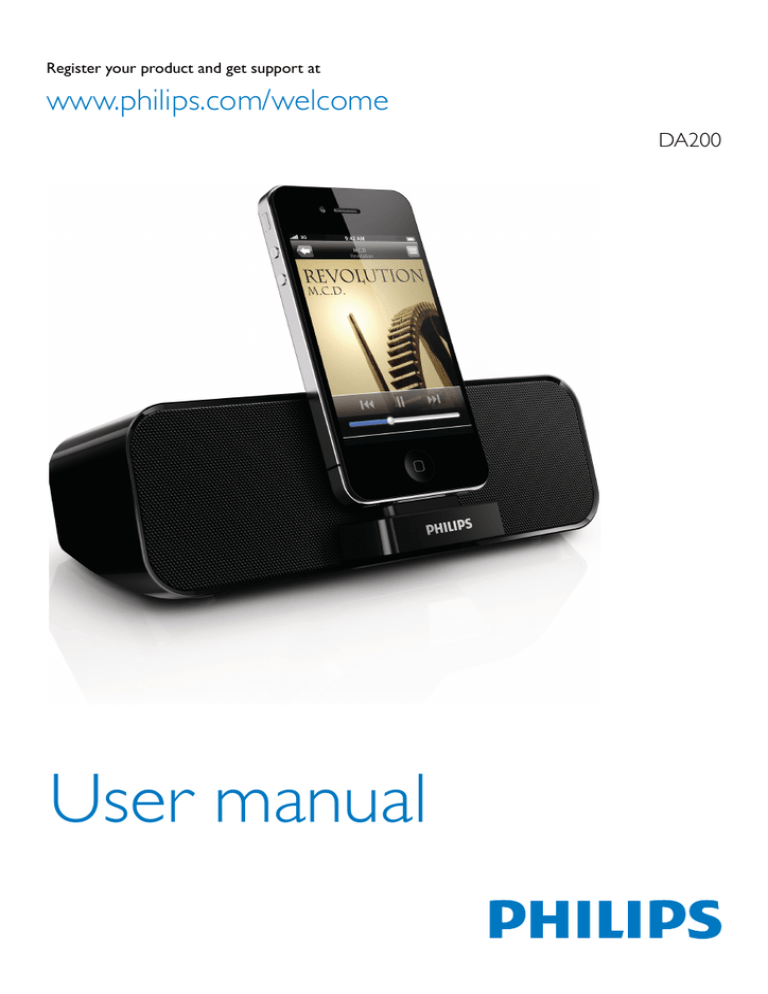

Register your product and get support at
www.philips.com/welcome
DA200
User manual
Contents
1Important2
2 Your docking speaker3
Introduction3
What's in the box
3
Overview of the main unit
3
3Prepare4
Connect power
Turn the unit on
4
4
4Play5
Listen to the iPod/iPhone
5
Adjust sound
5
Compatibility5
Charge the iPod/iPhone
5
Play from an external device
5
5 Specifications6
Amplifier
General information
6
6
6Troubleshooting7
7Notice8
Recycling8
EN
1
1Important
•
•
•
•
•
•
•
•
•
•
•
•
Read these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
Only use attachments/accessories specified
by the manufacturer.
Unplug this apparatus during lightning
storms or when unused for long periods
of time.
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
Apparatus shall not be exposed to
dripping or splashing.
Do not place any sources of danger on the
apparatus (e.g. liquid filled objects, lighted
candles).
Where the plug of the Direct Plugin
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Warning
•• Never remove the casing of this apparatus.
•• Never lubricate any part of this apparatus.
•• Never place this apparatus on other electrical
equipment.
2
EN
2 Your docking
speaker
Overview of the main unit
a
e
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
bottom of the apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Introduction
With this docking speaker, you can:
• Enjoy music on your iPod/iPhone;
• Charge your iPod/iPhone;
• Enjoy music on external audio player
through MP3 link cable.
What's in the box
d
b
c
a +/• Adjust volume.
b Power socket
• Connect the power adaptor.
c Dock for iPod/iPhone
d MP3-LINK
• Connect an external audio player.
e
• Turn the unit on/off.
Check and identify the contents of your
package:
• Main unit
• AC power adaptor
• Quick start guide
EN
3
3Prepare
Always follow the instructions in this chapter in
sequence.
Connect power
Caution
•• Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of the unit.
•• Risk of electric shock! When you unplug the AC
adaptor, always pull the plug from the socket. Never
pull the cord.
•• Before you connect the AC adaptor, make sure that you
have completed all the other connections.
Connect the AC power adaptor, one end to the
power socket on the back of the unit, and the
other the wall power supply.
Turn the unit on
Press repeatedly on the top to turn the unit
on/off.
4
EN
4Play
Listen to the iPod/iPhone
1
2
Load your iPod/iPhone.
Play your iPod/iPhone.
»» Your music on the phone comes out
through the device.
Adjust sound
Compatibility
Made for Apple iPod models with 30-pin dock
connector as follows:
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod nano (6st generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPod mini
• iPod classic
• iPod with video
• iPod with color display
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Charge the iPod/iPhone
When the system is connected to power, the
docked iPod/iPhone begins to charge.
To adjust the sound, press the button +/-.
Play from an external device
You can also listen to an external audio player
through the device.
Connect the MP3 link cable, one end to the
MP3-LINK socket at the back, and the other to
the headphone socket.
EN
5
5Specifications
Amplifier
Rated Output Power
2 X 2 W RMS
General information
AC Power
Operation Power
Consumption
Standby Power
Consumption
Dimensions
- Main Unit
(W x H x D)
Weight
- Main Unit
6
EN
Input: 100-240 V ~,
50/60Hz, 0.3A; Output:
DC 5.9V 1500
mA (Brand name:
Philips; Model No.:
S009GV0590150)
8W
<1 W
18.5 x 63.5 x 82 mm
0.68 kg
6Troubleshooting
Warning
•• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
•• Make sure that the AC power adaptor of
the device is connected properly.
•• Make sure that there is power at the AC
outlet.
No sound
•• Adjust the volume.
Docked iPod/iPhone can't be charged
•• Make sure that the device is compatible
the iPod/iPhone.
•• Make sure that the device is successfully
connected to the iPod/iPhone.
•• Remove the protective case of your iPod/
iPhone.
EN
7
7Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
This product complies with the radio
interference requirements of the European
Community.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed of with normal household waste.
8
EN
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specifically to iPod or
iPhone respectively, and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Note
•• The type plate is located on the bottom of the
apparatus.
Specifications are subject to change without notice
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
AD200_12_UM_V1.0
