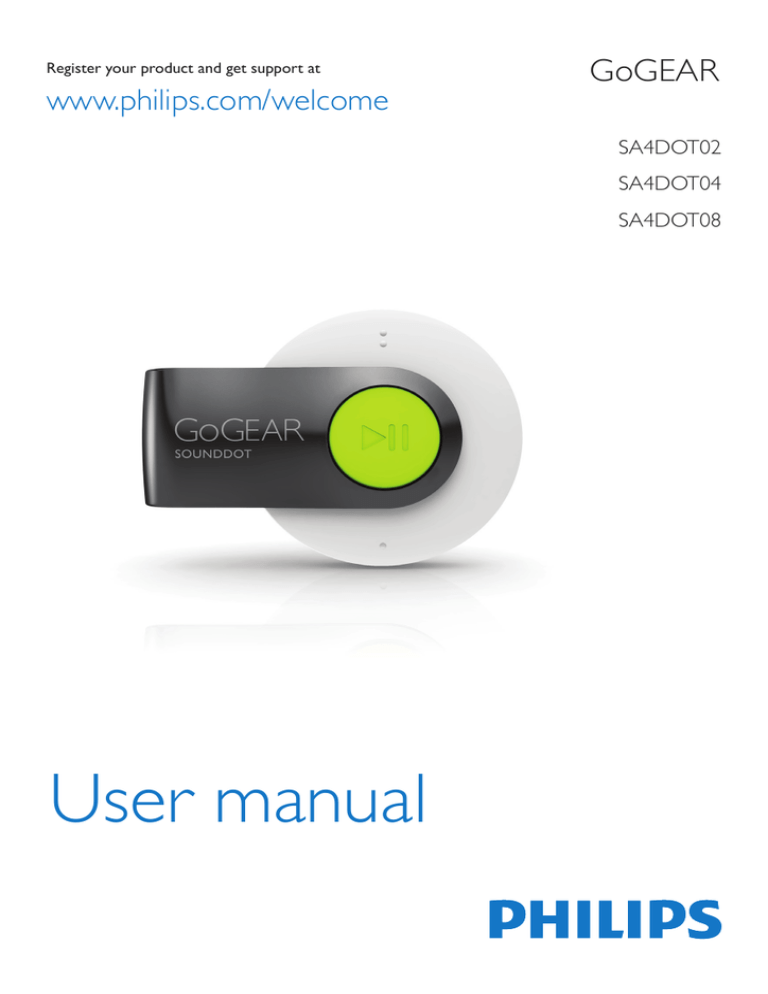

Register your product and get support at
www.philips.com/welcome
GoGEAR
SA4DOT02
SA4DOT04
SA4DOT08
User manual
Contents
1 Important safety information
General maintenance
Recycling the product
4
4
6
2 Your new player
7
What's in the box
7
PC software for the player
7
Files loaded on the player
7
Overview7
Controls7
LED indicator and audio feedback
8
3 Get started
Charge power
Switch the player on or off
Automatic standby and shut-down
4 Play music
Transfer music to the player
Play music
Search for a song
Change the volume level
Switch the random play on or off
5 Sync with PC music library
through Philips Songbird
Install Philips Songbird on your PC
Collect music files from the PC
Set the watch folder
Import music files
Sync the player with Philips Songbird
Select auto or manual sync
Auto sync
Manual sync
6 Update the firmware through
Philips Songbird
15
7 Repair the player through Philips
Songbird
16
8 Technical data
17
17
PC requirements
9
9
9
9
10
10
10
10
10
10
11
11
11
11
13
13
13
13
14
Need help?
Please visit www.philips.com/welcome where
you can access a full set of supporting materials
such as user manual, the latest software updates
and answers to frequently asked questions.
EN
3
1 Important safety
information
General maintenance
The translation of this document is for
reference only.
In the event of any inconsistency between the
English version and the translated version, the
English version shall prevail.
Caution
•• To avoid damage or malfunction:
•• Do not expose the product to excessive heat caused
by heating equipment or direct sunlight.
•• Do not drop the product or allow objects to fall on
your player.
•• Do not allow the product to be submerged in
water. Do not expose headphone socket or battery
compartment to water, as water entering the set may
cause major damage.
•• Active mobile phones in the vicinity may cause
interference.
•• Back up your files. Ensure that you retain the original
files you have downloaded to your device. Philips is not
responsible for any loss of data if the product becomes
damaged or not readable / legible.
•• Manage (transfer, delete, etc.) your music files only with
the supplied music software to avoid problems.
•• Do not use any cleaning agents containing alcohol,
ammonia, benzene, or abrasives as these may harm the
product.
About operating and storage temperatures
• Operate in a place where temperature is
always between 0 and 35ºC (32 to 95ºF)
• Store in a place where temperature is
always between -20 and 45ºC (-4 to
113ºF).
• Battery life may be shortened in low
temperature conditions.
4
EN
Replacement parts/accessories:
Visit www.philips.com/support to order
replacement parts/accessories.
Hearing Safety
At full power, the prolonged listening of the
walkman can damage the ear of the user.
Listen at a moderate volume:
Using headphones at a high volume can impair
your hearing. This product can produce sounds
in decibel ranges that may cause hearing loss for
a normal person, even for exposure less than
a minute. The higher decibel ranges are offered
for those that may have already experienced
some hearing loss.
Sound can be deceiving. Over time your hearing
'comfort level' adapts to higher volumes of
sound. So after prolonged listening, what sounds
'normal' can actually be loud and harmful to
your hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.
Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally
'safe' levels, can also cause hearing loss.
Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following guidelines
when using your headphones.
Listen at reasonable volumes for reasonable
periods of time.
Be careful not to adjust the volume as your
hearing adapts.
Do not turn up the volume so high that you
can’t hear what’s around you.
You should use caution or temporarily
discontinue use in potentially hazardous
situations.
Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it
may create a traffic hazard and is illegal in many
areas.
Modifications
Modifications not authorized by the
manufacturer may void user's authority to
operate the product.
Copyright information
All other brands and product names are
trademarks of their respective companies or
organizations.
Unauthorized duplication of any recordings
whether downloaded from the Internet or
made from audio CDs is a violation of copyright
laws and international treaties.
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offense.
This equipment should not be used for such
purposes.
The Windows Media and the Windows logo are
registered trademarks of Microsoft Corporation
in the United States and/or other countries.
Be responsible! Respect copyrights.
The recording and transfer to the portable
player of video streams downloaded to your
computer is intended only for use with public
domain or properly licensed content. You
may only use such content for your private,
non-commercial use and shall respect eventual
copyright instructions provided by the copyright
owner of the work. Such instruction may
state that no further copies shall be made.
Video streams may include copy protection
technology that prohibits further copying. For
such situations the recording function will not
work and you will be notified with a message.
Data logging
Philips is committed to improving the quality
of your product and enhancing the Philips user
experience. To understand the usage profile of
this device, this device logs some info / data to
the non-volatile memory region of the device.
These data are used to identify and detect
any failures or problems you as a user may
experience while using the device. The data
stored, for example, will be the duration of
playback in music mode, duration of playback
in turner mode, how many times battery low
was encountered, etc. The data stored do not
reveal the content or media used on the device
or the source of downloads. The data stored on
the device are retrieved and used ONLY if the
user returns the device to the Philips service
center and ONLY to simplify error detection
and prevention. The data stored shall be made
available to user on user’s first request.
Philips respects the intellectual property of
others, and we ask our users to do the same.
Multimedia content on the internet may have
been created and/or distributed without the
original copyright owner's authorization.
Copying or distributing unauthorized content
may violate copyright laws in various countries
including yours.
Compliance with copyright laws remains your
responsibility.
EN
5
Recycling the product
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Warning
•• Removal of the built-in battery invalidates the warranty
and can destroy the product.
•• The following removal and disposal instructions are
steps that are to be performed at the end of the
product's life only.
Your product contains a built-in rechargeable
battery covered by the European Directive
2006/66/EC, which cannot be disposed of with
normal household waste.
6
EN
To safeguard the functionality and safety of
your product, take your product to an official
collection point or service center where a
professional can remove the battery as shown:
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Notice for the European Union
This product complies with the radio
interference requirements of the European
Union.
2 Your new player
What's in the box
Make sure that you have received the following
items:
Player
PC software for the player
The following PC software can work with
SOUNDDOT:
• Philips Songbird (helps you update the
firmware of the player, and sync songs
from your PC music library to the player).
To getPhilips Songbird,
• On your PC, download Philips
Songbird from www. philips.com/
Songbird or www.philips.com/support.
Files loaded on the player
Earphones
The following files are loaded on SOUNDDOT:
• User manual
Overview
Controls
Quick start guide
d
Philips GoGear audio player
Quick start guide
c
b
Safety and Warranty sheet
e
a
Safety and Warranty
f
Before using your set:
Check out details inside this booklet
g
Note
•• The images serve as reference only. Philips reserves the
right to change color/design without notice.
a
• Press and hold: Switch the player on
or off
• Press: Pause/ resume play
• Press twice during play: Switch the
random play on or off
EN
7
b
/
• Press: Decrease or increase the volume
• Press and hold: Skip to the previous or
next song
c USB connector for power charging and
data transfer
d Clip
e RESET
• Press the hole by using the tip of a ball
pen when the player does not respond
to the pressing of keys
f LED indicator
g
• 3.5 mm-headphone connector
LED indicator and audio feedback
With the LED indicator and/ or audio feedback,
you can know the status of the player.
BEEP
8
EN
3 Get started
Switch the player on or off
•
Charge power
SOUNDDOT has a built-in battery that can be
charged through the USB socket of a computer.
• Rotate the USB connector to connect
SOUNDDOT to a PC.
»» During power charging, the indicator
changes its color to denote the battery
level.
Press and hold
until the green or red
indicator lights up.
»» Power on: The green indicator lights
up. Music play starts.
»» Power off: The red indicator lights up.
One beep sounds.
»» When the battery is full, the green
indicator lights up.
Automatic standby and shut-down
The player has an automatic standby and shutdown feature that can save battery power.
After five minutes in idle mode (no play, no
button is pressed), the player switches off.
Tip
•• When the battery level is lower than 15%, the red
indicator flashes and two beeps sound.
•• Rechargeable batteries have a limited number of charge
cycles. Battery life and number of charge cycles vary by
use and settings.
EN
9
4 Play music
Transfer music to the player
»» The green indicator lights up. Music
play starts.
2
»» During music play, the green indicator
flashes at intervals.
Press
to pause or resume play.
Search for a song
•
Press and hold /
to skip to the
previous or next song.
»» One beep sounds.
Change the volume level
•
You can transfer music from your PC media
library to SOUNDDOT in the following ways:
• Drag and drop music files in Windows
Explorer;
• Sync through Philips Songbird (see
'Sync with PC music library through
Philips Songbird' on page 11).
To drag and drop music files in Windows
Explorer,
1
2
Connect SOUNDDOT to a PC.
On the PC, under My Computer or
Computer,
• drag and drop music files from the PC
to SOUNDDOT.
Play music
1
10
Make sure that you have switched on the
player (see 'Switch the player on or off' on
page 9).
EN
Press /
.
»» During music play, you hear the change
of volume level.
Switch the random play on or off
1
2
During music play, press
twice.
»» You hear two beeps. The green
indicator flashes twice at intervals.
»» Songs play in random.
To switch off the random play, press
twice again.
»» You hear one beep. The green indicator
flashes once at intervals.
»» Songs play in sequence.
5 Sync with PC
music library
through Philips
Songbird
With Philips Songbird, you can do the following:
• Manage your music collection on a PC;
• Sync SOUNDDOT with your PC
music library;
• Register SOUNDDOT on www.
philips.com/welcome;
• Update the firmware of SOUNDDOT
(see 'Update the firmware through
Philips Songbird' on page 15);
• Repair SOUNDDOT (see 'Repair the
player through Philips Songbird' on
page 16).
Install Philips Songbird on
your PC
Download Philips Songbirdto your PC
1
2
Connect your PC to the Internet.
From www. philips.com/Songbird or www.
philips.com/support, download Philips
Songbird.
2
3
Select your language and country.
Follow the onscreen instructions to
complete the installation.
Note
•• The installation requires you to agree to the license
terms.
Collect music files from the
PC
Set the watch folder
Create a central folder
You can have all music files automatically added
to your library when you copy them to a folder.
Creating a central folder is recommended. In
Philips Songbird, set the central folder as the
watch folder. Each time you launch Philips
Songbird, songs are added to/ removed from
Philips Songbird as they are on the central
folder.
On the PC, create a central folder to save all
music files, for example, D:\Songbird media.
First-time launch
The first time you launch Philips Songbird on
a PC, do the following as prompted to import
existing media files into Philips Songbird:
• Select the iTunes media folder to
import an existing iTunes library;
• Select the central folder to search and
import the existing music files.
»» The central folder is set as the
watch folder of Philips Songbird.
Install Philips Songbirdon your PC
1
Double-click the downloaded .exe file of
Philips Songbird.
»» A pop-up screen is displayed.
EN
11
Set iTunes media folder
1
2
3
4
12
On Philips Songbird, go to Tools >
Options...
Select Media Importer, and then the
iTunes Importer tab.
Verify your library location and options.
Click the Import Library button next to
the library location.
»» The software imports the iTunes
library into Philips Songbird.
EN
Set the watch folder
In Philips Songbird, set the watch folder as
follows:
1
2
3
4
Select Tools > Options.
In Options, select Media Importer. Then,
select the Watch Folders tab.
In Watch Folders, tick the check box as
shown.
Click Browse, and select the central folder
(e.g.D:\Songbird media) as the watch
folder.
»» In Philips Songbird, media files are
added or removed as they are in the
central music folder.
Import music files
Select auto or manual sync
In Philips Songbird,
• go to File > Import Media to select
folders on the PC.
»» Music files are added under
Library.
The first time you connect the player to Philips
Songbird, select auto sync as prompted. The
player sync with Philips Songbird automatically.
If you do not select auto sync, you switch on
the manual sync.
To select auto or manual sync,
Sync the player with Philips
Songbird
1
2
On the PC, launch Philips Songbird.
Connect the player to the PC.
»» On Philips Songbird, the player is
displayed when it is recognized by the
PC.
1
2
3
Select the player under Devices.
»» A pop-up screen is displayed.
On the pop-up screen, select Manual or
Auto.
To confirm the option, click Apply.
Auto sync
• If you have selected auto sync, auto
sync starts automatically when you
connect the player to a PC;
• Alternatively, select the player under
Devices, and click Sync.
EN
13
Manual sync
To transfer selected media files manually,
1
2
On the Content pane, right click on a
selected media file.
Select Add to Device > SOUNDDOT.
»» Selected files are transferred to
SOUNDDOT.
Tip
•• To select multiple files at the same time, hold down the
Ctrl button when you click options.
14
EN
6 Update the
firmware
through Philips
Songbird
SOUNDDOT is controlled by an internal
program called firmware. Newer versions of
the firmware may have been released after you
have purchased SOUNDDOT.
Through Philips Songbird, you can check for
and install firmware updates for SOUNDDOT
over the Internet.
Tip
•• Your music files are not affected by a firmware update.
5
Follow the onscreen instructions.
»» Downloading and installation of
firmware update start automatically.
»» The SOUNDDOT restarts after the
firmware is updated and is ready for
use again.
Note
1
2
3
4
Make sure that you have connected your
PCto the Internet.
•• Wait until the update is completed, then disconnect the
SOUNDDOT from the computer.
Connect SOUNDDOT to the PC.
On the PC, launch Philips Songbird.
• If necessary, click Start > Programs >
Philips > Philips Songbird.
Click SOUNDDOT in the Player pane.
Then, select Tools > Check for updated
firmware in the pop-up window.
»» Philips Songbird checks for updates
from the Internet.
EN
15
7 Repair the
player through
Philips Songbird
If SOUNDDOT is not working properly or the
display freezes, you can reset it without losing
data:
To reset SOUNDDOT?
•• Insert a pen tip or other object into the
reset hole at the base of SOUNDDOT.
Hold until the player shuts down.
If you fail to reset the player, repair the player
through Philips Songbird:
1
2
3
4
16
On your PC, launch Philips Songbird.
• If your PC runs Windows 7, launch
Philips Songbird as administrator.
Right-click Philips Songbird and select
Run as Administrator.
In Philips Songbird,
• select Tools > Repair my Philips
Device;
• select SOUNDDOT in the pop-up list.
Connect the player to the PC.
• Make sure that you follow the
onscreen instructions on how to
connect the player to the PC.
Follow the onscreen instructions to
complete the repair.
EN
8 Technical data
Power
• Power supply: 110 mAh Li-ion polymer
internal rechargeable battery
• Play time¹
Audio (.mp3): up to 6 hours
• Fast charging: 6-minute charging for
60-minute play
Software
• Philips Songbird: To update firmware
and transfer music
Connectivity
• Headphone 3.5 mm
• USB 2.0 High speed
Sound
•
•
•
•
Channel separation: 45 dB
Frequency Response: 20-18,000 Hz
Output power: 2 x 2.4 mW
Signal to noise ratio: > 84 dB
Note
•• Specifications are subject to change without notice.
•• ¹ Rechargeable batteries have a limited number of
charge cycles. Battery life and number of charge cycles
vary by use and settings.
•• ² 1 GB = 1 billion bytes; available storage capacity is
less. Full memory capacity may not be available as some
memory is reserved for the player. Storage capacity
is based on 4 minutes per song and 128-kbps MP3
encoding.
•• ³ Transfer speed depends on operating system and
software configuration.
PC requirements
•
•
•
•
•
•
•
•
Windows® XP (SP3 or above) / Vista / 7
Pentium III 800 MHz processor or higher
512 MB RAM
500 MB hard disk space
Internet connection
Windows® Internet Explorer 6.0 or later
CD-ROM drive
USB port
Audio playback
Supported formats:
• MP3
Bitrate: 8-320 kbps and VBR
Sampling rates: 8, 11.025, 16, 22.050,
32, 44.1, 48 kHz
• WMA (unprotected)
Bitrate: 5-320 kbps
Sampling rates: 8, 11.025, 16, 22.050,
32, 44.1, 48 kHz
• WAV
Storage media
Built-in memory capacity²:
• SA4DOT02 2 GB NAND Flash
• SA4DOT04 4 GB NAND Flash
• SA4DOT08 8 GB NAND Flash
Media transfer³
• Windows Explorer (drag and drop)
• Songbird (sync)
EN
17
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
SA4DOT_12_97_77_78_UM_V1.1 wk1207.3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
