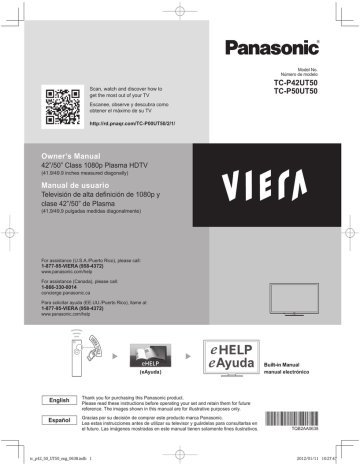

Model No.
Número de modelo
Scan, watch and discover how to
get the most out of your TV
TC-P42UT50
TC-P50UT50
Escanee, observe y descubra como
obtener el máximo de su TV
http://rd.pnaqr.com/TC-P00UT50/2/1/
Owner’s Manual
42”/50” Class 1080p Plasma HDTV
(41.9/49.9 inches measured diagonally)
Manual de usuario
Televisión de alta definición de 1080p y
clase 42”/50” de Plasma
(41,9/49,9 pulgadas medidas diagonalmente)
For assistance (U.S.A./Puerto Rico), please call:
1-877-95-VIERA (958-4372)
www.panasonic.com/help
For assistance (Canada), please call:
1-866-330-0014
concierge.panasonic.ca
Para solicitar ayuda (EE.UU./Puerto Rico), llame al:
1-877-95-VIERA (958-4372)
www.panasonic.com/help
(eAyuda)
English
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain them for future
reference. The images shown in this manual are for illustrative purposes only.
Español
Gracias por su decisión de comprar este producto marca Panasonic.
Lea estas instrucciones antes de utilizar su televisor y guárdelas para consultarlas en
el futuro. Las imágenes mostradas en este manual tienen solamente fines ilustrativos.
tc_p42_50_UT50_eng_0638.indb 1
manual electrónico
TQB2AA0638
2012/01/11 10:27:47
This product incorporates the following software or technology:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software based in part on the work of the Independent JPEG Group,
(4) the software developed by the FreeType Project,
(5) the software licensed under the GNU LESSER GENERAL PUBLIC LICENSE (LGPL) and/or,
(6) open sourced software other than the software licensed under the LGPL.
(7) “PlayReady”(digital right management technology) licensed by Microsoft Corporation or its affiliates.
For the software categorized as (5), please refer to the terms and conditions of LGPL, as the case may be at
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
In addition, the software categorized as (5) are copyrighted by several individuals.
Please refer to the copyright notice of those individuals at
http://www.am-linux.jp/dl/DTV12U/
The LGPL software is distributed in the hope that it will be useful, but
WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE.
At least three (3) years from delivery of products, Panasonic will give to any third party who contact us at the contact information
provided below, for a charge no more than our cost of physically performing source code distribution,
a complete machine-readable copy of the corresponding source code covered under LGPL.
Contact Information
[email protected]
Source code covered under LGPL is also freely available to you and any other member of the public via our website below.
http://www.am-linux.jp/dl/DTV12U/
For the software categorized as (5) and (6), please refer to the applicable license terms included in the “Setup” menu on product.
Further, for PlayReady categorized as (7), please be aware of the following.
(a) This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this
technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
(b) Content owners use Microsoft PlayReady(TM) content access technology to protect their intellectual property, including
copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or
WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require
Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected
content or content protected by other content access technologies.
Content owners may require you to upgrade PlayReady to access their content.
If you decline an upgrade, you will not be able to access content that requires the upgrade.
This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to
(i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a
consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide
AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA,
LLC.
See http://www.mpegla.com.
■ Do not display a still picture for a long time
This causes the image to remain on the plasma screen
(“Image retention”). This is not considered a malfunction and is not covered by the warranty.
4:3
12
To prevent the “Image retention”, the screen saver is
automatically activated after a few minutes if no signals are
sent or no operations are performed.
Typical still images
● Channel number and other logos
● Image displayed in 4:3 mode
● SD Card photo ●Video game ●Computer image
■ Set up
● Do not place the unit where it’s exposed to sunlight or other bright light (including reflections).
● Use of some types of fluorescent lighting may reduce the remote control’s transmission range.
2
tc_p42_50_UT50_eng_0638.indb 2
2012/01/11 10:27:48
VIERA Link™ is a trademark of
Panasonic Corporation.
HDMI, the HDMI logo and HighDefinition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC in the United
States and other countries.
Contents
Please read before using the unit
SDXC Logo is a trademark of SD3C, LLC.
“AVCHD” and the “AVCHD” logo
are trademarks of Panasonic
Corporation and Sony Corporation.
“RealD 3D” is a trademark of RealD.
“Full HD 3D Glasses™” logo and
“Full HD 3D Glasses™” word are
trademark of Full HD 3D Glasses
Initiative.
Precautions·········································· 4
• Safety
Accessories ·················· 8
• Accessories/Optional
·················································· 11
• Connections
Controls ······································· 13
• Identifying
Time Setup············································ 14
• First
3D images on TV ···························· 15
• Viewing
eHELP (built-in Manual) ····················· 16
• Using
Asked Questions (FAQ) ··············17
• Frequently
and Cleaning ······································ ·17
• Care
··············································· 18
• Specifications
Warranty
• Limited
(for U.S.A. and Puerto Rico only) ················· 19
Services Directory
• Customer
(for U.S.A. and Puerto Rico) ························· 20
• Limited Warranty (for Canada) ····················· 21
DLNA®, the DLNA Logo and DLNA
CERTIFIED™ are trademarks,
service marks, or certification
marks of the Digital Living Network
Alliance.
QuickTime and the QuickTime
logo are trademarks or registered
trademarks of Apple Inc., used
under license there from.
This product qualifies for ENERGY
STAR in the “Home Use” setting
and this is the setting in which
energy savings will be achieved.
Any modifications to the “Home
Use” setting or other factory default
settings could result in greater
energy consumption beyond
levels that meet ENERGY STAR
qualifications.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Panasonic Corporation is under license.
Other trademarks and trade names are those of their
respective owners.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
HDAVI Control™ is a trademark of Panasonic Corporation.
Skype™ is a trademark of Skype limited.
3
tc_p42_50_UT50_eng_0638.indb 3
2012/01/11 10:27:48
Safety Precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: To reduce the risk of electric shock, do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
WARNING:
The lightning flash with
arrowhead within a triangle is
intended to tell the user that
parts inside the product are a risk
of electric shock to persons.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are in
the papers with the appliance.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set
(including on shelves above, etc.).
Important Safety Instructions
1)
2)
3)
4)
5)
6)
7)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments / accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart / apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15) To prevent electric shock, ensure the grounding pin on the
AC cord power plug is securely connected.
WARNING/CAUTION (TV set)
WARNING
Small parts can present choking hazard if accidentally
swallowed.
Keep small parts away from young children.
Discard unneeded small parts and other objects,
including packaging materials and plastic bags/sheets to
prevent them from being played with by young children,
creating the potential risk of suffocation.
■ Set up
This Plasma TV may fall and can cause personal injury or
even death if not installed correctly. To prevent personal
injury or death, follow these warnings:
● Install the Plasma TV in accordance with the
manufacturer’s recommended pedestal or stand,
corresponding hardware and installation instructions.
This Plasma TV is for use only with the following
optional accessories. Use with any other type of optional
accessories may cause instability. The following accessories
are manufactured by Panasonic Corporation.
• Wall-hanging bracket (Angled)
TY-WK4P1RW
● Be sure to ask a qualified technician to carry out the
installation and set-up.
Two or more people are required to install or remove the
television.
● Some wall mounts (wall-hanging brackets) are not
designed to be mounted to walls with steel studs or old
cinder block constructions.
Ask your dealer or licensed contractor to properly secure
the wall-hanging bracket.
● Do not route the TV’s power cord inside the wall.
The power cord was not designed for in-wall mounting.
Doing so can lead to fire hazard.
● Do not place the Plasma TV or its stand on a sloped or
unstable surface.
The Plasma TV may fall or tip over.
● Do not support the Plasma TV on a non-specified
pedestal.
● Do not place the Plasma TV on furniture that can easily
be used as steps, such as a chest of drawers.
● Do not climb or allow children to climb on the Plasma TV
● Place or install the Plasma TV where it cannot be
pushed, pulled over or knocked down.
● Route all cords and cables such that they cannot be
tripped over or pulled by curious children.
● Do not place any objects on top of the Plasma TV.
If water spills onto the Plasma TV or foreign objects get
inside it, a short-circuit may occur, which could result in
fire or electric shock. If any foreign objects get inside the
Plasma TV, please consult an Authorized Service Center.
4
tc_p42_50_UT50_eng_0638.indb 4
2012/01/11 10:27:49
● In the unlikely event that you receive a shock from this
product, it is possible that your household outlet may
be wired improperly.
Have an electrician verify that the TV’s outlet is properly
wired. If the symptom persists, have the TV serviced by a
qualified authorized technician.
● To prevent the spread of fire, keep candles
or other open flames away from this
product at all times
■ AC Power Supply Cord
To prevent fire or electric shock:
● The Plasma TV is designed to operate on a 120 V AC,
60 Hz service. Insert the power cord plug as far as it will
go into the wall socket.
If the plug is not fully inserted, heat may generate, which
could cause a fire.
● The included power cord is for use with this unit only.
● Do not use any power cord other than that provided
with this TV.
● Do not handle the power cord plug with wet hands.
● Do not do anything that might damage the power
supply cord.
● When disconnecting the power supply cord, hold the
plug, not the cord.
● Do not use the power supply cord if the plug or cord is
damaged.
Replace the cord or contact your Authorized Service Center.
● Do not use a 3-prong to 2-prong AC plug adapters to
connect your TV’s plug to the wall outlet.
Doing so will defeat the TV plug’s safety feature, which
can lead to a shock hazard. If the wall outlet does not
accommodate a 3-prong plug, have a qualified electrician
replace your outlet and check the associated wiring.
■ Handling the power supply cord
● Insert the power plug fully into the socket outlet. (If the
power plug is loose, it could generate heat and cause fire.)
● Ensure that the power plug is easily accessible.
● Ensure the earth pin on the power plug is securely
connected to prevent electrical shock.
• An apparatus with CLASS I construction shall be
connected to a power socket outlet with a protective
earthing connection.
● Do not touch the power plug with a wet hand. (This may
cause electrical shock.)
● Do not use any power cord other than that provided
with this TV. (This may cause fire or electrical shock.)
● Do not damage the power cord. (A damaged cord may
cause fire or electrical shock.)
• Do not move the TV with the cord plugged in the socket outlet.
• Do not place a heavy object on the cord or place the cord
near a high-temperature object.
• Do not twist the cord, bend it excessively, or stretch it.
• Do not pull on the cord. Hold onto the power plug body
when disconnecting cord.
• Do not use a damaged power plug or socket outlet.
■ Radio waves
● Do not place this TV in any medical institutions or
locations with medical devices.
Radio waves from this TV may interfere with the medical
devices and cause accidents due to the malfunction.
● Do not use this TV near any automatic control devices
such as automatic doors or fire alarms.
Radio waves from this TV may interfere with the automatic
control devices and cause accidents due to the malfunction.
● Keep this TV away at least 9 inches (22 cm) from the
location where a cardiac pacemaker is implanted.
Radio waves from this TV may interfere with the operation
of the pacemaker.
CAUTION
● Do not cover the ventilation holes.
Doing so may cause the Plasma TV to overheat, which can
cause a fire or damage to the Plasma TV.
● Leave a space of 3 15/16” (10 cm) or more at the top,
left and right, and 2 3/4” (7 cm) or more at the rear.
● When using the pedestal, keep the space between the
bottom of the TV and the pedestal or stand surface
clear from objects that may obstruct ventilation.
■ When Moving the Plasma TV
● Be sure to disconnect all cables before moving the
Plasma TV.
Moving the TV with its cables attached might damage the
cables which, in turn, can cause fire or electric shock.
● To prevent an electric shock, disconnect the power
plug from the wall outlet as a safety precaution before
carrying out any cleaning.
● Transport only in upright position.
Transporting the unit with its display panel facing upright or
downward may cause damage to the internal circuitry.
● Using a dry cloth, clean any dust from the power supply
cord and plug regularly.
Build-up of dust on the power cord plug can increase
humidity, which might damage the insulation and cause a
fire.
This Plasma TV radiates infrared rays;
therefore, it may affect other infrared communication
equipment. Install your infrared sensor in a place away from
direct or reflected light from your Plasma TV.
The TV will still consume some power as long as the
power supply cord is connected to the wall outlet.
● Display panel is made of glass. Do not apply strong
force or impact to the display panel.
This may cause damage resulting in injury.
● The TV is heavy. TV should be handled by 2 or more
people. Support as shown to avoid injury by the TV
tipping or falling.
● If a problem occurs (such as no picture or no sound),
or if smoke or an abnormal odor is detected from the
Plasma TV, unplug the power supply cord immediately.
Continued use of the TV under these conditions might
cause a fire or permanent damage to the TV. Have the TV
evaluated by an Authorized Service Center. Servicing of the
TV by unauthorized personnel is strongly discouraged due
to its high voltage.
● If water or an object gets inside the Plasma TV, if the
Plasma TV is dropped, or if the enclosure becomes
damaged, unplug the power supply cord immediately.
A short-circuit may occur, which could cause a fire. Contact
an Authorized Service Center for an evaluation.
5
tc_p42_50_UT50_eng_0638.indb 5
2012/01/11 10:27:49
WARNING/CAUTION (3D Eyewear)
● Be careful not to close the hinge section of the 3D
WARNING
■ Accidental Ingestion
● Keep 3D Eyewear parts in places out of the reach of children.
There is a danger small children could swallow such parts by mistake.
• If a child accidentally swallows such parts, seek
immediate medical attention.
■ Place
● Do not use 3D Eyewear in hospital or other medical facilities.
Radio waves from 3D Eyewear may cause interference of
medical equipments.
● Do not use 3D Eyewear nearby automatic control equipments,
like a automatic door, a fire alarm apparatus, etc.
Radio waves from 3D Eyewear may cause interference of
automatic control equipments.
● Keep 3D Eyewear more than 22 cm (9 in.) away from the implant of cardiac
pacemaker, or similar implantable medical equipments, at all times.
Radio waves from 3D Eyewear may affect implantable
cardiac pacemaker or similar equipment operations.
■ Disassembly
● Do not disassemble or modify the 3D Eyewear.
CAUTION
■ 3D Eyewear
● Handle the 3D Eyewear carefully and store in the case
when not in use.
Failure to do so may damage the Eyewear and glass
section, which may result in injury.
● Handle the tips of the frame carefully when putting on
the 3D Eyewear as inserting the tip of the frame into the
eye may cause injury.
Eyewear on your finger.
Doing so may result in injury.
• Provide supervision when children are using this product.
■ Use of 3D Eyewear
● Parents/guardians should monitor children’s viewing
habits to avoid their prolonged use without rest
periods.
● In commercial application and public viewing, someone
in authority should convey the precautions and monitor
the user of the 3D Eyewear.
● Use only the 3D Eyewear recommended for this TV.
● Only use the 3D Eyewear for its intended 3D content
viewing purpose.
● Do not move around while wearing the 3D Eyewear.
The surrounding area appears dark, which may result in
falling or other accidents that may cause injury.
● Inspect the 3D Eyewear for damage before each use.
■ Viewing of 3D Images
● In the event that you experience dizziness, nausea, or
other discomfort while viewing 3D images, discontinue
use and rest your eyes.
• When you set the effect by using “3D adjustment”, take
into account that the vision of 3D images varies among
different individuals.
● Do not use if the 3D Eyewear is cracked or broken.
● Content for 3D viewing includes commercially available
Blu-ray discs, 3D broadcasts, etc..
● When preparing your own 3D content, ensure that it is
properly produced.
CEA CHILD SAFETY NOTICES
WARNING
Flat panel displays are not always supported on the proper stands
or installed according to the manufacturer’s recommendations.
Flat panel displays that are inappropriately situated on dressers,
bookcases, shelves, desks, speakers, chests or carts may fall
over and may cause personal injury or even death.
The consumer electronics industry (of which Panasonic is
a member) is committed to making home entertainment
enjoyable and safe. To prevent personal injury or death, be
sure to follow the following safety guidelines:
TUNE INTO SAFETY:
• One size does NOT fit all. Follow the manufacturer’s
recommendations for the safe installation and use of your
flat panel display.
• Carefully read and understand all enclosed instructions for
proper use of this product.
• Don’t allow children to climb on or play with furniture and
television sets.
• Don’t place flat panel displays on furniture that can easily be
used as steps, such as a chest of drawers.
• Remember that children can become excited while watching
a program, especially on “larger than life” flat panel
displays. Care should be taken to install the display where it
cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables
connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT
YOUR FLAT PANEL DISPLAY, ALWAYS:
• Use a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory
(such as UL, CSA, ETL).
• Follow all instructions supplied by the display and wall
mount manufacturers.
• If you have any doubts about your ability to safely
install your flat panel display, contact your retailer about
professional installation.
• Make sure the wall where you are mounting the display
is appropriate. Some wall mounts are not designed to
be mounted to walls with steel studs or old cinder block
construction. If you are unsure, contact a professional installer.
• A minimum of two people are required for installation. Flat
panel displays can be heavy.
Panasonic recommends that a qualified installer perform
the wall-mount installation. See page 4.
The American Academy of Pediatrics discourages
media use by children younger than two years.
For more information, visit www.aap.org.
6
tc_p42_50_UT50_eng_0638.indb 6
2012/01/11 10:27:50
FCC and IC STATEMENT
This equipment has been tested and found to comply with the limits for an Other Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the Panasonic Service Center or an experienced radio/TV technician for help.
FCC Caution:
To assure continued compliance, follow the attached installation instructions and use only shielded interface cables
when connecting to peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of
North America could void the user’s authority to operate this device.
FCC and Industry Canada (IC) RF Exposure Warning:
• This TV is equipped with one transmitter interface for insertion of only approved transmitters:
Wistron NeWeb USB Bluetooth Adapter with FCC ID: NKR-DBUBP207.
• The transmitter interface must not be used with other wireless transmitters, unless specifically recommended when
they become available. Other third-party wireless transmitters have not been RF exposure evaluated for use with
this TV and may not comply with FCC and IC RF exposure requirements.
• The transmitter complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment
for mobile use with minimum 20 cm (8 inches) spacing requirement between transmitters and all person’s body
(excluding extremities of hands, wrist and feet) during wireless modes of operation.
Responsible Party:
Contact Source:
email:
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Panasonic Consumer Marketing Company of North America
1-877-95-VIERA (958-4372)
[email protected]
This device complies with Part 15 of the FCC Rules and all applicable IC RSS standards.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
■ About wireless LAN adapter (Optional Accessory)
● Wireless LAN adapter and Access point need to be obtained separately.
For the latest information on applicable wireless LAN adapters, check the following website:
http://Panasonic.com/NetConnect
● Check that the Access point supports WPS*.
(If it does not support WPS, “Password” of the Access point is required when configuring settings.)
● Follow the instructions on the Access point setup screen and configure the appropriate security settings.
For more details on setting of Access point, please refer to operating manual for the Access point.
● We recommend using 11n (5 GHz) for the wireless system between the wireless LAN adapter and Access point.
Communication is also possible with 11a, 11b, and 11g (2.4 GHz), but the communication speed may be slower.
● If the wireless system of the Access point is changed, devices that could connect by wireless LAN may no longer be
able to connect.
● When Online Movies, DLNA, or other device is using the network, do not disconnect the wireless LAN adapter.
● Data transmitted and received over radio waves may be intercepted and monitored.
● Keep the TV away from the following devices as much as possible:
Wireless LAN, microwaves, and other devices that use 2.4 GHz and 5 GHz signals. Otherwise, the TV failures such
as malfunction may occur due to the radio wave interference.
● When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In
this case, turn the TV Off with power On / Off switch, then turn it On again.
* WPS: Wi-Fi Protected Setup
7
tc_p42_50_UT50_eng_0638.indb 7
2012/01/11 10:27:50
Accessories/Optional Accessories
Accessories
Check you have all the items shown.
Accessories
Remote Control
Transmitter
Batteries for the
Remote Control
Transmitter (2)
N2QAYB000704
Power cord
AA Battery
Ferrite core
for HDMI cable (2)
Owner’s Manual
Quick start guide
Child safety
Product Registration Card
(U.S.A.)
Optional Accessories
3D Eyewear
(Rechargeable type)
● TY-ER3D4S
● TY-ER3D4M
Wireless Adapter
for USB cable (2)
Pedestal
How to assemble
(p. 9)
Please contact your nearest Panasonic dealer to purchase the recommended
Optional accessories. For additional details, please refer to the Optional
accessories installation manual.
• Use Panasonic 3D Eyewear supporting Bluetooth wireless technology.
• Product information (Model No. and release date etc.) is subject to change without notice.
• For more product information
(USA) http://www.panasonic.com (Canada) http://panasonic.ca
(Global reference) http://panasonic.net/avc/viera/3d/
● TY-WL20U
Communication Camera
● TY-CC20W
• This camera can be used with VIERA Connect.
• It is recommended to connect the communication camera directly to the TV’s USB2 ports.
• For details, read the manual for the Communication Camera.
Wall-hanging bracket
Rear of the TV
● TY-WK4P1RW
(for 42”)
The angle of wall-hanging
bracket can be adjusted in
“zero tilting (vertical)” and
“5, 10, 15 or 20-degree
tilting” for this TV.
(for 50”)
The angle of wall-hanging
bracket can be adjusted in
“zero tilting (vertical)” and
“5 or 10-degree tilting” for
this TV.
a
b
Holes for wall-hanging
bracket installation
Screw for attaching the TV to the wall-hanging
bracket (not supplied with the TV)
Depth of screw:
minimum
0.67” (17.0 mm),
maximum
M8 1.38” (35.0 mm)
(View from the side)
a: 15.7” (400 mm)
b: 11.8” (300 mm)
Warning
8
● In order to maintain the TV’s performance and safety, be absolutely sure to ask your dealer or a licensed
contractor to secure the wall-hanging brackets.
● Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent
the TV from tipping over.
● Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
● Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the
wall before hanging bracket.
● When using the angled-type wall hanging bracket, please ensure that there is sufficient space for the connecting
cables not to press against the wall when the TV is tilted forward.
● For safety reasons, remove units no longer being used from their wall-mounted locations.
tc_p42_50_UT50_eng_0638.indb 8
2012/01/11 10:27:50
■Assembling the pedestal
Insert the protrusion of the Neck
into the Base firmly.
Attaching the pedestal to TV
Turn the stand over and fix stand neck
securely with assembly screws.
(3 screws)
• Do not hold the neck when turning over the stand.
Neck
Protrusion of the
Neck (bottom)
B x 3 pcs.
XYN4+F10FNK (Black)
size (M4 x 10) (5)
Hole for
screw
Front
Front
Back of Stand
Attach the Bracket to the protrusion of Neck.
Make sure that the bracket is anchored
before fixing the screws.
Fix securely with assembly screws. (4 screws)
Protrusion of Neck (top)
Accessories
Assembly screws
XYN5+F16FN (silver)
size (M5 x 16) (7)
Bracket (1)
TBL5ZA3238
Attach the cover and fix securely with
assembly screw.
A x 1 pcs.
B x 4 pcs.
Neck (1)
TXFBL5Z0069
Cover
Bracket
Cover (1)
TXFBL5Z0071
■Set-up
Tighten assembly screws
(total 4 screws) loosely at first,
then tighten them firmly to fix securely.
Rear view
Cover is in the same bag
with Owner’s Manual
Base (1)
TBL5ZX0292 (for 42”)
TBL5ZX0294 (for 50”)
Rear side
Arrow
mark
Removing the pedestal from the TV
Hole for pedestal
installation
A x 4 pcs.
Bracket
Base
(Image)
Work on a flat surface
Be sure to remove the pedestal in the following way when
using the wall hanging bracket or repacking the TV.
Remove the assembly screws
from the TV.
Lift the TV from the pedestal.
Remove the assembly screw
from the cover.
Pull out the cover.
Remove the assembly screws
from the Bracket.
Remove the assembly screws
from the Back of
stand and pull out the neck.
Warning
Do not disassemble or modify the pedestal.
Otherwise, the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any pedestal other than that provided with this TV.
Otherwise, the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic Dealer immediately.
During set-up, make sure that all screws are securely tightened.
If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong
enough to support the TV, and it might fall over and become damaged, and personal injury may result.
When removing the pedestal, do not remove the pedestal by any methods other than the specified procedure. (Above)
Otherwise, the TV and/or pedestal may fall over and become damaged, and personal injury may result.
9
tc_p42_50_UT50_eng_0638.indb 9
2012/01/11 10:27:51
Installing the remote’s batteries
Open
Close
Hook
Note the correct polarity
(+ or -).
Caution
Incorrect installation may cause
battery leakage and corrosion,
resulting in damage to the remote
control.
not mix old and new batteries.
• Do
not mix different battery types (such
• Do
as alkaline and manganese batteries).
not use rechargeable (Ni-Cd)
• Do
batteries.
Do not burn or break batteries.
Power cord connection
To attach
To remove
Insert it firmly until the
tabs on both sides click
into place.
Keep pushing both
sides until they snap
and pull.
Attaching Ferrite Core
Be sure to attach the provided ferrite core to the HDMI cable/USB cable (not suppled) to reduce interference or electrical
noise.
Attach the ferrite core as close as possible to
connector on the TV side as shown.
Close the ferrite core until it clicks.
(example: USB connecter)
10
tc_p42_50_UT50_eng_0638.indb 10
2012/01/11 10:27:54
Connections
Connection Panels
Back of the TV
DIGITAL AUDIO OUT ETHERNET connector
USB
connector
A
SD card
slot
B C
Antenna or Cable connection
* See page 10
(Power cord
connection)
Back of the TV
VHF/UHF Antenna
Cable TV
Power Cord
(Connect after all the
other connections have
been made.)
or
VHF/UHF Antenna
• NTSC (National Television System Committee):
ATSC (Advanced Television Systems Committee):
Digital TV Standards include digital high-definition television (HDTV), standard-definition television
(SDTV), data broadcasting, multi-channel surround sound audio and interactive television.
Cable
● You need to subscribe to a cable TV service to enjoy viewing their programming.
● You may need to subscribe to a high-definition (HD) cable service to enjoy HD programming.
The connection for high-definition can be done with the use of an HDMI or Component Video cable. (p. 12)
Note
● When using a Cable box, external equipment and video cables shown in this manual are not supplied with the TV.
● When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.
● For additional assistance, visit us at: www.panasonic.com/help
www.panasonic.ca
11
tc_p42_50_UT50_eng_0638.indb 11
2012/01/11 10:27:54
AV cable connection
Best
To use HDMI terminals
AV Equipment
HDMI
AV OUT
e.g. Blu-ray Disc
player
DVI OUT
HDMI-DVI Conversion cable
AV Equipment
L
Connect to Audio
input terminal
R
AUDIO OUT
e.g. Blu-ray Disc
player
To use COMPONENT terminals
Y
red
Good
blue
green
blue
green
PB COMPONENT
blue VIDEO OUT
PR
green
red
red
e.g. Blu-ray Disc
player
L
white
red
white
red
AV Equipment
white AUDIO
R OUT
red
To use COMPOSITE terminals
AV Equipment
yellow
Basic
(Not HD)
yellow
yellow
L
white
COMPOSITE
white OUT
e.g. DVD Recorder
or
R
white
red
red
e.g. VCR
red
● The Green terminal is shared for both the COMPONENT and COMPOSITE (VIDEO IN) connection.
When using COMPOSITE (VIDEO IN) connection the Yellow connector (Video) should be inserted into Green
connection.
Video
Comp.
select
(For more details, please refer to eHELP (p. 16). )
Audio connection
Audio equipment
Optical cable
DIGITAL
AUDIO IN
e.g. Amplifier
12
tc_p42_50_UT50_eng_0638.indb 12
2012/01/11 10:27:55
Identifying Controls
TV controls/indicators
Front of the TV
Back of the TV
Changes the input mode
Chooses Menu and
Submenu entries
(Press and hold down for
MENU function)
Selects channels
in sequence
Volume up/down
C.A.T.S. sensor
Plasma C.A.T.S. (Contrast
Automatic Tracking System)
POWER button
Power indicator
(on: red, off: no light)
Remote control sensor
Within about 23 feet (7 meters)
in front of the TV set
• An image of the control panel is displayed on the screen while using it.
Note
● The TV consumes a small amount of electric energy even when turned off.
● Do not place any objects between the TV remote control sensor and remote control.
Remote control
Closed Caption On/Off
Switches TV On or Off (Standby)
Selects Secondary Audio Programming
Select source to watch
Exits from menu screen
Displays 3D settings (p. 15)
Displays Main Menu
Displays Options Menu for special functions
(when available)
Displays VIERA Connect Home screen
Displays VIERA TOOLS menu
Colored buttons
(used for various functions)
Selects/OK/Change
Go back to previous menu
Volume up/down
Sound mute On/Off
Changes aspect ratio and zoom
Switches to previously viewed channel
or input
Channel up/down, when viewing from
ANT/Cable source
Displays or removes the information
banner
Operates the Favorite channel list
function
Numeric keypad to select any channel
or press to enter alphanumeric input in
menus
External equipment operations
Use for digital channels.
13
tc_p42_50_UT50_eng_0638.indb 13
2012/01/11 10:27:56
First Time Setup
The first time setup screen is displayed only when the TV is turned on for the first time, after the power cord
is inserted into a wall outlet and the “Auto power on” is set to “No”.
(Press MENU --> Setup --> Advanced setup --> Auto power on)
Turn the TV On with the POWER button
(TV)
(Remote)
or
or
Setup the following items
● Select your language
● Select your country
● Select your viewing mode (Be sure to select “Home Use”)
If you select “Store Demonstration” by mistake, confirmation screen will be
displayed.
To display the “Set viewing mode” screen again and select “Home Use”, do one of
the following:
• Press and hold down the side POWER button for at least five seconds.
• Unplug power cord for 30 seconds and plug in again.
● ANT/Cable setup
Select and set the settings according to your ANT/Cable environment.
Select “Yes” on the confirmation screen, to start the scanning process.
After scanning is finished completely, press OK to continue.
● Label the inputs for easy identification
To name each input, follow the instructions on screen.
When done, select NEXT and press OK to go to the next step.
● Configure Network settings
Select the Network type and select the setting mode.
If you select “Wireless (WiFi)”, start “Wireless network settings”
Select “Automatic” or set “Manual” setting, start connection test.
When you complete “Network settings” successfully, the completion screen will be
displayed.
● Adjust the Clock
Select the clock mode and set other settings.
When “Auto” is selected, clock will be set automatically according to Time zone and
DST.
Complete First time setup
Completion screen is displayed.
You can repeat the First time setup
• Press MENU --> Setup --> First time setup
To watch TV via a Cable box, Satellite receiver, or any other source (DVD, DVR,
gaming device, etc.), press the INPUT button and select the appropriate input.
14
tc_p42_50_UT50_eng_0638.indb 14
2012/01/12 9:45:01
Viewing 3D images on TV
Precautions for Viewing 3D Images
Cautions During Viewing
Do not use devices that emit strong electromagnetic waves (such as cellular phones or personal transceivers) near the
3D Eyewear. Doing so may cause the 3D Eyewear to malfunction.
If the 3D Eyewear is used in a room in which fluorescent lights (50 Hz) are used, the light within the room may appear
to flicker. In this case, either darken or switch off the fluorescent lights when using the 3D Eyewear.
Wear the 3D Eyewear correctly. 3D images will not appear correctly if the 3D Eyewear is worn upside down or back-to-front.
For comfortable viewing
View from at least the recommended distance (3 times the effective height of the screen),
Recommended Distance:
For a 42-inch television, 5.25’ (1.6 m) or more. For a 50-inch television, 6.23’ (1.9 m) or more.
When the top and bottom area of the screen are blackened, such as when playing movies, view the screen at a distance
3 times further than the height of the actual image. (That makes the viewing distance closer than above recommended
distance.)
Stop using the 3D Eyewear immediately if your skin feels unusual.
In rare cases, the paint or materials used in the 3D Eyewear may cause an allergic reaction.
Stop using the 3D Eyewear immediately if you experience any redness, pain, or itching on the nose or temples.
Prolonged use may cause such symptoms due to excess pressure, which may result in the user feeling unwell.
Use the 3D Eyewear where there is no interference from other devices with Bluetooth® signals.
Viewing 3D images
The following 3D content can be enjoyed on this TV:
• A 3D Blu-ray disc, played on 3D capable Blu-ray player/recorder that is connected via HDMI cable.
• 3D TV broadcast (program)
• 3D Photo and 3D Movie taken by LUMIX/Camcorder.
• 3D game played on 3D capable video game console, connected via HDMI cable.
Optional Accessories (p. 8)
* For more detail on usage of 3D Eyewear (Power button, Accessories and how to register, etc.), please refer to operating
manuals for the purchased 3D Eyewear. 3D experience differs depending on the type of 3D Eyewear.
Using the 3D Eyewear
Turn on the 3D Eyewear
Make sure that registration is finished completely.
Put on the 3D Eyewear
Viewing 3D images
When the HDMI receives information in which 3D mode is detected, 3D images are automatically displayed
according to the signal.
If the 3D images are not displayed correctly, or if the images cause discomfort, the images can be adjusted by
“3D format select” or “3D settings”.
● Change the view 3D⇔2D, 3D settings
After Use
Turn off the 3D Eyewear.
After using the 3D Eyewear, store it in the case.
Change the view 3D⇔2D
■ Simply switches 3D ⇔ 2D images (Auto mode)
select
3D format select
●
Switches to Manual mode
3D
2D
OK
(example)
15
tc_p42_50_UT50_eng_0638.indb 15
2012/01/11 10:27:57
Using eHELP (Built-in Manual)
eHELP (built-in manual) helps you understand how to easily operate the TV features.
Display eHELP
[Top page]
select
next
When you enter eHELP again after exit, the confirmation screen is displayed while the TV is turned on.
You can select “TOP PAGE” or “LAST PAGE”.
select
next
Select the desired page from the menu
Categories
Menus
select
Sub menus
select
Desired page
select
Change the menus using ▲/ ▼
next
next
To return to the previous menu/layer
To exit eHELP
Operate eHELP
Display the Menu related to the explanation page after exiting eHELP.
Menu
Audio
Setup
1/2
3D settings
Channel surf mode
All
Language
Network
Timer
Lock
Clock
ANT/Cable setup
Input labels
Anti image retention
Closed Caption
Setup
“Go to Menu” is available depending on the situation or condition.
16
tc_p42_50_UT50_eng_0638.indb 16
2012/01/12 9:45:01
Frequently Asked Questions (FAQ)
Questions
Answers
Why doesn’t the Remote
Control work?
Check that the batteries are fresh, are of the same type and are
installed with the correct polarity (+ & -).
To operate other devices, such as changing channels when using
Cable or Satellite boxes or operating non-Panasonic Blu-ray
players, use the remote supplied with the device.
Why is there no picture or just
a blue, black or snowy screen
being displayed?
Check if the power cord is plugged in and the TV is turned on (front
red LED light should be on, not blinking).
Press the INPUT button on the remote to select the correct input source.
Ensure all connections are correct and secure.
When using external video source, such as a Cable/Satellite box or DVD
player, check that the device is on and functioning correctly.
Press MENU on the TV’s remote control. If the menu is displayed,
then the TV is working; recheck above steps.
Why is the screen blank and the
power indicator blinking?
The TV has gone into shutdown mode to protect itself. Try unplugging it for a
few minutes and connecting it again. If there was a temporary power surge
on the AC line it may now be OK. If the blinking returns, call 1-877-95-VIERA
(U.S.A.) or 1-866-330-0014 (Canada).
How do I display eHELP (built-in Manual) ?
Press VIERA TOOLS on the TV’s remote control and select
eHELP icon to display eHELP. (p. 16)
Care and Cleaning
First, unplug the Power cord plug from the wall outlet.
Display panel
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lintfree cloth.
If the surface is particularly dirty, after cleaning up the dust, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part
mild liquid dish soap diluted by 100 times the amount of water), and then wring the cloth to remove excess liquid. Use this cloth
to wipe the surface of the display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.
Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile
substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.
Cabinet
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
If the cabinet is particularly dirty, soak the cloth in diluted mild liquid dish soap and then wring the cloth dry. Use this cloth to
wipe the cabinet and then wipe it dry with a dry cloth.
Do not allow any mild liquid dish soap to come into direct contact with the surface of the Plasma TV.
If water droplets get inside the unit, operating problems may result.
Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet
surface may be adversely affected or the coating may peel off.
Do not let articles made from rubber or PVC be in contact with the TV for long periods of time.
Pedestal
Cleaning
Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small
amount of mild liquid dish soap has been added and then wipe with a dry cloth.
Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating.
(If using a chemically-treated cloth, follow the instructions supplied with the cloth.)
Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact with
rubber, vinyl products, or the like. (Doing so will cause deterioration.)
Power cord plug
Wipe the plug with a dry cloth at regular intervals. (Moisture and dust can lead to fire or electrical shock.)
Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim
any liability or damage arising from operation and/or performance from usage of such other maker’s peripheral devices.
tc_p42_50_UT50_eng_0638.indb 17
17
2012/01/11 10:28:00
Specifications
TC-P42UT50
Display Panel
Power Source
Power Consumption
(Rated power / Standby power)
Panel System
TC-P50UT50
AC 120 V, 60 Hz
303 W / 0.2 W
338 W / 0.2 W
Plasma Display panel
Screen size
42 ” class
(41.9 inches measured diagonally)
50 ” class
(49.9 inches measured diagonally)
W × H × Diagonal
36.5 ” × 20.5 ” × 41.9 ”
(929 mm × 522 mm × 1,066 mm)
43.5 ” × 24.4 ” × 49.9 ”
(1,105 mm × 622 mm × 1,268 mm)
Number of pixels
1,920 × 1,080
Speaker Output
20 W [10 W + 10 W] (10 % THD)
Channel Capability
(Digital/Analog)
VHF/ UHF: 2 - 69, CATV: 1 - 135
Operating Conditions
Temperature: 32 °F - 104 °F (0 °C - 40 °C)
Humidity: 20 % - 80 % RH (non-condensing)
Connection
Terminals
Dimensions
Mass
VIDEO IN
RCA PIN (VIDEO, AUDIO-L, AUDIO-R)
COMPONENT IN
RCA PIN (Y, PB, PR, AUDIO-L, AUDIO-R)
HDMI IN 1/2
TYPE A Connector (supports “HDAVI Control 5” function)
USB 1/2
USB2.0 Type A connector
DIGITAL AUDIO OUT
PCM / Dolby Digital, Fiber Optic
OTHERS
SD CARD slot, ETHERNET (10BASE-T/100BASE-TX)
Including pedestal
(W × H × D)
39.8 ” × 26.1 ” × 12.6 ”
(1,009 mm x 663 mm × 320 mm)
46.7 ” × 30.1 ” × 13.2 ”
(1,186 mm x 764 mm × 335 mm)
TV Set only
(W × H × D)
39.8 ” × 24.3 ” × 3.3 ”
(1,009 mm x 616 mm × 84 mm)
46.7 ” × 28.2 ” × 3.3 ”
(1,186 mm x 717 mm × 84 mm)
Including pedestal
45.2 lb. (20.5
) NET
57.3 lb. (26.0
) NET
TV Set only
38.6 lb. (17.5
) NET
50.7 lb. (23.0
) NET
Bluetooth
Standard Compliance
Bluetooth® 3.0
Frequency Range
2.402GHz~2.480GHz
Use Panasonic 3D Eyewear supporting Bluetooth wireless technology.
Note
Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
18
tc_p42_50_UT50_eng_0638.indb 18
2012/01/11 10:28:01
Limited Warranty (for U.S.A. and Puerto Rico only)
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way
Secaucus, New Jersey 07094
Panasonic Plasma Television
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Marketing
Company of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below,
which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with
new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will be made by the warrantor.
PLASMA TV CATEGORIES
Up to 42” (diagonal)
46” (diagonal) and larger
PARTS
LABOR
1 (ONE) YEAR
1 (ONE) YEAR
SERVICE
Carry-In
On-Site
During the “Labor” Limited Warranty period there will be no charge for labor. During the “Parts” Limited Warranty period,
there will be no charge for parts.
You must carry-in your product or arrange for on-site service during the Limited Warranty period. If non-rechargeable
batteries are included, they are not warranted. This Limited Warranty only applies to products purchased and serviced
in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser of a new product
which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for Limited Warranty
service.
On-Site or Carry-in Service
For On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372).
On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer and
does not include removal or re-installation of an installed product. It is possible that certain on-site repairs will not be
completed on-site, but will require that the product or parts of the product, at the servicer’s discretion be removed for shop
diagnosis and/or repair and then returned.
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage, nor does it cover markings or retained images on the glass panel resulting
from viewing fixed images (including, among other things, non-expanded standard 4:3 pictures on wide screen TV’s,
or onscreen data in a stationary and fixed location). The Limited Warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result
from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product,
service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts
of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE
WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this excludes
damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to and from the
servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE LIMITED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED
WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an
implied Limited Warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have others rights which vary from state to state. If
a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service
Center. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the
addresses listed for the warrantor.
PARTS AND SERVICE (INCLUDING COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICH ARE
NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.
19
tc_p42_50_UT50_eng_0638.indb 19
2012/01/11 10:28:01
Customer Services Directory (for U.S.A. and Puerto Rico)
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center;
purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web
Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-877-95-VIERA (958-4372)
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
■ For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web
Site at:
http://www.pstc.panasonic.com
or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.)
Panasonic Consumer Marketing Company of North America - National Parts Center
20421 84th Avenue South,
Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)
■ For hearing or speech impaired TTY users, TTY: 1-866-605-1277
20
tc_p42_50_UT50_eng_0638.indb 20
2012/01/11 10:28:01
Limited Warranty (for Canada)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and
for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with
new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
Viera TV (42” & over)
In-home service
One (1) year, parts (including panel) and labour.
Viera TV (under 42”)
Carry-in service
One (1) year, parts (including panel) and labour.
In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic
service facility.
In-home service requires clear, complete and easy access to the product by the Authorized Servicer and does not include
removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of
the Servicer and in no event will Panasonic Canada Inc. or the Servicer be liable for any special, indirect or consequential
damages.
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada,
which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS
REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or
failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment
of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries are
also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the
Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is
not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or
the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives
you specific legal rights and you may have other rights which vary depending on your province or territory.
WARRANTY SERVICE
For product operation and information assistance, please contact:
Our Customer Care Centre:
1-800 #:
1-866-330-0014
or visit our website: https://concierge.panasonic.ca
For product repairs, please contact Viera Customer Care Agent using the above contact info.
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
21
tc_p42_50_UT50_eng_0638.indb 21
2012/01/11 10:28:01
TC-P42UT50
42" Plasma HDTV
SPECIFICATIONS
Dimensions (W x H x D)
Mass
Power Source
Power Consumption
39.8" (1,009 mm) x 26.1" (663 mm) x 12.6" (320 mm)
(Including pedestal)
39.8" (1,009 mm) x 24.3" (616 mm) x 3.3" (84 mm)
(TV Set only)
45.2 lb. (20.5 kg) (Including pedestal)
38.6 lb. (17.5 kg) (TV Set only)
AC 120 V, 60 Hz
303 W (Rated power)
0.2 W (Standby power)
DIMENSIONS
JACKS
Top View
Side Panel
Front View
Side ViewBack
3.3 (84)
24.3 (616)
39.8 (1009)
Rear Panel
4.8
(121)
11.9 (300)
15.8 (400)
26.1 (663)
Side view with the
pedestal (option)
attached
Back View
4.2 (105)
15.8 (400)
12.6 (320)
Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree of
precision is required, we recommend that you use the Plasma Television itself to make
the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.
Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.
P120117
TC-P50UT50
50" Plasma HDTV
SPECIFICATIONS
Dimensions (W x H x D)
Mass
Power Source
Power Consumption
46.7" (1,186 mm) x 30.1" (764 mm) x 13.2" (335 mm)
(Including pedestal)
46.7" (1,186 mm) x 28.2" (717 mm) x 3.3" (84 mm)
(TV Set only)
57.3 lb. (26.0 kg) (Including pedestal)
50.7 lb. (23.0 kg) (TV Set only)
AC 120 V, 60 Hz
338 W (Rated power)
0.2 W (Standby power)
DIMENSIONS
JACKS
Top View
Side Panel
Front View
Side ViewBack
3.3 (84)
28.2 (717)
46.7 (1186)
Rear Panel
Side view with the
pedestal (option)
attached
Back View
8.2
(207)
30.1 (764)
11.9 (300)
15.8 (400)
5.0 (125)
18.2 (460)
13.2 (335)
Note:
To make sure that the Plasma Television fits the cabinet properly when a high degree of
precision is required, we recommend that you use the Plasma Television itself to make
the necessary cabinet measurements. Panasonic cannot be responsible for
inaccuracies in cabinet design or manufacture.
Specifications are subject to change without notice.
Non-metric weights and measurements are
approximate.
P120117
USA Only: Disposal may be regulated in your community due to
environmental considerations. For disposal or recycling information,
please visit Panasonic website: http://www.panasonic.com/environmental
or call 1-888-769-0149.
Sólo Estados Unidos: La disposición puede estar regulada en su
comunidad debido a consideraciones ambientales. Para información
sobre la disposición o reciclaje, por favor visite la página web de
Panasonic: http://www.panasonic.com/environmental
ó llame al 1-888-769-0149.
Customer’s Record
The model number and serial number of this product can be found on its back cover. You should note this serial number in
the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid
in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number
Serial Number
Anotación del cliente
El modelo y el número de serie de este producto se encuentran en su panel posterior. Deberá anotarlos en el espacio
provisto a continuación y guardar este manual, más el recibo de su compra, como prueba permanente de su adquisición,
para que le sirva de ayuda al identificarlo en el caso de que le sea sustraído o lo pierda, y también para disponer de los
servicios que le ofrece la garantía.
Modelo
Número de serie
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus
New Jersey 07094 U.S.A.
© 2012 Panasonic Corporation of North America. All Rights Reserved.
© 2012 Panasonic Corporation of North America. Todos los Derechos Reservados.
tc_p42_50_UT50_eng_0638.indb H4
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3 CANADA
Printed in U.S.A.
Impreso en EE.UU.
2012/01/11 10:27:47
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
