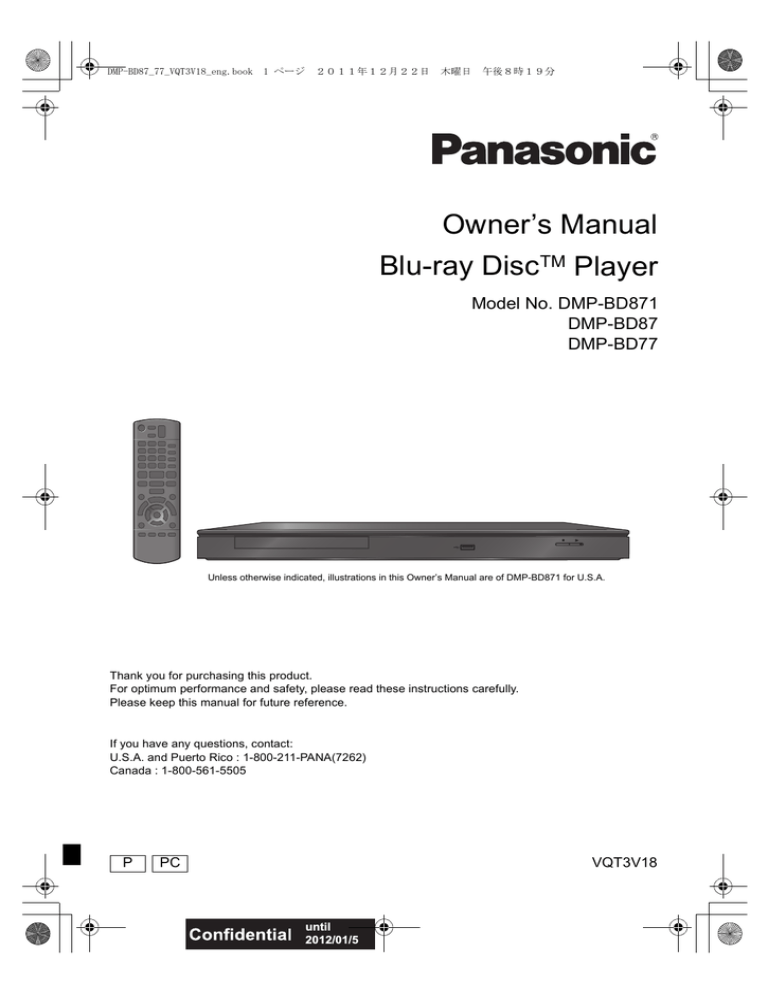

Owner’s Manual
Blu-ray Disc
TM
Player
Model No. DMP-BD871
DMP-BD87
DMP-BD77
Unless otherwise indicated, illustrations in this Owner’s Manual are of DMP-BD871 for U.S.A.
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
If you have any questions, contact:
U.S.A. and Puerto Rico : 1-800-211-PANA(7262)
Canada : 1-800-561-5505
P PC
until
2012/01/5
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 2 ページ 2011年12月22日 木曜日 午後8時19分
Getting started
IMPORTANT SAFETY
INSTRUCTIONS
Read these operating instructions carefully before using the unit.
Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
2
VQT3V18
[BD871] [BD87]
THE FOLLOWING APPLIES IN THE U.S.A.
AND CANADA
This device complies with Part 15 of FCC Rules and
RSS-Gen of IC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.
Contains FCC ID: ZVABDDMPBD87
Contains IC: 9976A-DMPBD87
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm (7 7 /
8 q) or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and receiver.
≥ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
≥ Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Declaration of Conformity
Trade Name: Panasonic
Model No.: DMP-BD871
DMP-BD87
DMP-BD77
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Marketing Company of North America
Telephone No.: 1-800-211-PANA (7262)
THE FOLLOWING APPLIES ONLY IN CANADA.
This Class B digital apparatus complies with Canadian
ICES-003.
DMP-BD87_77_VQT3V18_eng.book 3 ページ 2011年12月22日 木曜日 午後8時19分
Table of contents
WARNING
Unit
To reduce the risk of fire, electric shock or product damage,
≥ Do not expose this unit to rain, moisture, dripping or splashing.
≥ Do not place objects filled with liquids, such as vases, on this unit.
≥ Use only the recommended accessories.
≥ Do not remove covers.
≥ Do not repair this unit by yourself. Refer servicing to qualified service personnel.
AC power supply cord
≥ Install this unit so that the power cord can be unplugged from the socket outlet immediately if any problem occurs.
CAUTION
Unit
≥ This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
≥ Do not place sources of naked flames, such as lighted candles, on this unit.
Placement
To reduce the risk of fire, electric shock or product damage,
≥ Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
≥ Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items.
≥ Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit.
Batteries
Mishandling of batteries can cause electrolyte leakage, which can damage items the fluid contacts and may cause a fire.
≥ Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
≥ When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
≥ Do not mix old and new batteries or different types at the same time.
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
≥ Do not take apart or short circuit.
≥ Do not attempt to recharge alkaline or manganese batteries.
≥ Do not use batteries if the covering has been peeled off.
Remove batteries if the remote control is not going to be used for a long period of time. Store in a cool, dark place.
Getting started
IMPORTANT SAFETY INSTRUCTIONS. . . . 2
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Unit and media care. . . . . . . . . . . . . . . . . . . . 4
Playable media . . . . . . . . . . . . . . . . . . . . . . . 5
Control reference guide . . . . . . . . . . . . . . . . . 7
Connections & Settings
STEP 1 : Connecting to a TV. . . . . . . . . . . . . 8
STEP 2 : Connecting to an amplifier/receiver . . . . . . . . . . . . 8
STEP 3 : Connecting to the network . . . . . . . 9
STEP 4 : Connecting to an AC power source . . . . . . . . . . . 10
STEP 5 : Settings . . . . . . . . . . . . . . . . . . . . 11
Playback
Inserting or removing media . . . . . . . . . . . . 14
HOME menu . . . . . . . . . . . . . . . . . . . . . . . . 14
Multi User Mode. . . . . . . . . . . . . . . . . . . . . . 15
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Enjoying Network Service
(NETFLIX, etc.) . . . . . . . . . . . . . . . . . . . . . 18
Home Network feature. . . . . . . . . . . . . . . . . 19
“HDMI CEC”. . . . . . . . . . . . . . . . . . . . . . . . . 20
Settings
Option menu . . . . . . . . . . . . . . . . . . . . . . . . 21
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . 23
Reference
Troubleshooting guide . . . . . . . . . . . . . . . . . 27
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Supplemental information . . . . . . . . . . . . . . 31
Precautions of Wireless LAN connection. . . 32
Specifications. . . . . . . . . . . . . . . . . . . . . . . . 32
Limited Warranty . . . . . . . . . . . . . . . . . . 37, 38
Referencia rápida en español
(Spanish Quick Reference) . . . . . . . . . . . . 39
Index . . . . . . . . . . . . . . . . . . . . . . . Back cover
≥ Restriction on use of unauthorized
copied content (
>
33)
≥ About Firmware updates ( >
13)
(Inside of product)
VQT3V18
3
DMP-BD87_77_VQT3V18_eng.book 4 ページ 2011年12月22日 木曜日 午後8時19分
Accessories
Check the supplied accessories before using this unit.
1 Remote control
(N2QAYB000734)
2 Batteries for remote control
Unit and media care
∫
Clean this unit with a soft, dry cloth
≥ Never use alcohol, paint thinner or benzine to clean this unit.
≥ Before using chemically treated cloth, carefully read the instructions that came with the cloth.
[For_Canada]
The enclosed Canadian French label sheet corresponds to the English display on the unit.
≥ Product numbers provided in this Owner’s Manual correct as of December 2011. These may be subject to change.
∫
This unit’s lens
Use the lens cleaner (not supplied) to clean the unit’s lens.
∫
Clean discs
DO DO NOT
∫
Using the remote control
Insert so the poles (i and j) match those in the remote control.
R6/LR6, AA
(Alkaline or manganese batteries)
Point it at the remote control signal sensor on this unit. (> 7)
Wipe with a damp cloth and then wipe dry.
∫
Disc handling precautions
≥ Handle discs by the edges to avoid inadvertent scratches or fingerprints on the disc.
≥ Do not attach labels or stickers to discs.
≥ Do not use disc cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
≥ Do not use the following discs:
– Discs with exposed adhesive from removed stickers or labels (rented discs, etc).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
∫
To dispose or transfer this unit
The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. (> 27, “To return all settings to the factory preset.”)
≥ The operation history may be recorded in the memory of this unit.
4
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 5 ページ 2011年12月22日 木曜日 午後8時19分
Playable media
Type Logo examples
BD
Type detail
BD-Video
BD-RE
BD-R
DVD-Video
Playable contents
Video
Video, JPEG
Video, MKV
Video
DVD-R
DVD
Video, AVCHD
MKV, JPEG, FLAC,
MP3, WAV
DVD-R DL
DVD-RW
Video, AVCHD
— +R/+RW/+R DL
Music CD Music [CD-DA]
CD
USB
—
—
CD-R
CD-RW
USB devices
(up to 2 TB)
MKV, JPEG,
FLAC, MP3,
Music [CD-DA], WAV
MP4, MPEG, MKV,
JPEG, FLAC,
MP3, WAV
≥ See pages 6 and 33 for more information on the types of content that can be played.
VQT3V18
5
DMP-BD87_77_VQT3V18_eng.book 6 ページ 2011年12月22日 木曜日 午後8時19分
∫
Discs that cannot be played in this unit
Any other disc that is not specifically supported or previously described.
≥ DVD-RAM
≥ Super Audio CD
≥ Photo CD
≥ DVD-Audio
≥ Video CD and Super Video CD
≥ WMA discs
≥ All types of DivX discs
≥ PAL discs
≥ HD DVD
≥ BD-Video discs recorded at a rate of 50 fields/sec
∫
Region management information
BD-Video
This unit can play BD-Video discs supporting the region code “A”.
Example:
∫
Music CD
≥ Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control
CDs, etc.) cannot be guaranteed.
≥ The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so playback may not be possible.
∫
USB device
≥ This unit does not guarantee connection with all
USB devices.
≥ This unit does not support USB device charging.
≥ FAT12, FAT16, FAT32 and NTFS file systems are supported.
≥ This unit supports USB2.0 High Speed.
≥ This unit supports an HDD formatted in FAT32 and NTFS. If the HDD is not recognized the power to the HDD may not be supplied. Supply power from an external source.
DVD-Video
This unit can play DVD-Video discs supporting the region number “1” or “ALL”.
Example:
1 ALL
1
2
4
∫
Finalize
DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW recorded by a recorder, etc. needs to be finalized by the recorder to play on this unit. Please refer to the recorder’s instructions.
∫
BD-Video
≥ This unit supports high bit rate audio (Dolby
Digital Plus, Dolby TrueHD, DTS-HD High
Resolution Audio and DTS-HD Master Audio) adopted in BD-Video.
≥ If “Dolby D/Dolby D +/Dolby TrueHD” is set to
“PCM”, the maximum possible number of Dolby sound is 2ch PCM.
(> 23)
≥ It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method and how the files were created.
≥ The producers of the disc can control how discs are played, so you may not always be able to control play as described in this Owner’s Manual. Read the disc’s instructions carefully.
6
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 7 ページ 2011年12月22日 木曜日 午後8時19分
Control reference guide
11
3
4
5
6
7
8
9
10
1
2
16
17
18
19
20
12
13
14
15
1 Turn the unit on and off
2 TV operation buttons
You can operate the Panasonic TV through the unit’s remote control (Depending on the
TV these buttons may not work.).
[Í TV] : Turn the television on and off
[AV] : Switch the input select
[i j VOL] : Adjust the volume
3 Select title numbers, etc./Enter numbers
4 Cancel
5 Select audio (> 16)
6 Basic playback control buttons (> 16)
7 Show status messages (> 17)
8 Show Pop-up menu/Top menu (> 17)
9 Show Option menu (> 21)
10 Colored buttons
Used for various purposes depending on the display.
11 Transmit the remote control signal
12 Open or close the disc tray (> 14)
13 Show NETFLIX screen (> 18)
14 Switch on/off Secondary Video
(Picture-in-picture) (> 22)
15 Show Setup menu (> 23)
16 Exit the menu screen
17 Show the selection screen of network features (> 18)
18 Show HOME menu (> 14)
19 [3, 4, 2, 1] : Move the highlight for selection
[OK] : Confirm the selection
(;1) : Frame-by-frame (> 16)
20 Return to previous screen
1 8
2
1 Standby/on switch (Í/I) (> 11)
Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
2 Disc tray (> 14)
3 USB port (> 14)
4 Display (> 31)
3 4 5 6 7
5 Remote control signal sensor
Distance: Within approx. 7 m (23 feet)
Angle: Approx. 20e up and down, 30e left and right
6 Stop (> 16)
7 Start play (> 16)
8 Open or close the disc tray (> 14)
Rear panel terminals (> 8–10)
VQT3V18
7
DMP-BD87_77_VQT3V18_eng.book 8 ページ 2011年12月22日 木曜日 午後8時19分
STEP 1 : Connecting to a TV
Perform either one of the following connections in accordance with your TV input terminal.
≥ Before making any connections, we recommend that you temporarily disconnect all the units from AC power.
≥ Do not connect video signals through a video recorder. Due to copy guard protection the picture may not be displayed properly.
≥ Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p signal, please use HDMI cables 5.0 meters (16.4 ft.) or less.
Recommended part number (High Speed HDMI Cable):
RP-CDHS15 (1.5 m/4.9 ft.), RP-CDHS30 (3.0 m/9.8 ft.), RP-CDHS50 (5.0 m/16.4 ft.), etc.
HDMI AV OUT (High quality)
HDMI IN
HDMI cable
VIDEO OUT (Standard quality)
VIDEO IN
L
R
AUDIO IN
Audio/Video cable
≥ Connect terminals of the same color.
STEP 2 : Connecting to an amplifier/receiver
HDMI cable HDMI cable
HDMI IN
HDMI OUT
(ARC)
HDMI IN
(ARC)
Amplifier/receiver
≥ Set “Digital Audio Output” (> 23).
≥ When using the TV or amplifier/receiver that does not have the indication of “(ARC)”
(non-ARC-compatible) on the HDMI terminal, in order to enjoy TV’s sound by amplifier/receiver it is also required to connect the amplifier/receiver and TV using an optical digital cable.
8
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 9 ページ 2011年12月22日 木曜日 午後8時19分
STEP 3 : Connecting to the network
The following services can be used when this unit is connected to broadband.
≥ Firmware can be updated (> 13)
≥ You can enjoy BD-Live (> 17)
≥ You can enjoy Network Service (> 18)
≥ You can access other devices (Home Network) (> 19)
For details about connection method, refer to the instructions supplied with the connected equipment.
Wireless LAN connection
– [BD871] [BD87] : Wireless LAN is built in. (There is no need to connect a Wireless LAN Adaptor.)
– [BD77] : Connect the Wireless LAN Adaptor DY-WL5 (optional). Only DY-WL5 can be used.
Read the operating instructions for DY-WL5 thoroughly when using it.
[BD871] [BD87]
[BD77]
Wireless router, etc.
Internet
≥ For up-to-date compatibility information on your wireless router refer to http://panasonic.jp/support/global/cs/
(This site is in English only.)
For additional information about this unit refer to http://www.panasonic.com/consumer/support (For U.S.A.)
≥ The unit is not compatible with public wireless LAN services provided in airports, stations, cafes, etc.
≥ See page 32 for the precautions of wireless LAN connection.
LAN cable connection
LAN Cable
Broadband router, etc.
Internet
≥ Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.
≥ Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.
VQT3V18
9
DMP-BD87_77_VQT3V18_eng.book 10 ページ 2011年12月22日 木曜日 午後8時19分
STEP 4 : Connecting to an AC power source
To a household AC outlet
≥ This unit consumes a small amount of AC power (> 32) even when turned off. In the interest of power conservation, if you will not be using this unit for an extended period of time, it can be disconnected.
10
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 11 ページ 2011年12月22日 木曜日 午後8時19分
STEP 5 : Settings
Easy Setting
After connecting your new player for the first time and pressing [Í], a screen for the basic settings will appear.
Easy Network Setting
After completing “Easy Setting”, you can perform
“Easy Network Setting”.
Wired connection
Select “Wired” and press [OK].
Preparation
Turn on the television and select the appropriate video input on the television.
1
Press [Í].
Setup screen appears.
2
Follow the on-screen instructions and apply the settings.
Easy Network Setting
Select a connection mode.
Current setting Wired
≥ You can perform this setup anytime by selecting “Easy
Setting” in the Setup menu. (> 25)
Wired
Wireless
OK
RETURN
Follow the on-screen instructions to apply your connection settings.
Wireless connection
Preparation
≥ Obtain your network name (> 12, SSID).
≥ If your wireless connection is encrypted, please be sure that you know your encryption key (password).
≥ [BD77] : If “Wireless LAN Adaptor is not connected.” is displayed, check that the Wireless LAN Adaptor is fully inserted. Alternatively, disconnect and reconnect it. If there is still no change in the display, consult your dealer for advice.
1
Select “Wireless” and press [OK].
2
Select “Search for wireless network” or
“WPS (PUSH button method)” and press
[OK], then follow the on-screen instructions and apply the settings.
Wireless Settings
Select a connection method.
Please refer to the operating instructions of your wireless access point about connection methods.
Search for wireless network
WPS (PUSH button method)
∫
“WPS (PUSH button method)”
If you are using a wireless router that supports
WPS (Wi-Fi Protected Setup TM ), you can easily perform the settings.
VQT3V18
11
DMP-BD87_77_VQT3V18_eng.book 12 ページ 2011年12月22日 木曜日 午後8時19分
∫
“Search for wireless network”
The available wireless networks will be displayed.
1 Select your network name and press [OK].
≥ If your network name is not displayed, search again by pressing the [R] button on the remote control. Stealth SSID will not be displayed, in this case enter manually.
Connection Settings
Select a wireless network for connection.
SSID
XXXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX
XXXXXXXXXX
Reception
To enter your network name (SSID) manually
If your network name (SSID) is not displayed in step 1, follow these steps.
1 To display the network name (SSID) input screen :
While displaying the HOME menu, press
[SETTINGS] > select “Network” > [OK] > select “Network Settings” > [OK] > select
“Wireless Settings” > [OK] > select
“Connection Setting” > [OK] > select
“Manual setting” > [OK]
2 Press [OK] to select “SSID” and enter your
SSID.
Wireless Settings
Enter your network name (SSID) to connect.
OPTION
OK
RETURN
Search again
SSID
Set
When your wireless network is encrypted
2 Press [OK] to select “Encryption Key”.
Wireless Settings
Enter the encryption key (password) of the wireless network.
≥ If your wireless network is encrypted, go to step 2.
Encryption Key
Set
3 Enter your encryption key (password).
Encryption Key (Password) l
Shift
OK
RETURN h o v
Space b i p w
/
Symbols c j q x
: d k r y
~ e l s z
_ f m t
.
-
Alphanumeric g n u
@
,
1
4
7
*
;
2
5
8
0
‘
3
6
9
#
“
Other Characters
Delete
Finish
≥ Refer to the operating instructions of the hub or router.
≥ WPS (Wi-Fi Protected Setup) is a standard that facilitates settings relating to the connection and security of wireless
LAN devices. To see whether your wireless router supports
WPS, check the wireless router operating instructions.
≥ You can perform this setup anytime by selecting “Easy
Network Setting” in the Setup menu. (> 24)
≥ You can redo these settings individually using “Network
Settings”. (> 24)
≥ Do not use this unit to connect to any wireless network for which you do not have usage rights.
During automatic searches in a wireless network environment, wireless networks (SSID*) for which you do not have usage rights may be displayed; however, using these networks may be regarded as illegal access.
≥ After performing network settings on this unit, the settings
(encryption level, etc.) of the wireless router might change.
When you have trouble getting online on your PC, perform the network settings on your PC in accordance with the settings of wireless router.
≥ Please be aware that connecting to a network without encryption may result in the content of the communication being illegitimately viewed by a third party, or the leaking of data such as personal or secret information.
* SSID:
An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network.
Transmission is possible if the SSID matches for both devices.
12
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 13 ページ 2011年12月22日 木曜日 午後8時19分
Reprogramming the remote control
If you have more than one Panasonic player/ recorder and the remote control operates both products at once, you will need to change the remote control code to prevent this occurrence.
(> 26, “Remote Control Code”)
Firmware updates
Occasionally, Panasonic may release updated firmware for this unit that may add or improve the way a feature operates. These updates are available free of charge.
This unit is capable of checking the firmware automatically when connected to the Internet via a broadband connection.
When a new firmware version is available, the following message is displayed.
New firmware is available.
Please update firmware in Setup.
To update the firmware
Press [HOME] > press [SETTINGS] > select
“System” > [OK] > select “Firmware Update”
> [OK] > select “Update Now” > [OK]
DO NOT DISCONNECT the unit from the AC power or perform any operation while the update takes place.
After the firmware is installed, “FIn” will be displayed on the unit’s display. Unit will restart and the following screen will be displayed.
The firmware was updated.
Current Version : x.xx
OK
RETURN
≥ If downloading on this unit fails or this unit is not connected to the Internet, then you can download the latest firmware from the following website and burn it to a CD-R to update the firmware.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
To show the firmware version on this unit.
(> 26, “Firmware Version Information”)
≥ Downloading will require several minutes. It may take longer or may not work properly depending on the connection environment.
≥ If you do not want to check for the latest firmware version, set “Automatic Update Check” to “Off”. (> 26)
VQT3V18
13
DMP-BD87_77_VQT3V18_eng.book 14 ページ 2011年12月22日 木曜日 午後8時19分
Inserting or removing media
HOME menu
Major functions of this unit can be operated from the HOME menu.
Preparation
Turn on the television and select the appropriate video input on the television.
1
Press [Í] to turn on the unit.
2
Press [OK] or [3, 4, 2, 1] to select the item.
≥ If there are any other items, repeat this step.
≥ When inserting a media item, ensure that it is facing the right way up.
≥ If you connect a Panasonic product with a USB connection cable, the setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment.
≥ [BD77] : Use the front USB port when you connect a USB memory or a USB HDD. The
USB port on the rear panel is only for the
Wireless LAN Adaptor DY-WL5 (optional).
CAUTION
Do not place objects in front of the unit. The disc tray may collide with objects when it is opened, and this may cause malfunction.
HOME
Blu-ray Disc Player
Photos
Network
Setup Music
Videos
Personalize
1st user
Videos/Photos/Music
Disc
USB
Play back the contents. (> 16)
≥ When multiple contents are recorded, select the types of contents or the title.
Network
Network
Service
Home
Network
Displays the Home screen of
Network Service. (> 18)
DLNA Client (> 19)
Media Renderer (> 19)
Setup
Player
Settings
USB
Management
(> 23)
(> 17)
Wallpaper
Changes the background of
HOME menu.
To show the HOME menu
Press [HOME].
≥ Items to be displayed may vary with the media.
≥ Where necessary, set “Mixed Data Disc Option” when using a disc with both data files (MP3, JPEG, MKV, etc.) and Video (BDAV and AVCHD). (> 26)
14
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 15 ページ 2011年12月22日 木曜日 午後8時19分
Multi User Mode
Multi User Mode is a function that enables switching of multiple settings easily.
Up to 4 people can use the unit with their own settings.
The following settings can be personalized.
≥ The user icon
≥ The wallpaper of Home menu
≥ The picture settings (> 21, 23)
A
HOME
User 1
Blu-ray Disc Player
Network
Photos Setup Music
Videos
B
User 1 Personalize
2nd user
A The user name and icon currently selected
B Personalize a new user and switch the users with colored buttons.
Personalizing a new user
1
Press [HOME].
2
Press a colored button that indicates new user personalization.
3
Select an item and change the settings according to the indications.
The following items can be set.
Input
Nickname
Personalize a user name.
Personalize a user icon.
Select from illustrations
The image can be selected from prepared illustrations.
Select Icon
Select
Wallpaper
Create from Photos
You can select a photo in recording media as an icon.
(> 21, “Icon Personalization”)
Personalize a background of the
Home menu.
≥ Other than prepared wallpapers, you can also select a photo in recording media as a wallpaper.
(> 21, “Wallpaper”)
4
Select “Confirm” and press [OK].
To change the personalized user information
Select “Edit User Information” from Setup menu.
(> 26)
Switching the user
Press the colored buttons in the Home menu to switch to the user corresponding to the button.
VQT3V18
15
DMP-BD87_77_VQT3V18_eng.book 16 ページ 2011年12月22日 木曜日 午後8時19分
Playback
1
Insert the media.
Playback starts depending on the media.
2
Select the item to play and press [OK].
Repeat this procedure if necessary.
≥ DISCS CONTINUE TO ROTATE WHILE MENUS ARE
DISPLAYED. Press [∫STOP] when you have finished playback to protect the unit’s motor, your television screen and so on.
≥ MKV: Successive play is not possible.
≥ It is not possible to play back AVCHD and MPEG2 video which have been dragged and dropped, copied and pasted to the media.
≥ To save on electricity, the power is turned off automatically if there is no button operation for about 30 minutes when not playing back (such as when paused, displaying the menu, displaying still pictures, etc.). (Compatible with
ENERGY STAR)
Operations during playback
Following functions may not work depending on the media and contents.
Stop
Press [∫STOP].
The stopped position is memorized.
Resume play function
Press [1PLAY] to restart from this position.
≥ The position is cleared if the tray is opened or you press [∫STOP] several times to display
“StOP” on the unit’s display.
≥ On BD-Video discs including BD-J, the resume play function does not work.
Pause
Press [;PAUSE].
≥ Press [;PAUSE] again or [1PLAY] to restart play.
Search/Slow-motion
Search
While playing, press [SEARCH6] or
[SEARCH5].
≥ Music and MP3: The speed is fixed to a single step.
Slow-motion
While paused, press [SEARCH5].
The speed increases up to 5 steps.
≥ Press [1PLAY] to revert to normal playback speed.
Skip
While playing or paused, press [:] or [9].
Skip to the title, chapter or track.
Frame-by-frame
While paused, press [1] (;1).
≥ Press and hold to change in succession forward.
≥ Press [1PLAY] to revert to normal playback speed.
Changing audio
Press [AUDIO].
You can change the audio channel number or soundtrack language, etc.
16
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 17 ページ 2011年12月22日 木曜日 午後8時19分
Displaying menus and playback information
Show top menu/pop-up menu
Press [POP-UP MENU/TOP MENU].
≥ Select the item and press [OK].
Show the status messages
While playing, press [STATUS].
The status messages give you information about what is currently being played. Each time you press [STATUS], the display information may change or will disappear from the screen.
≥ Depending on media and contents, the display may change or may not appear.
e.g., BD-Video
A B
T1 C1 0:05.14
0:20.52
C D
A T: Title, C: Chapter, PL: Playlist
B Elapsed time in the title
C Current position
D Total time e.g., JPEG
Date 11/12/2007
Size 500 x 375
Manufacturer
Equipment
1 / 26
BD (Video)
Play
Enjoying BD-Live
With “BD-Live” discs, you can enjoy bonus contents that use Internet access.
For this BD-Live function, connection of a USB device is necessary along with Internet connection.
1
Perform network connection and settings.
(> 9, 11)
2
Connect a USB device with 1 GB or more free space.
≥ The USB device is used as the local storage.
3
Insert the disc.
∫
Deleting data on the USB device
Select “USB Management” in the Home menu
(> 14), then select “BD-Video Data Erase” and press [OK].
≥ The usable functions and the operating method may vary with each disc, please refer to the instructions on the disc and/or visit their website.
≥ “BD-Live Internet Access” may need to be changed for certain discs (> 25).
Slideshow
Play a slideshow of photos and make various settings during the playback.
1
Insert the media.
2
Select “Photos”.
3
Select an item and press [G].
The following items can be set.
Start
Slideshow
Start the slideshow.
You can display still pictures in the selected folder one by one at a constant interval.
Display
Interval
Transition
Effect
Repeat Play
Change the display interval.
Select the effect when sliding pictures.
Set whether to repeat the slideshow.
≥ Still pictures displayed as “ with this unit.
” cannot be played back
VQT3V18
17
DMP-BD87_77_VQT3V18_eng.book 18 ページ 2011年12月22日 木曜日 午後8時19分
Enjoying Network
Service
(NETFLIX, etc.)
You can enjoy Network Service.
Network Service provides a variety of selected Internet services such as the following.
≥ Online movie rental service
≥ Video browsing service
Network Service
*
≥ Set “Network Service Lock” in “Ratings”, when restricting the use of Network Service. (> 25)
≥ If using slow Internet connection, the video may not be displayed correctly. A high-speed Internet service with a speed of at least 6 Mbps is recommended.
≥ Be sure to update the firmware when a firmware update notice is displayed on the screen. If the firmware is not updated, you may not be able to use Network Service function properly. (> 13)
≥ Network Service home screen is subject to change without notice.
≥ The services through Network Service are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.
≥ All features of websites or content of the service may not be available.
≥ Some content may be inappropriate for some viewers.
≥ Some content may only be available for specific countries and may be presented in specific languages.
Settings
Internet
* Images are for illustration purposes, contents may change without notice.
Preparation
≥ Network connection (> 9)
≥ Network setting (> 11)
1
Press [NETWORK].
≥ NETFLIX can be accessed directly by pressing [NETFLIX] button.
2
Press [1] to select “Network Service”.
3
Select the item and press [OK].
To exit from Network Service
Press [EXIT] or [HOME].
18
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 19 ページ 2011年12月22日 木曜日 午後8時19分
Home Network feature
Playing back contents on the DLNA server
You can share photos, videos and music stored in the DLNA Certified media server (PC with
Windows 7 installed, smartphone, etc.) connected to your home network, and enjoy the contents with this player.
Using the Digital Media
Controller
You can use the smartphone, etc. as the Digital
Media Controller (DMC) to play back contents from DLNA server on the Renderer (this unit).
Possible applications:
Renderer
Server
*
Controller
*
Server
Player
Preparation
1 Perform network connection (> 9) and network settings (> 11) of this unit.
2 Perform Home Network settings of the connected equipment.
3 Add the contents and folder to the libraries of the Windows Media ® Player or the smartphone, etc.
≥ Playlist of Windows Media ® Player can play back only the contents that are stored in the libraries.
1
Press [HOME].
2
Select “Network”.
3
Select “Home Network”.
4
Select “DLNA Client”.
≥ The list can be updated by pressing [R] on the remote control.
5
Select the equipment and press [OK].
6
Select the item to play and press [OK].
≥ You may be able to use convenient functions depending on the content by pressing [OPTION].
≥ Control Panel is displayed once the playback starts. Press [OK] if the Control
Panel is not displayed, and press
[RETURN] to hide the Control Panel.
To exit from Home Network
Press [EXIT], [HOME] or [POP-UP MENU/TOP
MENU].
Renderer
Server
+
Controller
*
* DMC compatible software should be installed.
Preparation
Perform steps 1 to 3. (> left)
4 Perform the “Remote Device Settings”. (> 25)
≥ You can register up to 16 devices.
1
Press [HOME].
2
Select “Network”.
3
Select “Home Network”.
4
Select “Media Renderer”.
5
Operate the DMC compatible devices.
To exit from Media Renderer screen
Press [HOME].
For more details, refer to the following website and the operating instructions for each of the equipment.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
≥ Depending on the contents and the connected equipment, playback may not be possible.
≥ Items displayed in gray on the display cannot be played back by this unit.
≥ This unit can be played back via connected equipment only when controlled using DMC.
VQT3V18
19
DMP-BD87_77_VQT3V18_eng.book 20 ページ 2011年12月22日 木曜日 午後8時19分
“HDMI CEC”
This unit supports HDMI CEC (Consumer
Electronics Control).
You can use this function by connecting the equipment with an HDMI cable. See the operating instructions for connected equipment for operational details.
Power off link
All connected equipment compatible with “HDMI
CEC”, including this unit, automatically turns off when you switch the television off.
Preparation
1 Set “HDMI CEC” to “On” (> 26). (The default setting is “On”.)
2 Set the “HDMI CEC” operations on the connected equipment (e.g., TV).
3 Turn on all “HDMI CEC” compatible equipment and select this unit’s input channel on the connected TV so that the “HDMI CEC” function works properly.
Also when the connection or settings are changed, repeat this procedure.
≥ Operation cannot be guaranteed on all HDMI CEC devices.
Automatic input switching
Power on link
When play starts on the unit, the TV will automatically switch the input channel and the screen of this unit will be displayed.
Additionally when the TV is off, the TV will automatically turn on.
20
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 21 ページ 2011年12月22日 木曜日 午後8時19分
A variety of playback operations and settings can be performed from this menu.
Available options differ depending on the playing contents and the condition of the unit.
About Multi User Mode
: Settings of the items with this indication are saved by the respective users registered in the
Home menu.
Please refer to page 15 for details about user registration and switching.
1
Press [OPTION].
≥ When playing music, select “Playback
Settings” and press [OK].
e.g., BD-Video
Operation Menu
Soundtrack
Subtitle
Angle
Repeat Play
Status
Primary Video
Secondary Video
Top Menu
Pop-up Menu
1 ENG Dolby TrueHD M...
1
Off
MPEG-4 AVC
Operation Menu
∫ Soundtrack
Show or change the soundtrack.
∫ Audio channel
Select the audio channel number.
∫ Subtitle
Change the subtitle settings.
∫ Angle
Select the number of the angle.
∫ Repeat Play
(Only when the elapsed time is being displayed on the unit’s display.)
Select the item that you want to repeat.
≥ The items displayed differ depending on the type of media.
≥ Select “Off” to cancel.
∫ Shuffle
Select whether or not to play random.
∫ Start Slideshow
Start the slideshow.
2
Select an item and change the settings.
To exit the screen
Press [OPTION].
∫ Status
Show the status messages.
Regarding Language : (> 31)
∫ Rotate Right
∫ Rotate Left
Rotate the still picture.
∫ Wallpaper
Set the still picture to the wallpaper of HOME menu.
(> 14)
∫ Icon Personalization
Set the still picture as your user icon.
(> 15)
VQT3V18
21
DMP-BD87_77_VQT3V18_eng.book 22 ページ 2011年12月22日 木曜日 午後8時19分
∫ Video
The recording method of original video appears.
∫ Primary Video
The recording method of original primary video appears.
∫ Secondary Video
Video
Soundtrack
Select on/off of images. The recording method of original video appears.
≥ During search/slow-motion or frame-by-frame, only the primary video is displayed.
Select on/off of audio and the language.
∫ Top Menu
Display Top Menu.
∫ Pop-up Menu
Display Pop-up Menu.
∫ Menu
Display Menu.
Video Settings
∫ Picture Mode
Select the picture quality mode during play.
≥ If you select “User”, you can change settings in
“Picture Adjustment”.
∫ Picture Adjustment
Specific picture quality settings can be performed.
∫ Progressive
Select the method of conversion for progressive output to suit the type of material being played.
≥ When the content is distorted change the settings from “Auto” to “Video”.
∫ Reset to Default Video Settings
Return video settings to the factory preset.
22
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 23 ページ 2011年12月22日 木曜日 午後8時19分
Setup menu
Change the unit’s settings if necessary. The settings remain intact even if you switch the unit to standby.
Some items in the Setup menu are common to the Option menu. You can get the same effect with both menus.
About Multi User Mode
: Settings of the items with this indication are saved by the respective users registered in the
Home menu.
Please refer to page 15 for details about user registration and switching.
1
While displaying the HOME menu, press
[SETTINGS].
¾ 24p Output
When this unit is connected to a TV supporting
1080/24p output using an HDMI cable, movies and other material recorded at 24p are output at 24p.
≥ When BD-Video images other than 24p are played, images are output at 60p.
≥ 24p : A progressive image recorded at a rate of 24 frames per second (motion-picture film). Many
BD-Video movie contents are recorded in 24 frames/ second in accordance with the film materials.
¾ Deep Color Output
This setting is for selecting whether to use Deep
Color output when a television that supports
Deep Color is connected.
¾ Contents Type Flag
Depending on the playback content, the TV will output adjusting to the optimal method when a
TV that supports this function is connected.
Player Settings
Video
Audio
Language
Network
Ratings
System
Picture Mode
Picture Adjustment
HDMI Output
Black Level Control
Normal
Lighter
∫ Black Level Control
Select lighter or darker for adjusting the black level to the desired setting for picture enhancement.
OK
RETURN
2
Select an item and change the settings.
To exit the screen
Press [EXIT].
Video
∫ Picture Mode (> 22)
∫ Picture Adjustment (> 22)
∫ HDMI Output
Press [OK] to show the following settings:
¾ HDMI Resolution
The items supported by the connected devices are indicated on the screen as “¢”. When any item without “¢” is selected, the images may be distorted.
≥ If “Auto” is selected, the best suited output resolution to the connected television is automatically selected.
≥ To enjoy high-definition video up-converted to
1080p, you need to connect the unit directly to 1080p compatible HDTV (High Definition
Television). If this unit is connected to an
HDTV through other equipment, the other equipment must also be 1080p compatible.
Audio
∫ Dynamic Range Compression
You can listen at low volumes but still hear dialog clearly.
(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)
≥ “Auto” is effective only when playing Dolby TrueHD.
∫ Digital Audio Output
Press [OK] to show the following settings:
¾ Dolby D/Dolby D +/Dolby TrueHD
¾ DTS/DTS-HD
Select the audio signal to output.
≥ Select “PCM”, when the connected equipment cannot decode the respective audio format.
This unit decodes the audio format and transmits to the connected equipment.
≥ Not making the proper settings may result in noise.
¾ BD-Video Secondary Audio
Select whether or not to mix the primary and secondary audio (including the button click sound).
If “Off” is selected, the unit outputs the primary audio only.
VQT3V18
23
DMP-BD87_77_VQT3V18_eng.book 24 ページ 2011年12月22日 木曜日 午後8時19分
¾ HDMI Audio Output
This setting selects whether or not to output audio from HDMI.
∫ Downmix
Select the downmix system of multi-channel to
2-channel sound.
≥ Select “Surround encoded”, when the connected equipment supports the virtual surround function.
≥ There is no effect on “Bitstream” via HDMI AV
OUT.
≥ The audio will be output in “Stereo” in the following cases:
– AVCHD playback
– Playback of secondary audio (including the button click sound).
Network
∫ Easy Network Setting (> 11)
∫ Network Settings
Perform network-related settings individually.
Press [OK] to show the following settings:
¾ LAN Connection Mode
Select the LAN connection method.
¾ Wireless Settings
This allows the wireless router and connection settings to be set. Current connection settings and connection state can be checked.
Language
∫ Audio Language
Choose the language for audio.
≥ If “Original” is selected, the original language of each disc will be selected.
≥ Enter a code (> 31) when you select “Other
¢¢¢¢”.
∫ Subtitle Language
Choose the language for the subtitle.
≥ If “Auto” is selected and the language selected for “Audio Language” is not available, subtitles of that language will automatically appear if available on that disc.
≥ Enter a code (> 31) when you select “Other
¢¢¢¢”.
Connection Setting
The wireless router connection wizard will be displayed.
Double Speed Mode Setting (2.4GHz)
When a 2.4 GHz wireless format is used, this sets the connection speed.
≥ If you connect using the “Double Speed
Mode (40MHz)”, 2 channels use the same frequency band, and there is consequently a greater risk of reception interference. This can cause the connection speed to drop or become unstable.
¾ IP Address/DNS Settings
This is for checking the state of the network connection and setting the IP address and
DNS-related.
Press [OK] to show the respective setting.
∫ Menu Language
Choose the language for the disc menus.
≥ Enter a code (> 31) when you select “Other
¢¢¢¢”.
∫ Subtitle Text
Select a suitable item according to the language used for MKV subtitles text.
≥ This item is displayed only after playing back a file.
¾ Proxy Server Settings
This is for checking the state of connection with the Proxy server and performing settings.
Press [OK] to show the respective setting.
∫ On-screen Language
Choose the language for menus and on-screen messages.
24
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 25 ページ 2011年12月22日 木曜日 午後8時19分
¾ Network Drive Connection
It is possible to access the shared folder of equipment not compatible with DLNA, such as the Windows XP operating system, and play back video, still pictures, and music on this unit.
For the setting and operation method of connected equipment, refer to the following Website. http://panasonic.jp/support/global/cs/
(This site is in English only.)
Ratings
The following items use the same password.
Don’t forget your password.
∫ DVD-Video Ratings
Set a ratings level to limit DVD-Video play.
∫ BD-Video Ratings
Set an age limit of BD-Video play.
¾ Remote Device Settings (> 19)
Press [OK] to show the following settings:
∫ Network Service Lock
You can restrict the usage of Network Service.
Remote Device Operation
Enable to operate by DMC.
≥ If “On” is selected, “Quick Start” is fixed to “On”.
Setting Unit Name
Set the name of this unit to be displayed on the connected equipment.
≥ [BD871] [BD87] : With the default setting, the unit name will be displayed as “DMP-BD87”.
System
∫ Easy Setting
You can execute basic settings.
∫ Display Settings
Press [OK] to show the following settings:
Registration Type
Auto
Manual
Allow connection to all the equipment that is accessing this unit.
Set the permission of the connection individually for the equipment that is accessing this unit.
Remote Device List
Registering/deregistering of the displayed equipment can be performed when “Manual” in “Registration Type” is selected.
¾ BD-Live Internet Access (> 17)
You can restrict Internet access when BD-Live functions are used.
≥ If “Allow (Limited)” is selected, Internet access is permitted only for BD-Live contents which have content owner certificates.
¾ TV Aspect
Set to match the type of television connected.
When connected to a 4:3 aspect television and playing 16:9 ratio image:
4:3 Pan &
Scan
The sides are cut off so the picture fills the screen. When playing BD-Video, video is output as “4:3 Letterbox”.
4:3
Letterbox
Black bands appear at the top and bottom of the picture.
When connected to a 16:9 widescreen television and playing 4:3 ratio image:
16:9
16:9 Full
Video is displayed as a 4:3 ratio image in the center of the screen.
Video is displayed as a horizontally stretched 16:9 image.
VQT3V18
25
DMP-BD87_77_VQT3V18_eng.book 26 ページ 2011年12月22日 木曜日 午後8時19分
¾ Screen Saver Function
This is to prevent burn-in on the screen.
≥ When this is set to “On”:
If a list of playback content is displayed and there is no operation for 10 minutes or more, the screen switches to HOME menu automatically.
≥ While playing and pausing, etc., this function is not available.
∫ Remote Control Code
Change the remote control code if other
Panasonic products react to this remote control.
∫ Firmware Update (> 13)
Press [OK] to show the following settings:
¾ Automatic Update Check
When this equipment remains connected to the
Internet, it will check for the latest firmware version when it is turned on and you can update it if necessary.
¾ Status Messages
Choose whether to show status messages automatically.
¾ HDMI CEC
Set to use “HDMI CEC” function when connected via HDMI cable to a device that supports “HDMI CEC”.
≥ Select “Off” when you do not want to use
“HDMI CEC”.
¾ Update Now
You can update the firmware manually if a firmware update is available.
∫ Unit Settings
Press [OK] to show the following settings:
¾ Mixed Data Disc Option
Select the playback contents on discs with both data files and Video.
≥ If “MP3/JPEG/MKV” is selected, the video menu function (except MKV) cannot be played back.
≥ If “BDAV/AVCHD” is selected, data file cannot be played back.
¾ Front Panel Display
Changes the brightness of the unit’s display.
≥ If “Auto” is selected, the display is set to bright and only dimmed during playback.
∫ System Information
Press [OK] to show the following settings:
¾ License
Information about the software used by this unit is displayed.
¾ Firmware Version Information
Display firmware version of this unit and wireless LAN module.
∫ Restore Default Settings
This returns all values in the Setup menu and the
Option menu to the default settings, except for some settings of network, ratings, remote control code, language, etc.
¾ Edit User Information
Change the user information registered in the
Home menu.
∫ Quick Start
Speed of startup from power off is increased.
≥ When set to “On”, the internal control unit will be powered and the idle power consumption will increase compared to when set to “Off”. (About the power consumption > 32)
26
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 27 ページ 2011年12月22日 木曜日 午後8時19分
Before requesting service, please perform the following steps.
General operation
To return to the factory preset.
¾ Select “Yes” in “Restore Default Settings” in the Setup menu. (> 26) Do you have the latest firmware installed?
Firmware updates may be released to correct operating irregularities that are discovered with certain movies. (> 13)
4
Make the following checks and visit our website for more information.
For U.S.A. : www.panasonic.com/help
Enter the model number.
For Canada : http://www.panasonic.ca
4
Or visit our website to find a service center.
You can find a service center near you easily on our website.
Other support information:
“Customer Services Directory (United States and Puerto Rico)” (> 37) or “Limited
Warranty (Only for CANADA)” (> 38).
To return all settings to the factory preset.
¾ Reset the unit as follows:
1 While the unit is on, press and hold [OK], [B] and [Y] on the remote control at the same time for more than 5 seconds.
– “00rEt” is displayed on the unit’s display.
2 Repeatedly press [ 1] (right) on the remote control or [Í/I] on the unit until “08FIn” is displayed on the unit’s display.
3 Press and hold [OK] on the remote control or
[< OPEN/CLOSE] on the unit for at least
5 seconds.
The remote control doesn’t work properly.
¾ Change the batteries in the remote control.
(> 4)
¾ The remote control and main unit are using different codes. If “SEt ” is displayed on the unit’s display when a button is pressed on the remote control, change the code on the remote control. (> 26, 30)
The following do not indicate a problem with this unit:
– Regular disc rotating sounds.
– Image disturbance during search.
∫
Unit doesn’t respond to remote control or front panel buttons.
Disconnect the power cord, wait 1 minute, then reconnect the power cord.
∫
Cannot eject disc.
The unit may have a problem.
1 While the unit is on, press and hold [OK], [B] and [Y] on the remote control at the same time for more than 5 seconds.
– “00rEt” is displayed on the unit’s display.
2 Repeatedly press [ 1] (right) on the remote control or [Í/I] on the unit until “06FtO” is displayed on the unit’s display.
3 Press [OK] on the remote control or
[< OPEN/CLOSE] on the unit.
The TV tuner mode is not displayed when the
TV is switched on.
¾ This phenomenon may occur, depending on the
TV setting, when “Quick Start” is set to “On”.
¾ Depending on the TV, this phenomenon may be prevented by reconnecting the HDMI cable to a different HDMI input terminal or by changing the HDMI auto connection setting.
You have forgotten your ratings password.
You want to cancel the ratings level.
¾ The ratings level returns to the factory preset.
1 While the unit is on, press and hold [OK], [B] and [Y] on the remote control at the same time for more than 5 seconds.
– “00rEt” is displayed on the unit’s display.
2 Repeatedly press [ 1] (right) on the remote control or [Í/I] on the unit until “03VL” is displayed on the unit’s display.
3 Press [OK] on the remote control or
[< OPEN/CLOSE] on the unit.
VQT3V18
27
DMP-BD87_77_VQT3V18_eng.book 28 ページ 2011年12月22日 木曜日 午後8時19分
This unit does not recognize the USB connection correctly.
¾ Disconnect and reconnect the USB cable. If it still does not recognize the connection, turn the power of this unit off and on again.
¾ USB devices may not be recognized by this unit when connected using the following :
– a USB hub
– a USB extension cable other than the supplied with the Wireless LAN Adaptor
DY-WL5 (optional)
¾ If you connect USB HDD to this unit, use the
USB cable that is supplied with the HDD.
The unit switches to standby mode.
¾ This unit will automatically turn to standby mode after 30 minutes if it is inactive. (> 16)
¾ One of the unit’s safety devices is activated
(U59 is displayed). Wait until this unit has cooled down.
The images from this unit do not appear on the television.
Picture is distorted.
¾ An incorrect resolution is selected in “HDMI
Resolution”. Reset the setting as follows:
1 While the unit is on, press and hold [OK], [B] and [Y] on the remote control at the same time for more than 5 seconds.
– “00rEt” is displayed on the unit’s display.
2 Repeatedly press [ 1] (right) on the remote control or [Í/I] on the unit until “04PrG” is displayed on the unit’s display.
3 Press and hold [OK] on the remote control or
[< OPEN/CLOSE] on the unit for at least
5 seconds.
Set the item again. (> 23)
– When Dolby Digital Plus, Dolby TrueHD, and DTS-HD audio are not output in bitstream, select “Yes” in “Restore Default
Settings” and make proper settings. (> 26)
Video is not output in high-definition.
¾ Confirm that “HDMI Resolution” in the Setup menu is set properly. (> 23)
No subtitles.
¾ When progressive output is on, closed captions/subtitles cannot be displayed.
The subtitles overlap closed captions recorded on discs.
¾ Turn off the subtitles or the closed caption setting on the TV. (> 21)
A black band is displayed around the edge of the screen.
The aspect ratio of the screen is abnormal.
¾ Confirm the “TV Aspect” is set properly. (> 25)
¾ Adjust the aspect setting on the television.
28
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 29 ページ 2011年12月22日 木曜日 午後8時19分
Audio
Cannot hear the desired audio type.
¾ Check the connections and the “Digital Audio
Output” settings. (> 8, 23)
¾ To output audio from a device connected with an HDMI cable, set “HDMI Audio Output” to
“On” in the Setup menu. (> 24)
Network
I can’t connect to the network.
¾ Confirm the network connection and settings.
(> 9, 11, 24)
¾ Check the operating instructions for each device and connect accordingly.
Playback
Disc cannot be played.
¾ The disc is dirty. (> 4)
Still pictures (JPEG) do not play back normally.
¾ The images that were edited on the PC, such as Progressive JPEG, etc., may not be played back.
I can’t play back BD-Live.
¾ Confirm that this unit is connected to the broadband Internet. (> 9)
¾ Confirm the “BD-Live Internet Access” settings. (> 25)
¾ Confirm a USB device is connected to the
USB port. (> 14)
When using wireless LAN connection, video from the DLNA Certified media server is not played back or video frames are dropped during playback.
¾ Higher transfer rate router such as 802.11n
(2.4 GHz) wireless router may solve the problem. If you use 802.11n (2.4 GHz) wireless router, it is necessary to set the encryption type to “AES”.
Simultaneous use with a microwave, cordless telephone etc. at 2.4 GHz may result in connection interruptions or other problems.
¾ On the “Wireless Settings” screen (> 24), the continuous lighting of at least 4 “Reception” indicators is the target for a stable connection.
If 3 or fewer indicators are lit or the connection is being interrupted, change the position or angle of your wireless router and see if the connection state improves. If there is no improvement, connect to a wired network and perform the “Easy Network
Setting” (> 11) again.
VQT3V18
29
DMP-BD87_77_VQT3V18_eng.book 30 ページ 2011年12月22日 木曜日 午後8時19分
Messages
The following messages or service numbers appear on the television or unit’s display.
On the television
Cannot play.
¾ You inserted an incompatible disc (Discs recorded in PAL video, etc.).
Cannot display on this unit.
¾ You tried to play a non-compatible image.
No disc inserted.
¾ The disc may be upside down.
$ This operation is not available.
¾ Some operations are unsupported by the unit.
For example;
– During playback, reverse slow-motion or reverse frame-by-frame is not possible.
IP address is not set.
¾ The “IP Address” in “IP Address/DNS
Settings” is “---. ---. ---. ---”. Set the “IP
Address”, “Subnet Mask”, and “Default
Gateway”. (Select the automatic address acquisition if necessary.)
The current wireless network security setting is weak. It is recommended to change to a stronger security setting.
¾ Authentication type for the wireless LAN is set to “Open system”, or the encryption type is set to “No encryption”. It is recommended to encrypt for safety reasons. For details, refer to the instructions of the wireless router being used. Encryption is required when playing back video, etc., from DLNA compatible devices.
On the unit’s display
SEt (“ ” stands for a number.)
¾ The remote control and main unit are using different codes. Change the code on the remote control.
Press and hold [OK] and the indicated number button at the same time for more than
5 seconds.
H or F
(“ ” stands for a number.)
¾ There is something unusual.
¾ Check the unit using the troubleshooting guide. If the service number remains displayed, do the following.
1 Disconnect the plug from the AC outlet, wait a few seconds, then reconnect it.
2 Press [ Í/I] to turn the power on.
If the service number remains displayed despite doing the above, request service from the dealer.
Inform the dealer of the service number when requesting service.
30
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 31 ページ 2011年12月22日 木曜日 午後8時19分
Supplemental information
∫
Display languages list
Display Language Display Language Display Language
ENG
FRA
DEU
ITA
ESP
NLD
SVE
NOR
DAN
POR
RUS
English
French
German
Italian
Spanish
Dutch
Swedish
Norwegian
Danish
Portuguese
Russian
JPN
CHI
KOR
MAL
VIE
THA
POL
CES
SLK
HUN
FIN
Japanese
Chinese
Korean
Malay
Vietnamese
Thai
Polish
Czech
Slovak
Hungarian
Finnish
ARA
HIN
PER
IND
MRI
BUL
RUM
GRE
TUR
Arabic
Hindi
Persian
Indonesian
Maori
Bulgarian
Romanian
Greek
Turkish
Others
∫
Language code list
Language Code Language Code Language Code
Abkhazian:
Afar:
Afrikaans:
Albanian:
Amharic:
Arabic:
Armenian:
Assamese:
Aymara:
Azerbaijani:
Bashkir:
6590
6665
Basque:
Bengali; Bangla:
6985
Bhutani:
6678
6890
Bihari:
Breton:
Bulgarian:
Burmese:
6672
6682
6671
7789
Byelorussian: 6669
Cambodian: 7577
Catalan:
Chinese:
Corsican:
Croatian:
Czech:
6765
9072
6779
7282
6783
6566
6565
6570
8381
6577
6582
7289
6583
6589
Danish:
Dutch:
English:
Esperanto:
Estonian:
Faroese:
Fiji:
Finnish:
French:
Frisian:
Galician:
Georgian:
German:
Greek:
Greenlandic:
Guarani:
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
7384
7465
7487
7578
7583
7575
Kirghiz:
Korean:
Kurdish:
Laotian:
7589
7579
7585
7679
Latin: 7665
Latvian, Lettish: 7686
7185
7265
7387
7273
7285
7383
7378
7365
7165
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
7865
7869
7879
7982
Pashto, Pushto: 8083
Persian: 7065
Polish:
Portuguese:
Punjabi:
Quechua:
8076
8084
8065
8185
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
Tamil:
Tatar:
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapük:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
Rhaeto-Romance:
8277
Romanian: 8279
Russian:
Samoan:
Sanskrit:
Scots Gaelic:
8285
8377
8365
7168
Serbian: 8382
Serbo-Croatian: 8372
Shona:
Sindhi:
Singhalese:
Slovak:
Slovenian:
Somali:
Spanish:
Sundanese:
Swahili:
Swedish:
Tagalog:
Tajik:
8378
8368
8373
8375
8376
8379
6983
8385
8387
8386
8476
8471
8590
8673
8679
6789
8779
8872
7473
8979
9085
8465
8484
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
∫
Unit’s display list
This list only contains displays that are difficult to read.
Display Reading
BYE
Display Reading
OPEN
READ
STOP
DISC
NET
UPD *
SET *
PLAY
SETUP
SLIDE
USB
START
FINISH
No DISC,
No PLAY,
No READ,
UNSUPPORT
* “ ” stands for a number.
VQT3V18
31
DMP-BD87_77_VQT3V18_eng.book 32 ページ 2011年12月22日 木曜日 午後8時19分
Precautions of Wireless
LAN connection
The following limits are in place regarding the usage of this unit or Wireless LAN Adaptor. You must be aware of these limits before using these devices.
Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of these devices.
≥ Data transmitted and received over radio waves may be intercepted and monitored.
≥ This unit or Wireless LAN Adaptor contain delicate electronic components.
Please use these devices in the manner in which they were intended and follow the following points:
– Do not expose these devices to high temperatures or direct sunlight.
– Do not bend, or subject these devices to strong impacts.
– Keep these devices away from moisture.
– Do not disassemble or alter these devices in any way.
Specifications
Signal system
Operating temperature range
Operating humidity range
Video output
Audio output
HDMI AV output
NTSC i5 oC to i35 oC
(i41 oF to i95 oF)
10 % to 80 % RH
(no condensation)
Output level: 1.0 Vp-p (75 ≠)
Output connector:
Pin jack (1 system)
Output level: 2 Vrms (1 kHz, 0 dB)
Output connector: Pin jack
Number of connectors:
2 channel
1 system
Output connector:
Type A (19 pin) 1 system
USB slot
Ethernet
[BD871] [BD87]
Wireless LAN
[BD871] [BD87] USB2.0:
1 system
[BD77] USB2.0: 2 system
10BASE-T/100BASE-TX
1 system
Standard Compliance:
IEEE802.11 b/g/n
Frequency range:
2.4 GHz band
Security:
WPA TM / WPA2 TM
( Encryption Type: TKIP/AES,
Authentication Type: PSK
WEP (64 bit/128 bit)
),
LASER Specification Class I LASER Product
Wave length: 790 nm (CDs)/
658 nm (DVDs)/405 nm (BDs)
Laser power: No hazardous radiation is emitted with the safety protection
Power supply AC 120 V, 60 Hz
Power consumption Approx. 15 W
Power consumption in standby mode
Power consumption in quick start standby mode
Dimensions
(WkHkD)
Mass (Weight)
Approx. 0.5 W
Approx. 5 W
430 mmk36 mmk199 mm
(Approx. 16 15/16zk1 7/16zk
7 27/32z)
Approx. 1.5 kg (3.3 lbs)
≥ Specifications are subject to change without notice.
32
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 33 ページ 2011年12月22日 木曜日 午後8時19分
File format
File format
MP3
JPEG
MKV
FLAC
WAV
Extension
“.MP3”, “.mp3”
Reference
This unit supports ID3 tags, but only titles, artist names and album names can be displayed.
“.JPG”, “.jpg”
≥ MOTION JPEG and
Progressive JPEG is not supported
≥ You may not be able to play back the file if you have edited the folder structure or the file name on a PC or other device.
“.MKV”, “.mkv” ≥ The video file and subtitles text file are inside the same folder, and the file names are
Subtitles text file
“.SRT”, “.srt”,
“.SSA”, “.ssa”,
“.ASS”, “.ass” the same except for the file extensions.
≥ Some MKV file may not be played back, depending on the video resolution and frame rate condition.
“.flac”
“.wav”
Maximum sampling rate:
192 kHz/24 bit
Maximum sampling rate:
192 kHz/24 bit
≥ With certain recording states and folder structures, the play order may differ or playback may not be possible.
Restriction on use of unauthorized copied content
This unit adopts the following technology for copyright protection.
Cinavia Notice
This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.
More information about Cinavia technology is provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.
To request additional information about Cinavia by mail, send a postcard with your mailing address to:
Cinavia Consumer Information Center, P.O.
Box 86851, San Diego, CA, 92138, USA.
Audio information
The audio output differs depending on the settings on the unit. (> 23, Digital Audio Output)
≥ The number of channels listed is the maximum possible number of output channels when connected to amplifier/receiver compatible with the respective audio format.
Terminal
HDMI AV
OUT
“Digital Audio Output”
“Bitstream” “PCM” *2
Outputs using original audio *1
BD-Video :
7.1ch PCM *1
DVD-Video :
5.1ch PCM
*1
*2
When “BD-Video Secondary Audio” is set to “On”, the audio will be output as Dolby Digital, DTS Digital Surround or 5.1ch PCM.
The maximum possible number of Dolby sound is 2ch
PCM.
VQT3V18
33
DMP-BD87_77_VQT3V18_eng.book 34 ページ 2011年12月22日 木曜日 午後8時19分
“AVCHD” is a trademark of Panasonic Corporation and Sony Corporation.
Java is a registered trademark of Oracle and/or its affiliates.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929;
7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All
Rights Reserved.
This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi
Corporation. Reverse engineering and disassembly are prohibited.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
This product is licensed under the AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard (“AVC/VC-1 Video”) and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC/VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.
The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.
The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.
“Wi-Fi”, “Wi-Fi Protected Setup”, “WPA” and “WPA2” are marks or registered marks of the Wi-Fi Alliance.
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network
Alliance.
Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.
34
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 35 ページ 2011年12月22日 木曜日 午後8時19分
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2 (GPL v2),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL v2.1) and/or,
(5) open sourced software licensed under its applicable license terms including but not limited to ICU License, c-arse license, gSOAP
Public License 1.3b,
(6) Adobe Flash Lite for Digital Home Software licensed by Adobe Systems Incorporated or its affiliates.
For the software categorized as (3) and (4), please refer to the terms and conditions of GPL v2 and LGPL v2.1, as the case may be at http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html.
In addition, the software categorized as (3) and (4) are copyrighted by several individuals. Please refer to the copyright notice of those individuals at http://panasonic.net/avc/oss/bdplayer/AWBPM12.html
The GPL/LGPL software is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
At least three (3) years from delivery of products, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL v2/LGPL v2.1.
Contact Information [email protected]
Source code is also freely available to you and any other member of the public via our website below.
http://panasonic.net/avc/oss/bdplayer/AWBPM12.html
For the software categorized as (5) includes as follows.
1. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.
(http://www.openssl.org/)
2. This product includes software developed by the University of California, Berkeley and its contributors.
3. FreeType code.
4. The Independent JPEG Group's JPEG software.
Further, For Adobe Flash Lite for Digital Home Software (“Flash Software”), please be aware of the following.
(i) You are not permitted to distribute and copy this Flash Software to any third party,
(ii) You are not permitted to modify the Flash Software and create derivative works of the Flash Software,
(iii) You are not permitted to decompile, reverse engineer, disassemble and otherwise reduce the Flash Software to a human-perceivable form,
(iv) You are not permitted to claim any damages, including direct, indirect, special, incidental, punitive, and consequential damages arising out of or in connection with the Flash Software,
(v) You fully agree that the ownership of the Flash Software is that of Panasonic Corporation and/or its suppliers or licensors,
(vi) You agree and acknowledge that it is possible that you cannot access the contents unless you do not obtain and install the latest version of the Flash Software.
ICU License - ICU 1.8.1 and later
COPYRIGHT AND PERMISSION NOTICE
Copyright (c) 1995-2010 International Business Machines Corporation and others
All rights reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the
“Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, provided that the above copyright notice(s) and this permission notice appear in all copies of the Software and that both the above copyright notice(s) and this permission notice appear in supporting documentation.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF
THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE
FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER
RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER
TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Software without prior written authorization of the copyright holder.
All trademarks and registered trademarks mentioned herein are the property of their respective owners.
VQT3V18
35
DMP-BD87_77_VQT3V18_eng.book 36 ページ 2011年12月22日 木曜日 午後8時19分 c-arse license
Copyright 1998 by the Massachusetts Institute of Technology.
Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of M.I.T. not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission.
M.I.T. makes no representations about the suitability of this software for any purpose. It is provided “as is” without express or implied warranty.
gSOAP Public License Version 1.3b
Part of the software embedded in this product is gSOAP software. Portions created by gSOAP are Copyright (C) 2001-2009 Robert A. van Engelen, Genivia inc. All Rights Reserved.
THE SOFTWARE IN THIS PRODUCT WAS IN PART PROVIDED BY GENIVIA INC AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
(1) MS/WMA
This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
(2) MS/PlayReady/Final Product Labeling
This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
(3) MS/PlayReady/End User Notices
Content owners use Microsoft PlayReady TM content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.
(4) FLAC, WPA Supplicant
The software licenses are displayed when “License” in the Setup menu is selected.(> 26)
Copyright 2004-2010 Verance Corporation. Cinavia TM is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and worldwide patents issued and pending under license from Verance Corporation. All rights reserved.
36
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 37 ページ 2011年12月22日 木曜日 午後8時19分
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Blu-ray and DVD Products Limited Warranty
Limited Warranty Coverage (For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Marketing Company of North America
(referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.
Product or Part Name
Blu-ray Disc Player, Portable Blu-ray Disc
Player
Blu-ray Home Theater System
DVD Player, Portable DVD Player
DVD Recorder
Rechargeable Batteries (pack)
Parts
1 year
1 year
1 year
1 year
90 days
Labor
90 days
1 year
90 days
90 days
Not
Applicable commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
“LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY
OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED
WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor’s
Consumer Affairs Department at the addresses listed for the warrantor.
During the “Labor” warranty period there will be no charge for labor. During the
“Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
Customer Services Directory (United States and Puerto Rico)
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining repairs, please ship the product prepaid to:
Panasonic Exchange Center
4900 George McVay Drive
Suite B
McAllen, TX 78503 [email protected]
When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at www.panasonic.com/BatteryHandling as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.
Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase
Parts and Accessories; or make Customer Service and
Literature requests by visiting our Web Site at: http://www.panasonic.com/help or, contact us via the web at: http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm,
Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/
PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID
AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE
REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF
PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids,
Purchase Parts, Accessories and Instruction Books online for all Panasonic
Products by visiting our Web Site at: http://www.pstc.panasonic.com
Or, send your request by E-mail to: [email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic National Parts Center
20421 84th Ave S., Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express)
The model number and serial number of this product can be found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future reference.
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
As of January 2012
User memo:
DATE OF PURCHASE
DEALER NAME
DEALER ADDRESS
TELEPHONE NUMBER
MODEL NUMBER
SERIAL NUMBER
VQT3V18
37
DMP-BD87_77_VQT3V18_eng.book 38 ページ 2011年12月22日 木曜日 午後8時19分
Limited Warranty (Only for CANADA)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT - LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
Technics Audio Product - One (1) year, parts and labour
Panasonic BD/DVD Product - One (1) year, parts and labour
Panasonic Audio Receivers - One (1) year, parts and labour
Home Theater Systems Product - One (1) year, parts and labour
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in
Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS
REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.
WARRANTY SERVICE
For product operation and information assistance, please contact:
PRODUCT OPERATION ASSISTANCE
Customer Care Centre: Telephone #: 1-800-561-5505
Fax #: (905) 238-2360
Email link: “Support # contact us # email” on www.panasonic.ca
PRODUCT REPAIRS
Please locate your nearest Authorized Servicentre.
Link: “Support # Panasonic Servicentre ® locator” on www.panasonic.ca
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
38
VQT3V18
DMP-BD87_77_VQT3V18_eng.book 39 ページ 2011年12月22日 木曜日 午後8時19分
Referencia rápida en español
(Spanish Quick Reference)
Conexiones básicas
Conexión a un televisor compatible con HDMI
Cable HDMI
HDMI IN
Conexión a un televisor con un cable para audio/vídeo
Cable de audio/vídeo
VIDEO IN
L
AUDIO IN
R
Conexión a un televisor compatible con HDMI y a un amplificador/receptor compatible con HDMI
Cable HDMI
HDMI IN
HDMI OUT
(ARC)
HDMI IN
(ARC)
Amplificador/
Receptor
Conecte el cable de alimentación de CA por último
A una toma de corriente doméstica
≥ Conéctelo cuando haya realizado el resto de conexiones.
Ahorro de energía
Esta unidad consume una pequeña cantidad de energía aunque esté ajustada en el modo de espera (Accionamiento rápido : Desactivado, aprox. 0,5 W). Para ahorrar energía cuando no vaya a utilizar la unidad durante mucho tiempo, desenchúfela de la toma de corriente.
Reproducción básica
Preparación
Encienda el televisor y seleccione la entrada de vídeo adecuada en el televisor.
1
Pulse [Í] para encender la unidad.
Después de conectar su nuevo reprodutor y pulsar el botón de encendido, aparecerá la pantalla de la configuración básica.
2
Inserte el medio.
Inicia la reproducción
Pulse [1PLAY].
Parada
Pulse [∫STOP].
La posición de detención se memoriza.
Función de reanudación de la reproducción
Pulse [1PLAY] para reiniciar la reproducción desde esta posición.
≥ La posición se borra si se abre la bandeja o se pulsa
[∫STOP] varias veces para visualizar “StOP” en el visor de la unidad.
≥ En los discos BD-Video incluidos los BD-J, la función de reanudación de la reproducción no funciona.
Pausa
Pulse [;PAUSE].
≥ Pulse [;PAUSE] otra vez o [1PLAY] para reiniciar la reproducción.
Búsqueda/Cámara lenta
Búsqueda
Durante la reproducción, pulse [SEARCH6]
o [SEARCH5].
≥ Música y MP3: La velocidad está fija en un paso.
Cámara lenta
Durante la pausa, pulse [SEARCH5].
La velocidad aumenta hasta 5 pasos.
≥ Pulse [1PLAY] para recuperar la velocidad de reproducción normal.
Salto
Durante la reproducción o la pausa, pulse
[:] o [9].
Salta hasta el título, capítulo o pista que desee reproducir.
VQT3V18
39
DMP-BD87_77_VQT3V18_eng.book 40 ページ 2011年12月22日 木曜日 午後8時19分
Index
A Audio
Changing audio . . . . . .16
Language . . . . . . . .24, 31
B BD-Live . . . . . . . . . . . . . .17
D DLNA . . . . . . . . . . . . . . . .19
F File format. . . . . . . . . . . .33
Firmware update . . . . . . . 13
H HDMI CEC . . . . . . . . . . . .20
L LAN . . . . . . . . . . . . . . . . . .9
Language
Audio . . . . . . . . . . . . . .24
Menu . . . . . . . . . . . . . .24
On-screen. . . . . . . . . . .24
Soundtrack . . . . . . . . . .21
Subtitle . . . . . . . . . .21, 24
M Media Renderer . . . . . . 19
Multi User Mode . . . . . . . .15
N Network
Connection . . . . . . . . . . 9
Setting . . . . . . . . . 11, 24
Network Service . . . . . . . 18
P Pop-up menu . . . . . . . . . .17
Q Quick Start . . . . . . . . . . 26
R Restore Default
Settings . . . . . . . . . . . . . 26
Resume play function . . . 16
S Subtitle . . . . . . . . . . . . . 21
U USB device . . . . . . . . . . . 6
W Wireless LAN . . . . . . . . . 9
24p . . . . . . . . . . . . . . . . . . 23
USA Only: Disposal may be regulated in your community due to environmental considerations.
For disposal or recycling information, please visit
Panasonic website: http://www.panasonic.com/environmental/ or call 1-888-769-0149.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
®
Panasonic has determined that this product meets the
®
ENERGY STAR guidelines for energy efficiency.
For Canada only: The word “Participant” is
used in place of the word “Partner”.
Panasonic Consumer Marketing
Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus,
New Jersey 07094 http://www.panasonic.com
C Panasonic Corporation 2011
Printed in China
Panasonic Canada Inc.
5770 Ambler Drive
Mississauga, Ontario
L4W 2T3 www.panasonic.ca
pr
VQT3V18
F1211HA0
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 2 IMPORTANT SAFETY INSTRUCTIONS
- 4 Accessories
- 4 Unit and media care
- 5 Playable media
- 7 Control reference guide
- 8 STEP 1 : Connecting to a TV
- 8 an amplifier/receiver
- 9 STEP 3 : Connecting to the network
- 10 an AC power source
- 11 STEP 5 : Settings
- 14 Inserting or removing media
- 14 HOME menu
- 15 Multi User Mode
- 16 Playback
- 18 (NETFLIX, etc.)
- 19 Home Network feature
- 20 “HDMI CEC
- 21 Option menu
- 23 Setup menu
- 27 Troubleshooting guide
- 30 Messages
- 31 Supplemental information
- 32 Precautions of Wireless LAN connection
- 32 Specifications
- 38 Limited Warranty
- 39 (Spanish Quick Reference)
