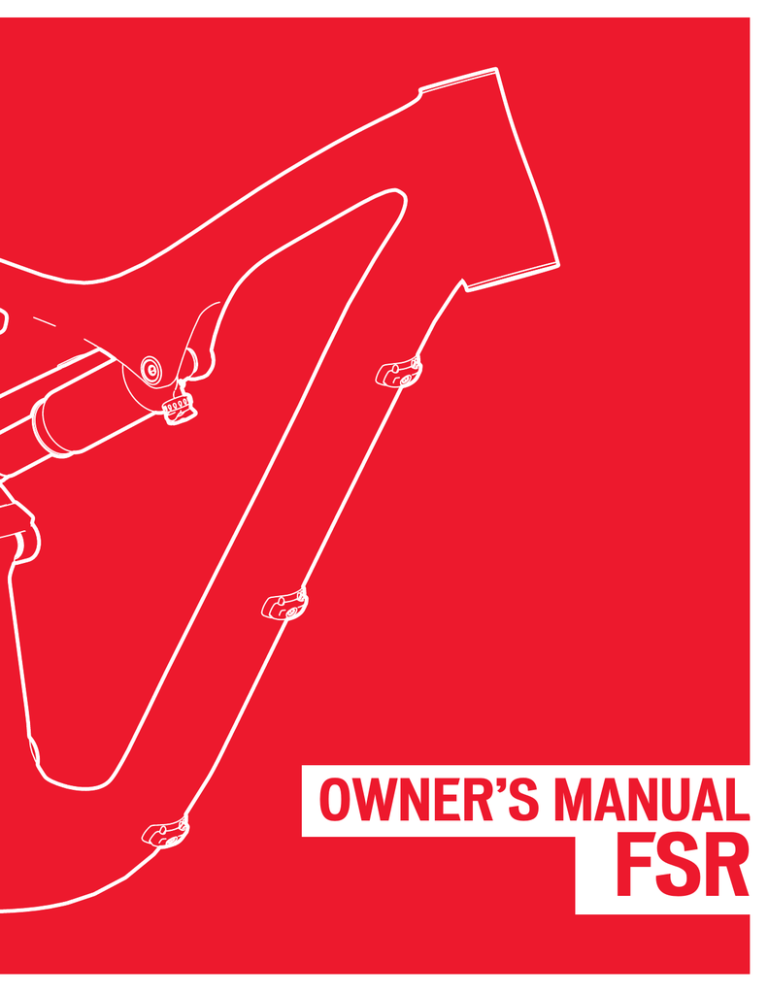

OWNER’S MANUAL

FSR

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

About off road, stunt, downhill and freeriding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Service and modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

BIKE SETUP SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Seatpost height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Front derailleur type and position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Frame linkage assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Down tube cable guide installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

142+ rear axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

PF30 BOTTOM BRACKET ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installing PF30 and PF30DH Bottom Bracket Cups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FORK LENGTH SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

TORQUE SPECS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

FRAME SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

AUTOSAG AIR SHOCK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Step 1: Setting Autosag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Step 2: Adjusting rebound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Step 3: Adjusting compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

ROCKSHOX ARIO AIR SHOCK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Step 1: Adjusting sag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Step 2: Adjusting rebound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Step 3: Adjusting compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CANE CREEK DB AIR SHOCK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

SETUP DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

COIL SHOCK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Step 1: Adjusting sag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Step 2: Setting rebound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Step 3: Setting compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting Cane Creek Double Barrel coil rebound and compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

SHOCK SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

CARBON FRAME INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Seatpost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Bottom bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Headset installation / removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SPECIALIZED BICYCLE COMPONENTS

15130 Concord Circle, Morgan Hill, CA 95037 (408) 779-6229

OM0393 Rev.B, June 2012

Please note all instructions are subject to change for improvement without notice.

Please visit www.specialized.com for periodic tech updates.

Feedback: [email protected]

Page 1 of 12

INTRODUCTION

Congratulations on your purchase and welcome to the finest line of suspension bikes available!

About Off Road, Stunt, Downhill and Freeriding

This manual is designed to be used in conjunction with the Bicycle Owner’s Manual and owner’s manuals supplied by the manufacturer of the front and rear suspension components. If you did not receive any of these manuals, download them from the Internet, contact your Specialized Authorized Dealer, or contact us by telephone. There may be more current manuals and technical information available. For the most current information, regularly check the

Specialized web site or consult your Specialized Authorized Dealer. These manuals were written for an important reason: your safety while riding.

This manual contains many “Warnings” and “Cautions” concerning the consequences of failure to maintain or inspect your bicycle or of failure to follow safe cycling practices. The combination of the safety alert symbol and the word Warning indicates a potentially hazardous situation which, if not avoided, could result in serious injury or death. The combination of the safety alert symbol and the word Caution indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or damage to your bicycle or a component. Because the consequences of not following a Warning usually include “you may lose control and fall,” which could result in serious personal injury or death, we may not repeat this in conjunction with each

Warning. Because it is impossible to anticipate every situation or condition which may occur, a practice or situation may be unsafe but not anticipated by this manual. So, don’t forget to use your common sense.

WARNING! Make sure you have, review, and understand the warnings, instructions, and content of the manuals for your bicycle.

About off road, stunt, downhill and freeriding

Downhill racing, severe off road riding, jumping, and stunt riding is extremely dangerous. Some downhill racers and freeriders reach speeds similar to motorcycles, thus face similar risks and hazards. When engaging in these activities, you, your bicycle and safety equipment must be in perfect condition. We recommend that at all times you wear appropriate safety gear, such as an approved full face helmet, full finger gloves, and body armor.

Not every bicycle is built for every activity. Check with your Specialized Authorized Dealer to make sure you have the right equipment.

No bicycle is indestructible. Downhill racing, severe off road riding, jumping, and stunt riding increases the stress on every part of your bicycle. Frames or parts under high stress may fail, causing you to lose control or fall. Because of the risk involved, Specialized recommends that you conduct a thorough inspection before each ride. If you miss a jump, ditch your bike in mid crash, dump or launch your bike without you on it, inspect yourself for injury, then carefully inspect your bicycle for damage.

Here is what you should look for when you inspect your bicycle for this type of riding: bent or broken components, such as the handlebar, handlebar stem, seatpost, pedals; dents, cracks, scratches, deformation, or discoloration. Because damage may be internal and hidden, if any of these signs are present, stop riding until your bicycle has been thoroughly inspected by your Specialized Authorized Dealer.

WARNING! Although many catalogs, advertisements and articles about bicycling depict riders racing, jumping, riding hard off road, and/ or stunt riding, this activity is extremely dangerous, increases the rider’s risk of injury or death, and potentially increases the severity of any injury. The action depicted is being performed by experts with many years of training and experience. Even with that training and experience, cyclists who engage in such activity often get seriously injured. It is also foreseeable that during some jumps or stunts, and even some races, that the rider will exceed the design capacity of the frame or components, which may result in something on the bicycle bending or breaking. If a frame or component bends or breaks, such may lead to loss of control, serious personal injury or death.

As activities such as racing, jumping, severe off road riding, and stunt riding are extremely dangerous, SAFETY should always be the first consideration.

Don’t ride in the race, ride hard off road, try the jump, or do the stunt, UNLESS YOU CAN DO SO SAFELY. Here are some additional recommendations:

„ Take lessons from a competent instructor first.

„ Do jumps or stunts only in areas designated for this type of riding.

„

Start with easy jumps and easy stunts first, and slowly develop skills before trying more dangerous jumps or stunts.

„

Wear appropriate safety gear, such as a full face helmet, body armor, full finger gloves, etc.

„

Make sure by checking with your Specialized Authorized Dealer that your bike is suitable for the kind of activity you intend to engage in.

„

Constantly inspect your bicycle for signs of stress: cracks in the paint; dents; crushing or bending of the frame; bent components. Do not ride your bicycle if it shows such signs of stress.

„

Do not seek to bend or break the frame or components. Remember, SAFETY FIRST!!!

Understand and recognize that the stresses imposed on your bike by riding at speed, jumping or stunt riding may break or damage parts of the bicycle, which may result in loss of control, serious injury or death.

Specialized does not warrant the bicycle frame or components for such activities, and expressly disclaims all warranties, including the warranty of fitness for particular purpose and merchantability.

Stunt riding, severe off road riding, jumping, or riding downhill at speed is extremely dangerous, and the rider voluntarily assumes the risk that the bicycle frame and/or its components will bend or break, and voluntarily assumes the risk of injury or death.

Service and modifications

Technological advances have made bicycles and bicycle components more complex, and the pace of innovation is increasing. It is impossible for this manual or the accompanying manuals to provide all of the information required to properly repair and/or maintain your bicycle. In order to help minimize the chances of an injury, it is critical for you to have work performed by an Specialized Authorized Dealer.

WARNING! Service on Specialized bicycles requires special knowledge and tools. Specialized recommends that all service and repairs be performed by a Specialized Authorized Dealer.

Your bicycle has been engineered and tested with specific components and parts. Because of the great variety in these items, it is impossible for Specialized to test and approve of all possible combinations. Modifying the frame, fork, or any of the components may make your bike unsafe. For example, changing the front suspension on your bicycle may alter the steering characteristics and/or add stresses to the frame which have not been tested for. If you must replace any component, have this done by your Specialized Authorized Dealer.

WARNING! Never modify your frame or bicycle in any way. Do not sand, drill, fill, or remove parts. Do not install incompatible forks or suspension parts. An improperly modified frame, fork, or component, can cause you to lose control and fall.

CAUTION: Any modification of your frame, fork, or components means that your bike no longer meets our specifications and therefore voids your warranty.

Page 2 of 12

BIKE SETUP SPECIFICATIONS

Seatpost height

1

SEATPOST MINIMUM INSERTION

1

: To prevent damage to the frame, it’s important to have a minimum amount of seatpost in the seat tube.

Carbon frames:

Small / Medium - 70mm insertion

Large / X-Large - 100mm insertion

Aluminum frames:

If you cannot see the seatpost tube through the seat tube hole, your seatpost is too far extended. If a greater saddle height is required, replace the seatpost with a longer one.

NOTE: When running a saddle in a low position, it’s important to fully compress the rear end of the bicycle to ensure that the tire doesn’t contact the saddle. This is especially important on longer travel bicycles.

Front derailleur type and position

MODEL ADAPTER (fig.2)

EPIC

CAMBER

2nd Gen

2nd Gen

MYKA

SAFIRE

STUMPJUMPER

ENDURO

1st Gen

1st Gen

2nd Gen

--

SHIMANO DERAILLEUR

38-40t: E2, 42/44t: E

38-40t: E2, 42/44t: E

38-40t: E2, 40/42/44t: E

38-40t: E2, 40/42/44t: E

38-40t: E2, 42/44t: E

38-40t: E2, 42/44t: E

SRAM DERAILLEUR

S3

S3

S1

S1

S3

S3

2

1st gen adapter

3

2nd gen adapter

„

NOTE: Shimano derailleurs are equipped with high-low height adjuster chips. Place the chips in the position that optimizes the spacing relative to the chainring size.

„

Specialized offers a chainguide for Epic models

3

that attaches to the DMD front derailleur mount. The chainguide is designed for single chainring setups up front and regular gears in back, to keep the chain on the chainring.

Frame linkage assembly

Specialized recommends following a specific order when assembling the rear triangle pivot locations of FSR suspension bike models

4

.

1. Main pivot

2. Main link pivot

3. Either the Horst link pivot or the link @ seatstay pivot

4. Lower shock eye or yoke pivot

5. Upper shock eye

Assembling the upper or lower pivots of the seatstay as a last step makes it easier to align the parts and hold the washers in place.

Down tube cable guide installation

Certain Specialized FSRs are equipped with bolt-on down tube cable guides

5

under the down tube. For proper housing placement and function, the hydraulic rear brake housing goes in the larger middle slot, while the gear cables go on the outside.

NOTE: Only use 4mm gear housing.

Do not overtighten the guide bolts! Too much pressure can squeeze the cable housings, creating friction and poor shifting for the cables.

Demo and Status models: The housings are routed on top of the down tube.

142+ rear axle

„

Certain 29 and 26” Specialized bike models are equipped with a 142+ rear axle system. This system requires the use of a proprietary Specialized 142+ wheel, or a 142mm compatible wheel.

For additional information regarding Roval 142+ compatible wheels, please refer to the Roval Hub

Compatibility Guide (CG0327) at www.specialized.com.

Accessories

„

Specialized offers replacement chainstay protectors for most FSR models, available through your

Specialized authorized dealer.

4

5

3

3 4 2

1

5

Page 3 of 12

PF30 BOTTOM BRACKET ASSEMBLY

This design allows for the installation of Specialized OSBB carbon cranks, or the installation of different adapters to fit a variety of crank offerings.

Installing PF30 and PF30DH Bottom Bracket Cups

Specialized frames with 73 x 46mm (PF30) and 83 x 46mm (PF30DH) bottom bracket specifications feature a bottom bracket shell with a 46mm inner diameter, and accept 42x30x7mm BB30 bearings pressed into proprietary Specialized press-in cups.

The PF30 design with 42mm BB30 cartridge bearings allow the use of Specialized carbon cranks, or, with the use of Specialized bearing reducer adapters, the use of Shimano or SRAM GXP cranks. The reducer adapters press directly into the OSBB bearings, and in some cases are followed by specific spacers and/or wave washers, depending on the desired crank. For additional information about crank compatibility, please refer to the chart below.

„

For Specialized carbon crank installation, please refer to the carbon crank guide (IG0276 - Crankset - Carbon MTB crankset).

WARNING! Failure to follow these instructions may result in a catastrophic failure of the crank, frame and/or its components while riding, which may result in serious personal injury or death.

WARNING! Bicycle assembly is a complicated task which requires training and experience. Do not attempt installation of any component if you do not have experience and training as a bicycle mechanic. Failure to follow this warning may result in serious personal injury or death. Reference should also be made to Barnett’s or some other comprehensive bicycle manual.

WARNING! Failure to follow the torque specifications in this instruction guide will void your warranty, but most importantly may result in damage to the crank, which may not be visible. If the crank is damaged, this can result in loss of structural integrity, which may result in serious personal injury or death. To ensure the best assembly possible and to prevent any damage to the crank components, follow all torque specifications.

FRAME PREPARATION

CAUTION: Do not face or ream bottom bracket shell! This can possibly prevent proper installation of the crank. Your Specialized frame does not require any bottom bracket shell pre-installation preparation, as all surfaces have been precisely machined to specific tolerances at the factory for proper interface with the S-Works Carbon crankset.

WARNING! Great care should be taken to not damage carbon fiber or composite material. Any damage may result in a loss of structural integrity, which may result in a catastrophic failure. This damage may or may not be visible in inspection. Before each ride, and after any crash, you should carefully inspect your crank for any fraying, gouging, scratches through the paint, chipping, bending, or any other signs of damage. Do not ride if your crank shows any of these signs. After any crash, and before you ride any further, take your bicycle to an Specialized Authorized Dealer for a complete inspection.

INSTALLING THE BOTTOM BRACKET (73 x 46mm BB shell, press-in cups)

1 2

Carbon sleeve is only for use with Specialized carbon cranks.

PF30 Press-in cups Cups and bearings

42x30x7 OSBB bearings MindSet bearing press

„

Apply grease to the outer diameter of the OSBB Bearings, then press the bearings into the PF30 cups by hand. Be sure to press the bearings in straight. Do not force the bearings into the cups.

„

Apply grease to the outer diameter of the PF30 cups, then place the Mindset Headset Bearing Press tools (9895-3045) against the bearings.

Either use a Park Headset Press Tool or a bench-mounted vise to press the cups into the frame. To avoid damage to the cups, be sure to press the cups evenly into the frame.

„

Once the flanges of the cups bottom out against the frame, do not apply any more pressure. Too much force applied to the cups once bottomed out can cause damage to the cups and can cause the bearings to spin roughly.

„ Install the left bearing reducer adapter into the non-drive-side bearing, and the right bearing reducer adapter into the drive-side bearing. The reducer adapters should install by hand with a friction fit.

NOTE: To remove the PF30 cups from the frame, first pull the bearings out, then lightly tap the backside of the cups in a circular motion with a large flat surface. Do not use a screwdriver, as it may damage the cups.

Page 4 of 12

3

INSTALLING THE BOTTOM BRACKET REDUCERS (Shimano and SRAM)

4

SHIMANO CRANKS (PART #S120400003)

A C D E D C B

„

Shimano reducers require no spacers or wave washer. Refer to the Shimano crank instruction guide for additional installation information.

5

SRAM GXP CRANKS (PART #S120400004)

F G

A C D E D C B

Reducer adapter cups

„

SRAM GXP cranks require a wave washer and spacers on the drive-side. Refer to the GXP crank instructions for spacer(s) and wave washer installation information.

6

A C D E D C B

A. Reducer adapter (left / non-drive-side)

B. Reducer adapter (right / drive-side)

C. OSBB (42x30x7mm) cartridge bearing

D. PF30 46mm to 42mm MTN press-in cup

E. 46mm diameter bottom bracket shell

F. Spacer(s)

G. Wave washer

Drive-side crank arm

Non-drive-side crank arm

F G

(If required by manufacturer)

CRANK COMPATIBILITY

CRANKSET

SPECIALIZED CARBON

SHIMANO HOLLOWTECH II

SRAM/TRUVATIV BB30

SRAM/TRUVATIV GXP

BOTTOM

BRACKET

TYPE

PF30 shell (carbon or alloy)

• Shell inner diameter: 46mm

• Shell width: 73mm

• Width bearing-to-bearing: 73mm (with Specialized MTN press-in cups)

„

PF30 press-in cups / OSBB bearings

„ PF30 press-in cups / OSBB bearings / Specialized/Shimano reducer adapters (Part # S120400003)

„

SRAM PF30 cups for BB30

„

PF30 press-in cups / OSBB bearings / Specialized/SRAM reducer adapters (Part # S120400004)

CRANKSET

BOTTOM

BRACKET

TYPE

SRAM PF30DH (XO, Descendant)

E13 (long spindle)

PF30DH shell (carbon or alloy)

• Shell inner diameter: 46mm

• Shell width: 83mm

• Width bearing-to-bearing: 83mm (with Specialized MTN press-in cups)

„ SRAM PF30 cups for BB30

„ E13 PF30 adapter/bearing/spacer kit

Page 5 of 12

FORK LENGTH SPECIFICATIONS

WARNING! Specialized frames are compatible ONLY with forks that have a specific maximum amount of travel (see table below). Use of different styled forks or forks with longer travel may result in catastrophic failure of the frame which may result in serious personal injury or death.

FAMILY

EPIC

MYKA

CAMBER

SAFIRE

STUMPJUMPER

STATUS

DEMO

ENDURO

MODEL

All

All

All

All

26”

26” EVO

29

29 EVO

All

All

All

EVO

MAX FORK TRAVEL

100mm (3.9”)

100 (3.9”)

110mm (4.3”)

120mm (4.7”)

140mm (5.5”)

150mm (5.9”)

130mm (5.1”)

140mm (5.5”)

200mm (7.9”)

200mm (7.9”)

160mm (6.5”)

180mm (7.1”)

CROWN

Single

Single

Single

Single

Single

Single

Single

Single

Double

Double

Single

Single

TORQUE SPECS

Torque specs are in-lbf (Nm)

PIVOT (in-lbf / Nm)

MAIN (BB)

DROPOUT

S-LINK @ FRAME

S-LINK @ SEATSTAY

S-LINK @ CLEVIS

LOWER SHOCK EYE

UPPER SHOCK EYE

PIVOT (in-lbf / Nm)

MAIN (BB)

DROPOUT

S-LINK @ FRAME

S-LINK @ SEATSTAY

S-LINK @ CLEVIS

LOWER SHOCK EYE

UPPER SHOCK EYE

EPIC

160-180 (18-20)

90-100 (10-11)

50-70 (6-8)

50-70 (6-8)

--

45-70 (5-8)

45-70 (5-8)

STUMPJUMPER

140-160 (16-18)

100-120 (11-14)

100-120 (11-14)

100-120 (11-14)

160-180 (18-20)

120-140 (14-16)

90-100 (10-11)

REAR DERAILLEUR

FRONT DERAILLEUR

SEAT COLLAR (Bolt style)

WATER BOTTLE

DOWN TUBE CABLE BATS

REAR AXLE

DERAILLEUR HANGER

DERAILLEUR HANGER (Demo)

MYKA

160-180 (18-20)

100-120 (11-14)

120-140 (14-16)

120-140 (14-16)

--

120-140 (14-16)

120-140 (14-16)

STATUS

200-230 (22-25)

100-120 (11-13)

200-230 (22-25)

100-120 (11-13)

--

180-200 (20-23)

180-200 (20-23)

70 (7.9)

44 (5)

45 (5.1)

35 (4)

50 (4.9)

133 (15)

50 (4.9)

115 (11.3)

CAMBER (ALLOY)

140-160 (16-18)

100-120 (11-14)

90-100 (10-11)

90-100 (10-11)

--

120-140 (14-16)

120-140 (14-16)

DEMO

180-200 (20-23)

180-200 (20-23)

180-200 (20-23)

180-200 (20-23)

180-200 (20-23)

160-180 (18-20)

100-120 (11-14)

CAMBER (CARBON)

160-180 (18-20)

100-120 (11-14)

120-140 (14-16)

120-140 (14-16)

--

120-140 (14-16)

120-140 (14-16)

ENDURO

200-225 (23-25)

140-160 (16-18)

180-200 (20-23)

180-200 (20-23)

180-200 (20-23)

120-140 (14-16)

160-180 (18-20)

SAFIRE

200-225 (23-25)

90-100 (10-11)

100-120 (11-14)

100-120 (11-14)

90-100 (10-11)

120-140 (14-16)

120-140 (14-16)

Page 6 of 12

DESCRIPTION

HEADSET

SEATPOST DIAMETER

SEAT COLLAR (CARBON)

SEAT COLLAR (ALLOY)

FRONT DERAILLEUR CLAMP

REAR HUB SPACING

BOTTOM BRACKET SHELL

DERAILLEUR HANGER

ISCG TABS

DESCRIPTION

HEADSET

SEATPOST DIAMETER

SEAT COLLAR (CARBON)

SEAT COLLAR (ALLOY)

FRONT DERAILLEUR CLAMP

REAR HUB SPACING

BOTTOM BRACKET SHELL

DERAILLEUR HANGER

ISCG TABS

DESCRIPTION

HEADSET

SEATPOST DIAMETER

SEAT COLLAR (CARBON)

SEAT COLLAR (ALLOY)

FRONT DERAILLEUR CLAMP

REAR HUB SPACING

BOTTOM BRACKET SHELL

DERAILLEUR HANGER

ISCG TABS

FRAME SPECIFICATIONS

EPIC

1 1/8” upper / 1.5” lower

30.9mm

34.9mm

34.9mm

E-Type Direct Mount (DMD)

142mm x 12mm

PF30 73 x 46mm

9892-4020

--

CAMBER

1 1/8” upper / 1.5” lower

30.9mm

34.9mm

34.9mm

E-Type Direct Mount (DMD)

142mm x 12mm

PF30 73 x 46mm

9892-4020

--

STUMPJUMPER

1 1/8” upper / 1.5” lower

30.9mm

34.9mm

34.9mm

E-Type Direct Mount (DMD)

142mm x 12mm

PF30 73 x 46mm

9892-4020

ISCG 05

DEMO

1.5” upper / 1.5” lower

30.9mm

36.9mm

34.9mm

--

150mm (S-Works - 135mm)

PF30DH 83 x 46mm

9891-4010

ISCG 05

SAFIRE

1 1/8” upper / 1.5” lower

30.9mm

--

34.9mm

E-Type Direct Mount (DMD)

135mm

Threaded 73mm

9895-4020

--

ENDURO

1 1/8” upper / 1.5” lower

30.9mm

34.9mm

34.9mm

E-Type Direct Mount (DMD)

142mm x 12mm

PF30 73 x 46mm

9892-4020

ISCG 05

MYKA

1 1/8” upper / 1 1/8” lower

30.9mm

--

34.9mm

E-Type Direct Mount (DMD)

135mm

Threaded 73mm

9895-4020

--

STATUS

1.5” upper / 1.5” lower

30.9mm

--

34.9mm

--

135mm

Threaded 73mm

9895-4020

Standard

Page 7 of 12

AUTOSAG AIR SHOCK SETUP

All Epic, Camber, Stumpjumper and Safire models are equipped with AUTOSAG, a unique new feature designed to simplify and speed up the adjustment of air pressure. The AUTOSAG feature automatically determines the correct amount of sag, and eliminates the need to refer to an air chart to determine the correct pressure based on rider weight. However, the shock still requires compression and rebound adjustment based on type of

terrain and rider weight. Please refer to the compression and rebound charts (page 11) following the setup steps.

NOTE: Shock air pressure can also be set up manually to rider preference.

Step 1: Setting Autosag

1. Position the shock compression lever or knob (blue) to the full open or off position . Remove the positive air valve cap (black) and the AUTOSAG valve cap (red).

2. Attach a high-pressure shock pump to the positive air valve

• All models except Epic and Safire: inflate to the rider’s weight in pounds (lb) plus 50psi. For kilograms, multiply by three (e.g. 75kg = 225psi).

• Epic and Safire: inflate to the rider’s weight in pounds (lb) plus 100psi. For kilograms, multiply by two +

100psi (e.g. 75kg = 250psi).

NOTE: Do not exceed 350psi before activating the Autosag valve (this is a starting pressure only). After the Autosag is activated, Fox recommends a maximum working pressure of 300psi when riding.

3. Make sure the rider is wearing all gear that would normally be worn on a ride (shoes, helmet, hydration pack if used, etc.). Mount the bicycle, prop up against a wall, and sit in the saddle in a normal riding position. Do not set sag while riding.

4. Press the AUTOSAG valve . Air will release as the suspension settles into its pre-adjusted sag point.

Make sure all the air is out and release the valve.

5. Cycle the shock a few times , then dismount the bicycle.

6. Do not depress the AUTOSAG valve again, otherwise the proper sag setting will be lost, and will require this procedure to be repeated from step #2.

7. Put the positive air and AUTOSAG valve caps back on.

NOTE: Rider weight in pounds (lb) plus the PSI (depending on model as described above) is the lowest amount of pressure that should be in the shock before activating AUTOSAG. If the air pressure is too low, the AUTOSAG button may let air out of the negative chamber, which would result in incorrect sag.

NOTE: Sag is measured as the distance between the o-ring and the shock body’s seal, after the rider’s weight has been applied to the bike, with no bounce. When AUTOSAG is correctly set, sag should measure approximately (20-30% of stroke, depending on riding/terrain experience, i.e travel).

If the rider is approaching 300lbs, AUTOSAG may not function, and sag may exceed the bike’s prescribed amount.

Step 2: Adjusting rebound

Refer to the chart to set the rebound damping (red knob). Rebound damping controls the rate at which the shock returns after it has been compressed.

„

Clockwise for slower rebound (slow speed, bigger hits).

„

Counter-clockwise for faster rebound (higher speeds, small bumps, more traction).

Step 3: Adjusting compression

Refer to the chart to set the compression damping (blue knob).

SPECIALIZED / FOX BRAIN FADE: Controls the inertia valve damping. The blue knob adjusts damping (Race Tune or Trail Tune) from firm

(clockwise) to soft (counter-clockwise) and does NOT completely lock out the shock.

Backing off from full firm can help with tracking in loose terrain conditions while riding off camber sections or climbing. The soft setting can also help during lengthy downhill or rugged conditions where the rider may want the suspension active at all times.

FOX CTD: Provides varying levels of compression damping, depending on whether the rider is climbing, trail riding or descending.

„

C (Climb): The firmest low-speed compression setting is activated for maximum pedaling efficiency.

„

T (Trail): Moderate low-speed compression setting is activated for an optimal blend of pedaling efficiency and bike control on variable terrain.

Factory Series shocks offer three levels of Trail adjust. Performance and Evolution shocks are preset with low-speed compression damping.

„

D (Descend): Low-speed compression setting optimized for the perfect balance of control and plushness for steep, aggressive descents.

ROCKSHOX MONARCH RL:

„

Firm - compression is firmed up, providing a pedal platform for climbing and/or smooth hardpack.

„

Open - no pedal platform, unobstructed compression damping for trail riding and descending.

Page 8 of 12

ROCKSHOX ARIO AIR SHOCK SETUP

Step 1: Adjusting sag

Myka FSR sag: 7.5-9.5mm (20-25%)

NOTE: See the chart for starting air pressures, or refer to the Sag-O-Tron decal on the side of the seat tube and link to dial in the sag. The charts and Sag-O-Tron are only a starting point, actual sag needs to be checked and adjusted on the bike, while riding, and at regular intervals.

Position the blue compression lever in the “Open” position to allow the shock to sag more easily. After setting the pressure, push the rubber ring up to the seal, sit on the bike gently, dismount, and measure sag.

Step 2: Adjusting rebound

Refer to the rebound/compression chart to set the rebound damping (red knob). Rebound damping controls the rate at which the shock returns after it has been compressed.

„ Clockwise for slower rebound (slow speed, bigger hits).

„

Counter-clockwise for faster rebound (higher speeds, small bumps, more traction).

Step 3: Adjusting compression

The Ario adjustment has two lever positions, locked out or open, based on the terrain conditions.

CANE CREEK DB AIR SHOCK SETUP

Enduro FSR sag: 19mm (30%)

The recommended settings for the DB Air shock are based of a mean rider weight of 150-180 lbs (68-82 Kg).

For any weight above or below this range, it is recommended to adjust the rebound damping settings.

If the air pressure is lower than 125psi, rebound damping should be decreased (sped up). Above 150psi, rebound damping should be increased (slowed down).

For additional shock setup information, please visit http://ww2.canecreek.com/products/suspension/db-air .

210

220

230

240

250

260

270

280

130

140

150

160

170

180

190

200

RIDER WEIGHT

LBS

90

100

110

120

(KG)

(41)

(45)

(50)

(54)

(60)

(64)

(68)

(73)

(77)

(82)

(86)

(91)

(95)

(100)

(104)

(109)

(113)

(118)

(123)

(127)

100

110

120

130

140

150

160

170

ARIO

PSI

60

70

80

90

180

190

200

210

220

230

240

250

110

115

120

125

130

135

140

145

DB AIR

PSI

90

95

100

105

150

155

160

165

170

175

180

185

NOTE: Air pressures, rebound and compression settings are suggested

starting point recommendations only. They should be adjusted according to the rider’s needs for each type of terrain to achieve optimal performance.

NOTE: Not all shock pumps are 100% accurate. To ensure that the sag is set correctly at 19mm, Specialized recommends that the sag be manually measured after the shock is pressurized and the shock pump is removed.

SETUP DATA

DATE

RIDER WEIGHT

FORK PSI

FORK REBOUND DAMPING

(# of clicks from full slow)

FORK COMPRESSION DAMPING

(# of clicks from full firm)

SHOCK PSI

SHOCK REBOUND DAMPING

(# of clicks from full slow)

SHOCK COMPRESSION DAMPING

(# of clicks from full firm)

Page 9 of 12

COIL SHOCK SETUP

Step 1: Adjusting sag

„

Proper sag should be achieved with one turn of preload on the spring. More then two turns of preload will require a higher spring rate or not enough sag will require a softer spring rate. See spring rate chart for additional information or refer to the shock manual.

„

Recommended sag: 30 - 35%

MODEL

STATUS

DEMO 8 CARBON

DEMO 8

XS

--

--

300

S

400

350

350

M

450

400

400

L

500

450

450

Step 2: Setting rebound

Adjust Rebound (red knob):

Rebound damping controls the rate at which the shock returns after it has been compressed.

„

Clockwise for slower rebound (slow speed, bigger hits).

„

Counter-clockwise for faster rebound (higher speeds, small bumps, more traction).

Step 3: Setting compression

DHX RC4 / Vanilla RC: Adjust low-speed compression (small blue knob):

Low-speed compression damping controls slower wheel movement, which helps in pedaling efficiency and bike attitude.

„

Clockwise for a firmer platform and more efficient pedaling, greater resistance to small and medium bumps, more harshness.

„

Counter-clockwise for a more active, supple reaction to terrain, less efficient pedaling, less harshness.

„

Turn the compression adjuster knob to full firm and ride your bike for a while, then gradually reduce compression until it starts to feel too soft and active for the terrain. Gradually increase compression until the optimal setting is found for the terrain and riding style.

DHX RC4: Adjust high-speed compression (gold dial under small blue knob):

High-speed compression damping controls faster wheel movement during events such as steep jump faces, flat jump landings and square edge bumps.

„ Clockwise for more bottom-out resistance and less wallowing in the face of jumps.

„

Counter-clockwise for less bottom-out control and a more active shock.

„

High-speed compression can be adjusted in conjunction with the bottom-out control dial to keep the high-speed compression damping resistance low while still preventing bottom-out.

Setting Cane Creek Double Barrel coil rebound and compression

For additional shock setup information, please visit http://ww2.canecreek.com/products/suspension/double-barrel .

Page 10 of 12

200

210

220

230

160

170

180

190

240

250

260

270

280

110

120

130

140

150

RIDER WEIGHT

LBS (KG)

90

100

(41)

(45)

(50)

(54)

(60)

(64)

(68)

(109)

(113)

(118)

(123)

(127)

(91)

(95)

(100)

(104)

(73)

(77)

(82)

(86)

TERRAIN

XC Race

EPIC

BRAIN (Race tune)

SJ 26 / 29

SAFIRE

SHOCK SETTINGS

COMPRESSION

SJ 26 / 29

CAMBER

CAMBER

SJ 26 / 29

SAFIRE

ENDURO

BRAIN (Trail Tune) CTD FACTORY

CTD

PERFORMANCE /

EVOLUTION

CAMBER

MONARCH RL

0 - 2

0 - 2 C C FIRM

MYKA FSR

ARIO / ARIO RL

LOCKOUT

Climbing/Asphalt

Smooth hardpack

Trail riding

3 - OPEN

3 - OPEN

3 - OPEN

3 - OPEN

T

(1 - Soft)

(2 - Medium)

(3 - Firm)

T

(1 - Soft)

(2 - Medium)

(3 - Firm)

T

T

FIRM

OPEN

LOCKOUT

OPEN

BRAIN SHOCK

COMPRESSION

(Counterclockwise clicks from full firm)

OPEN OPEN D D OPEN OPEN

Downhill/Technical

BRAIN

REBOUND

CTD

FACTORY / PERFORMANCE / EVOLUTION

MONARCH RL ARIO / ARIO RL

REBOUND

(Counterclockwise clicks from full slow)

5-9

4-7

0-5

0-3

10-14

7-14

5-10

0-5

7-10

5-10

3-8

0-3

8-20

5-11

3-8

0-3

Page 11 of 12

CARBON FRAME INSTRUCTIONS

Specialized carbon frames utilize advanced composite materials that require particular care during assembly, storage and riding. This installation and care guide contains instructions and warnings, plus torque specifications. Assembling a complete bicycle is a complicated task requiring training and experience, only a trained and experienced bicycle mechanic should install components to this frame. Reference should also be made to Barnett’s or some other comprehensive bicycle manual.

WARNING! Failure to follow these instructions may result in a catastrophic failure of the frame and/or its components while riding, which may result in serious personal injury or death.

WARNING! Bicycle assembly is an art which requires training and experience. Do not attempt installation of any component if you do not have experience and training as a bicycle mechanic.

To ensure the best assembly possible and to prevent any damage to the components or frame, follow all torque specifications. Please refer to the specific owner’s manuals for each mating component’s correct torque specifications. If the mating component’s recommended torque exceeds the frame’s recommended torque, use the lower torque specification. Due to torque considerations, not all components will be compatible.

WARNING! Failure to follow the torque specifications in this installation guide will void your warranty, but most importantly may result in damage to the frame which may not be visible. If the frame is damaged, this can result in loss of structural integrity.

Bicycle components such as a handlebar, handlebar stem, seatpost, saddle, brakes, must be mutually compatible with each other, as well as the frame and the intended use. Any doubt regarding compatibility should be discussed with your local Specialized Authorized Dealer.

WARNING! When placing the frame and/or bicycle in a repair stand, clamp the stand to the seatpost and not the frame. Clamping the frame can cause damage to the frame that may or may not be visible, which may impair the structural integrity of the frame.

WARNING! Great care should be taken to not damage carbon fiber or composite materials, including the frame and any carbon fiber or composite components. Any damage may result in a loss of structural integrity, which may result in a catastrophic failure. This damage may or may not be visible in inspection. Before each ride, and after any crash, you should carefully inspect your bicycle for any dents, fraying, gouging, scratches through the paint, chipping bending, or any other signs of damage. Do not ride if your bicycle shows any of these signs. After any crash, and before you ride any further, take your bicycle to a Specialized Authorized Dealer for a complete inspection.

Seatpost

Refer to your seatpost owner’s manual prior to installation. Specialized FSR frames have a 30.9mm seatpost diameter and require that the seatpost have a tolerance of 30.78mm to 30.95mm. Do not grease the inside surface of the carbon seat tube!

Certain Specialized carbon frames use a quick-release seatpost binder. Since the components of this assembly are in direct contact with carbon fiber, pay special attention to ensure proper tightness for the seatpost when correctly tightened to specifications.

TECH TIP: Specialized recommends the application of carbon assembly compound (or carbon paste) between the seat tube and seatpost to increase friction. See your Specialized Authorized

Dealer if you have any questions.

WARNING! Do not extend the seatpost above the minimum insertion line. Extension beyond the minimum insertion line can result in failure, causing serious injury or death.

WARNING! Do not pull down on down tube derailleur cables to pre-stress the cables. This can cause damage to the cable guides.

Your Specialized carbon frame does not require any bottom bracket or head tube pre-installation preparation. All surfaces are already prepared from the factory, with the exception of greasing the bottom bracket threads (threaded bottom bracket cups) and head set cups. For threaded bottom brackets, it is acceptable to chase the bottom bracket threads if necessary. Do not face bottom bracket cups.

Bottom bracket

Oversized Bottom Bracket: Please refer to the carbon crank instruction guide (IG0276 - Crankset

- Carbon MTB Crankset) for assembly instructions and compatible tools. For crank compatibility specifications, please refer to the carbon crank compatibility guide (CG0308 - Bottom Bracket -

Oversized MTB Bottom Bracket). All documents are available at www.specialized.com.

Headset installation / removal

Specialized carbon frames use a 1 1/8” (41.8mm x 8mm x 45°) Campagnolo Standard compatible top and 1.5” (52mm x 7mm x 45°) bottom bearing. Ensure that replacement bearings are compatible with the Specialized headset specification. No tools are needed for installation or removal of both bearings.

Grease bearing surfaces before installation.

Page 12 of 12

SPECIALIZED BICYCLE COMPONENTS

15130 Concord Circle, Morgan Hill, CA 95037 (408) 779-6229

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
