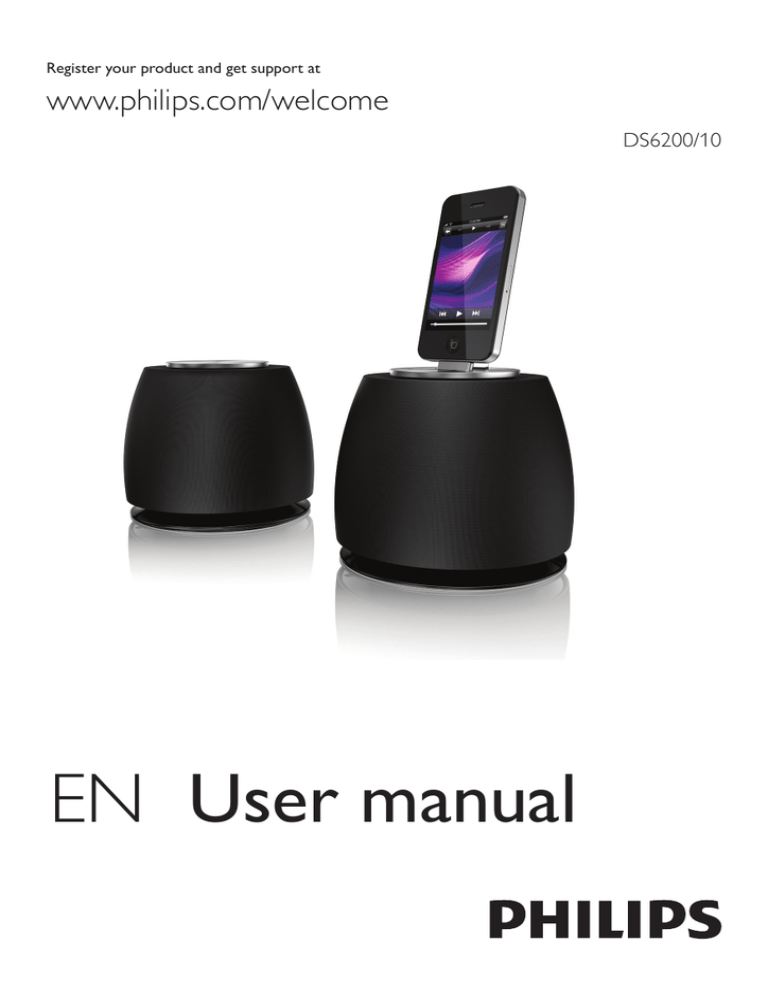

Register your product and get support at
www.philips.com/welcome
DS6200/10
EN User manual
Contents
1Important
Important Safety Instructions
3
3
2 Your Docking Entertainment System 4
Introduction4
What's in the box
4
Overview of the speakers
4
3 Get started
5
5
5
6
4Play
6
6
7
5 Other features
7
7
6 Product information
8
8
7Troubleshooting
8
8Notice
9
Connect speakers
Connect power
Turn on
Play from iPod/iPhone
Play from an external device
Synchronize the iPod/iPhone with a PC
Specifications
EN
2
1Important
Know these safety symbols
Important Safety Instructions
•
•
•
•
•
•
•
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation point' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING: To reduce the risk of fire or electric
shock, this apparatus should not be exposed to
rain or moisture and objects filled with liquids,
such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
•
•
•
•
•
•
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
Only use attachments/accessories specified
by the manufacturer.
Unplug this apparatus during lightning
storms or when unused for long periods
of time.
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
Apparatus shall not be exposed to
dripping or splashing.
Do not place any sources of danger on the
apparatus (e.g. liquid filled objects, lighted
candles).
Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Note
•• The type plate is located on the bottom of the
apparatus.
3
EN
2 Your Docking
Entertainment
System
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
bottom of the apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Introduction
With this unit, you can:
• enjoy audio from the iPod/iPhone and
other audio devices.
• synchronize your iPod/iPhone with PC.
What's in the box
Check and identify the contents of your
package:
• Main unit (2 x speakers)
• 1 x speaker connection cable
• 1 x AC power adaptor
• 1 x USB cable
• 1 x MP3 link cable
• Quick start guide
Overview of the speakers
a
b
c
d
e
f
g
h
a DOCK
• Dock for iPod/iPhone.
b
• Access / exit the sync mode.
• Hold to switch from standby mode to
sync mode.
• Press to switch from sync mode to
standby mode.
c LED indicator
• Steadily on when the unit works in
audio mode.
• Flashes when the unit works in sync
mode.
• Turns off when the unit powered off
or in standby mode.
d +/• Adjust volume.
e CABLE IN
• Connect the two speakers through the
supplied speaker cable.
f USB
• Connect a computer through the
supplied USB cable.
g AUX-IN
• Socket for an external audio device.
h DC-IN
• Connect power.
EN
4
3 Get started
Caution
•• Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Connect power
Caution
•• Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the
bottom of the unit.
•• Before connecting the AC adaptor, ensure you have
completed all other connections.
•• Risk of electric shock! When you unplug the AC
adaptor, always pull the plug from the socket. Never
pull the cord.
Connect speakers
UK
For optimal sound, use the supplied speakers
only.
Note
•• The supplied DIN cable is only intended for use with
EUR
this product. Never try to connect any other devices
through this cable.
Connect the supplied DIN cable to the CABLE
IN sockets on both speakers:
• active speaker (with buttons): right channel
• passive speaker: left channel
5
EN
Connect the AC power adaptor to
• the DC-IN socket on the back of the
active speaker.
• the wall power outlet.
Turn on
In standby mode, there are two ways to turn on
the unit.
• Audio signal detected from the 30-pin
connector or from the AUX-IN port .
»» The ring tone is also recognized as
audio signal.
•
Press the SYNC button on the top of the
active unit.
»» Turn on the unit by pressing SYNC
button will bring the unit into sync
mode.
Note
•• There is no power key on the unit. It turned on
automatically when it detects an audio input.
Switch to standby mode
The unit switches to standby mode in the
following situations.
• In DOCK mode: no audio signal from
docked iPod/iPhone over 15 minutes.
• In MP3 link mode: no audio device
connected over 15 minutes.
• In SYNC mode: press SYNC button for
over 5 seconds.
»» The power indicator turns off.
4Play
Play from iPod/iPhone
You can enjoy audio from iPod/iPhone through
this unit.
Compatible iPod/iPhone
The unit supports the following iPod/iPhone
models.
Made for.
• iPod touch (1st, 2nd, 3rd, and 4th
generation)
• iPod classic
• iPod nano (2nd, 3rd, 4th, 5th, and 6th
generation)
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Load the iPod/iPhone
•
Insert your iPod/iPhone into the dock.
Remove the iPod/iPhone
• Pull the iPod/iPhone out of the dock.
EN
6
Charge the iPod/iPhone
When the unit is connected to power, the docked
iPod/iPhone begins to charge automatically.
Listen to the iPod/iPhone
Note
•• Make sure that your iPod/iPhone has been loaded securely.
•
5 Other features
Synchronize the iPod/iPhone
with a PC
Start music play in your iPod/iPhone.
»» You can hear music from the speakers.
Play from an external device
You can enjoy music from an external device
through this unit.
Note
•• If the unit can detect audio signal from 30-pin
connector and AUX-IN port at the same time, it should
work under DOCK source.
Play from an external device with
MP3 link cable
1
2
Connect MP3 link cable to:
• the AUX-IN socket on the back of the
active speaker.
• the headphone socket on an external device.
1
2
3
4
Insert the iPod/iPhone into the dock.
Connect the active speaker to your PC
through the supplied USB cable.
Press on the active speaker.
»» The LED indicator flashes.
Start iTunes to snychronize your docked
iPod/iPhone with the PC.
Note
•• Make sure that you have not disabled automatic
synchronization in iTunes. Otherwise , start
synchronization from iTunes manually.
Start to play on the device .
To exit synchronization mode:
1
2
AUX-IN
7
EN
Eject your iPod/iPhone from iTunes .
Press on the active speaker.
»» The speakers return to audio mode .
6Product
information
Warning
•• Never remove the casing of this apparatus.
Note
•• Product information is subject to change without prior
notice.
Specifications
Amplifier
Rated Output Power
2 x 10 W RMS
Frequency Response
Signal to Noise Ratio
MP3 Link
60-20000 Hz, ±3dB
> 77 dB
600 mV RMS 22 kohm
Speakers
Speaker
Impedance
Speaker Driver
7Troubleshooting
4 ohm
2.5 inch full range + dia
60mm x 2 Woox
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
•• Make sure that the AC power plug of the
device is connected properly.
•• Make sure that there is power at the AC outlet.
No sound
•• Adjust the volume.
•• Check whether you have started music play.
No response from the unit
•• Disconnect and reconnect the AC power plug.
General information
AC power
Operation Power
Consumption
Standby Power
consumption
Dimensions
- Main Unit
(diameter x height)
Weight
- With Packing
- Main Unit
Model: AS360-120AQ300
Input: 100-240 V~, 50/60
Hz 1.2 A
Output: 12.0 V 3A
10 W
<0.5 W
W148*D148*H150mm
3.3 kg
0.8 kg
EN
8
8Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
This product complies with the radio
interference requirements of the European
Community.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
9
EN
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specifically to iPod or
iPhone respectively, and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Specifications are subject to change without notice
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
DS6200_10_UM_V1.1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
