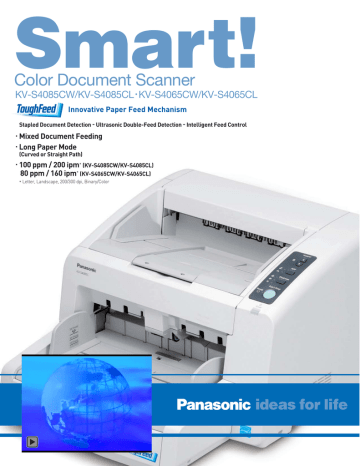

Color Document Scanner

Color Document Scanner
Smart!
Color Document Scanner
KV-S4085CW/KV-S4085CL・KV-S4065CW/KV-S4065CL
Innovative Paper Feed Mechanism
Stapled Document Detection - Ultrasonic Double-Feed Detection - Intelligent Feed Control
. Mixed Document Feeding
. Long Paper Mode
(Curved or Straight Path)
. 100 ppm / 200 ipm* (KV-S4085CW/KV-S4085CL)
80 ppm / 160 ipm* (KV-S4065CW/KV-S4065CL)
* Letter, Landscape, 200/300 dpi, Binary/Color
Accurate Feeding for
Various Paper Types
Have you ever had your work interrupted by a scanner jam, and then found out that important documents
were damaged? Or after you've finished scanning, have you discovered that one or more pages were missed?
Our innovative scanner uses a reliable, industry-first paper feed mechanism to quickly detect stapled
documents and halt scanning to minimize damage to the optical glass
and the document. It also senses double-sheet feeding
to prevent misfeedings. This minimizes errors
and problems in large scanning runs. Plus, it
features full-color scanning (200 or 300 dpi) at
up to 200 ipm* with clear, high-resolution results.
In short, it gives you both efficiency and quality.
*When using the KV-S4085CW Letter, Landscape, 200/300 dpi, Binary/Color.
High-Reliability Scanning
High-Speed Scanning of Sheets
up to 100 feet Long
Accurately Feeds Various Size of Documents
Mixed Document Feeding*1
Long Paper Mode
Documents with different sizes and thicknesses
can all be fed together. They can be set in center,
left, or right alignment. By using left or right
single-side alignment, there is no more need to
spend time organizing documents according to
their size, so scanning is fast and easy. This
function greatly increases work efficiency.
The highly reliable paper feed mechanism
quickly and stably scans long documents
too. Using the straight path, this boosts
work efficiency by smoothly scanning long
monitoring sheets, like those used for EKG
documents, and thick documents.
curved path
straight path
*1 Effective wide scanning of KV-S4065CL and KV-S4085CL are Letter
size from center position.
Left alignment
Center alignment
Right alignment
Setting
Position
The scanner feeds accurately, regardless of alignment.
Two path types enable long-sheet scanning.
Innovative Paper Feed Mechanism
Preventing Damage to the Scanning Glass
Stapled Document Detection
Multiple sensors are used to detect
various types of stapled documents,
and to immediately stop the scanner
when stapling is detected. This
minimizes damage to both the
document and the optical glass.
Accurate Scanning
Ultrasonic Double-Feed Detection
Ultrasonic sensors detect double feeds. The
KV-S4085CW/KV-S4085CL are equipped with three
ultrasonic sensors to cover a larger area of the
document, rather than the center only, for versatile
detection of small documents mixed among
regular-sized documents.
*KV-S4065CW/KV-S4065CL have one sensor.
Smooth Feeding
New System
Intelligent Feed Control
Multiple sensors check the paper
feed condition and automatically
adjust the roller pressure to
ensure that documents of various
thicknesses are accurately fed.
This makes it more reliable and
accurate than conventional feed
mechanism.
Adjusting
Checking
Paper feed roller
Documents
(1)
Multiple
Sensors
Feeding
direction
(2)
Insufficient
pressure
Checking
feed
condition
Tray
Automatically
raised
Multiple sensors constantly check
the condition of the paper feed and
the pressure between the document
and the roller.
The sensors detect when
the paper feed is not
correct due to insufficient
pressure.
The tray is raised to adjust
the pressure and accurately
feed the document.
High-Quality Image Processing
No More Need to Pre-Sort
Automatic Binary/
Color Distinction
This function automatically detects when a
set of documents contains some color
sheets and some monochrome (B/W)
sheets. You can feed these together
without sorting, and the machine will
automatically compress the data efficiently
according to whether a sheet is color or
monochrome (B/W), so the electronic file
size is minimized. This is a feature typically
found only on high-end scanners.
Documents
Image data
The scanner detects color or B&W.
Pre-Printed Form Scanning
Multi Color Dropout
With Multi Color Dropout, you're no
longer limited to removing only reds,
greens and blues from pre-printed forms.
Any color or color range can be selected
for removal for more accurate OCR
processing. And you're not limited to only
one color — you can select up to three or
even drop all colors saving only black.
AAAAA
AAAAA
Documents
Image data
The scanner makes it easier to read text data.
Eliminates Post-Processing
Automatic
Crop and De-Skew
When you scan documents of mixed size,
the documents are automatically cropped
and stored in the appropriate size. Also,
skewed documents are automatically
straightened when they are scanned.
The scanner crops white space.
Easy Maintenance
The clamshell design allows full, easy
access to the entire paper path, so you
can clear paper jams or clean the unit
without calling a service technician. The
rollers are also easy to replace, improving
the unit's cost-effectiveness, and have a
long service life.
Rollers are easy to replace.
The clamshell opens widely.
Specifications KV-S4085CW/KV-S4085CL and KV-S4065CW/KV-S4065CL
KV-S4085CW
KV-S4085CL
Scanning Face
Duplex
Scanning Method
Contact-type Color Image Sensor
Selectable black and white background reference
Power
Consumption
1.5 A
1.4 A
Minimum (Standby)
0.7 A
0.7 A
Sleep mode
4 W or less
4 W or less
Up to 85 ppm (Portrait)
Up to 100 ppm (Landscape)
Up to 65 ppm (Portrait)
Up to 80 ppm (Landscape)
Operating
Environment
Temperature
59 °F - 86 °F (15 °C - 30 °C)
Humidity
20 - 80 % RH
Duplex
Up to 170 ipm (Portrait)
Up to 200 ipm (Landscape)
Up to 130 ipm (Portrait)
Up to 160 ipm (Landscape)
Storage
Environment
Temperature
32 °F - 104 °F (0 °C - 40 °C)
Simplex
Up to 85 ppm (Portrait)
Up to 100 ppm (Landscape)
Up to 65 ppm (Portrait)
Up to 80 ppm (Landscape)
Duplex
Up to 170 ipm (Portrait)
Up to 200 ipm (Landscape)
Up to 130 ipm (Portrait)
Up to 160 ipm (Landscape)
Color
Humidity
10 - 80 % RH
External Dimensions *3 (W x D x H)
18.7 in. x 23.0 in. x 13.0 in.
(474 mm x 585 mm x 329 mm)
Weight *3
55 lbs. (25 kg)
Accessories
CD ROM : Operation manual, Installation manual,
RTIV™ manual, PIE manual,
User Utility manual, Control data sheet,
RTIV™ capture software, ISIS®/ TWAIN driver
software, User utility software, Multi color dropout utility
Power cord, USB cable & Blower
Resolution
600 dpi Optical Resolution 100 - 600 dpi (1 dpi step)
Detection
Double feed detection (KV-S4085CW/KV-S4085CL: 3 positions,
KV-S4065CW/KV-S4065CL: 1 position), Stapled document detection
Compression
JPEG (color, grayscale)
Image Output
Binary, Grayscale (8 bit), Color,
MultiStream™ output
Roller exchange kit
KV-SS033
Binary Mode Halftone
Dither, Error diffusion
Roller cleaning paper
KV-SS03
Imprinter unit (Pre and/or Post)
KV-SS014
Ink cartridge
KV-SS021
Image Control
Executed by driver software or
Panasonic RTIV™
Dynamic Threshold, Automatic De-skewing, Automatic Crop,
Automatic Binary/ Color Distinction, Blank Page Removal,
Double Exposure, Multi Color Dropout, Smooth Background,
Hole Removal, Border Removal, Noise Reduction,
Detect File Separation Sheet and much more
Other Functions
Length control, Barcode detection (ISIS), Patch code detection,
Automatic separation, Control sheet, Long paper mode
Long Paper Mode
100 feet (30,480 mm)
(crop pages to maximum 100 in. (2,540 mm) per page)
Scanning Size
KV-S4065CL / KV-S4085CL: 8.9 in. x 100 in. (227 mm x 2,540 mm)
KV-S4065CW / KV-S4085CW: 11.9 in. x 100 in. (302 mm x 2,540 mm)
Size (ADF)
Documents *2
Weight
Thickness
Minimum
1.9 in. × 2.75 in. (48 mm × 70 mm)
In manual feed or thick paper modes: 1.9 in. × 3.9 in. (48 mm × 100 mm)
Maximum
11.7 in. × 17 in. (297 mm × 432 mm)
KV-S4065CW
KV-S4065CL
Maximum (Scanning)
Simplex
Binary
Scanning Speed *1
Letter size 200/300 dpi
KV-S4085CW
KV-S4085CL
KV-S4065CW
KV-S4065CL
Options
*1 The scanning speed differs depending on the host computer, operating system, application,
image data amount, and paper type.
*2 "Weight in pounds" of paper represents the weight of 500 sheets (17 in. × 22 in. / 432 mm × 559 mm).
*3 Dimensions and weights are approximate.
Dimensions
13.0 in.
(329 mm)
Thin mode: 5 - 13 lbs. (20 - 50 g/m2)
Normal mode: 13 - 42 lbs. (50 - 157 g/m2)
Thick mode: 42 - 56 lbs. (157 - 209 g/m2)
Auto mode: 5 - 42 lbs. (20 - 157 g/m2)
1.9 - 7.9 mils (0.04 - 0.2 mm)
Straight path: max. 23.6 mils (0.6 mm)
23.0 in.
(585 mm)
Note: 1 mil = 0.001 in.
Hopper Capacity
Up to 300 sheets (17 lbs., 64 g/m2)
Interface
USB 2.0
Power Requirement
AC 100 - 240 V, 50/60 Hz
18.7 in.
(474 mm)
As an ENERGY STAR® Partner,
Panasonic has determined that this product meets
the ENERGY STAR guidelines for energy efficiency.
ENERGY STAR® and the ENERGY STAR certification marks are registered US marks.
MultiStream™, ISIS® and ISIS-Certified™ are trademarks of Pixel Translations, a division of EMC Corporation.
All other brand or product names are the property of their respective holders. Design and specifications are subject to change without notice.
Panasonic Communications Company of North America
One Panasonic Way, Secaucus, NJ 07094
www.panasonic.com/scanners
KV-S4085/4065C BR 4/08
