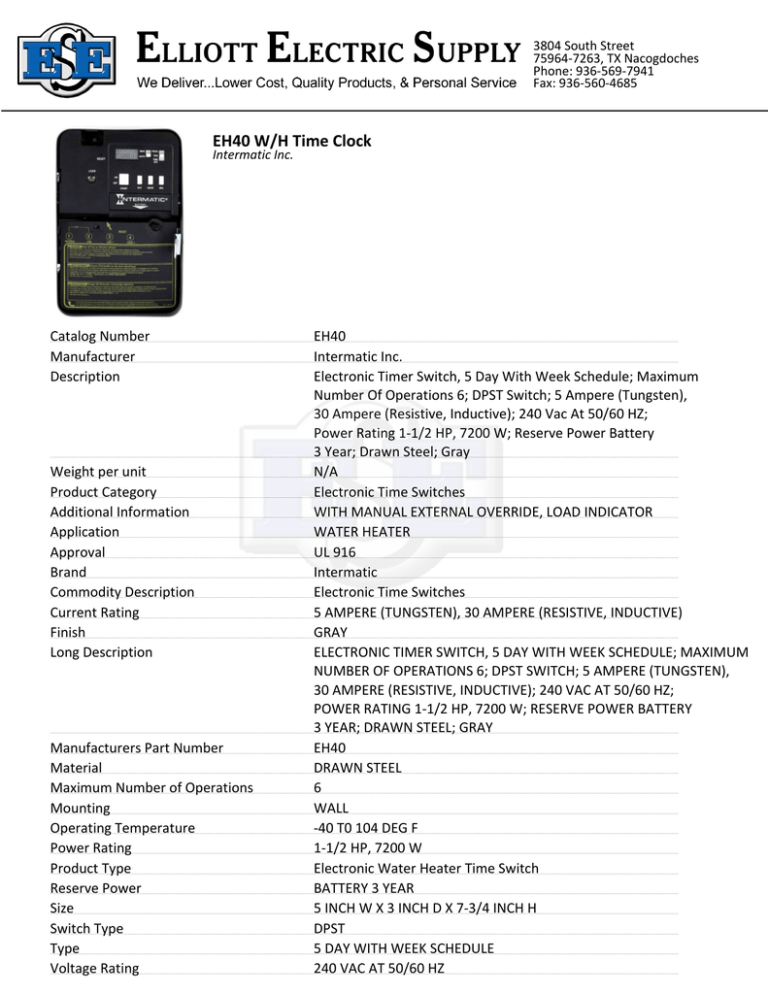

EH40 W/H Time Clock - Elliott Electric Supply

EH40 W/H Time Clock - Elliott Electric Supply
3804 South Street
75964-7263, TX Nacogdoches
Phone: 936-569-7941
Fax: 936-560-4685
EH40 W/H Time Clock
Intermatic Inc.
Catalog Number
Manufacturer
Description
EH40
Intermatic Inc.
Electronic Timer Switch, 5 Day With Week Schedule; Maximum
Number Of Operations 6; DPST Switch; 5 Ampere (Tungsten),
30 Ampere (Resistive, Inductive); 240 Vac At 50/60 HZ;
Power Rating 1-1/2 HP, 7200 W; Reserve Power Battery
3 Year; Drawn Steel; Gray
N/A
Electronic Time Switches
WITH MANUAL EXTERNAL OVERRIDE, LOAD INDICATOR
WATER HEATER
UL 916
Intermatic
Electronic Time Switches
5 AMPERE (TUNGSTEN), 30 AMPERE (RESISTIVE, INDUCTIVE)
GRAY
ELECTRONIC TIMER SWITCH, 5 DAY WITH WEEK SCHEDULE; MAXIMUM
NUMBER OF OPERATIONS 6; DPST SWITCH; 5 AMPERE (TUNGSTEN),
30 AMPERE (RESISTIVE, INDUCTIVE); 240 VAC AT 50/60 HZ;
POWER RATING 1-1/2 HP, 7200 W; RESERVE POWER BATTERY
3 YEAR; DRAWN STEEL; GRAY
EH40
DRAWN STEEL
6
WALL
-40 T0 104 DEG F
1-1/2 HP, 7200 W
Electronic Water Heater Time Switch
BATTERY 3 YEAR
5 INCH W X 3 INCH D X 7-3/4 INCH H
DPST
5 DAY WITH WEEK SCHEDULE
240 VAC AT 50/60 HZ
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Weight per unit
Product Category
Additional Information
Application
Approval
Brand
Commodity Description
Current Rating
Finish
Long Description
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Manufacturers Part Number
Material
Maximum Number of Operations
Mounting
Operating Temperature
Power Rating
Product Type
Reserve Power
Size
Switch Type
Type
Voltage Rating
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
.....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Electronic Time Switches
EH10 and EH40
Electronic Water Heater Time Switches
•
•
•
•
•
•
42 ON/OFF events per week
7-day scheduling
To-the-minute programming and time-keeping accuracy
External override switch
LED load indicator
Replaceable battery backup
Model #
Input Voltage Switch Watts Enclosure
EH10
120 VAC
SPST
3600
Type 1 Indoor Steel
D. EH40
240 VAC
DPST
7200
Type 1 Indoor Steel
Ratings:
Switch Rating for EH10:
30 A Inductive, 120 VAC 60Hz
30 A Resistive, 120 VAC 60Hz
5 A Tungsten, 120 VAC, 1 HP, 120 VAC
Switch Rating for EH40:
30 A Inductive, 240 VAC 60Hz
30 A Resistive, 240 VAC 60Hz
5 A Tungsten, 240 VAC, 1 ½ HP, 240 VAC
D.
CT2000
Percentage Cycle Time Switch
• Provides 8 field selectable timer durations of 30 seconds,
1, 3, 5, 10, 30 minutes and 1 or 4 hours
• Front cover buttons enable true flexibility for
repetitive cycle times
•Temporary and permanent manual overrides
• 30 separate positions enable precise percentage
ON time selection
• User settings stored in non-volatile memory
• No DIP switches to program cycle time
• Functions in dusty, ammonia, and wash-down environments
• Withstands surges of up to 6,000 VAC
• Type 3R Indoor/Outdoor Aluminum Enclosure
Model #
E. CT2000
Input Voltage
Switch
120 or 240 VAC, 60 Hz
SPST
Ratings:
Resistive: 20 A,120/240 VAC, 28 VDC
Motor: 1 HP, 120 VAC, 2 HP, 240 VAC
General Purpose: 20 A, 240 VAC
Tungsten (Incandescent): 5 A, 240 VAC
Pilot Duty: 470 VA, 240 VAC
Ballast (Fluorescent): 10 A, 277 VAC
Surge Protection: up to 6,000 VAC
Warranty: Limited 1 year
E.
