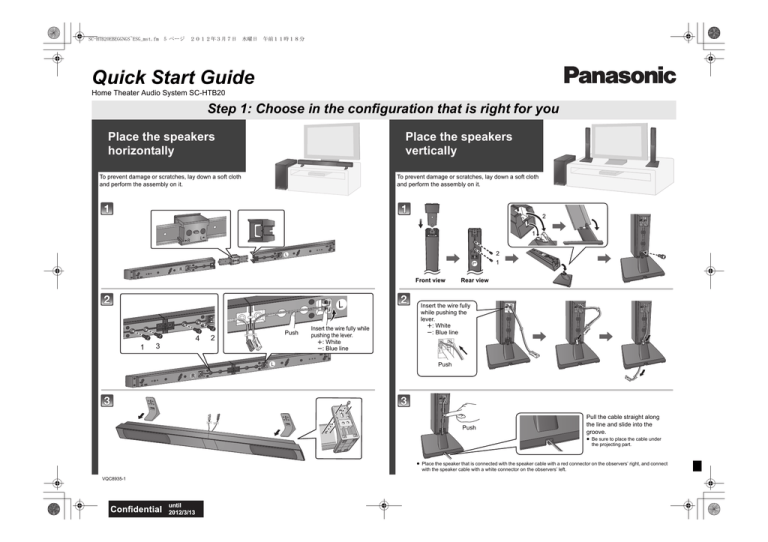

Quick Start Guide
Home Theater Audio System SC-HTB20
Step 1: Choose in the configuration that is right for you
Place the speakers
horizontally
Place the speakers
vertically
To prevent damage or scratches, lay down a soft cloth
and perform the assembly on it.
To prevent damage or scratches, lay down a soft cloth
and perform the assembly on it.
2
1
2
1
Front view
1
4
3
2
Push
Insert the wire fully while
pushing the lever.
r: White
s: Blue line
Rear view
Insert the wire fully
while pushing the
lever.
r: White
s: Blue line
Push
Push
Pull the cable straight along
the line and slide into the
groove.
≥ Be sure to place the cable under
the projecting part.
≥ Place the speaker that is connected with the speaker cable with a red connector on the observers’ right, and connect
with the speaker cable with a white connector on the observers’ left.
VQC8935-1
until
2012/3/13
SC-HTB20EBEGGNGS~ESG_mst.fm 6 ページ
2012年2月27日 月曜日 午前9時19分
Step 2: Connect the cables
Using this unit
Do not connect the AC mains lead to the active subwoofer until all other connections are complete.
When the TV is HDMI (ARC) compatible
HDMI IN
(ARC)
TV
Active
subwoofer
Be sure to connect to the TV’s ARC
compatible terminal. (Refer to the
TV’s operating instructions.)
HDMI cable
When the TV is VIERA Link “HDAVI ControlTM” or
HDMI CEC compatible
e.g. TV remote control
HDMI (ARC)
Audio Return Channel:
Allows a home theater
system to receive and
play audio from the TV
through a HDMI cable
without additional wiring.
Turn on the active subwoofer.
Turn on the TV, and select this home theater system as the TV’s speakers from the
VIERA Link menu.
White
AC mains lead
Red
≥ If the TV is not a Panasonic TV, set the “Receiver” or “External speakers” to “On”.
To a household mains socket
110-127V• •220-240V
VOLT ADJ
Press [i VOL j] on the TV’s remote control to adjust the volume.
(For South East Asia and the Middle East)
Before connecting the AC mains lead, set the voltage.
§ Operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.
≥ For details about VIERA Link (HDMI), refer to page 24 of the operating instructions.
When the TV is non HDMI (ARC) compatible
OPTICAL
OUT
TV
Active
subwoofer
HDMI IN
Optical
digital
audio cable
When the TV is not VIERA Link “HDAVI ControlTM” or
HDMI CEC compatible
HDMI cable is required
for VIERA Link “HDAVI
Control”
e.g. TV remote control
HDMI cable
Turn on the active subwoofer and the TV.
Press [TV] to select the TV sound.
AC mains lead
White
Red
To a household mains socket
110-127V• •220-240V
VOLT ADJ
(For South East Asia and the Middle East)
Before connecting the AC mains lead, set the voltage.
Press [i VOL j] to adjust the volume.
≥ If there is sound from the TV’s speakers too, then use the TV’s remote control to lower the volume to
minimum.
For wall mounting and other details, be sure to refer to the operating instructions.
