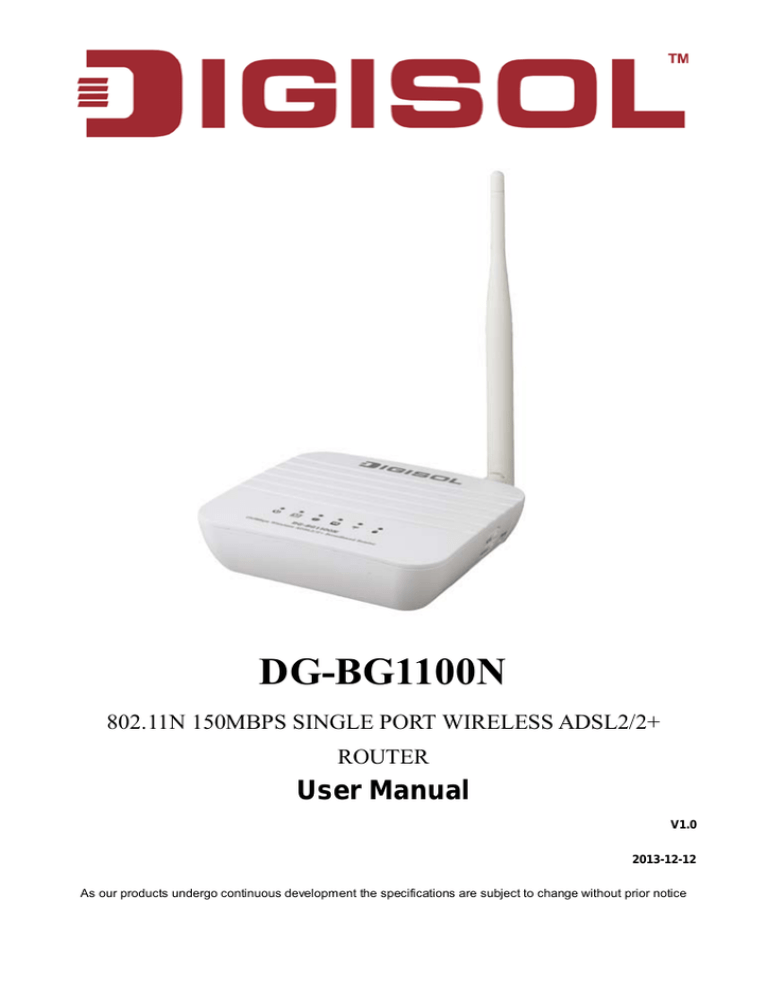

DG-BG1100N
802.11N 150MBPS SINGLE PORT WIRELESS ADSL2/2+
ROUTER
User Manual
V1.0
2013-12-12
As our products undergo continuous development the specifications are subject to change without prior notice
DG-BG1100N User Manual
Index
1
2
3
4
Product Information .............................................................................................. 4
1.1
Safety Precautions .................................................................................. 4
1.2
Package Contents ................................................................................... 5
1.3
Features ................................................................................................... 5
1.4
System Requirements ............................................................................. 6
1.5
LEDs and Interfaces ................................................................................ 7
Hardware Installation .......................................................................................... 10
2.1
Software Installation .............................................................................. 11
2.2
PC Network Configuration ..................................................................... 21
Accessing the Internet ........................................................................................ 23
3.1
Accessing the Internet by Wireless Connection ................................... 23
3.2
Accessing the Internet in Bridge Mode ................................................. 25
Web Configuration .............................................................................................. 26
4.1
Access the Router ................................................................................. 26
4.1.1
Status ..................................................................................... 27
4.1.2
Device Info ............................................................................ 27
4.1.3
System Log ........................................................................... 28
4.1.4
Statistics ................................................................................ 28
4.2
Quick Start ............................................................................................. 30
4.3
Interface Setup ...................................................................................... 40
4.3.1
Internet .................................................................................. 40
4.3.2
LAN ........................................................................................ 46
4.3.3
4.4
Wireless ................................................................................. 50
Advanced Setup .................................................................................... 53
4.4.1
Firewall .................................................................................. 53
4.4.2
Routing .................................................................................. 53
4.4.3
NAT ........................................................................................ 55
4.4.4
VLAN ..................................................................................... 59
4.4.5
4.5
ADSL ..................................................................................... 62
Access Management ............................................................................. 63
4.5.1
ACL ........................................................................................ 63
4.5.2
Filter ....................................................................................... 64
2
DG-BG1100N User Manual
4.5.3
SNMP .................................................................................... 67
4.5.4
UPnP ..................................................................................... 68
4.5.5
DDNS .................................................................................... 69
4.5.6
4.6
CWMP ................................................................................... 70
Maintenance .......................................................................................... 71
4.6.1
Administration ....................................................................... 71
4.6.2
Time Zone ............................................................................. 72
4.6.3
Firmware ............................................................................... 73
4.6.4
SysRestart ............................................................................. 74
4.6.5
4.7
Diagnostics ............................................................................ 75
Troubleshooting ..................................................................................... 76
3
DG-BG1100N User Manual
1
Product Information
The DG-BG1100N device is an ADSL access device that supports multiple line modes. It
provides one 10/100Base-T Ethernet interface at the user end. The device provides
high-speed ADSL broadband connection and supports wireless network access to the Internet
or Intranet for high-end users such as net cafes and office users. The device provides high
performance access to the Internet, downlink up to 24 Mbps and uplink up to 1 Mbps.
1.1
Safety Precautions
Take the following instructions to prevent the device from risks and damage caused by fire or
electric power.
•
•
•
Use the type of power marked by the volume label.
Use the power adapter in the device package.
Pay attention to the power load of the outlet or prolonged lines. An overburden power
outlet or damaged lines and plugs may cause electric shock or fire accident. Check
the power cords regularly. If you find any damage, replace it at once.
•
Proper space left for heat dissipation is necessary to avoid damage caused by
overheating the device. The long and thin holes on the device are designed for heat
dissipation to ensure that the device works normally. Do not cover these heat
dissipation holes.
•
Do not put this device close to a place where a heat source exists or high temperature
•
Do not put this device close to a place where it is over damp or watery. Do not spill any
occurs. Avoid the device from direct sunshine.
fluid on this device.
•
Do not connect this device to PCs or electronic products, unless our engineer or your
broadband provider instructs you to do this, because any wrong connection may
cause power or fire risk.
•
Do not place this device on an unstable surface or support.
4
DG-BG1100N User Manual
1.2
Package Contents
Before you start using this router, please check if there’s anything missing in the package, and
contact your dealer of purchase to claim for missing items:
•
•
•
•
•
•
•
1.3
1 x ADSL Wireless router
2 x Telephone cables (RJ11)
1 x Ethernet cable (RJ45)
1 x External ADSL splitter
1 x Power adapter (DC12V 0.5A, EU)
Installation Guide CD ( includes user manual, QIG & Utility)
Quick Installation Guide
Features
The device supports the following features:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Various line modes
Wireless network access
External PPPoE dial-up access
Internal PPPoE/PPPoA dial-up access
1483Bridged/1483Routed with dynamic IP or static IP
Multiple PVCs (the number of PVCs support is eight)
DHCP server/relay
Static route
Network Address Translation(NAT)
DMZ
Virtual Server
Universal plug and play (UPnP)
Dynamic Domain Name Server(DDNS)
One-level password and username
Network Time Protocol(NTP)
Firmware upgrading through Web, TFTP, or FTP
Resetting to the factory defaults through Reset button or Web
Diagnostic test
Web interface
5
DG-BG1100N User Manual
•
•
•
•
•
1.4
Telnet CLI
IP/MAC/URL Filter
Application layer service
QOS
Port binding
System Requirements
Recommended system requirements are as follows:
•
•
A 10/100 base-T Ethernet card is installed on your PC.
A hub or Switch. (To connect several PCs through one of the Ethernet interfaces on the
device.)
•
Operating system: Windows 98 SE, Windows 2000, Windows ME, Windows XP,
Windows Vista, Windows 7.
•
Internet Explorer V5.0 or higher, Netscape V4.0 or higher, or Firefox 1.5 or higher.
6
DG-BG1100N User Manual
1.5
LEDs and Interfaces
Top Panel
The following table describes the LEDs of the device:
LEDs
Power
Color
Status
Description
Green
On
Power is ON.
Off
Power is OFF.
Red
On
The device is initializing or initialization has
failed.
DSL
Green
On
Blinking
DSL physical link is up.
ADSL handshaking process is on or ADSL line
unplugged.
Internet
Green
On
Blinking
Off
Red
On
Internet connection is established.
Data is beihng transmitted or received.
Set as bridge mode.
PPPoE/PPPoA user name-password not set or
is wrong.
LAN
Green
On
Blinking
Off
WLAN
Green
On
Blinking
Off
WPS
Green
PC is connected to the LAN port.
Data is being transmitted or received.
PC is unplugged / Not connected.
Wireless is enabled.
Data is being transmitted or received.
Wireless is not enabled.
Blinking
WPS negotiation is enabled, waiting for the
Off
WPS negotiation is not enabled on the device.
wireless clients.
7
DG-BG1100N User Manual
Rear Panel
The following table describes the interfaces of the device:
Items
Description
On/Off
Power switch. Power on or off the device.
Power
Power interface, for connecting to the power adapter of DC 12 V, 0.5 A, EU.
LAN
DSL
RJ-45 interface, for connecting to the Ethernet interface of PC or other
Ethernet devices through Ethernet cable.
RJ-11 interface, for connecting to the ADSL interface or a splitter through the
telephone cable.
8
DG-BG1100N User Manual
Side Panel
Items
Description
WPS
Press the button to enable WPS.
WLAN
Press the button to enable WLAN.
Reset
Reset to the factory defaults. Keep the device powered on, then
insert a paper clip in to the hole, press and hold for over 3 seconds.
The configuration will be reset to the factory defaults.
9
DG-BG1100N User Manual
2
Hardware Installation
The following figure shows the application diagram for the connection of the router, PC, splitter
and the telephone sets, when no telephone set is placed before the splitter.
Step 1
Connect the DSL interface of the device and the Modem interface of the splitter
through a telephone cable. Connect the phone to the Phone interface of the splitter
through a cable. Connect the incoming line to the Line interface of the splitter.
The splitter has three interfaces:
•
•
•
Step 2
Line: Connect to a wall phone jack (RJ-11 jack).
Modem: Connect to the ADSL jack of the device.
Phone: Connect to a telephone set.
Connect the LAN interface of the device to the network card of the PC through an
Ethernet cable (MDI/MDIX).
Note: Use twisted-pair cables to connect with the hub or switch.
Step 3
Plug one end of the power adapter to the wall outlet and connect the other end to
the Power interface of the device.
10
DG-BG1100N User Manual
2.1
Software Installation
 Insert the Setup CD into your CD-ROM drive of notebook/desktop computer.
 Explore the CD and execute the “DG-BG1100N.EXE” file. Screen given below will be
displayed. Click ‘Start’ to continue.
11
DG-BG1100N User Manual
 Connect the ADSL line to the router. Click ‘Next’.
 Connect the power adapter to the AC Mains and the other end to the power interface on
the router. Push the power button on the router to power up the device.Click ‘Next’.
12
DG-BG1100N User Manual
 Connect the Ethernet interface on the router to the LAN card on the computer using the
Ethernet cable. Click ‘Next’.
 After powering up the router, verify the status of the LED indicators on the front panel of
the router. Click ‘Next’.
13
DG-BG1100N User Manual
 Please select your ‘Country’ and ADSL service provider. VPI and VCI values will auto fill.
 Select the network protocol for WAN interface. Click ‘Next’.
14
DG-BG1100N User Manual
All the utility installation steps till here are the common steps to be followed for the modes.
Following are the steps for configuring PPPoE connection:
 Enter the username and password provided by your ISP. Click ‘Next’.
 Configure a wireless name (SSID) for your router. Click ‘Next’.
15
DG-BG1100N User Manual
 Configure the wireless security for your router. Click ‘Next’.
 A screen with the summary of wireless setting will appear as shown below. Click ‘Next’.
16
DG-BG1100N User Manual
 Click on ‘Next’, the following screen will appear.
 Once the connection is established, the router connection status will appear.
17
DG-BG1100N User Manual
Bridging Mode:
 To configure the router in bridge mode select “Bridging” option. Click ‘Next’.
 Configure a wireless name (SSID) for your router. Click ‘Next’.
18
DG-BG1100N User Manual
 Configure the wireless security for your router. Click ‘Next’.
 A screen with the summary of wireless setting will appear as shown below.
19
DG-BG1100N User Manual
 Click on ‘Next’ the following screen will appear.
 Click on ‘Finish’ to complete the configuration of the router in Bridge mode.
20
DG-BG1100N User Manual
2.2
PC Network Configuration
Each network interface on the PC should either be configured with a statically defined IP
address and DNS address, or be instructed to automatically obtain an IP address using the
network DHCP server. DSL router provides a DHCP server on its LAN and it is recommended
to configure your LAN to automatically obtain its IP address and DNS server IP address.
The configuration principle is identical but should be carried out differently on each operating
system.
The following screen displays the TCP/IP Properties dialog box on Windows XP.
IP and DNS configuration
21
DG-BG1100N User Manual
TCP/IP configuration steps for Windows XP are as follows:
Step 1
Choose Start > Control Panel > Network Connections.
Step 2
Right-click the Ethernet connection icon and choose Properties.
Step 3
On the General tab, select the Internet Protocol (TCP/IP) component and click
Properties.
Step 4
The Internet Protocol (TCP/IP) Properties window appears.
Step 5
Select the Obtain an IP address automatically radio button.
Step 6
Select the Obtain DNS server address automatically radio button.
Step 7
If you want to set the IP address and subnet mask manually, you can set the IP
address and subnet mask of the computer to 192.168.1.x and 255.255.255.0
respectively. The range for x is from 2 to 254.
Step 8
Click OK to save the settings.
22
DG-BG1100N User Manual
3
Accessing the Internet
3.1
Accessing the Internet by Wireless Connection
By default, the wireless network of the wireless router is enabled. If you use a wireless network
adapter, do as follows to establish the connection:
Step 1
Turn on the Router. The WLAN is enabled by default.
Step 2
Enable the wireless network adapter on your PC and ensure that the Wireless
Zero Configuration tool is available. Right-click the Wireless Network
Connection icon and choose View Available Wireless Networks from the menu.
23
DG-BG1100N User Manual
Step 3
In the Wireless Network Connection page, click Refresh network list and the
network list is refreshed. Select the SSID of the router.
Step 4
Click Connect, enter the username and password in the pop-up window and start
connecting.
24
DG-BG1100N User Manual
3.2
Accessing the Internet in Bridge Mode
This method is generally used when the Router works as a bridge. If you select this method for
accessing the network, you need to install and configure the dial-up software on your computer.
In addition, you need to perform dial-up operations on your computer upon each startup. To
configure the Router and your computer for the network access, do as follow:
Step 1
Install and configure the PPP dial-up software on your computer.
Step 2
The PPP dial-up software is pre-installed on certain computer operating systems.
To Create a dial-up connection, do as follows: (taking the Windows XP operating
system as an example)
Step 3
Choose Start > All Programs > Accessories > Communications > Network
Step 4
Click Create a new connection in Network Tasks to display the New Connection
Step 5
Select Connect to the Internet, and then click Next.
Connections.
Wizard window, and then click Next.
Step 6
Select Set up my connection manually, and then click Next.
Step 7
Select Connect using a broadband connection that requires a user name and
Step 8
Enter the Name (as desired) of the dial-up connection in ISP Name, and then click
Step 9
Select anyone’s use or my use only, and then click Next.
Step 10
Enter the user name and password used for the dial-up connection provided by the
Step 11
Select Add a shortcut to this connection to my desktop, and then click Finish.
Step 12
An icon for the dial-up connection is displayed on the desktop of your computer.
password, and then click Next.
Next.
ISP (network operator), and then click Next.
You need to perform the preceding operations only once for creating a network connection. To
access the internet, double-click the icon, and then click Connect in the displayed dialog box.
25
DG-BG1100N User Manual
4
Web Configuration
This section describes how to configure the router by using the Web-based configuration utility.
4.1
Access the Router
The following is the detailed description of accesing the router for the first time.
Step 1
Open the Internet Explorer (IE) browser and enter http://192.168.1.1.
Step 2
In the Login page that is displayed, enter the username and password.
•
The username and password of the super user are admin and admin.
If you log in, the page shown in the following figure appears. You can check, configure and
modify all the settings.
26
DG-BG1100N User Manual
4.1.1
Status
In the navigation bar, click Status. In the Status page that is displayed contains Device Info,
System Log and Statistics.
4.1.2
Device Info
Choose Status > Device Info. This page displays the current information for the ADSL Router.
It will display the Firmware version; LAN, WAN and MAC address information.
27
DG-BG1100N User Manual
4.1.3
System Log
Choose Status > System Log, the page shown in the following figure appears. The ADSL
Router keeps a running log of events and activities occurring on the Router. If the device is
rebooted, the logs are automatically cleared.
4.1.4
Statistics
Choose Status > Statistics. The Statistics page that is displayed contains Ethernet Statistics
and ADSL Statistics.
The ADSL Router keeps statistic of traffic that passes through it. You are able to view the
amount of packets that pass through the Router on both the WAN port and the LAN port. The
traffic counter will reset if the device is rebooted. You can select Ethernet/ADSL to view the
statistics report of LAN/WAN.
28
DG-BG1100N User Manual
Ethernet Statistic
Click Ethernet in the Traffic Staticstics page, the page shown in the following figure appears. In
this page, you can view the statistics such as total Bytes, Collision, Error Frames and CRC
Errors.
ADSL Statistic
Click ADSL in the Traffic Staticstics page, the page shown in the following figure appears. In
this page, you can view the ADSL line statistics such as total PDUs and total Error Counts.
29
DG-BG1100N User Manual
WLAN Statistic
Click WLAN in the Traffic Statistics page, the page shown in the following figure appears. In this
page, you can view the WLAN statistics such as total PDUs, total Errors Count and total Drops
Count.
4.2
Quick Start
The Quick Start page will guide you to configure the ADSL router to connect to your ISP
(Internet Service Provider). The following sections describe these various configuration
parameters. Whether you configure these parameters or use the default ones, click NEXT to
enable your Internet connection.
When subscribing to a broadband service, you should be aware of the method by which you
are connected to the Internet. The technical information about the properties of your Internet
connection is provided by your Internet service provider (ISP). For example, your ISP should
inform you whether you are connected to the Internet using a static or dynamic IP address, and
the protocol that you use to communicate on the Internet.
In the navigation bar, click Quick Start. The page as shown in the following figure appears.
30
DG-BG1100N User Manual
Click RUN WIZARD, a new pop up page as shown in the following figure appears.
Click EXIT, this page will be closed. Click NEXT, the page as shown in the following figure
appears.
31
DG-BG1100N User Manual
In this page, you can modify the admin account’s password, and you can make it blank if you
do not want to change it.
Click NEXT, the page as shown in the following figure appears.
In this page, you can select a local time zone.
Click NEXT, the page as shown in the following figure appears.
32
DG-BG1100N User Manual
There are four WAN connection types: Dynamic IP Address, Static IP Address, PPPoE/PPPoA
and Bridge Mode. Select the appropriate WAN connection type which is provided by your ISP.
For example, if you subscribed PPPoE or PPPoA service from your ISP, you can select the
PPPoE/PPPoA. Click NEXT, and the page as shown in the following figure appears.
33
DG-BG1100N User Manual
We set the parameters of this page based on PPPoE protocol as an example shown in the
following figure.
1)
Enter the Username and Password provided by your ISP (Internet Service Provider).
2)
Enter the VPI and VCI values provided by your ISP.
3)
Select the connection type according to the information that your ISP provides to you. It
is common to set it to be PPPoE LLC.
After setting, click NEXT, the page as shown in the following figure appears.
34
DG-BG1100N User Manual
In this page, you can enable or disable WLAN, change the WLAN SSID and authentication
type.
The configuration of six authentication types is introduced as below.
Disabled
When the authentication type Disabled is selected, the following figure will appear. Click NEXT
for the next step.
35
DG-BG1100N User Manual
WEP-64Bits
When the authentication type WEP-64Bits is selected, the following figure will appear. Enter 5
characters or 10 hexadecimal digits ("0-9", "A-F") preceded by “0x” for each Key (1-4), and then
click NEXT for the next step.
36
DG-BG1100N User Manual
WEP-128Bits
When the authentication type WEP-128Bits is selected, the following figure will appear. Enter
13 characters or 26 hexadecimal digits ("0-9", "A-F") preceded by “0x” for each Key (1-4), and
then click NEXT for the next step.
37
DG-BG1100N User Manual
WPA-PSK
When the authentication type WPA-PSK is selected, the following figure will appear. Select an
encryption from TKIPAES, TKIP and AES; enter a pre-shared key of 8~64 characters, and then
click NEXT for the next step.
38
DG-BG1100N User Manual
WPA2-PSK
When the authentication type WPA2-PSK is selected, please refer to the WPA-PSK part for
configuration.
WPA-PSK/WPA2-PSK (Mixed mode)
When the authentication type WPA-PSK/WPA2-PSK (Mixed mode) is selected, please refer to the
WPA-PSK part for configuration.
Click BACK to modify the settings.
Click NEXT to save the settings.
Click EXIT to cancel the settings.
For Dynamic IP Address and Static IP Address, please set the parameters according to the
information provided by your ISP, and then follow the Wizard to finish the configuration.
Under Bridge mode, if you want to access the internet, you need to dial-up with the correct
username and password provided by your ISP by using built-in dial-up software on your
computer. For the operation, please refer to section 3.2 accessing the Network via PPP
Dial-Up.
39
DG-BG1100N User Manual
4.3
Interface Setup
In the navigation bar, click Interface Setup. The Interface Setup page that is displayed
contains Internet, LAN and Wireless.
4.3.1
Internet
Choose Interface Setup > Internet. Select PPPoA/PPPoE encapsulation.
Click Internet pane, the page shown in the following figure appears. In this page, you can
configure WAN interface of your router.
40
DG-BG1100N User Manual
The following table describes the parameters of this page:
Field
Description
You can select a virtual circuit from the drop-list. Click PVCs
Virtual Circuit
Summary to view the eight PVCs (from PVC0 to PVC7). Only
PVC0 is activated by default.
Status
VPI
VCI
ATM QoS
You can select Activated or Deactivated for the selected virtual
circult.
The virtual path between two points in an ATM network, ranging
from 0 to 255.
The virtual channel between two points in an ATM network,
ranging from 1 to 65535.
The QoS category of the PVC. You can choose UBR, CBR,
nrt-VBR or rt-VBR.
Peak cell rate (PCR) is the maximum rate at which cells can be
PCR
transmitted along a connection in the ATM network. Its value
ranges from 1 to 65535.
Sustain cell rate (SCR) is the maximum rate that traffic can pass
SCR
over a PVC without the risk of cell loss. Its value ranges from 0 to
65535.
MBS
IP Version
Maximum burst size (MBS) is the maximum number of cells that
can be transmitted at the PCR. Its value ranges from 0 to 65535.
The IP Protocol you adopted. You can choose IPv4/IPv6, IPv4 or
IPv6.
Select the connection mode provided by your ISP. There are four
ISP
options avaialbe:
Dynamic IP Address, Static IP Address,
PPPoA/PPPoE or Bridge Mode.
Servicename
Username
Password
Encapsulation
You can set the service name.
Enter the username for PPPoE dial-up, which is provided by your
ISP.
Enter the password for PPPoE dial-up, which is provided by your
ISP.
You can choose PPPoE LLC, PPPoE VC-Mux, PPPoA LLC or
PPPoA VC-Mux.
41
DG-BG1100N User Manual
Bridge Interface
You can choose Activated or Deactivated.
Connection
Always On (Recommended), Connect On-Demand (Close if idle
To control the time of connecting to the internet. You can choose
for xx minutes) or Connect Manually.
TCP MSS Option
Default Route
Get IP Address
Static IP Address
IP Subnet Mask
Gateway
You can keep the default value 0 or set a tcp mss value. The
range is from 100 to 1452.
Choose the current PVC as the default PVC, and it works in the
routing mode. You can enable or disable default route.
You can choose Static or Dynamic.
When Static is selected, you can enter the IP address for dial-up,
which is provided by your ISP.
When Static is selected, you can enter the IP subnet mask for
dial-up, which is provided by your ISP.
When Static is selected, you can enter the gateway IP for dial-up,
which is provided by your ISP.
Select it to enable Network Address Translation (NAT) function. If
NAT
you do not select it and you want to access the Internet normally,
you must add a route on the uplink equipment. Otherwise, the
access to the Internet fails. Normally, it is enabled.
TCP MTU Option
You can keep the default value 0 set a TCP MTU value. The range
is from 100 to 1500.
Dynamic Route
You can select RIP1, RIP2-B and RIP2-M.
Direction
You can select None, Both, IN Only and OUT Only.
Multicast
You can choose Disabled or Internet Group Management Protocol
(IGMP) v1, IGMP v2 or IGMPv3.
Click PVCs Summary besides the field Virtual Circuit, and the following figure appears. You
can view the information summary of each PVC.
42
DG-BG1100N User Manual
If your ISP provides you an IP address automatically, you may select Dynamic IP in the ISP
encapsulation. Dynamic IP is typically used for Cable services. Please enter the Dynamic IP
information accordingly.
43
DG-BG1100N User Manual
The following table describes the parameters of this page:
Field
Description
You can choose 1483 Bridged IP LLC, 1483 Bridged IP
Encapsulation
VC-Mux, 1483 Routed IP LLC(IPoA) or 1483 Routed IP
Bridge Interface for PPPoE
You can choose Activated or Deactivated.
Default Route
this function, the current PVC will be the default gateway
VC-Mux.
You can enable or disable the default route. If you enable
to internet from this device.
TCP MTU Option
You can set a TCP MTU value. The range is from 100 to
1500. The default is 0.
Select it to enable Network Address Translation (NAT)
function. If you do not select it but want to access the
NAT
Internet normally, you must add a route on the uplink
equipment. Otherwise, the access to the Internet fails.
Normally NAT is enabled.
Select this option to specify the Routing Information
Dynamic Route
protocol (RIP) version. You can select RIP1, RIP2-B or
RIP2-M.
You can select None, Both, IN Only or OUT Only to
specify the RIP direction. None is for disabling the RIP
function. Both means the ADSL Router will periodically
Direction
send routing information and accept routing information
then incorporate it into routing table. IN only means the
ADSL router will only accept but will not send RIP packet.
OUT only means the ADSL router will only send but will
not accept RIP packet.
IGMP
(Internet
Group
Multicast
Protocol)
is
a
session-layer protocol used to establish membership in a
Multicast
multicast group. The ADSL Router supports both IGMP
version 1 (IGMP-v1), IGMP-v2.Select Disabled to disable
it.
44
DG-BG1100N User Manual
Select Static IP Address in the ISP encapsulation to set static IP information. You will need to
enter in the Connection type, IP address, subnet mask and gateway address, provided to you by
your ISP. Each IP address entered in the fields must be in the appropriate IP form, which are four
IP octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this
format.
The following table describes the parameters of this page:
Field
Encapsulation
Default Route
TCP MTU Option
Static IP Address
IP Subnet Mask
Gateway
Description
You can choose 1483 Bridged IP LLC, 1483 Bridged IP VC-Mux,
1483 Routed IP LLC(IPoA) or 1483 Routed IP VC-Mux.
You can enable or disable default route.
You can set a tcp MTU value. The range is from 100 to 1500. The
default is 0.
You can enter the IP address for dial-up, which is provided by your
ISP.
You can enter the IP subnet mask for dial-up, which is provided by
your ISP.
You can enter the gate way IP for dial-up, which is provided by your
ISP.
Dynamic Route
Select it to enable Network Address Translation (NAT) function. If
you do not select it but want to access the Internet normally, you
must add a route on the uplink equipment. Otherwise, the access to
the Internet fails. Normally, it is enabled.
You can select RIP1, RIP2-B or RIP2-M.
Direction
You can select None, Both, IN Only or OUT Only.
NAT
45
DG-BG1100N User Manual
4.3.2
LAN
Choose Interface Setup > LAN. The LAN page that is displayed contains Router Local IP,
DHCP Server, DNS, Radvd and DHCPv6. In this page, you can change IP address of the
router. The default IP address is 192.168.1.1, which is the private IP address of the router.
46
DG-BG1100N User Manual
The following table describes the parameters of this page:
Field
Description
Enter the IP address of LAN interface. It is recommended to use an
IP Address
address from a block reserved for private use. This address block
is 192.168.1.1- 192.168.255.254.
IP Subnet Mask
Dynamic Route
Enter the subnet mask of LAN interface. The range of subnet mask
is from 255.255.0.0 to 255.255.255.254.
Select the Dynamic Routing Protocol as required.
Direction
You can select None, Both, IN Only or OUT Only.
Multicast
Select the IGMP Multicat Protcol or Disable it.
IGMP Snoop
You may select Activated or Deactivated. After Activating this
function, the packets of the IGMP broadcast will not be sent to the
LAN interface not belonging to the group.
You may select Enabled or Disabled. After Activating this function,
Mld Snoop
the packets of the MLD broadcast will not be sent to the LAN
interface not belonging to the group.
You can choose Disabled, Enabled or Relay. If set to DHCP
DHCP
Server, the router can assign IP addresses, IP default gateway and
DNS Servers to the host under Windows95, Windows NT and
other operation systems that support the DHCP client.
Starting IP Address
The starting IP address for the DHCP server's IP assignment.
IP Pool Count
The max user pool size.
The lease time determines the period that the host retains the
Lease Time
assigned IP addresses before the IP addresses change. The
default is 259200 seconds.
Physical Ports
Choose the Ethernet Interface for which you want to enable DHCP.
You can choose Use Auto Discovered DNS Server Only or Use
DNS Relay
User Discovered DNS Server Only. If you select Auto Discovered,
the router accepts the firstly-received DNS assignment from one of
the PPPoA, PPPoE or MER enabled PVC(s) during the connection
establishment. If you select User Discovered, enter the IP
addresses of the primary and secondary DNS servers.
You may choose to enable or disable Radvd. The Router
Advertisement Daemon (radvd) is an open-source software
Radvd Enable
product that implements link-local advertisements of IPv6 router
addresses and IPv6 routing prefixes using the Neighbor Discovery
Protocol (NDP).
47
DG-BG1100N User Manual
Radvd Mode
You may choose Auto or Manual.
Auto Prefix
Enable or Disable Autoprefix for Radvd.
RA Flags Set
You may choose ManagedAddr or Other Config.
DHCP6 Server
You may choose to enable or disable DHCP6 Server.
DHCP6 Mode
You may choose Auto or Manual for the DHCP6 Mode.
Dynamic Host Configuration Protocol (DHCP) allows the individual PC to obtain the TCP/IP
configuration from the centralized DHCP server. You can configure this router as a DHCP
server or disable it. The DHCP server can assign IP address, IP default gateway and DNS
server to DHCP clients. This router can also act as a surrogate DHCP server (DHCP proxy)
where it relays IP address assignment from an actual DHCP server to clients. You can enable
or disable DHCP server or DHCP proxy.
In the DHCP field, choose Disabled, the page shown in the following figure appears.
48
DG-BG1100N User Manual
In the DHCP field, choose Relay, the page shown in the following figure appears. Enter a
server IP address running on WAN side.
49
DG-BG1100N User Manual
4.3.3
Wireless
Choose Interface Setup > Wireless. The page as shown in the following figure appears. The
Wireless page contains Access Point Settings, 11n Settings, Multiple SSIDs Settings, WDS
Settings and Wireless MAC Address Filter.
50
DG-BG1100N User Manual
The following table describes the parameters of this page:
Field
Access Point
Description
You may choose Activated or Deactivated.
Countries apply their own regulations to both the allowable
Channel
channels, allowed users and maximum power levels within these
frequency ranges.
Beacon Interval
Beacon Interval range is from 20 to 1000.
RTS/CTS Threshold
RTS/CTS Threshold range is from 1500 to 2347.
Fragmentation
Fragmentation Threshold range are only even numbers between
Threshold
256 and 2346.
DTIM range is from 1 to 255. A delivery traffic indication message is
DTIM
a kind of traffic indication message (TIM) which informs the clients
of the presence of buffered multicast/broadcast data on the access
point.
Comply with the IEEE 802.11b/g and IEEE802.11n standards. You
Wireless Mode
can select 802.11b, 802.11g, 802.11b+g, 802.11n, 802.11g+n or
802.11b+g+n.
Channel Bandwidth
Extension Channel
Supporting 20MHz/40MHz Dual Channel.
You can set below the control channel or above the control
channel.
Guard Interval
You can set 800 nsec or AUTO.
MCS
You can set an MCS index between 0 and 7, or select AUTO.
SSID index
Supporting only a root SSID to be modified
PerSSID switch
Activate or Dectivate SSID switch.
SSID
The service set identification (SSID) is a unique name to identify
the router in the wireless LAN. You may modify the SSID.
Select whether the router broadcasts SSID or not. You can select
Yes or No.
Broadcast SSID

Select Yes, and the wireless client searches the router

Select No to hide SSID, and the wireless client can not search
through broadcasting SSID.
the SSID.
51
DG-BG1100N User Manual
WPS
Use WPS
technology
allows
new
customers
without
a
previously-established account to securely connect to your network
at the Wi-Fi hotspot, create and pay for an account, and access the
Internet.
Authentication Type
Pre-Shared key
WDS Mode
You can set a type from Disabled, WEP-64Bits, WEP-128Bits,
WPA-PSK, WPA2-PSK, WPA-PSK/ WPA2-PSK.
It is a shared secret shared between wireless devices using some
secured channel.
Wireless Distribution System or Wireless Bridge between 2 or more
AP's
WDS Encryption type
You can select TKIP or AES.
WDS Key
Type the secret key in hexadecimal or ASCII format.
Active
Activate or deactivate Wireless MAC Address Filter.
Action
association. This function can be used to allow or deny access to
You can set Allow or Deny to make Wireless LAN station(s)
certain wireless clients based on their MAC Address.
Mac Address #1~8
You can set eight Mac Addresses at most.
52
DG-BG1100N User Manual
4.4
Advanced Setup
In the navigation bar, click Advanced Setup. In the Advanced Setup page that is displayed
contains Firewall, Routing, NAT, VLAN and ADSL.
4.4.1 Firewall
Choose Advanced Setup > Firewall. The page shown in the following figure appears. You can
select this option to automatically detect and block Denial of Service (DoS) attacks such as
Ping of Death, SYN Flooding, Port Scan and Land Attack.
4.4.2 Routing
Click Advanced Setup > Routing, the page shown in the following figure appears. It displays
routing table information.
53
DG-BG1100N User Manual
Click ADD ROUTE, the page shown in the following figure appears. This page is used to
configure the routing information. You may add, edit or drop the static route.
The following table describes the parameters and buttons of this page:
Field
Destination IP
Description
Enter the IP address of the destination device.
Address
IP Subnet
Enter the subnet mask of the destination device.
Mask
Gateway IP
You can enter the IP address of the next hop in the IP route to the
Address
destination device, or bind with a PVC interface.
Metric
The metric cost for the destination.
This parameter determines if the ADSL router will include the route
Announced in
RIP
to this remote node in its RIP broadcasts. If set to Yes, the route to
this remote node will be propagated to other hosts through RIP
broadcasts. If No, this route is kept private and is not included in RIP
broadcasts.
54
DG-BG1100N User Manual
4.4.3 NAT
Choose Advanced Setup > NAT. The page shown in the following figure appears. In this page,
you can set up the NAT (Network Address Translation) function for your ADSL router.
Beforehand, you should activate NAT function for a virtual circuit. Please refer
to 4.3.1 Internet.
NAT is short for Network Address Translation. The Network Address Translation Settings
window allows you to share one WAN IP address for multiple computers on your LAN.
The following table describes the parameters and buttons of this page:
Field
Virtual Circuit
NAT Status
Description
Enter Virtual Circuit Index that you plan to setup for the NAT function.
This field shows the current status of the NAT function for the current
VC.
This field is to specify how many IPs are provided by your ISP for
current VC. You can select Single or Multiple. When you choose
Number of IPs
Single, you can set DMZ or Virtual Server. When you choose Multiple,
You can set DMZ, Virtual Server or IP Address Mapping (for Multiple
IP Service).
Note:
For VCs with single IP, they share the same DMZ and Virtual servers; for VCs with multiple IPs,
each VC can set DMZ and Virtual servers. Furthermore, for VCs with multiple IPs, they can
55
DG-BG1100N User Manual
define the Address Mapping rules; for VCs with single IP, since they have only one IP, there is
no need to individually define the Address Mapping rule.
Demilitarized Zone (DMZ) is used to provide Internet services without sacrificing unauthorized
access to its local private network. Typically, the DMZ host contains devices accessible to
Internet traffic, such as web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS
servers.
In the NAT page, choose DMZ, and the page shown in the following figure appears.
The following table describes the parameters of this page:
Field
Description
DMZ
DMZ
Select Enable DMZ to enable this function.
Host
IP
Enter the specified IP Address for DMZ host on the LAN side.
Address
In the NAT page, choose Virtual Server, and the page shown in the following figure appears.
The Virtual Server is the server or server(s) behind NAT (on the LAN), for example, Web server
or FTP server, that you can make visible to the outside world even though NAT makes your
whole inside network appear as a single machine to the outside world.
56
DG-BG1100N User Manual
The following table describes the parameters of this page:
Field
Description
Rule
The Virtual server rule for this VC. You can specify 10 rules in
maximum. All the VCs with single IP will use the same Virtual
Server rules.
Application
You can enter an application name, or select a name from the right
drop-list menu like FTP or TELNET.
Protocol
Choose the transport layer protocol. You can choose ALL, TCP or
UDP.
Start/End Port
Number
Enter the specific Start and End Port number you want to forward.
If it is one port only, you can enter the End port number the same
as Start port number. For example, if you want to set the FTP
Virtual server, you can set the start and end port number to 21.
Local IP Address
Enter the IP Address for the Virtual Server in LAN side.
57
DG-BG1100N User Manual
In the NAT page, choose IP Address Mapping (for Multiple IP Service), and the page shown
in the following figure appears. The IP Address Mapping rule is per-VC based (only for Multiple
IPs' VCs).
Select “Multiple” to unhide the IP address mapping page.
58
DG-BG1100N User Manual
Entries in this table allow you to configure one IP pool for specified source IP address from LAN,
so that one packet whose source IP is in range of the specified address will select one IP address
from the pool for NAT.
The following table describes the parameters of this page:
Field
Description
The Virtual server rule index for this VC. You can specify 10
Rule Index
rules in maximum. All the VCs with single IP will use the same
Virtual Server rules.
Rule Type
Choose
the
One-to-One,
Many-to-One,
Many-to-Many
Overload, Many-to-Many No Overload, or Server.
Enter the local IP Address you plan to map to. Local Start IP is
Local Start/End
the starting local IP address and Local End IP is the ending
IP
local IP address. If the rule is for all local IPs, then the Start IP
is 0.0.0.0 and the End IP is 255.255.255.255.
Enter the public IP Address you want to do NAT. Public Start IP
Public Start/End
is the starting public IP address and Public End IP is the ending
IP
public IP address. If you have a dynamic IP, enter 0.0.0.0 as
the Public Start IP.
4.4.4 VLAN
Choose Advanced Setup > VLAN, the page shown in the following figure appears.
59
DG-BG1100N User Manual
Virtual LAN (VLAN) is a group of devices on one or more LANs that are configured so that they
can communicate as if they were attached to the same wire, when in fact they are located on a
number of different LAN segments. Because VLANs are based on logical instead of physical
connections, it is very flexible for user/host management, bandwidth allocation and resource
optimization.
In the VLAN page, choose Activated and then Assign VLAN PVID for each Interface, and the
page shown in the following figure appears.
Each physical port has a default VID called PVID (Port VID). PVID is assigned to untagged
frames or priority tagged frames (frames with null (0) VID) received on this port. You can set a
PVID for an ATM VC, Ethernet port or Wireless LAN.
60
DG-BG1100N User Manual
In the VLAN page, choose Activated and then Define VLAN Group, and the page shown in
the following figure appears.
The following table describes the parameters of this page:
Field
Description
VLAN Index
Choose a vlan index from 1 to 8.
Active
Choose to activate or deactive the current vlan settings.
VLAN ID
VLAN ID is from 1 to 4094.
ATM VCs
Supporting eight ATM VCs, which can be tagged.
Ethernet
The Ethernet port can be tagged.
Wireless LAN
You can add the Wireless port to the Vlan group.
61
DG-BG1100N User Manual
4.4.5 ADSL
Click Advanced Setup > ADSL, the page shown in the following figure appears. The ADSL
feature can be selected when you meet the physical connection problem. Please check the
proper settings with your Internet service provider.
The router supports these modulations: G.Lite, T1.413, G.DMT, ADSL2, ADSL2+ and Auto-Sync
Up. The router negotiates the modulation modes with the DSLAM.
The following table describes the parameters and buttons of this page:
Field
ADSL Mode
ADSL Type
Description
Choose Auto Sync-Up, ADSL2+, ADSL2, G.DMT, T1.413 or
G.lite. The default is Auto Sync-Up.
Choose ANNEX A, ANNEX I, ANNEX A/L, ANNEX M or
ANNEX A/I/J/L/M.
62
DG-BG1100N User Manual
4.5
Access Management
In the navigation bar, click Access Management. The Access Management page that is
displayed contains ACL, Filter, SNMP, UPnP, DDNS and CWMP.
4.5.1 ACL
Choose Access Management > ACL, and the page shown in the following figure appears.
The user may remotely access the ADSL Router once setting his IP as a Secure IP Address
through selected applications. With the default IP 0.0.0.0, any client would be allowed to
remotely access the ADSL Router.
The following table describes the parameters and buttons of this page:
Field
Description
ACL Rule Index
You can establish sixteen ACL rules at the most.
Active
Click to enable or disable the rule.
Secure IP
The rule is valid if the IP is in this range.
Address
Application
Supports Web, FTP, Telnet, SNMP, Ping or ALL.
63
DG-BG1100N User Manual
Interface
Supports WAN, LAN or Both.
Access control
Only the devices whose MAC addresses are listed in the Access
Listing
Control Listing can access the router.
4.5.2 Filter
Choose Access Management > Filter, and the page shown in the following figure appears.
Select IP/MAC Filter type. The user can set IP/MAC Filter, Application Filter and URL Filter.
4.5.2.1 IP/MAC Filter
Choose Access Management > Filter > IP/MAC Filter, and the page shown in the following
figure appears. The user can set different IP filter rules of a given protocol (TCP, UDP or ICMP)
and a specific direction (incoming, outgoing, or both) to filter the packets.
64
DG-BG1100N User Manual
The following table describes the parameters and buttons of this page:
Field
Filter Type
Description
Supports IP / MAC Filter, Application Filter and URL Filter.
Selection
IP/MAC Filter Set
You can choose an IP / MAC Filter Set Index from 1 to 12.
Index
Interface
You can select an interface from the eight PVCs or the LAN
interface.
Direction
Choose Both, Incoming or Outgoing.
Rule Type
Supports IP or MAC.
Source IP
Enter the Source IP Address. 0.0.0.0 means don't care.
Address
Port Number
Enter the Port Number. 0 means don't care.
Destination IP
Enter the Destination IP Address. 0.0.0.0 means don't care.
Address
Protocol
Supports TCP, UDP or ICMP.
4.5.2.2 Application Filter
Choose Access Management > Filter > Application Filter, and the page shown in the
following figure appears. Select Application Filter type. The user can set Application rules to
filter the ICQ, MSN, YMSG and Real Audio/Video packets.
65
DG-BG1100N User Manual
The following table describes the parameters and buttons of this page:
Field
Application Filter
Description
Choose to activate or deactivate the Application Filter rule.
ICQ
Set Allow or Deny ICQ packets.
MSN
Set Allow or Deny MSN packets.
YMSG
Set Allow or Deny YMSG packets.
Real Audio/Video
Set Allow or Deny Real Audio/Video packets.
4.5.2.3 URL Filter
Choose Access Management > URL Filter, and the page shown in the following figure
appears. Select URL Filter type. The user can set URL rules to prevent the LAN users to
access the internet.
66
DG-BG1100N User Manual
The following table describes the parameters and buttons of this page:
Field
Description
Active
Make URL Filter rule activated or deactivated.
URL Index
Can set an URL Filter Index from 1 to 16.
URL
Enter the URL that needs to be filtered.
4.5.3 SNMP
Choose Access Management > SNMP, the page shown in the following figure appears. The
SNMP (Simple Network Management Protocol) is used for exchanging information between
network devices.
The following table describes the parameters of this page:
Field
Description
Get Community
Select to set the password for the incoming Get- and
Set Community
Select to set the password for incoming Set requests from
Trap Host
When CPE configuration is changed, SNMP will send a
GetNext requests from the management station.
the management station.
message to the Trap Host. If the Trap Host has a Trap
Server, the user will receive corresponding information.
67
DG-BG1100N User Manual
4.5.4 UPnP
Choose Access Management > UPnP, the page shown in the following figure appears. This
page is used to configure the UPnP parameters.
UPnP (Universal Plug and Play) is a distributed, open networking standard that uses TCP/IP
for simple peer-to-peer network connectivity between devices. An UPnP device can
dynamically join a network, obtain an IP address, convey its capabilities and learn about other
devices on the network. In turn, a device can leave a network smoothly and automatically when
it is no longer in use. UPnP broadcasts are only allowed on the LAN.
The following table describes the parameters of this page:
Field
Description
UPnP
You can choose Activated or Deactivated.
Auto-configured
UPnP network devices can automatically configure network
addressing, announce their presence in the network to other
UPnP devices and enable exchange of simple product and
service descriptions.
68
DG-BG1100N User Manual
4.5.5 DDNS
Choose Access Management > DDNS, the page shown in the following figure appears.
The Dynamic Domain Name System (DDNS) lets you use a static host name with a dynamic IP
address. User should type the host name, user name and password assigned to your ADSL
Router by your Dynamic DNS provider. The user also can decide to turn on DYNDNS Wildcard
or not.
The following table describes the parameters of this page:
Field
Description
Dynamic DNS
Choose to activate or deactivate DDNS function.
My Host Name
E-mail Address
The DDNS identifier.
The email provided by DDNS provider.
Username
The name provided by DDNS provider.
Password
The password provided by DDNS provider.
Wildcard support
You can choose Yes or No.
69
DG-BG1100N User Manual
4.5.6 CWMP
Choose Access Management > CWMP, and the page shown in the following figure appears.
The following table describes the parameters of this page:
Field
URL
Description
URL for the CPE to connect to the ACS using the CPE WAN
Management Protocol. This parameter must be in the form of a valid
http or https url.
User
Username used to authenticate the CPE when making a connection to
Name
the ACS using the CPE WAN Management Protocol.
Password
Password used to authenticate the CPE when making a connection to
the ACS using the CPE WAN Management Protocol.
UserName
CPE’s username, the connection username provided by TR-069
service
Password
CPE’s password, the connection password provided by TR-069
service for a connection request to the CPE.
Periodic
Select Activated to periodically connect to the ACS to check for
Inform
configuration updates.
Interval(s)
Specify the duration between two connections to ACS.
70
DG-BG1100N User Manual
4.6
Maintenance
In the navigation bar, click Maintenance. The Maintenance page that is displayed contains
Administration, Time Zone, Firmware, SysRestart and Diagnostics.
4.6.1 Administration
Choose Maintenance > Administration, the page shown in the following figure appears.
There is only one account that can access Web-Management interface. The default account is
"admin", and the password is "1234". Admin has read/write access privilege. In this web page,
you can set new password for admin.
The following table describes the parameters of this page:
Field
Description
New Password
Enter the new password.
Confirm
Re-enter the new password.
Password
71
DG-BG1100N User Manual
4.6.2 Time Zone
Choose Maintenance > Time Zone, the page shown in the following figure appears.
The system time is the time used by the device for scheduling services. You can manually set
the time or connect to a NTP (Network Time Protocol) server. If a NTP server is set, you will
only need to set the time zone. If you manually set the time, you may also set Daylight Saving
dates and the system time will automatically adjust on those dates.
The following table describes the parameters of this page:
Description
Field
Synchronize time
You can choose NTP Server automatically, PC’s Clock or
with
Manually.
Time Zone
Choose the time zone (in which area you are) from the
drop-down list.
Daylight Saving
You can enable the daylight saving time.
NTP Server Address
Set the NTP server manually.
72
DG-BG1100N User Manual
4.6.3 Firmware
Choose Maintenance > Firmware, the page shown in the following figure appears.
You can upgrade the firmware of the Router in this page. Make sure the firmware you want to
use is on the local hard drive of the computer. Click on Browse to browse the local hard drive
and locate the firmware to be used for upgrade.
The following table describes the parameters of this page:
Description
Field
New Firmware
Click browse to select the firmware file.
Location
New Config Location
Config Backup
UPGRADE
Click browse to select the config file.
Click it, and select the path. Then you can save the
configuration file of the router.
After selecting the file, click UPGRADE to start upgrading the
file.
73
DG-BG1100N User Manual
4.6.4 SysRestart
Choose Maintenance > SysRestart, the page shown in the following figure appears. User can
restart the device with current settings or factory default settings.
The following table describes the parameters of this page:
Description
Field
Current Settings
Save the current settings and then reboot the router.
Factory Default
Reset to the factory default settings and then reboot the
Settings
router.
74
DG-BG1100N User Manual
4.6.5 Diagnostics
Choose Maintenance > Diagnostics, the page shown in the following figure appears. This
page shows the test results for the connectivity of the physical layer and protocol layer for both
LAN and WAN sides.
The following table describes the parameters of this page:
Description
Field
Virtual Circuit
Choose PVC from the drop down list to test.
75
DG-BG1100N User Manual
4.7
Troubleshooting
If you encounter any problem when you’re using this wireless router, don’t panic. Before you call
your dealer of purchase for help, please check this troubleshooting section, the solution of your
problem could be very simple, and you can solve the problem yourself.
Scenario
Solution
•
Check the connection between the power adapter
•
Check whether the power switch is turned on.
All the indicators are off.
and the power socket.
Check the following:
The LAN indicator is off.
•
The connection between the device and your PC,
•
The running status of the computer, hub, or switch.
hub or switch.
Check the connection between the DSL port of the device and
The DSL indicator is not on.
the wall jack.
Internet access fails while the
Check whether the VPI, VCI, user name and password are
ADSL indicator is on.
correctly entered.
Choose Start > Run from the desktop, and ping 192.168.1.1
Failed
to
access
the
web
configuration page of the DSL
router.
(IP address of the DSL router). If the DSL router is not
reachable, check the type of the network cable, the
connection between the DSL router and the PC, and the
TCP/IP configuration of the PC.
To restore the factory default settings, turn on the device, and
Load the default settings after
press the reset button for about 3 seconds, and then release
it. The default IP address and the subnet mask of the DSL
incorrect configuration.
router are 192.168.1.1 and 255.255.255.0, respectively.
The username/password of admin user is admin/admin.
76
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
