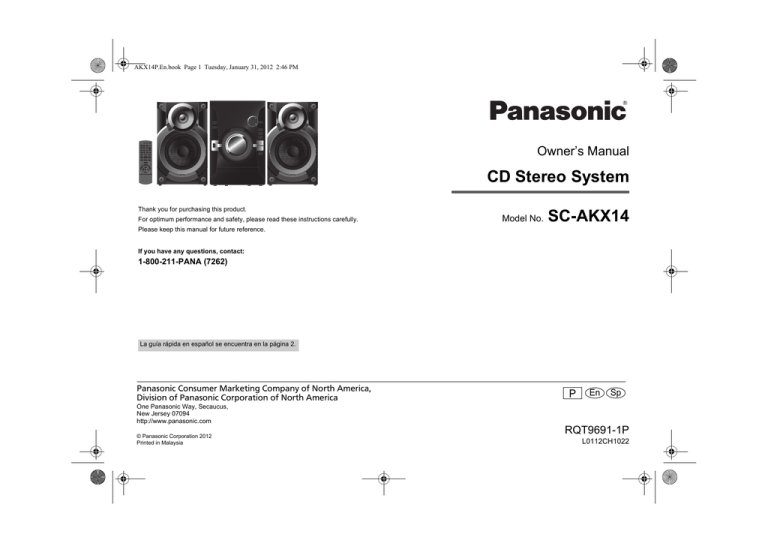

AKX14P.En.book Page 1 Tuesday, January 31, 2012 2:46 PM
Owner’s Manual
CD Stereo System
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Model No.
SC-AKX14
Please keep this manual for future reference.
If you have any questions, contact:
1-800-211-PANA (7262)
La guía rápida en español se encuentra en la página 2.
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
P
En
Sp
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
© Panasonic Corporation 2012
Printed in Malaysia
RQT9691-1P
L0112CH1022
AKX14P.En.book Page 2 Tuesday, January 31, 2012 2:46 PM
Do the procedures with the remote control. You can
also use the buttons on the main unit if they are the
same.
Your system and the illustrations can look differently.
These operating instructions are applicable to the following
system.
System
SC-AKX14
Main unit
SA-AKX14
Speakers
SB-AKX14
IMPORTANT SAFETY
INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the
applicable safety instructions listed below. Keep these operating instructions handy for future reference.
1)
The model number and serial number of this product
can be found on either the back or the bottom of the
unit. Please note them in the space provided below and
keep for future reference.
MODEL NUMBER
SC-AKX14
SERIAL NUMBER
User memo:
DEALER ADDRESS ___________________________
____________________________________________
TELEPHONE NUMBER ________________________
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
2)
Keep these instructions.
3)
Heed all warnings.
4)
Follow all instructions.
5)
Do not use this apparatus near water.
6)
Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8)
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
DATE OF PURCHASE __________________________
DEALER NAME _______________________________
Read these instructions.
9)
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
2
AKX14P.En.book Page 3 Tuesday, January 31, 2012 2:46 PM
Safety precaution
WARNING!
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of
uninsulated “dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not expose this unit to rain, moisture, dripping or
splashing.
– Do not place objects filled with liquids, such as vases,
on this unit.
– Use only the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
Battery
•
•
•
•
•
Do not break open or short-circuit the battery.
Do not charge the alkaline or manganese battery.
Do not use the battery if the cover has peeled off.
Do not heat or expose to flame.
Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with door and windows
closed.
• Remove the battery if you do not use the remote control
for a long period of time. Keep in a cool, dark area.
• Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
• When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
CAUTION!
Unit
• To reduce the risk of fire, electric shock or product
damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not place sources of naked flames, such as lighted
candles, on this unit.
• Install this unit so that the AC mains lead can be
unplugged from the socket outlet immediately if any
problem occurs.
• This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Inside of product
3
AKX14P.En.book Page 4 Tuesday, January 31, 2012 2:46 PM
FCC Note:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate this
device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Product service
1)
Damage requiring service — The unit should be
serviced by qualified service personnel if:
a) The AC power supply cord or the plug has been
damaged; or
b) Objects or liquids have gotten into the unit; or
c) The unit has been exposed to rain; or
d) The unit does not operate normally or exhibits a
marked change in performance; or
e) The unit has been dropped or the cabinet damaged.
2)
Servicing — Do not attempt to service the unit beyond
that described in these operating instructions. Refer all
other servicing to authorized servicing personnel.
3)
Replacement parts — When parts need replacing
ensure the servicer uses parts specified by the
manufacturer or parts that have the same
characteristics as the original parts. Unauthorized
substitutes may result in fire, electric shock, or other
hazards.
4)
Safety check — After repairs or service, ask the
servicer to perform safety checks to confirm that the
unit is in proper working condition.
- If you see this symbol Information on Disposal in other Countries outside
the European Union
This symbol is only valid in the European
Union.
If you wish to discard this product, please
contact your local authorities or dealer and
ask for the correct method of disposal.
Product information
For product information or assistance with product
operation:
Refer to “Customer Services Directory (United States and
Puerto Rico)”.
Declaration of Conformity
Trade name: Panasonic
Model No.: SC-AKX14
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Marketing Company of North
America
Telephone No.: 1-800-211-PANA (7262)
4
AKX14P.En.book Page 1 Tuesday, January 31, 2012 2:46 PM
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Home Audio Products
Limited Warranty
Limited Warranty Coverage
(For USA and Puerto Rico Only)
If your product does not work properly because of a defect in
materials or workmanship, Panasonic Consumer Marketing
Company of North America (referred to as “the warrantor”) will, for the
length of the period indicated on the chart below, which starts with the
date of original purchase (“warranty period”), at its option either (a)
repair your product with new or refurbished parts, (b) replace it with a
new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made
by the warrantor.
Product or Part Name
Parts
Labor
Audio Products (except items below)
1 year
1 year
DVD Home Theater System
1 year
1 year
1 year
1 year
90 days
Not
Applicable
Home Theater Audio System
SD Memory Cards, Rechargeable
Battery Packs (defective exchange)
During the “Labor” warranty period there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts.
This Limited Warranty excludes both parts and labor for nonrechargeable batteries, antennas, and cosmetic parts (cabinet). This
warranty only applies to products purchased and serviced in the
United States or Puerto Rico. This warranty is extended only to the
original purchaser of a new product which was not sold “as is”.
Carry-In or Mail-In Service
To find a service center please visit http://www.panasonic.com/help
or call 1-800-211-PANA (7262).
When shipping the unit, carefully pack, include all supplied
accessories listed in the Owner's Manual, and send it prepaid,
adequately insured and packed well in a carton box. When shipping
Lithium Ion batteries please visit our Web Site at
www.panasonic.com/BatteryHandling as Panasonic is committed to
providing the most up to date information. Include a letter detailing the
complaint, a return address and provide a daytime phone number
where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES
RECEIPT/PROOF OF PURCHASE INDICATING DATE OF
PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT
RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or
cosmetic damage. The warranty ALSO DOES NOT COVER
damages which occurred in shipment, or failures which are caused by
products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge,
lightning damage, modification, introduction of sand, humidity or
liquids, commercial use such as hotel, office, restaurant, or other
business or rental use of the product, or service by anyone other than
a Factory Service Center or other Authorized Servicer, or damage
that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY. (As examples, this excludes damages for lost time,
travel to and from the servicer, loss of or damage to media or images,
data or other memory or recorded content. The items listed are not
exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE
PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied
warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have
other rights which vary from state to state. If a problem with this
product develops during or after the warranty period, you may contact
your dealer or Service Center. If the problem is not handled to your
satisfaction, then write to the warrantor’s Consumer Affairs
Department at the addresses listed for the warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate
your nearest Dealer or Service Center; purchase Parts and
Accessories; or make Customer Service and Literature requests
by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm, Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
or, send your request by E-mail to:
npcparts@us.panasonic.com
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic National Parts Center
20421 84th Ave. S., Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
As of January 2012
AKX14P.En.book Page 5 Tuesday, January 31, 2012 2:46 PM
Supplied accessories
Placement of speakers
Preparing the remote control
The right and left speakers are the same.
You cannot remove the net of the speakers.
Use alkaline or manganese battery.
Check and identify the supplied accessories.
Use numbers indicated in parentheses when asking for
replacement parts. (Product numbers correct as of
February 2012. This may be subject to change.)
To order accessories, refer to “Accessory Purchases
(United States and Puerto Rico)”.
1 x AC power supply cord
(K2CB2YY00059)
1 x AM loop antenna
(N1DYYYY00011)
Use only the supplied speakers.
The combination of the main unit and speakers give the
best sound.
You can cause damage to the system and decrease the
sound quality if you use other speakers.
1 x FM indoor antenna
(RSAX0002)
1 x Remote control
(N2QAYB000636)
1 x Remote control battery
Install the battery so that the poles (+ and –) align with those
in the remote control.
Point the remote control at the remote control sensor, away
from obstacles, at a maximum range of 7 m (23 ft) directly
in front of the main unit.
Note:
• Keep your speakers at least 10 mm (13 32″) away from the
system for proper ventilation.
• Put the speakers on a flat safe surface.
• These speakers do not have magnetic shielding. Do not
put them near TVs, PCs or other equipment easily
influenced by magnetism.
• When you play at high levels for a long period, it can
cause damage to the system and decrease the life of the
system.
• Decrease the volume in these conditions to prevent
damage:
– When you play distorted sound.
– When you adjust the sound quality.
CAUTION!
• Use the speakers only with the recommended
system. If not, you can cause damage to the
amplifier and speakers and can cause a fire.
Consult an approved service personnel if damage
occurs or if there is a sudden apparent change in
performance.
• Do the procedures included in these instructions
when you attach the speakers.
5
AKX14P.En.book Page 13 Tuesday, January 31, 2012 2:46 PM
Specifications
Disc section
Amplifier section
General
Disc played (8 cm or 12 cm)
Power supply
CD, CD-R/RW (CD-DA, MP3)
RMS output power stereo mode
Pick up
Front Ch (both ch driven)
125 W per channel (4 Ω), 1 kHz, 10% THD
Total RMS stereo mode power
250 W (10% THD)
Front Ch (both ch driven)
112 W
Tuner, terminals section
CLASS 1
Number of channels
FL = Front left channel
FR = Front right channel
FTC output power stereo mode
Total FTC stereo mode power
790 nm (CD)
Laser power

USB section
Media file format support
USB device file system
Frequency modulation (FM)
USB port power
Frequency range
87.9 MHz to 107.9 MHz (200 kHz step)
87.5 MHz to 108.0 MHz (100 kHz step)
75 Ω (unbalanced)
Amplitude modulation (AM)
Frequency range
Bit rate
Type
RCA pin jack
Operating humidity range
2.8 kg (6.2 lbs)
0°C to +40°C
(+32°F to 104°F)
35% to 80% RH
(no condensation)
USB 2.0 full speed
MP3 (*.mp3)
Note:
• Specifications are subject to change without notice.
Mass (weight) and dimensions are approximate.
• Total harmonic distortion is measured by the digital
spectrum analyzer.
FAT12, FAT16, FAT32
500 mA (max)
16 kbps to 320 kbps
(playback)
Speaker section
520 kHz to 1710 kHz (10 kHz step)
AUX input
Mass (Weight)
Power consumption in standby mode
0.2 W (approximate)
USB port
FM 30 stations
AM 15 stations
Antenna terminals
2 ch (FL, FR)
MPEG-1 Layer 3
USB standard
Preset station
58 W
220 mm x 334 mm x 245 mm
(8 ⅝″ x 13 ⅛″ x 9 ⅝″)
Operating temperature range
Audio output (Disc)
320 W (max)
56 W per channel (4 Ω), 20 Hz to 20 kHz, 1% THD
Dimensions (W x H x D)
Wavelength
AC 120 V, 60 Hz
Power consumption
2 way, 2 speaker system
(bass reflex)
Speaker unit(s)
Woofer
16 cm (6 ½″) cone type
Tweeter
6 cm (2 ⅜″) cone type
Impedance
Output sound pressure
Frequency range
Dimensions (W x H x D)
Mass (Weight)
4Ω
85 dB/W (1 m)
48 Hz to 22 kHz (–16 dB)
52 Hz to 20 kHz (–10 dB)
200 mm x 334 mm x 193 mm
(7 ⅞″ x 13 ⅛″ x 7 ⅝″)
2.5 kg (5.5 lbs)
13
AKX14P.En.book Page 7 Tuesday, January 31, 2012 2:46 PM
Making the connections
1
Conserving power
The system consumes approximately 0.2 W when it is in
standby mode. Disconnect the power supply if you do not
use the system.
Some settings will be lost after you disconnect the system.
You have to set them again.
3
Connect the speakers.
Connect the FM indoor antenna.
Place the antenna where reception is best.
B
Tape
A
(4 )
(4)
Black
Red
2
3
4
Be careful not to cross (shortcircuit) or reverse the polarity
of the speaker wires as doing
so may damage the speakers.
1
2
Connect the AC power supply cord.
Use the supplied AC power supply cord with this system
only.
Do not use an AC power supply cord from other
equipment.
Connect the AM loop antenna.
Stand the antenna up on its base until it clicks.
4
To household AC outlet
7
AKX14P.En.book Page 6 Tuesday, January 31, 2012 2:46 PM
Overview of controls
I Clock and timer operation
J Set the program function
Q
SLEEP
A
PLAY
I
J
B
A
F
R
E
K Adjust the volume of the system
U
L Mute the sound of the system
D
S
E
T
V
F
K
L
RADIO
O Select the option
P Automatically switch off the system
EXT-IN
D
M Set the play menu item
N Set the radio menu item
K
C
Press the button again to cancel.
“MUTE” is also canceled when you adjust the volume or
when you switch off the system.
E
W
When you are in disc or USB source, the auto off
function switches off the system if you do not use the
system for 30 minutes.
To cancel, press the button again.
Q Display panel
R Remote control sensor
F
D.BASS
SOUND
S USB port (
PRESET EQ
M
N
G
DISPLAY
DIMMER
H
)
T Select bass or treble effect
O
AUTO OFF
P
A Standby/on switch [`], [1]
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a
small amount of power.
B Numeric buttons [1 to 9, 0, 10]
To select a 2-digit number
Example: 16: [ 10] =[1] =[6]
C Delete a programmed track
U Browse tracks or albums
Turn the knob to browse the track.
Press [4/9] to start playback from the selection.
Press [ALBUM/TRACK] to select album or track and
then turn the knob to browse.
Press [4/9] to start playback from the selection.
D Select audio source
V Open or close the disc tray
E Basic playback control
W Disc tray
F Select the sound effects
G Auto preset the radio station
H View content information
Decrease the brightness of the display panel
Press and hold the button to use this function.
To cancel, press and hold the button again.
6
AKX14P.En.book Page 8 Tuesday, January 31, 2012 2:46 PM
Disc
Play menu
Playing disc
1
2
Press [x, OPEN/CLOSE] on the main unit to open
the disc tray.
Put in a disc with the label facing up.
Press [x, OPEN/CLOSE] again to close the disc tray.
Press [CD] and then press [4/9] to start playback.
Stop
playback
Press [8].
Pause
playback
Press [4/9].
Press again to continue playback.
Skip album
Press [R, T].
Skip track
Press [2] or [6] (main unit: [2/3]
or [5/6]).
Search
through
track
Press and hold [3] or [5] (main unit:
[2/3] or [5/6]).
1
2
Press [PLAY MENU] to select “PLAYMODE” or
“REPEAT”.
Press [Y, U] and then press [OK] to select the
desired mode.
PLAYMODE
OFF
PLAYMODE
Play all tracks.
1-TRACK
Play one selected track on the disc.
Press the numeric buttons to select the
track.
1TR
1-ALBUM
1ALBUM
RANDOM
Play one selected album on the disc.
Press [R, T] to select the album.
Play a disc randomly.
RND
1-ALBUM
RANDOM
1ALBUM RND
Play all tracks in one selected album
randomly.
Press [R, T] to select the album.
3
1. Press [R, T] to select the desired album.
2. Press [6] and then press the numeric buttons
to select the desired track.
3. Press [OK].
Do these steps again to program other tracks.
Press [4/9] to start playback.
Cancel
program
mode
Press [PROGRAM] in the stop mode.
Check
program
contents
Press [2] or [6] when “PGM” is
shown in the stop mode.
Clear the last Press [DEL] in the stop mode.
track
Clear all
Press [8] in the stop mode. “CLR ALL” is
programmed shown. Within 5 seconds, press [8] again.
tracks
Note:
The program memory is cleared when you open the disc
tray.
REPEAT
Viewing available information
ON REPEAT
You can view the available information on the display panel.
OFF REPEAT Cancel repeat playback.
Press [DISPLAY].
Note:
• Playmode function does not work with “Program
playback”.
• The setting returns to the default “OFF PLAYMODE”
when you open the disc tray.
Note:
• Maximum characters that can be shown:
approximately 16
• This system supports ver. 1.0 and 1.1 ID3 tags.
• Text data that the system does not support can show
differently.
Repeat playback.
Program playback
This function allows you to program up to 24 tracks.
1
2
Press [PROGRAM] in the stop mode.
“PGM” is shown.
Note on disc
• This system can play CD-R/RW with CD-DA or MP3
format content.
• Some CD-R/RW cannot be played because of the
condition of the recording.
• MP3 files are defined as tracks and folders are defined as
albums.
• This system can access up to:
– CD-DA: 99 tracks
– MP3: 999 tracks, 255 albums and 20 sessions
• Disc must conform to ISO9660 level 1 or 2 (except for
extended formats).
• Recordings will not necessarily be played in the order you
recorded them.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
Press the numeric buttons to select the desired
track.
Do this step again to program other tracks.
8
AKX14P.En.book Page 9 Tuesday, January 31, 2012 2:46 PM
USB
Radio
You can connect and play MP3 tracks from your USB
device.
Do not use a USB extension cable. The system cannot
recognize USB device connected through a cable.
Manual tuning
1
2
Connect the USB device to the USB port.
Hold the main unit when connecting or disconnecting
the USB device.
1
2
Press [USB] and then press [4/9] to start playback.
Stop
playback
Press [8] during playback.
“RESUME” is shown.
Press [4/9] to continue playback from the
start of the track.
OR
Press [8] two times to stop the playback fully.
Note:
• Files are defined as tracks and folders are defined as
albums.
• Track must have the extension “.mp3” or “.MP3”.
• This system can access up to:
– 255 albums (including albums without MP3 tracks)
– 2500 tracks
– 999 tracks in one album
• CBI (Control/Bulk/Interrupt) is not supported.
• NTFS file system is not supported (only FAT 12/16/32 file
system is supported).
• Some files can fail to work because of the sector size.
Press [3] or [5] to select the frequency of the
required station.
To tune automatically, press and hold the button until
the frequency starts changing quickly.
Improving the sound quality
When “FM” is selected
1
2
For other operation, refer to “Disc”.
Compatible USB devices which are defined as mass
storage class:
• USB devices that support bulk-only transfer.
• USB devices that support USB 2.0 full speed.
Press [RADIO, EXT-IN] (main unit: [RADIO/EXT-IN])
to select “FM” or “AM”.
Press [RADIO MENU] to select “FM MODE”.
Press [Y, U] to select “MONO” and then press [OK].
To cancel, select “STEREO”.
“MONO” is also canceled when you change the
frequency.
When “AM” is selected
1
2
Press [RADIO MENU] to select “B.PROOF”.
Press [Y, U] to select “BP 1” or “BP 2” and then
press [OK].
Memory presetting
30 FM and 15 AM stations can be preset.
Automatic presetting
1
2
Press [OK] to select “LOWEST” or “CURRENT”
frequency.
Press [AUTO PRESET] to start presetting.
To cancel, press [8].
Manual presetting
1
2
3
Press [3] or [5] to tune in to the station.
Press [PROGRAM].
Press the numeric buttons to select a preset
number.
Do steps 1 through 3 again to preset more stations.
The new station replaces any station that occupies the
same preset number.
Selecting a preset station
Press the numeric buttons, [2] or [6] (main unit:
[2/3] or [5/6]) to select the preset station.
FM allocation setting
By main unit only
This system can also receive FM broadcasts allocated in
0.1 MHz steps.
1
2
Press [RADIO/EXT-IN] to select “FM” or “AM”.
Press and hold [RADIO/EXT-IN].
After a few seconds, the display panel shows the current
minimum radio frequency. Release the button when the
minimum frequency changes.
• To go back to the initial setting, do the above steps again.
• After you change the setting, preset frequencies are
erased.
9
AKX14P.En.book Page 10 Tuesday, January 31, 2012 2:46 PM
Sound effects
Clock and timers
BASS
TREBLE
Setting the clock
You can set the timer to come on at a certain time to wake
you up.
This is a 12-hour clock.
Preparation
Set the clock.
1. Press [SOUND] to select “BASS” or
“TREBLE”.
2. Press [Y, U] to adjust the level
(-4 to +4).
By main unit only
1. Press [MANUAL EQ] to select “BASS”
or “TREBLE”.
2. Press [2/3] or [5/6] to
adjust the level.
SURROUND
1. Press [SOUND] to select
“SURROUND”.
2. Press [Y, U] to select
“ON SURROUND” or
“OFF SURROUND”.
INPUT LEVEL 1. Press [SOUND] to select “INPUT
(For AUX
LEVEL”.
source)
2. Press [Y, U] to select “NORMAL” or
“HIGH”.
RE-MASTER
1. Press [SOUND] to select
“RE-MASTER”.
2. Press [Y, U] to select
“ON RE-MASTER” or
“OFF RE-MASTER”.
PRESET EQ
Press [PRESET EQ] to select “HEAVY”,
“SOFT”, “CLEAR”, “VOCAL” or “FLAT”.
D.BASS
Press [D.BASS] to select “D.BASS”,
“AUTO D.BASS” or “OFF D.BASS”.
1
2
3
Press [CLOCK/TIMER] to select “CLOCK”.
Within 10 seconds, press [R, T] to set the time.
Press [OK].
Press [CLOCK/TIMER] to show the clock for a few seconds.
Note:
Reset the clock regularly to maintain accuracy.
Play timer
1
2
3
4
Press [CLOCK/TIMER] to select “#PLAY”.
Within 10 seconds, press [R, T] to set the start
time.
Press [OK].
Do steps 2 and 3 again to set the end time.
To start the timer
Sleep timer
The sleep timer switches off the system after the set time.
Press [SLEEP] to select the setting (in minutes).
To cancel, select “OFF”.
30 MIN → 60 MIN → 90 MIN → 120 MIN → OFF
To show the remaining time
Press [SLEEP].
Note:
• The sleep timer can be used together with the play timer.
• The sleep timer always comes first. Be sure not to set an
overlap of timers.
1
2
Prepare the audio source you want to listen to (disc,
radio, USB or AUX) and set the volume.
Press [#, PLAY].
“#” is shown.
To cancel, press [#, PLAY] again.
The system must be switched off for the timer to
operate.
To check the settings
Press [CLOCK/TIMER] to select “#PLAY”.
Note:
• The timer starts at a low volume and increases gradually
to the preset level.
• The timer comes on at the set time every day if the timer
is on.
• If you switch off the system and switch on again while a
timer is in operation, the timer will not stop at the end time.
10
AKX14P.En.book Page 11 Tuesday, January 31, 2012 2:46 PM
External equipment
Troubleshooting
You can connect a VCR, DVD player etc. and listen to the
audio through this system.
Before requesting service, make the following checks. If
you are in doubt about some of the check points, or if the
solutions indicated do not solve the problem, refer to
“Customer Services Directory (United States and Puerto
Rico)” on page 1.
Preparation
• Disconnect the AC power supply cord.
• Switch off all equipment and read the appropriate
operating instructions.
The display panel lights up and changes continuously
in standby mode.
• Press and hold [8] on the main unit to select “DEMO
OFF”.
DVD player (not supplied)
Rear panel of
this main unit
Audio cable
(not supplied)
1
2
3
Common problems
No operations can be done with the remote control.
• Examine that the battery is installed correctly.
Sound is distorted or no sound.
• Adjust the volume of the system.
• Switch off the system, determine and correct the cause,
then switch the system on again. It can be caused by
straining of the speakers through excessive volume or
power, and when using the system in a hot environment.
Press [RADIO, EXT-IN] (main unit: [RADIO/EXT-IN])
to select “AUX”.
A “humming” sound can be heard during playback.
• An AC power supply cord or fluorescent light is near the
cables. Keep other appliances and cords away from the
cables of this system.
Play the external equipment.
Disc
Connect the external equipment.
Note:
• Components and cables are sold separately.
• If you want to connect equipment other than those
described, refer to the audio dealer.
• Sound distortion can occur when you use an adapter.
Display not shown correctly.
Playback does not start.
• You have not put in the disc correctly. Put it in correctly.
• Disc is dirty. Clean the disc.
• Replace the disc if it is scratched, warped, or nonstandard.
• There is condensation. Let the system dry for 1 to 2 hours.
The total number of tracks displayed is incorrect.
The disc cannot be read.
Distorted sound is heard.
• You put in a disc that the system cannot play. Change to
a playable disc.
• You put in a disc that has not been finalized.
Radio
Sound is distorted.
• Use an optional FM outdoor antenna. The antenna should
be installed by a competent technician.
A beat sound is heard.
• Switch off the TV or move it away from the system.
• Set to “BP 1” or “BP 2” when in AM tuner mode.
A low hum is heard during AM broadcasts.
• Move the antenna away from other cables and cords.
USB
The USB device or the contents in it cannot be read.
• The format of the USB device or the contents in it is/are
not compatible with the system.
• USB devices with storage capacity of more than 32 GB
cannot work in some conditions.
Slow operation of the USB device.
• Large content size or large memory USB device takes
longer time to read.
Main unit displays
“NO PLAY”
• Examine the content. You can only play supported
format.
• If there are more than 255 albums or folders (audio and
non-audio), some of the MP3 files in these albums cannot
be read and played. Transfer these music albums to
another USB device. Alternatively, reformat the USB
device and save these music albums prior to saving the
other non-audio folders.
“F61”
• Examine and correct the speaker cords connection.
• Disconnect the USB device. Switch off the system and
then switch it on again.
11
AKX14P.En.book Page 12 Tuesday, January 31, 2012 2:46 PM
“ERROR”
• An incorrect operation was done. Read the instructions
and try again.
“NOT MP3/ERROR”
• An unsupported MP3 format. The system will skip that
track and play the next one.
“VBR–”
• The system cannot show the remaining play time for
variable bit rate (VBR) tracks.
“NORMAL”
• The “INPUT LEVEL” of AUX source automatically
changes from “HIGH” to “NORMAL” when the system
detects distorted music sounds.
“NODEVICE”
• The USB device is not connected. Examine the
connection.
Memory reset (initialization)
Reset the memory when the following situations occur:
• There is no response when buttons are pressed.
• You want to clear and reset the memory contents.
1
2
3
Remote control code
When other Panasonic equipment responds to the remote
control of this system, change the remote control code for
this system.
Preparation
Press [RADIO, EXT-IN] (main unit: [RADIO/EXT-IN]) to
select “AUX”.
Maintenance
To clean this system, wipe with a soft, dry cloth
• Never use alcohol, paint thinner or benzine to clean this
system.
• Before using chemically treated cloth, read the
instructions that came with the cloth carefully.
To set the code to “REMOTE 2”
1
2
Press and hold [RADIO/EXT-IN] on the main unit
and [2] on the remote control until “REMOTE 2” is
shown.
Press and hold [OK] and [2] for a minimum of
4 seconds.
To set the code to “REMOTE 1”
1
2
Press and hold [RADIO/EXT-IN] on the main unit
and [1] on the remote control until “REMOTE 1” is
shown.
Press and hold [OK] and [1] for a minimum of
4 seconds.
Disconnect the AC power supply cord.
While you press and hold [1] on the main unit,
connect the AC power supply cord again.
“– – – – – – – –” is shown.
Release [1].
All the settings are set back to the factory preset.
It is necessary to set the memory items again.
12
AKX14P.En.book Page 14 Tuesday, January 31, 2012 2:46 PM
Disco
ESPAŇOL
Cómo realizar las conexiones
1
Cómo reproducir disco
1
Conecte las bocinas.
B
A
(4 )
(4)
Menú de reproducción
2
2
2
Pulse [CD] y después pulse [4/9] para iniciar la
reproducción.
OFF
PLAYMODE
Reproducir todas las pistas.
1-TRACK
Reproduce una pista seleccionada del disco.
Pulse los botones numéricos para
seleccionar la pista.
Detener
Pulse [8].
reproducción
Conecte la antena de cuadro AM.
Ponga la antena en posición vertical sobre su base
hasta que haga clic.
Pulse [PLAY MENU] para seleccionar
“PLAYMODE” o “REPEAT”.
Pulse [x, OPEN/CLOSE] en la unidad principal para
abrir la bandeja del disco.
Coloque un disco con la etiqueta hacia arriba.
Pulse [x, OPEN/CLOSE] nuevamente para cerrar la
bandeja del disco.
Negro
Rojo
1
Pausar la
Pulse [4/9].
reproducción Pulse nuevamente para continuar la
reproducción.
Saltar álbum
Pulse [R, T].
Saltar pista
Pulse [2] o [6] (unidad principal:
[2/3] o [5/6]).
Buscar por
pista
Pulse y mantenga pulsado [3] o [5]
(unidad principal: [2/3] o
[5/6]).
Pulse [Y, U] y luego pulse [OK] para seleccionar el
modo deseado.
PLAYMODE
1TR
1-ALBUM
1ALBUM
RANDOM
Reproduce un álbum seleccionado del disco.
Pulse [R, T] para seleccionar el álbum.
Reproduce un disco aleatoriamente.
RND
1- ALBUM
RANDOM
1ALBUM RND
Reproduce todas las pistas de un álbum
seleccionado aleatoriamente.
Pulse [R, T] para seleccionar el álbum.
REPEAT
ON REPEAT Repetir la reproducción.
OFF REPEAT Cancelar la reproducción repetida.
3
Conecte la antena interior FM.
Coloque la antena donde la recepción sea la mejor.
Cinta adhesiva
4
Conecte el cable de alimentación de CA.
Use exclusivamente el cable de alimentación de CA
suministrado con este sistema.
No use un cable de alimentación de CA de otro equipo.
14
AKX14P.En.book Page 15 Tuesday, January 31, 2012 2:46 PM
USB
Usted puede conectar y reproducir pistas MP3 desde su
dispositivo USB.
No use un cable de extension USB. El sistema no puede
reconocer el dispositivo USB conectado a través de un
cable.
1
2
Conecte el dispositivo USB al puerto USB.
Sujete la unidad principal al conectar o desconectar el
dispositivo USB.
Radio
Reloj y temporizador
Sintonización manual
Configuración de la hora
1
2
Pulse [USB] y después pulse [4/9] para iniciar la
reproducción.
Detener
reproducción
Pulse [8] durante la reproducción.
Se visualiza “RESUME”.
Pulse [4/9] para continuar la
reproducción desde el principio de la
pista.
O
Pulse [8] dos veces para detener
totalmente la reproducción.
Pulse [3] o [5] para seleccionar la frecuencia
de la emisora requerida.
Para sintonizar automáticamente, pulse y mantenga
pulsado el botón hasta que la frecuencia comience a
cambiar rápidamente.
Presintonización de la memoria
Este es un reloj con un sistema de 12 horas.
1
2
3
Pulse [CLOCK/TIMER] para seleccionar “CLOCK”.
Dentro de 10 segundos, pulse [R, T] para configurar
la hora.
Pulse [OK].
Pulse [CLOCK/TIMER] para visualizar el reloj durante unos
segundos.
Se pueden preconfigurar 30 emisoras de FM y 15 de AM.
Preconfiguración automática
1
2
Para otras operaciones, refiérase a “Disco”.
Compatible con dispositivos USB definidos como tipo de
almacenamiento masivo:
• Dispositivos USB que soportan sólo transferencia en
masa.
• Dispositivos USB que soportan una velocidad total USB
2.0.
Pulse [RADIO, EXT-IN] (unidad principal:
[RADIO/EXT-IN]) para seleccionar “FM” o “AM”.
Pulse [OK] para seleccionar la frecuencia
“LOWEST” (más baja) o “CURRENT” (actual).
El temporizador de apagado automático apagará el
sistema después de la hora configurada.
Pulse [AUTO PRESET] para iniciar la
preconfiguración.
Para cancelar, pulse [8].
Pulse [SLEEP] para seleccionar la configuración (en
minutos).
Para cancelar, seleccione “OFF”.
Preconfiguración manual
1
2
3
Temporizador de apagado automático
30 MIN → 60 MIN → 90 MIN → 120 MIN → OFF
Pulse [3] o [5] para sintonizar la estación.
Pulse [PROGRAM].
Para visualizar el tiempo restante
Pulse [SLEEP].
Pulse los botones numéricos para seleccionar un
número preconfigurado.
Realice los pasos 1 al 3 nuevamente para preconfigurar
más estaciones.
La estación más reciente reemplazará cualquier
estación que ocupe el mismo número preconfigurado.
Selección de una emisora preconfigurada
Pulse los botones numéricos, [2] o [6] (unidad
principal: [2/3] o [5/6]) para seleccionar la
estación preconfigurada.
15
Download PDF

advertising
