DMP-BD77EB-VQT3V25.book
1 ページ 2012年1月18日 水曜日 午後4時52分

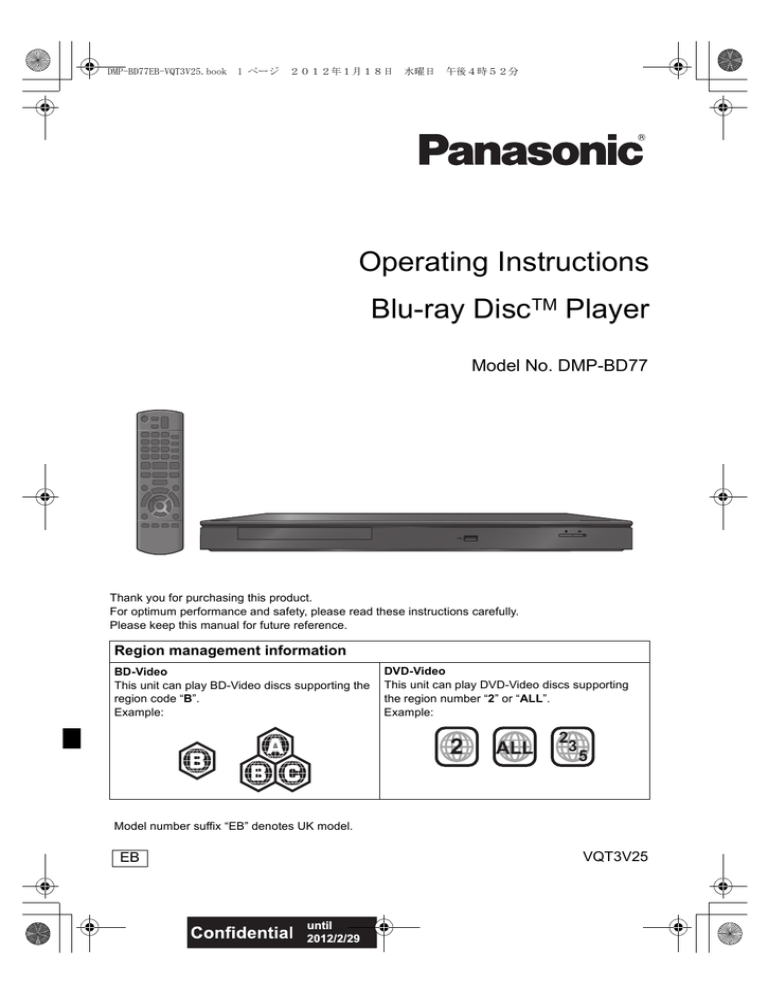

Operating Instructions
Blu-ray DiscTM Player
Model No. DMP-BD77
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
Region management information
BD-Video
This unit can play BD-Video discs supporting the
region code “B”.
Example:
DVD-Video
This unit can play DVD-Video discs supporting
the region number “2” or “ALL”.
Example:
2
ALL
2
3
5
Model number suffix “EB” denotes UK model.
VQT3V25
EB
until
2012/2/29 DMP-BD77EB-VQT3V25.book
2 ページ 2012年1月18日 水曜日 午後4時52分
CAUTION
Safety precautions
Getting started
WARNING
Unit
To reduce the risk of fire, electric shock or product damage,
≥ Do not expose this unit to rain, moisture, dripping or
splashing.
≥ Do not place objects filled with liquids, such as vases, on
this unit.
≥ Use only the recommended accessories.
≥ Do not remove covers.
≥ Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
≥ Do not let metal objects fall inside this unit.
≥ Do not place heavy items on this unit.
AC mains lead
To reduce the risk of fire, electric shock or product damage,
≥ Ensure that the power supply voltage corresponds to the
voltage printed on this unit.
≥ Insert the mains plug fully into the socket outlet.
≥ Do not pull, bend, or place heavy items on the lead.
≥ Do not handle the plug with wet hands.
≥ Hold onto the mains plug body when disconnecting the plug.
≥ Do not use a damaged mains plug or socket outlet.
Install this unit so that the AC mains lead can be unplugged
from the socket outlet immediately if any problem occurs.
2
VQT3V25
Unit
≥ This unit utilizes a laser. Use of controls or adjustments or
performance of procedures other than those specified
herein may result in hazardous radiation exposure.
≥ Do not place sources of naked flames, such as lighted
candles, on this unit.
≥ This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
≥ This unit is intended for use in moderate climates.
Placement
Place this unit on an even surface.
To reduce the risk of fire, electric shock or product damage,
≥ Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
≥ Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
≥ Do not place the unit on amplifiers/receivers or equipment
that may become hot. The heat can damage the unit.
≥ Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive vibration.
Batteries
Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
≥ Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥ When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
≥ Do not mix old and new batteries or different types at the
same time.
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
≥ Do not take apart or short circuit.
≥ Do not recharge alkaline or manganese batteries.
≥ Do not use batteries if the covering has been peeled off.
Remove batteries if you do not intend to use the remote
control for a long period of time. Store in a cool, dark place.
3 ページ 2012年1月18日 水曜日 午後4時52分
If a new plug is to be fitted please observe the wiring code as
stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with
the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the terminal
which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL Ó OR COLOURED
GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC
mains plug (figures A and B). Confirm the AC mains plug
fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A
Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
2
3
4
4
5
7
Connections and settings
STEP 1 : Connecting to a TV. . . . . . . . . . . . . . . 8
STEP 2 : Connecting to
an amplifier/receiver . . . . . . . . . . . . . . 9
STEP 3 : Connecting to the network . . . . . . . . 10
STEP 4 : Connecting the AC mains lead . . . . . 10
STEP 5 : Settings . . . . . . . . . . . . . . . . . . . . . . 11
STEP 6 : Reprogramming
the remote control. . . . . . . . . . . . . . . 13
Getting started
Safety precautions . . . . . . . . . . . . . . . . . . . . . . .
Caution for AC Mains Lead . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unit and media care. . . . . . . . . . . . . . . . . . . . . .
Playable media . . . . . . . . . . . . . . . . . . . . . . . . .
Control reference guide . . . . . . . . . . . . . . . . . . .
Connections and settings
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK
IF THE CUT OFF PLUG IS INSERTED INTO ANY
13-AMPERE SOCKET.
Getting started
Playback
Inserting or removing media . . . . . . . . . . . . . .
HOME menu . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi User Mode. . . . . . . . . . . . . . . . . . . . . . . .
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enjoying Network Service . . . . . . . . . . . . . . . .
Home Network feature. . . . . . . . . . . . . . . . . . .
“HDMI CEC”. . . . . . . . . . . . . . . . . . . . . . . . . . .
14
14
15
16
18
19
21
Playback
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains
plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is
approved by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the body
of the fuse.
If the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
Table of contents
Settings
Option menu . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Reference
Troubleshooting guide . . . . . . . . . . . . . . . . . . .
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Supplemental information . . . . . . . . . . . . . . . .
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . .
29
32
33
34
≥ Restriction on use of unauthorized
copied content (> 35)
≥ Firmware updates (> 12)
VQT3V25
Settings
Caution for AC Mains
Lead
Reference
DMP-BD77EB-VQT3V25.book
3
DMP-BD77EB-VQT3V25.book
4 ページ 2012年1月18日 水曜日 午後4時52分
Accessories
Unit and media care
Check the supplied accessories before using this
unit.
∫ Clean this unit with a soft, dry
cloth
1
≥ Never use alcohol, paint thinner or benzine to
clean this unit.
≥ Before using chemically treated cloth, carefully
read the instructions that came with the cloth.
2
Remote control
(N2QAYB000739)
Batteries for remote control
≥ Product numbers provided in these operating instructions
correct as of January 2012. These may be subject to
change.
∫ Using the remote control
Insert so the poles (i and j) match those in the
remote control.


∫ This unit’s lens
Lens cleaner: RP-CL720AE
≥ This lens cleaner may not be available for
sale in all countries, e.g. not available in
Germany, please consult your Panasonic
dealer for advice.
≥ This lens cleaner is sold as specific for DIGA,
but can be used on this unit as well.
∫ Clean discs
DO
DO NOT
R6/LR6, AA
(Alkaline or manganese batteries)
Point it at the remote control signal sensor on this
unit. (> 7)
Wipe with a damp cloth and then wipe dry.
∫ Disc handling precautions
≥ Handle discs by the edges to avoid inadvertent
scratches or fingerprints on the disc.
≥ Do not attach labels or stickers to discs.
≥ Do not use disc cleaning sprays, benzine,
thinner, static electricity prevention liquids or
any other solvent.
≥ Do not use the following discs:
– Discs with exposed adhesive from removed
stickers or labels (rented discs, etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart
shapes.
∫ To dispose or transfer this unit
The unit may keep the user settings information in
the unit. If you discard this unit either by disposal
or transfer, then follow the procedure to return all
the settings to the factory presets to delete the
user settings. (> 29, “To return all settings to the
factory preset.”)
≥ The operation history may be recorded in the
memory of this unit.
4
VQT3V25
DMP-BD77EB-VQT3V25.book
5 ページ 2012年1月18日 水曜日 午後4時52分
Playable media
Disc markings
Device types
BD-Video
BD-RE
BD
BD-R
DVD-Video
Contents format
Getting started
Device
Video
Video, JPEG
Video, DivX®, MKV
Video
DVD-R
Video, AVCHD, DivX®,
MKV, JPEG, FLAC,
MP3, WAV
DVD
DVD-R DL
DVD-RW
Video, AVCHD
—
+R/+RW/+R DL
Music CD
CD
USB
Music [CD-DA]
—
CD-R
CD-RW
DivX®, MKV, JPEG,
FLAC, MP3,
Music [CD-DA], WAV
—
USB devices
(up to 2 TB)
DivX®, MKV, MP4,
MPEG, JPEG, FLAC,
MP3, WAV
≥ See pages 6 and 34 for more information on the types of content that can be played.
VQT3V25
5
DMP-BD77EB-VQT3V25.book
6 ページ 2012年1月18日 水曜日 午後4時52分
∫ Discs that cannot be played by
this unit
≥ DVD-RAM
≥ Super Audio CD
≥ Photo CD
≥ DVD-Audio
≥ Video CD and Super
Video CD
≥ WMA discs
≥ DivX Plus HD discs
≥ HD DVD
∫ Region management information
BD-Video
This unit can play BD-Video discs supporting the
region code “B”.
Example:
∫ USB device
≥ This unit does not guarantee connection with all
USB devices.
≥ This unit does not support USB device
charging.
≥ FAT12, FAT16, FAT32 and NTFS file systems
are supported.
≥ This unit supports USB2.0 High Speed.
≥ This unit can support an HDD formatted to
FAT32 and NTFS.
Some types of HDD may require the use of its
external power supply unit.
∫ BD-RE, BD-R
Discs recorded in DR mode using Panasonic
Blu-ray Disc recorders may not play back the
audio etc., correctly.
DVD-Video
This unit can play DVD-Video discs supporting
the region number “2” or “ALL”.
Example:
2
ALL
2
3
5
∫ Finalize
DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW
recorded by a recorder, etc. needs to be finalized
by the recorder to play on this unit. Please refer to
the recorder’s instructions.
∫ BD-Video
≥ This unit supports high bit rate audio (Dolby
Digital Plus, Dolby TrueHD, DTS-HD High
Resolution Audio and DTS-HD Master Audio)
adopted in BD-Video.
≥ If “Dolby D/Dolby D +/Dolby TrueHD” is set to
“PCM”, the maximum possible number of Dolby
sound is 2ch PCM. (> 25)
∫ Music CD
Operation and sound quality of CDs that do not
conform to CD-DA specifications (copy control
CDs, etc.) cannot be guaranteed.
6
VQT3V25
≥ It may not be possible to play the above media in some
cases due to the type of media, the condition of the
recording, the recording method and how the files were
created.
≥ The producers of the disc can control how discs are
played, so you may not always be able to control play as
described in these operating instructions. Read the disc’s
instructions carefully.
DMP-BD77EB-VQT3V25.book
7 ページ 2012年1月18日 水曜日 午後4時52分
11
1
2
1
2
12
13
3
14
4
5
15
6
7
16
17
18
8
3
4
5
6
7
8
9
10
11
12
13
14
19
15
9
20
16
17
18
19
10
20
Turn the unit on and off
TV operation buttons (> 13)
You can operate the TV through the unit’s
remote control.
[Í TV] : Turn the television on and off
[AV] : Switch the input select
[i j VOL] : Adjust the volume
Select title numbers, etc./Enter numbers
Cancel
Select audio (> 16)
Basic playback control buttons (> 16)
Show status messages (> 17)
Show Top menu (> 17)
Show Option menu (> 22)
Coloured buttons (red, green, yellow, blue)
Used for various purposes depending on the
display.
Transmit the remote control signal
Open or close the disc tray (> 14)
Show NETFLIX screen (> 18)
Switch on/off Secondary Video
(Picture-in-picture) (> 22)
Show the selection screen of network
features (> 18)
Exit the menu screen
Show Pop-up menu (> 17)
Show HOME menu (> 14)
[3, 4, 2, 1] : Move the highlight for selection
[OK] : Confirm the selection
(;1) : Frame-by-frame (> 16)
Return to previous screen
1
8
2
1
3
4
5
2
Standby/on switch (Í/I) (> 11)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
Disc tray (> 14)
3
USB port (> 14)
6
7
8
4
5
6 7
Display (> 33)
Remote control signal sensor
Distance: Within approx. 7 m
Angle: Approx. 20e up and down, 30e left and
right
Stop (> 16)
Start play (> 16)
Open or close the disc tray (> 14)
Rear panel terminals (> 8–10)
VQT3V25
7
Getting started
Control reference guide
DMP-BD77EB-VQT3V25.book
8 ページ 2012年1月18日 水曜日 午後4時52分
STEP 1 : Connecting to a TV
Connections and settings
Perform either one of the following connections in accordance with your TV input terminal.
≥ Before making any connections, we recommend that you temporarily disconnect all the units from AC
power.
≥ Do not connect video signals through a video recorder. Due to copy guard protection the picture may
not be displayed properly.
≥ Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized.
It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p signal, please use
HDMI cables 5.0 meters or less.
Recommended part number (High Speed HDMI Cable):
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.
BE SURE TO READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 3 BEFORE
CONNECTION.
HDMI AV OUT (High quality)
HDMI IN
HDMI cable
VIDEO OUT (Standard quality)
VIDEO IN
L
AUDIO IN
R
Audio/Video cable
≥ Connect terminals of the same colour.
8
VQT3V25
DMP-BD77EB-VQT3V25.book
9 ページ 2012年1月18日 水曜日 午後4時52分
STEP 2 : Connecting to an amplifier/receiver
HDMI cable
HDMI cable
HDMI IN
HDMI IN
(ARC)
Amplifier/receiver
≥ When using the TV or amplifier/receiver that does not have the indication of “(ARC)”
(non-ARC-compatible) on the HDMI terminal, in order to enjoy TV’s sound by amplifier/receiver it is
also required to connect the amplifier/receiver and TV using an optical digital cable.
VQT3V25
9
Connections and settings
≥ Set “Digital Audio Output” (> 25).
HDMI OUT
(ARC)
DMP-BD77EB-VQT3V25.book
10 ページ 2012年1月18日 水曜日 午後4時52分
STEP 3 : Connecting to the network
The following services can be used when this unit is connected to broadband.
≥ Firmware can be updated (> 12)
≥ You can enjoy BD-Live (> 17)
≥ You can enjoy Network Service (> 18)
≥ You can access other devices (Home Network) (> 19)
For details about connection method, refer to the instructions supplied with the connected equipment.
Wireless LAN connection
Connect the Wireless LAN Adaptor DY-WL5 (optional). Only DY-WL5 can be used.
Read the operating instructions for DY-WL5 thoroughly when using it.
Wireless router, etc.
Internet
≥ For up-to-date compatibility information on your wireless router, refer to
http://panasonic.jp/support/global/cs/
(This site is in English only.)
≥ The unit is not compatible with public wireless LAN services (Hotspot etc.) provided in airports,
stations, cafes, etc.
LAN cable connection
LAN Cable
Broadband router, etc.
Internet
≥ Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.
≥ Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.
STEP 4 : Connecting the AC mains lead
To a household mains socket
≥ This unit consumes a small amount of AC power (> 34) even when turned off. In the interest of
power conservation, if you will not be using this unit for an extended period of time, it can be
disconnected.
10
VQT3V25
11 ページ 2012年1月18日 水曜日 午後4時52分
STEP 5 : Settings
Easy Setting
After connecting your new player for the first time
and pressing [Í], a screen for the basic settings
will appear.
Preparation
Turn on the television and select the
appropriate video input on the television.
1
Easy Network Setting
Easy Network Setting
After completing “Easy Setting”, you can perform
“Easy Network Setting”.
Select “Wired” or “Wireless”and press [OK].
and
Easy Network Setting
Select a connection mode.
Current setting
Wired
Press [Í].
Setup screen appears.
2
Follow the on-screen instructions and
apply the settings.
≥ You can perform this setup anytime by selecting “Easy
Setting” in the Setup menu. (> 27)
Wired
Wireless
OK
RETURN
∫ “Wired” connection
Follow the on-screen instructions to apply your
connection settings.
∫ “Wireless” connection
Before beginning wireless connection setup
≥ Obtain your network name (SSID*1).
≥ If your wireless connection is encrypted,
please be sure that you know your
encryption key.
≥ If “Wireless LAN Adaptor is not connected.” is
displayed, check that the Wireless LAN Adaptor is
fully inserted. Alternatively, disconnect and
reconnect it. If there is still no change in the display,
consult your dealer for advice.
Select “Search for wireless network” or “WPS
(PUSH button)” and press [OK], then follow
the on-screen instructions and apply the
settings.
Wireless Settings
Select a connection method to wireless access point.
Please refer to the operating instructions of your wireless
access point about connection methods.
Search for wireless network
WPS (PUSH button)
WPS (PUSH button):
If your wireless router supports
WPS (PUSH button), you can
easily perform the settings by
pressing WPS button on it.
e.g.
*2
VQT3V25
11
Connections and settings
DMP-BD77EB-VQT3V25.book
DMP-BD77EB-VQT3V25.book
12 ページ 2012年1月18日 水曜日 午後4時52分
WPS (Wi-Fi Protected SetupTM) is a standard that
facilitates settings relating to the connection and
security of wireless LAN devices.
1 Press WPS button or corresponding button of
the wireless router until the lamp starts
flashing.
≥ For details, refer to the operating instruction
of the wireless router.
2 Press [OK].
Search for wireless network:
≥ When you select “Search for wireless network”,
the available wireless networks will be displayed.
Select your network name and press [OK].
– If your network name is not displayed, search
again by pressing the red button on the
remote control.
– Stealth SSID will not be displayed when you
select “Search for wireless network”. Enter
manually by using “Manual setting”.
(Press [HOME] > select “Setup” > [OK] >
select “Player Settings” > select “Network” >
[OK] > select “Network Settings” > [OK] >
select “Wireless Settings” > [OK] > select
“Connection Setting” > [OK] > select
“Manual setting” > [OK])
Firmware updates
Occasionally, Panasonic may release updated
firmware for this unit that may add or improve the
way a feature operates. These updates are
available free of charge.
This unit is capable of checking the firmware
automatically when connected to the Internet via
a broadband connection.
When a new firmware version is available, the
following message is displayed.
New firmware is available.
Please update firmware in Setup.
To update the firmware
Press [HOME] > select “Setup” > [OK] >
select “Player Settings” > select “System” >
[OK] > select “Firmware Update” > [OK] >
select “Update Now” > [OK]
DO NOT DISCONNECT the unit from the AC
power or perform any operation while the update
takes place.
After the firmware is installed, “FIn” will be
displayed on the unit’s display. Unit will restart
and the following screen will be displayed.
≥ If your wireless network is encrypted,
Encryption Key input screen will be displayed.
Input the encryption key of your network.
The firmware has been updated.
Current Version: x.xx
≥ Refer to the operating instructions of the hub or router.
≥ You can perform this setup anytime by selecting “Easy
Network Setting” in the Setup menu. (> 26)
≥ You can redo these settings individually using “Network
Settings”. (> 26)
≥ Do not use this unit to connect to any wireless network for
which you do not have usage rights.
During automatic searches in a wireless network
environment, wireless networks (SSID) for which you do
not have usage rights may be displayed; however, using
these networks may be regarded as illegal access.
≥ After performing network settings on this unit, the settings
(encryption level, etc.) of the wireless router might change.
When you have trouble getting online on your PC, perform
the network settings on your PC in accordance with the
settings of the wireless router.
≥ Please be aware that connecting to a network without
encryption may result in the content of the communication
being illegitimately viewed by a third party, or the leaking of
data such as personal or secret information.
*1 An SSID (Service Set IDentification) is a name used by
wireless LAN to identify a particular network. Transmission
is possible if the SSID matches for both devices.
*2
The wireless router compatible with Wi-Fi Protected SetupTM
may have the mark.
12
VQT3V25
≥ If downloading on this unit fails or this unit is not
connected to the Internet, then you can download the
latest firmware from the following website and burn it
to a CD-R to update the firmware.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
To show the firmware version on this unit.
(> 28, “Firmware Version Information”)
≥ Downloading will require several minutes. It may take
longer or may not work properly depending on the
connection environment.
≥ If you do not want to check for the latest firmware version,
set “Automatic Update Check” to “Off”. (> 28)
DMP-BD77EB-VQT3V25.book
13 ページ 2012年1月18日 水曜日 午後4時52分
STEP 6 :
Reprogramming the
remote control
For other Panasonic products
Connections and settings
If you have more than one Panasonic player/
recorder and the remote control operates both
products at once, you will need to change the
remote control code to prevent this occurrence.
(> 28, “Remote Control”)
For TV
You can operate the TV using the unit’s remote
control.
1
Input the 2-digit code (> 33) while
pressing [Í TV].
e.g., 01: [0] B [1]
2
Test by turning on the television.
≥ If your television brand has more than one code listed,
select the one that allows correct operation.
VQT3V25
13
DMP-BD77EB-VQT3V25.book
14 ページ 2012年1月18日 水曜日 午後4時52分
Inserting or removing
media
Playback
HOME menu
Major functions of this unit can be operated from
the HOME menu.
Preparation
Turn on the television and select the appropriate
video input on the television.
1
2
Press [Í] to turn on the unit.
Press [OK] or [3, 4, 2, 1] to select the
item.
≥ If there are any other items, repeat this
step.
Notes
≥ When inserting a media item, ensure that it is
facing the right way up.
≥ If you connect a Panasonic product with a USB
connection cable, the setup screen may be
displayed on the connected equipment. For
details, refer to the instructions for the
connected equipment.
≥ Use the front USB port when you connect a
USB memory or a USB HDD. The USB port on
the rear panel is only for the Wireless LAN
Adaptor DY-WL5 (optional).
CAUTION
Do not place objects in front of the unit. The disc
tray may collide with objects when it is opened,
and this may cause malfunction.
HOME
Network
Blu-ray Disc Player
Photos
Setup
Music
Videos
Register
1st user
Videos/Photos/Music
Disc
USB
Play back the contents.
(> 16)
≥ When multiple contents are
recorded, select the types
of contents or the title.
Network
Displays the Home screen of
Network Service. (> 18)
DLNA Client (> 19)
Home Network
Media Renderer (> 20)
Network
Service
Setup
Player Settings (> 24)
USB
(> 17)
Management
Changes the background of
Wallpaper
HOME menu.
To show the HOME menu
Press [HOME].
≥ Items to be displayed may vary with the media.
≥ Where necessary, set “Mixed Data Disc Option” when
using a disc with both data files (MP3, JPEG, DivX,etc.)
and Video (BDAV and AVCHD). (> 27)
14
VQT3V25
15 ページ 2012年1月18日 水曜日 午後4時52分
Multi User Mode
Multi User Mode is a function that enables
switching of multiple settings easily.
Up to 4 people can use the unit with their own
settings.
The following settings can be personalized.
≥ The user icon
≥ The wallpaper of HOME menu
≥ The picture settings (> 22, 24)
Personalizing a new user
1
2
Press [HOME].
3
Select an item and change the settings
according to the indications.
The following items can be set.
Press a coloured button that indicates
new user personalization.
Input
Nickname
A
HOME
Personalize a user icon.
User 1
Network
Blu-ray Disc Player
Photos
Setup
Music
Select Icon
B
Select from Illustrations
The image can be selected
from prepared illustrations.
Create from Photos
You can select a photo in
recording media as an icon.
(> 22, “Icon Registration”)
Videos
User 1
Personalize a user name.
Register
2nd user
A The user name and icon currently selected
B Personalize a new user and switch the
users with coloured buttons.
Select
Wallpaper
4
Personalize a background of
the HOME menu.
≥ Other than prepared
wallpapers, you can also
select a photo in recording
media as a wallpaper.
(> 22, “Wallpaper”)
Select “Confirm” and press [OK].
To change the personalized user information
Select “Edit User Information” from Setup menu.
(> 27)
Switching the user
Press the coloured buttons in the HOME menu
to switch to the user corresponding to the
button.
VQT3V25
15
Playback
DMP-BD77EB-VQT3V25.book
DMP-BD77EB-VQT3V25.book
16 ページ 2012年1月18日 水曜日 午後4時52分
Playback
1
2
Pause
Insert the media.
Press [;PAUSE].
Playback starts depending on the media.
≥ Press [;PAUSE] again or [1PLAY] to restart
play.
Select the item to play and press [OK].
Repeat this procedure if necessary.
≥ Signal from PAL discs is output as PAL. Signal from NTSC
discs is output as “NTSC” or “PAL60”. You can select
“NTSC” or “PAL60” in “NTSC Contents Output” for NTSC
discs. (> 24)
≥ DISCS CONTINUE TO ROTATE WHILE MENUS ARE
DISPLAYED. Press [∫STOP] when you have finished
playback to protect the unit’s motor, your television screen
and so on.
≥ DivX and MKV: Successive play is not possible.
≥ It is not possible to play back AVCHD and MPEG2 video
which have been dragged and dropped, copied and pasted
to the media.
≥ To save on electricity, the unit is turned off automatically if
there is no button operation for about 30 minutes when not
playing back (such as when paused, displaying the menu,
displaying still pictures, etc.).
Operations during playback
Following functions may not work depending on
the media and contents.
Stop
Press [∫STOP].
The stopped position is memorized.
Resume play function
Press [1PLAY] to restart from this position.
≥ The position is cleared if the tray is opened or
you press [∫STOP] several times to display
“StOP” on the unit’s display.
≥ On BD-Video discs including BD-J, the
resume play function does not work.
16
VQT3V25
Search/Slow-motion
Search
While playing, press [SEARCH6] or
[SEARCH5].
≥ Music and MP3: The speed is fixed to a single
step.
Slow-motion
While paused, press [SEARCH5].
The speed increases up to 5 steps.
≥ Press [1PLAY] to revert to normal playback
speed.
Skip
While playing or paused, press [:] or
[9].
Skip to the title, chapter or track.
Frame-by-frame
While paused, press [1] (;1).
≥ Press and hold to change in succession
forward.
≥ Press [1PLAY] to revert to normal playback
speed.
Changing audio
Press [AUDIO].
You can change the audio channel number or
soundtrack language, etc.
17 ページ 2012年1月18日 水曜日 午後4時52分
Displaying menus and
playback information
Enjoying BD-Live
Show top menu/pop-up menu
Press [TOP MENU] or [POP-UP MENU].
Select the item and press [OK].
Show the status messages
While playing, press [STATUS].
The status messages give you information about
what is currently being played. Each time you
press [STATUS], the display information may
change or will disappear from the screen.
≥ Depending on media and contents, the display
may change or may not appear.
e.g., BD-Video
BD (Video)
Play
A
B
C
D
T: Title, C: Chapter, PL: Playlist
Elapsed time in the title
Current position
Total time
e.g., JPEG
Date
11.12.2007
Size
500 x 375
Manufacturer
Equipment
With “BD-Live” discs, you can enjoy bonus
contents that use Internet access.
For this BD-Live function, connection of a USB
device is necessary along with Internet connection.
1
Perform network connection and settings.
(> 10, 11)
2
Connect a USB device with 1 GB or more
free space.
≥ The USB device is used as the local storage.
3
Insert the disc.
∫ Deleting data on the USB device
Select “USB Management” in the Home menu
(> 14), then select “BD-Video Data Erase” and
press [OK].
≥ The usable functions and the operating method may vary
with each disc, please refer to the instructions on the disc
and/or visit their website.
≥ “BD-Live Internet Access” may need to be changed for
certain discs (> 26).
Slideshow
Play a slideshow of photos and make various
settings during the playback.
1
2
3
Insert the media.
Select “Photos”.
Select an item and press the green button.
The following items can be set.
Start
Slideshow
Start the slideshow.
You can display still pictures in
the selected folder one by one
at a constant interval.
Interval
Change the display interval.
Transition
Effect
Select the effect when sliding
pictures.
Repeat Play
Set whether to repeat the
slideshow.
≥ Still pictures displayed as “
with this unit.
” cannot be played back
VQT3V25
17
Playback
DMP-BD77EB-VQT3V25.book
DMP-BD77EB-VQT3V25.book
18 ページ 2012年1月18日 水曜日 午後4時52分
Enjoying Network
Service
You can enjoy Network Service.
Network Service provides a variety of
selected Internet services such as the
following.
≥ Online movie rental service
≥ Video browsing service
Network Service
*
XXXXX
Internet
* Images are for illustration purposes, contents may change
without notice.
Preparation
≥ Network connection (> 10)
≥ Network setting (> 11)
1
Press [NETWORK].
≥ NETFLIX can be accessed directly by
pressing [NETFLIX] button.
2
3
Press [1] to select “Network Service”.
Select the item and press [OK].
To exit from Network Service
Press [EXIT] or [HOME].
18
VQT3V25
≥ Set “Network Service Lock” in “Ratings”, when restricting
the use of Network Service. (> 27)
≥ If using slow Internet connection, the video may not be
displayed correctly. A high-speed Internet service with a
speed of at least 6 Mbps is recommended.
≥ Be sure to update the firmware when a firmware update
notice is displayed on the screen. If the firmware is not
updated, you may not be able to use the Network Service
function properly. (> 12)
≥ Network Service Home screen is subject to change without
notice.
≥ The services through Network Service are operated by
their respective service providers, and service may be
discontinued either temporarily or permanently without
notice. Therefore, Panasonic will make no warranty for the
content or the continuity of the services.
≥ All features of websites or content of the service may not
be available.
≥ Some content may be inappropriate for some viewers.
≥ Some content may only be available for specific countries
and may be presented in specific languages.
DMP-BD77EB-VQT3V25.book
19 ページ 2012年1月18日 水曜日 午後4時52分
Home Network feature 1
Playing back contents on the
DLNA server
You can share photos, videos and music stored in
the DLNA Certified media server (PC with
Windows 7 installed, smartphone, etc.)
connected to your home network, and enjoy the
contents with this player.
You can also enjoy viewing the video and photos
recorded in Panasonic DLNA compatible
recorders (DIGA).
Refer to our website about the sales area, etc.
(> 20)
2
3
4
5
6
Press [HOME].
Select “Network”.
Select “Home Network”.
Select “DLNA Client”.
≥ The list can be updated by pressing the red
button on the remote control.
Select the equipment and press [OK].
Select the item to play and press [OK].
≥ You may be able to use convenient
functions depending on the content by
pressing [OPTION].
≥ Control Panel is displayed once the
playback starts. Press [OK] if the Control
Panel is not displayed, and press
[RETURN] to hide the Control Panel.
To exit from Home Network
Press [EXIT] or [HOME].
Player
Server
Playback
Preparation
1 Perform network connection (> 10) and
network settings (> 11) of this unit.
2 Perform Home Network settings of the
connected equipment.
When connected to other than DIGA,
3 Add the contents and folder to the libraries of
the Windows Media® Player or the
smartphone, etc.
≥ Playlist of Windows Media® Player can play
back only the contents that are stored in the
libraries.
When connected to DIGA,
3 Register this unit to your DIGA.
VQT3V25
19
DMP-BD77EB-VQT3V25.book
20 ページ 2012年1月18日 水曜日 午後4時52分
Using the Digital Media
Controller
For more details, refer to the following website and the
operating instructions for each of the equipment.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
You can use the smartphone, etc. as the Digital
Media Controller (DMC) to play back contents
from DLNA server on the Renderer (this unit).
≥ Depending on the contents and the connected equipment,
playback may not be possible.
≥ Items displayed in grey on the display cannot be played
back by this unit.
≥ This unit can be played back via connected equipment only
when controlled using DMC.
Possible applications:
Server
*
Renderer
Controller
Renderer
*
Server
i
Controller
*
* DMC compatible software should be installed.
Preparation
Perform steps 1 and 2. (> 19)
3 Add the contents and folder to the libraries of
the Windows Media® Player or the
smartphone, etc.
≥ Playlist of Windows Media® Player can play
back only the contents that are stored in the
libraries.
4 Perform the “Remote Device Settings”.
(> 26)
≥ You can register up to 16 devices.
1
2
3
4
5
Press [HOME].
Select “Network”.
Select “Home Network”.
Select “Media Renderer”.
Operate the DMC compatible devices.
To exit from Media Renderer screen
Press [HOME].
20
VQT3V25
DMP-BD77EB-VQT3V25.book
21 ページ 2012年1月18日 水曜日 午後4時52分
“HDMI CEC”
This unit supports HDMI CEC (Consumer
Electronics Control).
You can use this function by connecting the
equipment with an HDMI cable. See the
operating instructions for connected
equipment for operational details.
Preparation
1 Set “HDMI CEC” to “On” (> 27).
(The default setting is “On”.)
2 Set the “HDMI CEC” operations on the
connected equipment (e.g., TV).
3 Turn on all “HDMI CEC” compatible
equipment and select this unit’s input channel
on the connected TV so that the “HDMI CEC”
function works properly.
Also when the connection or settings are
changed, repeat this procedure.
Playback
Automatic input switching
Power on link
When play starts on the unit, the TV will
automatically switch the input channel and the
screen of this unit will be displayed.
Additionally when the TV is off, the TV will
automatically turn on.
Power off link
All connected equipment compatible with “HDMI
CEC”, including this unit, automatically turns off
when you switch the television off.
≥ Operation cannot be guaranteed on all HDMI CEC
devices.
VQT3V25
21
DMP-BD77EB-VQT3V25.book
22 ページ 2012年1月18日 水曜日 午後4時52分
Option menu
Settings
A variety of playback operations and settings can
be performed from this menu.
Available options differ depending on the playing
contents and the condition of the unit.
About Multi User Mode
∫ Repeat Play
(Only when the elapsed time is being displayed
on the unit’s display.)
Select the item that you want to repeat.
≥ The items displayed differ depending on the
type of media.
≥ Select “Off” to cancel.
: Settings of the items with this indication are
saved by the respective users registered in the
HOME menu.
Please refer to page 15 for details about user
registration and switching.
∫ Random
Select whether or not to play random.
1
∫ Status
Show the status messages.
Press [OPTION].
≥ When playing music, select “Playback
Settings” and press [OK].
e.g., BD-Video
Operation Menu
Soundtrack
1 ENG Dolby TrueHD M...
Subtitle
1
Angle
Off
Repeat Play
∫ Start Slideshow
Start the slideshow.
∫ Rotate RIGHT
∫ Rotate LEFT
Rotate the still picture.
∫ Wallpaper
Set the still picture to the wallpaper of HOME
menu. (> 14)
Status
Primary Video
MPEG-4 AVC
Secondary Video
Top Menu
Pop-up Menu
∫ Icon Registration
Set the still picture as your user icon. (> 15)
∫ Video
The recording method of original video appears.
2
Select an item and change the settings.
To exit the screen
Press [OPTION].
Regarding Language : (> 33)
∫ Primary Video
The recording method of original primary video
appears.
∫ Secondary Video
Video
Select on/off of images. The
recording method of original
video appears.
≥ During search/slow-motion
or frame-by-frame, only the
primary video is displayed.
∫ Soundtrack
Show or change the soundtrack.
Soundtrack
Select on/off of audio and the
language.
∫ Audio channel
Select the audio channel number.
∫ Top Menu
Display Top Menu.
∫ Subtitle
Change the subtitle settings.
∫ Pop-up Menu
Display Pop-up Menu.
∫ Angle
Select the number of the angle.
∫ Menu
Display Menu.
Operation Menu
22
VQT3V25
DMP-BD77EB-VQT3V25.book
23 ページ 2012年1月18日 水曜日 午後4時52分
Picture Settings
∫ Picture Mode
Select the picture quality mode during play.
≥ If you select “User”, you can change settings in
“Picture Adjustment”.
∫ Picture Adjustment
Specific picture quality settings can be performed.
∫ Progressive
Select the method of conversion for progressive
output to suit the type of material being played.
≥ If the video is disrupted when “Auto” is
selected, select either “Video” or “Film”
depending on the material to be played back.
Settings
∫ Reset to Default Picture Settings
Return picture settings to the factory preset.
VQT3V25
23
DMP-BD77EB-VQT3V25.book
24 ページ 2012年1月18日 水曜日 午後4時52分
Setup menu
Change the unit’s settings if necessary. The
settings remain intact even if you switch the unit
to standby.
Some items in the Setup menu are common to
the Option menu. You can get the same effect
with both menus.
About Multi User Mode
: Settings of the items with this indication are
saved by the respective users registered in the
HOME menu.
Please refer to page 15 for details about user
registration and switching.
1
2
3
Press [HOME].
Press [OK] to select “Setup”.
Select “Player Settings”.
Player Settings
Picture Mode
Normal
Picture Adjustment
Sound
Language
HDMI Output
NTSC Contents Output
Ratings
System
Select an item and change the settings.
To exit the screen
Press [EXIT].
∫ Picture Mode
(> 23)
∫ Picture Adjustment
(> 23)
∫ HDMI Output
Press [OK] to show the following settings:
¾ HDMI Video Format
The items supported by the connected devices
are indicated on the screen as “¢”. When any
item without “¢” is selected, the images may be
distorted.
≥ If “Automatic” is selected, the best suited
output resolution to the connected television
is automatically selected.
≥ To enjoy high-definition video up-converted to
1080p, you need to connect the unit directly
to 1080p compatible HDTV (High Definition
Television). If this unit is connected to an
HDTV through other equipment, the other
equipment must also be 1080p compatible.
NTSC
Network
4
¾ 24p Output
When this unit is connected to a TV supporting
1080/24p output using an HDMI cable, movies
and other material recorded at 24p are output at
24p.
≥ When BD-Video images other than 24p are
played, images are output at 60p.
≥ 24p : A progressive image recorded at a rate
of 24 frames per second (motion-picture film).
Many BD-Video movie contents are recorded
in 24 frames/second in accordance with the
film materials.
¾ Deep Colour Output
This setting is for selecting whether to use Deep
Colour output when a television that supports
Deep Colour is connected.
¾ Contents Type Flag
Depending on the playback content, the TV will
output adjusting to the optimal method when a
TV that supports this function is connected.
∫ NTSC Contents Output
Select PAL60 or NTSC output when playing
NTSC discs.
24
VQT3V25
DMP-BD77EB-VQT3V25.book
25 ページ 2012年1月18日 水曜日 午後4時52分
Sound
Language
∫ Dynamic Range Compression
∫ Soundtrack Preference
You can listen at low volumes but still hear dialog
clearly.
(Dolby Digital, Dolby Digital Plus and Dolby
TrueHD only)
≥ “Auto” is effective only when playing Dolby
TrueHD.
Choose the language for audio.
≥ If “Original” is selected, the original language of
each disc will be selected.
≥ Enter a code (> 33) when you select “Other
¢¢¢¢”.
∫ Digital Audio Output
Press [OK] to show the following settings:
¾ Dolby D/Dolby D +/Dolby TrueHD
¾ DTS/DTS-HD
Select the audio signal to output.
≥ Select “PCM”, when the connected
equipment cannot decode the respective
audio format. This unit decodes the audio
format and transmits to the connected
equipment.
≥ Not making the proper settings may result in
noise.
¾ BD-Video Secondary Audio
Select whether or not to mix the primary and
secondary audio (including the button click
sound).
If “Off” is selected, the unit outputs the primary
audio only.
¾ HDMI Audio Output
This setting selects whether or not to output
audio from HDMI.
∫ Subtitle Preference
Choose the language for the subtitle.
≥ If “Automatic” is selected and the language
selected for “Soundtrack Preference” is not
available, subtitles of that language will
automatically appear if available on that disc.
≥ Enter a code (> 33) when you select “Other
¢¢¢¢”.
∫ Menu Preference
Choose the language for the disc menus.
≥ Enter a code (> 33) when you select “Other
¢¢¢¢”.
∫ Subtitle Text
Select a suitable item according to the language
used for DivX or MKV subtitles text.
≥ This item is displayed only after playing back a
file.
∫ On-Screen Language
Choose the language for menus and on-screen
messages.
∫ Downmix
Settings
Select the downmix system of multi-channel to
2-channel sound.
≥ Select “Surround encoded”, when the
connected equipment supports the virtual
surround function.
≥ There is no effect on “Bitstream” via HDMI AV
OUT.
≥ The audio will be output in “Stereo” in the
following cases:
– AVCHD playback
– Playback of secondary audio (including the
button click sound).
VQT3V25
25
DMP-BD77EB-VQT3V25.book
26 ページ 2012年1月18日 水曜日 午後4時52分
Network
∫ Easy Network Setting (> 11)
∫ Network Settings
Perform network-related settings individually.
Press [OK] to show the following settings:
¾LAN Connection Mode
Select the LAN connection method.
¾Wireless Settings
This allows the wireless router and connection
settings to be set. Current connection settings
and connection state can be checked.
Connection Setting
The wireless router connection wizard will be
displayed.
Double Speed Mode Setting (2.4GHz)
When a 2.4 GHz wireless format is used, this
sets the connection speed.
≥ If you connect using the “Double Speed
Mode (40MHz)”, 2 channels use the same
frequency band, and there is consequently
a greater risk of reception interference. This
can cause the connection speed to drop or
become unstable.
¾IP Address / DNS Settings
This is for checking the state of the network
connection and setting the IP address and
DNS-related.
Press [OK] to show the respective setting.
¾Proxy Server Settings
This is for checking the state of connection with
the Proxy server and performing settings.
Press [OK] to show the respective setting.
26
VQT3V25
¾ Network Drive Connection
It is possible to access the shared folder of
equipment not compatible with DLNA, such as
the Windows XP operating system, and play
back video, still pictures, and music on this unit.
For the setting and operation method of
connected equipment, refer to the following
Website.
http://panasonic.jp/support/global/cs/
(This site is in English only.)
¾ Remote Device Settings (> 20)
Press [OK] to show the following settings:
Remote Device Operation
Enable to operate by DMC.
≥ If “On” is selected, “Quick Start” is fixed to
“On”.
Device Name Entry
Set the name of this unit to be displayed on
the connected equipment.
Registration Type
Automatic
Allow connection to all the
equipment that is
accessing this unit.
Manual
Set the permission of the
connection individually for
the equipment that is
accessing this unit.
Remote Device List
Registering/deregistering of the displayed
equipment can be performed when “Manual”
in “Registration Type” is selected.
¾ BD-Live Internet Access (> 17)
You can restrict Internet access when BD-Live
functions are used.
≥ If “Limit” is selected, Internet access is
permitted only for BD-Live contents which
have content owner certificates.
27 ページ 2012年1月18日 水曜日 午後4時52分
∫ DVD-Video Ratings
Set a ratings level to limit DVD-Video play.
¾ TV System
Perform the setup so it matches the TV System
of the connected TV.
≥ When NTSC contents are played, they are
outputted in the signal format specified in the
“NTSC Contents Output”, irrespective of the
settings here. (> 24)
∫ BD-Video Ratings
Set an age limit of BD-Video play.
¾ Screen Saver Function
Ratings
The following items use the same password.
Don’t forget your password.
∫ Network Service Lock
You can restrict the usage of Network Service.
System
∫ Easy Setting
You can execute basic settings.
∫ TV Settings
Press [OK] to show the following settings:
¾ TV Aspect
Set to match the type of television connected.
When connected to a 4:3 aspect television and
playing 16:9 ratio image:
The sides are
cut off so the
picture fills
4:3 Pan & Scan the screen.
When playing BD-Video,
video is output as “4:3
Letterbox”.
4:3 Letterbox
Black bands
appear at
the top and
bottom of
the picture.
When connected to a 16:9 widescreen
television and playing 4:3 ratio image:
16:9
Video is displayed as a 4:3
ratio image in the centre of
the screen.
16:9 full
Video is displayed as a
horizontally stretched 16:9
image.
This is to prevent burn-in on the screen.
≥ When this is set to “On”:
If a list of playback content is displayed and
there is no operation for 10 minutes or more,
the screen switches to HOME menu
automatically.
≥ While playing and pausing, etc., this function
is not available.
¾ On-Screen Messages
Choose whether to show status messages
automatically.
¾ HDMI CEC
Set to use “HDMI CEC” function when
connected via HDMI cable to a device that
supports “HDMI CEC”.
≥ Select “Off” when you do not want to use
“HDMI CEC”.
∫ Unit Settings
Press [OK] to show the following settings:
¾ Mixed Data Disc Option
Select the playback contents on discs with both
data files and Video.
≥ If “MP3/JPEG/DivX” is selected, the video
menu function (except DivX and MKV) cannot
be played back.
≥ If “BDAV/AVCHD” is selected, data file cannot
be played back.
¾ Front Panel Display
Changes the brightness of the unit’s display.
≥ If “Automatic” is selected, the display is set to
bright and only dimmed during playback.
¾ Edit User Information
Change the user information registered in the
HOME menu.
VQT3V25
27
Settings
DMP-BD77EB-VQT3V25.book
DMP-BD77EB-VQT3V25.book
28 ページ 2012年1月18日 水曜日 午後4時52分
∫ Quick Start
Speed of startup from standby mode is increased.
≥ When set to “On”, the internal control unit will be
powered and the idle power consumption will
increase so compared to when set to “Off”.
(About the power consumption > 34)
∫ Remote Control
Change the remote control code if other
Panasonic products react to this remote control.
∫ Firmware Update (> 12)
Press [OK] to show the following settings:
¾Automatic Update Check
When this equipment remains connected to the
Internet, it will check for the latest firmware
version when it is turned on and you can update
it if necessary.
¾Update Now
You can update the firmware manually if a
firmware update is available.
∫ System Information
Press [OK] to show the following settings:
¾Software Licence
Information about the software used by this unit
is displayed.
¾Firmware Version Information
Display firmware version of this unit and
wireless LAN module.
∫ DivX (R) Registration
You need this registration code to purchase and
play DivX Video-on-Demand (VOD) content.
∫ Default Settings
This returns all values in the Setup menu and the
Option menu to the default settings, except for
some settings of network, ratings, remote control
code, language, etc.
28
VQT3V25
29 ページ 2012年1月18日 水曜日 午後4時52分
Before requesting service, please perform the
following checks.
If the problem remains unresolved, consult
your dealer for instructions.
Do you have the latest firmware installed?
Firmware updates may be released to correct
operating irregularities that are discovered with
certain movies. (> 12)
The following do not indicate a problem with
this unit:
– Regular disc rotating sounds.
– Image disturbance during search.
∫ Unit doesn’t respond to remote
control or front panel buttons.
Disconnect the AC mains lead, wait 1 minute,
then reconnect the AC mains lead.
∫ Cannot eject disc.
The unit may have a problem.
1 While the unit is on, press and hold [OK], the
yellow button and the blue button on the
remote control at the same time for more than
5 seconds.
– “00rEt” is displayed on the unit’s display.
2 Repeatedly press [1] (right) on the remote
control or [Í/I] on the unit until “06FtO” is
displayed on the unit’s display.
3 Press [OK] on the remote control or
[< OPEN/CLOSE] on the unit.
General operation
To return to the factory preset.
¾ Select “Yes” in “Default Settings” in the Setup
menu. (> 28)
To return all settings to the factory preset.
¾ Reset the unit as follows:
1 While the unit is on, press and hold [OK], the
yellow button and the blue button on the
remote control at the same time for more than
5 seconds.
– “00rEt” is displayed on the unit’s display.
2 Repeatedly press [1] (right) on the remote
control or [Í/I] on the unit until “08FIn” is
displayed on the unit’s display.
3 Press and hold [OK] on the remote control or
[< OPEN/CLOSE] on the unit for at least
5 seconds.
The remote control doesn’t work properly.
¾ Change the batteries in the remote control.
(> 4)
¾ The remote control and main unit are using
different codes. If “SEt ” is displayed on the
unit’s display when a button is pressed on the
remote control, change the code on the
remote control. (> 28, 32)
The TV tuner mode is not displayed when the
TV is switched on.
¾ This phenomenon may occur, depending on
the TV setting, when “Quick Start” is set to
“On”.
¾ Depending on the TV, this phenomenon may
be prevented by reconnecting the HDMI
cable to a different HDMI input terminal or by
changing the HDMI auto connection setting.
You have forgotten your ratings password.
You want to cancel the ratings level.
¾ The ratings level returns to the factory preset.
1 While the unit is on, press and hold [OK], the
yellow button and the blue button on the
remote control at the same time for more than
5 seconds.
– “00rEt” is displayed on the unit’s display.
2 Repeatedly press [1] (right) on the remote
control or [Í/I] on the unit until “03VL” is
displayed on the unit’s display.
3 Press [OK] on the remote control or
[< OPEN/CLOSE] on the unit.
VQT3V25
29
Settings
Troubleshooting guide
Reference
Reference
DMP-BD77EB-VQT3V25.book
DMP-BD77EB-VQT3V25.book
30 ページ 2012年1月18日 水曜日 午後4時52分
This unit does not recognize the USB
connection correctly.
¾ Disconnect and reconnect the USB cable. If it
still does not recognize the connection, turn
this unit off and on again.
¾ USB devices may not be recognized by this
unit when connected using the following :
– a USB hub
– a USB extension cable other than the
supplied with the Wireless LAN Adaptor
DY-WL5 (optional)
¾ If you connect USB HDD to this unit, use the
USB cable that is supplied with the HDD.
The unit switches to standby mode.
¾ This unit will automatically turn to standby
mode after 30 minutes if it is inactive. (> 16)
¾ One of the unit’s safety devices is activated
(U59 is displayed). Wait until this unit has
cooled down.
The images from this unit do not appear on
the television.
Picture is distorted.
¾ An incorrect resolution is selected in “HDMI
Video Format”. Reset the setting as follows:
1 While the unit is on, press and hold [OK], the
yellow button and the blue button on the
remote control at the same time for more than
5 seconds.
– “00rEt” is displayed on the unit’s display.
2 Repeatedly press [1] (right) on the remote
control or [Í/I] on the unit until “04PrG” is
displayed on the unit’s display.
3 Press and hold [OK] on the remote control or
[< OPEN/CLOSE] on the unit for at least
5 seconds.
Set the item again. (> 24)
– When Dolby Digital Plus, Dolby TrueHD,
and DTS-HD audio are not output in
bitstream, select “Yes” in “Default Settings”
and make proper settings. (> 28)
¾ The unit and television are using different
video systems.
1 While the unit is on, press and hold [OK], the
yellow button and the blue button on the
remote control at the same time for more than
5 seconds.
– “00rEt” is displayed on the unit’s display.
2 Repeatedly press [1] (right) on the remote
control or [Í/I] on the unit until “05Pln” is
displayed on the unit’s display.
3 Press and hold [OK] on the remote control or
[< OPEN/CLOSE] on the unit for at least
5 seconds.
The system switches from PAL to NTSC or
vice versa.
¾ The system used on the disc doesn’t match
your television.
– PAL discs cannot be correctly viewed on an
NTSC television.
– This unit can convert NTSC signals to
PAL60 for viewing on a PAL television
(> 24, “NTSC Contents Output”).
Video is not output in high-definition.
¾ Confirm that “HDMI Video Format” in the
Setup menu is set properly. (> 24)
A black band is displayed around the edge of
the screen.
The aspect ratio of the screen is abnormal.
¾ Confirm the “TV Aspect” is set properly. (> 27)
¾ Adjust the aspect setting on the television.
30
VQT3V25
31 ページ 2012年1月18日 水曜日 午後4時52分
Audio
Cannot hear the desired audio type.
¾ Check the connections and the “Digital Audio
Output” settings. (> 9 , 25)
¾ To output audio from a device connected with
an HDMI cable, set “HDMI Audio Output” to
“On” in the Setup menu. (> 25)
Playback
Disc cannot be played.
¾ The disc is dirty. (> 4)
Still pictures (JPEG) do not play back
normally.
¾ The images that were edited on the PC, such
as Progressive JPEG, etc., may not be played
back.
I can’t play back BD-Live.
¾ Confirm that this unit is connected to the
broadband Internet. (> 10)
¾ Confirm the “BD-Live Internet Access”
settings. (> 26)
¾ Confirm a USB device is connected to a USB
port. (> 14)
Network
I can’t connect to the network.
¾ Confirm the network connection and settings.
(> 10, 11, 26)
¾ Check the operating instructions for each
device and connect accordingly.
When using wireless LAN connection, video
from the DLNA Certified media server is not
played back or video frames are dropped
during playback.
¾ Higher transfer rate router such as 802.11n
(2.4 GHz) wireless router may solve the
problem. If you use 802.11n (2.4 GHz)
wireless router, it is necessary to set the
encryption type to “AES”.
Simultaneous use with a microwave, cordless
telephone etc. at 2.4 GHz may result in
connection interruptions or other problems.
¾ On the “Wireless Settings” screen (> 26), the
continuous lighting of at least 4 “Reception”
indicators is the target for a stable
connection. If 3 or fewer indicators are lit or
the connection is being interrupted, change
the position or angle of your wireless router
and see if the connection state improves. If
there is no improvement, connect to a wired
network and perform the “Easy Network
Setting” (> 11) again.
Reference
DMP-BD77EB-VQT3V25.book
VQT3V25
31
DMP-BD77EB-VQT3V25.book
32 ページ 2012年1月18日 水曜日 午後4時52分
Messages
The following messages or service numbers may
appear on the TV or unit’s display.
On the television
Cannot play.
¾ You inserted an incompatible disc.
Cannot play on this unit.
¾ You tried to play a non-compatible image.
No disc inserted.
¾ The disc may be upside down.
$ This operation is not available.
¾ Some operations are unsupported by the unit.
For example;
– During playback, reverse slow-motion or
reverse frame-by-frame is not possible.
IP address is not set.
¾ The “IP Address” in “IP Address / DNS
Settings” is “---. ---. ---. ---”. Set the “IP
Address”, “Subnet Mask”, and “Gateway
Address”. (Select the automatic address
acquisition if necessary.)
The wireless access point currently has a low
network security setting. It is recommended
to change to a higher setting.
¾ Authentication type for the wireless LAN is
set to “Open system”, or the encryption type
is set to “No encryption”. It is recommended
to encrypt for safety reasons. For details,
refer to the instructions of the wireless router
being used. Encryption is required when
playing back video, etc., from DLNA
compatible devices.
32
VQT3V25
On the unit’s display
SEt 
(“ ” stands for a number.)
¾ The remote control and main unit are using
different codes. Change the code on the
remote control.
Press and hold [OK] and
the indicated number
button at the same time
for more than 5 seconds.
H or F
(“ ” stands for a number.)
¾ There is something unusual.
¾ Check the unit using the troubleshooting
guide. If the service number remains
displayed, do the following.
1 Disconnect the plug from the household
mains socket wait a few seconds, then
reconnect it.
2 Press [Í/I] to turn the unit on.
If the service number remains displayed despite
doing the above, request service from the dealer.
Inform the dealer of the service number when
requesting service.
DMP-BD77EB-VQT3V25.book
33 ページ 2012年1月18日 水曜日 午後4時52分
Supplemental information
∫ TV code list
TV Code
Panasonic
AIWA
AKAI
BEKO
BENQ
BRANDT
BUSH
CENTREX
CURTIS
DAEWOO
DESMET
DUAL
ELEMIS
FERGUSON
FINLUX
FISHER
FUJITSU
FUNAI
GOLDSTAR
GOODMANS
GRADIENTE
GRUNDIG
HITACHI
IRRADIO
ITT
JVC
KDS
KOLIN
KONKA
LG
LOEWE
MAG
METZ
MITSUBISHI
MIVAR
01/02/03/04
35
27/30
05/71/72/73/74
58/59
10/15
05
66
05
64/65
05
05
05
10/34
61
21
53
63/67
05/50/51
05
36
09
05/22/23/40/41
30
25
17/30/39/70
52
45
62
05/50/51
07/46
52
05/28/79
05/19/20/47
24
Brand
TV Code
NEC
NOBLEX
NOKIA
NORDMENDE
OLEVIA
ONWA
ORION
PEONY
PHILCO
PHILIPS
PHONOLA
PIONEER
PROVIEW
PYE
RADIOLA
SABA
SALORA
SAMSUNG
SANSUI
SANYO
SCHNEIDER
SEG
SELECO
SHARP
SIEMENS
SINUDYNE
SONY
TCL
TELEFUNKEN
TEVION
THOMSON
TOSHIBA
WHITE
WESTINGHOUSE
YAMAHA
36
33
25/26/27/60/61
10
45
30/39/70
05
49/69
41/48/64
05/06/46
05
37/38
52
05
05
10
26
32/42/43/65/68
05
21/54/55/56
05/29/30
05/69/75/76/77/78
05/25
18
09
05
08
31/33/66/67/69
10/11/12/13/14
52
10/15/44
16/57
18/41
Display Language Display Language Display Language
English
French
German
Italian
Spanish
Dutch
Swedish
Norwegian
Danish
Portuguese
Russian
JPN
CHI
KOR
MAL
VIE
THA
POL
CES
SLK
HUN
FIN
Japanese
Chinese
Korean
Malay
Vietnamese
Thai
Polish
Czech
Slovak
Hungarian
Finnish
ARA
HIN
PER
IND
MRI
BUL
RUM
GRE
TUR
Abkhazian
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
Amharic:
6577
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6589
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Byelorussian:
6669
Cambodian:
7577
Catalan:
6765
Chinese:
9072
Corsican:
6779
Croatian:
7282
Czech:
6783
Danish:
6865
Dutch:
7876
English:
6978
Esperanto:
6979
Estonian:
6984
Faroese:
7079
Fiji:
7074
Finnish:
7073
French:
7082
Frisian:
7089
Galician:
7176
Georgian:
7565
German:
6869
Greek:
6976
Greenlandic:
7576
Guarani:
7178
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8083
7065
8076
8084
8065
8185
Rhaeto-Romance:
8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic:
7168
Serbian:
8382
Serbo-Croatian: 8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
8465
Tatar:
8484
Telugu:
8469
Thai:
8472
Tibetan:
6679
Tigrinya:
8473
Tonga:
8479
Turkish:
8482
Turkmen:
8475
Twi:
8487
Ukrainian:
8575
Urdu:
8582
Uzbek:
8590
Vietnamese:
8673
Volapük:
8679
Welsh:
6789
Wolof:
8779
Xhosa:
8872
Yiddish:
7473
Yoruba:
8979
Zulu:
9085
∫ Unit’s display list
This list only contains displays that are difficult to read.
05
∫ Display languages list
ENG
FRA
DEU
ITA
ESP
NLD
SVE
NOR
DAN
POR
RUS
Language Code Language Code Language Code
Arabic
Hindi
Persian
Indonesian
Maori
Bulgarian
Romanian
Greek
Turkish
Others
Display
Reading
Display
Reading
BYE
OPEN
READ
PLAY
STOP
SETUP
SLIDE
DISC
USB
NET
START
UPD *
FINISH
SET *
No DISC,
No PLAY,
No READ,
UNSUPPORT
* “ ” stands for a number.
VQT3V25
33
Reference
Brand
∫ Language code list
DMP-BD77EB-VQT3V25.book
34 ページ 2012年1月18日 水曜日 午後4時52分
Specifications
Signal system
PAL/NTSC
Operating temperature
range
i5 oC to i35 oC
Operating humidity
range
10 % to 80 % RH (no
condensation)
Video output
Output level: 1.0 Vp-p (75 ≠)
Output connector: Pin jack
(1 system)
Audio output
Output level: 2 Vrms (1 kHz,
0 dB)
Output connector: Pin jack
File format
File format
MP3
JPEG
Extension
“.MP3”, “.mp3”
“.JPG”, “.jpg”
≥ MOTION JPEG and
Progressive JPEG is
not supported.
≥ You may not be able to
play back the file if you
have edited the folder
structure or the file
name on a PC or other
device.
Number of connectors:
2 channel
1 system
HDMI AV output
Output connector: Type A
(19 pin) 1 system
USB slot
USB2.0
2 system
Ethernet
10BASE-T/100BASE-TX
1 system
LASER Specification
Class 1 LASER Product
Wave length: 790 nm (CDs)/
658 nm (DVDs)/405 nm (BDs)
Laser power: No hazardous
radiation is emitted with the
safety protection
Power supply
AC 230 to 240 V, 50 Hz
Power consumption
Approx. 15 W
Power consumption in
standby mode
Approx. 0.5 W
Power consumption in
quick start standby
mode
Approx. 5 W
Dimensions (WkHkD)
430 mmk36 mmk199 mm
Mass
Approx. 1.5 kg
≥ Specifications are subject to change without notice.
Reference
This unit supports ID3
tags, but only titles, artist
names and album names
can be displayed.
“.DIVX”, “.divx”,
“.AVI”, “.avi”
DivX
MKV
≥ The video file and
subtitles text file are
inside the same folder,
Subtitles text file
and the file names are
“.SRT”, “.srt”,
the same except for
“.SUB”, “.sub”,
the file extensions.
“.TXT”, “.txt”
≥ Some DivX and MKV
“.MKV”, “.mkv”
file may not play back,
depending on the
Subtitles text file
video resolution and
“.SRT”, “.srt”,
frame rate condition.
“.SSA”, “.ssa”,
“.ASS”, “.ass”
FLAC
“.flac”
Maximum sampling rate:
192 kHz/24 bit
WAV
“.wav”
Maximum sampling rate:
192 kHz/24 bit
≥ With certain recording states and folder structures, the play
order may differ or playback may not be possible.
Audio information
The audio output differs depending on the
settings on the unit. (> 25, Digital Audio Output)
≥ The number of channels listed is the maximum possible
number of output channels when connected to amplifier/
receiver compatible with the respective audio format.
Terminal
“Digital Audio Output”
“Bitstream”
HDMI AV Outputs using original
OUT
audio*1
*1
*2
34
VQT3V25
“PCM”*2
BD-Video :
7.1ch PCM*1
DVD-Video :
5.1ch PCM
When “BD-Video Secondary Audio” is set to “On”, the
audio will be output as Dolby Digital, DTS Digital Surround
or 5.1ch PCM.
The maximum possible number of Dolby sound is 2ch
PCM.
DMP-BD77EB-VQT3V25.book
35 ページ 2012年1月18日 水曜日 午後4時52分
Restriction on use of
unauthorized copied content
This unit adopts the following technology for
copyright protection.
Reference
Cinavia Notice
This product uses Cinavia technology to limit
the use of unauthorized copies of some
commercially-produced film and videos and
their soundtracks. When a prohibited use of an
unauthorized copy is detected, a message will
be displayed and playback or copying will be
interrupted.
More information about Cinavia technology is
provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.
To request additional information about Cinavia
by mail, send a postcard with your mailing
address to:
Cinavia Consumer Information Center, P.O.
Box 86851, San Diego, CA, 92138, USA.
VQT3V25
35
DMP-BD77EB-VQT3V25.book
36 ページ 2012年1月18日 水曜日 午後4時52分
“AVCHD” is a trademark of Panasonic Corporation and Sony Corporation.
Java is a registered trademark of Oracle and/or its affiliates.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929;
7,212,872 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are
registered trademarks & DTS-HD Master Audio | Essential is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All
Rights Reserved.
This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi
Corporation. Reverse engineering and disassembly are prohibited.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in
the United States and other countries.
This product is licensed under the AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial
use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard (“AVC/VC-1 Video”) and/or (ii)
decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained
from a video provider licensed to provide AVC/VC-1 Video. No license is granted or shall be implied for any other use. Additional
information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.
“Wi-Fi”, “Wi-Fi Protected Setup”, “WPA” and “WPA2” are marks or registered marks of the Wi-Fi Alliance.
DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
ABOUT DIVX VIDEO:
DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device setup menu.
Go to vod.divx.com for more information on how to complete your registration.
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network
Alliance.
Windows is a trademark or a registered trademark of Microsoft Corporation in the United States and other countries.
36
VQT3V25
DMP-BD77EB-VQT3V25.book
37 ページ 2012年1月18日 水曜日 午後4時52分
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2 (GPL v2),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL v2.1) and/or,
(5) open sourced software licensed under its applicable license terms including but not limited to ICU License, c-arse license,
(6) Adobe Flash Lite for Digital Home Software licensed by Adobe Systems Incorporated or its affiliates,
For the software categorized as (3) and (4), please refer to the terms and conditions of GPL v2 and LGPL v2.1, as the case may be at
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html and
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html.
In addition, the software categorized as (3) and (4) are copyrighted by several individuals. Please refer to the copyright notice of those
individuals at
http://panasonic.net/avc/oss/bdplayer/AWBPM12.html
The GPL/LGPL software is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY, without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
At least three (3) years from delivery of products, Panasonic will give to any third party who contacts us at the contact information
provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable
copy of the corresponding source code covered under GPL v2/LGPL v2.1.
Contact Information
[email protected]
Source code is also freely available to you and any other member of the public via our website below.
http://panasonic.net/avc/oss/bdplayer/AWBPM12.html
For the software categorized as (5) includes as follows.
1. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.
(http://www.openssl.org/)
2. This product includes software developed by the University of California, Berkeley and its contributors.
3. FreeType code.
4. The Independent JPEG Group's JPEG software.
Further, For Adobe Flash Lite for Digital Home Software (“Flash Software”), please be aware of the following.
(i) You are not permitted to distribute and copy this Flash Software to any third party,
(ii) You are not permitted to modify the Flash Software and create derivative works of the Flash Software,
(iii) You are not permitted to decompile, reverse engineer, disassemble and otherwise reduce the Flash Software to a
human-perceivable form,
(iv) You are not permitted to claim any damages, including direct, indirect, special, incidental, punitive, and consequential damages
arising out of or in connection with the Flash Software,
(v) You fully agree that the ownership of the Flash Software is that of Panasonic Corporation and/or its suppliers or licensors,
(vi) You agree and acknowledge that it is possible that you cannot access the contents unless you do not obtain and install the latest
version of the Flash Software
ICU License - ICU 1.8.1 and later
COPYRIGHT AND PERMISSION NOTICE
Copyright (c) 1995-2010 International Business Machines Corporation and others
All rights reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the
“Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish,
distribute, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, provided that the above
copyright notice(s) and this permission notice appear in all copies of the Software and that both the above copyright notice(s) and this
permission notice appear in supporting documentation.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF
THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN THIS NOTICE BE LIABLE
FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER
RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER
TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use
or other dealings in this Software without prior written authorization of the copyright holder.
All trademarks and registered trademarks mentioned herein are the property of their respective owners.
c-arse license
Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted,
provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in
supporting documentation, and that the name of M.I.T. not be used in advertising or publicity pertaining to distribution of the software
without specific, written prior permission.
M.I.T. makes no representations about the suitability of this software for any purpose. It is provided “as is” without express or implied
warranty.
VQT3V25
37
Reference
Copyright 1998 by the Massachusetts Institute of Technology.
DMP-BD77EB-VQT3V25.book
38 ページ 2012年1月18日 水曜日 午後4時52分
David M. Gay’s dtoa and strtod license
The author of this software is David M. Gay.
Copyright (c) 1991, 2000, 2001 by Lucent Technologies.
Permission to use, copy, modify, and distribute this software for any purpose without fee is hereby granted, provided that this entire
notice is included in all copies of any software which is or includes a copy or modification of this software and in all copies of the
supporting documentation for such software.
THIS SOFTWARE IS BEING PROVIDED “AS IS”, WITHOUT ANY EXPRESS OR IMPLIED WARRANTY. IN PARTICULAR, NEITHER
THE AUTHOR NOR LUCENT MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND CONCERNING THE
MERCHANTABILITY OF THIS SOFTWARE OR ITS FITNESS FOR ANY PARTICULAR PURPOSE.
“UNICODE, INC. LICENSE AGREEMENT - DATA FILES AND SOFTWARE
Unicode Data Files include all data files under the directories http://www.unicode.org/Public/, http://www.unicode.org/reports/,
and http://www.unicode.org/cldr/data/.
Unicode Software includes any source code published in the Unicode Standard or under the directories http://www.unicode.org/Public/,
http://www.unicode.org/reports/, and http://www.unicode.org/cldr/data/.
NOTICE TO USER: Carefully read the following legal agreement. BY DOWNLOADING, INSTALLING, COPYING OR OTHERWISE
USING UNICODE INC.’S DATA FILES (““DATA FILES””), AND/OR SOFTWARE (““SOFTWARE””), YOU UNEQUIVOCALLY ACCEPT,
AND AGREE TO BE BOUND BY, ALL OF THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT AGREE, DO NOT
DOWNLOAD, INSTALL, COPY, DISTRIBUTE OR USE THE DATA FILES OR SOFTWARE.
COPYRIGHT AND PERMISSION NOTICE
Copyright (c) 1991-2009 Unicode, Inc. All rights reserved. Distributed under the Terms of Use in http://www.unicode.org/copyright.html.
Permission is hereby granted, free of charge, to any person obtaining a copy of the Unicode data files and any associated documentation
(the ““Data Files””) or Unicode software and any associated documentation (the ““Software””) to deal in the Data Files or Software without
restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, and/or sell copies of the Data Files or
Software, and to permit persons to whom the Data Files or Software are furnished to do so, provided that (a) the above copyright
notice(s) and this permission notice appear with all copies of the Data Files or Software, (b) both the above copyright notice(s) and this
permission notice appear in associated documentation, and (c) there is clear notice in each modified Data File or in the Software as well
as in the documentation associated with the Data File(s) or Software that the data or software has been modified.
THE DATA FILES AND SOFTWARE ARE PROVIDED ““AS IS””, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR HOLDERS INCLUDED IN
THIS NOTICE BE LIABLE FOR ANY CLAIM, OR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES
WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE
OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE DATA
FILES OR SOFTWARE.
Except as contained in this notice, the name of a copyright holder shall not be used in advertising or otherwise to promote the sale, use
or other dealings in these Data Files or Software without prior written authorization of the copyright holder.”
(1) MS/WMA
This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such
technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
(2) MS/PlayReady/Final Product Labeling
This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside
of this product is prohibited without the appropriate license(s) from Microsoft.
(3) MS/PlayReady/End User Notices
Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted
content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the
device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to
consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access
technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be
able to access content that requires the upgrade.
(4) FLAC, WPA Supplicant
The software licenses are displayed when “Software Licence” in the Setup menu is selected. (> 28)
Copyright 2004-2010 Verance Corporation. CinaviaTM is a Verance Corporation trademark. Protected by U.S. Patent 7,369,677 and
worldwide patents issued and pending under license from Verance Corporation. All rights reserved.
38
VQT3V25
DMP-BD77EB-VQT3V25.book
39 ページ 2012年1月18日 水曜日 午後4時52分
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean
that used electrical and electronic products and batteries should not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points, in accordance with your national
legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of sale
where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer
or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these
items, please contact your local authorities or dealer and ask for the correct method
of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it
complies with the requirement set by the Directive for the chemical involved.
Reference
Cd
VQT3V25
39
DMP-BD77EB-VQT3V25.book
40 ページ 2012年1月18日 水曜日 午後4時52分
Sales and Support Information
Customer Communications Centre
≥ For customers within the UK: 0844 844 3899
≥ For customers within Ireland: 01 289 8333
≥ For further support on your product, please visit our website:
www.panasonic.co.uk
Direct Sales at Panasonic UK
≥ Order accessory and consumable items for your product with ease and confidence by phoning our
Customer Communications Centre Monday–Thursday 9:00 a.m.–5:30 p.m., Friday
9:30 a.m.–5:30 p.m. (Excluding public holidays)
≥ Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
≥ Most major credit and debit cards accepted.
≥ All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
≥ It couldn’t be simpler!
≥ Also available through our Internet is direct shopping for a wide range of finished products. Take a
browse on our website for further details.
(Inside of product)
(Back of product)
EU
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://panasonic.net
C Panasonic Corporation 2012
p
VQT3V25
F0112DT0

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
