E-420 and E470
 Grill Out® Handle Light(s)
Shed a little light on the
subject with the handy LED
lights—an integrated tilt sensor
automatically turns the lights on
when you lift the lid.
Smoker Burner*
Add smoky flavor to any grilled
meal with the integrated smoker
burner and stainless steel
smoker box.
Sear Station” Burner*
Maximize the heat without
minimizing grilling space. This
high-powered sear burner is
designed to step up the heat
when needed for searing.
E) WWW.WEBER.COM*
a

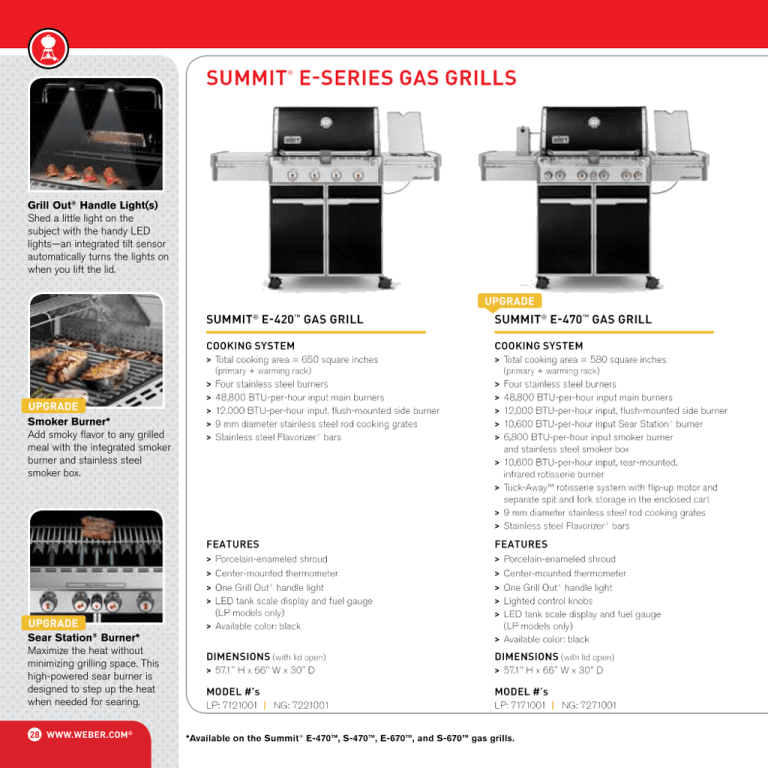

SUMMIT® E-420™ GAS GRILL
COOKING SYSTEM
> Total cooking area = 650 square inches
(primary + warming rack)
> Four stainless steel burners
> 48,800 BTU-per-hour input main burners
> 12,000 BTU-per-hour input, flush-mounted side burner
> 9 mm diameter stainless steel rod cooking grates
> Stainless steel Flavorizer” bars
FEATURES
> Porcelain-enameled shroud
> Center-mounted thermometer
> One Grill Out” handle light
> LED tank scale display and fuel gauge
(LP models only)
> Available color: black
DIMENSIONS (with lid open)
> B71" Hx 66" W x 30" D
MODEL H's
LP: 7121001 NG: 7221001
SUMMIT" E-SERIES GAS GRILLS
SUMMIT® E-470™ GAS GRILL
COOKING SYSTEM
> Total cooking area = 580 square inches
(primary + warming rack)
Four stainless steel burners
48,800 BTU-per-hour input main burners
12,000 BTU-per-hour input, flush-mounted side burner
10,600 BTU-per-hour input Sear Station" burner
6,800 BTU-per-hour input smoker burner
and stainless steel smoker box
10,600 BTU-per-hour input, rear-mounted,
infrared rotisserie burner
Vv V V V V
v
v
Tuck-Away™ rotisserie system with flip-up motor and
separate spit and fork storage in the enclosed cart
9 mm diameter stainless steel rod cooking grates
v
Stainless steel Flavorizer* bars
FEATURES
> Porcelain-enameled shroud
v
> Center-mounted thermometer
> One Grill Out” handle light
> Lighted control knobs
> LED tank scale display and fuel gauge
(LP models only)
> Available color: black
DIMENSIONS (with lid open)
> 57.1" H x 66" W x 30" D
MODEL H's
LP: 7171001 NG: 7271001
*Available on the Summit® E-470™, S-470™, E-670™, and S-670"" gas grills.
