HP Smart Array P600 Controller Installation Overview

HP Smart Array P600 Controller Installation Overview

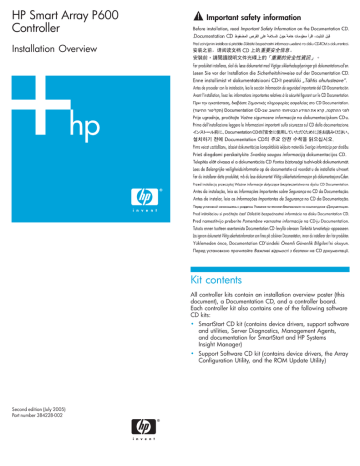

HP Smart Array P600
Controller
Important safety information
Installation Overview
Kit contents
All controller kits contain an installation overview poster (this
document), a Documentation CD, and a controller board.
Each controller kit also contains one of the following software
CD kits:
• SmartStart CD kit (contains device drivers, support software
and utilities, Server Diagnostics, Management Agents,
and documentation for SmartStart and HP Systems
Insight Manager)
• Support Software CD kit (contains device drivers, the Array
Configuration Utility, and the ROM Update Utility)
Second edition (July 2005)
Part number 384228-002
Installing the controller in an
unconfigured HP ProLiant server
New HP ProLiant server models self-configure when they are
powered up for the first time. For more information about the
autoconfiguration process, refer to the server-specific setup
and installation guide or the HP ROM-Based Setup Utility User
Guide. These guides are available on the server
Documentation CD.
IMPORTANT: Do not power up the server until the
hardware configuration is satisfactory, as described
in the procedure given in this section.
To install the controller in an unconfigured server:
1.
Install the controller hardware.
2.
If necessary, install physical drives.
The number of drives in the server determines the RAID
level that is autoconfigured when the server is powered
up (next step). For details, refer to the server-specific
setup and installation guide or the HP ROM-Based Setup
Utility User Guide.
3.
Power up the server. The autoconfiguration process runs.
4.
Update the system firmware.
5.
Update the controller firmware.
6.
Install the operating system and device drivers.
Instructions are provided with the CD that is supplied in
the controller kit.
Installing the controller in an
HP Integrity server
NOTE: The SmartStart CD does not provide support
for HP Integrity servers. Use the Smart Setup media
instead.
Before installing the controller, refer to the support matrix on
the HP website
http://www.hp.com/products1/serverconnectivity
to confirm that the server and operating system support the
controller.
To install the controller:
1.
Power down the server.
2.
Install the controller hardware.
3.
If necessary, install additional physical drives.
The number of drives in the server determines the RAID
level that is autoconfigured when the server is powered
up (next step).
4.
Power up the server.
5.
Update the controller firmware.
When the firmware update process is complete, the
server reboots and runs through a POST procedure. This
POST procedure halts briefly during controller
initialization and prompts you to open ORCA.
6.
The server is now ready to use. If you want to create
additional logical drives, you may now do so.
Open ORCA:
— If using a headless console, press the Esc+8 key
combination.
— Otherwise, press the F8 key.
Installing the controller in a
previously configured
HP ProLiant server
1.
Back up any data on the system.
2.
Update the server firmware.
3.
If you want the new controller to be the boot device,
install the device drivers. Otherwise, continue with step 4.
4.
Install the controller hardware.
5.
Set the controller order.
6.
7.
Configure the logical boot drive, and then exit from
ORCA.
If the server is using Linux®, controller installation is complete.
When the server is next rebooted, the operating system
detects the controller hardware and automatically loads the
required driver.
If the server is using Microsoft® Windows®, continue as
follows:
1.
Load the controller driver from EBSU on the Smart Setup
media. (To load the driver, select Load OEM Boot Drivers
at the appropriate point in EBSU. For more information
about Smart Setup, refer to the HP Smart Setup Guide on
the Smart Setup media.)
Update the controller firmware.
2.
Run Express Setup.
7.
If the controller will not be the boot device, install the
device drivers. Otherwise, continue with step 8.
3.
8.
Update the Management Agents if new versions are
available.
When you have finished installing the operating system
as directed during the Express Setup procedure, remove
the operating system CD and insert the Smart Setup
media.
4.
Install the Integrity Support Pack.
The server is now ready to use. If you want to create
additional logical drives, you may now do so.
Controller installation is complete.
The latest firmware, drivers, utilities, software, and
documentation for HP Integrity servers are available on the
support page of the HP website
http://www.hp.com/support/itaniumservers
Additional information
If you cannot find the information that you need in this
overview, there are several other resources that you can use
to get more detailed information:
• The controller user guide on the Documentation CD
• The HP website
http://www.hp.com
• Your nearest HP authorized reseller (for the locations and
telephone numbers of these resellers, refer to the
HP website)
• HP technical support:
— In the United States and Canada, call
1-800-HP-INVENT (1-800-474-6836).
— In other countries, refer to the HP website for
technical support information.
Audience assumptions
This document is for the person who installs, administers, and
troubleshoots servers and storage systems. HP assumes you
are qualified in the servicing of computer equipment and
trained in recognizing hazards in products with hazardous
energy levels.
Legal notices
© Copyright 2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
Microsoft and Windows are U.S. registered trademarks of Microsoft
Corporation. Linux is a U.S. registered trademark of Linus Torvalds.
