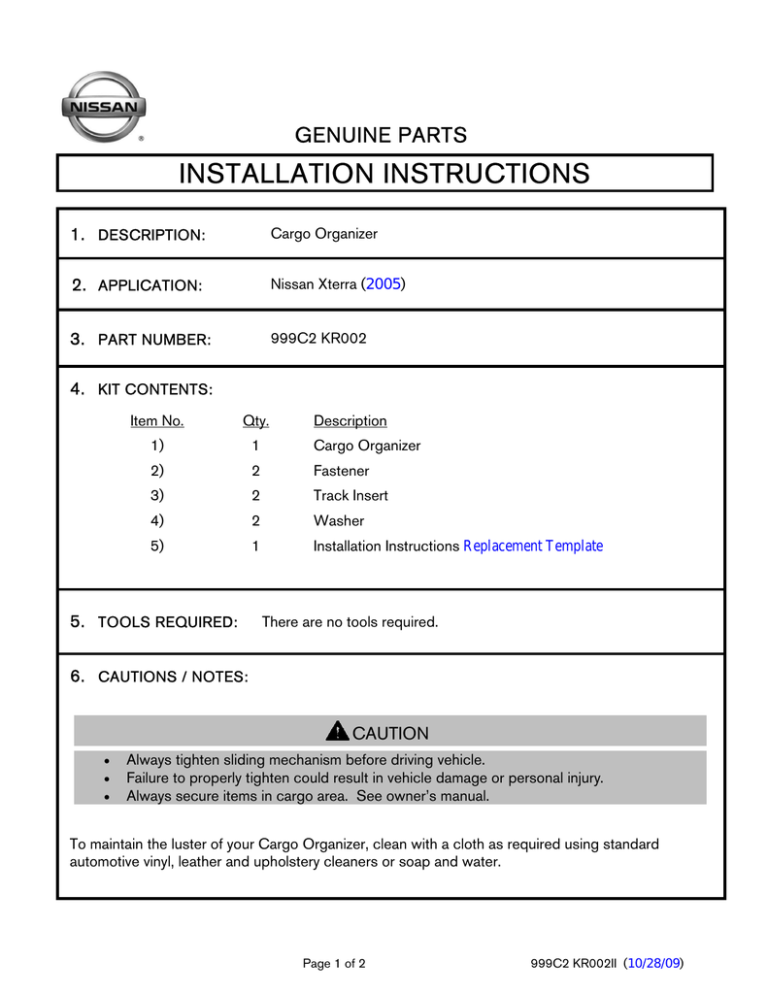

INSTALLATION INSTRUCTIONS
GENUINE PARTS
INSTALLATION INSTRUCTIONS
1. DESCRIPTION:
Cargo Organizer
2. APPLICATION:
Nissan Xterra (2005)
3. PART NUMBER:
999C2 KR002
4. KIT CONTENTS:
Item No.
Qty.
1)
1
Cargo Organizer
2)
2
Fastener
3)
2
Track Insert
4)
2
Washer
5)
1
Installation Instructions Replacement Template
5. TOOLS REQUIRED:
Description
There are no tools required.
6. CAUTIONS / NOTES:
CAUTION
•
•
•
Always tighten sliding mechanism before driving vehicle.
Failure to properly tighten could result in vehicle damage or personal injury.
Always secure items in cargo area. See owner’s manual.
To maintain the luster of your Cargo Organizer, clean with a cloth as required using standard
automotive vinyl, leather and upholstery cleaners or soap and water.
Page 1 of 2
999C2 KR002II (10/28/09)
INSTALLATION INSTRUCTIONS - Cargo Organizer
7. INSTALLATION PROCEDURE:
1) Remove plastic track cover (see owner’s manual).
2) Install track inserts in both tracks in the cargo area of
the vehicle (threaded hole up).
3) Place Cargo Organizer in vehicle.
2x
4) Line up slots in front of Cargo Organizer over threaded
holes in track inserts.
5) Insert hardware at both sides of the Cargo Organizer.
Order should be fastener, washer, organizer, track
insert.
8. HOW TO USE YOUR CARGO ORGANIZER:
1) Lift the divider to expose cargo compartments. To fold
divider back down, press tabs on either side of divider.
2) Loosen fasteners to slide organizer back and forth.
Always tighten fasteners before driving.
3) The two straps on the passenger side can be used to
secure two-liter bottles.
Page 2 of 2
999C2 KR002II (10/28/09)
