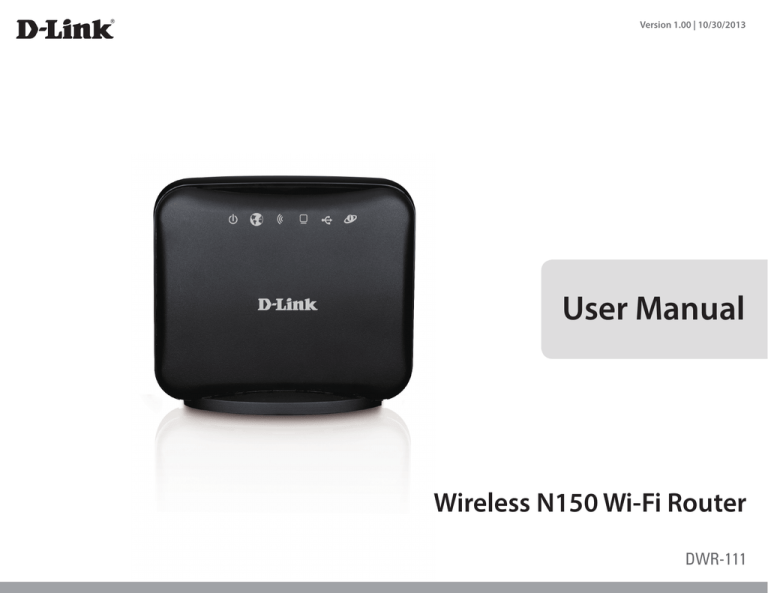

Version 1.00 | 10/30/2013
User Manual
Wireless N150 Wi-Fi Router
DWR-111
Preface
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify
any person or organization of such revisions or changes.
Manual Revisions
Revision
Date
1.0
October 25, 2013
Description
DCS-6004L/DCS-6005L Revision A1 with firmware
version 1.00
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks
of their respective companies.
Copyright © 2013 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
D-Link DWR-111 User Manual
i
Table of Contents
Table of Contents
Package Contents.......................................................................... 1
System Requirements.................................................................. 1
Introduction.................................................................................... 2
Front Panel and LEDs............................................................ 3
Hardware Overview...................................................................... 4
Back Panel................................................................................ 4
Installation.......................................................................... 5
Connect to Your Network........................................................... 5
Wireless Installation Considerations....................................... 6
Configuration...................................................................... 7
Web-based Configuration Utility............................................. 7
Setup Wizard................................................................................... 8
Internet Connection Setup Wizard.................................. 8
Manual Internet Connection Setup..............................12
Internet Connection...........................................................13
Internet Connection Type............................................13
Dynamic IP (DHCP).........................................................14
PPPoE..................................................................................15
PPTP.....................................................................................17
L2TP.....................................................................................19
3G.........................................................................................21
Static IP...............................................................................23
Failover Setting.....................................................................24
Wireless Settings.............................................................25
Network Settings.................................................................27
D-Link DWR-111 User Manual
Router Settings................................................................27
DHCP Server Settings....................................................28
Virtual Server.........................................................................29
Application Rules.................................................................30
QoS Engine............................................................................31
MAC Address Filter..............................................................32
URL Filter.................................................................................33
Outbound Filter....................................................................34
Inbound Filter.......................................................................35
SNMP........................................................................................36
Routing....................................................................................37
Advanced Wireless..............................................................38
Advanced Network.............................................................39
DMZ..........................................................................................40
Admin......................................................................................41
Time..........................................................................................42
Syslog.......................................................................................43
E-mail Settings......................................................................44
System.....................................................................................45
Firmware.................................................................................46
Dynamic DNS........................................................................47
System Check........................................................................48
Schedules...............................................................................49
Device Information.............................................................50
Logs..........................................................................................51
Statistics..................................................................................52
ii
Table of Contents
Wireless...................................................................................53
Support...................................................................................54
Wireless Security..............................................................55
What is WEP?.................................................................................55
Configure WEP..............................................................................56
What is WPA?.................................................................................57
Configure WPA-PSK.....................................................................58
Configure WPA (RADIUS)..........................................................59
Connect to a Wireless Network........................................60
Using Windows Vista™...............................................................60
Configure Wireless Security.............................................61
Connect to a Wireless Network........................................63
Using Windows® XP.....................................................................63
Configure WEP......................................................................64
Configure WPA-PSK.............................................................66
Troubleshooting...............................................................68
Wireless Basics..................................................................70
What is Wireless?..........................................................................71
Tips....................................................................................................73
Wireless Modes.............................................................................74
Networking Basics............................................................75
Check your IP address................................................................75
Statically Assign an IP address................................................76
Technical Specifications...................................................77
D-Link DWR-111 User Manual
iii
Section 1 - Product Overview
Product Overview
Package Contents
•
•
•
•
D-Link DWR-111 Wireless N150 Wi-Fi Router
Power Adapter
Manual and Warranty on CD
External Wi-Fi antenna
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a different voltage rating than the one included with the DWR-111 will cause damage and void the warranty for
this product.
System Requirements
• A compatible 3G USB modem
• Computers with Windows®, Macintosh®, or Linux-based operating systems with an installed Ethernet
adapter
• Internet Explorer Version 6.0 or Netscape Navigator™ Version 6.0 and above (for configuration)
D-Link DWR-111 User Manual
1
Section 1 - Product Overview
Introduction
The D-Link Wireless N150 Wi-Fi Router allows users to access worldwide mobile broadband networks. Once connected,
users can transfer data and stream media. Simply connect your USB modem and share your 3G Internet connection
through a secure 802.11n wireless network or using the 10/100 Ethernet port.
The Wireless N150 Wi-Fi Router can be installed quickly and easily almost anywhere. This router is great for situations where
an impromptu wireless network must be set up, or wherever conventional network access is unavailable. The DWR-111 can
even be installed in buses, trains, or boats, allowing passengers to check e-mail or chat online while commuting.
D-Link DWR-111 User Manual
2
Section 1 - Product Overview
Hardware Overview
Front Panel and LEDs
Internet
Wi-Fi
LAN
USB
Power LED
LED
WAN
Power
Internet
Wi-Fi
Description
Color Solid
Green The device is powered on
Green Internet connection established
Green Wi-Fi active and available
Data transmitting
LAN
USB
WAN
Green
Green
Green
Data transmitting
Data transmitting
Data transmitting
D-Link DWR-111 User Manual
Ethernet connection established
3G connection established
WAN connection established
Blinking
Blinking (Fast)
Device in WPS
mode
-
3
Section 1 - Product Overview
Hardware Overview
Back Panel
Reset Button
USB Port
WPS Button
Port
Reset Button
USB Port
WPS Button
LAN Port
WAN Port
Power Input
Power Button
D-Link DWR-111 User Manual
LAN
WAN Power Input
Power Button
Function
Resets the device to its factory default settings.
Connects to a USB modem.
Starts the WPS feature for connecting to other devices.
Connects to wired computers or devices.
Connects to the Internet.
Connects to the power adapter.
Turns the device on or off.
4
Section 2 - Installation
Installation
This section will guide you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area
such as a closet, cabinet, or in an attic or garage.
Connect to Your Network
Note: Ensure that your DWR-111 Wireless N150 Wi-Fi Router is disconnected and powered off before performing the installation steps below.
1. Connect a USB modem to the USB port on the back of the router.
2. Insert a LAN network cable into the LAN port on the back of the router. Plug the other end of the LAN cable into the LAN port of your computer
or laptop. The Ethernet LED will turn green if the Ethernet connection is successfully established.
Note: The DWR-111 Wireless N150 Wi-Fi Router LAN Port is “Auto-MDI/MDIX.” Therefore, patch or crossover Ethernet cables can be used.
3. Configure the device using the setup utility.
D-Link DWR-111 User Manual
5
Section 2 - Installation
Wireless Installation Considerations
The DWR-111 can be accessed using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in
mind, however, that the quantity, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the
range. Ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or office. The key to maximizing
the wireless range is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between the D-Link router and other network devices. Each wall or ceiling can reduce
your adapter’s range from 3 to 90 feet (1 to 30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (0.5 meters), at a 45-degree angle appears to be
almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick. Position devices so that the signal will
travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Try to position access points, wireless routers, and computers so that the signal passes through open doorways and drywall.
Materials such as glass, metal, brick, insulation, concrete and water can affect wireless performance. Large objects such as fish
tanks, mirrors, file cabinets, metal doors and aluminum studs may also have a negative effect on range.
4. If you are using 2.4 GHz cordless phones, make sure that the 2.4 GHz phone base is as far away from your wireless device as
possible. The base transmits a signal even if the phone in not in use. In some cases, cordless phones, X-10 wireless devices, and
electronic equipment such as ceiling fans, fluorescent lights, and home security systems may dramatically degrade wireless
connectivity.
D-Link DWR-111 User Manual
6
Section 3 - Configuration
Configuration
This section will show you how to configure your new D-Link mobile router using the web-based configuration utility.
Web-based Configuration Utility
To access the configuration utility, open a web-browser such as
Internet Explorer and enter the IP address of the router (192.168.0.1).
Type Admin and then enter the password. By default, the password
is blank.
If you get a Page Cannot be Displayed error, please refer to the
Troubleshooting section for assistance.
D-Link DWR-111 User Manual
7
Section 3 - Configuration
Setup Wizard
The setup wizard guides you through the initial setup of your router. There
are two ways to setup your Internet connection. You can use the web-based
Internet Connection Setup Wizard or you can manually configure using
the Manual Internet Connection Setup wizard.
Click Internet Connection Setup Wizard to begin.
If you want to enter your settings without running the wizard, click Manual
Internet Connection Setup and skip to page 12.
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to configure
your D-Link router to connect to the Internet.
Click Next to continue.
D-Link DWR-111 User Manual
8
Section 3 - Configuration
Create a new password and then click Next to continue.
Click Prev to go back to the previous page or click Cancel to close the
wizard.
Select your time zone from the drop-down box and then click Next to
continue.
Click Prev to go back to the previous page or click Cancel to close the
wizard.
Select the Internet connection type. The connection types are explained
on the following page. If you are unsure of the correct connection type,
you may have to contact your Internet Service Provider (ISP).
Click Prev to go back to the previous page or click Cancel to close the
wizard.
Note: The DWR-111 supports several kinds of WAN interfaces, allowing you
to assign either a WAN or a WWAN(3G) connection as the Backup WAN. If
the Primary WAN is down or unavailable, configure the Backup WAN to
Enable, and all the traffic will be routed through Backup WAN. This feature
is called WAN Failover. You can use WAN Failover if you need redundancy
to your Internet connection or any other network.
D-Link DWR-111 User Manual
9
Section 3 - Configuration
The subsequent configuration pages will differ depending on the selection you make on this page.
DHCP Connection Choose this if your Internet connection automatically provides you with an IP Address. Most cable modems use this
(Dynamic IP Address): type of connection. See page 14 for information about how to configure this type of connection.
Username / Password Choose this option if your Internet connection requires a username and password to connect. Most DSL modems use
Connection (PPPoE): this style of connection. See page 15 for information about how to configure this type of connection.
Username / Password Choose this option if your Internet connection requires Point-to-Point Tunneling Protocol (PPTP). See page 17 for
Connection (PPTP): information about how to configure this type of connection.
Username / Password Choose this option if your Internet connection requires Layer 2 Tunneling Protocol (L2TP). See page 19 for information
Connection (L2TP): about how to configure this type of connection.
3G Connection: Choose this option if your Internet Setup Provider provided you with a user name and password to use with your
3G / 4G LTE enabled USB Dongle. See page 21 for information about how to configure this type of connection.
Static IP Address Choose this option if your Internet Setup Provider provided you with IP Address information that has to be manually
Connection: configured. See page 23 for information about how to configure this type of connection.
D-Link DWR-111 User Manual
10
Section 3 - Configuration
You have completed the Setup Wizard.
Click Connect to save your settings.
A pop-up will appear, to confirm your settings.
Click OK to save your settings.
D-Link DWR-111 User Manual
11
Section 3 - Configuration
Manual Internet Connection Setup
Click Manual Internet Connection Setup to begin.
If you want to configure your router to connect to the Internet using the
wizard, click Internet Connection Setup Wizard and refer to page 8.
D-Link DWR-111 User Manual
12
Section 3 - Configuration
Internet Connection
Internet Connection Type
Several different Internet Connection types can be selected depending upon the specifications of your Internet Service Provider (ISP).
My Internet Select the Internet Connection type specified by your
Connection is: Internet Service Provider (ISP). The corresponding
settings will be displayed below. Please see the
following pages for details on how to configure
these different connection types.
Failover Internet This connection can serve as a backup for your
Type is: default connection.
Host Name: Enter the name of the Internet host to be used as
the backup connection.
Primary DNS Server: Enter the primary DNS server.
Secondary DNS
Server: Enter the secondary DNS server.
MTU:
MAC Address:
Auto-reconnect:
NAT disable:
Set the MTU (the default value is 1500).
Manually enter the MAC address or click Clone to
copy the PC’s MAC address.
Check this check box to enable auto-reconnect.
Check this check box to disable network address
translation.
D-Link DWR-111 User Manual
13
Section 3 - Configuration
Dynamic IP (DHCP)
This section will help you to obtain IP Address information automatically from your ISP. Use this option if your ISP didn’t provide you with IP Address
information and/or a username and password.
Host Name:
(Optional) Required by some ISPs.
Primary DNS Server:
(Optional) Fill in with IP address of primary
DNS server.
Secondary DNS Server:
(Optional) Fill in with IP address of secondary
DNS server.
MTU (Maximum
Transmission Unit):
You may need to change the Maximum
Transmission Unit (MTU) for optimal
performance. The default value is 1500.
MAC Address:
The default MAC Address is set to the
Internet port’s physical interface MAC
address on the Broadband Router. It is
not recommended that you change the
default MAC address unless required by
your ISP. You can use the Clone Your PC’s
MAC Address button to replace the Internet
port’s MAC address with the MAC address
of your PC.
Auto-reconnect:
This feature enables this product to renew
WAN IP address automatically when the
lease time is expiring.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
D-Link DWR-111 User Manual
14
Section 3 - Configuration
PPPoE
Choose this Internet connection if your ISP provides you a PPPoE account.
Username: The username/account name that your ISP provides
to you for PPPoE dial-up.
Password: Password that your ISP provides to you for PPPoE
dial-up.
Verify Password: Fill in with the same password in Password field.
Service Name: (Optional) Fill in if provided by your ISP.
IP Address: (Optional) Fill in if provided by your ISP. If not, keep
the default value.
Primary DNS Server: (Optional) Fill in if provided by your ISP. If not, keep
the default value.
Secondary DNS
Server: (Optional) Fill in if provided by your ISP. If not, keep
the default value.
MAC Address:
MAC address of WAN interface. You can also copy
MAC address of your PC to its WAN interface by
pressing Clone Your PC’s MAC button. The Restore
MAC button will reset the router to its default MAC
address.
Maximum Idle Time:
The amount of time of inactivity before disconnecting
established PPPoE session. Set it to zero or enable
Auto-reconnect will disable this feature.
Maximum
Transmission Unit
D-Link DWR-111 User Manual
15
Section 3 - Configuration
(MTU): The default setting of PPPoE is 1492.
Reconnect Mode:
NAT disable: The device will dial-up PPPoE connection automatically if set to always, otherwise you will need to manually reconnect.
Check this check box to disable network address translation.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
16
Section 3 - Configuration
PPTP
Choose this Internet connection if your ISP provides you with a PPTP account.
Address Mode: Choose Static IP only if your ISP assigns you an IP
address. Otherwise, please choose Dynamic IP.
PPTP IP Address: Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
PPTP Subnet Mask: Enter the information provided by your ISP.
(Only applicable for Static IP PPTP.)
PPTP Gateway IP Enter the information provided by your ISP.
Address: (Only applicable for Static IP PPTP.)
PPTP Server IP IP address of PPTP server.
Address:
Username: User/account name that your ISP
provides to you for PPTP dial-up.
Password: Password that your ISP provides
to you for PPTP dial-up.
Verify Password: Fill in with the same password in Password field.
Reconnect Mode: Choose Always-on when you want to establish
PPTP connection all the time. If you choose
Connect-on-demand, the device will establish
PPTP connection when local users want to surf
the Internet, and disconnect if no traffic after
time period of Maximum Idle Time expires.
D-Link DWR-111 User Manual
17
Section 3 - Configuration
Maximum Idle Time: The time of no activity to disconnect your PPTP session. Set it to zero or choose Always-on to disable this feature.
MAC Address:
If your ISP requires that you enter a MAC address to use with your PPTP account, enter it here.
You can also click the Clone button, which will copy your computer’s MAC address.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
18
Section 3 - Configuration
L2TP
Choose this Internet connection if your ISP provides you with a L2TP account.
Address Mode: Choose Static IP only if your ISP assigns you an IP
address. Otherwise, please choose Dynamic IP.
L2TP IP Address: Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
L2TP Subnet Mask: Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
L2TP Gateway IP Enter the information provided by your ISP.
Address: (Only applicable for Static IP L2TP.)
L2TP Server IP IP address of L2TP server.
Address:
Username: User/account name that your ISP
provides to you for L2TP dial-up.
Password: Password that your ISP provides
to you for L2TP dial-up.
Verify Password: Fill in with the same password in Password field.
Reconnect Mode: Choose Always-on when you want to establish
L2TP connection all the time. Choose Connecton-demand if the device will establish a L2TP
connection when local users want to surf
Internet, and disconnect if there is no traffic
after time period of Maximum Idle Time.
D-Link DWR-111 User Manual
19
Section 3 - Configuration
Maximum Idle Time: The time of no activity to disconnect your L2TP session. Set it to zero or choose Always-on to disable this feature.
MAC Address:
If your ISP requires that you enter a MAC address to use with your PPTP account, enter it here.
You can also click the Clone button, which will copy your computer’s MAC address.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
20
Section 3 - Configuration
3G
Choose this Internet connection if you already use a SIM card for 3G Internet service from your Telecom company. The fields here may not be
necessary for your connection. The information on this page should only be used if required by your service provider.
Dial-Up Profile: Choose whether to have the router auto-detect
the 3G settings or to manually input the necessary
values.
Country: Use the dropdown menu to select which country
your 3G service provider is based from.
Telecom: Once you have selected the country from which
your 3G provider resides in, a list of 3G service
telecom providers will be available for you to choose
from.
3G Network: Select the type of 3G network your provider uses.
Username: (Optional) Fill in only if requested by ISP.
Password: (Optional) Fill in only if requested by ISP.
Dialed Number: Enter the number to be dialed.
Authentication: PAP, CHAP, or Auto detection. The default
authentication method is Auto.
APN: (Optional) Enter the APN information.
PIN: Enter the PIN associated with your SIM card.
Reconnect Mode: Auto or Manual. Connec t to 3G network
automatically or manually.
D-Link DWR-111 User Manual
21
Section 3 - Configuration
Maximum Idle Time: The time of no activity to disconnect established 3G
session. Set it to zero or choose Auto in Reconnect
Mode to disable this feature.
Primary DNS Server:
(Optional) Fill in if provided by your ISP. If not, keep
Secondary DNS the default value.
Server:
(Optional) Fill in if provided by your ISP. If not, keep
Keep Alive: the default value.
Disable or Use LCP Echo Request. It depends on ISP
NAT disable: requirement.
Bridge Ethernet Disable Network Address Translation
Ports:
Activate this feature to change Ethernet WAN port
to LAN port.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
22
Section 3 - Configuration
Static IP
Choose this Internet connection if your ISP assigns you a static IP address.
IP Address: Enter the IP address assigned to your network
connection.
Subnet Mask: Enter the subnet mask.
Default Gateway: Enter the default gateway.
Primary DNS Server: Enter the primary DNS server.
Secondary DNS
Server: Enter the secondary DNS server.
MTU:
MAC Address:
NAT disable:
You may need to change the Maximum Transmission
Unit (MTU) for optimal performance. The default
value is 1500.
The default MAC Address is set to the Internet port’s
physical interface MAC address on the broadband
router. It is not recommended that you change
the default MAC address unless required by your
ISP. You can use the Clone Your PC’s MAC Address
button to replace the Internet port’s MAC address
with the MAC address of your Ethernet card.
Check this check box to disable network address
translation.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
23
Section 3 - Configuration
Failover Setting
This connection can serve as a backup for your default connection.
Failover Type: This option can be set to either Load Sharing or
to Failover. With Load Sharing, the data usage is
distributed evenly over the two different Internet
connections. With Failover, the secondary Internet
connection will be in standby mode, until the primary
Internet connection fails.
Remote Host for This option should be set to an external IP address that
Keep Alive: can be used to ensure that the 3G/4G LTE connection
will be kept from going offline due to inactivity. An
example would be Google’s public DNS servers (8.8.8.8
or 8.8.4.4) or your Internet service providers DNS servers.
Primary WAN: This will automatically be set to the connection type
selected during the Internet connection Setup Wizard,
or set to the My Internet Connection is option which
is found on the Manual Internet Connections settings
page.
Secondary WAN: This can be set by clicking on Add New Rule, the
available options will be shown in the drop down box
that appears.
Click Save Settings to save your changes, or click Don’t
Save Settings to discard your changes.
D-Link DWR-111 User Manual
24
Section 3 - Configuration
Wireless Settings
This section will help you to manually configure the wireless settings of your router. Please note that changes made in this section may also need
to be duplicated on your Wireless Client.
WIRELESS NETWORK SETTINGS
Enable Wireless: Select this checkbox to enable wireless
access. When you set this option, the
following parameters take effect.
Wireless Network Also known as the SSID (Service Set Identifier),
Name: this is the name of your Wireless Local Area
Network (WLAN). Enter a name using up to
32 alphanumeric characters. The SSID is casesensitive. The default name is “dlink_DWR-111”.
802.11 Mode: B/G/N mixed: Enable this mode if your network
contains a mix of 802.11b and 802.11g devices.
G mode: Enable this mode if your network has
only 802.11g devices. If you have both 802.11b
and 802.11g wireless clients, disable this mode.
Auto Channel Scan: A wireless network uses specific channels in the
wireless spectrum to handle communication
between clients. Some channels in your area
may experience interference from other
electronic devices. Choose the clearest
channel to help optimize the performance
and coverage of your wireless network.
D-Link DWR-111 User Manual
25
Section 3 - Configuration
Wireless Channel: Indicates the channel setting for the DWR-111.
By default the channel is set to 11. This can
be changed to fit the channel setting for an
existing wireless network or to customize your
wireless network. Click Auto Channel Scan
to automatically select the channel that it
will operate on. This option is recommended
because the router will choose the channel
with the least amount of interference.
Visibility Status: Select Invisible if you do not want the SSID of
your wireless network to be broadcasted by
DWR-111. The SSID of your router will not be
seen by Site Survey utilities. Therefore while
setting up your wireless clients, you will have to
manually enter your SSID to connect to the router.
WIRELESS SECURITY MODE
Security Mode: This device supports three wireless security
modes, WEP, WPA-Personal, WPA-Enterprise
or None. WEP is the original wireless encryption
standard. WPA provides a higher level of
security and WPA-Personal does not require an
authentication server. When WPA enterprise
is enabled, the router uses EAP (802.1x) to
authenticate clients via a remote RADIUS server.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
26
Section 3 - Configuration
Network Settings
Router Settings
This section will help you to change the internal network settings of your router and to configure the DHCP server settings.
Router IP Address: Enter the IP address of the router. The
default IP address is 192.168.0.1.
If you change the IP address, you will need
to enter the new IP address in your browser
to get into the configuration utility.
Default Subnet Enter the Subnet Mask of the router. The
Mask: default subnet mask is 255.255.255.0.
Local Domain Enter the local domain name for your network.
Name:
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
27
Section 3 - Configuration
DHCP Server Settings
The DWR-111 has a built-in DHCP (Dynamic Host Control Protocol) server. The DHCP server assigns IP addresses to devices on the network that
request them. By default, the DHCP server is enabled on the device. The DHCP address pool contains a range of IP addresses, which is automatically
assigned to the clients on the network.
Enable DHCP Select this box to enable the DHCP server on your
Server: router.
DHCP IP Address Enter the starting and ending IP address for the
Range: server’s IP assignment.
DHCP Lease Time: The time period for the IP address lease. Enter the
Lease time in minutes.
Primary DNS IP Assign a primary DNS Server to DHCP clients.
Address:
Secondary DNS IP Assign a secondary DNS Server to DHCP clients.
Address:
Primary WINS IP Assign a primary WINS Server to DHCP clients.
Address:
Secondary WINS IP Assign a secondary WINS Server to DHCP clients.
Address:
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
28
Section 3 - Configuration
Virtual Server
The device can be configured as a virtual server so that users can access services such as Web or FTP via the public (WAN) IP address of the router.
Well-known This contains a list of pre-defined services.
Services:
Copy to: Copies the rule to the line of the specified ID.
Use schedule rule: You may select Always On or choose the number
of a schedule rule that you have defined.
VIRTUAL SERVERS LIST
ID: Identifies the virtual server.
Service Ports: Internal port number for the service
to be setup for public access.
Server IP: Port: Enter the last digits of the IP address of the
computer on your local network that you want to
allow the incoming service. In the next box, enter
the port number that you would like to open.
Enable: Select this box to enable the rule.
Schedule Rule #: Specify the schedule rule number.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
29
Section 3 - Configuration
Application Rules
Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications
have difficulties working through NAT (Network Address Translation). Applications Rules let some of these applications work with the DWR-111.
APPLICATION RULES
Popular Select from a list of popular applications.
Applications:
Copy to ID: Copies the predefined application rule
to the line of the specified ID.
ID: Identifies the rule.
Trigger: The name of the trigger.
Incoming Ports: Specify the incoming port for the trigger rule.
Enable: Select this box to enable the rule.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
30
Section 3 - Configuration
QoS Engine
The QoS Engine improves your online gaming experience by ensuring that your game traffic is prioritized over other network traffic, such as FTP
or Web. For best performance, use the Automatic Classification option to automatically set the priority for the applications.
QoS ENGINE SETUP
Enable QoS Packet Select this box to enable the QoS Packet Filter.
Filter:
Upstream Specify the maximum upstream
Bandwidth: bandwidth here (e.g. 400 kbps).
QoS RULES
ID: Identifies the rule.
Local IP : Ports: Specify the local IP address and then
specify the port after the colon.
Remote IP : Ports: Specify the remote IP address and
then the port after the colon.
QoS Priority: Select Low, Normal, or High.
Enable: Select a checkbox to enable the
particular QoS rules individually.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
31
Section 3 - Configuration
MAC Address Filter
The MAC (Media Access Controller) Address Filter option is used to control network access based on the MAC address of the network adapter.
A MAC address is a unique ID assigned by the manufacturer of the network adapter. This feature can be configured to ALLOW or DENY network/
Internet access.
MAC FILTERING SETTINGS
MAC Address Select this box to enable Mac Filtering.
Control:
Connection Control: Wireless and wired clients with C selected
can connect to this device and allow/deny
connections from unspecified MAC addresses.
Association Control:
Wireless clients with A selected can associate to
the wireless LAN; and allow/deny connections
from unspecified MAC addresses.
ID: MAC FILTERING RULES
MAC Address: Identifies the rule.
Specify the MAC address of the
C: computer to be filtered.
If this box is selected, the rule will
follow the connection control setting
A: specified in MAC filtering settings.
If this box is selected, the rule will
follow the association control setting
specified in MAC filtering settings.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
32
Section 3 - Configuration
URL Filter
URL Filter allows you to set up a list of web sites that will be blocked from users on your network.
URL Filtering: Select this box to enable URL Filtering.
URL FILTERING RULES
ID: Identifies the rule.
URL: Enter URL that you would like to block.
Enable: Click to enable the specific URL filter.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
33
Section 3 - Configuration
Outbound Filter
Outbound Filter enables you to control what packets are allowed to pass the router. Outbound filter applies on all outbound packets.
OUTBOUND FILTER SETTING
Outbound Filter: Select this box to Enable the filter.
Use Schedule Rule: You may select Always On or choose the number
of a schedule rule that you have defined.
Copy to ID: Copies the predefined filter to the specified ID
OUTBOUND FILTER RULES LIST
ID: Identifies the filter.
Source IP : Ports: Specify the local IP address and then specify the
port after the colon.
Destination IP : Specify the remote IP address and then the port
Ports: after the colon.
Enable: Select this box to enable the filter.
Schedule Rule #: Specify the schedule rule number.
Previous Page: Go back to the previous filter page.
Next Page: Advance to the next filter page.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
34
Section 3 - Configuration
Inbound Filter
Inbound Filter enables you to control what packets are allowed to passthrough the router. Inbound filter only applies to packets that are destined
for Virtual Servers or DMZ hosts.
INBOUND FILTER SETTING
Inbound Filter: Select this box to Enable the filter.
Use Schedule Rule: You may select Always On or choose the number
of a schedule rule that you have defined.
Copy to ID: Copies the predefined filter to the specified ID
INBOUND FILTER RULES LIST
ID: Identifies the filter.
Source IP : Ports: Specify the local IP address and then specify the
port after the colon.
Destination IP : Specify the remote IP address and then the port
Ports: after the colon.
Enable: Select this box to enable the filter.
Schedule Rule #: Specify the schedule rule number.
Previous Page: Go back to the previous filter page.
Next Page: Advance to the next filter page.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
35
Section 3 - Configuration
SNMP
SNMP (Simple Network Management Protocol) is a widely used network monitoring and control protocol that reports activity on each network device
to the administrator of the network. SNMP can be used to monitor traffic and statistics of the DWR-111. The DWR-111 supports SNMP v1 or v2c.
SNMP
SNMP Local: Select Enabled to allow local SNMP administration.
S elec t Disabled to disallow local SNMP
administration.
SNMP Remote: S e l e c t E n a b l e d t o a l l o w r e m o t e S N M P
administration. Select Disabled to disallow remote
SNMP administration.
Get Community: Enter the password public in this field to allow “Read
only” access to network administration using SNMP.
You can view the network, but no configuration is
possible with this setting.
Set Community: Enter the password private in this field to gain
“Read and Write” access to the network using SNMP
software.
IP 1, IP 2, IP 3, IP 4: Enter up to four IP addresses of any trap targets on
your network.
SNMP Version: Select the SNMP version of your system.
WAN Access IP Remote IP address that can be used to access the
Address: device for management via SNMP.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
36
Section 3 - Configuration
Routing
The Routing page allows you to specify custom routes that determine how data is moved around your network.
RIP SETTING
RIP: Select this box to enable routing.
RIPv1: Protocol in which the IP address is routed
through the Internet.
RIPv2: Enhanced version of RIPv1 with added
features such as Authentication, Routing Domain,
Next Hop Forwarding, and Subnet-mask Exchange.
ROUTING RULES
ID: Identifies the rule.
Destination: Enter the IP of the specified network that you want
to access using the static route.
Subnet Mask: Enter the subnet mask to be used for the specified
network.
Gateway: Enter the gateway IP address of the specified
network.
Hop: Enter the amount of hops it will take to reach the
specified network.
Enable: Select this box to enable the rule.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
37
Section 3 - Configuration
Advanced Wireless
Advanced Wireless contains settings which can negatively affect the performance of your router if configured improperly. Do not change these
settings unless you are already familiar with them.
Beacon Interval: Beacons are packets sent by an Access Point to synchronize
a wireless network. Specify a value. 100 is the default setting
and is recommended.
Transmit Power: Set the transmit power of the antennas.
RTS Threshold: This value should remain at its default setting of 2347.
If inconsistent data flow is a problem, only a minor
modification should be made.
Fragmentation: The fragmentation threshold, which is specified in bytes,
determines whether packets will be fragmented. Packets
exceeding the 2346 byte setting will be fragmented before
transmission. 2346 is the default setting.
DTIM Interval: A Delivery Traffic Indication Message (DTIM) is a countdown
informing clients of the next window for listening to
broadcast and multicast messages. The default interval is 3.
WMM Capable: WMM (Wi-Fi Multimedia) is QoS (Quality of Service) system
for your wireless network. Enable this option to improve
the quality of video and voice applications for your wireless
clients.
TX Rates: Select the basic transfer rates based on the speed of
wireless adapters on your wireless network. It is strongly
recommended to keep this setting to Auto.
Click Save Settings to save your changes, or click Don’t
Save Settings to discard your changes.
D-Link DWR-111 User Manual
38
Section 3 - Configuration
Advanced Network
Advanced Network contains settings which can change the way the router handles certain types of traffic. We recommend that you do not change
any of these settings unless you are already familiar with them.
UPnP
Enable UPnP: Click Enable UPnP to use the Universal Plug and Play
(UPnP™) feature. UPnP provides compatibility with
networking equipment, software and peripherals.
WAN PING
Enable WAN Ping Select the box to allow the WAN port to be “pinged.”
Respond: Blocking the Ping option may provide some extra
security from hackers.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
39
Section 3 - Configuration
DMZ
Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can
enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world.
Enable DMZ: If an application has trouble working from behind
the router, you can expose one computer to the
Internet and run the application on that computer.
Note: Placing a computer in the DMZ may expose
that computer to a variety of security risks. Use of
this option is only recommended as a last resort.
DMZ IP Address: Specify the IP address of the computer on the
LAN that you want to have unrestricted Internet
communication. If this computer obtains its IP
address automatically using DHCP, be sure to make a
static reservation on the Setup > Network Settings
page so that the IP address of the DMZ machine
does not change.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
40
Section 3 - Configuration
Admin
The Admin page allows you to change the Administrator password and enable Remote Management. The Admin has read/write access while the
user has read-only access. Only the admin has the ability to change both admin and user account passwords.
ADMINISTRATOR
New Password: Enter a password that the admin account will use to access
the router’s management interface.
Confirm Password: Confirm the chosen password.
REMOTE MANAGEMENT
Enable Remote Remote management allows the DWR-111 to be configured
Management: from the Internet using a web browser. A username and
password is still required to access the Web-management
interface. Usually only a member of your network can
browse the built-in web pages to perform Administrator
tasks. This feature enables you to perform Administrator
tasks from a remote (Internet) host.
IP Allowed to Enter the Internet IP address of the PC that has access to the
Access: broadband router. If you enter an asterisk (*) in this field,
then anyone will be able to access the Router. Adding an
asterisk (*) into this field could present a security risk and
is not recommended.
Port: This is the port number used to access the router. Example:
8080 is the port used for the Web-management interface.
Click Save Settings to save your changes, or click Don’t
Save Settings to discard your changes.
D-Link DWR-111 User Manual
41
Section 3 - Configuration
Time
This section will help you set the time zone that you are in and the NTP (Network Time Protocol) server. Daylight saving can also be configured to
adjust the time when needed.
Time: Displays the current time and date of the DWR-111.
Time Zone: Select the appropriate Time Zone from the dropdown box.
Automatically Select this checkbox to automatically synchronize
synchronize with the DWR-111 with an Internet time server.
Internet time server:
NTP Server Used: Choose the NTP Server used for synchronizing time
and date.
Sync. Result: Shows the result of the last time synchronization.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
42
Section 3 - Configuration
Syslog
The DWR-111 keeps a running log of events and activities occurring on the router. You may send these logs to a Syslog server on your network.
Enable Logging to Select this box to send the router logs to a Syslog
Syslog Server: server.
Syslog Server IP Enter the address of the Syslog server that will be
Address: used to send the logs. You may also select your
computer from the drop-down box (only if you want
to receive an IP address from the router via DHCP).
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
43
Section 3 - Configuration
E-mail Settings
E-mail Settings allows you to send the system log files, router alert messages, and firmware update notifications to an e-mail address.
Enable E-mail When this option is enabled, router activity logs are
Notification: e-mailed to a designated e-mail address.
SMTP Sever IP and Enter the SMTP server IP address followed by a colon
Port: and the port number (e.g. 123.123.123.1:25).
SMTP Username: Enter the SMTP username.
SMTP Password: Enter the SMTP password.
Send E-mail Alert to: Enter the e-mail address where you would like the
e-mail sent to.
E-mail Subject:
Enter a subject for the e-mail.
E-mail Log Now:
Click this button to access the e-mail log.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
44
Section 3 - Configuration
System
Here, you can save the current system settings onto the local hard drive.
Save Settings To Use this option to save your current router
Local Hard Drive: configuration settings to a file and onto your
computer. Click Save to open a file dialog, and then
select a location and file name for the settings.
Load Settings From Use this option to load the previously saved router
Local Hard Drive: configuration settings. Browse to find the saved file
and then click Upload Settings to transfer those
settings to the router.
Restore To Factory This option will restore all settings back to their
Default Settings: defaults. Any settings that have not been backed
up will be lost, including any rules that you have
created.
D-Link DWR-111 User Manual
45
Section 3 - Configuration
Firmware
Here, you can upgrade the firmware of your router. Make sure the firmware you want to use is on the local hard drive of the computer and then
click Browse to upload the file. Please check the D-Link support site for firmware updates at http://support.dlink.com. You can download firmware
upgrades to your hard drive from the D-Link support site.
Current Firmware Displays your current firmware version.
Version:
Current Firmware Displays your current firmware date.
Date:
Browse: After you have downloaded the new firmware, click
Browse to locate the firmware on your computer.
Tick Accept unofficial firmware if you want to
update the DWR-111 with unofficial firmware (not
recommended).
Click Upgrade to start the firmware upgrade.
D-Link DWR-111 User Manual
46
Section 3 - Configuration
Dynamic DNS
The DDNS feature allows you to host a server (Web, FTP, or Game Server) using a domain name that you have purchased (www.whateveryournameis.
com) with your dynamically assigned IP address.
Sign up for D-Link’s free DDNS service at www.dlinkddns.com.
Enable DDNS: Dynamic Domain Name System is a method of
keeping a domain name linked to a changing IP
Address. Select this box to enable DDNS.
Provider: Select your DDNS provider from the drop-down
box.
Host Name: Enter the Host Name that you registered with your
DDNS service provider.
Username / E-mail: Enter the Username for your DDNS account.
Password / Key: Enter the Password for your DDNS account.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
47
Section 3 - Configuration
System Check
This useful diagnostic utility can be used to check if a computer is connected to the network. It sends ping packets and listens for responses from
the specific host.
Host Name or IP Enter a host name or the IP address that you want
Address: to ping (Packet Internet Groper) and click Ping.
PING Result: The status of your Ping attempt will be displayed in
the Ping Result box.
D-Link DWR-111 User Manual
48
Section 3 - Configuration
Schedules
This section allows you to manage schedule rules for various firewall and parental control features.
Enable Schedule: Tick this check box to enable schedules.
Add New Rule...: Click this button to specify the start time, end time,
and name of the rule.
Edit: Edit the rule’s start and end time.
Delete: Delete the rule.
Name of Rule 1: Enter a name for your new schedule.
Policy: Select whether the schedule will be active or
inactive based on the schedule set.
ID: The ID for the schedule.
Week Day: Select a day of the week that the schedule will be
set for.
Start Time (hh:mm): Enter the time at which you would like the schedule
to become active.
End Time (hh:mm): Select the time at which you would like the schedule
to become inactive.
Click Save Settings to save your changes, or click
Don’t Save Settings to discard your changes.
D-Link DWR-111 User Manual
49
Section 3 - Configuration
Device Information
All of your Internet and network connection details are displayed on this page. The firmware version is also displayed here.
General: Displays the current time and firmware version.
WAN: Displays the MAC address and the WAN IP settings
for the router.
Load Sharing: Displays current 3G connection status and IP
settings.
LAN: Displays the MAC address and the public IP settings
for the router.
Wireless LAN: Displays the wireless MAC address and your wireless
settings such as SSID, Channel, and Encryption type.
LAN Computers: Displays the list of DHCP clients.
D-Link DWR-111 User Manual
50
Section 3 - Configuration
Logs
Here, you can view logs and define events that you want to view. This router also has an internal syslog server, so you can send the log files to a
computer that is running a syslog utility.
D-Link DWR-111 User Manual
51
Section 3 - Configuration
Statistics
Here you can view the packets transmitted and received passing through your router on both WAN and LAN ports. The traffic counter will reset if the
device is rebooted.
D-Link DWR-111 User Manual
52
Section 3 - Configuration
Wireless
This table displays a list of wireless clients that are connected to your wireless router. It also displays the connection time and MAC address of the
connected wireless clients.
D-Link DWR-111 User Manual
53
Section 3 - Configuration
Support
D-Link DWR-111 User Manual
54
Section 4 - Security
Wireless Security
This section will show you the different levels of security you can use to protect your data from intruders. The DWR-111 offers the following types
of security:
• WPA2 (Wi-Fi Protected Access 2) • WPA (Wi-Fi Protected Access)
• WEP (Wired Equivalent Privacy)
• WPA2-PSK (Pre-Shared Key)
• WPA-PSK (Pre-Shared Key)
What is WEP?
WEP stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard and uses the RC4 encryption algorithm. WEP provides security by
encrypting data over your wireless network so that it is protected as it is transmitted from one wireless device to another.
To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine
the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys
are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange
– alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to
HEX for use over the network. Four keys can be defined so that you can change keys easily.
D-Link DWR-111 User Manual
55
Section 4 - Security
Configure WEP
It is recommended to enable encryption on your wireless router before your
wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling
encryption due to the added overhead.
1. Log into the Web-based configuration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click on Wireless
Settings on the left side.
2. Next to Security Mode, select WEP Security.
3. Next to Authentication, select Open or Shared Key.
4. Select either 64-bit or 128-bit encryption from the drop-down box
next to WEP encryption.
5. Next to Default WEP Key, select either Hex or ASCII.
Hex (recommended) - Letters A-F and numbers 0-9 are valid.
ASCII - All numbers and letters are valid.
6. Next to WEP Key, enter a WEP key that you create. Make sure you
enter this key exactly on all your wireless devices. You may enter up
to 4 different keys.
7. Click Save Settings to save your settings. If you are configuring the
router with a wireless adapter, you will lose connectivity until you
enable WEP on your adapter and enter the same WEP key as you did
on the router.
D-Link DWR-111 User Manual
56
Section 4 - Security
What is WPA?
WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).
The 2 major improvements over WEP:
• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm
and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and
uses Advanced Encryption Standard (AES) instead of TKIP.
• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access
to a wireless network based on a computer’s hardware-specific MAC address, which is relatively simple to be sniffed out and stolen.
EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63
characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or
access point.
WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption
system to ensure that only authorized network users can access the network.
D-Link DWR-111 User Manual
57
Section 4 - Security
Configure WPA-PSK
It is recommended to enable encryption on your wireless router before your
wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling
encryption due to the added overhead.
1. Log into the Web-based configuration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click on Wireless
Settings on the left side.
2. Next to Security Mode, select WPA-Personal.
3. Next to Cipher Type, select TKIP, AES, or Auto.
4. Next to PSK/EAP, select PSK.
5. Next to Network Key, enter a key (passphrase). The key is an alphanumeric password between 8 and 63 characters long. The password
can include symbols (!?*&_) and spaces. Make sure you enter this key
exactly the same on all other wireless clients.
6. Click Save Settings to save your settings. If you are configuring the
router with a wireless adapter, you will lose connectivity until you
enable WPA-PSK (or WPA2-PSK) on your adapter and enter the same
passphrase as you did on the router.
D-Link DWR-111 User Manual
58
Section 4 - Security
Configure WPA (RADIUS)
It is recommended to enable encryption on your wireless router before your
wireless network adapters. Please establish wireless connectivity before
enabling encryption. Your wireless signal may degrade when enabling
encryption due to the added overhead.
1. Log into the web-based configuration by opening a web browser and
entering the IP address of the router (192.168.0.1). Click on Wireless
Settings on the left side.
2. Next to Security Mode, select WPA-Enterprise Security.
3. Next to Cipher Type, select TKIP, AES, or Auto.
4. Next to PSK/EAP, select EAP.
5. Next to RADIUS Server IP Address enter the IP Address of your RADIUS
server.
6. Next to RADIUS Server Port, enter the port you are using with your
RADIUS server. 1812 is the default port.
7. Next to RADIUS Server Shared Secret, enter the security key.
8. Click Save Settings to save your settings.
D-Link DWR-111 User Manual
59
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows Vista™
Windows® Vista™ users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please refer to the user
manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows®
Vista™ utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the center of
the bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray (lower-right corner
next to the time). Select Connect to a network.
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual
for more information.
D-Link DWR-111 User Manual
60
Section 5 - Connecting to a Wireless Network
Configure Wireless Security
It is recommended to enable wireless security (WEP/WPA/WPA2) on your wireless router or access point before configuring your wireless adapter.
If you are joining an existing network, you will need to know the security key or passphrase being used.
1. Open the Windows® Vista™ Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower right corner of screen). Select
Connect to a network.
2. Highlight the wireless network (SSID) you would like to connect to and click
Connect.
D-Link DWR-111 User Manual
61
Section 5 - Connecting to a Wireless Network
3. Enter the same security key or passphrase that is on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the security settings are correct. The key or passphrase must be
exactly the same as on the wireless router.
D-Link DWR-111 User Manual
62
Section 5 - Connecting to a Wireless Network
Connect to a Wireless Network
Using Windows® XP
Windows® XP users may use the built-in wireless utility (Zero Configuration Utility). The following instructions are for Service Pack 2 users. If you are
using another company’s utility or Windows® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless
network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.
If you receive the Wireless Networks Detected bubble, click on the center of the
bubble to access the utility.
or
Right-click on the wireless computer icon in your system tray (lower-right corner
next to the time). Select View Available Wireless Networks.
The utility will display any available wireless networks in your area. Click on a
network (displayed using the SSID) and click the Connect button.
If you get a good signal but cannot access the Internet, check the TCP/IP settings
for your wireless adapter. Refer to the Networking Basics section in this manual
for more information.
D-Link DWR-111 User Manual
63
Section 5 - Connecting to a Wireless Network
Configure WEP
It is recommended to enable WEP on your wireless router or access point before configuring your wireless adapter. If you are joining an existing
network, you will need to know the WEP key being used.
1. Open the Windows® XP Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower-right corner of screen). Select
View Available Wireless Networks.
2. Highlight the wireless network (SSID) you would like to connect to
and click Connect.
D-Link DWR-111 User Manual
64
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the same WEP key that is
on your router and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WEP settings are correct. The WEP key must be exactly the same
as on the wireless router.
D-Link DWR-111 User Manual
65
Section 5 - Connecting to a Wireless Network
Configure WPA-PSK
It is recommended to enable WPA on your wireless router or access point before configuring your wireless adapter. If you are joining an existing
network, you will need to know the WPA key being used.
1. Open the Windows® XP Wireless Utility by right-clicking on the wireless
computer icon in your system tray (lower-right corner of screen). Select
View Available Wireless Networks.
2. Highlight the wireless network (SSID) you would like to connect to and
click Connect.
D-Link DWR-111 User Manual
66
Section 5 - Connecting to a Wireless Network
3. The Wireless Network Connection box will appear. Enter the WPA-PSK passphrase
and click Connect.
It may take 20-30 seconds to connect to the wireless network. If the connection fails,
please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be
exactly the same as on the wireless router.
D-Link DWR-111 User Manual
67
Section 6 - Troubleshooting
Troubleshooting
This chapter provides solutions to problems that can occur during the installation and operation of the DWR-111. Read the following descriptions
if you are having problems. (The examples below are illustrated in Windows® XP. If you have a different operating system, the screenshots on your
computer will look similar to the following examples.)
1. Why can’t I access the web-based configuration utility?
When entering the IP address of the D-Link router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be
connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to
connect to the web-based utility.
• Make sure you have an updated Java-enabled web browser. We recommend the following:
• Internet Explorer 6.0 or higher
• Netscape 8 or higher
• Mozilla 1.7.12 (5.0) or higher
• Opera 8.5 or higher
• Safari 1.2 or higher (with Java 1.3.1 or higher)
• Camino 0.8.4 or higher
• Firefox 1.5 or higher
• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a different cable or connect
to a different port on the device if possible. If the computer is turned off, the link light may not be on.
• Disable any internet security software running on the computer. Software firewalls such as Zone Alarm, Black Ice, Sygate, Norton Personal Firewall,
and Windows® XP firewall may block access to the configuration pages. Check the help files included with your firewall software for more information
on disabling or configuring it.
D-Link DWR-111 User Manual
68
Section 6 - Troubleshooting
• Configure your Internet settings:
• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the button to restore
the settings to their defaults.
• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing
is checked. Click OK.
• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.
• Close your web browser (if open) and open it.
• Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the
login page for your the web management.
• If you still cannot access the configuration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds and try accessing
the configuration. If you have multiple computers, try connecting using a different computer.
2. What can I do if I forgot my password?
If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the factory defaults.
To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip to hold the button
down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30 seconds to access the router. The default
IP address is 192.168.0.1. When logging in, the username is admin and leave the password box empty.
D-Link DWR-111 User Manual
69
Appendix A - Wireless Basics
Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your
home, business or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to
securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless
LANs are used increasingly in both home and office environments, and public areas such as airports, coffee shops and universities. Innovative ways
to utilize WLAN technology are helping people to work and communicate more efficiently. Increased mobility and the absence of cabling and other
fixed infrastructure have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support
the same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers
or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link.
D-Link DWR-111 User Manual
70
Appendix A - Wireless Basics
What is Wireless?
Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio frequency to connect
wirelessly, so you have the freedom to connect computers anywhere in your home or office network.
Why D-Link Wireless?
D -Link is the worldwide leader and award winning designer, developer, and manufac turer of net work ing produc ts.
D-Link delivers the performance you need at a price you can afford. D-Link has all the products you need to build your network.
How does wireless work?
Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless technology has
restrictions as to how you can access the network. You must be within the wireless network range area to be able to connect your computer. There
are two different types of wireless networks Wireless Local Area Network (WLAN), and Wireless Personal Area Network (WPAN).
Wireless Local Area Network (WLAN)
In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small antenna
attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen in the picture, the signal can
travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like manufacturing plants, industrial
locations, college and high school campuses, airports, golf courses, and many other outdoor venues.
Wireless Personal Area Network (WPAN)
Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30 feet away.
Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as much power which
makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other devices that operate on batteries.
D-Link DWR-111 User Manual
71
Appendix A - Wireless Basics
Who uses wireless?
Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a
wireless solution for it.
Home
• Gives everyone at home broadband access
• Surf the web, check e-mail, instant message, and etc
• Gets rid of the cables around the house
• Simple and easy to use
Small Office and Home Office
• Stay on top of everything at home as you would at office
• Remotely access your office network from home
• Share Internet connection and printer with multiple computers
• No need to dedicate office space
D-Link DWR-111 User Manual
72
Appendix A - Wireless Basics
Where is wireless used?
Wireless technology is expanding everywhere not just at home or office. People like the freedom of mobility and it’s becoming so popular that
more and more public facilities now provide wireless access to attract people. The wireless connection in public places is usually called “hotspots”.
Using a D-Link Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like Airports, Hotels,
Coffee Shops, Libraries, Restaurants, and Convention Centers.
Wireless network is easy to setup, but if you’re installing it for the first time it could be quite a task not knowing where to start. That’s why we’ve put
together a few setup steps and tips to help you through the process of setting up a wireless network.
Tips
Here are a few things to keep in mind, when you install a wireless network.
Centralize your Router or Access Point
Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access
point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home, you may need a repeater
to boost the signal to extend the range.
Eliminate Interference
Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access point. This would
significantly reduce any interference that the appliances might cause since they operate on same frequency.
Security
Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the WPA or WEP
security feature on the router. Refer to product manual for detail information on how to set it up.
D-Link DWR-111 User Manual
73
Appendix A - Wireless Basics
Wireless Modes
There are basically two modes of networking:
• Infrastructure – All wireless clients will connect to an access point or wireless router.
• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each
computer, such as two or more WNA-2330 wireless network Cardbus adapters.
An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access
point.
An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate.
D-Link DWR-111 User Manual
74
Appendix B - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless
router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK. (Windows® Vista™ users type cmd in the Start Search box.)
At the prompt, type ipconfig and press Enter.
This will display the IP address, subnet mask, and the default
gateway of your adapter.
If the address is 0.0.0.0, check your adapter installation, security
settings, and the settings on your router. Some firewall software
programs may block a DHCP request on newly installed
adapters.
D-Link DWR-111 User Manual
75
Appendix B - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:
Step 1
Windows® Vista™ -
Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage Network Connections.
®
Windows XP -
Click on Start > Control Panel > Network Connections.
Windows® 2000 -
From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address 192.168.0.X where X is a number between 2 and 99. Make sure that the
number you choose is not in use on the network. Set Default Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not needed or you may enter a DNS server from
your ISP.
Step 5
Click OK twice to save your settings.
D-Link DWR-111 User Manual
76
Appendix C - Technical Specifications
Technical Specifications
Data Rates **
ƒƒ 1/2/5.5/11 Mbps in 802.11b mode
ƒƒ 6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode
ƒƒ Up to 150 Mbps in 802.11n mode
Ports
ƒƒ 1 x LAN (RJ-45)
ƒƒ 1 x WAN
ƒƒ 1 x USB
Standards
ƒƒ IEEE 802.11b
ƒƒ IEEE 802.11g
ƒƒ IEEE 802.3
ƒƒ IEEE 802.3u
LED Status Indicators
ƒƒ Power
ƒƒ Internet
ƒƒ Wi-Fi
ƒƒ LAN
ƒƒ USB
ƒƒ WAN
Frequency
ƒƒ 2.4 - 2.4835 GHz
Wireless Security
ƒƒ 64/128-bit WEP (Wired Equivalent Privacy)
ƒƒ WPA & WPA2 (Wi-Fi Protected Access)
Firewall
ƒƒ IP Filtering
ƒƒ Network Address Translation (NAT)
ƒƒ MAC Filtering
VPN
ƒƒ L2TP/PPTP/IPsec VPN passthrough
Antenna
ƒƒ 1 Internal Wi-Fi antenna
D-Link DWR-111 User Manual
Power
ƒƒ External 12V DC 0.5 A power adapter
Dimensions (L x W x H)
ƒƒ 110 x 37 x 98 mm (4.33 x 1.45 x 3.85 inches)
Weight
ƒƒ 240 grams (0.52 lbs)
Operating Temperature
ƒƒ 0 to 40 ˚C (32 to 104 ˚F)
Operating Humidity
ƒƒ 10% to 95% non-condensing
77
Appendix C - Technical Specifications
Certifications
ƒƒ CE
ƒƒ Wi-Fi Certified
* Supported frequency band is dependent upon regional hardware version.
** Maximum wireless signal rate derived from IEEE Standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental
factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental
factors will adversely affect wireless signal range.
D-Link DWR-111 User Manual
78
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
