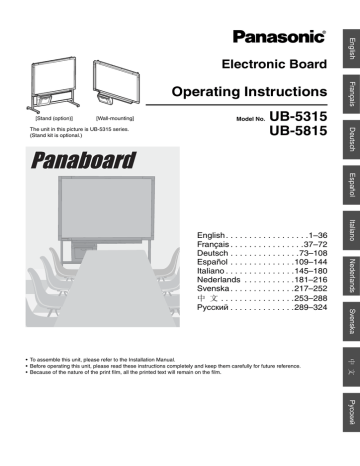

UB-5x15 Operating Instructions (English)

UB-5x15 Operating Instructions (English)

[Stand (option)] [Wall-mounting]

The unit in this picture is UB-5315 series.

(Stand kit is optional.)

Electronic Board

Operating Instructions

Model No.

UB-5315

UB-5815

English . . . . . . . . . . . . . . . . . .1–36

Français . . . . . . . . . . . . . . . .37–72

Deutsch . . . . . . . . . . . . . . .73–108

Español . . . . . . . . . . . . . .109–144

Italiano . . . . . . . . . . . . . . .145–180

Nederlands . . . . . . . . . . .181–216

Svenska . . . . . . . . . . . . . .217–252

中 文 . . . . . . . . . . . . . . . .253–288

Русский . . . . . . . . . . . . . .289–324

• To assemble this unit, please refer to the Installation Manual.

• Before operating this unit, please read these instructions completely and keep them carefully for future reference.

• Because of the nature of the print film, all the printed text will remain on the film.

Thank you for purchasing the Panasonic Electronic Board.

For optimum performance and safety, please read these instructions carefully.

Record these items for future reference

Model number: _________________________

Serial number: _________________________

Date of purchase: ________________________

Dealer’s name: __________________________

Accessories

Q’ty

• Thermal transfer film . . . . . . . . . . . . . . 1

• Markers (red, black, and blue) . . . . . . 1 each

• Operating Instructions . . . . . . . . . . . . . 1

• Installation Manual . . . . . . . . . . . . . . . 1

• Eraser . . . . . . . . . . . . . . . . . . . . . . 1

Q’ty

• Power cord . . . . . . . . . . . . . . . . . . . 1

• A4 (Letter*) size copy paper . . . . . . . . . 20

• Software CD-ROM . . . . . . . . . . . . . . . 1

• Software License Agreement . . . . . . . . . . 1

* Letter size is for U.S.A. and Canada models.

* The stand is optional. By way of example, this manual describes an Electronic Board which is used with the stand.

* USB cable is not included.

2

• Microsoft, Windows and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Windows

®

is Microsoft

®

Windows

®

operating system.

Screen shots reprinted with permission from Microsoft Corporation.

• IBM is a registered trademark of International Business Machines Corporation.

• Pentium is a registered trademark of Intel Corporation in the U.S. and other countries.

• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

• All trademarks referred to in this manual are property of their respective companies.

The information given in this Operating Instructions is subject to change without notice.

Warning about saving data

When the system storage device or any of its optional storage device is adversely effected by operational errors, static electricity, electrical noise, vibration, dust or when the power has been cut off due to malfunction, repair or inadvertently, the memory contents may be lost or changed. Before operating the system, make a point of reading the precautionary notes in the Operating Instructions and the help information, and observe them during operation.

Please observe carefully the following precaution:

• Make absolutely sure that all important data is saved by back-up or the original is saved.

The manufacturer hereby declares that it cannot be held accountable for any loss or change in any data stored on floppy disks, hard disks, optical disks, or other memory devices.

Before

You Start

Using

Help

Table of Contents

Page

For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

• CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

• Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the Thermal Transfer Film . . . . . . . . . . . . . . . . . . . . . . 10

Loading Copy Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Making Copies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

• Copy types and procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Replacing the Thermal Transfer Film . . . . . . . . . . . . . . . . . . . . . 16

Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Screen Height Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Computer Interfacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

• System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

• Contents of CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

• Connecting the unit to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

• Installing the driver and software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

• Removing the driver and software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

• Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

• Panaboard Operation Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

• Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Daily Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

• Cleaning the screen and the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

• Caring for the eraser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

• Cleaning the printer head, platen roller and pick-up roller . . . . . . . . . . . . . . . 32

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

• Meanings of error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

• Option and Separately available . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3

For Your Safety

4

English

CAUTION:

TO PREVENT RISK OF ELECTRIC SHOCK

HAZARD, DO NOT REMOVE THE COVER OF THIS

PRODUCT, REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS PRODUCT TO RAIN OR ANY TYPE

OF MOISTURE.

THE SOCKET-OUTLET MUST BE NEAR THIS

EQUIPMENT AND MUST BE EASILY ACCESSIBLE.

The product should be used only with the power cord that is supplied by the manufacturer.

• (220–240 V equipment)

A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply cord is not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227

(designation H05VV-F 3G 1.0 mm

2

).

CLASS 1 LED PRODUCT

For users in the United Kingdom only

Safety Information

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp. fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amps. and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the

BSI mark on the body of the fuse. If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safely.

There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp. socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

WARNING:

This appliance must be earthed.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code.

Green-and-Yellow: Earth

Blue:

Brown:

Neutral

Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured Green-and-Yellow must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol or coloured

Green or Green-and-Yellow.

The wire which is coloured Blue must be connected to the terminal in the plug which is marked with the letter N or coloured Black.

The wire which is coloured Brown must be connected to the terminal in the plug which is marked with the letter L or coloured Red.

How to replace the fuse:

Open the fuse compartment with a screwdriver and replace the fuse.

Für Benutzer in der BRD

Hinweis:

Der arbeitsplatzbezogene Geräuschemissionswert dieses

Gerätes beträgt 70 dB(A) nach DIN 45635 Teil 19.

Precautions

Never remove the cover, take apart or modify the product. This will void the warranty.

Do not position the electronic board in a location where it is unstable.

Do not put drinks, other liquids or heavy items on the tray or screen.

After installing or moving the electronic board, lock the casters and set the fall-prevention extension legs.

Push to lock

Do not use the electronic board in an excessively humid or dusty location.

Locking the casters

(Push this side)

If the electronic board is not going to be used for an extended period of time (e.g., during extended holidays), turn off the power and remove the plug from the wall outlet.

5

Precautions

Do not lean against the screen or on the cover (lower), even if the electronic board is mounted on the wall.

The screen height must be adjusted by two people.

6

Confirm both sides of the screen are hung in the same height slots.

Make sure to tighten the height adjustment handles after adjusting the screen height.

Slot 3

Slot 2

Slot 1

Slot 3

Slot 2

Slot 1

Tighten the height adjustment handles

Tighten the height adjustment handles

CD-ROM

To prevent the CD-ROMs from accidental damages:

Do not touch or write on the surface of the disc.

Do not leave the disc out of the protective case.

Do not leave the disc in direct sunlight or near heat sources.

Do not place heavy objects on the disc case or drop the case.

To clean the disc, hold the disc by its edges and wipe it from the center to the edges with a dry, soft cloth.

Precautions

Installation

Screen Film

Markers,

Erasers and

Thermal

Transfer Film

Power Cord

Replacing the Thermal

Transfer Film

USB Cable

• Do not install the unit where it may be exposed to direct sunlight, near heating equipment, or near air-conditioning vents as this may cause stretching and/or discoloration of the screen.

• Do not install the unit in strong sunlight or strong lighting. Proper copying may become impossible.

• Do not install the unit in locations where the temperature may change suddenly as this may disable the unit’s ability to make copies.

• Make thick and dark lines inside the copying area. Note that any writing inside the shaded area (on right) cannot be copied.

25 mm

• Do not allow writing to remain on the screen for

0 mm

Copying area

an extended period of time as it will become harder to erase.

25 mm

• Do not touch the screen, write with markers, or erase while the screen is moving as this may result in damage to the unit.

12.5 mm

• Use only the included or designated markers, erasers and thermal transfer film.

(See page 36.)

Use of accessories other than those included or designated (such as oil-based markers) may damage the screen or result in hard-to-erase markings.

• Do not store the thermal transfer film in a location subject to extreme changes in temperature (such as near air conditioning or heating equipment) as this may cause condensation on the thermal transfer film and result in poor print quality and/or paper jams.

• The length of one roll of designated thermal transfer film (Replacement film: UG-

6001) is approximately 50 meters. One roll of thermal transfer film can make approximately 150 sheets of copies.

Note that the total number of copies may differ depending on the operating conditions.

Also note that the length of the thermal transfer film supplied with the unit is shorter than the replacement film roll and is only approximately 10 meters.

• Store markers horizontally as vertical storage may stop the ink from coming out.

• When moving the unit, disconnect the power cord from the electrical power socket and from the printer’s power connector and coil it for transportation as stepping on the power cord or having it catch on something during movement may result in damage to the cord.

• Dispose of the used thermal transfer film in a trash receptacle for burnable trash.

• A negative of the copied image will remain on the thermal transfer film. (To protect the security of your information, we recommend cutting up the used thermal transfer film with scissors or shredder before disposing of it.)

• Use a shielded USB cable that is certified as logo by USB-IF.

• If you connect the electronic board to a USB hub, it is not guaranteed to work.

7

Part Names and Functions

Scanner

Stand

The stand is optional.

Screen Film

Tray

Output Port

This port holds up to 10 sheets of output paper.

Printer Open Lever

Push down this lever to open the printer door.

8

USB Connector

(See page 22.)

Paper Cover

Open this cover to load copy paper.

Printer Door

Open this door to load a thermal transfer film or to remove jammed paper.

(See pages 10, 17.)

Control Panel

(See page 9 for details.)

Power Switch

ON

OFF

AC Inlet

Cord Holder

Power Cord

Control panel

Contrast/Remaining Film

Indicator

Part Names and Functions

Advance Key

Copy Key

Panel

Contrast Key

2-Screen Copy Key

Name

Contrast/

Remaining

Film

Indicator

Contrast

Key

2-Screen

Copy Key

Multi-Copy/

Error

Indicator

Multi-Copy/Stop Key

Multi-Copy/Error Indicator

Description

This lamp indicator notifies the user when the time to replace the thermal transfer film is approaching (estimated) and of the printing contrast used during copying.

Indicator off:

Indicator on:

Normal printing contrast

Darker than normal printing contrast

Indicator flashing*: Almost time to replace the thermal transfer film

(Note that only about 15 more sheets may be copied when this indicator starts flashing.)

Replacement film (UG-6001) is separately available from the dealer where you purchased your unit.

* The flashing indicator will go out after the power is turned off and the printer has been opened and closed. (When copying is performed, this indicator will begin flashing again.)

Each time this key is pressed, the unit will alternate between normal and dark contrast modes (Normal/Dark).

This key causes the front and back of the screen to be copied on a single sheet of paper.

This indicator displays the number of copies to be made. The display changes each time the Multi-Copy/Stop Key is pressed.

Multi-Copy/

Stop Key

When an error occurred, a flashing symbol will appear in this display to

indicate the error status. (See page 35.)

When making multiple copies, press this key until the desired number of copies is displayed on the Multi-Copy/Error Indicator.

This key can also be pressed while multiple copies are being made to stop the copying process. The display indication changes while multiple copies are being made as shown below.

After reaching 0, the display will reset to 1.

(countdown display during copying)

Copy Key

This key causes the screen to be copied.

Advance

Key

This key advances the screen from right to left.

9

10

Installing the Thermal Transfer Film

Install the thermal transfer film in the printer.

1

Set the power switch to on ( I ).

• “ ” will flash on the Multi-Copy/Error Indicator when the thermal transfer film has run out.

ON

OFF

2

Push down the printer open lever and open the printer door.

3

Printer door

Install the thermal transfer film.

1) Set the thermal transfer film, with the blue gear in front, on the right.

Blue gear

2) Insert the blue shaft into the front left hole.

Blue shaft

Installing the Thermal Transfer Film

3) Place the blue gear on the front right groove.

Blue gear

4) Place the white shaft on both sides of the back grooves.

4

Latches

White shaft

Tighten the film, then close the printer door.

1) Rotate the blue gear in the direction of the arrow to take up the slack on the film.

• If a slack remains, perform step 3-2) through 4-1) again.

Blue gear

2) Securely close the printer door by using both hands until a click is heard.

• “ ” flashing on the Multi-Copy/Error Indicator will go out.

Notes

• If “ ” is still flashing after closing the printer door, make sure that the thermal transfer film has been installed properly and tightened.

• The printer door should be closed to make copies properly. Confirm both latches are locked.

11

12

Loading Copy Paper

It is possible to load up to 40 sheets of A4 (Letter*) size copy paper (assuming a paper weight of 80 g/m

2

).

Note that only A4 (Letter*) size paper may be used.

When the unit is first used or when “ ” flashes on the Multi-Copy/Error Indicator to indicate that the unit is out of paper, load copy paper as described below.

* Letter size is for U.S.A. and Canada models.

Notes on Loading Copy Paper

Follow the guidelines below to ensure smooth and accurate printing by the unit.

• Only use A4 (Letter) size copy paper having a weight of 60 to 90 g/m

2

as the copy paper for this unit.

• Do not simultaneously load paper of varying type and thickness as this may result in paper jams.

• Before adding copy paper, be sure to remove all the copy paper remaining inside the unit’s paper cover. (Note that copy paper will slightly resist being removed, but may be pulled out without problems.)

After removing the copy paper, stack the removed paper together with the new paper, fan it thoroughly, square it and reload.

DO NOT USE THE FOLLOWING TYPES OF PAPER

• Extremely smooth or glossy paper

• Coated paper

• Thermal paper

• Paper that is printed on one side

• Wrinkled paper, creased paper, etc.

1

ON

OFF

Set the power switch to on ( I ).

• “ ” will flash on the Multi-Copy/Error Indicator when copy paper has run out.

2

Pull the paper cover forward as shown in the left figure.

3

4

Guide

Maximum paper limit

Loading Copy Paper

To prevent paper jams such as those caused by multiple sheets feeding at once, fan the paper thoroughly, square it, align it with the guide inside, and insert as far as it will go.

Notes

• Only use A4 (Letter*) size copying paper having a

weight of 60 to 90 g/m

2

as the copy paper for this unit.

* Letter size is for U.S.A. and Canada models.

• Do not stack more copy paper in the unit than the maximum paper limit indicated by the guide (see figure to the left) as this may result in paper jams. (Note that the unit can hold about 40 sheets of paper having a weight of 80 g/m

2

.)

Close the paper cover until a click is heard.

Notes

• Close the paper cover, or the unit will not work properly.

• The paper cover should be closed to make copies properly. Confirm the both latches are locked.

13

14

Making Copies

This section describes how to copy text and illustrations drawn on the screen.

1

Set the power switch to on ( I ).

• “ ” will light on the Multi-Copy/Error Indicator to indicate that the unit is ready to copy.

ON

OFF

2

Press the Copy Key .

• Text and illustrations on the screen will be copied and copies emerge from the output port.

• The output port can hold up to 10 sheets of copy paper.

(Note that exceeding the output port’s capacity may result in paper jams.)

• For details on making multiple copies, 2-screen copies

and so on, see page 15.

Notes

• Do not use paper that has been copied on one side by this printer as copy paper in this unit or in any other copiers or printers as this may result in dirty rollers, degradation of printing quality, paper jams, and streaks and smudges on output paper.

• Do not write on the output paper from this unit with the printed side down. The ink on the printed side will be copied on the surface underneath the output paper.

• Text or images in shades of yellow will not copy.

Making Copies

Copy types and procedures

Copy Type

Copying the front of the screen

Copying the back of the screen

Making multiple copies (up to 9)

Press .

Procedure

Press to move the screen to be copied to the front.

Press .

Select the number of copies (1 to 9) by pressing as necessary.

Press .

• Press to stop copying in mid-operation.

Press .

Making 2-screen copies

• Copying the front and back of the screen on a single sheet of paper

Copying chart paper

Chart paper can be attached to the screen as shown in the figure and copied. (Be sure to take the chart off the screen soon after copying is finished.)

• Wrinkles, slackness or folds in the chart when attached to the screen will show up in copies as dark shadows.

• Affix it to the screen with drafting tape made by 3M

® or other similar tape with medium adhesive.

3M

®

is a registered trademark of 3M Corporation.

15

16

Replacing the Thermal Transfer Film

The unit is capable of producing about 15 more copies when the Contrast/Remaining Film Indicator begins to flash.

The unit has run out of thermal transfer film and can no longer make copies when the Multi-Copy/Error Indicator flashes “ ”. Separately available replacement film (UG-6001) may be purchased from the dealer where you purchased the unit. Thermal transfer film is replaced as follows.

Notes on Replacing Thermal Transfer Film

• Only use the designated product (UG-6001) from Panasonic as the replacement film. (Note that using another type of replacement film may result in degraded printing quality or damage to the unit.)

• Thermal transfer film is disposable. Dispose of used thermal transfer film as burnable or nonrecyclable rubbish.

• A negative of the copied image will remain on the thermal transfer film. To protect the security of your information, we recommend cutting up the used thermal transfer film with scissors or shredder before disposing of it.

1

Push down the printer open lever to open the printer door, and remove the used film.

2

Refer to steps 3 and 4 in the section of “Installing

the Thermal Transfer Film” on pages 10, 11.

Notes

• If “ ” is still flashing after closing the printer door, make sure that the thermal transfer film has been installed properly and tightened.

• The printer door should be closed to make copies properly. Confirm both latches are locked.

Paper Jams

Remove paper jams by the following procedure when copy paper does not come out of the output port or when flashes on the Multi-Copy/Error Indicator.

1

Push down the printer open lever to open the printer door.

2

Remove the thermal transfer film with both hands.

3

Jammed paper

Remove the jammed paper.

17

18

Paper Jams

4

Install the thermal transfer film.

• Refer to steps 3 and 4 in the section of “Installing the

Thermal Transfer Film” on pages 10, 11.

• “ ” flashing on the Multi-Copy/Error Indicator will go out.

Notes

• If “ ” is still flashing after closing the printer door, make sure that the thermal transfer film has been installed properly and tightened.

• The printer door should be closed to make copies properly. Confirm both latches are locked.

If the flashing does not go out after the foregoing procedure has been performed; this may indicate that the paper feeder is not functioning properly.

Reload the copy paper by following the steps given below.

1

Turn the power off.

ON

OFF

2

Open the paper cover and remove all the copy paper remaining inside the unit’s paper cover.

Note

• The copy paper will slightly resist being removed, but may be pulled out without problems.

3

4

5

Paper Jams

To prevent paper jams such as those caused by multiple sheets feeding at once, fan the paper thoroughly, square it, align it with the guide inside, and insert as far as it will go.

Note

• Do not stack more copy paper in the unit than the maximum paper limit indicated by the guide (see figure to the left) as this may result in paper jams. (Note that the unit can hold about 40 sheets of paper having a weight of 80 g/m

2

.)

Guide

Maximum paper limit

Close the paper cover.

Notes

• Close the paper cover, or the unit will not work properly.

• The paper cover should be closed to make copies properly. Confirm the both latches are locked.

Turn the power on.

ON

OFF

19

20

Screen Height Adjustment

The screen can be adjusted at 3 levels except for the lowest level. The lowest level of the board attachment frame is designed for installation of the screen, so the printer cannot be attached at this level. Adjust the level of the screen unit as follows.

Please lock the casters when you adjust the screen height. (Refer to page 5.)

1

Loosen the height adjustment handles.

Height adjustment handles

Height adjustment handles

2

Board attachment

(lower)

Slide groove

Down

Hang the step frame on the reinforce pipe and lift the board attachment (lower) by stepping on the step frame.

Slide along the slide groove.

The screen height must be adjusted by two people.

Step frame

Reinforce pipe

Lift

3

Slot 4

Slot 3

Slot 2

Slot 1

Hang the screen in the desired slots of the slide plates.

Slot

Slot 1

Slot 2

Slot 3

Adjustment

Available

Available

Available

Slot 4 Cannot be used

Screen Height

2000 mm

1875 mm

1750 mm

Do not use slot 4.

Slot 4 cannot be used for screen height adjustment.

Confirm both sides of the screen are hung in the same height slots securely.

4

Height adjustment handles

5

Step frame

Board attachment

(upper)

Height adjustment handles

Screen Height Adjustment

Tighten the height adjustment handles.

Be sure to tighten the height adjustment handles firmly after adjusting the level of the screen.

Keep the step frame by hanging it on the board attachment (upper).

21

Computer Interfacing

• Panasonic Document Management System (hereafter Panasonic-DMS) uses the TWAIN driver to scan images drawn on the screen.

• The Panasonic-DMS has a capability of managing documents (image files).

• The printer driver allows the printer to print documents from your computer.

System requirements

Computer

CPU

IBM

®

PC/AT or compatible machine with a CD-ROM drive

Pentium

®

II or higher processor

Interface

OS

USB 1.1 (B connector)

Windows

®

98 / Windows

®

Millennium Edition / Windows

®

2000 / Windows

®

XP

Memory

64 MB or more (Windows 98/Me)

128 MB or more (Windows 2000)

256 MB or more (Windows XP)

At least 40 MB free space (except saving space for image file)

HD

* The computer interfacing function of the UB-5315/UB-5815 is not available in Windows NT® 4.0.

* If you connect the electronic board to a USB hub, it is not guaranteed to work.

* Please note that if more than one Panasonic electronic boards are connected in a USB tree, only one of those electronic boards will perform the computer interfacing.

Contents of CD-ROM

The provided CD-ROM includes the following items.

• USB driver

• Printer driver

• Panasonic-DMS software

• TWAIN driver

• View Manuals

• Adobe

®

Acrobat

®

Reader

Connecting the unit to a computer

Power on the electronic board, and connect the unit and your computer with a USB cable.

Caution:

* Use a shielded USB cable that is certified as logo by USB-IF.

22

USB cable

To your computer

When you connect the unit for the first time, install the USB and Printer driver to your computer.

• Windows 98

→ Page 23

• Windows Me

→ Page 24

• Windows 2000

→ Page 26

• Windows XP

→ Page 27

* When using Windows 98 or Windows Me, a floppy disk or CD-ROM for installing the operating system will also

be necessary. (See page 25.)

Installing the driver and software

Installing the USB and Printer driver

Windows 98

1

Power on your computer and start

Windows.

2

Power on the electronic board, and connect the unit and your computer with a USB cable.

3

When “USB Composite Device” is detected, click the [Next] button.

4

Click on the “Search for the best

driver for your device.

(Recommended).” check button and click the [Next] button.

5

Insert the CD-ROM into the CD-ROM drive. When the Setup window appears, click the (close button) to close it.

6

Select the “Specify a location:” only, then specify “D (CD-ROM drive letter):

\UB-5xxx\UsbDrv\Win98-Me” in the text box, and click the [Next] button.

• Do not select the CD-ROM drive. It may cause installing a wrong USB driver.

7

When the driver is found, click the

[Next] button.

8

When the installation of “USB

Composite Device” driver is completed, click the [Finish] button.

Computer Interfacing

9

When “Unknown Device”** is detected, click the [Next] button.

10

Click on the “Search for the best driver

for your device. (Recommended).” check button and click the [Next] button.

11

Confirm that the “Specify a location:” is the same as step 6, click the [Next] button.

12

When the driver is found, click the

[Next] button.

13

When the installation of “USB Printing

Support” is completed, click the

[Finish] button.

14

When “Unknown Device”** is detected again, repeat steps 9 to 13 to install

“Panaboard-UB5 USB Device Driver”.

15

When “PanasonicPanaboard-UB5

USB Printer (A4/Letter)* is detected, click the [Next] button.

16

Click on the “Search for the best driver

for your device. (Recommended).” check button and click the [Next] button.

17

Confirm that the “Specify a location:” is the same as step 6, click the [Next] button.

18

When the driver is found, click the

[Next] button.

19

Follow the on-screen instructions when the “Add Printer Wizard” executes.

20

When the installation of “Panaboard-

UB5 USB Printer (A4/Letter)* driver is completed, click the [Finish] button.

* A4 or Letter changes with the models.

** In the case of Windows 98 Second Edition,

“Panaboard-UB5 USB Device” is detected.

• A floppy disk or CD-ROM for installing the operating

system will also be necessary. (See page 25.)

23

Computer Interfacing

Windows Me

1

Power on your computer and start

Windows.

2

Power on the electronic board, and connect the unit and your computer with a USB cable.

3

When “Panaboard-UB5 USB Device” is detected, click on the “Specify the

location of the driver (Advanced)”

check button and click the [Next] button.

4

Insert the CD-ROM into the CD-ROM drive. When the Setup window appears, click the (close button) to close it.

5

Select the “Specify a location:” only, then specify “D (CD-ROM drive letter):

\UB-5xxx\UsbDrv\Win98-Me” in the text box, and click the [Next] button.

• Do not select the CD-ROM drive. It may cause installing a wrong USB driver.

9

Confirm that the “Specify a location:” is the same as step 5, click the [Next] button.

10

When the driver is found, click the

[Next] button.

11

When the installation of “USB Printing

Support” is completed, click the

[Finish] button.

12

When “PanasonicPanaboard-UB5

USB Printer (A4/Letter)* is detected, click on the “Specify the location of

the driver (Advanced)” check button and click the [Next] button.

13

Confirm that the “Specify a location:” is the same as step 5, click the [Next] button.

14

When the driver is found, click the

[Next] button.

15

Follow the on-screen instructions when the “Add Printer Wizard” executes.

16

When the installation of “Panaboard-

UB5 USB Printer (A4/Letter)* driver is completed, click the [Finish] button.

* A4 or Letter changes with the models.

• A floppy disk or CD-ROM for installing the operating

system will also be necessary. (See page 25.)

24

6

When the driver is found, click the

[Next] button.

7

When the installation of “Panaboard-

UB5 USB Device Driver” is completed, click the [Finish] button.

8

When “Panaboard-UB5 USB Printer” is detected, click on the “Specify the

location of the driver (Advanced)” check button and click the [Next] button.

Note

Special Note for Windows 98/Me

If your computer had Windows 98/Me pre-installed and the original Windows 98/Me CD-ROM or diskettes were not included. In this situation, please try to locate the necessary files by following the methods described below or refer to your computer’s User’s

Guide for more details.

Method-1:

Specify the Windows 98/Me backup file location in the hard disk of your computer.

Generally, the Windows 98/Me backup files are located in the “WINDOWS\OPTIONS\CABS” folder.

Type “C:\WINDOWS\OPTIONS\CABS” in the [Copy files from:] box on the “Copying Files...” dialog box, where “C:” is your Windows 98/Me boot drive and then click the [OK] button.

If the necessary files are found, the installation will proceed.

Otherwise, click the [Details...] button, a dialog box appears as shown below including the cabinet file name (*.CAB listed under the Description File) that contains the necessary file.

In this example, the cabinet file name is

“DRIVER20.CAB”. (Note that the cabinet file name may vary depending on your computer.)

Computer Interfacing

To search for the file in your computer

1

Click the [Start] button on the Task Bar and then click on [Find][Files or

Folders...] (Windows 98) or [Search]

[For Files or Folders...] (Windows Me).

2

A dialog box appears prompting for a file name to be searched, type

“DRIVER*.CAB” in the [Named:]

(Windows 98) or [Search for files or

folders named:] (Windows Me) box, choose “C:” in the [Look in:] box and check the box for [Include subfolders]

(only for Windows 98).

3

Click the [Find Now] (Windows 98) or

[Search Now] (Windows Me) button.

When the cabinet file is found, make a note of the folder name where the file is located.

4

Return to the “Copying Files...” dialog box and type the folder name in the

[Copy files from:] box. For example, type “C:\WINDOWS\OPTIONS\CABS”.

Then click the [OK] button.

Method-2:

Create the Windows 98/Me backup diskettes and then specify the diskettes.

Depending on the computer, there is usually a tool from the manufacturer to create the Windows 98/Me backup diskettes in a Windows 98/Me pre-installed system. Please refer to your PC’s User’s Guide for more details on this tool.

Create the Window 98/Me backup diskettes by using this tool, and then install the USB and Printer driver by following the procedures from Step 1.

25

26

Computer Interfacing

Windows 2000

1

Power on your computer and start

Windows.

• Log on as an administrator.

2

Power on the electronic board, and connect the unit and your computer with a USB cable.

3

When “Welcome to the Found New

Hardware Wizard” dialog box appears, click the [Next] button.

4

When “Panaboard-UB5 USB Device” is detected, click on the “Search for a

suitable driver for my device

(Recommended)” check button and click the [Next] button.

5

Insert the CD-ROM into the CD-ROM drive. When the Setup window appears, click the (close button) to close it.

6

Select the “Specify a location” only, then click the [Next] button.

• Do not select the CD-ROM drive. It may cause installing a wrong USB driver.

9

Although “Digital Signature Not

Found” dialog box appears, click the

[Yes] button to continue the installation.

10

When the installation of “Panaboard-

UB5 USB Device Driver” is completed, click the [Finish] button.

11

When “Welcome to the Found New

Hardware Wizard” dialog box appears again, click the [Next] button.

12

When “Unknown” is detected, click on the “Search for a suitable driver for

my device (recommended)” check button and click the [Next] button.

13

Select the “Specify a location” only, then click the [Next] button.

• Do not select the CD-ROM drive. It may cause installing a wrong USB driver.

14

Confirm that the “Copy

manufacturer’s files from:” is the same as step 7, click the [OK] button.

15

When the driver is found, click the

[Next] button.

16

Although “Digital Signature Not

Found” dialog box appears, click the

[Yes] button to continue the installation.

17

When the installation of “Panaboard-

UB5 USB Printer (A4/Letter)* driver is completed, click the [Finish] button.

• The standard printer name is “Panaboard-UB5 USB

Printer (A4/Letter)*”.

* A4 or Letter changes with the models.

7

Specify “E (CD-ROM drive letter):

\UB-5xxx\UsbDrv\Win2K-XP” in the text box, and click the [OK] button.

8

When the driver is found, click the

[Next] button.

Windows XP

1

Power on your computer and start

Windows.

• Log on as an administrator.

2

Power on the electronic board, and connect the unit and your computer with a USB cable.

3

When “Panaboard-UB5 USB Device” is detected, click on the “Install from a

list or specific location (Advanced)” check button and click the [Next] button.

4

Insert the CD-ROM into the CD-ROM drive. When the Setup window appears, click the (close button) to close it.

5

Select the “Include this location in

the search:” only, then specify

“E (CD-ROM drive letter):

\UB-5xxx\UsbDrv\Win2K-XP” in the text box, and click the [Next] button.

• Do not select the CD-ROM drive. It may cause installing a wrong USB driver.

Computer Interfacing

8

When “Panasonic Panaboard-UB5

USB Printer (A4/Letter)* is detected, click on the “Install from a list or

specific location (Advanced)” check button and click the [Next] button.

9

Confirm that the “Include this location

in the search:” is the same as step 5, click the [Next] button.

10

Although the “Hardware Installation” dialog box appears, click the [Continue

Anyway] button to continue the installation.

11

When the installation of “Panaboard-

UB5 USB Printer (A4/Letter)* driver is completed, click the [Finish] button.

• The standard printer name is “Panaboard-UB5 USB

Printer (A4/Letter)*”.

* A4 or Letter changes with the models.

6

Although the “Hardware Installation” dialog box appears, click the [Continue

Anyway] button to continue the installation.

7

When the installation of “Panaboard-

UB5 USB Device Driver” is completed, click the [Finish] button.

27

Computer Interfacing

Installing Panasonic-DMS software and

TWAIN driver

When an old version of Panasonic-DMS is already installed, remove it and install the new version of the software in the same folder.

1

Power on your computer and start

Windows.

• Log on as an administrator for Windows

2000 or Windows XP.

2

Insert the CD-ROM into the CD-ROM drive. The Setup window will appear automatically.

• Depending on the operating system or the settings that you are using, the Setup window may not appear automatically.

In such a case, execute “menu.exe” in the

CD-ROM from the Explorer.

3

Click on the desired language.

• Even when French, Spanish or Italian is chosen, the TWAIN driver of the English version is installed.

6

Click the [Install Panasonic-DMS

Software] button.

7

Enter the installation destination and click the [Next] button.

8

Enter the data folder and click the

[Next] button.

9

Select “UB-5xxx” and click the [>>] button. Select and add other products that use Panasonic-DMS software .

Then, click the [Next] button.

28

4

When “Welcome” dialog box appear, click the [Next] button.

5

Click the [Panasonic-DMS] button.

• Click [Adobe Acrobat Reader 5.0] to install the Acrobat Reader. To read the operating instructions, the Acrobat Reader must be installed in your computer.

10

When “Select Setup Type” dialog box appear, click the [Typical] button.

11

Enter the program folder name and click the [Next] button.

12

When the setup process is completed and a message is displayed prompting you to restart your computer, restart

Windows.

• Log on as an administrator for Windows

2000 or Windows XP.

• About the Document Manager, refer to the

Document Manager System operating instructions in the CD-ROM.

Removing the driver and software

Removing Panasonic-DMS software and TWAIN driver

If you need to remove the Panasonic-DMS software and TWAIN driver, perform the following steps.

1

Power on your computer and start

Windows.

• Log on as an administrator for Windows

2000 or Windows XP.

2

Click [Start], move the pointer to

[Programs][Panasonic][Panasonic

Document Management System]

[Uninstall].

(For Windows XP, [All Programs] instead of [Programs].)

3

Select the [Remove] check button and click the [Next] button.

4

Follow the instructions on the screen.

5

After uninstalling, restart your computer.

Scanning

You can scan images on the screen to your computer by operating Panasonic-DMS.

1

Click [Start], move the pointer to

[Programs][Panasonic][Panasonic

Document Management System]

[Document Manager].

(For Windows XP, [All Programs] instead of [Programs].)

• The Panasonic-DMS software runs.

2

Click the [File] menu, then click [Select

Source...].

3

Select [Panaboard-UB5 USB TWAIN

Driver] and click the [Select] button.

Computer Interfacing

4

Click the [File] menu, then click

[Acquire Image...], or click the

(scanner) icon on the Toolbar.

• The Panaboard Operation Panel will appear.

Note

• When the Panaboard Operation Panel is not displayed, check the USB cable connection or the condition of the electronic board.

5

Click the (Scan) button or the

(2-Screen Scan) button.

• Scanning starts and the scanned image will be displayed on the screen of the computer. It is also possible to start scanning using the Copy Key or 2-Screen

Copy Key on the electronic board.

6

Click [Close] on the Panaboard

Operation Panel to finish scanning.

• About the Document Manager, refer to the

Document Manager System operating instructions in the CD-ROM.

Note

• Dragging the Panaboard Operation Panel or activating other software programs may cause scanning troubles.

29

30

Computer Interfacing

Panaboard Operation Panel

It is possible to perform the same operations as with the electronic board control panel (page 9) from the following

Panaboard Operation buttons.

Note: While the Panaboard Operation Panel is displayed, the Copy Key and 2-Screen Copy Key on the electronic board control panel are used for scanning images into the computer.

Panel Name

Contrast/

Remaining

Film

Indicator

Contrast

Button

Description

This lamp indicator notifies the user when the time to replace the thermal transfer film is approaching (estimated) and of the printing contrast used during scanning or copying.

Indicator off: Normal scanning or copying contrast

Indicator on: Darker than normal scanning or copying contrast

Indicator flashing*: Almost time to replace the thermal transfer film

(Note that only about 15 more sheets may be copied when this indicator starts flashing.)

Replacement film (UG-6001) is separately available from the dealer where you purchased your unit.

* The flashing indicator will go out after the power is turned off and the printer has been opened and closed. (When copying is performed, this indicator will begin flashing again.)

Each time this button is pressed, the unit will alternate between normal and dark contrast modes (Normal/Dark).

2-Screen

Scan Button

Multi-Copy/

Error

Indicator

This button scans the front and back of the screen on a single page.

This indicator displays the number of copies to be made. The display changes each time the Multi-Copy/Stop Button is pressed.

Multi-Copy/

Stop Button

When an error occurs, a flashing symbol will appear in this display to indicate

the error status. (See page 35.)

When making multiple copies, press this button until the desired number of copies is displayed on the Multi-Copy/Error Indicator.

This button can also be pressed while multiple copies are being made to stop the copying process.

* During scanning, the setting 1 to 9 for the number of copies is ignored.

Scan Button

This button scans the screen.

Advance

Button

2-Screen

Copy Button

This button advances the screen from right to left.

This button causes the front and back of the screen to be copied on a single sheet of paper.

Copy Button

This button causes the screen to be copied.

Status Box

The status box displays the status of the TWAIN driver and the electronic board.

Stand by: The electronic board is stand by.

Both of the Panaboard Operation Panel and the electronic board control panel are operational.

Rotating: The electronic board is rotating the screen.

Copying: The electronic board is copying the screen.

Scanning: The electronic board is now scanning the images on the screen.

Converting: Indicates that the image data is being converted so that the computer will be

Busy:

Error: able to display the scanned data.

The electronic board is processing jobs.

An error has occurred with the electronic board.

About Button

Click to display information about the TWAIN driver.

Close Button

Click to close the Panaboard Operation Panel.

Computer Interfacing

Printing

To print documents from the computer to the printer, select the Print menu of the application software and select the printer name set when installing.

The standard printer name is “Panaboard-UB5

USB Printer (A4/Letter)*”.

* A4 or Letter changes with the models.

Notes

• The Multi-Copy/Error Indicator flashes when printing.

After printing, all the panel keys are disabled until the Multi-Copy/Error Indicator lights.

• When the operation panel of the TWAIN driver is displayed, printing is not available.

• You cannot stop printing after printing starts.

Do not attempt to stop printing.

• Do not turn off the power of the electronic board or unplug the USB cable before printing finishes. It may cause the computer operation to become unstable.

• A maximum 9 copies are available.

• The output port can hold up to 10 sheets of copied paper. (Note that exceeding the output port’s capacity may result in paper jams.)

• The Contrast Key is not effective for adjusting the contrast of print.

• When printing almost black pages continuously uniform color density and light line streaks may appear. In such a case, try again after waiting a while.

• When the unit falls in abnormal condition during printing, printing jobs (jobs in the spooler) may be lost. In such a case, print again.

31

32

Daily Care and Maintenance

Always turn off the power switch and unplug the power plug when cleaning outside and inside the unit.

Cleaning the screen and the unit

Gently wipe the screen film and unit with a waterdampened cloth that has been thoroughly wrung.

• Use a kitchen cleaner diluted with water for hard-toclean stains.

• If you accidentally write on the board with an oil-based marker, wipe with a small amount of ethyl alcohol.

Notes

• Do not use thinner, benzine or cleaners containing abrasives as this may result in discoloration.

• Do not wipe the screen film with a dry cloth as this may generate a static charge.

Caring for the eraser

When the erasing surface of the eraser becomes dirty, hold down the sheet under the top sheet with your finger and peel off the dirty sheet by pulling in the direction of the arrow.

Note

• When the eraser becomes thin, make sure that the corners of the eraser do not strike the screen during erasing as this may damage the screen.

Cleaning the printer head, platen roller and pick-up roller

If black streaks appear on the copy, clean the printer head and the platen roller.

If paper jams occur frequently, clean the pick-up roller.

1

Push down the printer open lever and open the printer door.

Printer door

2

3

4

Latches

Daily Care and Maintenance

Clean the Printer Head

Dampen the tip of a cotton swab in ethyl alcohol and gently wipe the printer head.

Note

• Never touch the printer head or the surrounding area with your hands as this may disable copying.

Cotton swab

Printer head

(Gold)

Pick-up roller

Platen roller

Clean the Platen Roller and the Pick-up Roller

Remove the thermal transfer film with both hands and carefully wipe any dirt or stains off the platen roller and pick-up roller.

• For details on removing the thermal transfer film, see

page 16.

• Dampen a soft cloth with neutral kitchen cleaner diluted in water, wring the cloth thoroughly, and wipe the entire surface of the rollers while rotating them. If this does not remove all dirt, wipe with a cloth dampened with ethyl alcohol.

Install the thermal transfer film in its original position and close the printer door.

• For details on installing the thermal transfer film, see

pages 10, 11.

• Close the printer door firmly until a click is heard.

Note

• If “ ” is displayed on the Multi-Copy/Error Indicator when the power is turned on, this indicates that the thermal transfer film has not been installed properly or that there is slack in the thermal transfer film. Check the condition of the thermal transfer film and for slack in the thermal transfer film.

33

Troubleshooting

34

Treat problems according to the information given in the table below. If problems still persist, call your dealer for service.

Symptom Care and Remedy

See

Page

Power switch is on but the indicator is off.

Copied copy paper will not come out.

Nothing is printed on the paper or copies are faint or blurred.

Black streaks or blank

(unprinted) spots appear on the copy (copy paper is dirty).

Check that the power plug is securely plugged in.

(If the indicator still does not light, turn the power off and on again.)

The unit is out of copy paper or thermal transfer film. (The Error

Indicator flashes “ ” or “ ”.)

Insert copy paper or replace the thermal transfer film.

The printer door is open. (The Error Indicator flashes “ ”.)

Close the printer door firmly until a click is heard.

Paper is jammed in the printer. (The Error Indicator flashes “ ”.)

Open the printer door and remove the jammed paper.

The platen roller and pick-up roller are dirty.

Open the printer door and wipe the platen roller and the pick-up roller to clean them.

The writing on the screen is too thin or light.

Make thicker, darker lines or change to a new marker.

The printer door is slightly open.

Close the printer door firmly until a click is heard.

The printer head or platen roller is dirty.

Open the printer door and clean any dirt off the printer head and platen roller.

The thermal transfer film is wrinkled because it was set in place without removing excess slack.

Rewind the used portion of the thermal transfer film to remove the excess slack, then reattach it.

A black or white horizontal line appears, or the page prints in black or blank.

The USB driver or printer driver does not work properly immediately after the installation of the software.

The computer does not recognize the electronic board.

The unit is in strong sunlight or strong lighting.

Change the direction of the screen or block the light.

The Panaboard has not been registered in [Control Panel]–[Scanners and Cameras] and [Printers].

Run “UB-5xxx\Uninstall\UB5Uninst.exe” in the CD-ROM to uninstall the drivers from the computer. Then, install the drivers.

Check that the electronic board is in the condition that enables operation or that the USB cable is connected properly.

The electronic board is connected via a USB hub.

Do not connect via a USB hub.

The screen does not advance when the Copy or

Advance Key is pressed.

Static electricity was generated when the screen film was wiped.

Turn off the power and slowly move the screen by hand.

Contrast/Remaining

Film Indicator flashes.

The time to replace the thermal transfer film is approaching. (Only about 15 more copies can be made.)

Prepare a new replacement film (UG-6001).

12

16

11

17

32

11

32

10

23–27

16

Troubleshooting

Meanings of error codes

The following table describes the meaning of each of the symbols which may flash in the Multi-Copy/Error

Indicator.

Indication Cause Remedy

See

Page

Data transfer error Connect the USB cable securely.

22

(Error)

(Screen)

The screen will not move.

Remove any chart paper attached to the screen and slowly move the screen by hand.

The printer door is not closed securely.

(door)

Close the printer door securely.

11

(Jam)

(ribbon)

Paper jam

Open the printer door and remove the jammed paper.

The thermal transfer film is slack, has run out or is not installed.

Remove the slack from the thermal transfer film, replace or install the thermal transfer film.

17

10

16

Out of paper

(Paper)

The scanner or screen is in strong sunlight or strong lighting.

(Scanner Failure)

If other indications such as “ ” appear, call your dealer.

Load copy paper.

Change the direction of the screen or block the light.

12

35

36

Specifications

General

Input

Block

Output

Block

Model No.

UB-5315 UB-5815

Power supply

Power consumption

(Operational/Standby)

Refer to the name plate on the printer

Refer to the name plate on the printer

External dimensions

(Height

× Width × Depth, without stand)

Mass (without stand/ with board attachment)

1334 mm

× 1372 mm

× 212 mm

25 kg (55.1 lbs.)

1334 mm

× 1735 mm

× 212 mm

27 kg (59.5 lbs.)

Ambient operating conditions Temperature: 10–35

° C (50–95

°

F)

Humidity: 30–80% RH

Writing implements Dry erase felt-tipped markers (black, red, and blue)

Panel dimensions (Height

× Width)

900 mm

× 1262 mm

900 mm

× 1625 mm

Panel surfaces 2

Panel advance system

Copying area (Height

× Width)

Scanning system

Printing system

Copy paper

Copy paper size

Copy density

Copy colour

Contrast adjustment

2-screen compressed copying

Time required for copying

Continuous copies

Paper empty indication

Endless scroll type

850 mm

× 1250 mm

Image sensors

Fusion thermal transfer type

850 mm

× 1613 mm

Standard or recycled paper

A4/Letter*

1

8 dots/mm

Black

Two levels: Normal/Dark

Yes

15 s/sheet

1 to 9 sheets

Yes

Option and Separately available

Option

Stand: UE-608005

Separately

Available

Replacement film:

Markers:

UG-6001 (Set of 2 rolls [50 m])

KX-B031 (set of 10 black markers),

KX-B032 (set of 10 red markers),

KX-B033 (set of 10 blue markers)

Erasers: KX-B042 (set of 6 erasers)

Marker and eraser set: KX-B035 (contains one black, one red, and one blue markers and one eraser)

*

1

Letter size is for U.S.A. and Canada models.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
