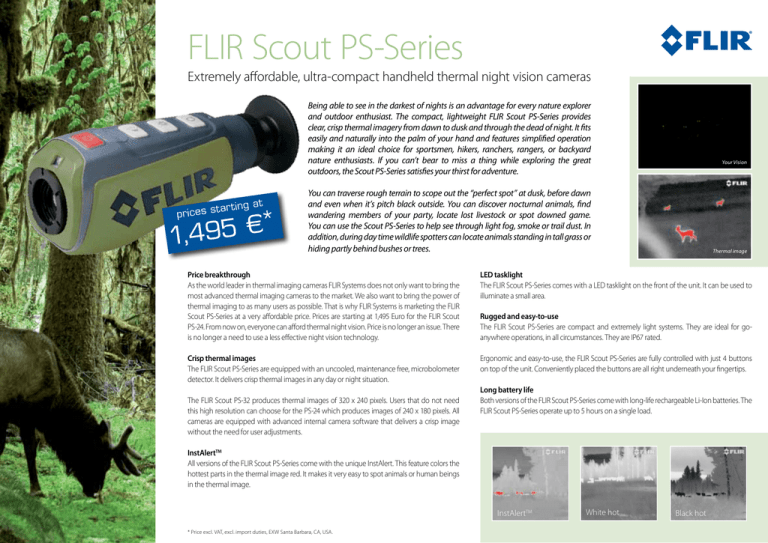

FLIR Scout PS-Series

FLIR Scout PS-Series
FLIR Scout PS-Series
Extremely affordable, ultra-compact handheld thermal night vision cameras
Being able to see in the darkest of nights is an advantage for every nature explorer
and outdoor enthusiast. The compact, lightweight FLIR Scout PS-Series provides
clear, crisp thermal imagery from dawn to dusk and through the dead of night. It fits
easily and naturally into the palm of your hand and features simplified operation
making it an ideal choice for sportsmen, hikers, ranchers, rangers, or backyard
nature enthusiasts. If you can’t bear to miss a thing while exploring the great
outdoors, the Scout PS-Series satisfies your thirst for adventure.
t
tar ting a
prices s
*
€
5
9
1,4
Your Vision
You can traverse rough terrain to scope out the “perfect spot” at dusk, before dawn
and even when it’s pitch black outside. You can discover nocturnal animals, find
wandering members of your party, locate lost livestock or spot downed game.
You can use the Scout PS-Series to help see through light fog, smoke or trail dust. In
addition, during day time wildlife spotters can locate animals standing in tall grass or
hiding partly behind bushes or trees.
Thermal image
Price breakthrough
As the world leader in thermal imaging cameras FLIR Systems does not only want to bring the
most advanced thermal imaging cameras to the market. We also want to bring the power of
thermal imaging to as many users as possible. That is why FLIR Systems is marketing the FLIR
Scout PS-Series at a very affordable price. Prices are starting at 1,495 Euro for the FLIR Scout
PS-24. From now on, everyone can afford thermal night vision. Price is no longer an issue. There
is no longer a need to use a less effective night vision technology.
LED tasklight
The FLIR Scout PS-Series comes with a LED tasklight on the front of the unit. It can be used to
illuminate a small area.
Crisp thermal images
The FLIR Scout PS-Series are equipped with an uncooled, maintenance free, microbolometer
detector. It delivers crisp thermal images in any day or night situation.
Ergonomic and easy-to-use, the FLIR Scout PS-Series are fully controlled with just 4 buttons
on top of the unit. Conveniently placed the buttons are all right underneath your fingertips.
The FLIR Scout PS-32 produces thermal images of 320 x 240 pixels. Users that do not need
this high resolution can choose for the PS-24 which produces images of 240 x 180 pixels. All
cameras are equipped with advanced internal camera software that delivers a crisp image
without the need for user adjustments.
Rugged and easy-to-use
The FLIR Scout PS-Series are compact and extremely light systems. They are ideal for goanywhere operations, in all circumstances. They are IP67 rated.
Long battery life
Both versions of the FLIR Scout PS-Series come with long-life rechargeable Li-Ion batteries. The
FLIR Scout PS-Series operate up to 5 hours on a single load.
InstAlertTM
All versions of the FLIR Scout PS-Series come with the unique InstAlert. This feature colors the
hottest parts in the thermal image red. It makes it very easy to spot animals or human beings
in the thermal image.
InstAlertTM
* Price excl. VAT, excl. import duties, EXW Santa Barbara, CA, USA.
White hot
Black hot
The right palette for any environment:
• White hot
• Black hot
• InstAlert Red
Choose from 5 levels of
brightness to optimize your display.
LED tasklight helps guide your way
when viewer is powered off.
Freeze Frame
(PS 24 only)
2x Digital Zoom
(PS 32 only)
USB connectivity recharges a Li-Ion
battery.
Standard Tripod Mount
System
Detector Type
Focal Length
Field of View (H × W)
Waveband
Freeze Frame
Digital E-Zoom
Start-up from Stand-by
Focus
Diopter Adjustment
USB Port
TaskLight
Image Presentation
Built-In Viewfinder Display
Polarity/Detection Palettes
Video Output
Physical
Weight (with battery)
Size (L × W × H)
Fixed Use
Standard Warranty
Power
Battery Type
Battery Recharging
Battery Life (Operating)
Environmental
Rating
Operating Temperature
Camera Package Includes:
Range Performance
Detect Man-Sized Target
(1.8 m × 0.5 m)
Detect Small Vessel
(4.0 m × 1.5 m)
Scout PS 24
240 × 180 VOx Microbolometer
Scout PS 32
320 × 240 VOx Microbolometer
19 mm
24° × 18°
7.5 - 13.5 µm
Yes
No
No
2×
<5 seconds
Automatic
+2
Software Updates/Battery Charging
LED
Color VGA LCD Display
White Hot; Black Hot; InstAlert Red
PAL Composite Video; 9 Hz Refresh Rate
FLIR Commercial Systems B.V.
Charles Petitweg 21
4847 NW Breda
The Netherlands
Tel. : +31 (0) 765 79 41 94
Fax : +31 (0) 765 79 41 99
e-mail: [email protected]
FLIR Systems Italy
Via Luciano Manara, 2
I-20812 Limbiate (MB)
Italy
Tel.: +39 (0)2 99 45 10 01
Fax: +39 (0)2 99 69 24 08
e-mail: [email protected]
FLIR Systems AB
Rinkebyvägen 19
PO Box 3
SE-182 11 Danderyd
Sweden
Tel.: +46 (0)8 753 25 00
Fax: +46 (0)8 753 23 64
e-mail: [email protected]
FLIR Commercial Systems
Avenida de Bruselas, 15- 3º
28108 Alcobendas (Madrid)
Spain
Tel. : +34 91 573 48 27
Fax.: +34 91 662 97 48
e-mail: [email protected]
FLIR Systems UK
2 Kings Hill Avenue - Kings Hill
West Malling
Kent
ME19 4AQ
United Kingdom
Tel.: +44 (0)1732 220 011
Fax: +44 (0)1732 843 707
e-mail: [email protected]
340 g
172 × 59 × 62 mm
Standard Tripod Mount
2 Year
Internal Camera Battery/Li-Ion
USB Cable for Internal Battery Charging; Charging Cradle (optional)
5 Hours (nominal)
IP-67
-20°C to 50°C
Handheld Thermal Night Vision Camera, Wrist Strap, USB Cable, Product CD; Optionally available: Charging Cradle, Soft Carrying Pouch
320 m
~450 m
895 m
~1.23 km
Actual range may vary depending on camera set-up, environmental conditions, user experience, and display method. All specifications are subject to change without notice. Visit flir.com for the most
up-to-date specifications.
FLIR Systems GmbH
Berner Strasse 81
D-60437 Frankfurt am Main
Germany
Tel.: +49 (0)69 95 00 900
Fax: +49 (0)69 95 00 9040
e-mail: [email protected]
FLIR Systems France
19, bld Bidault
77183 Croissy-Beaubourg
France
Tel.: +33 (0)1 60 37 01 00
Fax: +33 (0)1 64 11 37 55
e-mail : [email protected]
FLIR Systems, Middle East FZE
Dubai Airport Free Zone
P.O. Box 54262
Office C-13, Street WB-21
Dubai - United Arab Emirates
Tel.: +971 4 299 6898
Fax: +971 4 299 6895
e-mail: [email protected]
FLIR Systems Russia
6 bld.1, 1st Kozjevnichesky lane
115114 Moscow
Russia
Tel.: + 7 495 669 70 72
Fax: + 7 495 669 70 72
e-mail: [email protected]
Your local dealer
PS_0015_EN
FLIR Scout PS-Series specifications
