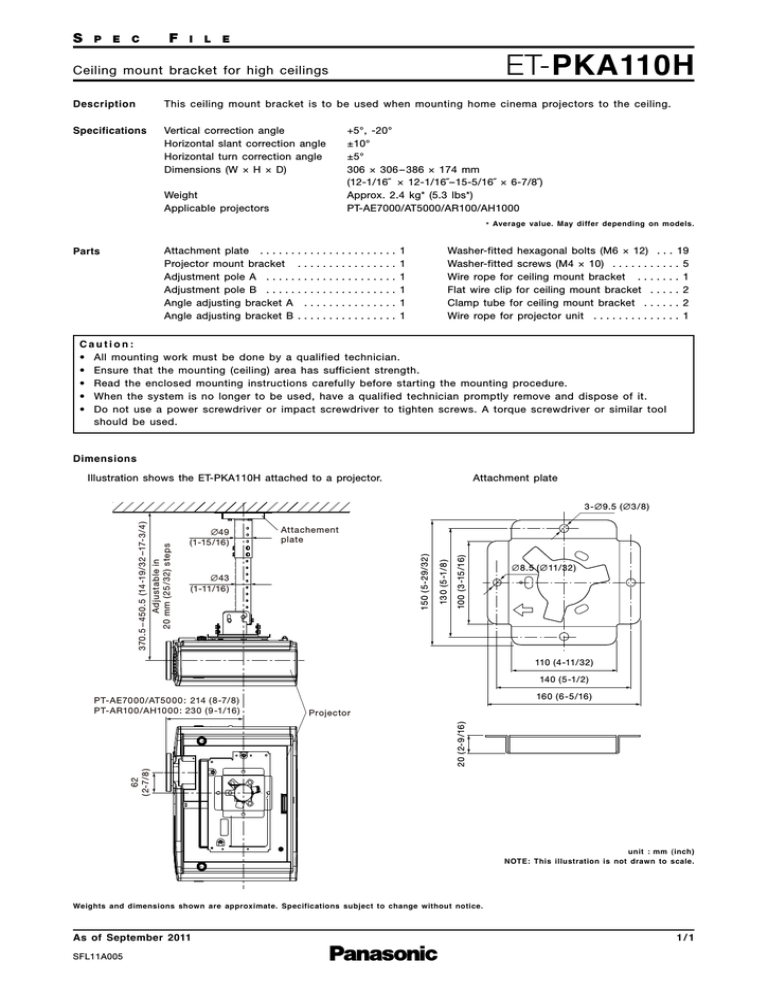

ET-PKA110H
Ceiling mount bracket for high ceilings
­D escription
This ceiling mount bracket is to be used when mounting home cinema projectors to the ceiling.
Specifications
Vertical correction angle
Horizontal slant correction angle
Horizontal turn correction angle
Dimensions (W × H × D)
+5°, -20°
±10°
±5°
306 × 306 – 386 × 174 mm
(12-1/16˝ × 12-1/16˝–15-5/16˝ × 6-7/8˝)
Approx. 2.4 kg* (5.3 lbs*)
PT-AE7000/AT5000/AR100/AH1000
Weight
Applicable projectors
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Attachment plate . . . . . .
Projector mount bracket
Adjustment pole A . . . . .
Adjustment pole B . . . . .
Angle adjusting bracket A
Angle adjusting bracket B
.
.
.
.
.
.
.
.
.
..
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
1
1
1
1
Washer-fitted hexagonal bolts (M6 × 12)
Washer-fitted screws (M4 × 10) . . . . . . .
Wire rope for ceiling mount bracket . . .
Flat wire clip for ceiling mount bracket .
Clamp tube for ceiling mount bracket . .
Wire rope for projector unit . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
19
. 5
. 1
. 2
. 2
. 1
Caution:
• All mounting work must be done by a qualified technician.
• Ensure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions carefully before starting the mounting procedure.
• When the system is no longer to be used, have a qualified technician promptly remove and dispose of it.
• Do not use a power screwdriver or impact screwdriver to tighten screws. A torque screwdriver or similar tool
should be used.
Dimensions
Illustration shows the ET-PKA110H attached to a projector.
Attachment plate
∅43
(1-11/16 )
100 ( 3-15/16 )
Attachement
plate
130 ( 5-1/8 )
∅49
(1-15/16 )
150 ( 5-29/32)
Adjustable in
20 mm ( 25/32) steps
370.5− 450.5 (14-19/32 –17-3/4)
3-∅9.5 ( ∅3/8 )
∅8.5 ( ∅11/32)
110 (4-11/32)
140 ( 5-1/2)
160 ( 6-5/16 )
Projector
62
( 2-7/8 )
20 ( 2-9/16 )
PT-AE7000 /AT5000 : 214 ( 8-7/8 )
PT-AR100 /AH1000 : 230 ( 9-1/16 )
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ September­ 2011
SFL11A005
1/1
