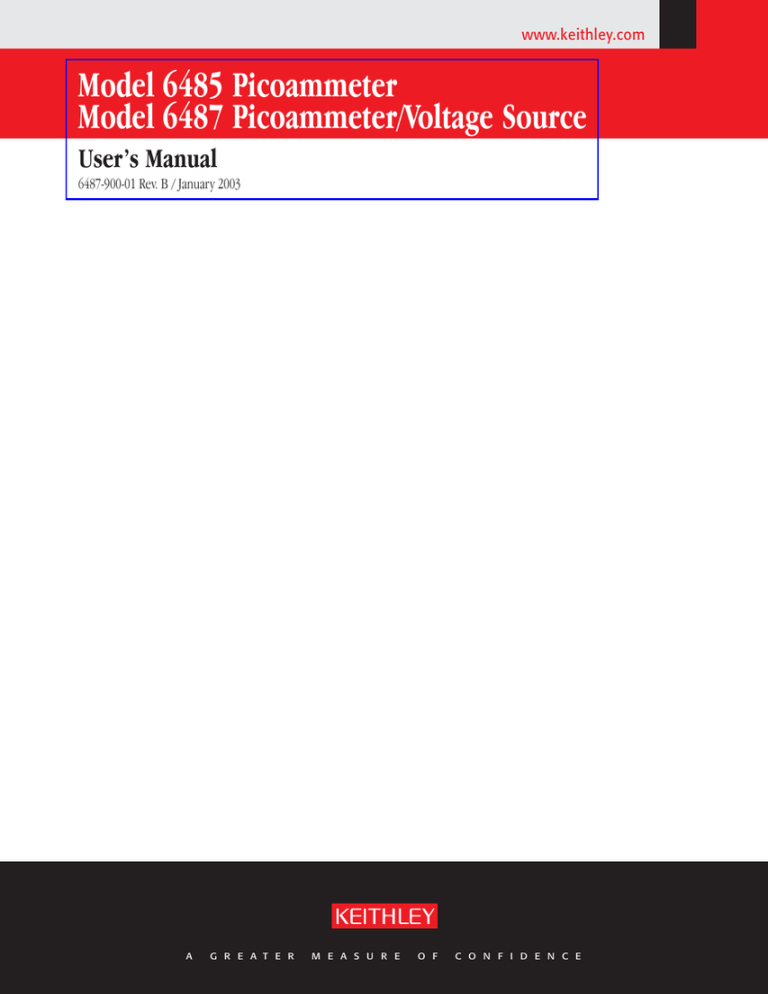

Model 6485 Picoammeter Model 6487 Picoammeter/Voltage Source

Model 6485 Picoammeter Model 6487 Picoammeter/Voltage Source

www.keithley.com

Model 6485 Picoammeter

Model 6487 Picoammeter/Voltage Source

User’s Manual

6487-900-01 Rev. B / January 2003

A G R E A T E R M E A S U R E O F C O N F I D E N C E

WARRANTY

Keithley Instruments, Inc. warrants this product to be free from defects in material and workmanship for a period of 1 year from date of shipment.

Keithley Instruments, Inc. warrants the following items for 90 days from the date of shipment: probes, cables, rechargeable batteries, diskettes, and documentation.

During the warranty period, we will, at our option, either repair or replace any product that proves to be defective.

To exercise this warranty, write or call your local Keithley representative, or contact Keithley headquarters in

Cleveland, Ohio. You will be given prompt assistance and return instructions. Send the product, transportation prepaid, to the indicated service facility. Repairs will be made and the product returned, transportation prepaid.

Repaired or replaced products are warranted for the balance of the original warranty period, or at least 90 days.

LIMITATION OF WARRANTY

This warranty does not apply to defects resulting from product modification without Keithley’s express written consent, or misuse of any product or part. This warranty also does not apply to fuses, software, non-rechargeable batteries, damage from battery leakage, or problems arising from normal wear or failure to follow instructions.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUD-

ING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE.

THE REMEDIES PROVIDED HEREIN ARE BUYER’S SOLE AND EXCLUSIVE REMEDIES.

NEITHER KEITHLEY INSTRUMENTS, INC. NOR ANY OF ITS EMPLOYEES SHALL BE LIABLE

FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING

OUT OF THE USE OF ITS INSTRUMENTS AND SOFTWARE EVEN IF KEITHLEY INSTRUMENTS,

INC., HAS BEEN ADVISED IN ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES. SUCH

EXCLUDED DAMAGES SHALL INCLUDE, BUT ARE NOT LIMITED TO: COSTS OF REMOVAL

AND INSTALLATION, LOSSES SUSTAINED AS THE RESULT OF INJURY TO ANY PERSON, OR

DAMAGE TO PROPERTY.

A G R E A T E R M E A S U R E O F C O N F I D E N C E

Keithley Instruments, Inc.

Corporate Headquarters • 28775 Aurora Road • Cleveland, Ohio 44139

440-248-0400 • Fax: 440-248-6168 • 1-888-KEITHLEY (534-8453) • www.keithley.com

12/04

Model 6485 Picoammeter

Model 6487 Picoammeter/ Voltage Source

User’s Manual

©2003, Keithley Instruments, Inc.

All rights reserved.

Cleveland, Ohio, U.S.A.

First Printing, January 2003

Document Number: 6487-900-01 Rev. B

Manual Print History

The print history shown below lists the printing dates of all Revisions and Addenda created for this manual. The Revision Level letter increases alphabetically as the manual undergoes subsequent updates. Addenda, which are released between Revisions, contain important change information that the user should incorporate immediately into the manual.

Addenda are numbered sequentially. When a new Revision is created, all Addenda associated with the previous Revision of the manual are incorporated into the new Revision of the manual. Each new Revision includes a revised copy of this print history page.

Revision A (Document Number 6487-900-01)...............................................................October 2002

Revision B (Document Number 6487-900-01) ............................................................... January 2003

All Keithley product names are trademarks or registered trademarks of Keithley Instruments, Inc.

Other brand names are trademarks or registered trademarks of their respective holders.

S

afety Precautions

The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with non-hazardous voltages, there are situations where hazardous conditions may be present.

This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury. Read and follow all installation, operation, and maintenance information carefully before using the product. Refer to the manual for complete product specifications.

If the product is used in a manner not specified, the protection provided by the product may be impaired.

The types of product users are:

Responsible body is the individual or group responsible for the use and maintenance of equipment, for ensuring that the equipment is operated within its specifications and operating limits, and for ensuring that operators are adequately trained.

Operators use the product for its intended function. They must be trained in electrical safety procedures and proper use of the instrument. They must be protected from electric shock and contact with hazardous live circuits.

Maintenance personnel perform routine procedures on the product to keep it operating properly, for example, setting the line voltage or replacing consumable materials. Maintenance procedures are described in the manual. The procedures explicitly state if the operator may perform them. Otherwise, they should be performed only by service personnel.

Service personnel are trained to work on live circuits, and perform safe installations and repairs of products. Only properly trained service personnel may perform installation and service procedures.

Keithley products are designed for use with electrical signals that are rated Measurement Category I and Measurement Category

II, as described in the International Electrotechnical Commission (IEC) Standard IEC 60664. Most measurement, control, and data I/O signals are Measurement Category I and must not be directly connected to mains voltage or to voltage sources with high transient over-voltages. Measurement Category II connections require protection for high transient over-voltages often associated with local AC mains connections. Assume all measurement, control, and data I/O connections are for connection to

Category I sources unless otherwise marked or described in the Manual.

Exercise extreme caution when a shock hazard is present. Lethal voltage may be present on cable connector jacks or test fixtures.

The American National Standards Institute (ANSI) states that a shock hazard exists when voltage levels greater than 30V RMS,

42.4V peak, or 60VDC are present. A good safety practice is to expect that hazardous voltage is present in any unknown

circuit before measuring.

Operators of this product must be protected from electric shock at all times. The responsible body must ensure that operators are prevented access and/or insulated from every connection point. In some cases, connections must be exposed to potential human contact. Product operators in these circumstances must be trained to protect themselves from the risk of electric shock.

If the circuit is capable of operating at or above 1000 volts, no conductive part of the circuit may be exposed.

Do not connect switching cards directly to unlimited power circuits. They are intended to be used with impedance limited sources. NEVER connect switching cards directly to AC mains. When connecting sources to switching cards, install protective devices to limit fault current and voltage to the card.

Before operating an instrument, make sure the line cord is connected to a properly grounded power receptacle. Inspect the connecting cables, test leads, and jumpers for possible wear, cracks, or breaks before each use.

When installing equipment where access to the main power cord is restricted, such as rack mounting, a separate main input power disconnect device must be provided, in close proximity to the equipment and within easy reach of the operator.

For maximum safety, do not touch the product, test cables, or any other instruments while power is applied to the circuit under test. ALWAYS remove power from the entire test system and discharge any capacitors before: connecting or disconnecting ca-

5/03

bles or jumpers, installing or removing switching cards, or making internal changes, such as installing or removing jumpers.

Do not touch any object that could provide a current path to the common side of the circuit under test or power line (earth) ground. Always make measurements with dry hands while standing on a dry, insulated surface capable of withstanding the voltage being measured.

The instrument and accessories must be used in accordance with its specifications and operating instructions or the safety of the equipment may be impaired.

Do not exceed the maximum signal levels of the instruments and accessories, as defined in the specifications and operating information, and as shown on the instrument or test fixture panels, or switching card.

When fuses are used in a product, replace with same type and rating for continued protection against fire hazard.

Chassis connections must only be used as shield connections for measuring circuits, NOT as safety earth ground connections.

If you are using a test fixture, keep the lid closed while power is applied to the device under test. Safe operation requires the use of a lid interlock.

If a screw is present, connect it to safety earth ground using the wire recommended in the user documentation.

The

!

symbol on an instrument indicates that the user should refer to the operating instructions located in the manual.

The symbol on an instrument shows that it can source or measure 1000 volts or more, including the combined effect of normal and common mode voltages. Use standard safety precautions to avoid personal contact with these voltages.

The symbol indicates a connection terminal to the equipment frame.

The WARNING heading in a manual explains dangers that might result in personal injury or death. Always read the associated information very carefully before performing the indicated procedure.

The CAUTION heading in a manual explains hazards that could damage the instrument. Such damage may invalidate the warranty.

Instrumentation and accessories shall not be connected to humans.

Before performing any maintenance, disconnect the line cord and all test cables.

To maintain protection from electric shock and fire, replacement components in mains circuits, including the power transformer, test leads, and input jacks, must be purchased from Keithley Instruments. Standard fuses, with applicable national safety approvals, may be used if the rating and type are the same. Other components that are not safety related may be purchased from other suppliers as long as they are equivalent to the original component. (Note that selected parts should be purchased only through Keithley Instruments to maintain accuracy and functionality of the product.) If you are unsure about the applicability of a replacement component, call a Keithley Instruments office for information.

To clean an instrument, use a damp cloth or mild, water based cleaner. Clean the exterior of the instrument only. Do not apply cleaner directly to the instrument or allow liquids to enter or spill on the instrument. Products that consist of a circuit board with no case or chassis (e.g., data acquisition board for installation into a computer) should never require cleaning if handled according to instructions. If the board becomes contaminated and operation is affected, the board should be returned to the factory for proper cleaning/servicing.

Table of Contents

1 Getting Started

Introduction ................................................................................................

1-2

Overview of this manual .............................................................................

1-2

General information ....................................................................................

1-2

Warranty information ...........................................................................

1-2

Contact information ..............................................................................

1-3

Safety symbols and terms ...................................................................

1-3

Unpacking and inspection ....................................................................

1-3

Options and accessories .....................................................................

1-4

Additional references ...........................................................................

1-7

Features .....................................................................................................

1-8

Model 6485 front and rear panel familiarization .........................................

1-8

Model 6485 front panel summary ........................................................

1-8

Model 6485 rear panel summary .......................................................

1-11

Analog output .....................................................................................

1-12

Display ...............................................................................................

1-12

Status and error messages ................................................................

1-12

Model 6487 front and rear panel familiarization .......................................

1-13

Model 6487 front panel summary ......................................................

1-13

Model 6487 rear panel summary .......................................................

1-16

Voltage source ...................................................................................

1-17

Analog output .....................................................................................

1-18

Digital I/O ...........................................................................................

1-18

Display ...............................................................................................

1-18

Status and error messages ................................................................

1-18

Power-up ..................................................................................................

1-19

Line power connection .......................................................................

1-19

Line frequency ...................................................................................

1-19

Power-up sequence ...........................................................................

1-20

Default settings ........................................................................................

1-21

Saving user setups ............................................................................

1-21

Restoring setups ................................................................................

1-21

Restoring factory default setup ..........................................................

1-21

Menu ........................................................................................................

1-26

SCPI programming ...................................................................................

1-27

Optional command words ..................................................................

1-27

Query commands ..............................................................................

1-27

2

3

Connections

Connection fundamentals ..........................................................................

2-2

Model 6485 connections ......................................................................

2-2

Model 6487 connections ......................................................................

2-3

Basic connections to DUT ..........................................................................

2-5

Model 6485 DUT connections .............................................................

2-5

Model 6487 DUT connections .............................................................

2-6

Input voltage overload (OVRVOLT message) ............................................

2-9

Using a test fixture .....................................................................................

2-9

General purpose test fixture ..............................................................

2-10

Model 8009 resistivity test fixture ......................................................

2-11

Model 6487 interlock ................................................................................

2-12

Interlock connections .........................................................................

2-12

Interlock operation .............................................................................

2-12

How is the interlock different between a Model 487 and Model 6487? ...............................................................................

2-13

Analog output ...........................................................................................

2-14

Measurement considerations ...................................................................

2-15

Measurements and Sourcing Voltage

Measurement overview ..............................................................................

3-2

Current measurements ........................................................................

3-2

Model 6487 voltage source ..................................................................

3-2

Performance considerations ......................................................................

3-3

Warm-up period ...................................................................................

3-3

Voltage offset correction ......................................................................

3-3

Autozero ..............................................................................................

3-3

Zero check and zero correct ................................................................

3-3

Current measurements ..............................................................................

3-5

Precautions ..........................................................................................

3-5

Procedure ............................................................................................

3-6

SCPI programming — current measurements .....................................

3-8

Programming example — current measurements ...............................

3-9

Model 6487 ohms measurements ..............................................................

3-9

Overview ..............................................................................................

3-9

DC and alternating voltage ohms ........................................................

3-9

Procedure ............................................................................................

3-9

SCPI programming — ohms measurements .....................................

3-11

Programming example — ohms measurements ...............................

3-12

4

5

6

Model 6487 voltage source operation ......................................................

3-12

Configuring the voltage source ..........................................................

3-12

Sourcing voltage ................................................................................

3-13

Compliance indication ........................................................................

3-13

Open interlock indication ...................................................................

3-14

SCPI commands — voltage source ...................................................

3-14

Programming example — voltage .....................................................

3-14

Range, Units, Digits, Rate, and Filters

Range, units, and digits ..............................................................................

4-2

Range ..................................................................................................

4-2

Units .....................................................................................................

4-3

Digits ....................................................................................................

4-3

SCPI programming — range and digits ...............................................

4-3

Rate ............................................................................................................

4-4

Model 6487 damping ..................................................................................

4-4

Filters .........................................................................................................

4-4

Median filter .........................................................................................

4-5

Digital filter ..........................................................................................

4-5

Filter control .........................................................................................

4-6

Relative, mX+b, m/X+b (reciprocal), and log

Relative ......................................................................................................

5-2

Front panel relative ..............................................................................

5-2

SCPI programming — relative ............................................................

5-2

mX+b, m/X+b (reciprocal), and Logarithmic ...............................................

5-3

mX+b and m/X+b .................................................................................

5-3

Logarithmic ..........................................................................................

5-3

Configuring math functions ..................................................................

5-4

SCPI programming — mX+b, m/X+b, and log .....................................

5-4

Buffer and Sweeps

Buffer operations ........................................................................................

6-2

Store ....................................................................................................

6-2

Recall ...................................................................................................

6-2

Buffer timestamp ..................................................................................

6-3

Clear ....................................................................................................

6-3

Buffer statistics ....................................................................................

6-3

SCPI programming — buffer ...............................................................

6-4

Programming example .........................................................................

6-4

Model 6487 voltage sweeps .......................................................................

6-5

Front panel sweeps .............................................................................

6-5

SCPI programming — sweeps ............................................................

6-5

Programming example .........................................................................

6-6

7

A

B

C

Remote Operation and Commands

Selecting and configuring an interface .......................................................

7-2

Interfaces .............................................................................................

7-2

Connections .........................................................................................

7-2

Front panel GPIB operation .................................................................

7-4

Remote commands ....................................................................................

7-4

General bus commands ......................................................................

7-4

Common commands ...........................................................................

7-5

Signal oriented commands. .................................................................

7-5

SCPI command subsystems ...............................................................

7-6

Programming syntax ............................................................................

7-6

Specifications

General Measurement Considerations

Measurement considerations .................................................................... B-2

Ground loops ...................................................................................... B-2

Triboelectric effects ............................................................................. B-3

Piezoelectric and stored charge effects .............................................. B-3

Electrochemical effects ....................................................................... B-4

Humidity .............................................................................................. B-4

Light .................................................................................................... B-4

Electrostatic interference .................................................................... B-4

Magnetic fields .................................................................................... B-5

Electromagnetic Interference (EMI) .................................................... B-5

Example Programs

Programming examples ............................................................................ C-2

1000 readings/second into internal buffer ........................................... C-2

900 readings/second to IEEE-488 bus ............................................... C-3

3000 readings into internal buffer ....................................................... C-4

List of Illustrations

1

Figure 1-1

Figure 1-2

Figure 1-3

Figure 1-4

Getting Started

Model 6485 front panel............................................................................

1-9

Model 6485 rear panel ..........................................................................

1-11

Model 6487 front panel..........................................................................

1-13

Model 6487 rear panel ..........................................................................

1-16

2 Connections

Figure 2-1

Figure 2-2

Figure 2-3

Figure 2-4

Figure 2-5

Figure 2-6

Figure 2-7

Figure 2-8

Model 6485 BNC Input connector ...........................................................

2-2

Model 6485 maximum input levels ..........................................................

2-3

Model 6487 triax Input connector ............................................................

2-3

Model 6487 maximum input levels ..........................................................

2-4

Basic Model 6485 connections................................................................

2-5

Shielding for Model 6485 measurements (unguarded) ...........................

2-6

Basic Model 6487 current measurement connections ............................

2-7

Basic Model 6487 ohms connections......................................................

2-8

Figure 2-9 Shielding for Model 6487 measurements (unguarded) ...........................

2-9

Figure 2-10 General purpose test fixture connections to Model 6485 ......................

2-10

Figure 2-11 General purpose test fixture connections to Model 6487 ......................

2-11

Figure 2-12 Typical connections for Model 6487 measurements using the Model 8009 test fixture ....................................................................

2-11

Figure 2-13 Model 6487 interlock connections .........................................................

2-13

Figure 2-14 Typical Model 6485 analog output connections ....................................

2-14

Figure 2-15 Typical Model 6487 analog output connections ....................................

2-15

3

Figure 3-1

Figure 3-2

Figure 3-3

Measurements and Sourcing Voltage

Connections for Model 6485 current measurements ..............................

3-7

Connections for Model 6487 current measurements ..............................

3-8

Connections for Model 6487 ohms measurements...............................

3-11

7

Figure 7-1

Figure 7-2

B

Figure B-1

Figure B-2

Remote Operation and Commands

Model 6485 IEEE-488 and RS-232 connector locations .........................

7-3

Model 6487 IEEE-488 and RS-232 connector locations .........................

7-3

General Measurement Considerations

Power line ground loops......................................................................... B-2

Eliminating ground loops ........................................................................ B-3

List of Tables

1

Table 1-1

Table 1-2

Table 1-3

Table 1-4

2

Table 2-1

3

Table 3-1

Table 3-2

Table 3-3

Table 3-4

Table 3-5

Table 3-6

Table 3-7

4

Table 4-1

Table 4-2

Table 4-3

5

Table 5-1

Table 5-2

6

Table 6-1

Table 6-2

7

Table 7-1

Table 7-2

Table 7-3

Table 7-4

Getting Started

Model 6485 default settings ..................................................................

1-22

Model 6487 default settings ..................................................................

1-24

Model 6485 MENU structure .................................................................

1-26

Model 6487 MENU structure .................................................................

1-27

Connections

Summary of measurement considerations............................................

2-16

Measurements and Sourcing Voltage

Basic Model 6485 and 6487 current measurement capabilities..............

3-2

Basic Model 6487 voltage source output capabilities..............................

3-2

SCPI commands — zero check and zero correct ...................................

3-4

SCPI commands — basic current measurements ..................................

3-8

SCPI commands — basic Model 6487 ohms measurements ...............

3-11

Voltage source current limits .................................................................

3-13

SCPI commands — voltage source ......................................................

3-14

Range, Units, Digits, Rate, and Filters

Measurement ranges ..............................................................................

4-2

SCPI commands — range and digits ......................................................

4-3

SCPI commands — filters .......................................................................

4-6

Relative, mX+b, m/X+b (reciprocal), and log

SCPI commands — relative (null) ...........................................................

5-2

SCPI commands — mX+b, m/X+b, and log ............................................

5-4

Buffer and Sweeps

SCPI commands — buffer.......................................................................

6-4

SCPI commands — sweeps....................................................................

6-5

Remote Operation and Commands

General bus commands ..........................................................................

7-4

IEEE-488.2 common commands and queries.........................................

7-5

Signal oriented commands......................................................................

7-5

SCPI command subsystems ...................................................................

7-6

1

Getting Started

Introduction

— Description of the Models 6485 and 6487 Picoammeters.

Overview of this manual

— Provides content of this manual.

General information

— Covers general information that includes warranty information, contact information, safety symbols and terms, unpacking and inspection, and available options and accessories.

Features

— Summarizes the features of Models 6485 and 6487.

Model 6485 front and rear panel familiarization

— Summarizes the controls and connectors of the Model 6485 as well as providing information on the front panel display.

Model 6487 front and rear panel familiarization

— Summarizes the controls and connectors of the Model 6487 and provides information on the front panel display.

Power-up

— Covers line power connection, line frequency, and the power-up

sequence.

Default settings

— Covers the five instrument setup configurations available to the user; three user-defined, GPIB defaults, or factory defaults.

Menu

— Provides menu structures for both the Models 6485 and 6487.

SCPI programming

— Explains how SCPI commands are presented in this manual.

1-2 Getting Started

Model 6485 and 6487 User’s Manual

Introduction

The Models 6485 and 6487 are high-resolution bus-programmable (RS-232 and IEEE-488) picoammeters. The Models 6485 and 6487 have the following current measurement ranges: eight ranges (from 20mA down to the 2nA range). The Model 6487 also includes a ±500V

DC voltage source and an ohms function that includes an alternating voltage mode to improve accuracy and repeatability of very high resistance measurements.

Overview of this manual

This manual describes how to connect, program, and maintain the Models 6485 and 6487

Picoammeters. The sections of the manual are organized as follows:

Section 1

: Getting Started

Section 2

: Connections

Section 3

: Measurements and Sourcing Voltage (Model 6487 only)

Section 4

: Range, Units, Digits, Rate, and Filters

Section 5

: Relative, mX+b, m/X+b (reciprocal), and log

Section 6

: Buffer and Sweeps

Section 7

: Remote Operation and Commands

Appendices to this manual contain specification and also provide additional information on specific topics. The appendices are organized as follows:

Appendix A : Specifications

Appendix B

: General Measurement Considerations

Appendix C

: Example Programs

General information

Warranty information

Warranty information is located at the front of this manual. Should your Model 6485 or

6487 require warranty service, contact the Keithley representative or authorized repair facility in your area for further information. When returning the instrument for repair, be sure to fill out and include the service form at the back of this manual to provide the repair facility with the necessary information.

Model 6485 and 6487 User’s Manual

Getting Started 1-3

Contact information

Worldwide phone numbers are listed at the front of this manual. If you have any questions, please contact your local Keithley representative or call one of our Application

Engineers at 1-800-348-3735 (U.S. and Canada only).

Safety symbols and terms

The following symbols and terms may be found on the instrument or used in this manual:

If or is present, connect it to safety earth ground using the wire recommended in the user documentation.

The

!

symbol on an instrument indicates that the user should refer to the operating instructions located in the manual.

The symbol on an instrument shows that it can source or measure 1000 volts or more, including the combined effect of normal and common mode voltages. Use standard safety precautions to avoid personal contact with these voltages.

The WARNING heading used in this manual explains dangers that might result in personal injury or death. Always read the associated information very carefully before performing the indicated procedure.

The CAUTION heading used in this manual explains hazards that could damage the instrument. Such damage may invalidate the warranty.

Unpacking and inspection

Inspection for damage

The Model 6485/6487 was carefully inspected electrically and mechanically before shipment. After unpacking all items from the shipping carton, check for any obvious signs of physical damage that may have occurred during transit. (There may be a protective film over the display lens, which can be removed.) Report any damage to the shipping agent immediately. Save the original packing carton for possible future shipment. Before removing the Model 6485/6487 from the bag, observe the handling precautions discussed below.

Handling precautions

• Always grasp the Model 6485/6487 by the covers.

• After removing the unit from its anti-static bag, inspect it for any obvious signs of physical damage. Report any such damage to the shipping agent immediately.

• When the instrument is not installed and connected, keep the unit in its anti-static bag and store it in the original packing carton.

1-4 Getting Started

Model 6485 and 6487 User’s Manual

Package content

Model 6485

The following items are included with every Model 6485 order:

• Model 6485 Picoammeter with line cord.

• Low Noise Cable with Male BNC on both ends (Model 4801).

• Protective BNC Shield/Cap (CAP-18).

• Banana lead to screw terminal adapter (Model CA-186-1B).

• Accessories as ordered.

• Certificate of calibration.

• Model 6485/6487 User Manual (P/N 6487-900-00).

• Manual Addenda (pertains to any improvements or changes concerning the instrument or manual).

• Product Information CD-ROM that contains PDFs of the User’s and Instruction

Manuals.

Model 6487

The following items are included with every Model 6487 order:

• Model 6487 Picoammeter with line cord.

• Triax Protective Shield/Cap (CAP-31).

• 7078-TRX-3 Triax cable.

• Model 8607 1kV Source Banana cable set.

• CS-459 4-pin Female Interlock connector.

• Accessories as ordered.

• Certificate of calibration

• Model 6485/6487 User Manual (P/N 6487-900-00).

• Product Information CD-ROM that contains PDFs of the User’s and

Reference Manuals.

Options and accessories

Model 6485 input cables, connectors, and adapters

Model 4801 Input Cable — This 4 ft (1.2m) low-noise coax cable is terminated with male BNC connectors on each end. (One Model 4801 is included with every order.)

Model 4802-10 — This 10 ft (3m) low-noise coax cable is terminated at one end with a male BNC connector (the other end is unterminated).

Model 6485 and 6487 User’s Manual

Getting Started 1-5

Model 4803 Low Noise Cable Kit — This cable kit includes:

– 15m (50 ft) of low noise coax cable

– 10 male BNC connectors

– 5 female BNC chassis-mount connectors

Model 7078-TRX-BNC adapter — 3-slot male triax to female BNC.

Model 8607 — Banana cable set (1m).

CA-186-1B — Banana lead to screw terminal adapter (one model CA-186-1B is included with every order).

CAP-18 — Protective shield/cap for BNC connectors (one model CAP-18 is included with every order).

CS-565 barrel adapter — This barrel adapter allows you to connect two BNC cables together. Both ends of the adapter are terminated with 2-lug female BNC connectors.

Model 6487 input cables, connectors, and adapters

237-TRX-BAR Barrel Adapter — This barrel adapter allows you to connect two triax cables together. Both ends of the adapter are terminated with 3-lug female triax connectors.

Model 237-ALG-2 Triax Cable — This 2m (6.6 ft) low-noise triax cable is terminated with a three slot male triax connector on one end and 3 alligator clips on the other.

Model 237-TRX-T Adapter — This is a 3-slot male to dual 3-lug female triax tee adapter for use with 7078-TRX triax cables. Suitable for use with the Model 6487 V-Source in high voltage applications.

Model 237-TRX-TBC Connector — This is a 3-lug female triax bulkhead connector with cap for assembly of custom panels and interface connections. Suitable for use with the Model 6487 V-Source in high voltage applications.

Models 7078-TRX-3, 7078-TRX-10, and 7078-TRX-20 Triax Cables — These are low noise triax cables terminated at both ends with 3-slot male triax connectors. The -3 model is 3 ft. (0.9m) in length, the -10 model is 10 ft. (3m) in length, and the -20 model is 20 ft.

(6m) in length.

Model 7078-TRX-TBC Connector — This is a 3-lug female triax bulkhead connector with cap for assembly of custom panels and interface connections. Suitable for use with the Model 6487 V-Source in high voltage applications.

Model 8009 Resistivity Test Fixture — This is a guarded test fixture for measuring volume and surface resistivities. It can accommodate sheet samples with a diameter between

64 and 102mm (2 to 4 in.) and a thickness of up to 3.175mm ( in.).

Model 8606 High Performance Probe Tip Kit — Consists of two spade lugs, two alligator clips, and two spring hook test probes. (The spade lugs and alligator clips are rated at

30V RMS, 42.4V peak; the test probes are rated at 1000V.) These components are

1-6 Getting Started

Model 6485 and 6487 User’s Manual

designed to be used with high performance test leads terminated with banana plugs, such as the Model 8607 High Performance Banana Cables.

Model 8607 High Performance Banana Cables — Consists of two high voltage

(1000V) banana cables. The cables are terminated with banana plugs that have retractable sheaths.

CAP-31 Protective Shield /Cap — For use with 3-lug triax connectors.

Model 6487 interlock cables and connector

Model 6517-ILC-3 Interlock Cable — Designed to connect the interlock of the Model 6487 to the Model 8009 test fixture.

Model 8002-ILC-3 Interlock Cable — Designed to connect the lid interlock circuit of a test fixture to the interlock circuit of the Model 6487.

CS-459 4-pin Female Interlock Connector — Allows custom wiring of external circuits to the Model 6487 interlock.

GPIB, RS-232, and trigger link cables and adapters

Models 7007-1 and 7007-2 shielded GPIB cables — Connects the Model 6485/6487 to the GPIB bus using shielded cables and connectors to reduce electromagnetic interference

(EMI). Model 7007-1 is lm long; Model 7007-2 is 2m long.

Model 7009-5 shielded RS-232 cable — Connects the Model 6485/6487 to the RS-232 interface using shielded cable and connectors to reduce electromagnetic interference

(EMI). Model 7009-5 is 5 ft. long.

Models 8501-1 and 8501-2 trigger link cables — Connects the Model 6485/6487 to other instruments with Trigger Link connectors (e.g., Model 7001 Switch System). Model 8501-

1 is lm long; Model 8501-2 is 2m long.

Model 8502 trigger link adapter — Lets you connect any of the six trigger link lines of the Model 6485/6487 to instruments that use the standard BNC trigger connectors.

Model 8503 DIN to BNC trigger cable — Lets you connect trigger link lines one

(Voltmeter Complete) and two (External Trigger) of the Model 6485/6487 to instruments that use BNC trigger connectors. Model 8503 is lm long.

Model 6485 and 6487 User’s Manual

Getting Started 1-7

Rack mount kits

Model 4288-1 single fixed rack mount kit — Mounts a single Model 6485/6487 in a standard 19-inch rack.

Model 4288-2 side-by-side rack mount kit — Mounts two instruments (Models 182,

428, 486, 487, 2000, 2001, 2002, 2010, 2400, 2410, 2420, 2430, 6430, 6485, 6487,

6517A, 7001) side-by-side in a standard 19-inch rack.

Model 4288-4 side-by-side rack mount kit — Mounts Model 6485/6487 and a 5.25-inch instrument (Models 195A, 196, 220, 224, 230, 263, 595, 614, 617, 705, 740, 775A, 6512) side-by-side in a standard 19-inch rack.

Carrying case

Model 1050 padded carrying case — A carrying case for Model 6485/6487. Includes handles and shoulder strap.

Additional references

While reading this document, you may find it helpful to consult the following documentation for reference:

Model 6485 Instruction Manual — Supplied in electronic format on the Product Information CD-ROM included with your shipment, this document provides in-depth information on Model 6485 operation, as well as performance verification, calibration, and routine maintenance procedures. Check www.keithley.com for details.

Model 6487 Reference Manual — Electronic format manual on the Product Information

CD-ROM included with your shipment, this document provides in-depth information on

Model 6487 operation, as well as performance verification, calibration, and routine maintenance procedures. Check www.keithley.com for details.

Low Level Measurements handbook — Keithley’s guide for effective low current, low voltage, and high impedance measurements. Check www.keithley.com for details.

1-8 Getting Started

Model 6485 and 6487 User’s Manual

Features

The Model 6485/6487 is a high-performance picoammeter capable of measuring current

(the Model 6487 also measures resistance).

Section 2 contains details on its measurement

capabilities (

“Connection fundamentals,” page 2-2 ). Features of Model 6485/6487

Picoammeter include:

Setup storage — Five instrument setups (three user, GPIB defaults, and factory defaults) can be saved and recalled.

• mX+b, m/X+b (reciprocal—for resistance calculations), and log10 — These

calculations provide mathematical manipulation of readings ( Section 5 ).

Relative — Null offsets or establish baseline values (

Section 5 ).

Buffer — Store data in the internal buffer ( Section 6

).

Limits — Set up to two stages of high and low reading limits to test devices (see

Section 8 of the Model 6485 Instruction Manual or Model 6487 Reference Manual).

Digital I/O port (Model 6487 only) — Four output lines and one input line to control external circuitry as an interface between limit tests and component handler.

(See Section 8 of the Model 6487 Reference Manual.)

Remote interface — Model 6485/6487 can be controlled using the IEEE-488

interface (GPIB) or the RS-232 interface ( Section 7 ).

Voltage source (Model 6487 only) — Internal ±500V voltage source is also used

for ohms function ( Section 3 ).

GPIB programming language — When using the GPIB, the instrument can be programmed using the SCPI or DDC programming language.

Model 6485 front and rear panel familiarization

Model 6485 front panel summary

The front panel of Model 6485 is shown in Figure 1-1

.

Model 6485 and 6487 User’s Manual

Figure 1-1

Model 6485 front panel

5

1

MENU

POWER

REM

TALK

LSTN

SRQ

SHIFT

TIMER

STEP SCAN CH1

HOLD TRIGFAST

CH2 CH3 CH4

MED SLOW REL

CH5 CH6

FILT AUTO

CH7

ERR

CH8 CH9 CH10 MATH

REAR

BUFFER STAT

4W

6485 PICOAMMETER

MEDN AVGMX+B M/X+B LOGREL

COMM DISP

SAVE SETUP

TRIG HALT

STORE RECALL

DIGITS RATE

LIMIT AZERO

ZCHK ZCOR

EXIT ENTER

RANGE

AUTO

RANGE

Getting Started 1-9

2 3 4

6

NOTE

To modify a key’s properties, press the CONFIG / LOCAL key (see Special keys and power switch) and then the key. Not all keys have configurable properties.

1 Special keys and power switch

CONFIG/

LOCAL

When in Local operation, use to configure properties of the next button pressed.

When in Remote operation (REM annunciator lit), cancels GPIB remote mode.

MENU

POWER

Provides access to menu.

Power switch. In position turns 6485 on (I), out position turns it off (O).

2 Function keys

MEDN

AVG

MX+B

M/X+B

LOG

REL

ZCHK

ZCOR

Use to control and modify properties of the median filter.

Use to control and modify properties of the digital filter.

Use to perform and configure properties of the mX+b math function.

Use to perform and configure properties of the m/X+b math function.

Use to convert output / display to log10 (on / off).

Use to control and configure properties of the rel(ative) function.

Use to perform a Zero Check function.

Use to control Zero Correct function (on / off).

3 Operation keys

COMM

DISP

TRIG

Use to control and modify communication properties (GPIB or RS-232).

Use to turn display on/off.

Trigger measurement(s). Takes 6485 out of idle state. Use also to configure trigger properties.

1-10 Getting Started

Model 6485 and 6487 User’s Manual

HALT

DIGITS

RATE and

SAVE

SETUP

STORE

RECALL

LIMIT

AZERO

EXIT

ENTER

Stops measurement process. Puts 6485 in idle state.

Use to set display resolution.

Use to select measurement rate.

Use to control cursor position for making selections or editing values.

Use to save present setup to a memory location.

Use to restore setup to either GPIB or factory defaults, or to a user memory location.

Also use to modify properties of power on defaults to either GPIB or factory defaults, or to a user memory location.

Use to start buffer and modify the number of readings to store.

Use to display stored readings (including maximum, minimum, peak-to-peak, average, and standard deviation). The ¹ and ƒ range keys scroll through the buffer and the

ß or © key toggles between reading number, reading, and timestamp.

Use to perform and create limit tests.

Use to control auto zero function (on / off).

Use to cancel selection and move back to measurement display.

Use to accept selection and move to next choice or back to measurement display.

4 Range keys

¹

ƒ

AUTO

Use to select the next higher measurement range. Also use to modify the upper autorange limit.

Use to select the next lower measurement range. Also use to modify the lower autorange limit.

Enables/disables autorange.

5 Display annunciators

MATH

MED

REL

REM

SLOW

SRQ

STAT

TALK

TIMER

TRIG

* (asterisk)

(more)

AUTO

BUFFER

ERR

FAST

FILT

LSTN

Readings being stored in buffer.

Indicates additional selections are available.

Autorange enabled.

Recalling readings stored in buffer.

Questionable reading or invalid cal step.

Fast (0.1 PLC) reading rate selected.

MEDIAN and/or AVERAGE filter enabled.

Instrument addressed to listen over GPIB.

mX+b, m/X+b, or log10 calculation enabled.

Medium (1 PLC) reading rate selected.

Relative enabled for present measurement function.

Instrument in GPIB remote mode.

Slow reading rate selected; 6 PLC for 60Hz or 5 PLC for 50Hz.

Service request over GPIB.

Displaying buffer statistics.

Instrument addressed to talk over GPIB bus.

Timer controlled triggering in use.

External triggering (GPIB or trigger link) selected.

6 Handle

Pull out and rotate to desired position.

Model 6485 and 6487 User’s Manual

Model 6485 rear panel summary

The rear panel of the Model 6485 is shown in Figure 1-2

.

Figure 1-2

Model 6485 rear panel

1

2

3 4

5 6

Getting Started 1-11

7

CAT I

INPUT

ANALOG OUT

TRIGGER LINK

220V PK

!

LINE RATING

50, 60Hz

30 VA

FUSE

630mA T

(SB)

LINE

100 VAC

120 VAC

315mAT

(SB)

220 VAC

240 VAC

RS-232

120

MADE IN

U.S.A.

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

8

1 INPUT

This standard female BNC connector is used to connect the signal to be measured to the input of the

Model 6485. Mates to a BNC cable.

2 CHASSIS

This screw terminal is used to connect COMMON to CHASSIS ground via the ground link connector.

3 COMMON

This standard banana connector can be used as input LO or as the common for the ANALOG OUT.

Also can be used as a ground link.

4 ANALOG OUT

This standard banana connector provides a scaled, inverting output (inverting 2V full scale on all ranges).

1-12 Getting Started

Model 6485 and 6487 User’s Manual

5 TRIGGER LINK

Eight-pin micro-DIN connector for sending and receiving trigger pulses among connected instruments.

Use a trigger link cable or adapter, such as Models 8501-1, 8501-2, 8502, and 8503.

6 RS-232

Female DB-9 connector for RS-232 operation. Use a straight-through (not null modem) DB-9 shielded cable.

7 IEEE-488

Connector for IEEE-488 (GPIB) operation. Use a shielded cable, such as Models 7007-1 and 7007-2.

8 Power module

Contains the AC line receptacle and power line fuse. The instrument can be configured for line voltages of 115V and 230VAC (nominal) at line frequencies of 50 or 60Hz automatically and over the bus.

Changing line voltages requires changing fuses.

Analog output

The Model 6485 has an analog output on the rear panel. The ANALOG OUT provides a

scaled, inverting ±2V output. A full-scale reading corresponds to ±2V output. See “Analog output,” page 2-14 in for full details on analog output operation.

Display

Readings can be displayed in engineering units or scientific notation. Annunciators indi-

cate various states of operation. See “Model 6485 front panel summary,” page 1-8 for a

complete listing of display annunciators.

NOTE

Changing the display resolution is not allowed if displaying readings in scientific notation.

The Display and Keys Test allows you to test display digit segments and annunciators, and check the functionality of front panel keys. These tests are accessed through the MENU.

Status and error messages

Status and error messages are displayed momentarily. During operation and programming, you will encounter a number of front panel messages. Typical messages are either of status or error variety, as listed in Appendix B of the Model 6485 Instruction Manual.

Model 6485 and 6487 User’s Manual

Getting Started 1-13

Model 6487 front and rear panel familiarization

Model 6487 front panel summary

The front panel of the Model 6487 is shown in Figure 1-3

.

Figure 1-3

Model 6487 front panel

7

1

CONFIG/

LOCAL

MENU

POWER

I |

Ω

MATH

COMM DISP

SAVE SETUP

FILT ZCHK

TRIG LIMIT

STORE RECALL

REL

6487 PICOAMMETER /VOLTAGE SOURCE

V-SOURCE

OPER

DIGITS RATE

RANGE

AUTO

RANGE

AZERO DAMP EXIT ENTER

VOLTAGE

SOURCE

OPERATE

2 3 4 5 6

NOTE

To modify a key’s properties, press the CONFIG / LOCAL key (see Special keys and power switch) and then the key. Not all keys have configurable properties.

1 Special keys and power switch

CONFIG/

LOCAL

When in Local operation, use to configure properties of the next button pressed.

When in Remote operation (REM annunciator lit), cancels GPIB remote mode.

MENU

POWER

Provides access to menu.

Power switch. In position turns 6487 on (I), out position turns it off (O).

2 Function keys

I|Ω

MATH

FILT

ZCHK

REL

Use to toggle between regular current measurements and ohms.

Turns on the selected Math function (selected using the CONFIG >> MATH key sequence).

Turns on filtering (selected using the CONFIG >> FILT key sequence).

Use to perform a Zero Check function.

Use to control and configure properties of the rel(ative) function.

1-14 Getting Started

Model 6485 and 6487 User’s Manual

OPER Toggles the Vsource state (the Vsource state is displayed by an indicator). (Configured using the CONFIG >> OPER key sequence.)

V-SOURCE ¹ Increments voltage source value

V-SOURCE ƒ Decrements voltage source value

3 Operation keys

COMM

DISP

TRIG

LIMIT

DIGITS

RATE

ß and ©

SAVE

SETUP

STORE

RECALL

AZERO

DAMP

EXIT

ENTER

Use to control and modify communication properties (GPIB or RS-232).

Use to turn display on/off.

Trigger measurement(s). Takes 6487 out of idle state. Use also to configure trigger properties.

Use to perform and create limit tests.

Use to set display resolution.

Use to select measurement rate.

Use to control cursor position for making selections or editing values.

Use to save present setup to a memory location.

Use to restore setup to either GPIB or factory defaults, or to a user memory location.

Also use to modify properties of power on defaults to either GPIB or factory defaults, or to a user memory location.

Use to start buffer and modify the number of readings to store.

Use to display stored readings (including maximum, minimum, peak-to-peak, average, and standard deviation). The ¹ and ƒ RANGE keys scroll through the buffer, and the ß or © key toggles between reading number, reading, voltage, and timestamp.

Use to control auto zero function (on / off).

Use to control damping function (on / off).

Use to cancel selection and move back to measurement display.

Use to accept selection and move to next choice or back to measurement display.

4 Range keys

¹

ƒ

AUTO

Use to select the next higher measurement range. Also use to modify the upper autorange limit.

Use to select the next lower measurement range. Also use to modify the lower autorange limit.

Enables/disables autorange.

5 Handle

Pull out and rotate to desired position.

6 VOLTAGE SOURCE OPERATE indicator

This indicator will turn on when the voltage source is in operate (voltage source output turned on). It will also turn on for about 0.7 sec at power-on to indicate that it is functional.

WARNING

Hazardous voltage may be present on the rear panel V-SOURCE

OUTPUT terminals when the operate indicator is on.

Model 6485 and 6487 User’s Manual

Getting Started 1-15

7 Display annunciators

MATH

MED

REL

REM

SLOW

SRQ

STAT

TALK

* (asterisk)

(more)

AUTO

BUFFER

ERR

FAST

FILT

LSTN

TIMER

TRIG

MON

SCAN

OCOMP

Readings being stored in buffer.

Indicates additional selections are available.

Autorange enabled.

Recalling readings stored in buffer.

Questionable reading or invalid cal step.

Fast (0.1 PLC) reading rate selected.

MEDIAN and/or AVERAGE filter enabled (also DAMPING enabled).

Instrument addressed to listen over GPIB.

mX+b, m/X+b, or log10 calculation enabled.

Medium (1 PLC) reading rate selected.

Relative enabled for present measurement function.

Instrument in GPIB remote mode.

Slow reading rate selected; 6 PLC for 60Hz or 5 PLC for 50Hz.

Service request over GPIB.

Displaying buffer statistics.

Instrument addressed to talk over GPIB bus.

Timer controlled triggering in use.

External triggering (GPIB or trigger link) selected.

Zero correct enabled.

Voltage sweep armed and ready to run.

Voltage source in compliance.

1-16 Getting Started

Model 6485 and 6487 User’s Manual

Model 6487 rear panel summary

The rear panel of the Model 6487 is shown in Figure 1-4

.

Figure 1-4

Model 6487 rear panel

1

2 3 4 5 6 7 8

MADE IN

U.S.A.

CAT I

INPUT

LO

ANALOG OUT

505V PK

!

505V PK

505V PK

TRIGGER LINK

V-SOURCE OUTPUT

505V PK TO CHASSIS

505V

MAX

DIGITAL I/O

RS-232

HI

INTERLOCK

FUSE

630mAT

(SB)

!

LINE

100 VAC

120 VAC

315mAT

(SB)

220 VAC

240 VAC

120

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

LINE RATING

50, 60Hz

50 VA MAX

9 10 11 12

1 INPUT

This standard three-lug female triax connector is used to connect the signal to be measured to the input of the Model 6487. Mates to a three-slot male triax connector cable.

2 CHASSIS

This screw terminal is used to connect COMMON to CHASSIS ground via the ground link connector.

3 COMMON

This standard banana connector can be used as input LO or as the common for the ANALOG OUT.

Also can be used as a ground link. Note that there is a 1k(ohm) resistance to input LO from the

ANALOG OUT common.

4 ANALOG OUT

This standard banana connector provides a scaled, inverting output (inverting 2V full scale on all ranges).

Model 6485 and 6487 User’s Manual

Getting Started 1-17

5 TRIGGER LINK

Eight-pin micro-DIN connector for sending and receiving trigger pulses among connected instruments. Use a trigger link cable or adapter, such as Models 8501-1, 8501-2, 8502, and 8503.

6 DIGITAL I/O

Male DB-9 connector for digital output lines and component handler signals.

7 RS-232

Female DB-9 connector for RS-232 operation. Use a straight-through (not null modem) DB-9 shielded cable.

8 IEEE-488

Connector for IEEE-488 (GPIB) operation. Use a shielded cable, such as Models 7007-1 and 7007-2.

9 V-SOURCE OUTPUT LO

This standard banana connector provides LO connection to the 6487’s voltage source.

WARNING

Hazardous voltage may be present on the rear panel V-SOURCE

OUTPUT terminals when the front panel operate indicator is on.

CAUTION

Do not connect external sources to the 6487 voltage source. External sources may damage the 6487 voltage source.

10 V-SOURCE OUTPUT HI

This standard banana connector provides HI connection to the 6487’s voltage source.

CAUTION

Do not connect external sources to the 6487 voltage source. External sources may damage the 6487 voltage source.

11 INTERLOCK

This interlock connector provides connection of the 6487’s voltage source with an interlock connector on a test fixture.

12 Power Module

Contains the AC line receptacle and power line fuse. The instrument can be configured for line voltages of 115V and 230VAC (nominal) at line frequencies of 50 or 60Hz automatically and over the bus.

Changing line voltages requires changing fuses.

Voltage source

The Model 6487 voltage source can source up to ±505V DC and is used for the ohms function. See

“Basic connections to DUT,” page 2-5

in for full details on voltage source operation.

1-18 Getting Started

Model 6485 and 6487 User’s Manual

Analog output

The Model 6487 has an analog output on the rear panel. The ANALOG OUT provides a

scaled, inverting ±2V output. A full-scale reading corresponds to ±2V output. See “Analog output,” page 2-14 in for full details on analog output operation.

Digital I/O

The Model 6487's Digital I/O port is a male DB-9 connector located on the rear panel. The four active-low, digital output lines and one input line are used to control external circuitry. For detailed connection and usage information, refer to Section 8 of the Model 6487 Reference

Manual.

Display

Readings can be displayed in engineering units or scientific notation. Annunciators indi-

cate various states of operation. See “Model 6487 front panel summary,” page 1-13

for a complete listing of display annunciators. The normal display also includes the voltage source value on the right.

NOTE

Changing the display resolution is not allowed if displaying readings in scientific notation.

The DISP key can be used to turn the display on or off. The Display and Keys Test allows you to test display digit segments and annunciators, and check the functionality of front panel keys. These tests are accessed through the MENU.

Status and error messages

Status and error messages are displayed momentarily. During operation and programming, you will encounter a number of front panel messages. Typical messages are either of status or error variety, as listed in Appendix B of the Model 6487 Reference Manual.

Model 6485 and 6487 User’s Manual

Getting Started 1-19

Power-up

Line power connection

Follow the procedure below to connect the Model 6485/6487 to line power and turn on the instrument.

1. Check to see that the line voltage indicated in the window of the fuse holder assem-

bly ( Figure 1-2

or

Figure 1-4 ) is correct for the operating voltage in your area. If

not, refer to the procedure in Section 17 of the Model 6485 Instruction Manual or

Model 6487 Reference Manual for setting line voltage and fuse replacement.

CAUTION

Operating the instrument on an incorrect line voltage may cause damage to the instrument, possibly voiding the warranty.

2. Before plugging in the power cord, make sure that the front panel power switch is in the off (O) position.

3. Connect the female end of the supplied power cord to the AC receptacle on the rear panel. Connect the other end of the power cord to a grounded AC outlet.

WARNING

The power cord supplied with the Model 6485/6487 contains a separate ground terminal for use with grounded outlets. When proper connections are made, instrument chassis is connected to power line ground through the ground wire in the power cord. Failure to use a grounded outlet may result in personal injury or death due to electric shock.

4. Turn on the instrument by pressing the front panel power switch to the on (I) position.

Line frequency

The Model 6485/6487 operates at line frequencies of 50 or 60Hz. When auto detect is enabled (factory default), line frequencies are automatically sensed and set accordingly, therefore there are no switches to set. Use the :SYST:LFR? command (query) to read the line frequency. The factory default setting is auto detect enabled.

If the power line is noisy, auto detect may not be able to lock in on a frequency. If this occurs, set the frequency manually. This may be accomplished using the front panel or over the bus. From the front panel, use the MENU/LFREQ selection to change the frequency. Via remote, send the SYST:LFR <freq> command.

1-20 Getting Started

Model 6485 and 6487 User’s Manual

Power-up sequence

The following power-up sequence occurs when the Model 6485/6487 is turned on:

1. The Model 6485/6487 performs self-tests on its EPROM and RAM with all digits and annunciators turned on. (For the Model 6487 at power-up, the VOLTAGE

SOURCE OPERATE LED will come on for 0.7 seconds to indicate that it is functional.) If a failure is detected, the instrument momentarily displays an error message and the ERR annunciator turns on. Error messages are listed in Appendix B of the Model 6485 Instruction Manual or Model 6487 Reference Manual.

NOTE

If a problem develops while the instrument is under warranty, return it to

Keithley Instruments Inc., for repair.

2. If the instrument passes the self-tests, the firmware revision levels are displayed.

For example:

6485 A01

or 6487 A01

3. After the firmware revision levels are displayed, the detected line frequency is displayed.

For example:

FREQ: 60Hz

4. After the detected line frequency is displayed, information on the selected remote interface is displayed: a.

GPIB — If the GPIB is the selected interface, the instrument will display the selected language (SCPI or DDC) and primary address.

Model 6485 Examples:

SCPI ADDR: 14

DDC ADDR: 14

Model 6487 Examples:

SCPI ADDR: 22

DDC ADDR: 22 b.

RS-232 — If RS-232 is the selected interface, the instrument will display the baud rate setting. For example:

RS-232: 9600b

5. If the FACTory setup is selected as the power-on setup, the unit is placed in the default reading mode after the communication information is displayed. If a setup other than FACTory is selected, the configured setup will be displayed. For example, if the USR1 setup (User Setup #1) is selected:

USING USR1

Model 6485 and 6487 User’s Manual

Getting Started 1-21

Default settings

The Model 6485/6487 can be restored to one of five setup configurations: factory default

(FACT), three user-saved (USR0, USR1, and USR2), and bus default (GPIB). As shipped from the factory, Model 6485/6487 powers up to the factory default settings. Factory default settings provide a general purpose setup for front panel operation, while the bus default (GPIB) settings do the same for remote operation. Factory and GPIB default settings are listed in

Table 1-1

and

Table 1-2

.

The instrument will power up to whichever default setup was saved as the power-on setup.

NOTE

At the factory, the factory default setup is saved into the USR0, USR1, and USR2 setups.

Saving user setups

To save a user setup, configure Model 6485/6487 for the desired measurement application, then press SAVE and select the desired setup (0 = USR0, 1 = USR1, 2 = USR2).

Press ENTER to complete the process. Use the *SAV command to save setups by remote.

To save the power-on setup, press CONFIG and then SETUP, and select FACT, USR0,

USR1, USR2, or GPIB, and press ENTER. Use the SYST:POS command to save the power-on setup via remote.

Restoring setups

Press SETUP to display the restore menu, then select the setup (FACT, USR0, USR1,

USR2, or GPIB) and press ENTER. Use the *RCL command to recall setups by remote.

Restoring factory default setup

From the front panel, press SETUP, select FACT, and then press ENTER. Use *RST to restore GPIB defaults or SYST:PRES to restore front panel defaults via remote.

1-22 Getting Started

Model 6485 and 6487 User’s Manual

Table 1-1

Model 6485 default settings

Setting

Factory

(:SYStem:PRESet)

GPIB

(*RST)

Trig Layer (CONF-TRIG):

TRIG:

Arm-In Source Event

Arm Layer (CONF-ARM):

Arm-In Source Event

Arm Count

Input Trigger Link Line

Source Bypass

Output Trigger Link Line

Output Trigger

TRIG-IN

IMM

IMM

INF

1

NEVER

2

Off

*

*

*

*

*

*

*

1

Buffer (STORE):

Count

Digital Filter (AVG):

Count

Type

Disabled

No effect

Off

10

Moving

*

*

*

*

*

Display Resolution (DIGITS) 5 -digits

Format byte order

GPIB:

Address

Language

Swapped

No effect (On at factory)

No effect (14 at factory)

No effect (SCPI at factory)

Limit Tests:

Limit 1 and Limit 2:

HI and LO Values

Disabled

1, -1

Median Filter:

Rank

MX+B:

“M” Value

“B” Value

Units

Off

1

Disabled

1.0

0.0

X

Log

M/X+B (reciprocal)

“M” Value

“B” Value

Units

Range

OFF

Disabled

1.0

0.0

X

AUTO

*

Normal

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*The factory (:SYStem:PRESet) and bus (*RST) GPIB defaults are the same. Bus settings that are different from factory reset are as shown.

Model 6485 and 6487 User’s Manual

Getting Started 1-23

Table 1-1 (cont.)

Model 6485 default settings

Setting

Rate:

NPLC

Rel:

Rel Value (VAL)

RS-232:

All Settings

Trigger Layer (CONF-TRIG):

Trig-In Source Event

Trigger Count

Trigger Delay

Input Trigger Link Line

Source Bypass

Output Trigger Link Line

Slow

6.0 (60Hz) or 5.0 (50Hz)

Off

0.0

No effect (Off at factory)

No effect

Factory

(:SYStem:PRESet)

IMM

1

0

1

NEVER

2

GPIB

(*RST)

*

*

*

*

*

*

*

*

*

*

*

*

Units

Zero Check

Zero Correct

No effect

Enabled

Disabled

*

*

*

*The factory (:SYStem:PRESet) and bus (*RST) GPIB defaults are the same. Bus settings that are different from factory reset are as shown.

1-24 Getting Started

Model 6485 and 6487 User’s Manual

Table 1-2

Model 6487 default settings

Setting

Factory

(:SYStem:PRESet)

Arm Layer (CONFIG ARM):

Arm-In Source Event

Arm Count

Input Trigger Link Line

Source Bypass

Output Trigger Link Line

Output Trigger

Buffer (STORE):

Count

IMM

INF

1

NEVER

2

Off

Disabled

No effect

Damping (DAMP)

Digital Filter (FILT):

Count

Type

On

Off

10

Moving

Display Resolution (DIGITS) 5 -digits

Format byte order Swapped

Function

GPIB:

Address

Language

Amps

No effect (On at factory)

No effect (22 at factory)

No effect (SCPI at factory)

Limit Tests:

Limit 1 and Limit 2:

HI and LO Values

Disabled

1, -1

Log (MATH)

Median Filter (FILT):

Rank

M/X+B (MATH)

“M” Value

“B” Value

Units

Ohms Mode

Range

Rate:

NPLC

Rel:

Rel Value (VAL)

OFF

Off

1

Disabled

1.0

0.0

X

Normal

AUTO

Slow

6.0 (60Hz) or 5.0 (50Hz)

Off

0.0

*The factory (:SYStem:PRESet) and bus (*RST) GPIB defaults are the same.

Bus settings that are different from factory reset are as shown.

GPIB

(*RST)

*

*

*

*

*

Normal

*

*

*

*

*

*

*

*

1

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

Model 6485 and 6487 User’s Manual

Getting Started 1-25

Table 1-2 (cont.)

Model 6487 default settings

Setting

RS-232:

All Settings

Factory

(:SYStem:PRESet)

No effect (Off at factory)

No effect

Trigger Layer (CONFIG TRIG):

Trig-In Source Event

Trigger Count

Trigger Delay

Input Trigger Link Line

Source Bypass

Output Trigger Link Line

Units

Voltage Source:

Operate

Amplitude

Range

Current Limit

10V Range Interlock

Sweeps:

Start Voltage

Stop Voltage

Step Voltage

Center Voltage

Span Voltage

Delay

IMM

1

0

1

NEVER

2

No effect

Off

0V

10V

25mA

Off

0V

10V

1V

5V

10V

1s

Zero Check

Zero Correct

Enabled

Disabled

*The factory (:SYStem:PRESet) and bus (*RST) GPIB defaults are the same.

Bus settings that are different from factory reset are as shown.

GPIB

(*RST)

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

1-26 Getting Started

Menu

Model 6485 and 6487 User’s Manual

Many aspects of operation are configured through the menus summarized in Table 1-3

and

Table 1-4 . Refer to the section listed in the table for in-depth information. To access the

menu, press the MENU key. Use the

¹ and

ƒ

RANGE keys to scroll through the menu items and the

ß and

©

cursor keys to change options. Press ENTER to save any changes made and then leave the menu. Press EXIT to leave the menu without saving changes.

NOTE

The MENU key is used to access the menu structure. However, if in remote for

IEEE-488 bus operation (REM annunciator is lit), pressing the menu key has no effect. Press the LOCAL key to place the unit in local operation, then press the

MENU key to access the menu items.

Table 1-3

Model 6485 MENU structure

Menu item

CAL

TSTAMP

UNITS

TEST

Description

Provides path to the following calibration submenu items:

VOFFSET, COUNT, RUN, DATES, UNLOCK, LOCK, and

SAVE.

Timestamp format can be ABSolute or DELTa.

Readings can be displayed in ENGineering units or

SCIentific notation.

Run display or key tests.

Reference

Instruction Manual

Section 16

Section 6

Instruction Manual

Section 17

SNUM

LFREQ

Displays the unit’s serial number.

Line frequency can be manually set to 50 or 60 Hz or

AUTOmatically set. The number after AUTO indicates present detected frequency value.

“Line frequency,” page 1-19

Model 6485 and 6487 User’s Manual

Getting Started 1-27

Table 1-4

Model 6487 MENU structure

Menu item

CAL

TSTAMP

UNITS

TEST

Description

Provides path to the following calibration submenu items:

VOFFSET, COUNT, RUN, VSRC-RUN, DATES,

UNLOCK, LOCK, and SAVE.

Timestamp format can be ABSolute or DELTa.

Readings can be displayed in ENGineering units or

SCIentific notation.

Run display or key tests.

SNUM

LFREQ

Displays the unit’s serial number.

Line frequency can be manually set to 50 or 60 Hz or

AUTOmatically set. The number after AUTO indicates present detected frequency value.

Reference

Reference Manual

Section 16

Section 6

Reference Manual

Section 17

“Line frequency,” page 1-19

SCPI programming

SCPI programming information is integrated with front panel operation throughout this manual. SCPI commands are listed in tables and additional information that pertains exclusively to remote operation is provided after each table. The SCPI tables may reference you to other sections of this manual.

NOTE

SCPI tables in this manual are abridged. That is, they do NOT include most optional command words and query commands. See Section 14 of the

Model 6485 Instruction Manual or Model 6487 Reference Manual for a complete listing of SCPI commands.

Optional command words

In order to be in conformance with the IEEE-488.2 standard, the Model 6485/6487 accepts optional command words. Any command word that is enclosed in brackets ([]) is optional and does not have to be included in the program message. Programming examples in this manual use the short form and do not include optional command words for simplicity.

Query commands

Most command words have a query form. A query command is identified by the question mark (?) that follows the command word. A query command requests (queries) the programmed status of that command. When a query command is sent and Model 6485/6487 is addressed to talk, the response message is sent to the computer.

1-28 Getting Started

Model 6485 and 6487 User’s Manual

2

Connections

Connection fundamentals

— Covers fundamental information about connecting

test circuits to the picoammeter.

Basic connections to DUT

— Details connecting test circuits to the picoammeter

for current measurement and Model 6487 ohms measurements.

Using a test fixture

— Discusses using general test fixtures as well as the Model 8009 test fixture.

Model 6487 interlock

— Provides information on using the Model 6487 interlock,

which must be used to optimize safety.

Analog output

— Covers analog output connections and discusses considerations when using the analog output.

Measurement considerations

— Summarizes considerations that could affect

overall measurement accuracy.

2-2 Connections

Model 6485 and 6487 User’s Manual

Connection fundamentals

The following provides important fundamental information on input connections to the

Models 6485 and 6487. Typical connection drawings are provided in

“Basic connections to DUT,” page 2-5

. More detailed connections for specific measurements are in Section 3

.

Model 6485 connections

Input connector

The rear panel INPUT connector is a 2-lug female BNC connector (

Figure 2-1

). Make connections using a male terminated BNC cable (

“Low noise input cables,” page 2-3

).

Figure 2-1

Model 6485 BNC Input connector

CAT I

Input

(Center Conductor)

Shield

(LO or GND)

INPUT

Maximum input levels

The maximum input levels to the Model 6485 are summarized in Figure 2-2

.

WARNING

The maximum safe voltage between picoammeter LO and chassis ground (common mode voltage) is 42V. The Model 6485 does not internally limit the LO-to-chassis voltage. Exceeding 42V can create a shock hazard.

CAUTION

The LO-to-chassis breakdown voltage is 500V. Exceeding this voltage may cause damage to the instrument.

Connecting COMMON or ANALOG OUTPUT to earth while floating the input may damage the instrument.

NOTE

Analog outputs will be at same voltages as applied to the BNC shell.

Model 6485 and 6487 User’s Manual

Figure 2-2

Model 6485 maximum input levels

Input HI

Max Continuous

Input Signal *

Input LO

42V Peak

Chassis Ground

* Maximum Continuous Input Signals

220V Peak, DC to 60Hz sine wave

Connections 2-3

Low noise input cables

When making precision measurements, you should always use low noise cables. As a gen-

eral rule, always use the shortest possible cable for measurements. See “Model 6485 input cables, connectors, and adapters,” page 1-4 for recommended cables.

Model 6487 connections

Input connector

The rear panel INPUT connector is a 3-lug female triax connector (

Figure 2-3 ). Make con-

nections using a male terminated triax cable.

Figure 2-3

Model 6487 triax Input connector

CAT I

Chassis Ground

Input Low

Input High

2-4 Connections

Model 6485 and 6487 User’s Manual

Voltage source output connectors

The rear panel V-SOURCE OUTPUT HI and LO connectors (see

Figure 1-4

in Section 1 )

are used to connect the voltage source to the DUT. The voltage source is primarily used

for ohms measurements. See “Ohms measurement connections,” page 2-7 for details.

Maximum input levels

The maximum input levels to the Model 6487 are summarized in Figure 2-4

.

WARNING

The maximum safe voltage between the voltage source or ammeter common and chassis ground (common mode voltage) is 505V peak.

Exceeding this voltage can create a shock hazard.

Figure 2-4

Model 6487 maximum input levels

Input HI

Input LO

Chassis Ground

Max Continuous

Input = 505V Peak

505V Peak

505V Peak

Connecting cables and test leads

When making precision measurements, you should always use low-noise triax cables for

INPUT connections. As a general rule, always use the shortest possible cable for measurements. When using the voltage source, the test leads must be rated for 505V minimum and

should include safety sheaths. See “Model 6487 input cables, connectors, and adapters,” page 1-5

in for recommended cables and test leads.

Model 6485 and 6487 User’s Manual

Connections 2-5

Basic connections to DUT

Model 6485 DUT connections

Connections

Basic connections are shown in Figure 2-5 , the DUT is the current to be measured. Circuit

high is connected to the center conductor of the input connector and circuit low is connected to the connector’s shell.

Figure 2-5

Basic Model 6485 connections

HI

DUT

INPUT*

LO

* Maximum Continuous Input Signals

220V Peak, DC to 60Hz sine wave

WARNING

If it is possible for the DUT or external supply to present more than

42V to the input HI, it is imperative that the connection between input

LO and the external voltage source be sufficiently low impedance and capable of carrying the short-circuit current of the source, in order that the LO not exceed 42V.

CAUTION

Current limiting resistors are required for DUTs capable of forcing voltages 220V or greater. Damage to the instrument may result if voltages greater than 220V are forced on the Model 6485 Input HI.

Noise and safety shields

Figure 2-6 shows typical measurement shielding. A noise shield is used to prevent

unwanted signals from being induced on the picoammeter input. Amps measurements below 1μA may benefit from effective shielding. Typically, the noise shield is connected to picoammeter input LO. Additionally,

Figure 2-6 shows LO connected to earth ground

via the ground link.

2-6 Connections

Model 6485 and 6487 User’s Manual

WARNING

The maximum safe voltage between picoammeter LO and chassis ground (common mode voltage) is 42V. The Model 6485 does not internally limit the LO-to-chassis voltage. Exceeding 42V can create a shock hazard.

If it is possible for the DUT or external supply to present more than

42V to the input HI, it is imperative that the connection between input

LO and the external voltage source be sufficiently low impedance and capable of carrying the short-circuit current of the source, in order that the LO not exceed 42V.

CAUTION

The LO to chassis breakdown voltage is 500V. Exceeding this voltage may cause damage to the instrument.

Figure 2-6

Shielding for Model 6485 measurements (unguarded)

HI

Metal Noise Shield

HI

Metal Noise Shield

Metal Safety

Shield

DUT

DUT

INPUT

(

220V

Peak)

LO

INPUT

(

220V

Peak)

LO

Safety

Earth

Ground

A. Noise Shield B. Safety Shield

Model 6487 DUT connections

Current measurement connections

Basic connections for current measurements are shown in

Figure 2-7 ; the DUT is the cur-

rent to be measured. Circuit high is connected to the center conductor of the input connector and circuit low is connected to the connector’s input LO (inner shield).

Model 6485 and 6487 User’s Manual

Connections 2-7

Figure 2-7

Basic Model 6487 current measurement connections

6487

HI

DUT

INPUT*

LO

* Maximum Continuous Input: 505V Peak

WARNING

If it is possible for the DUT or external supply to present more than

505V to the input HI, it is imperative that the connection between input LO and the external voltage source be sufficiently low impedance and capable of carrying the short-circuit current of the source, in order that the LO not exceed 505V.

CAUTION

Current limiting resistors are required for DUTs capable of forcing voltages 505V or greater. Damage to the instrument may result if voltages greater than 505V are forced on the Model 6487 INPUT HI.

Ohms measurement connections

Basic connections for ohms measurements are shown in

Figure 2-8 ; the DUT is the resis-

tance to be measured. Circuit high is connected to the center conductor of the INPUT connector and circuit low is connected to the V-SOURCE OUTPUT HI terminal. Note that

INPUT LO and V-SOURCE OUTPUT LO are connected together externally.

2-8 Connections

Model 6485 and 6487 User’s Manual

Figure 2-8

Basic Model 6487 ohms connections

6487

INPUT*

HI

DUT

LO

LO

V-SOURCE OUTPUT

HI

* Maximum Continuous Input: 505V Peak

Noise and safety shields

Figure 2-9 shows typical measurement shielding. In (A), a noise shield is used to prevent

unwanted signals from being induced on the picoammeter input. Amps measurements below 1μA may benefit from effective shielding. Typically, the noise shield is connected to picoammeter input LO. Additionally,

Figure 2-9 (B) shows an added safety shield con-

nected to earth ground and Model 6487 chassis. This type of shielding should be used whenever hazardous voltages will be present in the test circuit.

WARNING

The maximum safe voltage between picoammeter LO and chassis ground (common mode voltage) is 505V peak. The Model 6487 does not internally limit the LO-to-chassis voltage. Exceeding 505V can create a shock hazard.

If it is possible for the DUT or external supply to present more than

505V to the input HI, it is imperative that the connection between input LO and the external voltage source be sufficiently low impedance and capable of carrying the short-circuit current of the source, in order that the LO not exceed 505V.

CAUTION

The LO to chassis breakdown voltage is 505V. Exceeding this voltage may cause damage to the instrument.

Model 6485 and 6487 User’s Manual

Connections 2-9

Figure 2-9

Shielding for Model 6487 measurements (unguarded)

HI

Metal Noise Shield

HI

Metal Noise Shield

Metal Safety

Shield

INPUT

A. Noise Shield

LO

DUT

INPUT

Chassis

Ground

LO

B. Safety Shield

DUT

Safety

Earth

Ground

Input voltage overload (OVRVOLT message)

During normal operation, there should not be a significant voltage between the input HI and LO terminals of the Model 6485/6487. However, occasionally, as in the case of a

DUT failure, a customer voltage source can become shorted directly to the Model 6485/

6487. Under that condition, protection circuits within the 6485/6487 will limit the current flow for higher current ranges (20μA to 20mA). Additionally, when operating on the 2mA and 20mA ranges or when the 6485/6487 auto ranges up to these ranges as a response to the applied voltage, if the input voltage exceeds 60V, the Model 6485/6487 will change from a current limit to a 1MΩ− 3MΩ input impedance to prevent excess power dissipation. The OVRVOLT message will be displayed to indicate the change in the protection circuit. The same information is available with remote operation.

To return the instrument to normal operation, the over-voltage condition must be removed. Once the input voltage is reduced to under 60V, the protection circuit will return to its current limit operation until the current is reduced to a valid (on-scale) level.

Extended operation near, but under 60V, will produce heat inside the instrument and may require time to cool before returning to accurate readings.

Using a test fixture

Whenever possible, use a shielded low-leakage test fixture to make precision measurements and for safety when high voltages (>30V) are used.

2-10 Connections

Model 6485 and 6487 User’s Manual

General purpose test fixture

Connections to a general purpose test fixture are shown in Figure 2-10 and

Figure 2-11

.

This test fixture will accommodate a variety of connection requirements.

Figure 2-10

General purpose test fixture connections to Model 6485

From External

Power Supply

A

To 6485

Input

B

Metal Chassis

DUT

Metal Guard Plate

A

B

Banana Jacks (typical, from external power supply)

Female BNC Input Connector (Model 6485)

Insulated

Terminal

Post

Safety

Earth

Ground

Model 6485 and 6487 User’s Manual

Figure 2-11

General purpose test fixture connections to Model 6487

Metal Chassis

Connections 2-11

To Voltage

Source

A

Insulated

Terminal

Post (6)

DUT

To 6487

Input

B

To 6487

COMMON

Metal Guard Plate

A

B

Banana Jacks

3-Lug Female Triax Connector on 6487.

Safety

Earth

Ground

Model 8009 resistivity test fixture

This test fixture allows volume resistivity in the range from 10

3

to 10

18 resistivity in the range from 10

3

to 10

17

Ω-cm and surface

Ω/sq. For typical connections to the Model 6487,

refer to Figure 2-12 .

Figure 2-12

Typical connections for Model 6487 measurements using the Model 8009 test fixture

6517-ILC-3 Safety Interlock Cable

Model 6487

Model 8009

TRIAX

XXX MAX

HI/LO

MAX INPUT

XXXXV

LID

INTERLOCK

MADE IN

U.S.A.

CAT I

INPUT

LO

ANALOG OUT

505V PK

!

505V PK

505V PK

TRIGGER LINK

V-SOURCE OUTPUT

505V PK TO CHASSIS

505V

MAX

DIGITAL I/O

RS-232

HI

INTERLOCK

FUSE

630mAT

(SB)

!

LINE

100 VAC

120 VAC

315mAT

(SB)

220 VAC

240 VAC

120

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

LINE RATING

50, 60Hz

50 VA MAX

7078-TRX-3 Triax Cable

8607 Banana Plug Cables

Warning: Connect fixture ground to safety earth

ground using safety ground wire supplied

with the test fixture.

2-12 Connections

Model 6485 and 6487 User’s Manual

Model 6487 interlock

The Model 6487 has a built-in interlock that works in conjunction with the voltage source.

The interlock prevents the voltage source from being placed in operate on the 50V and

500V ranges, and optionally on the 10V range, to assure safe operation.

Interlock connections

Figure 2-13

shows interlock connections and the pin diagram of the INTERLOCK connector. Typically, the INTERLOCK connector is connected to the same type of connector on the test fixture. A normally open switch is connected to pins 1 and 2 of the INTERLOCK connector as shown. When the switch is open, the interlock is asserted and the voltage source cannot be placed in operate on the 50V or 500V voltage source ranges and optionally for the 10V range.

WARNING

If the voltage source was operating when the interlock is asserted, the voltage source will change to a high impedance state, possibly leaving charged DUT capacitance.

Interlock operation

The interlock is always operational for the 50V and 500V voltage source ranges. To enable the voltage source output, pins 1 and 2 of the INTERLOCK connector must be shorted together. For the 10V range, the interlock is optional and can be controlled with instrument programming. To enable the 10V range interlock, send :SOUR:VOLT:INT

ON. To disable the 10V range interlock, send :SOUR:VOLT:INT OFF.

Model 6485 and 6487 User’s Manual

Figure 2-13

Model 6487 interlock connections

Model 6487

MADE IN

U.S.A.

CAT I

INPUT

LO

ANALOG OUT

505V PK

505V PK

505V PK

!

TRIGGER LINK

V-SOURCE OUTPUT

505V PK TO CHASSIS

505V

MAX

DIGITAL I/O

RS-232

HI INTERLOCK

FUSE

630mAT

(SB)

!

LINE

100 VAC

120 VAC

220 VAC

240 VAC

120

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

LINE RATING

50, 60Hz

50 VA MAX

Interlock

Connector

Interlock

Cable

Pin 1

Interlock

Pin 2

Connections 2-13

Test Fixture

Test Fixture

Normally

Open

Switch

Interlock

Connector

Interlock Asserted

(Output Inhibited) with Open Switch

How is the interlock different between a Model 487 and Model 6487?

The Model 487 uses a 3-pin DIN interlock connector, while the Model 6487 uses a 4-pin

DIN for the interlock connection.

The Model 487 interlock prevents voltage source output only with the Model 236-ILC-3 cable connected. Without the cable connected, the Model 487 allows voltage source output on the 50V or 500V ranges. The Model 6487 will prevent voltage source output for the

50V or 500V ranges unless pins 1 and 2 are connected through an external switch by the customer. The Model 6487 will allow 10V range output by factory default without the external interlock connection but can be configured to require the external interlock connection.

2-14 Connections

Model 6485 and 6487 User’s Manual

With Model 6487 front panel operation, an open interlock will display "CLOSE INTLCK" as an error message when attempting to operate the voltage source on the 50V and 500V ranges. The Model 6487 in the Model 487 DDC emulation mode displays "IDDCO

ERROR" on the front panel when an "O1" command is sent. The Model 487 displays

"INTERLOCK" for the same condition. The "U9" voltage source error status word functions the same for either the Model 487 or Model 6487 in DDC emulation mode.

Analog output

The Model 6485/6487 has an analog output on the rear panel. The ANALOG OUT provides a scaled, inverting ±2V output. A full-scale reading corresponds to ±2V output.

CAUTION

Connecting COMMON or ANALOG OUT to earth while floating the input may damage the instrument.

Connections for using this output are shown in Figure 2-14

(Model 6485) and Figure 2-15

(Model 6487). For a full-scale input (i.e. 2mA on the 2mA range), the output will be -2V.

The 2V analog output signal is not corrected during calibration. The Model 6485 output impedance is 1kΩ, while the Model 6487 output impedance is <100Ω. To minimize the effects of loading, the input impedance of the device connected to the ANALOG OUT should be as high as possible.

Figure 2-14

Typical Model 6485 analog output connections

CAT I

INPUT

ANALOG OUT

TRIGGER LINK

220V PK

!

LINE RATING

50, 60Hz

30 VA

FUSE

630mA T

(SB)

LINE

100 VAC

120 VAC

315mAT

(SB)

220 VAC

240 VAC

RS-232

120

MADE IN

U.S.A.

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

Model 6485 Rear Panel

Test Lead

LO

HI

Measuring Device

(i.e. Chart recorder)

Model 6485 and 6487 User’s Manual

Figure 2-15

Typical Model 6487 analog output connections

Connections 2-15

CAT I

ANALOG OUT

DIGITAL I/O

INPUT

LO

505V PK

!

505V PK

505V PK

TRIGGER LINK

V-SOURCE OUTPUT

505V PK TO CHASSIS

505V

MAX

RS-232

HI

INTERLOCK

!

FUSE

630mAT

(SB)

LINE

100 VAC

120 VAC

315mAT

(SB)

220 VAC

240 VAC

120

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

Model 6487 Rear Panel

LINE RATING

50, 60Hz

50 VA MAX

Test Lead

LO

HI

Measuring Device

(i.e. Chart recorder)

Measurement considerations

There are a variety of factors to consider when making low-level measurements. These

considerations are summarized in Table 2-1

and are detailed in Appendix C of the Model

6485 Instruction Manual and Appendix G of the Model 6487 Reference Manual, as well as

in Appendix B

of this manual. For comprehensive information on all measurement considerations, refer to the Low Level Measurements handbook, which is available from Keithley

Instruments.

2-16 Connections

Model 6485 and 6487 User’s Manual

Table 2-1

Summary of measurement considerations

Considerations

Input bias current

Voltage burden

Noise

Description

See Model 6485 Instruction Manual, Appendix C or

Model 6487 Reference Manual, Appendix G for details.

Offset current of Model 6485/6487 could affect low current measurements.

Offset voltage of Model 6485/6487 could cause errors if it is high in relation to the voltage of the measured circuit.

Noise generated by source resistance and source capacitance.

Ground loops

Triboelectric effects

Piezoelectric and stored charge effects

Electrochemical effects

Humidity

Light

Electrostatic interference

Magnetic fields

Electromagnetic Interference

(EMI)

See Appendix B for details.

Multiple ground points can create error signals.

Charge currents generated in a cable by friction between a conductor and the surrounding insulator (i.e., bending a triax cable).

Currents generated by mechanical stress on certain insulating materials.

Currents generated by the formation of chemical batteries on a circuit board caused by ionic contamination.

Reduces insulation resistance on PC boards and test connection insulators.

Light sensitive components must be tested in a light-free environment.

Charge induced by bringing a charged object near your test circuit.

The presence of magnetic fields can generate EMF (voltage).

EMI from external sources (i.e., radio and TV transmitters) can affect sensitive measurements.

3

Measurements and

Sourcing Voltage

Measurement overview

— Explains the basic measurement and voltage source

capabilities of Model 6485/6487.

Performance considerations

— Covers warm-up period, voltage offset correc-

tion, auto zero, zero check, and zero correct.

Current measurements

— Provides a basic procedure to measure current.

Model 6487 ohms measurements

— Covers methods to set up and use the ohms

measurement function.

Model 6487 voltage source operation

— Discusses configuring and using the voltage source.

3-2 Measurements and Sourcing Voltage

Model 6485 and 6487 User’s Manual

Measurement overview

Current measurements

The basic current measurement capabilities of the Models 6485 and 6487 are summarized

in Table 3-1

. Accuracy for each measurement function and range is listed in the specifica-

tions ( Appendix A

).

Table 3-1

Basic Model 6485 and 6487 current measurement capabilities

Function

Amps

Reading Range

±10fA to ±21mA

Available Ranges

2nA, 20nA, 200nA,

2μA, 20μA, 200μA,

2mA, and 20mA

Model 6487 voltage source

The basic voltage source output capabilities of the Model 6487 are summarized in

Table 3-2

. Accuracy specifications are shown in Appendix A .

Table 3-2

Basic Model 6487 voltage source output capabilities

Function

Source voltage

Output Range

±200μV to ±505V

Available Ranges

10V, 50V, 500V

Model 6485 and 6487 User’s Manual

Measurements and Sourcing Voltage 3-3

Performance considerations

Warm-up period

The Model 6485/6487 can be used within one minute after it is turned on. However, the instrument should be turned on and allowed to warm up for at least one hour before use to achieve rated accuracy. If the instrument has been exposed to extreme temperatures, allow extra time for the internal temperature to stabilize.

Voltage offset correction

Voltage offset correction should be performed periodically to null input amplifier offsets.

Install the shielding cap on the INPUT jack, then use the CAL:VOFFSET selection in the main MENU. To perform correction via remote, send CAL:UNPR:VOFF.

Autozero

To help maintain stability and accuracy over time and changes in temperature, the Model

6485/6487 periodically measures internal voltages corresponding to offsets (zero) and amplifier gains; a process known as autozeroing. With autozero disabled, measurement speed increases up to three times, but measurement accuracy will be reduced. It is recommended that autozero only be disabled for short periods of time.

To toggle autozero on or off, press the AZERO button. When autozero is enabled, a colon will be displayed after the reading. Via remote, send SYST:AZER ON or SYST:AZER

OFF.

Zero check and zero correct

Zero check

When zero check is enabled (on), the input amplifier is reconfigured to shunt the input signal to low. From the front panel, enable/disable zero check by pressing the ZCHK key. Refer to

Table 3-3 for bus commands. Leave zero check enabled when connecting or disconnecting

input signals.

Zero correct

NOTE

The Model 6485/6487 saves a single zero correct value (not one for each range).

For best results, acquire a new zero correct value after changing to the desired range.

3-4 Measurements and Sourcing Voltage

Model 6485 and 6487 User’s Manual

The Model 6485/6487 has a zero correct feature to algebraically subtract the voltage offset term from the measurement. Perform the following steps to algebraically zero correct the measurement:

1. Enable zero check by pressing ZCHK. (For the Model 6485 “ZC” will be displayed; for the Model 6487, the “ZEROCHK” message will be displayed.)

2. Select the range that will be used for the measurement or select the lowest range.

3. Press ZCOR (Model 6485) or REL (Model 6487) to enable zero correct. (For the

Model 6485, “ZZ” message is displayed; for the Model 6487, the MON annunciator turns on.)

4. Press ZCHK to disable zero check.

5. Readings can now be taken from the display. (For the Model 6485, the “CZ” messages indicates a zero corrected reading. For the Model 6487, the MON annunciator indicates that the displayed reading is zero corrected.)

6. To turn off zero correct, press ZCOR (Model 6485) or REL (Model 6487) again with zero check enabled.

NOTES With regard to the zero correct feature:

• The Model 6485/6487 will remain zero corrected even if it is upranged. If downranged, re-zero the instrument.

• The Model 6485/6487 does not have to be re-zero corrected as long as the ambient temperature remains stable.

• Zero correction cancels the voltage offset term of the amplifier. With zero correct enabled, the instrument may not display a perfectly zeroed reading.

• If the Model 6485/6487 is operating at or near T

CAL have very little effect. T

CAL when it was last calibrated.

, zero correction will

is the internal temperature of Model 6485/6487

SCPI programming — zero check and zero correct

Table 3-3

SCPI commands — zero check and zero correct

Commands

SYST:ZCH <b>

SYST:ZCOR <b>

SYST:ZCOR:ACQ

INIT

Description

Enable (ON) or disable (OFF) zero check.

Enable (ON) or disable (OFF) zero correct.

Acquire zero correct value.

Trigger a reading.

Model 6485 and 6487 User’s Manual

Measurements and Sourcing Voltage 3-5

Current measurements

Precautions

Model 6485 precautions

WARNING

The maximum safe voltage between picoammeter LO and chassis ground (common mode voltage) is 42V. The Model 6485 does not internally limit the LO to chassis voltage. Exceeding 42V can create a shock hazard.

If it is possible for the DUT or external supply to present more than

42V to the input HI, it is imperative that the connection between input

LO and the external voltage source be sufficiently low impedance and capable of carrying the short-circuit current of the source, in order that the LO not exceed 42V.

CAUTION

The LO to chassis breakdown voltage is 500V. Exceeding this voltage may cause damage to the instrument.

The maximum input voltage and current to Model 6485 is 220V peak and 21mA. Exceeding either of these values may cause damage to the instrument that is not covered by the warranty.

Model 6487 precautions

WARNING

The maximum safe voltage between picoammeter LO and chassis ground (common mode voltage) is 505V. The Model 6487 does not internally limit the LO to chassis voltage. Exceeding 505V can create a shock hazard.

If it is possible for the DUT or external supply to present more than

505V to the input HI, it is imperative that the connection between input LO and the external voltage source be sufficiently low impedance and capable of carrying the short-circuit current of the source, in order that the LO not exceed 505V.

CAUTION

The maximum input voltage and current to Model 6487 is 505V peak and 21mA. Exceeding either of these values may cause damage to the instrument that is not covered by the warranty.

3-6 Measurements and Sourcing Voltage

Model 6485 and 6487 User’s Manual

Procedure

Perform the following steps to measure current:

Step 1. Select current function

For the Model 6487, press the I|Ω key to make sure the current function is selected.

Step 2. Enable zero check

Zero check should always be enabled before making connection changes. The ZCHK key toggles zero check on and off.

Step 3. Perform zero correction

To achieve optimum accuracy for low current measurements, it is recommended that you zero correct the picoammeter. To do so, make sure the 2nA range is selected, then press the ZCOR key (Model 6485) or REL key (Model 6487) to perform zero correction

(“ZZ” indicated for Model 6485; MON indicator on for Model 6487).

Step 4. Select a manual measurement range or enable auto range

Use the manual RANGE keys to select a manual measurement range or press AUTO to enable auto range. With auto range enabled, the instrument will automatically go to the most sensitive range to make the measurement. See

Section 4 for details on range.

Step 5. Connect the current to be measured to the picoammeter

Basic connections for measurements are shown in

Figure 3-1

and

Figure 3-2

.

WARNING

A safety shield is advisable whenever floating measurements are being made. Connections for the safety shield are shown in

Figure 3-1 and

Figure 3-2

. The metal safety shield must completely surround the noise shield or floating test circuit, and it must be connected to safety earth ground using #18 AWG or larger wire.

NOTE

When not making floating measurements, it is recommended that you ground measurement LO at only one place in the circuit, such as with the ground link connection on the rear panel of the 6485/6487. (See

“Ground loops,” page B-2 .)

Fundamental information on making connections to the picoammeter input is provided in

Section 2

.

Model 6485 and 6487 User’s Manual

Measurements and Sourcing Voltage 3-7

Step 6. Disable zero check and take a reading from the display

If the readings are noisy, you may want to use filtering to reduce noise. Filtering is covered in

Section 4

.

Figure 3-1

Connections for Model 6485 current measurements

HI

Input*

* 220V Peak

4801,

4802-10, or 4803

LO

Metal Noise Shield

Metal Safety

Shield

Safety

Earth

Ground

CAT I

INPUT

ANALOG OUT

TRIGGER LINK

220V PK

!

LINE RATING

50, 60Hz

30 VA

FUSE

630mA T

(SB)

LINE

100 VAC

120 VAC

315mAT

(SB)

220 VAC

240 VAC

RS-232

120

Model 6485

MADE IN

U.S.A.

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

3-8 Measurements and Sourcing Voltage

Model 6485 and 6487 User’s Manual

Figure 3-2

Connections for Model 6487 current measurements

Red (HI)

Metal Noise Shield

237-ALG-2

Cable

Green

(Chassis)

Black (LO)

Metal Safety Shield

Safety

Earth

Ground

MADE IN

U.S.A.

CAT I

INPUT

LO

ANALOG OUT

505V PK

!

505V PK

505V PK

TRIGGER LINK

V-SOURCE OUTPUT

505V PK TO CHASSIS

505V

MAX

DIGITAL I/O

RS-232

HI

INTERLOCK

FUSE

630mAT

(SB)

!

LINE

100 VAC

120 VAC

315mAT

(SB)

220 VAC

240 VAC

120

Model 6487

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

LINE RATING

50 VA MAX

SCPI programming

— current measurements

Table 3-4

SCPI commands — basic current measurements

Commands*

FUNC ‘CURR’

RANG <Range>

RANG:AUTO <b>

INIT

READ?

Description

Select current function (Model 6487 only).

Select manual range (-0.021 to 0.021A).

Enable (ON) or disable (OFF) auto range.

Trigger reading.

Trigger and return reading(s).

* Zero correct and zero check commands not included. See

Table 3-3 .

Model 6485 and 6487 User’s Manual

Measurements and Sourcing Voltage 3-9

Programming example

— current measurements

The following command sequence will perform one zero-corrected current measurement:

*RST

SYST:ZCH ON

RANG 2e-9

INIT

SYST:ZCOR:ACQ

SYST:ZCOR ON

RANG:AUTO ON

SYST:ZCH OFF

READ?

' Return 6485/6487 to GPIB defaults.

' Enable zero check.

' Select the 2nA range.

' Trigger reading to be used as zero

' correction.

' Use last reading taken as zero

' correct value.

' Perform zero correction.

' Enable auto range.

' Disable zero check.

' Trigger and return one reading.

Model 6487 ohms measurements

Overview

To measure ohms with the Model 6487, you must set up the voltage source to the desired

range, value, and current limit (see “Model 6487 voltage source operation,” page 3-12 ),

choose an appropriate current measurement range (or use auto range), and enable the ohms function. With the ohms function enabled, the Model 6487 calculates the measured resistance from the voltage source value and the measured current (R = V/I). When setting up the voltage source, choose as high a voltage value as possible for maximum current, keeping in mind such factors as the power dissipation and voltage coefficient of the resistance being tested.

DC and alternating voltage ohms

Model 6487 ohms measurements can be made using either the DC or alternating voltage modes, which can be used to enhance accuracy of very high resistance measurements.

Only the DC mode is covered in this manual. See Section 3 of the Model 6487 Reference

Manual for information on the alternating voltage mode.

Procedure

WARNING

Always turn off the Model 6487’s voltage source before changing voltage source connections to avoid a possible shock hazard.

Perform the following steps to measure resistance:

Step 1. Set up voltage source

Press either of the V-SOURCE adjustment keys, then use a manual RANGE key to set the voltage source range. Set the voltage and current limit to the desired values. You can skip the current limit prompt by pressing EXIT after adjusting the voltage.

3-10 Measurements and Sourcing Voltage

Model 6485 and 6487 User’s Manual

Step 2. Perform zero correction

To achieve optimum accuracy for high resistance measurements, it is recommended that you zero correct the picoammeter before enabling the ohms function. To do so, make sure that zero check and the 2nA range are selected, then press the REL key to perform zero correction (MON indicator on).

Step 3. Select a manual current range or enable auto range

Use the manual RANGE keys to select a manual current measurement range or press

AUTO to enable auto range. When using manual ranging, choose an appropriate value based on the voltage source setting and the expected measured resistance (I = V/R).

Step 4. Connect the resistance to be measured to the picoammeter

Basic connections for ohms measurements are shown in

Figure 3-3 . Note that both the

picoammeter INPUT and the V-SOURCE OUTPUT jacks are connected to the resistance under test.

WARNING

A safety shield is advisable whenever measurements are being made with voltages over 30V DC. Connections for the safety shield are shown in

Figure 3-3 . The metal safety shield must completely sur-

round the noise shield or floating test circuit, and it must be connected to safety earth ground using #18 AWG or larger wire.

Step 5. Select ohms function

Press the I|Ω key to make sure the ohms function is selected.

Step 6. Turn on voltage source

Press the OPER key to turn on the voltage source output. The VOLTAGE SOURCE

OPERATE indicator will turn on.

Step 7. Disable zero check and take a reading from the display

If the readings are noisy, use filtering to reduce noise. It may be advisable to use the alternating voltage ohms or add shielding.

NOTE

For any ohms measurements, the ohms reading is invalid and unknown if the voltage source is in compliance. Therefore, a value of -9.9e+36 will be returned over the GPIB and the message I-LIMIT will be displayed on the front panel for both normal readings and buffer recall readings for any ohms readings where the voltage source went into compliance.

Model 6485 and 6487 User’s Manual

Measurements and Sourcing Voltage 3-11

Figure 3-3

Connections for Model 6487 ohms measurements

Red (HI)

237-ALG-2

Cable

Green

(Chassis)

DUT

Metal Noise Shield

Metal Safety Shield

Safety

Earth

Ground

Black (LO)

DUT = Device Under Test.

V-SOURCE

OUTPUT

MADE IN

U.S.A.

CAT I

INPUT

LO

ANALOG OUT

505V PK

505V PK

505V PK

!

TRIGGER LINK

V-SOURCE OUTPUT

505V PK TO CHASSIS

505V

MAX

DIGITAL I/O

RS-232

HI

INTERLOCK

!

FUSE

630mAT

(SB)

LINE

100 VAC

120 VAC

315mAT

(SB)

220 VAC

240 VAC

120

Model 6487

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

LINE RATING

50, 60Hz

50 VA MAX

SCPI programming

— ohms measurements

Table 3-5

SCPI commands — basic Model 6487 ohms measurements

Commands*

SENS:OHMS ON

RANG <Range>

RANG:AUTO <b>

SOUR:VOLT:RANG <Range>

SOUR:VOLT <Volts>

SOUR:VOLT:ILIM <Current>

SOUR:VOLT:STAT <b>

READ?

Description

Select ohms function.

Select manual current range (-0.021 to 0.021A).

Enable (ON) or disable (OFF) auto current range.

Set voltage source range (10, 50, or 500).

Set output voltage (-505V to +505V).

Set current limit (25μA, 250μA, 2.5mA, or 25mA).

Turn voltage source output ON or OFF.

Trigger and return reading(s).

* Zero correct and zero check commands not included. See

Table 3-3

.

3-12 Measurements and Sourcing Voltage

Model 6485 and 6487 User’s Manual

Programming example

— ohms measurements

The following command sequence will perform one zero-corrected resistance measurement:

*RST

FORM:ELEM READ,UNIT

SYST:ZCH ON

RANG 2e-9

INIT

SYST:ZCOR:ACQ

SYST:ZCOR ON

RANG:AUTO ON

SOUR:VOLT:RANG 10

SOUR:VOLT 10

SOUR:VOLT:ILIM 2.5e-3

SENS:OHMS ON

SOUR:VOLT:STAT ON

SYST:ZCH OFF

READ?

' Return 6487 to GPIB defaults.

' Measurement, units elements only.

' Enable zero check.

' Select the 2nA range.

' Trigger reading to be used as zero

' correction.

' Use last reading taken as zero

' correct value.

' Perform zero correction.

' Enable auto current range.

' Select 10V source range.

' Set voltage source output to 10V.

' Set current limit to 2.5mA.

' Enable ohms function.

' Put voltage source in operate.

' Disable zero check.

' Trigger and return one reading.

Model 6487 voltage source operation

Configuring the voltage source

Press CONFIG then OPER to set the voltage source mode. You will first be prompted to choose DC or SWEEP mode. (Select DC for normal operation. See

Section 6

for details on sweeps.) After the mode is selected, the display shows a full-resolution value of the voltage source with the left-most position highlighted for editing. (If you do not wish to change the mode, you can jump right to this voltage edit display by pressing either

V-SOURCE adjustment key). The

ß and

©

keys are used to select the digit being edited, and the V-SOURCE

¹ and

ƒ

keys change the value. The RANGE

¹ and

ƒ

keys change the voltage source range and indicate the range selected. Note that the V-SOURCE

¹ and

ƒ keys will operate in the same manner as the RANGE

¹ and

ƒ

keys if they are not being used to change the voltage source value.

Voltage values are changed immediately from this configuration by pressing the arrow key. The digits will not increment beyond the maximum voltage for the selected range.

After the voltage value and range are selected press EXIT to return to normal readings display or press ENTER to advance to the current limit display. The current limit display

offers different choices depending on the source range (refer to Table 3-6

). Pressing

ENTER or EXIT from this display returns you to the normal readings display.

Model 6485 and 6487 User’s Manual

Measurements and Sourcing Voltage 3-13

Table 3-6

Voltage source current limits

Source Range:

10.0000V Range

50.000V Range

500.00V Range

25µA

25µA

25µA

Selectable Current Limit

250µA 2.5mA 25mA

250µA 2.5mA

250µA 2.5mA

Sourcing voltage

CAUTION

Do not connect external sources to the Model 6487 voltage source.

External sources may damage the Model 6487 voltage source.

Turning source on and off

The OPER key will toggle the voltage source state (on/off). The Model 6487 will output the configured voltage and the VOLTAGE SOURCE OPERATE indicator will turn on.

OPER (operate) key

The OPER (operate) key will function to turn the voltage source off, even if the instrument is operating under remote control (REM annunciator on), assuming that the LLO (Local

Lockout) function has not been employed. While in remote, the OPER key will only turn the source off. To turn it on, the Model 6487 must be in local (see

Section 7 ).

Voltage source off state

The voltage source is not in a high-impedance state when it is turned off. Rather, it is in a state that acts just like the voltage source was programmed to 0V on the selected range. It will enter this state on power-up after the VOLTAGE SOURCE OPERATE light blinks.

In contrast, the safety interlock will cause the voltage source to go into a high-impedance state instead of 0V output and the source will stay in the high-impedance state until the operate state is changed to on. The exception is the 10V range where the interlock is optional. The OPERATE light and front panel display do not indicate the difference between 0V output and high-impedance output caused by an open interlock. The interlock

status is available by query via remote (see Table 3-7

).

Compliance indication

At any time, it is possible that the voltage source will go into compliance (current limit reached). Should this situation occur, the OCOMP annunciator (Output Compliance) will flash and the displayed voltage value (visible when current readings are configured for readings of less than 6 digits) will alternate between showing the value and displaying

“CMPL”. If you are in a menu where the voltage source value is not shown on the rightmost four characters of the display, only the flashing OCOMP annunciator will be shown.

3-14 Measurements and Sourcing Voltage

Model 6485 and 6487 User’s Manual

Open interlock indication

If the interlock is asserted (opened) while the unit is on the 50V or 500V range, the voltage source will also technically be in compliance. However, there will be no indication of that status over the front panel or in the status registers. The open interlock takes precedence.

SCPI commands — voltage source

Table 3-7

SCPI commands — voltage source

Command Description

SOUR:VOLT <Voltage>

SOUR:VOLT:RANG <Range>

SOUR:VOLT:ILIM <Limit>

SOUR:VOLT:STAT <b>

SOUR:VOLT:INT <b>

SOUR:VOLT:INT:FAIL?

Set the source output level (-500 to +500V).

Set source range to one of three ranges: 10, 50, and 500V.

Set the source current limit: 2.5e-5, 2.5e-4, 2.5e-3, or 2.5e-2.

1

Enable (ON) or disable (OFF) source output.

Enable (ON) or disable (OFF) interlock for 10V range.

2

Query interlock state (1 = asserted); source output cannot be turned on.

1

2.5e-2 not available for 50V and 500V ranges.

2

See

Section 2 for interlock operation.

Programming example

— voltage

The following command sequence will output 5V on the 10V range with a 2.5mA limit:

*RST

SOUR:VOLT:RANG 10

SOUR:VOLT 5

SOUR:VOLT:ILIM 2.5e-3

SOUR:VOLT:STAT ON

' Return 6487 to GPIB defaults.

' Select 10V source range.

' Set voltage source output to 5.

' Set current limit to 2.5mA.

' Put voltage source in operate.

4

Range, Units, Digits,

Rate, and Filters

Range, units, and digits

— Provides details on measurement range, reading units,

and display resolution selection. Includes the SCPI commands for remote operation.

Rate

— Provides details on reading rate selection. Includes the SCPI commands for remote operation.

Model 6487 damping

— Provides details on damping rate selection. Includes the

SCPI command for remote operation.

Filters

— Explains how to configure and control the digital and median filters. Includes

the SCPI commands for remote operation.

4-2 Range, Units, Digits, Rate, and Filters

Model 6485 and 6487 User’s Manual

Range, units, and digits

Range

The ranges for current measurements are listed in

Table 4-1

.

Table 4-1

Measurement ranges

nA

μA

mA

2nA 2μA 2mA

20nA 20μA 20mA

200nA 200μA

The full scale readings for every measurement range are 5% over range. For example, on the

20μA range, the maximum input current is ± 21μA. Input values that exceed the maximum readings cause the overflow message (OVRFLOW) to be displayed.

Manual ranging

To select a range, press the desired manual RANGE key. The instrument changes one range per key-press. If the instrument displays the OVRFLOW message on a particular range, select a higher range until an on-range reading is displayed. Use the lowest range possible without causing an overflow to ensure best accuracy and resolution.

Autoranging

When using autorange, the instrument automatically goes to the most sensitive available range to measure the applied signal. Up-ranging occurs at 105% of range, while down-ranging occurs at the range value. The AUTO key toggles the instrument between manual ranging and autoranging. The AUTO annunciator turns on when autoranging is selected. To disable autoranging, press AUTO or a manual RANGE key. Pressing AUTO to disable autoranging leaves the instrument on the present range.

Every time an autorange occurs, a search for every available range of the selected function is performed. The time it takes to perform the search could slow down range change speed significantly. Setting upper and/or lower autorange limits can reduce search time.

Autorange limits

Search time for finding the correct amps range can be reduced by setting upper and/or lower autorange limits. To set upper and/or lower autorange limits, press CONFIG then either manual RANGE key (for UPPER or LOWER), then scroll through the available range limits using the RANGE keys. Press ENTER when the desired range is flashing.

Model 6485 and 6487 User’s Manual

Range, Units, Digits, Rate, and Filters 4-3

Units

Readings can be displayed using engineering (ENG) units (i.e., 1.236 mΑ) or scientific

(SCI) notation (i.e., 1.236E-03Α). To change units, press the MENU key, select UNITS, then press ENTER. Select ENG or SCI, then press ENTER.

NOTE

The units setting can only be changed from the front panel (no remote operation). Scientific notation provides more resolution on small values than engineering units.

Digits

The DIGITS key sets display resolution for Model 6485/6487. Display resolution can be set from 3 to 6 digits. This single global setting affects display resolution for all measurement ranges. To set display resolution, press (and release) the DIGITS key until the desired number of digits is displayed.

NOTE

For the Model 6487, the voltage source value will not be displayed in the 6 digit display mode.

SCPI programming — range and digits

Table 4-2

SCPI commands — range and digits

Commands

RANG <n>

RANG:AUTO <b>

RANG:AUTO:ULIM <n>

RANG:AUTO:LLIM <n>

Description

Select range: -0.021 to 0.021 (A).

Enable (ON) or disable (OFF) autorange.

Specify upper range limit for autorange: -0.021 to 0.021 (A).

Specify lower range limit for autorange: -0.021 to 0.021 (A).

DISP:DIG <n> Set display resolution: 4 (3 digits) to 7 (6 digits).

Programming example — range and digits

The following command sequence selects the 20mA range and sets display resolution to 3 digits.

*RST

RANG 0.02

DISP:DIG 4

' Restore RST defaults.

' Set to 20mA range.

' Set display resolution to 3-1/2 digits.

4-4 Range, Units, Digits, Rate, and Filters

Model 6485 and 6487 User’s Manual

Rate

Model 6487 damping

High capacitance seen at the input will increase reading noise. This capacitance can be attributed to a long input cable or to the capacitance of the source, or a combination of both.

Enabling damping (analog filtering) will reduce noise caused by high capacitance for current measurements. However, damping will also slow down the response of the measurement.

To enable or disable damping from the front panel, simply press the Model 6487 DAMP key. Note that the FILT annunciator will be on when damping is enabled. Via remote, send DAMP ON or DAMP OFF. Note that the FILT annunciator is used for both the analog damping filter and the two types of digital filters.

Filters

The RATE key selects the integration time of the A/D converter, which is the period of time the input signal is measured. The integration time affects the amount of reading noise, as well as the ultimate reading rate of the instrument. The integration time is specified in parameters based on a number of power line cycles (NPLC), where 1 PLC for 60Hz is

16.67msec (1/60) and 1 PLC for 50Hz (and 400Hz) is 20msec (1/50). The rate setting is global for all ranges. Therefore, it does not matter what range is presently selected when you set rate.

To select the rate, either press the RATE key to select SLOW (6 PLC, 60Hz; 5 PLC,

50Hz), MED (1 PLC), or FAST (0.1 PLC), or press CONFIG and then RATE, and then enter the desired number of PLCs (0.01 to 60, 60Hz; 0.01 to 50, 50Hz).

To set the rate by remote, send :NPLC <plc> with an allowable range, or 0.01 to 60

(60Hz), or 0.01 to 50 (50Hz).

Filtering stabilizes noisy measurements caused by noisy input signals. The Model 6485/

6487 uses two types of filters: median and digital. The displayed, stored, or transmitted reading is simply the result of the filtering processes. Note that both the median and digital filters can be in effect at the same time.

With both filters enabled, the median filter operation is performed first. After the median filter yields a reading, it is sent to the stack of the digital filter. Therefore, a filtered reading will not be displayed until both filter operations are completed.

The settings for the filter are global. For the Model 6485, the MEDN key controls the median filter and the AVG key controls the average filter. For the Model 6487 both filters are controlled with the FILT key. When either the median or digital filter is enabled, the

FILT annunciator is on. Note that the FILT annunciator is used for both the digital filters and the Model 6487 analog damping filter.

Model 6485 and 6487 User’s Manual

Range, Units, Digits, Rate, and Filters 4-5

Median filter

The median filter is used to determine the "middle-most" reading from a group of readings that are arranged according to size. For example, assume the following readings:

20mA, 1mA, 3mA

The readings are rearranged in an ascending order as follows:

1mA, 3mA, 20mA

From the above readings, it is apparent that 3mA is the median (middle-most) reading.

The number of sample readings used for the median calculation is determined by the selected rank (1 to 5) as follows:

Sample readings = (2 × R) + 1 where; R is the selected rank (1 to 5)

Note that the median filter throws out the oldest of the ranked values. It is especially useful for noise characterized by unwanted spikes.

Digital filter

Digital filter types

An additional filter parameter is type (type is either moving or repeating).

Moving Filter — Every time a reading conversion occurs, the readings in the stack are averaged to yield a single filtered reading. The stack type is first-in, first-out. After the stack fills, the newest reading conversion replaces the oldest. Note that the instrument does not wait for the stack to fill before releasing readings.

Repeating Filter — Takes a selected number of reading conversions, averages them, and yields a reading. It then flushes its stack and starts over.

4-6 Range, Units, Digits, Rate, and Filters

Model 6485 and 6487 User’s Manual

Filter control

Model 6485 front panel control

The median filter is turned on or off with the MEDN key. To configure the median filter, press CONFIG then MEDN, then select the desired rank (1-5) with the RANGE keys.

The average filter is enabled or disabled with the AVG key. To control average filter parameters, press CONFIG then AVG, then select COUNT (2-100), and MOVING or

REPEAT.

Model 6487 front panel control

Both the median and average filters are controlled by pressing CONFIG then FILT. Select

MEDIAN or AVERAGE, then set appropriate parameters. For the MEDIAN selection, you can choose ON or OFF and set the RANK (1-5). For the AVERAGE filter, you can choose ON or OFF, COUNT (2-100), MOVING or REPEAT.

Once the filter is configured, you can toggle the filter state on or off by pressing FILT. The

FILT annunciator will show when the filter is on.

SCPI commands — filters

Table 4-3

SCPI commands — filters

Commands

MED <b>

MED:RANK <n>

AVER <b>

AVER:TCON <name>

AVER:COUNt <n>

Description

Enable (ON) or disable (OFF) median filter.

Specify median filter rank: 1 to 5.

Enable (ON) or disable (OFF) digital filter.

Select filter control: MOVing or REPeat.

Specify filter count: 2 to 100.

Programming example

The following command sequence configures and enables both filters:

' Median Filter:

MED:RANK 5

MED ON

' Set rank to 5.

' Enable median filter.

' Digital Filter:

AVER:COUN 20

AVER:TCON MOV

AVER ON

' Set filter count to 20.

' Select moving filter.

' Enable digital filter.

5

Relative, mX+b, m/X+b

(reciprocal), and log

Relative

— Explains how to null an offset or establish a baseline value. Includes

the SCPI commands for remote operation.

mX+b, m/X+b (reciprocal), and Logarithmic

— Covers these three basic math operations and includes the SCPI commands for remote operation.

5-2 Relative, mX+b, m/X+b (reciprocal), and log

Mode 6485 and 6487 User’s Manual

Relative

Relative (Rel) nulls an offset or subtracts a baseline reading from present and future readings. When a Rel value is established, subsequent readings will be the difference between the actual input and the Rel value.

Displayed (Rel’ed) Reading = Actual Input - Rel Value

A Rel value is the same for all measurement ranges. For example, a Rel value of 1E-6 is

1μA on the 2μA range. It is also 1μA on the 20μA range and the 200μA range. Note changing ranges does not disable Rel.

Front panel relative

From the front panel, there are two ways to set the Rel value. You can either use the input reading as the Rel value or you can manually key in the Rel value.

To use the present reading, disable zero check, display the reading, then press REL. The

REL annunciator will turn on and subsequent readings will be the difference between the actual input and the Rel value. To disable relative, press REL again (for the Model 6487, while zero check is disabled). To enter a reading, press CONFIG then REL, enter the desired value, then press ENTER. Relative will be enabled after you enter the value.

NOTE

For the Model 6487, separate Rel values are stored for the amps and ohms functions.

SCPI programming — relative

Table 5-1

SCPI commands — relative (null)

Commands

CALC2:FEED <name>

CALC2:NULL:ACQ

CALC2:NULL:OFFS <Rel>

CALC2:NULL:STAT <b>

CALC2:DATA?

CALC2:DATA:LAT?

INIT

Description

Specify reading to Rel: SENS or CALC1.

Use input signal as Rel value.

Specify Rel value: -9.999999e20 to 9.999999e20.

Enable (ON) or disable (OFF) Rel.

Return Rel’ed readings triggered by INIT.

Return only the latest Rel’ed reading.

Trigger one or more readings.

Model 6485 and 6487 User’s Manual

Relative, mX+b, m/X+b (reciprocal), and log 5-3

Programming example — relative

This program fragment establishes a 1μA baseline for measurements:

CALC2:NULL:OFFS 1e-6

CALC2:NULL:STAT ON

SYST:ZCH OFF

INIT

CALC2:DATA?

' Set Rel value of 1

μA.

' Enable Rel.

' Turn off zero check.

' Trigger reading.

' Request Rel’ed reading.

mX+b, m/X+b (reciprocal), and Logarithmic

mX+b and m/X+b

The following math operations manipulate normal display readings (X) mathematically according to the following calculations:

Y = mX+b

Y = m/X+b where: X is the normal display reading. m and b are user-entered constants for scale factor and offset.

Y is the displayed result.

NOTE

Changing the “m” or “b” for mX+b also changes it for m/X+b.

Logarithmic

This calculation converts input readings to logarithm base 10 values. The calculation is performed as follows: log

10X

=

Y where: X is the input reading.

Y is the logarithmic result.

For example: Assume that exactly 1mA is being measured by the Model 6485/6487. log

10

1.000000mA

= – 3

NOTE

This calculation uses the absolute value of the normal input reading as the log of a negative number cannot be computed.

5-4 Relative, mX+b, m/X+b (reciprocal), and log

Mode 6485 and 6487 User’s Manual

Configuring math functions

Model 6485

To select and configure math functions from the Model 6485 front panel, press either the

MX+B or M/X+B key, then enter the required m, b, and units parameters. Use MX+B or

M/X+B to toggle math on or off. The MATH annunciator will turn on to indicate that the math function is enabled.

Model 6487

To select and configure math functions from the Model 6487 front panel, press CONFIG then MATH. Select the math function to configure, then enter the required parameters for mX + b and m/X + b (m, b, and units). Once a math function is selected, simply press the

MATH key to toggle math on or off. The MATH annunciator will turn on to indicate that the math function is enabled.

SCPI programming — mX+b, m/X+b, and log

Table 5-2

SCPI commands — mX+b, m/X+b, and log

Commands

CALC:FORM <name>

CALC:KMAT:MMF <n>

CALC:KMAT:MBF <n>

CALC:KMAT:MUN <name>

CALC:STAT <b>

CALC:DATA?

CALC:DATA:LAT?

Description

Select math function: MXB, REC, or LOG10.

Set M for mX+b and m/X+b: -9.99999e20 to 9.99999e20.

Set B for mX+b and m/X+b: -9.99999e20 to 9.99999e20.

Set units for mX+b or m/x+b: 1 character: A–Z, ‘[’=Ω, ‘\’=°, ‘]’=%.

Enable or disable the selected math function.

Returns all CALC results triggered by the INIT.

Returns only the latest CALC reading.

Programming example — mX+b

This command sequence performs a single mX+b calculation and returns the result:

*RST

CALC:FORM MXB

CALC:KMAT:MMF 2e-3

CALC:KMAT:MBF 5e-4

CALC:STAT ON

SYST:ZCH OFF

INIT

CALC:DATA?

'Restore RST defaults.

'Select mX+b calculation.

'Set scale factor (M) to 2e-3.

'Set offset (B) to 5e-4.

'Enable calculation.

'Disable zero check.

'Perform one measurement and

'calculate mX+b.

'Request mX+b result.

6

Buffer and Sweeps

Buffer operations

— Explains how to store and recall readings including buffer statistics.

Model 6487 voltage sweeps

— Discusses how to generate sweeps using the voltage source.

6-2 Buffer and Sweeps

Model 6485 and 6487 User’s Manual

Buffer operations

The Model 6485 has a buffer to store from one to 2,500 readings. The Model 6487 buffer can store from one to 3,000 readings. Both instruments also store overflow readings and a timestamp, and each Model 6487 reading includes the voltage source value. The timestamp for each reading is referenced to the time the measure/store process is started. In addition, recalled data includes statistical information (maximum, minimum, peak-to-peak, average and standard deviation).

The buffer fills with the specified number of readings and stops. Readings are placed in the buffer after any filters and/or math operations have been performed. Math operations include relative, mX+b, m/X+b, LOG, or limits (see

Section 5 ).

Buffered data is overwritten each time the storage operation is selected. The data is volatile

— it is not saved through a power cycle.

Measurement function changes are permissible during the storage process. Note however, that the statistics will be based on the readings of the different measurement functions.

Store

To store readings, set up the instrument for the desired configuration, then press CONFIG followed by STORE. Set the number of readings to store (1-2500, Model 6485; 1-3000,

Model 6487), and press ENTER. Press the STORE key to start data storage. The asterisk

(*) annunciator turns on to indicate that the data storage operation is active. To abort storage while active, press EXIT.

Recall

To view stored readings and buffer statistics, press RECALL, then use the RANGE and cursor keys to navigate through the reading numbers and buffer statistics, reading values, voltage source values (Model 6487 only), and timestamps. (Use the RANGE keys to scroll through statistics and reading values; use the cursor keys to select among readings,

Model 6487 voltage source values, and timestamps.) The BUFFER annunciator will be on while readings are being recalled. Press EXIT to return to normal display.

NOTE

For the Model 6487, if the voltage source was in compliance when the reading was acquired, the recalled front panel SRC: display will show the voltage value dimmed. Over the GPIB, a value of -999 returned for the voltage source element indicates that the source was in compliance.

Model 6485 and 6487 User’s Manual

Buffer and Sweeps 6-3

Buffer timestamp

To change the buffer timestamp format, press MENU, select TSTAMP, then press ENTER.

Select the desired option: ABS (absolute) or DELT (delta). For ABS, each timestamp is referenced to the first reading stored in the buffer. The first reading always has a timestamp of

0000000.0000. With DELT, each timestamp provides the time between the readings.

Clear

To clear the Model 6487 buffer, press CONFIG followed by STORE, then set the reading count to 0 (pressing AUTO will clear the display quickly). Press ENTER with a reading count of 0 displayed to finish clearing the buffer.

Buffer statistics

MIN and MAX provides the minimum and maximum readings stored in the buffer. It also indicates the buffer location of these readings.

• The PK-PK (peak-to-peak) value is the difference between the maximum and minimum readings stored in the buffer:

PK-PK = MAX - MIN

Average is the mean of the buffer readings. Mean is calculated as follows: y =

Σ

n

X n i i=1

Where: X i is a stored reading. n is the number of stored readings.

• The STD DEV value is the standard deviation of the buffered readings. Standard deviation is calculated as follows: y =

Σ

n

(

Avg X

=

-----------------------------------i

)

2

Where: X

i

is a stored reading.

n is the number of stored readings.

Avg is the mean of the buffer readings.

6-4 Buffer and Sweeps

Model 6485 and 6487 User’s Manual

NOTE

If any readings stored in the buffer are the result of an overflow or Model 6487 overvoltage condition, the buffer statistics calculation will not be performed.

Buffer recall via front panel operation will show a series of dashes in place of the requested buffer statistics value. In remote operation, the corresponding buffer statistics will be represented by the value +9.91e37.

SCPI programming — buffer

Table 6-1

SCPI commands — buffer

Commands

TRAC:CLE

TRAC:FREE?

TRAC:POIN <n>

TRAC:POIN:ACT?

TRAC:FEED <name>

TRAC:FEED:CONT <name>

TRAC:TST:FORM <name>

TRAC:DATA?

FORM:ELEM <list>

CALC3:FORM <name>

CALC3:DATA?

Description

Clear readings from buffer.

Query bytes available and bytes in use.

Specify number of readings to store: 1 to 2500, Model 6485;

1 to 3000, Model 6487.

Returns number of readings actually stored in buffer.

Select source of readings for buffer: SENS, CALC1, or CALC2.

Select buffer control mode: NEV or NEXT.

Select timestamp format: ABS or DELT.

Read all readings in buffer.

Specify data elements for TRAC:DATA? response message:

READ, UNIT, VSO, TIME, and STAT (VSO, 6487 only).

Select buffer statistic: MIN, MAX, MEAN, SDEV, or PKPK.

Read the selected buffer statistic.

Programming example

The following command sequence stores 20 readings into the buffer and then calculates the mean average on the buffer readings:

' Select data elements:

*RST

FORM:ELEM READ,TIME

' Return 6485/6487 to RST defaults.

' Select reading and timestamp.

' Store and Recall Readings:

TRIG:COUN 20 ' Set trigger model to take to 20

TRAC:POIN 20

readings.

' Set buffer size to 20.

TRAC:FEED SENS

TRAC:FEED:CONT NEXT

SYST:ZCH OFF

INIT

TRAC:DATA?

' Store raw input readings.

' Start storing readings.

' Turn off zero check.

' Trigger readings.

' Request all stored readings.

' Acquire Mean Statistic for Buffer Readings:

CALC3:FORM MEAN ' Select mean statistic.

CALC3:DATA?

' Request mean statistic.

Model 6485 and 6487 User’s Manual

Buffer and Sweeps 6-5

Model 6487 voltage sweeps

The Model 6487 voltage source can be used to generate voltage sweeps from a start voltage to a stop voltage at discrete step voltages. The Model 6487 stores readings in the buffer for later recall, one set of readings per voltage step.

Front panel sweeps

To generate sweeps from the front panel, press CONFIG then OPER, select SWEEP, then press ENTER. At the prompts, enter the start, stop, and step voltages, and the delay time

(time between each voltage step and measurement). Note that sweeps can be positivegoing or negative-going by programming the start and stop voltages accordingly, but the programmed step voltage is always positive. The SCAN annunciator will turn on to indicate that the sweep is armed.

To start a sweep, press the TRIG key. The sweep will be performed and readings will be stored in the buffer for later recall (see

“Recall,” page 6-2 ). To abort a sweep in progress,

press the EXIT key.

SCPI programming — sweeps

NOTE

When programming sweeps via remote, the arm count may have to be reset to initiate after *RST. See Section 7 of the Model 6487 Reference Manual for details on triggering.

Table 6-2

SCPI commands — sweeps

Commands Description

SOUR:VOLT:SWE:STAR <Volts>

SOUR:VOLT:SWE:STOP <Volts>

SOUR:VOLT:SWE:STEP <Volts>

SOUR:VOLT:SWE:CENT <Volts>

SOUR:VOLT:SWE:SPAN <Volts>

SOUR:VOLT:SWE:DEL <Delay>

SOUR:VOLT:SWE:INIT

SOUR:VOLT:SWE:ABOR

SOUR:VOLT:SWE:STAT?

INIT

Program start voltage: -505V to 505V.

Program stop voltage: -505V to 505V.

Program step voltage: -505V to 505V.

Program center voltage: -505V to 505V.*

Program span voltage: 0V to 1010V.*

Set delay between voltage step and measurement: 0 to 999.9999s.

Arm sweep, put source in operate.

Abort sweep, put source in standby.

Query if sweep still running: 1 = sweep in progress.

Trigger sweep.

* CENTer and SPAN are alternate methods of setting sweep parameters. They are coupled with STARt and STOP commands.

6-6 Buffer and Sweeps

Model 6485 and 6487 User’s Manual

Programming example

The following command sequence performs a sweep from 1V to 10V in 1V increments:

*RST

SOUR:VOLT:SWE:STAR 1

SOUR:VOLT:SWE:STOP 10

SOUR:VOLT:SWE:STEP 1

SOUR:VOLT:SWE:DEL 0.1

ARM:COUN INF

FORM:ELEM READ,VSO

SOUR:VOLT:SWE:INIT

SYST:ZCH OFF

INIT

TRAC:DATA?

' Return 6487 to RST defaults.

' Start voltage = 1V.

' Stop voltage = 10V.

' Step voltage = 1V.

' 0.1s delay.

' Reset arm count.

' Select reading, voltage source data.

' Arm sweep, put source in operate.

' Turn off zero check.

' Trigger sweep.

' Request all stored readings.

7

Remote Operation and Commands

Selecting and configuring an interface

— Explains how to select and configure an interface: GPIB or RS-232.

Remote commands

— Lists the following types of bus commands: general bus commands, common commands, signal oriented commands, and SCPI command subsystems.

7-2 Remote Operation and Commands

Model 6485 and 6487 User’s Manual

Selecting and configuring an interface

Interfaces

The Model 6485/6487 supports two built-in remote interfaces: GPIB interface and RS-232 interface. You can use only one interface at a time. At the factory, the GPIB is selected.

To select the interface, press COMM, select RS 232 or GPIB, then press ENTER. The

Model 6485/6487 will reset with the new interface selected.

GPIB interface

To configure the GPIB (IEEE-488) interface, press CONFIG then COMM when the

GPIB interface is selected, then select the primary address (0-30; Model 6485 default 14;

Model 6487 default 22) and language (SCPI, DDC, or 488.1). The primary address must be the same as that specified in the computer program, but be sure to avoid address conflicts. Use the SCPI language setting for most applications. See the Model 6485 Instruction Manual or Model 6487 Reference Manual for information on the DCC and 488.1 programming languages.

RS-232 interface

To configure the RS-232 interface, press CONFIG then COMM when the RS-232 interface is selected, then set baud rate, data bits, parity, terminator, and flow control. To assure proper operation, be sure that interface parameters are the same as those used by the controlling computer.

Connections

GPIB connections

With the power off, connect a shielded GPIB cable (Keithley Model 7007) between the rear

panel IEEE-488 connection ( Figure 7-1

or

Figure 7-2 ) and the computer bus connector.

RS-232 connections

With the power off, connect the Model 6485/6487 RS-232 connector (

Figure 7-1

or

Figure 7-2 ) to the computer serial port using a straight through shielded RS-232 cable ter-

minated with DB-9 connectors (Keithley Model 7009). Do not use a null modem cable.

Model 6485 and 6487 User’s Manual

Remote Operation and Commands 7-3

Figure 7-1

Model 6485 IEEE-488 and RS-232 connector location s

RS-232 IEEE-488

CAT I

INPUT

ANALOG OUT

TRIGGER LINK

220V PK

!

LINE RATING

50, 60Hz

30 VA

FUSE

630mA T

(SB)

LINE

100 VAC

120 VAC

315mAT

(SB)

220 VAC

240 VAC

RS-232

120

MADE IN

U.S.A.

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

Figure 7-2

Model 6487 IEEE-488 and RS-232 connector location s

RS-232 IEEE-488

MADE IN

U.S.A.

CAT I

INPUT

LO

ANALOG OUT

505V PK

505V PK

505V PK

!

TRIGGER LINK

V-SOURCE OUTPUT

505V PK TO CHASSIS

505V

MAX

DIGITAL I/O

RS-232

HI INTERLOCK

FUSE

630mAT

(SB)

315mAT

(SB)

!

LINE

100 VAC

120 VAC

220 VAC

240 VAC

120

IEEE-488

(CHANGE IEEE ADDRESS

WITH FRONT PANEL MENU)

LINE RATING

50, 60Hz

50 VA MAX

7-4 Remote Operation and Commands

Model 6485 and 6487 User’s Manual

Front panel GPIB operation

Error and status messages

See Appendix B in the Model 6485 Instruction Manual or Model 6487 Reference Manual for a list of error and status messages associated with IEEE-488 programming.

GPIB status indicators

REM shows when the instrument is in the remote state, TALK is on when the instrument is in the talker active state, and LSTN is on when the Model 6485/6487 is in the listener active state. SRQ shows when the instrument has generated a service request.

LOCAL key

The LOCAL key cancels the remote state and restores local operation of the instrument.

Pressing the LOCAL key also turns off the REM indicator and returns the display to normal if a user-defined message was displayed. If the unit is in LOCAL (not in remote), the

LOCAL key acts as a configure key (see “Model 6485 front panel summary,” page 1-8

or

“Model 6487 front panel summary,” page 1-13 .)

If the LLO (Local Lockout) command is in effect, the LOCAL key is also inoperative.

Remote commands

General bus commands

General bus commands are listed in Table 7-1

. These commands are not available for the

RS-232 interface.

Table 7-1

General bus commands

Command

REN

IFC

LLO

GTL

DCL

SDC

GET

SPE, SPD

Effect on Model 6485/6487

Goes into remote when next addressed to listen.

Reset interface; all devices go into talker and listener idle states.

LOCAL key locked out.

Cancel remote; restore front panel operation for Model 6485/6487.

Returns all devices to known conditions.

Returns Model 6485/6487 to known conditions.

Initiates a trigger.

Serial polls Model 6485/6487.

Model 6485 and 6487 User’s Manual

Remote Operation and Commands 7-5

Common commands

Common commands are summarized in

Table 7-2 .

Table 7-2

IEEE-488.2 common commands and queries

Mnemonic Name Description

*CLS Clear status

*ESE <NRf> Event enable command

*ESE?

*ESR?

*IDN?

Event enable query

Event status register query

Identification query

Clears all event registers and error queues.

Program the standard event enable register.

Read the standard event enable register.

Read the standard event enable register and clear it.

Returns the manufacturer, model number, serial number, and

*OPC

*OPC?

*OPT?

firmware revision levels of the unit.

Operation complete command Set the operation complete bit in the standard event register

Operation complete query after all pending commands have been executed.

Places an ASCII “1” into the output queue when all pending

*RCL <NRf> Recall command

*RST

Option query

Reset command selected device operations have been completed.

Returns model number of any installed options.

Returns Model 6485/6487 to the user-saved setup.

Returns Model 6485/6487 to the *RST default conditions.

*SAV <NRf> Save command Saves the present setup as the user-saved setup.

*SRE <NRf> Service request enable command Programs the service request enable register.

*SRE?

*STB?

Service request enable query

Status byte query

Reads the service request enable register.

Reads the status byte register.

*TRG

*TST?

*WAI

Trigger command

Self-test query

Wait-to-continue command

Sends a bus trigger to Model 6485/6487.

Performs a checksum test on ROM and returns the result.

Wait until all previous commands are executed.

Signal oriented commands.

Signal oriented commands used to make basic measurements are shown in Table 7-3 .

Table 7-3

Signal oriented commands

Command

CONFigure[:<function>]

CONFigure?

FETCh?

READ?

MEASure[:<function>]?

Description

Places Model 6485/6487 in a “one-shot” measurement mode. <function> = CURR[:DC]

Queries the selected function. Returns ‘CURR’.

Requests the latest reading(s).

Performs an INITiate and a :FETCh?.

Performs a CONFigure:<function> and a :READ?.

7-6 Remote Operation and Commands

Model 6485 and 6487 User’s Manual

SCPI command subsystems

Table 7-4 summarizes the various SCPI subsystems used to program most Model 6485/

6487 operations. Detailed lists of commands associated with these subsystems are located in Section 14 of the Model 6485 Instruction Manual or Model 6487 Reference Manual.

Table 7-4

SCPI command subsystems

Subsystem

CALCulate[1]

CALCulate2

CALCulate3

CALibration

DISPlay

FORMat

SENSe[1]

SOURce[1]

SOURce2

STATus

SYSTem

TRACe

TRIGger

Function(s)

Math functions.

Limit tests, relative.

Buffer statistics.

Instrument calibration.

Display digits and text messages.

Format of returned remote data.

Current measurements and associated modes.

Model 6487 voltage source operation.

Model 6487 Digital I/O port.

Instrument status.

Zero check, correct, line frequency, error messages.

Buffer operation and data.

Instrument triggering.

Programming syntax

The following paragraphs cover syntax for both common commands and SCPI commands. For more information, see the IEEE-488.2 and SCPI standards.

Command words

Program messages are made up of one or more command words. Common commands and

SCPI commands may or may not use a parameter. There must be at least one space between the command word and its parameter. Some command words are enclosed in brackets ([ ]). These brackets are used to denote an optional command word that does not need to be included in the program message.

Common commands and SCPI commands are not case sensitive. You can use upper or lower case and any case combination. A SCPI command word can be sent in its long-form or short-form version. The command tables in this manual use the short-form version. You can send multiple command messages in the same program message as long as they are separated by semicolons (;).

Model 6485 and 6487 User’s Manual

Remote Operation and Commands 7-7

The query command requests the presently programmed status. It is identified by the question mark (?) at the end of the fundamental form of the command. Most commands have a query form.

Each program message must be terminated with an LF (line feed), EOI (end or identify), or an LF+EOI. Each response is terminated with an LF (line feed) and EOI (end or identify).

Parameter types

The following are some of the common parameter types:

<b>

<name>

<NRf>

<NDN>

<n>

Boolean — Used to enable or disable an instrument operation. 0 or

OFF disables the operation and 1 or ON enables the operation.

Name parameter — Select a parameter name from a listed group.

Numeric representation format — A number that can be expressed as an integer (e.g., 8), a real number (e.g., 23.6), or an exponent

(2.3E6).

Non-decimal numeric — A non-decimal value that can be used to program status enable registers. A unique header identifies the format: #B (binary), #H (hexadecimal), and #Q (octal).

Numeric value — Can consist of an NRf number or one of the following name parameters: DEFault, MINimum, or MAXimum.

When the DEFault parameter is used, the instrument is programmed to the *RST default value. When the MINimum parameter is used, the instrument is programmed to the lowest allowable value. When the MAXimum parameter is used, the instrument is programmed to the largest allowable value.

Angle brackets < > — Used to denote a parameter type. Do not include the brackets in the program message.

7-8 Remote Operation and Commands

Model 6485 and 6487 User’s Manual

A

Specifications

6485 Picoammeter Specifications

5

¹⁄₂ DIGIT

DEFAULT

ACCURACY (1YR)

1

±(% RDG. + OFFSET)

RANGE RESOLUTION 18°–28°C, 0–70% RH

2 nA

20 nA

200 nA

2 µA

20 µA

200 µA

2 mA

20 mA

10 fA

100 fA

1 pA

10 pA

100 pA

1 nA

10 nA

100 nA

0.4 % + 400 fA

0.4 % + 1 pA

0.2 % + 10 pA

0.15% + 100 pA

0.1 % +

0.1 % + 10 nA

0.1 % + 100 nA

0.1 % +

1 nA

1 µA

TYPICAL

RMS NOISE 2

20 fA

100 fA

1 pA

10 pA

100 pA

1 nA

10 nA

100 nA

ANALOG RISE TIME 3

(10% to 90%)

8 ms

8 ms

500 µs

500 µs

500 µs

500 µs

500 µs

500 µs

TEMPERATURE COEFFICIENT: 0°–18°C & 28°–50°C. For each °C, add

0.1

× (% rdg + offset) to accuracy spec.

INPUT VOLTAGE BURDEN: <200µV on all ranges except <1mV on

20mA range.

MAXIMUM INPUT CAPACITANCE: Stable to 10nF on all nA ranges and 2µA range; 1µF on 20µA and 200µA ranges, and on mA ranges.

MAXIMUM CONTINUOUS INPUT VOLTAGE: 220VDC

NMRR 1

: (50 or 60Hz) :60dB

MAXIMUM COMMON MODE VOLTAGE: 42V.

ISOLATION (Meter COMMON to chassis): Typically >5

×10

11

Ω in parallel with <1nF.

ANALOG OUTPUT: Scaled voltage output (inverting 2V full scale on all ranges) 3% ±2mV, 1kΩ impedance.

1

At 1 PLC – limited to 60 rdgs/sec under this condition.

2

At 6 PLC, 1 standard deviation, 100 readings, filter off, capped input – limited to 10 rdgs/sec under this condition.

3

Measured at analog output with resistive load >100kΩ.

IEEE-488 BUS IMPLEMENTATION

MULTILINE COMMANDS: DCL, LLO, SDC, GET, GTL, UNT, UNL, SPE,

SPD.

IMPLEMENTATION: SCPI (IEEE-488.2, SCPI-1996.0); DDC (IEEE-

488.1).

UNILINE COMMANDS: IFC, REN, EOI, SRQ, ATN.

INTERFACE FUNCTIONS: SH1, AH1, T5, TE0, L4, LE0, SR1, RL1, PP0,

DC1, DT1, C0, E1.

PROGRAMMABLE PARAMETERS: Range, Zero Check, Zero Correct,

EOI (DDC mode only), Trigger, Terminator (DDC mode only),

Calibration (SCPI mode only), Display Format, SRQ, REL, Output

Format, V-offset Cal.

ADDRESS MODES: TALK ONLY and ADDRESSABLE.

LANGUAGE EMULATION: Keithley Model 485 emulation via DDC mode.

RS-232 IMPLEMENTATION:

Supports: SCPI 1996.0.

Baud Rates: 300, 600, 1200, 2400, 4800, 9600, 19.2k, 38.4k, 57.6k.

Protocols: Xon/Xoff, 7 or 8 bit ASCII, parity-odd/even/none.

Connector: DB-9 TXD/RXD/GND.

GENERAL

INPUT CONNECTOR: BNC on rear panel.

DISPLAY: 12 character vacuum fluorescent.

RANGING: Automatic or manual.

OVERRANGE INDICATION: Display reads “OVRFLOW”.

CONVERSION TIME: Selectable 0.01 PLC to 60 PLC (50PLC under 50Hz operation). (Adjustable from 200µs to 1s)

READING RATE:

To internal buffer 1000 readings/second 1

To IEEE-488 bus 900 readings/second 1, 2

Notes:

1

2

0.01 PLC, digital filters off, front panel off, auto zero off.

Binary transfer mode.

IEEE-488.1.

BUFFER: Stores up to 2500 readings.

PROGRAMS: Provide front panel access to IEEE address, choice of engineering units or scientific notation, and digital calibration.

EMC: Conforms with European Union Directive 89/336/EEC, EN61326-1.

SAFETY: Conforms with European Union Directive 73/23/EEC, EN61010-1.

TRIGGER LINE: Available, see manual for usage.

DIGITAL FILTER: Median and averaging (selectable from 2 to 100 readings).

ENVIRONMENT:

Operating: 0°–50°C; relative humidity 70% non-condensing, up to 35°C. Above 35°C, derate humidity by 3% for each °C.

Storage: –25° to +65°C.

WARM-UP: 1 hour to rated accuracy (see manual for recommended procedure).

POWER: 100–120V or 220–240V, 50–60Hz, 30VA.

PHYSICAL:

Case Dimensions: 90mm high

× 214mm wide × 369mm deep (3

1 ⁄

2 in.

× 8

3 ⁄

8 in.

× 14

9 ⁄

16 in.).

Working Dimensions: From front of case to rear including power cord and IEEE-488 connector: 394mm (15.5 inches).

Net Weight: <2.8 kg (<6.1 lbs).

Shipping Weight: <5 kg (<11 lbs).

Rev. B

HW 11/15/01

A 26474 Released

B 26606 Revised

SZ 10/24/01

SK 11/15/01

HW 10/23/01

AD 10/27/01

SPECIFICATIONS

SPEC-6485

PURCHASED ITEM

A

6487 Picoammeter Specifications

5

¹⁄₂ DIGIT

DEFAULT

ACCURACY (1YR) 1

±(% RDG. + OFFSET)

RANGE RESOLUTION 18°–28°C, 0–70% RH

2 nA

20 nA

10 fA

100 fA

0.3 % + 400 fA

0.2 % + 1 pA

200 nA

2 µA

20 µA

200 µA

2 mA

20 mA

1 pA

10 pA

100 pA

1 nA

10 nA

100 nA

0.15 % + 10 pA

0.15% + 100 pA

0.1 % + 1 nA

0.1 % + 10 nA

0.1 % + 100 nA

0.1 % + 1 µA

TYPICAL

RMS NOISE 2

20 fA

20 fA

1 pA

1 pA

100 pA

100 pA

10 nA

10 nA

TYPICAL ANALOG

RISE TIME (10% TO 90%) 3

DAMPING 4

OFF ON

4 ms

4 ms

80 ms

80 ms

300 µs

300 µs

110 µs

110 µs

110 µs

110 µs

1 ms

1 ms

110 µs

110 µs

110 µs

110 µs

TEMPERATURE COEFFICIENT: 0°–18°C & 28°–50°C. For each °C, add 0.1

× (% rdg + offset) to accuracy spec.

INPUT VOLTAGE BURDEN: <200µV on all ranges except <1mV on 20mA range.

MAXIMUM INPUT CAPACITANCE: Stable to 10nF on all nA ranges and 2µA range; 1µF on 20µA and 200µA ranges, and on mA ranges.

MAXIMUM CONTINUOUS INPUT VOLTAGE: 505 VDC

NMRR

1

: (50 or 60Hz) :60dB

ISOLATION (Ammeter Common or Voltage Source to chassis): Typically >1

×10

11 Ω in parallel with <1nF.

MAXIMUM COMMON MODE VOLTAGE (Between Chassis and Voltage Source or Ammeter):

505 VDC.

MAXIMUM VOLTAGE BETWEEN VOLTAGE SOURCE AND AMMETER: 505 VDC

ANALOG OUTPUT: Scaled voltage output (inverting 2V full scale on all ranges) 2.5% ±2mV

ANALOG OUTPUT IMPEDANCE 3

: <100Ω, DC-2kHz.

VOLTAGE SOURCE

Range Step Size

(Max) (typical)

Accuracy 5

±(% PROG. + OFFSET)

18°C - 28°C, 0 - 70% R.H.

±10.100

200µV 0.1% + 1mV

Noise (p-p)

0.1 - 10 Hz

<50µV

Temperature

Coefficient

(0.005% + 20µV) / ˚C

Typical Rise

Time 6,8

(10%-90%)

250 µs

Typical Fall

Time 7,8

(90%-10%)

150 µs

±50.500

±505.00

1mV

10mV

0.1% + 4mV

0.15% + 40mV

<150µV

<1.5mV

(0.005% + 200µV) / ˚C

(0.008% + 2mV) / ˚C

250 µs

4.5 ms

300 µs

1 ms

SELECTABLE CURRENT LIMIT: 2.5mA, 250µA, 25µA for 50V and 500V ranges, 25mA additional limit for 10V range. All current limits are -20%/+35% of nominal.

WIDEBAND NOISE 9

: <30mVp-p 0.1Hz - 20MHz.

TYPICAL TIME STABILITY: ±(0.003% + 1mV) over 24 hours at constant temperature (within 1°C, between 18°C - 28°C, after 5 minute settling).

OUTPUT RESISTANCE: <2.5Ω.

VOLTAGE SWEEPS: Supports linear voltage sweeps on fixed source range, one current or resistance measurement per step. Maximum sweep rate: 200 steps per second. Maximum step count

3000. Optional delay between step and measure.

RESISTANCE MEASUREMENT (V/I): Used with voltage source; resistance calculated from voltage setting and measured current. Accuracy is based on voltage source accuracy plus ammeter accuracy. Typical accuracy better than 0.6% for readings between 1kΩ and 1TΩ.

ALTERNATING VOLTAGE RESISTANCE MEASUREMENT: Offers alternating voltage resistance measurements for resistances from 10 9

Ω to 10

15

Ω. Alternates between 0V and user-selectable voltage up to ±505V.

1

2

At 1 PLC – limited to 60 rdgs/sec under this condition.

At 6 PLC, 1 standard deviation, 100 readings, filter off, capped input – limited to 10 rdgs/sec under this condition.

3

4

5

6

Measured at analog output with resistive load >2kΩ.

Maximum rise time can be up to 25% greater.

Accuracy does not include output resistance/load regulation.

Rise Time is from 0V to ± full-scale voltage (increasing magnitude).

7

8

9

Fall Time is from ± full-scale voltage to 0V (decreasing magnitude).

For capacitive loads, add C*

∆V/I

Limit to Rise Time, and C*

∆V/1mA to Fall Time.

Measured with LO connected to chassis ground.

DDC (IEEE-488.1).

DDC mode.

REMOTE OPERATION

IEEE-488 BUS IMPLEMENTATION: SCPI (IEEE-488.2, SCPI-1996.0);

LANGUAGE EMULATION: Keithley Model 486/487 emulation via

RS-232 IMPLEMENTATION:

Supports: SCPI 1996.0.

Baud Rates: 300, 600, 1200, 2400, 4800, 9600, 19.2k, 38.4k, 57.6k.

Protocols: Xon/Xoff, 7 or 8 bit ASCII, parity-odd/even/none.

Connector: DB-9 TXD/RXD/GND.

GENERAL

AMMETER INPUT CONNECTOR: Three lug triaxial on rear panel.

ANALOG OUTPUT CONNECTOR: Two banana jacks on rear panel.

VOLTAGE SOURCE OUTPUT CONNECTOR: Two banana jacks on rear panel.

INTERLOCK CONNECTOR: 4 pin DIN.

TRIGGER LINE: Available, see manual for usage.

DISPLAY: 12 character vacuum fluorescent.

DIGITAL FILTER: Median and averaging (selectable from 2 to 100 readings).

RANGING: Automatic or manual.

AUTORANGING TIME

3

: <250ms (analog filter off, 1PLC)

OVERRANGE INDICATION: Display reads “OVRFLOW”.

CONVERSION TIME: Selectable 0.01 PLC to 60 PLC (50PLC under

50Hz operation). (Adjustable from 200µs to 1s)

READING RATE:

To internal buffer 1000 readings/second

1

To IEEE-488 bus 900 readings/second 1, 2

BUFFER: Stores up to 3000 readings.

PROGRAMS: Provide front panel access to IEEE address, choice of engineering units or scientific notation, and digital calibration.

EMC: Conforms with European Union Directive 89/336/EEC,

EN61326-1.

SAFETY: Conforms with European Union Directive 73/23/EEC,

EN61010-1, CAT I.

ENVIRONMENT:

Operating: 0°–50°C; relative humidity 70% non-condensing, up to

35°C. Above 35°C, derate humidity by 3% for each °C.

Storage: –10°C to +65°C.

WARM-UP: 1 hour to rated accuracy (see manual for recommended procedure).

POWER: 100–120V or 220–240V, 50–60Hz, (50VA).

PHYSICAL:

Case Dimensions: 90mm high

× 214mm wide × 369mm deep (3

1 ⁄

2 in.

× 8

3 ⁄

8 in.

× 14

9 ⁄

16 in.).

Working Dimensions: From front of case to rear including power cord and IEEE-488 connector: 394mm (15.5 inches).

NET WEIGHT: <4.7 kg (<10.3 lbs).

Notes:

1

2

3

0.01 PLC, digital filters off, front panel off, auto zero off.

Binary transfer mode.

IEEE-488.1.

Measured from trigger in to meter complete .

HW

Specifications are subject to change without notice.

10/25/02

Rev. A

HW 10/25/02

27756 Released SZ 10/25/02

SZ 10/25/02

SPECIFICATIONS

SPEC-6487

A-4 Specifications

Model 6485 and 6487 User’s Manual

B

General Measurement

Considerations

Measurement considerations —

lists and defines nine types of measurement considerations.

B-2 General Measurement Considerations

Model 6485 and 6487 User’s Manual

Measurement considerations

The following measurement considerations apply to all precision measurements.

Table 2-1 lists all measurement considerations and indicates where to find detailed infor-

mation on them.

For additional measurement considerations, see Appendix C of the Model 6485 Instruction Manual or Appendix G of the Model 6487 Reference Manual. For comprehensive information on all measurement considerations, refer to the Low Level Measurements handbook, which is available from Keithley.

Ground loops

Ground loops that occur in multiple-instrument test setups can create error signals that

cause erratic or erroneous measurements. The configuration shown in Figure B-1 intro-

duces errors in two ways. Large ground currents flowing in one of the wires will encounter small resistances, either in the wires or at the connecting points. This small resistance results in voltage drops that can affect the measurement. Even if the ground loop currents are small, magnetic flux cutting across the large loops formed by the ground leads can induce sufficient voltages to disturb sensitive measurements.

Figure B-1

Power line ground loops

Signal Leads

Instrument 1 Instrument 2 Instrument 3

Ground

Loop

Current

Power Line Ground

To prevent ground loops, instruments should be connected to ground at only a single point as shown in

Figure B-2 . Note that only a single instrument is connected directly to power

line ground. Experimentation is the best way to determine an acceptable arrangement. For

Model 6485 and 6487 User’s Manual

General Measurement Considerations B-3

this purpose, measuring instruments should be placed on their lowest ranges. The configuration that results in the lowest noise signal is the one that should be used. A convenient way to make this connection uses the ground link at the rear of the Model 6485/6487.

Figure B-2

Eliminating g round loops

Instrument 1 Instrument 2 Instrument 3

Power Line Ground

Triboelectric effects

Triboelectric currents are generated by charges created between a conductor and an insulator due to friction. Here, free electrons rub off the conductor and create a charge imbalance that causes the current flow. For example, bending a triaxial cable causes friction between the center conductor (HI) and its surrounding insulator resulting in triboelectric currents. Triboelectric currents can be minimized as follows:

• Use “low noise” cables. These cables are specially designed to minimize charge generation and use graphite to reduce friction. Use Keithley Models 4801, 4802, and 4803 coax cables for the Model 6485; and Models 237 and 7078 triax cables for the Model 6487 are low noise.

• Use the shortest cables possible and secure them (i.e., taping or tying) to a non-vibrating surface to keep them from moving.

Piezoelectric and stored charge effects

Piezoelectric currents are generated when mechanical stress is applied to certain insulating materials (i.e., crystalline). In some plastics, pockets of stored charge cause the material to behave in a similar manner.

When building test fixtures, choose good insulating materials and make connecting structures as rigid as possible. Make sure there are no mechanical stresses on the insulators.

B-4 General Measurement Considerations

Model 6485 and 6487 User’s Manual

Electrochemical effects

Error currents also arise from electrochemical effects when ionic chemicals create weak batteries on a circuit board. These batteries could generate a few nanoamps of current between conductors. Ionic contamination may be the result of body oils, salts, or solder flux. The problem is further enhanced by high humidity (moisture) that decreases insulation resistance.

When building test fixtures, select insulators that resist water absorption and use the fixture in a moderate humidity environment. Also, be sure that all insulators are kept clean and free of contamination.

Humidity

Excess humidity can reduce insulation resistance on PC boards and in test connection insulators. Reduction in insulation resistance can, of course, seriously affect high-impedance measurements. Also, humidity (moisture) can combine with contaminants to produce offset currents caused by electrochemical effects. To minimize the effects of moisture, keep humidity to a minimum (ideally <50%) and keep components and connectors in the test system clean.

Light

Some components, such as semiconductor junctions and MOS capacitors on semiconductor wafers, are excellent light detectors. Consequently, these components must be tested in a light-free environment. While many test fixtures provide adequate light protection, others may allow sufficient light penetration to affect the test results. Areas to check for light leaks include doors and door hinges, tubing entry points, and connectors or connector panels. With this in mind, the Model 6485/6487 display may be turned off by sending the :DISP:ENAB

OFF command.

Electrostatic interference

Electrostatic interference occurs when an electrically charged object is brought near an uncharged object, thus inducing a charge on the previously uncharged object. Usually, effects of such electrostatic action are not noticeable because low impedance levels allow the induced charge to dissipate quickly. However, the high impedance levels of many measurements do not allow these charges to decay rapidly and erroneous or unstable readings may result. These erroneous or unstable readings may be caused in the following ways:

1. DC electrostatic field can cause undetected errors or noise in the reading.

2. AC electrostatic fields can cause errors by driving the input preamplifier into saturation or through rectification that produces DC errors.

Model 6485 and 6487 User’s Manual

General Measurement Considerations B-5

Electrostatic interference is first recognizable when hand or body movements near the experiment cause fluctuations in the reading. Pick-up from AC fields can also be detected by observing the picoammeter analog output on an oscilloscope. Line frequency signals on the output are an indication that electrostatic interference is present. Means of minimizing electrostatic interference include:

1. Shielding. Possibilities include: a shielded room, a shielded booth, shielding the sensitive circuit, and using shielded cable. The shield should always be connected to a solid connector that is connected to signal low. If circuit low is floated above ground, observe safety precautions and avoid touching the shield. Meshed screen or loosely braided cable could be inadequate for high impedances or in string fields. Note, however, that shielding can increase capacitance in the measuring circuit, possibly slowing down response time.

2. Reduction of electrostatic fields. Moving power lines or other sources away from the experiment reduces the amount of electrostatic interference seen in the measurement.

Magnetic fields

A magnetic field passing through a loop in a test circuit will generate a magnetic EMF

(voltage) that is proportional to the strength of the field, the loop area, and the rate at which these factors are changing. Magnetic fields can be minimized by following these guidelines:

• Locate the test circuit as far away as possible from such magnetic field sources as motors, transformers, and magnets.

• Avoid moving any part of the test circuit within the magnetic field.

• Minimize the loop area by keeping leads as short as possible and twisting them together.

Electromagnetic Interference (EMI)

The electromagnetic interference characteristics of the Model 6485/6487 comply with the electromagnetic compatibility (EMC) requirements of the European Union as denoted by the CE mark. However, it is still possible for sensitive measurements to be affected by external sources. In these instances, special precautions may be required in the measurement setup.

Sources of EMI include:

• Radio and TV broadcast transmitters.

• Communications transmitters, including cellular phones and handheld radios.

• Devices incorporating microprocessors and high-speed digital circuits.

• Impulse sources as in the case of arcing in high-voltage environments.

B-6 General Measurement Considerations

Model 6485 and 6487 User’s Manual

The effect on instrument performance can be considerable if enough of the unwanted signal is present. The effects of EMI can be seen as an unusually large offset or, in the case of impulse sources, erratic variations in the displayed reading.

The instrument and experiment should be kept as far away as possible from any EMI sources. Additional shielding of the instrument, experiment and test leads will often reduce EMI to an acceptable level. In extreme cases, a specially constructed screen room may be required to sufficiently attenuate the troublesome signal.

External filtering of the input signal path may be required. In some cases, a simple one-pole filter may be sufficient. In more difficult situations, multiple notch or band-stop filters, tuned to the offending frequency range, may be required. Connecting multiple capacitors of widely different values in parallel will maintain a low impedance across a wide frequency range.

Keep in mind, however, that such filtering may have detrimental effects (such as increased response time) on the measurement.

C

Example Programs

Programming examples

— lists and defines three types of programming examples.

C-2 Example Programs

Model 6485 and 6487 User’s Manual

Programming examples

This section contains example programs (pseudo-code) to achieve speed and buffer size specifications.

1000 readings/second into internal buffer

NOTE

This program configures the Model 6485/6487 to 0.01 PLC, digital filters off, front panel off, auto-zero off, as well as takes and stores 2000 readings.

*RST

TRIG:DEL 0

TRIG:COUN 2000

NPLC .01

RANG .002

SYST:ZCH OFF

SYST:AZER:STAT OFF

DISP:ENAB OFF

*CLS

' Return 6485/6487 to RST defaults.

' Set trigger delay to zero seconds.

' Set trigger count to 2000.

' Set integration rate to .01 PLC.

' Use 2mA range.

' Turn zero check off.

' Turn auto-zero off.

' Turn display off.

' Clear status model.

TRAC:POIN 2000

TRAC:CLE

TRAC:FEED:CONT NEXT

STAT:MEAS:ENAB 512

*SRE 1

' Set buffer size to 2000.

' Clear buffer.

' Set storage control to start on next

' reading.

' Enable buffer full measurement event.

' Enable SRQ on buffer full measurement

' event.

*OPC?

read back result of *opc?

' Operation complete query

' (synchronize completion of commands).

INIT ' Start taking and storing readings.

' Wait for GPIB SRQ line to go true.

DISP:ENAB ON

TRAC:DATA?

read back result

' Turn display back on.

' Request data from buffer.

Model 6485 and 6487 User’s Manual

Example Programs C-3

900 readings/second to IEEE-488 bus

This program uses multiple reading queries to get high speed measurements over the bus in real time. To improve continuity of readings, reduce the trigger count. To improve throughput, increase the trigger count.

NOTE

This program configures the Model 6485/6487 to 0.01 PLC, digital filters off, front panel off, auto-zero off, binary transfer, and IEEE-488.1 (language).

Model 6485/6487 must be set to IEEE-488.1 operation from the front panel.

Press CONFIG then COMM, select LANG: 488.1, then press ENTER. See instruction or reference manual for details.

*RST

FORM:ELEM READ

FORM:BORD SWAP

FORM:DATA SRE

TRIG:DEL 0

TRIG:COUN 8

NPLC .01

RANG .002

SYST:ZCH OFF

SYST:AZER:STAT OFF

' Return 6485/6487 to RST defaults.

' Return readings only.

' Set for swapped byte order.

' Return single precision floating.

' point binary.

' Set trigger delay to zero seconds.

' Set trigger count to 8.

' Set integration rate to .01 PLC.

' Use 2mA range.

' Turn zero check off.

' Turn auto-zero off.

DISP:ENAB OFF ' Turn display off.

*OPC?

read back result of *opc?

' Operation complete query

' (synchronize completion of commands).

for i = 1 to 1000

"talk" Model 6485/6487.

' In 488.1 mode this will

' automatically do a READ?

' (see Reference manual).

read back the binary data next i

DISP:ENAB ON ' Turn display back on.

C-4 Example Programs

Model 6485 and 6487 User’s Manual

3000 readings into internal buffer

NOTE

This program is for the Model 6487 only. Due to memory limitations, the maximum product of the trigger count times the arm count is 2,048. Consequently, two triggers are required to completely fill the buffer to its 3,000 reading maximum. See Section 7 of the Model 6487 Reference Manual for triggering details.

*RST

TRIG:DEL 0

TRIG:COUN 1500

NPLC .01

RANG .002

SYST:ZCH OFF

TRAC:DATA?

read back result

' Return 6487 to RST defaults.

' Set trigger delay to zero seconds.

' Set trigger count to 1500.

' Set integration rate to .01 PLC.

' Use 2mA range.

' Turn zero check off.

*CLS ' Clear status model.

TRAC:POIN 3000

TRAC:CLE

TRAC:FEED:CONT NEXT

STAT:MEAS:ENAB 512

*SRE 1

' Set buffer size to 3000.

' Clear buffer.

' Set storage control to start on next

' reading.

' Enable buffer full measurement event.

' Enable SRQ on buffer full measurement

' event.

*OPC?

read back result of *opc?

' Operation complete query

' (synchronize completion of commands).

INIT

INIT

' First trigger to store 1500 readings

' wait for reading storage complete.

' Take and store last 1500 readings

' wait for GPIB SRQ line to go true.

' Request data from buffer.

Index

Symbols

* (asterisk)

1-10

,

1-15

¥ (more)

1-10

,

1-15

Numerics

3, 4, 5, and 6

1-10

,

1-14

A

Additional references

1-7

Analog

1-12

,

1-18

ANALOG OUTPUT

1-11

,

1-16

AUTO

1-10

,

1-14

,

1-15

Autoranging

4-2

limits

4-2

Autozero

3-3

AVG

1-9

AZERO

1-10

,

1-14

B

Basic

2-5

,

2-8

,

3-2

connections to DUT

2-5

Buffer

1-10

,

1-15

,

6-1

C

Cables

1-4

,

1-5

CAP-18

1-5

Carrying case

1-7

CHASSIS

1-16

COMM

1-9

,

1-14

Command words

7-6

Commands

7-1

COMMON

1-11

,

1-16

Common

7-5

Compliance

3-13

CONFIG/LOCAL key

1-9

,

1-13

,

7-4

Configuring

5-4

Connections

2-5

,

2-6

,

2-7

,

7-2

fundamentals

2-2

Connectors

1-4

,

1-5

Contact information

1-3

CS-565 barrel adapter

1-5

Current

3-2

D

DAMP

1-14

damping

4-4

DC and alternating voltage ohms

3-9

Default settings

1-21

detected line frequency

1-20

DIGITAL

1-17

Digital

1-18

,

4-5

filter

4-5

filter control

4-6

DIGITS

1-10

,

1-14

Digits

4-3

DISP

1-9

,

1-14

Display

1-12

,

1-15

,

1-18

DUT

2-5

,

2-6

E

Electrochemical effects

B-4

Electromagnetic Interference (EMI)

B-5

Electrostatic interference

B-4

engineering

4-3

units

1-12

,

1-18

ENTER

1-10

,

1-14

ERR

1-10

,

1-15

Error and status messages

7-4

Example

C-1

EXIT

1-10

,

1-14

F

FAST

1-10

,

1-15

Features

1-8

FILT

1-10

,

1-15

Filters

4-4

firmware revision level

1-20

Front

7-4

Front and rear panel

1-8

Front panel

1-9

,

1-13

Front panel GPIB operation

7-6

Function keys

1-9

,

1-13

I

G

General

2-10

,

2-11

,

7-4

General IEEE-488 bus commands

7-4

General Measurement Considerations

B-1

GPIB

7-2

trigger link cables and adapters

1-6

GPIB and trigger link cables and adapters

1-6

GPIB interface

7-2

GPIB status indicators

7-4

Ground link

1-11

,

1-16

,

B-3

Ground loops

B-2

H

HALT

1-10

Handle

1-10

,

1-14

Handling precautions

1-3

Humidity

B-4

IEEE-488

1-12

,

1-17

IEEE-488.2 common commands and queries

7-5

Input

1-11

,

1-16

,

2-2

cables, connectors and adapters

1-4

,

1-5

connector

2-3

Input voltage overload

2-9

Inspection for damage

1-3

Instruction Manual

1-7

Interface available

7-2

INTERLOCK

1-17

Interlock

2-12

interlock

2-12

L

Light

B-4

LIMIT

1-10

,

1-14

Line frequency

1-19

Line power connection

1-19

LOG

1-9

Logarithmic

5-3

Low noise input cables

2-3

,

2-4

LSTN

1-10

,

1-15

M

M/X+B

1-9

Magnetic fields

B-5

Manual ranging

4-2

MATH

1-10

,

1-15

Maximum input levels

2-2

,

2-4

measurement

2-16

Measurement considerations

2-14

,

B-2

Measurement overview

2-2

,

3-2

Measurement ranges

4-2

Measurements

3-1

MED

1-10

,

1-15

Median filter

4-5

MEDN

1-9

MENU

1-9

,

1-13

Menu

1-26

Model

1-24

,

1-26

,

1-27

,

2-2

,

2-3

,

2-4

,

2-5

,

2-6

,

2-12

,

2-13

,

2-14

,

2-15

,

3-2

,

3-5

,

7-3

Model 1050 padded carrying case

1-7

Model 4288-1 single fixed rack mount kit

1-7

Model 4288-2 side-by-side rack mount kit

1-7

Model 4288-4 side-by-side rack mount kit

1-7

Model 4801

1-4

Model 4802-10

1-4

Model 4803

1-5

Model 7078-TRX-BNC adapter

1-5

Model 8502 trigger link adapter

1-6

Model 8503 DIN to BNC trigger cable

1-6

Models 7007-1 and 7007-2 shielded GPIB cables

1-6

Models 8501-1 and 8501-2 trigger link cables

1-6

MON

1-15

mX

5-3

MX+B

1-9

mX+b, m/X+b (reciprocal), and Logarithmic

5-3

N

Noise

2-5

Noise and safety shields

2-8

O

ohms

3-9

Open interlock indication

3-14

OPER

3-13

Operation keys

1-9

,

1-14

Optional command words

1-27

Options and accessories

1-4

Overview of this manual

1-2

P

Package content

1-4

Parameter

7-7

Performance considerations

3-2

Phone number

1-3

Piezoelectric and stored charge effects

B-3

POWER

1-9

,

1-13

Power module

1-12

,

1-17

Power-up

1-19

Power-up sequence

1-20

Precautions

3-5

Programming

C-2

Q

Query commands

1-27

R

Rack mount kits

1-7

Range

4-2

keys

1-10

,

1-14

Units, Digits, Rate, and Filters

4-1

Rate

1-10

,

1-14

,

4-4

Rear panel

1-11

,

1-16

Rear panel summary

1-11

,

1-16

RECALL

1-10

,

1-14

Recall

6-2

REL

1-9

,

1-10

,

1-13

,

1-15

Relative

5-1

Relative, mX+b, m/X+b (Reciprocal), and

Log

5-1

REM

1-10

,

1-15

Remote

7-1

REN (remote enable)

7-6

resistivity

2-11

Response time

4-6

Restoring

1-21

RS-232

1-12

,

1-17

connections

7-2

RS-232

7-2

RS-232 interface

7-2

S

Safety interlock

2-13

safety shield

3-6

,

3-10

Safety symbols and terms

1-3

SAVE

1-10

,

1-14

Saving

1-21

scientific (SCI)

4-3

scientific notation

1-12

,

1-18

SCPI

3-11

,

3-14

,

4-6

,

6-5

,

7-6

SCPI commands amps function

3-8

,

3-11

buffer

6-4

SCPI programming mX+b, m/X+b, and log

5-4

range and digits

4-3

relative

5-2

zero check and zero correct

3-4

select power-on setup

1-21

serial number

1-26

,

1-27

Setting and controlling relative

5-2

SETUP

1-10

,

1-14

Shielding

2-9

Signal

7-5

SLOW

1-10

,

1-15

Sourcing

3-1

,

3-13

Special keys and power switch

1-9

,

1-13

Specifications

A-1

SRQ

1-10

,

1-15

STAT

1-10

,

1-15

statistics

6-3

Status

1-12

,

1-18

STD DEV

6-3

STORE

1-10

,

1-14

Store

6-2

Sweeps

6-1

sweeps

6-5

T

TALK

1-10

,

1-15

Test fixture

2-9

TIMER

1-10

,

1-15

timestamps

6-3

Triboelectric effects

B-3

TRIG

1-9

,

1-10

,

1-14

,

1-15

TRIGGER LINK

1-12

,

1-17

U

Units

4-3

Unpacking and Inspection

1-3

user setup

1-21

V

V

1-17

Voltage

1-17

,

2-4

,

3-3

,

3-13

voltage

3-12

W

Warm-up period

3-3

Warranty

1-2

Warranty information

1-2

Z

ZCHK

1-9

,

1-13

ZCOR

1-9

Zero

3-3

Specifications are subject to change without notice.

All Keithley trademarks and trade names are the property of Keithley Instruments, Inc.

All other trademarks and trade names are the property of their respective companies.

Specifications are subject to change without notice.

All Keithley trademarks and trade names are the property of Keithley Instruments, Inc.

All other trademarks and trade names are the property of their respective companies.

A G R E A T E R M E A S U R E O F C O N F I D E N C E

Keithley Instruments, Inc.

Corporate Headquarters • 28775 Aurora Road • Cleveland, Ohio 44139 • 440-248-0400 • Fax: 440-248-6168 • 1-888-KEITHLEY (534-8453) • www.keithley.com

12/04

A G R E A T E R M E A S U R E O F C O N F I D E N C E

Keithley Instruments, Inc.

Corporate Headquarters • 28775 Aurora Road • Cleveland, Ohio 44139 • 440-248-0400 • Fax: 440-248-6168 • 1-888-KEITHLEY (534-8453) • www.keithley.com

12/04

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
