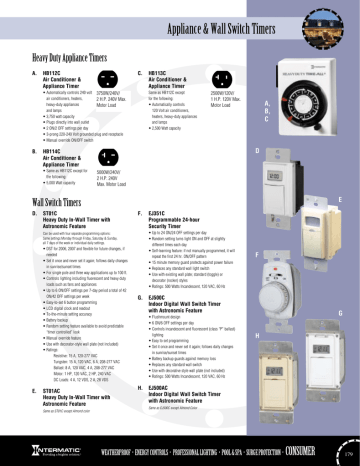

Intermatic ST01C Spec Sheet

Intermatic ST01C Spec Sheet
Appliance & Wall Switch Timers
Heavy Duty Appliance Timers
A. HB112C
Air Conditioner & Appliance Timer
C. HB113C
Air Conditioner & Appliance Timer
• Automatically controls 240 volt 3750W/240V/
air conditioners, heaters,
2 H.P. 240V Max.
heavy-duty appliances
Motor Load
and lamps
• 3,750 watt capacity
• Plugs directly into wall outlet
• 2 ON/2 OFF settings per day
• 3-prong 220-240 Volt grounded plug and receptacle
• Manual override ON/OFF switch
Same as HB112C except
for the following:
• Automatically controls
120 Volt air conditioners,
heaters, heavy-duty appliances
and lamps
• 2,500 Watt capacity
2500W/120V/
1 H.P. 120V Max.
Motor Load
D
B. HB114C
Air Conditioner & Appliance Timer
• Same as HB112C except for
the following:
• 5,000 Watt capacity
A,
B,
C
5000W/240V/
2 H.P. 240V
Max. Motor Load
E
Wall Switch Timers
D. ST01C
Heavy Duty In-Wall Timer with Astronomic Feature
F. EJ351C
Programmable 24-hour Security Timer
Can be used with four separate programming options:
Same settings Monday through Friday, Saturday & Sunday,
all 7 days of the week or individual daily settings.
• DST for 2006, 2007 and flexible for future changes, if
needed
• Set it once and never set it again; follows daily changes
in sunrise/sunset times
• For single pole and three way applications up to 100 ft.
• Controls lighting including fluorescent and heavy duty
loads such as fans and appliances
• Up to 6 ON/OFF settings per 7-day period a total of 42
ON/42 OFF settings per week
• Easy-to-set 6 button programming
• LCD digital clock and readout
• To-the-minute setting accuracy
• Battery backup
• Random setting feature available to avoid predictable
“timer controlled” look
• Manual override feature
• Use with decorator-style wall plate (not included)
• Ratings:
Resistive: 15 A, 120-277 VAC
Tungsten: 15 A, 120 VAC, 6 A, 208-277 VAC
Ballast: 8 A, 120 VAC, 4 A, 208-277 VAC
Motor: 1 HP, 120 VAC, 2 HP, 240 VAC
DC Loads: 4 A, 12 VDS, 2 A, 28 VDS
E. ST01AC
Heavy Duty In-Wall Timer with Astronomic Feature
Same as ST01C except Almond color
• Up to 24 ON/24 OFF settings per day
• Random setting turns light ON and OFF at slightly
different times each day
• Self-learning feature: if not manually programmed, it will
repeat the first 24 hr. ON/OFF pattern
• 15 minute memory guard protects against power failure
• Replaces any standard wall light switch
• Use with existing wall plate; standard (toggle) or
decorator (rocker) styles
• Ratings: 500 Watts Incandescent, 120 VAC, 60 Hz
F
G. EJ500C
Indoor Digital Wall Switch Timer with Astronomic Feature
• Flushmount design
• 6 ON/6 OFF settings per day
• Controls incandescent and fluorescent (class “P” ballast)
lighting
• Easy to set programming
• Set it once and never set it again; follows daily changes
in sunrise/sunset times
• Battery backup guards against memory loss
• Replaces any standard wall switch
• Use with decorative style wall plate (not included)
• Ratings: 500 Watts Incandescent, 120 VAC, 60 Hz
G
H
H. EJ500AC
Indoor Digital Wall Switch Timer with Astronomic Feature
Same as EJ500C except Almond Color
WEATHERPROOF • ENERGY CONTROLS • PROFESSIONAL LIGHTING • POOL & SPA • SURGE PROTECTION • CONSUMER
179
