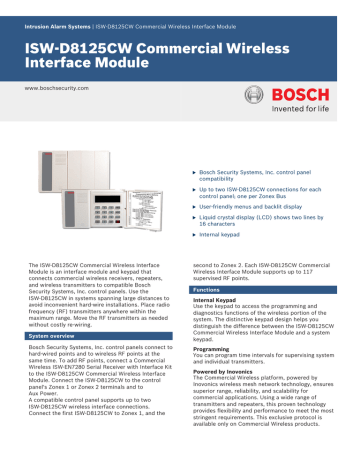

ISW‑D8125CW Commercial Wireless Interface Module

ISW‑D8125CW Commercial Wireless Interface Module
Intrusion Alarm Systems | ISW‑D8125CW Commercial Wireless Interface Module
ISW‑D8125CW Commercial Wireless
Interface Module
www.boschsecurity.com
The ISW‑D8125CW Commercial Wireless Interface
Module is an interface module and keypad that
connects commercial wireless receivers, repeaters,
and wireless transmitters to compatible Bosch
Security Systems, Inc. control panels. Use the
ISW‑D8125CW in systems spanning large distances to
avoid inconvenient hard-wire installations. Place radio
frequency (RF) transmitters anywhere within the
maximum range. Move the RF transmitters as needed
without costly re-wiring.
System overview
Bosch Security Systems, Inc. control panels connect to
hard-wired points and to wireless RF points at the
same time. To add RF points, connect a Commercial
Wireless ISW‑EN7280 Serial Receiver with Interface Kit
to the ISW‑D8125CW Commercial Wireless Interface
Module. Connect the ISW‑D8125CW to the control
panel's Zonex 1 or Zonex 2 terminals and to
Aux Power.
A compatible control panel supports up to two
ISW‑D8125CW wireless interface connections.
Connect the first ISW‑D8125CW to Zonex 1, and the
u
Bosch Security Systems, Inc. control panel
compatibility
u
Up to two ISW‑D8125CW connections for each
control panel; one per Zonex Bus
u
User-friendly menus and backlit display
u
Liquid crystal display (LCD) shows two lines by
16 characters
u
Internal keypad
second to Zonex 2. Each ISW‑D8125CW Commercial
Wireless Interface Module supports up to 117
supervised RF points.
Functions
Internal Keypad
Use the keypad to access the programming and
diagnostics functions of the wireless portion of the
system. The distinctive keypad design helps you
distinguish the difference between the ISW‑D8125CW
Commercial Wireless Interface Module and a system
keypad.
Programming
You can program time intervals for supervising system
and individual transmitters.
Powered by Inovonics
The Commercial Wireless platform, powered by
Inovonics wireless mesh network technology, ensures
superior range, reliability, and scalability for
commercial applications. Using a wide range of
transmitters and repeaters, this proven technology
provides flexibility and performance to meet the most
stringent requirements. This exclusive protocol is
available only on Commercial Wireless products.
2 | ISW‑D8125CW Commercial Wireless Interface Module
Installation/configuration notes
Technical specifications
Compatibility Information
Control Panels
Properties
G Series:
All versions of the D9412GV2 or v6.30 or higher
of the D9412G
All versions of the D7412GV2 or v6.30 or higher
of the D7412G
All versions of the D7212GV2 or v6.41 or higher
of the D7212G
Receivers
Dimensions:
10 cm x 16.6 cm x 3 cm
(4 in. x 6.5 in. x 1 in.)
Weight:
243 g (8.6 oz)
Environmental Considerations
Relative Humidity:
Up to 93%, non-condensing
Temperature (Operating):
0°C to +65°C (+32°F to +149°F)
Power Requirements
ISW‑EN7280
Serial Receiver with Interface Kit
ISW‑EN4200
Serial Receiver
Current Draw:
30 mA typical,
45 mA maximum plus current draw of
receiver(s) and interface(s)
High‑power Repeater
Voltage (Operating):
10.2 VDC to 14 VDC supplied by the
control panel auxiliary power or an
external auxiliary power supply.
All Bosch Security Systems, Inc. Commercial Wireless transmitters
Current:
45 mA maximum
Mounting and Wiring
Place the ISW‑D8125CW Commercial Wireless
Interface Module within 1.5 m (5 ft) of the control
panel and wire using between 1.2 mm (18 AWG) and
0.8 mm (22 AWG) solid wire.
The ISW‑TRL8080Translator must be within 1.5 m
(5 ft) of the ISW‑D8125CW Commercial Wireless
Interface Module.
Ordering information
Repeater
ISW‑EN5040‑T
Transmitters
Notice
Use only the ISW-ACC664 Replacement Cable
(supplied with the ISW‑EN7280 or purchased
separately) for wiring the ISW‑D8125CW
Commercial Wireless Interface Module to the
ISW‑TRL8080 Translator. Refer to the ISW‑EN7280
Installation Instructions (F01U126809) for wiring
details.
ISW‑D8125CW Commercial Wireless Interface Module
Provides LCD and internal keypad that connects
commercial wireless receivers, repeaters, and wireless
transmitters to compatible Bosch Security Systems,
Inc. control panels
Order number ISW-D8125CW
Accessories
Commercial Wireless ISW‑EN4200 Serial Receiver
Gateway between security transmitters and a Bosch
Security Systems, Inc. control panel; decodes radio
frequency (RF) transmissions from end devices and
high‑power repeaters, and then outputs the data to
the Commercial Wireless Interface Module
Order number ISW-EN4200
Commercial Wireless ISW‑EN7280 Serial Receiver with
Interface Kit
Place the ISW‑EN4200 Serial Receiver up to 30.5 m
(100 ft) from the ISW‑TRL8080 Translator. For best
transmitter reception results, place the ISW‑EN4200
Serial Receiver in a central location among the
transmitters. If transmitters are too far away for the
receiver to pick up the transmission, install a
commercial wireless RF repeater (ISW‑EN5040‑T).
Order number ISW-EN7280
Parts included
Commercial Wireless ISW‑ACC664 Replacement Cable
Quant.
Component
1
ISW‑D8125CW
1
Literature – Installation Guide
Includes one ISW‑EN4200 Serial Receiver, one
ISW‑TRL8080 Translator Module, and one ISW‑ACC664
Replacement Cable; supports up to 234 fullysupervised wireless points.
Replacement transmitter programming cable used to
connect the ISW‑TRL8080 Translator to the
ISW‑D8125CW Commercial Wireless Interface Module
Order number ISW-ACC664
3 | ISW‑D8125CW Commercial Wireless Interface Module
Represented by:
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5617 BA Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
© Bosch Security Systems 2013 | Data subject to change without notice
2537860491 | en, V1, 01. Oct 2013
