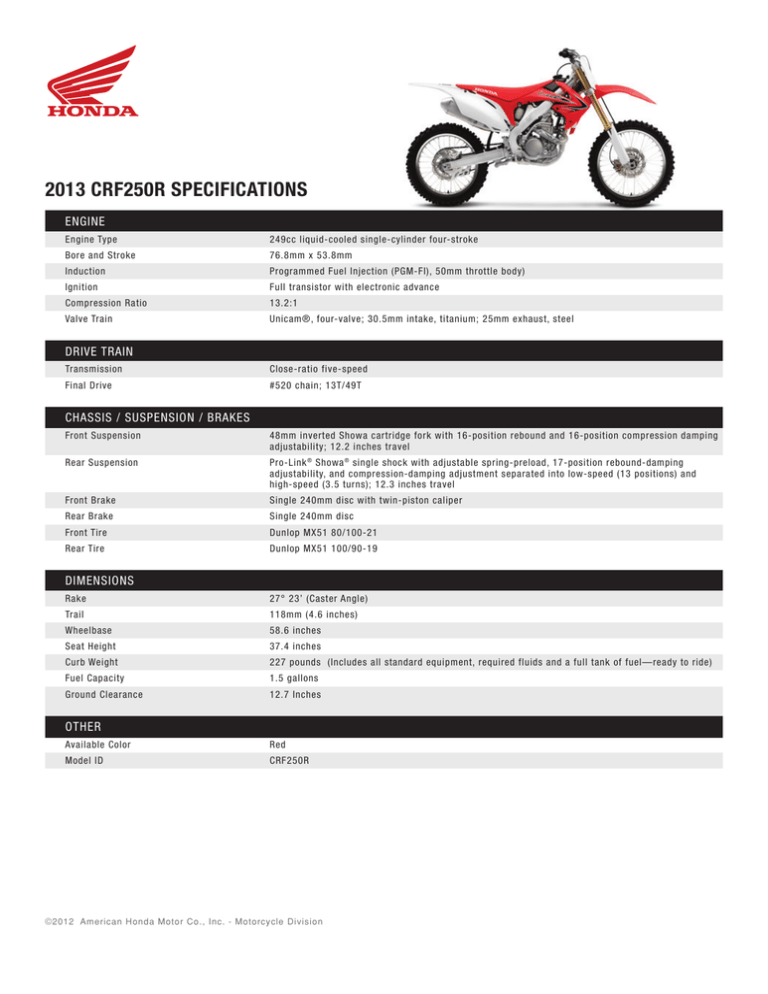

2013 CRF250R Specifications
Engine
Engine Type
249cc liquid-cooled single-cylinder four-stroke
Bore and Stroke
76.8mm x 53.8mm
Induction
Programmed Fuel Injection (PGM-FI), 50mm throttle body)
Ignition
Full transistor with electronic advance
Compression Ratio
13.2:1
Valve Train
Unicam®, four-valve; 30.5mm intake, titanium; 25mm exhaust, steel
DRIVE TRAIN
Transmission
Close-ratio five-speed
Final Drive
#520 chain; 13T/49T
CHASSIS / SUSPENSION / BRAKES
Front Suspension
48mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping
adjustability; 12.2 inches travel
Rear SuspensionPro-Link ® Showa ® single shock with adjustable spring-preload, 17-position rebound-damping
adjustability, and compression-damping adjustment separated into low-speed (13 positions) and
high-speed (3.5 turns); 12.3 inches travel
Front Brake
Single 240mm disc with twin-piston caliper
Rear Brake
Single 240mm disc
Front Tire
Dunlop MX51 80/100-21
Rear Tire
Dunlop MX51 100/90-19
DIMENSIONS
Rake
27° 23’ (Caster Angle)
Trail
118mm (4.6 inches)
Wheelbase
58.6 inches
Seat Height
37.4 inches
Curb Weight
227 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity
1.5 gallons
Ground Clearance
12.7 Inches
OTHER
Available Color
Red
Model ID
CRF250R
©2012 American Honda Motor Co., Inc. - Motorcycle Division
