S
P
E
F
C
I
L
E

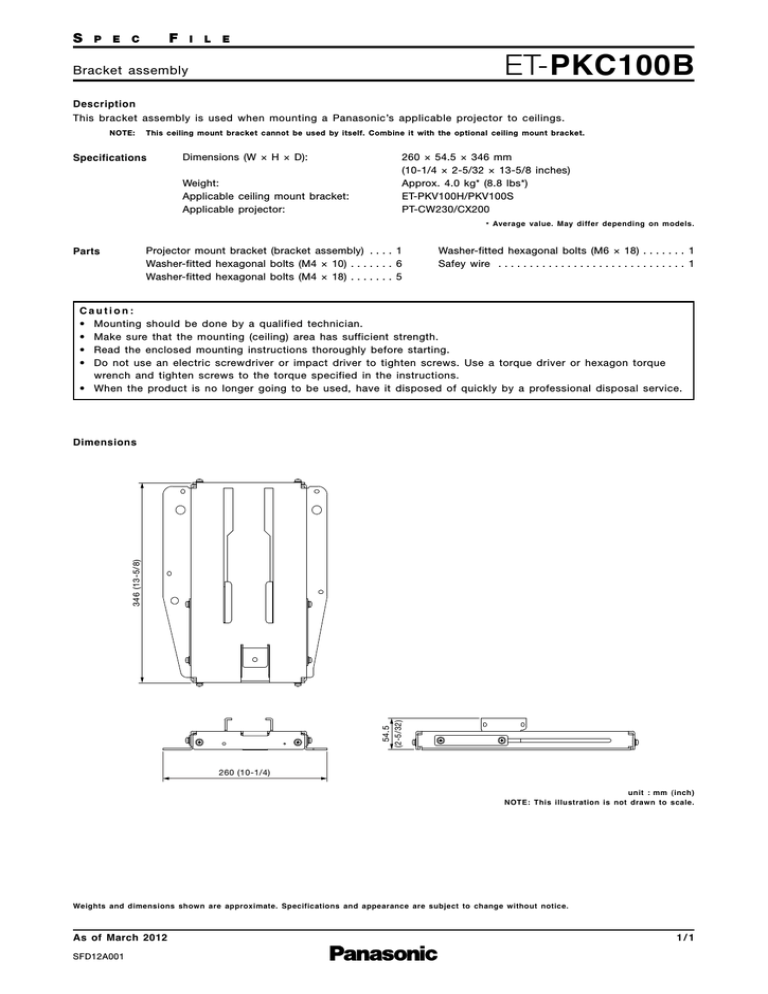

ET-PKC100B
Bracket assembly
­D escription
This bracket assembly is used when mounting a Panasonic’s applicable projector to ceilings.
NOTE:
This ceiling mount bracket cannot be used by itself. Combine it with the optional ceiling mount bracket.
Specifications
Dimensions (W × H × D):
Weight:
Applicable ceiling mount bracket:
Applicable projector:
260 × 54.5 × 346 mm
(10-1/4 × 2-5/32 × 13-5/8 inches)
Approx. 4.0 kg* (8.8 lbs*)
ET-PKV100H/PKV100S
PT-CW230/CX200
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Projector mount bracket (bracket assembly) . . . . 1
Washer-fitted hexagonal bolts (M4 × 10) . . . . . . . 6
Washer-fitted hexagonal bolts (M4 × 18) . . . . . . . 5
Washer-fitted hexagonal bolts (M6 × 18) . . . . . . . 1
Safey wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
54.5
(2-5/32)
346 (13-5/8)
Dimensions
260 (10-1/4)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ and­ appearance­ are­ subject­ to­ change­ without­ notice.
As­ of­ March­ 2012
SFD12A001
1/1
