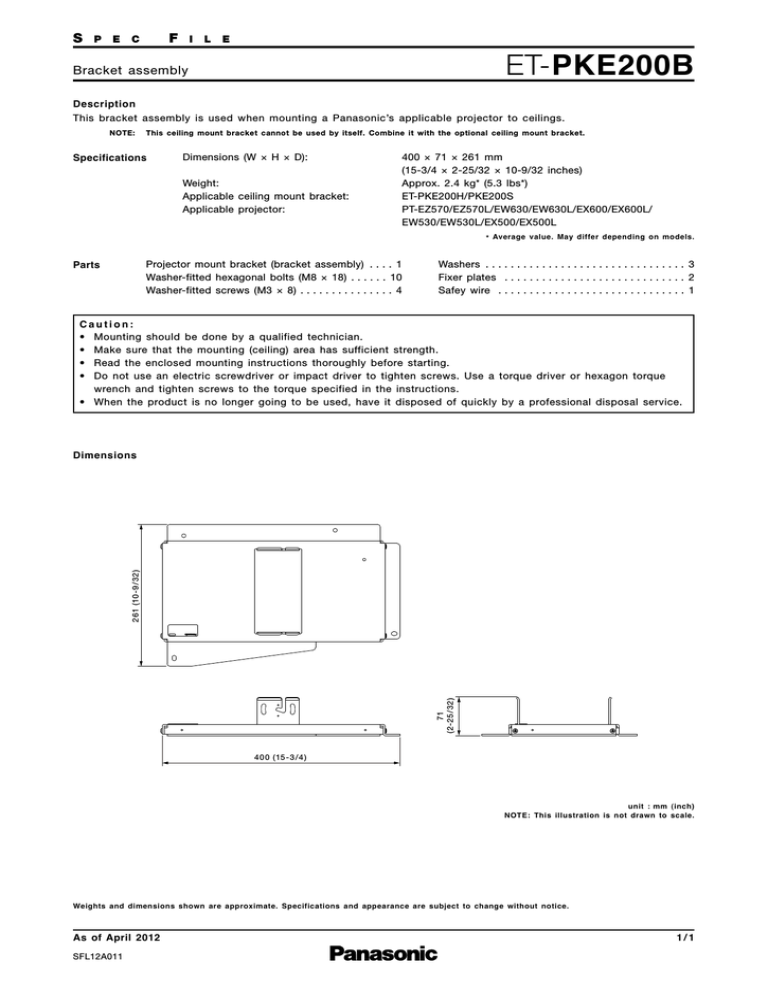

ET-PKE200B
Bracket assembly
­D escription
This bracket assembly is used when mounting a Panasonic’s applicable projector to ceilings.
NOTE:
This ceiling mount bracket cannot be used by itself. Combine it with the optional ceiling mount bracket.
Specifications
Dimensions (W × H × D):
Weight:
Applicable ceiling mount bracket:
Applicable projector:
400 × 71 × 261 mm
(15-3/4 × 2-25/32 × 10-9/32 inches)
Approx. 2.4 kg* (5.3 lbs*)
ET-PKE200H/PKE200S
PT-EZ570/EZ570L/EW630/EW630L/EX600/EX600L/
EW530/EW530L/EX500/EX500L
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Projector mount bracket (bracket assembly) . . . . 1
Washer-fitted hexagonal bolts (M8 × 18) . . . . . . 10
Washer-fitted screws (M3 × 8) . . . . . . . . . . . . . . . 4
Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Fixer plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safey wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
71
( 2-25 / 32 )
261 (10 - 9 / 32 )
­D imensions
40 0 (15 - 3 /4 )
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ and­ appearance­ are­ subject­ to­ change­ without­ notice.
As­ of­ April­ 2012
SFL12A011
1/1
