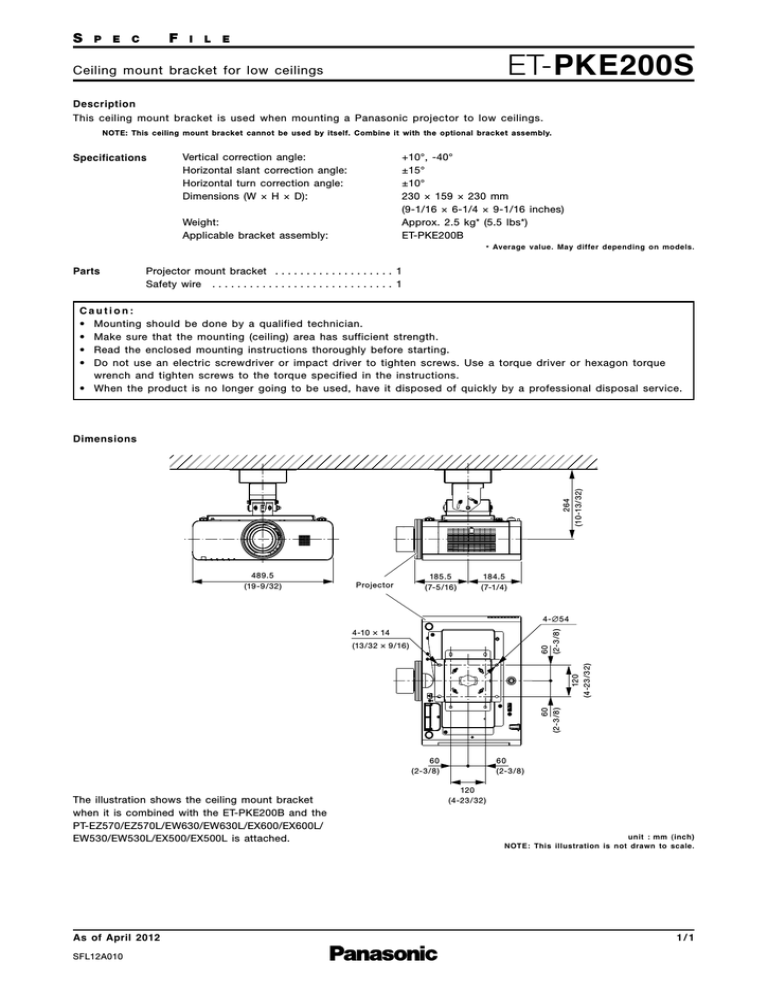

Panasonic ET-PKE200S Specification

Panasonic ET-PKE200S Specification
S
P
E
F
C
I
L
E
ET-PKE200S
Ceiling mount bracket for low ceilings
­D escription
This ceiling mount bracket is used when mounting a Panasonic projector to low ceilings.
NOTE: This ceiling mount bracket cannot be used by itself. Combine it with the optional bracket assembly.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W × H × D):
+10°, -40°
±15°
±10°
230 × 159 × 230 mm
(9-1/16 × 6-1/4 × 9-1/16 inches)
Approx. 2.5 kg* (5.5 lbs*)
ET-PKE200B
Weight:
Applicable bracket assembly:
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Projector mount bracket . . . . . . . . . . . . . . . . . . . 1
Safety wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
264
(10-13/32)
Dimensions
489.5
(19-9/32)
Projector
185.5
(7-5/16 )
184.5
(7-1/4)
60
( 2-3/8 )
4-∅54
4-10 × 14
60
( 2-3/8 )
120
(4-23/32)
(13/32 × 9/16 )
60
( 2-3/8 )
The illustration shows the ceiling mount bracket
when it is combined with the ET-PKE200B and the
PT-EZ570/EZ570L/EW630/EW630L/EX600/EX600L/
EW530/EW530L/EX500/EX500L is attached.
As­ of­ April­ 2012
SFL12A010
60
( 2-3/8 )
120
(4-23/32)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
1/1
