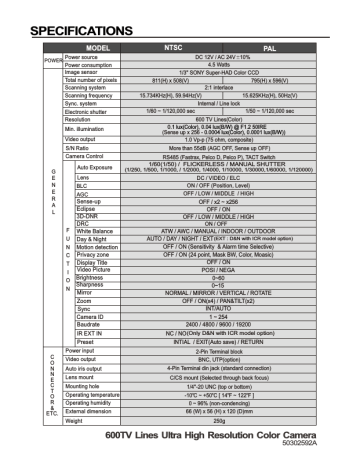

SPECIFICATIONS
MODEL
POWER
Power source
Power consumption
Image sensor
Total number of pixels
Scanning system
Scanning frequency
Sync. system
Electronic shutter
Resolution
Min. illumination
Video output
Auto Exposure
Lens
BLC
F
U
N
C
T
I
O
N
C
O
N
N
E
C
T
O
R
&
ETC.
PAL
DC 12V / AC 24V 10%
4.5 Watts
1/3" SONY Super-HAD Color CCD
811(H) x 508(V)
795(H) x 596(V)
2:1 interlace
15.734KHz(H), 59.94Hz(V)
15.625KHz(H), 50Hz(V)
Internal / Line lock
1/60 ~ 1/120,000 sec
1/50 ~ 1/120,000 sec
600 TV Lines(Color)
0.1 lux(Color), 0.04 lux(B/W) @ F1.2 50IRE
(Sense up x 256 - 0.0004 lux(Color), 0.0001 lux(B/W))
1.0 Vp-p (75 ohm, composite)
More than 55dB (AGC OFF, Sense up OFF)
S/N Ratio
Camera Control
G
E
N
E
R
A
L
NTSC
AGC
Sense-up
Eclipse
3D-DNR
DRC
White Balance
Day & Night
Motion detection
Privacy zone
Display Title
Video Picture
Brightness
Sharpness
Mirror
Zoom
Sync
Camera ID
Baudrate
IR EXT IN
Preset
Power input
Video output
RS485 (Fastrax, Pelco D, Pelco P), TACT Switch
1/60(1/50) / FLICKERLESS / MANUAL SHUTTER
(1/250, 1/500, 1/1000, / 1/2000, 1/4000, 1/10000, 1/30000,1/60000, 1/120000)
DC / VIDEO / ELC
ON / OFF (Position, Level)
OFF / LOW / MIDDLE / HIGH
OFF / x2 ~ x256
OFF / ON
OFF / LOW / MIDDLE / HIGH
ON / OFF
ATW / AWC / MANUAL / INDOOR / OUTDOOR
AUTO / DAY / NIGHT / EXT (EXT : D&N with ICR model option)
OFF / ON (Sensitivity & Alarm time Selective)
OFF / ON (24 point, Mask BW, Color, Moasic)
OFF / ON
POSI / NEGA
0~60
0~15
NORMAL / MIRROR / VERTICAL / ROTATE
OFF / ON(x4) / PAN&TILT(x2)
INT/AUTO
1 ~ 254
2400 / 4800 / 9600 / 19200
NC / NO (Only D&N with ICR model option)
INTIAL / EXIT(Auto save) / RETURN
2-Pin Terminal block
BNC, UTP(option)
4-Pin Terminal din jack (standard connection)
Auto iris output
Lens mount
C/CS mount (Selected through back focus)
Mounting hole
1/4''-20 UNC (top or bottom)
Operating temperature
Operating humidity
-10oC ~ +50oC [ 14oF ~ 122oF ]
0 ~ 96% (non-condencing)
External dimension
66 (W) x 56 (H) x 120 (D)mm
Weight
250g
600TV Lines Ultra High Resolution Color Camera
