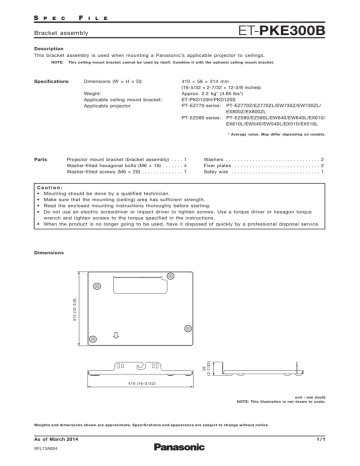

ET-PKE300B
Bracket assembly
Description
This bracket assembly is used when mounting a Panasonic’s applicable projector to ceilings.
NOTE:
This ceiling mount bracket cannot be used by itself. Combine it with the optional ceiling mount bracket.
Dimensions (W × H × D):
Specifications
Weight:
Applicable ceiling mount bracket:
Applicable projector
410 × 56 × 314 mm
(16-5/32 × 2-7/32 × 12-3/8 inches)
Approx. 2.2 kg* (4.85 lbs*)
ET-PKD120H/PKD120S
PT-EZ770 series: PT-EZ770Z/EZ770ZL/EW730Z/EW730ZL/
EX800Z/EX800ZL
PT-EZ580 series: PT-EZ580/EZ580L/EW640/EW640L/EX610/
EX610L/EW540/EW540L/EX510/EX510L
* Average value. May differ depending on models.
Parts
Projector mount bracket (bracket assembly) . . . . 1
Washer-fitted hexagonal bolts (M6 × 16) . . . . . . . 4
Washer-fitted screws (M6 × 20) . . . . . . . . . . . . . . 1
Washers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Fixer plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safey wire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
56
( 2 -7/ 32)
314 (12 - 3 / 8)
Dimensions
410 (16 - 5 / 3 2 )
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
As of March 2014
SFL13A004
1/1
