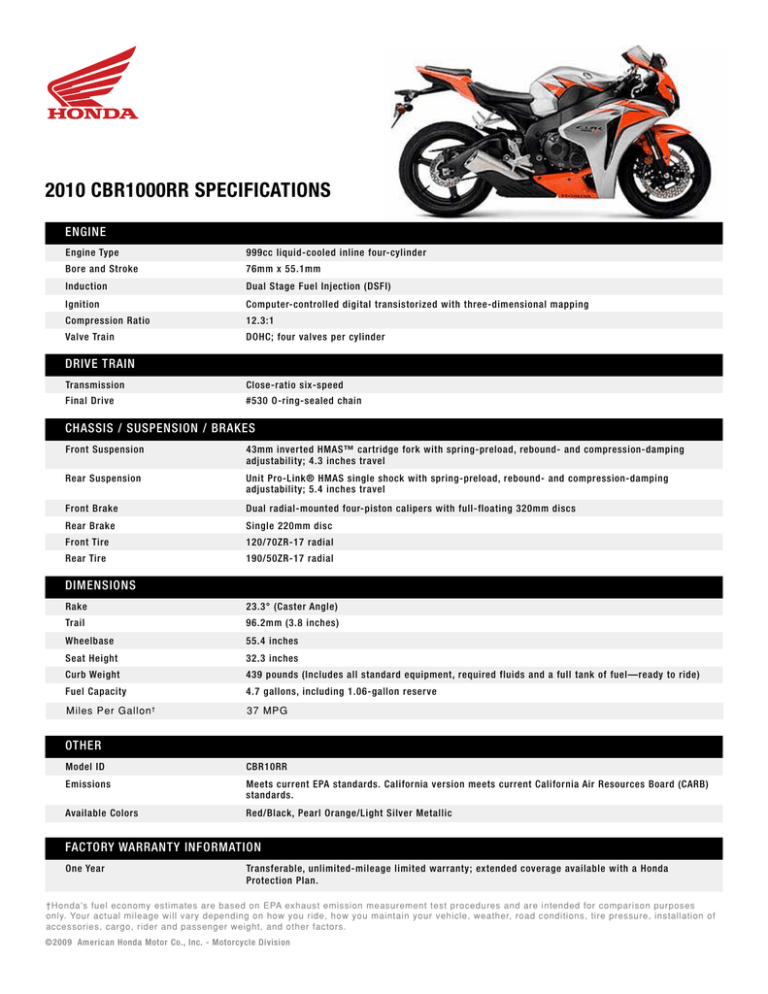

2010 CBR1000RR Specifications
Engine
Engine Type
999cc liquid-cooled inline four-cylinder
Bore and Stroke
76mm x 55.1mm
Induction
Dual Stage Fuel Injection (DSFI)
Ignition
Computer-controlled digital transistorized with three-dimensional mapping
Compression Ratio
12.3:1
Valve Train
DOHC; four valves per cylinder
DRIVE TRAIN
Transmission
Close-ratio six-speed
Final Drive
#530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension
43mm inverted HMAS™ cartridge fork with spring-preload, rebound- and compression-damping adjustability; 4.3 inches travel
Rear Suspension
Unit Pro-Link® HMAS single shock with spring-preload, rebound- and compression-damping adjustability; 5.4 inches travel
Front Brake
Dual radial-mounted four-piston calipers with full-floating 320mm discs
Rear Brake
Single 220mm disc
Front Tire
120/70ZR-17 radial
Rear Tire
190/50ZR-17 radial
DIMENSIONS
Rake
23.3° (Caster Angle)
Trail
96.2mm (3.8 inches)
Wheelbase
55.4 inches
Seat Height
32.3 inches
Curb Weight
439 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity
4.7 gallons, including 1.06-gallon reserve
Miles Per Gallon 37 MPG
†
OTHER
Model ID
CBR10RR
Emissions
Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards.
Available Colors
Red/Black, Pearl Orange/Light Silver Metallic
FACTORY WARRANTY INFORMATION
One Year
Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
One Year
Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
†Honda’s fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes
only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of
accessories, cargo, rider and passenger weight, and other factors.
©2009 American Honda Motor Co., Inc. - Motorcycle Division
