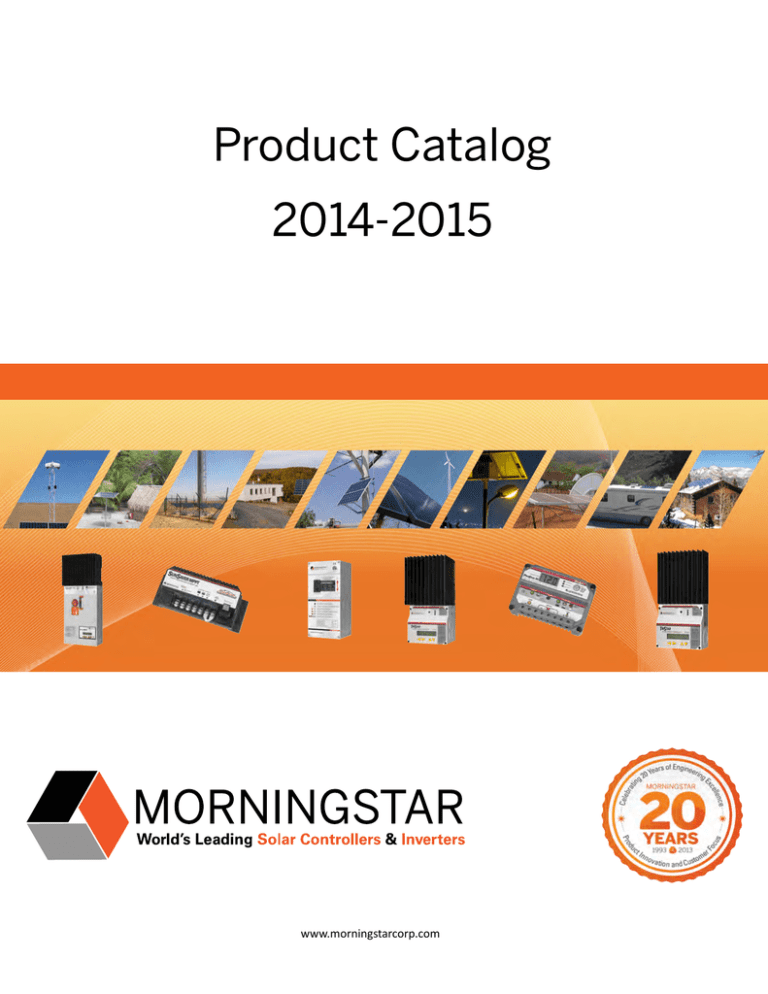

Product Catalog

2014-2015

www.morningstarcorp.com

A World of Industry Applications

Morningstar controllers and inverters have been a vital component in a myriad of off-grid PV systems around the world since 1995.

We are happy and proud to help bring clean, dependable solar electric power to the four corners of the world.

Our Advantages

Leadership - more than 2 million controllers installed in 112 countries around the world in numerous off-grid PV applications.

Global Presence - our products are available from 231 authorized Morningstar distributors in more than 90 countries.

Quality and Reliability - helping our customers extend overall system life while reducing overall total cost of system ownership.

• Our controllers and inverters have set new standards in performance, innovative features, quality and reliability.

• Our field-proven products are delivering more than twice the industry’s average operating life. Expected 15+ year operating life.

• Our products are manufactured in a fully automated world-class ISO 9001 facility.

• Our Quality Control includes 100% functional testing on every product using the latest computerized test equipment and processes.

Innovation - delivering products our customers can count on to complement their off-grid product portfolio and maximize their

system efficiency and reliability.

• In 1995, we introduced our ProStar

TM

controller, the world’s first PV controller with a PWM (Pulse Width Modulation) charging algorithm. PWM vastly improved battery charging and resulted in increased battery capacity and useful life. Since this

Morningstar innovation, the global PV community has accepted the superiority of PWM battery charging.

• In 2008, we developed and introduced our TrakStar

TM technology.

Maximum Power Point Tracking (MPPT) advanced control algorithm

• TrakStar maximizes the energy harvested from the solar array into the battery.

• This innovation has made both the SunSaver MPPT and the TriStar MPPT the world-leading MPPT solar controllers.

Long Term Consistency and Customer Focus - since our founding in April 1993, our strategy, ownership and management have

been unchanged. We are focused on long-term stability and building high-quality, reliable products that:

• Outperform the competition

• Are built to last

• Can be trusted to complement our customers’ off-grid PV installations

Value - we are renowned for delivering the industry’s best overall customer value.

PRODUCT LISTING

MPPT CONTROLLERS

Note: Voc = solar open circuit voltage

PWM CONTROLLERS

Continued

TriStar MPPT 600V Controller

60A at up to 600Voc .......................... 2

SunKeeper Controller

6A or 12A at 12V .......................... 6

TriStar MPPT Controller

30A, 45A or 60A at up to 150Voc ...... 3

SunLight Controller

10A or 20A at 12V or 24V ............ 6

SunSaver MPPT Controller

15A at up to 75Voc ............................. 3

PWM CONTROLLERS

Note: V = nominal battery voltage

SunGuard Controller

4.5A at 12V ................................ 7

TriStar Controller

45A or 60A at 12-48V .................. 4

INVERTERS

SHS and SHS Night Light Controllers

6A or 10A at 12V ........................ 7

ProStar Controller

15A or 30A at 12/24V or 48V ...... 4

SunSaver Controller

6A, 10A or 20A at 12V or 24V .. 5

ACCESSORIES

SureSine Inverter

300 W; 12 Vdc input,

115 or 220 Vac output ................. 8

Ground Fault Protection Device ...................................... 9

TriStar Meters .............................................................. 10

Remote Meter ............................................................. 10

Relay Driver .................................................................. 11

MeterHub .................................................................... 11

Remote Temperature Sensor ..................................... 11

PC MeterBus Adapter ................................................. 12

EIA-485 / RS-232 Adapter ............................................. 12

DIN Rail Clips ................................................................. 12

SunSaver Duo Controller

25A at 12V ................................... 5

1

MORNINGSTAR’S TRAKSTAR™ MPPT TECHNOLOGY

The Best-in-Class MPPT Technology

Morningstar’s innovative TrakStar Maximum Power Point Tracking (MPPT) Technology is an advanced control algorithm that maximizes the energy harvest from the solar array into the battery under all operating conditions. This technology innovation is used in

Morningstar’s SunSaver MPPT and TriStar MPPT controllers and has resulted in the TriStar MPPT controller becoming the world’s leading

MPPT solar controller.

Morningstar’s TrakStar MPPT Technology

With Morningstar’s TrakStar Technology, fast changing maximum power points are quickly tracked during shading conditions or when using mixed module arrays. When power levels change significantly, Morningstar’s MPPT controllers are able to quickly respond to find the true maximum power point and avoid getting stuck on a ‘local’ maximum. Our TrakStar Technology:

• Optimizes solar array operation by differentiating global (total) maximum power operating points from local ones during shading or mixing of solar modules.

• Provides excellent performance at sunrise and low insolation levels

• Delivers the industry’s highest peak power efficiency rating:

• 99% - TriStar MPPT Controller

• 97.5% - SunSaver MPPT Controller

• Performs very rapid sweeping of the solar array I-V curve over the whole converter’s operating range at flexible and adaptive time intervals.

• Sweeps from the battery voltage to the open circuit voltage of the array in less than a second for the TriStar MPPT and SunSaver

MPPT controllers and in less than 1/10 th

of a second for our new TriStar MPPT 600V controller.

TrakStar Advantages

Morningstar’s TrakStar MPPT tracking algorithm provides more accurate and faster performance, which consistently operates the PV array at a real maximum power point. Morningstar’s MPPT controllers deliver high conversion efficiency at all power levels.

• Significantly better in conversion efficiency at lower output levels than similar competing products

• Substantially higher energy production at higher output levels than similar products

Our MPPT controllers feature robust thermal and mechanical design (no fans or frequently moving parts). This, together with our passive convection cooling heatsinks, makes our controllers the industry’s quietest and most reliable while still exhibiting lowest selfconsumption.

Morningstar’s MPPT controllers deliver better production at higher ambient temperatures and will not reduce power or turn off at higher temperatures. Furthermore, our MPPT controllers keep the batteries at the highest state-of-charge (SOC), resulting in better battery health and longer life. A higher SOC equates to better PV system autonomy and more time before a low voltage disconnect.

To Learn more about Morningstar’s TrakStar MPPT Technology, visit: www.morningstarcorp.com/trakstar

TriStar MPPT

TM

600V Controller

60A at up to 600Voc

Product shown includes optional meter and DC

Disconnect Box.

Ambient Operating

Temperature

Power terminals

-40 °C to +45 °C

-40 °F to +113 °F

2.5 mm

2

– 35 mm

14 AWG – 2 AWG

2

Weight

Standard Box

DC Disconnect Box

Dimensions

Standard Box

9.0 kg / 19.8 lbs

12.8 kg / 28.1 lbs

DC Disconnect Box

Warranty

39.2 x 22.1 x 14.9 cm

15.4 x 8.7 x 5.9 in

54.2 x 22.1 x 14.9 cm

21.4 x 8.7 x 5.9 in

5 years

Certifications

• CE, RoHS and REACH Compliant

• ETL Listed [UL-1741 and Canadian CSA C22.2

No. 107.1.01]

• EMC Compliance

• FCC Class B Part 15 Compliant

• U.S. National Electrical Code (NEC) Compliant

• Manufactured in a Certified ISO 9001 Facility

The TriStar MPPT 600V (TS-MPPT-600V) accepts PV array input up to 600Voc.

It features an advanced digital signal processor and utilizes Morningstar’s TrakStar

MPPT Technology to harvest the maximum available energy from the solar array’s peak power point within the controller’s operating range. This high speed processing technology and control methodology enable the TS-MPPT-600V to sweep from the array’s Voc to the battery voltage in less than one tenth of a second, faster than any competing MPPT controller on the market.

The TS-MPPT-600V’s high voltage capability and flexible design also make several typical application scenarios possible:

• Off-grid PV systems greater than 150 Voc with long wire runs from the array to the controller

• New installation grid-tie PV systems with battery back-up

• Retrofitting string inverter systems to later add battery back-up without changing the PV array configuration

• Off-grid wind systems with battery back-up

The TriStar MPPT 600V:

• Designed for 48V systems, but custom programmable for 24V, 36V & 60V battery systems

• Delivers the industry’s best-in-class power efficiency

• Uses Morningstar’s patented 4-stage charging algorithm to optimize battery health

• Features extensive system networking, monitoring and communications

• Optimized for harsh environments and equipped with extensive electronic protections

• Offers superior lightning protection

• Engineered with a robust thermal and mechanical design to deliver the highest reliability and excellent performance

TriStar MPPT 600V

Maximum Battery Current

Nominal Solar Input

Maximum Open Circuit Voltage

Battery Operating Voltage Range

Nominal System Voltage

Input Operating Voltage Range

DC Disconnect Box*

Remote Temperature Sensor

TS-MPPT-60-600V-48

60A

3200Wp

600V

16-72 Vdc

24, 36, 48, 60 Vdc

Battery Voltage to 525V

NO

INCLUDED

TS-MPPT-60-600V-48-DB

60A

3200Wp

600V

16-72 Vdc

24, 36, 48, 60 Vdc

Battery Voltage to 525V

INCLUDED

INCLUDED

Options

Ground Fault Protection Device

MeterHub

Relay Driver

Meters

TriStar Meter-2-600V

TriStar Remote Meter-2

TS-MPPT-60-600V-48

YES

YES

YES

YES

YES

TS-MPPT-60-600V-48-DB

YES

YES

YES

YES

YES

* The DC Disconnect Box includes:

• 600 Vdc PV disconnect

• 48 Vdc battery disconnect

• Positive pole battery breaker

• Four (4) bus bars (one for each: PV +/-, battery +/-)

• Two (2) standard 35mm DIN rails

• Internal barriers between the high voltage (PV) and low voltage (battery) wiring

2

3

TriStar MPPT

TM

Controller

30A, 45A or 60A at up to 150Voc

Product shown includes optional meter.

Ambient Operating

Temperature

Terminal

Weight

TS-MPPT-30

TS-MPPT-45

TS-MPPT-60

Dimensions

Warranty

-40 °C to + 45 °C

-40 °F to +113 °F

35 mm

2

/ 2 AWG

4.2 kg / 9.2 lbs

4.5 kg / 9.9 lbs

5.0 kg / 11.0 lbs

29.1 x 13.0 x 14.2 cm

11.4 x 5.1 x 5.6 in

5 years

Certifications

• CE, RoHS and REACH Compliant

• IEC 62093

• UL 1741 / CSA C22.2 No. 107.1-01 Listed

• EMC Compliance

• FCC Title 47 (CFR), Part 15 Subpart B for Class

B Device

• Manufactured in a Certified ISO 9001 Facility

The TriStar MPPT with TrakStar Technology is an advanced maximum power point tracking controller for off-grid solar systems up to 3kWp.

Maximizes Energy Harvest – Better peak power tracking than other MPPT controllers.

Very High Efficiency – The industry’s highest peak efficiency of 99% for off-grid controllers.

Features Extensive Networking and Communications – Enables system monitoring, data logging and adjustability. On-board Ethernet included on the TS-MPPT-60.

TriStar MPPT

Maximum Battery Current

Nominal Solar Input

12V Battery Bank

24V Battery Bank

48V Battery Bank

Maximum Open Circuit Voltage

Nominal System Voltage

TS-MPPT-30

30A

TS-MPPT-45

45A

TS-MPPT-60

60A

400Wp

800Wp

1600Wp

150V

600Wp

1200Wp

2400Wp

150V

800Wp

1600Wp

3200Wp

150V

12, 24, 36 or 48 Vdc 12, 24, 36 or 48 Vdc 12, 24, 36 or 48 Vdc

Options

TriStar Meter-2

TriStar Remote Meter-2

MeterHub

Ethernet

EIA-485 Adapter

RS-232

Remote Temperature Sensor

Ground Fault Protection Device

TS-MPPT-30

YES

YES

YES

NO

YES

INCLUDED

INCLUDED

YES

TS-MPPT-45

YES

YES

YES

NO

YES

INCLUDED

INCLUDED

YES

TS-MPPT-60

YES

YES

YES

INCLUDED

INCLUDED

INCLUDED

INCLUDED

YES

SunSaver MPPT

TM

Controller

15A at up to 75Voc

Ambient Operating

Temperature

Terminal

Weight

Dimensions

-40 °C to +60 °C

-40 °F to +140 °F

16 mm

2

/ 6 AWG

0.7 kg / 1.6 lbs

16.9 x 6.4 x 7.3 cm

6.6 x 2.5 x 2.9 in

5 years Warranty

Certifications

• CE, RoHS and REACH Compliant

• UL 1741 / CSA C22.2 No. 107.1-01 Recognized

• EMC Compliance

• FCC Title 47 (CFR), Part 15 Subpart B for Class

B Device

• Manufactured in a Certified ISO 9001 Facility

The SunSaver MPPT with TrakStar technology is an advanced maximum power point tracking controller for off-grid solar systems up to 400Wp.

Power Optimization – Maximum power point tracking provides an optimal match of the solar array to the battery.

Use of High Voltage Modules – In addition to 12V crystalline modules, enables use of high voltage and thin film modules for off-grid battery charging.

Converts 36V or 24V Arrays – Provides a means to use up to a 36V PV array to charge either a 24V or 12V battery.

Automatic Lighting Control – Includes up to four programmable timer sequences for PV lighting applications using MSView TM .

SS-MPPT-15L

15A

SunSaver MPPT

Maximum Battery Current

Nominal Solar Input

12V Battery Bank

24V Battery Bank

Maximum Open Circuit Voltage

Nominal System Voltage

200Wp

400Wp

75V

12/24 Vdc

Options

Remote Meter

Remote Temperature Sensor

MeterHub

PC MeterBus Adapter

DIN Rail Clips

Ground Fault Protection Device

YES

YES

YES

YES

YES

YES

TriStar

TM

Controller

45A or 60A at 12-48V

Product shown includes optional meter.

Ambient Operating

Temperature

Terminal

Weight

Dimensions

Warranty

-40 °C to +45 °C

-40 °F to +113 °F

35 mm

5 years

2

/ 2 AWG

2.0 kg / 4.4 lbs

26.0 x 12.7 x 7.1 cm

10.3 x 5.0 x 2.8 in

Certifications

• CE, RoHS and REACH Compliant

• IEC 62093

• UL 1741 / CSA C22.2 No. 107.1-01 Listed

• EMC Compliance

• FCC Title 47 (CFR), Part 15 Subpart B for Class

B Device

• Manufactured in a Certified ISO 9001 Facility

The TriStar is a three-function controller that provides reliable PWM solar battery charging, load control or diversion regulation.

Highest Reliability – Large heat sink and conservative design enables operating at full ratings up to 45 °C.

More Information – Optional meter displays extensive system and controller information, automatic self-test and reset. Displays in 5 languages.

Communications Capability – RS-232 connects to a personal computer for custom settings, data logging and remote monitoring and control.

Fully Adjustable – DIP switch provides user with choice of 7 digital presets. Additional custom settings via RS-232.

Extensive Electronic Protections – Fully protected against reverse polarity, short circuit, overcurrent and high temperature.

TriStar

Rated Solar, Load or Diversion Current

Nominal System Voltage

TS-45

45A

12, 24, 36 or 48 Vdc

TS-60

60A

12, 24, 36 or 48 Vdc

Options

TriStar Meter-2

TriStar Remote Meter-2

MeterHub

EIA-485 Adapter

Remote Temperature Sensor*

Ground Fault Protection Device

TS-45

YES

YES

YES

YES

YES

YES

* Required for temperature compensated charging. Not included.

TS-60

YES

YES

YES

YES

YES

YES

ProStar

TM

Controller

15A or 30A at 12/24V or 48V

Product shown includes optional meter.

Ambient Operating

Temperature

Terminal

Weight

Dimensions

Warranty

-40 °C to +60 °C

-40 °F to +140 °F

16 mm

6.01 x 4.14 x 2.17 in

5 years

2

/ 6 AWG

0.3 kg / 0.75 lbs

15.3 x 10.5 x 5.5 cm

Certifications

• CE, RoHS and REACH Compliant

• Manufactured in a Certified ISO 9001 Facility

The ProStar is a mid-range solar controller for both professional and consumer applications.

Longer battery life – Constant voltage PWM series regulation with 4-stage charging.

Temperature compensation and choice of 3 battery types. Voltage sense terminals for more accurate battery reading.

More Information – Includes three battery level LED indicators. Optional meter includes a safety disconnect and displays amps, volts, temperature and self-test.

Extensive electronics protection – Avoids use of mechanical fuses. Electronic protections for short-circuit, overload, reverse polarity, high voltage and temperature and reverse current at night.

ProStar

Rated Solar Current

Rated Load Current*

Nominal System Voltage

PS-15

15A

15A

12/24 Vdc

PS-30

30A

30A

12/24 Vdc

PS-15M-48V

15A

15A

48 Vdc

Options

Digital Meter

Positive Ground

Remote Temperature Sensor**

Ground Fault Protection Device

PS-15

YES

NO

YES

YES

* Low voltage disconnect included on all ProStar controllers.

** Installation of the RTS requires some soldering.

PS-30

YES

YES

YES

YES

PS-15M-48V

STANDARD

YES

YES

YES

4

5

SunSaver

TM

Controller

6A, 10A or 20A at 12V or 24V

Ambient Operating

Temperature

Terminal

Weight

Dimensions

Warranty

-40 °C to +60 °C

-40 °F to +140 °F

16 mm

2

/ 6 AWG

0.4 kg / 0.9 lbs

15.2 x 5.5 x 3.4 cm

6.0 x 2.2 x 1.3 in

5 years

Certifications

• Hazardous Locations - Class 1, Div. 2 Groups

A-D

• CE, RoHS and REACH Compliant

• UL 1604/ANSI/ISA 12.12.01-2000 (USA) and

CSA C22.2 No. 213-M1987 (Reaffirmed 2004)

(CANADA) Listed

• UL 1741 (with terminal cover) Listed*

• FCC Title 47 (CFR), Part 15 Subpart B for Class

B Device

• Manufactured in a Certified ISO 9001 Facility

* Wire terminal cover included with every SunSaver.

The SunSaver is the world’s leading small solar controller for industrial and leisure markets.

Extended battery life – PWM 4-stage battery charging with temperature compensation.

Sealed/flooded battery select.

Tropicalization – Epoxy encapsulation, marine rated terminals and anodized aluminum case provide environmental protection.

Ideal for oil/gas applications – Approved for use in hazardous locations: Class 1,

Division 2, Groups A-D.

Additional Features Full electronic protections, 3 battery state LEDs, cover for terminals, dead battery recovery, 15V maximum load.

SunSaver

Rated Solar Current

Rated Load Current

Nominal System Voltage

Low Voltage Disconnect

SS-6-12V

6A

6A

12 Vdc

NO

SS-6L-12V

6A

6A

12 Vdc

YES

SS-10-12V

10A

10A

12 Vdc

NO

SunSaver

Rated Solar Current

Rated Load Current

Nominal System Voltage

Low Voltage Disconnect

Options

DIN Rail Clips

Ground Fault Protection Device

SS-10L-12V SS-10L-24V SS-20L-12V SS-20L-24V

10A

10A

12 Vdc

YES

10A

10A

24 Vdc

YES

20A

20A

12 Vdc

YES

20A

20A

24 Vdc

YES

(All Versions)

YES

YES

SunSaver Duo TM Controller

25A at 12V

Ambient Operating

Temperature

Terminal

Weight without Meter with Meter Kit

Dimensions without Meter

-40 °C to +45 °C

-40 °F to +113 °F

16 mm

2

/ 6 AWG

0.6 kg / 1.3 lbs

1.0 kg / 2.2 lbs

Warranty

17.0 x 5.6 x 4.1 cm

6.7 x 2.2 x 1.6 in

5 years

Certifications

• CE, RoHS and REACH Compliant

• Manufactured in a Certified ISO 9001 Facility

The SunSaver Duo is a two battery solar controller with optional remote meter for RVs, caravans and boats.

Two Battery Charging – Solar charge current is shared between two batteries based on a user selectable priority. When one battery is fully charged, all of the charge current flows to the other battery.

Highly Reliable – Epoxy encapsulation protects the controller against dust and high humidity.

Extensive electronic protections, including short circuit, over current and reverse polarity, ensure that the controller will not be damaged by wiring mistakes or overloads.

User Adjustable – Control parameters may be adjusted using the DIP switch on the controller. Further customization is enabled by connecting to a personal computer and using

Morningstar’s MSView software.

SunSaver Duo

Rated Solar Current

Rated Load Current*

Nominal System Voltage

SSD-25

25A

NONE

12 Vdc

SSD-25RM

25A

NONE

12 Vdc

Options

Remote Meter

Remote Temperature Sensor

PC MeterBus Adapter

DIN Rail Clips

EIA-485 Adapter**

Ground Fault Protection Device

SSD-25

YES

YES

YES

YES

YES

YES

SSD-25RM

STANDARD

YES

YES

YES

YES

YES

* There is no load connection on the SunSaver Duo.

** The EIA-485 / RS-232 Adapter can be used in conjunction with the PC MeterBus Adapter to enable these devices to communicate over a 485 network.

SunKeeper TM Controller

6A or 12A at 12V

Ambient Operating

Temperature

Wire Terminations

Weight

Dimensions

-40 °C to +70 °C

-40 °F to +158 °F

#8 fork connectors

0.1 kg / 0.3 lbs

9.9 x 5.1 x 1.3 cm

3.9 x 2.0 x 0.5 in

5 years Warranty

Certifications

• Hazardous Locations - Class 1, Div. 2 Groups

A-D

• CE, RoHS and REACH Compliant

• UL 1604/ANSI/ISA 12.12.01-2000 and CSA

C22.2 No. 213-M1987 Listed

• Manufactured in a Certified ISO 9001 Facility

The SunKeeper solar controller mounts directly to the solar module junction box and eliminates the need for an additional controller housing.

High Temperature Rated – Rated to 70 °C to operate in high temperatures at the solar module. No need to de-rate.

Outdoor Rated – Approved for outdoor use without an additional enclosure. IP65, UV resistant case. Epoxy encapsulated electronics and watertight connection to the module junction box.

Ideal For Oil/Gas Applications – Approved for use in hazardous locations: Class 1, Division 2,

Groups A-D.

SunKeeper

Rated Solar Current

Rated Load Current*

Nominal System Voltage

SK-6

6A

NONE

12 Vdc

SK-12

12A

NONE

12 Vdc

Options

Remote Temperature Sensor**

SK-6

YES

* There is no load connection on the SunKeeper.

** Installation of the RTS to the SunKeeper requires some soldering.

SK-12

YES

SunLight

TM

Controller

10A or 20A at 12V or 24V

Ambient Operating

Temperature

Terminal

Weight

Dimensions

-40 °C to +60 °C

-40 °F to +140 °F

16 mm

2

/ 6 AWG

0.3 kg / 0.7 lbs

16.8 x 5.5 x 3.4 cm

6.6 x 2.2 x 1.3 in

5 years Warranty

Certifications

• CE, RoHS and REACH Compliant

• Manufactured in a Certified ISO 9001 Facility

The SunLight is the world’s leading solar lighting controller for street and pathway lighting, parking areas, bus stations and signage.

Provides 10 Lighting Options – User adjustable for 2 to 10 hours on or for on all night.

Unique ON/OFF/ON settings conserve energy and turn light on again for 1 or 2 hours before sunrise. Timer accuracy is within 2 seconds.

Easy To install – To confirm correct installation, test button turns light on during the day and

LED indicates selected lighting option.

Rugged Industrial Design – Epoxy encapsulated electronics, marine rated terminals, and anodized aluminum case.

SunLight

Rated Solar Current

Rated Load Current*

Nominal System Voltage

SL-10L-12

10A

10A

12 Vdc

SL-10L-24

10A

10A

24 Vdc

SL-20L-12

20A

20A

12 Vdc

SL-20L-24

20A

20A

24 Vdc

Options

DIN Rail Clips

Ground Fault Protection Device

SL-10L-12

YES

YES

SL-10L-24

YES

YES

* Low Voltage Disconnect is included in all SunLight Controllers.

SL-20L-12

YES

YES

SL-20L-24

YES

YES

6

7

SunGuard

TM

Controller

4.5A at 12V

Ambient Operating

Temperature

Weight

Dimensions

-40 °C to +60 °C

-40 °F to +140 °F

0.1 kg / 0.2 lbs

6.4 x 5.1 x 3.8 cm

2.5 x 2.0 x 1.5 in

5 years Warranty

Certifications

• CE, RoHS and REACH Compliant

• Manufactured in a Certified ISO 9001 Facility

The SunGuard is a one module solar controller for professional and leisure markets.

Highly Reliable – 100% solid state design and epoxy encapsulated for environmental protection. Rated for 25% overloads and no need to de-rate.

Extended Battery Life – Series design (not shunt) PWM battery charging with temperature compensation. Low self-consumption.

Easy To Install – Outdoor rated connecting wires for waterproof connection to solar module and battery.

SunGuard

Rated Solar Current

Rated Load Current*

Nominal System Voltage

SG-4

4.5A

NONE

12 Vdc

* There is no load connection on the SunGuard.

SHS TM and SHS Night Light TM Controllers

6A or 10A at 12V

Ambient Operating

Temperature

Terminal

Weight

Dimensions

SHS & SHS-NL

-25 °C to +50 °C

-13 °F to +122 °F

6 mm

2

/ 10 AWG

0.2 kg / 0.4 lbs

Warranty

15.1 x 6.6 x 3.6 cm

5.9 x 2.5 x 1.4 in

2 years

Certifications

• CE, RoHS and REACH Compliant

• Manufactured in a Certified ISO 9001 Facility

The SHS and SHS Night Light are low cost controllers for rural electrification solar home systems*.

Low Cost – Designed to meet the economic needs of developing country rural markets. The latest electronic technology and high volume automated production resulted in lower costs.

High Reliability – Built-in electronic fuses ensure that any wiring mistakes during installation will not damage the controller. The printed circuit board is conformally coated for protection against humidity and nesting insects.

Easy To Use – LED indicators display battery level and system status. All control functions are automatic and require no user adjustments.

Auto Lighting Control – The Night Light version will automatically turn lights on at dusk and turn off the lights at dawn.

SHS

Rated Solar Current

Rated Load Current**

Nominal System Voltage

SHS-6

6A

6A

12 Vdc

SHS-10

10A

10A

12 Vdc

SHS Night Light

Rated Solar Current

Automatic Lighting Control**

Nominal System Voltage

SHS-NL-6

6A

YES

12 Vdc

SHS-NL-10

10A

YES

12 Vdc

* Not sold in USA or Canada.

** Low Voltage Disconnect included on all SHS controllers.

SureSine

TM

Inverter

300 W; 12 Vdc input, 115 or 220 Vac output

Ambient Operating

Temperature

Terminal

Weight

Dimensions

-40 °C to +45 °C

-40 °F to +113 °F

35 mm

2

/ 2 AWG

5.2 kg / 11.5 lbs

21.3 x 15.2 x 10.5 cm

8.4 x 6.0 x 4.1 in

2 years Warranty

Certifications

• CE, RoHS and REACH Compliant

• UL 1741 Listed on 115V-UL version only

• FCC Title 47 (CFR), Part 15 Subpart B for Class

B Device

• EN 60950-1+A11:2001, rev. 4/4/04

• Manufactured in a Certified ISO 9001 Facility

The SureSine is a pure sine wave inverter for off-grid solar applications requiring AC power. Applications include rural electrification, telecom, remote homes,

RVs, caravans and boats.

Improved load operation – Pure sine wave provides quality AC equivalent to grid power.

Toroidal transformer design generates good wave form throughout the range of input voltages.

Handles 200% surge up to 600W.

High Reliability – No internal cooling fan or other moving parts. Uses epoxy encapsulation, conformal coating, stainless steel hardware and an anodized aluminum enclosure to protect against harsh tropical and marine environments.

More Power Available High efficiency and low self consumption maximizes power to the loads. Automatic stand-by reduces consumption during no load conditions.

SureSine

Continuous Power Rating

Peak Power Rating (10 minutes)

DC Input System Voltage

Waveform

AC Output Voltage (RMS)

AC Output Frequency

SI-300-115V

300W @ 25 °C

600W @ 25 °C

10.0 - 15.5V

Pure Sine Wave

115 Vac +/- 10%

60 Hz +/- 0.1%

SI-300-220V

300W @ 25 °C

600W @ 25 °C

10.0 - 15.5V

Pure Sine Wave

220 Vac +/- 10%

50 Hz +/- 0.1%

Options

Remote Meter

PC MeterBus Adapter

Relay Driver

EIA-485 Adapter*

SI-300-115V

YES

YES

YES

YES

SI-300-220V

YES

YES

YES

YES

* The EIA-485/RS-232 Adapter can be used in conjunction with the PC MeterBus Adapter to enable the SureSine to communicate over a 485 network.

8

2

9

Ground Fault Protection Device

Off-grid and on-grid PV safety device

Ambient Operating

Temperature

Terminal

Weight

GFPD-150V

GFPD-600V

Dimensions

GFPD-150V

GFPD-600V

Warranty

-40 °C to +60 °C

-40 °F to +140 °F

25 mm

35 mm

2

2

/ 4 AWG

and

/ 2 AWG

2.0 kg / 4.4 lbs

4.4 kg / 8.9 lbs

26.9 x 12.8 x 11.2 cm

10.6 x 5.1 x 4.4 in

35.7 x 22.1 x 10.6 cm

14.1 x 8.7 x 4.2 in

5 years

Certifications

• CE, RoHS and REACH Compliant

• UL 1741 and CSA C22.2 No. 107.1-01 Listed

• GFPD-150V is UL-489 Listed

• GFPD-600V is UL-1077 Listed

• FCC Class B Part 15 Compliant

• U.S. National Electrical Code (NEC) 690.5

Compliant for use as a GFPD device

• Meets EMC Directives (Immunity, Emissions and Safety)

• Manufactured in a Certified ISO 9001 Facility

Morningstar’s Ground Fault Protection Device (GFPD) is an innovation for ground fault detection and interruption for the photovoltaic (PV) industry. It has greater sensitivity and better isolation while maintaining the bond to earth ground. Ground fault protection is used in electrical systems to prevent current from following any unintended paths during a ground fault. Morningstar’s GFPD has been designed to meet the ground fault protection requirements of the US National Electric Code (NEC) for grounded PV systems.

How it Works: A GFPD needs to detect any stray current and interrupt (break) the circuit until safe operation can be restored. A current imbalance between the primary positive and negative PV conductors entering the controller or inverter may indicate a ground fault condition. Morningstar’s GFPD will detect this condition and break the circuit on both the positive and negative legs. Disconnecting both poles ensures interruption of the ground fault current.

Other ground fault detection/interruption products break the bond to the grounded conductor. When this occurs, not only is the earth bond compromised, but the battery and DC loads can also be left ungrounded and floating. For a negatively grounded system this means that the negative side of the battery and loads can float to negative

Voc in relation to ground and the positive side can float to (negative Voc + Vbat).

Morningstar’s GFPD better isolates the array from the battery and loads, while maintaining the bond to ground.

• Disconnects both the positive and negative conductor and completely isolates PV source circuits

• Trips at 300mA compared to 1A for alternative solutions

• Provides design flexibility to accommodate large and small array configurations

• Uses high quality breaker solutions rather than fuses which are problematic to replace at remote sites

• Works like a traditional AC GFI

• Maintains the integrity of earth bond for battery and loads

• Does not require an extra warning label at the battery per U.S. National Electric Code requirements

• Makes it easier to locate and troubleshoot ground faults

• Powered via the PV System’s battery

• Equipped with both visual and audible alarms

• Built to support both single controller and multiple controllers systems

• When the earth bond is not broken, Morningstar’s GFPD will only shut off affected controllers

• All loads will continue to operate safely with the battery remaining bonded to ground

• Multiple controllers and GFPDs can be added on an as-needed basis

Ground Fault Protection Device

Number of Poles

Maximum Solar Voltage

Maximum Solar Current

Trip Method

Mounting

Input Voltage

Self-Consumption

Ground Fault Threshold Current

Output Trip Signal

Nominal System Voltage

GFPD-150V

2

150V

60A

Relay

DIN-rail or Panel-Mount

8-72 Vdc

<0.5W

300 mA +/- 10%

12V

12, 24, 36 or 48 Vdc

GFPD-600V

2

600V

50A

TriStar Meter-2-600V (TS-M-2-600V)

On-Board Advanced Digital Display for the TriStar MPPT 600V Controller

Compatible with:

TriStar MPPT 600V Controller

MeterHub

• 2 x 16 character LCD display

• Mounts to the controller*

• Displays extensive system and controller information, logged data, bar graph metering as well as alarms and faults for easy troubleshooting

• Choice of 5 languages (English, French,

German, Portuguese or Spanish)

* Replaces stock front faceplate.

TriStar Meter-2 (TS-M-2)

On-Board Advanced Digital Display for the TriStar and TriStar MPPT Controllers

Compatible with:

TriStar Controller

TriStar MPPT Controller

MeterHub

• 2 x 16 character LCD display

• Mounts to the controller*

• Displays extensive system and controller information, logged data, bar graph metering as well as alarms and faults for easy troubleshooting

• Choice of 5 languages (English, French,

German, Portuguese or Spanish)

* Replaces stock front faceplate.

TriStar Remote Meter-2 (TS-RM-2)

Remote Digital Display for the TriStar Family Controllers

Compatible with:

TriStar Controller

TriStar MPPT Controller

TriStar MPPT 600V Controller

MeterHub

• The TS-RM-2 provides the same data display as the TS-M-2, except that it ships with 30 meters of cable and a flat faceplate. These features enable convenient mounting away from the controller.

Remote Meter (RM-1)

Remote Digital Display for the SunSaver MPPT and SunSaver Duo Controllers as well as SureSine Inverter

Compatible with:

SunSaver MPPT Controller

SunSaver Duo Controller

SureSine Inverter

• Easy to Install and Use

• Low Self-Consumption

• 4 digit display with custom icons

• Displays systems information, logged data*, alarms and errors

• May be mounted in the wall or on the wall with included frame

• Includes 10 meters of cable

*Only available for the SunSaver MPPT

Controller.

10

Relay Driver (RD -1)

MeterHub (HUB -1)

Logic Module for System Control Functions

Compatible with:

TriStar Controller

TriStar MPPT Controller

TriStar MPPT 600V Controller

SunSaver MPPT Controller

SunSaver Duo Controller

SureSine Inverter

MeterHub

• Cost-effective and Highly reliable

• Fully Programmable

• Advanced Generator Control

• Industrial Design

• LED Indicators

• 4 independent relay driver outputs (relays not included)

• Used for high/low voltage alarms, load control, and generator start

• Reads digital data inputs from ‘compatible’ controllers and inverters

• Reads battery voltage in systems with other controllers

Solar Controller Communications Hub

Compatible with:

TriStar Controller

TriStar MPPT Controller

TriStar MPPT 600V Controller

Relay Driver

TriStar Meter-2

TriStar Remote Meter-2

• Allows several Morningstar products to communicate over a MeterBus network

(maximum 15 devices)

• In multi-controller systems the TS-M-2,

TS-M-2-600V and TS-RM-2 are networkable using Morningstar’s MeterHub to allow individual controller data and aggregate system data to be displayed together on a single meter.

• Enables multiple controllers to share a TriStar

Meter or Relay Driver

• Provides electrical isolation

211

Remote Temperature Sensor (RTS)

Sends Battery Temperature Data to Controllers

Compatible with:

TriStar Controller

TriStar MPPT Controller

TriStar MPPT 600V Controller

SunSaver MPPT Controller

ProStar Controller

SunSaver Duo Controller

SunKeeper Controller

• Improves battery charging by using temperature at the battery for very accurate temperature compensation

• Recommended for solar systems that experience temperature variations during the year or whenever the temperature at the battery will be more than 5 °C (9 °F) different than the temperature at the controller

PC MeterBus Adapter (MSC)

Converts RJ-11 MeterBus to RS-232 Connector

Compatible with:

SunSaver MPPT Controller

SunSaver Duo Controller

SureSine Inverter

• Used to connect a Morningstar controller or inverter to a PC or other third party serial enabled devices

• Communications link enables monitoring and logging of data as well as customizing of set points

EIA-485 / RS-232 Adapter (RSC-1)

Converts RS-232 to EIA-485 Connector

Compatible with:

TriStar Controller

TriStar MPPT Controller

SunSaver MPPT Controller

SunSaver Duo Controller

SureSine Inverter

Relay Driver

• Allows up to 128 Morningstar products to communicate on the same communications bus and over much greater distances than with RS-232

• All data is transmitted via MODBUS™ protocol

• Removable four (4) position EIA-485 terminal

• 9-pin RS-232 connector (male)

• Status LED for monitoring and diagnostics

• Molded tabs for attachment to 35mm standard DIN rail

• RS-232 ribbon cable (not shown) with low-profile connectors

DIN Rail Clips (DIN-1)

For Installing Controllers and Accessories to DIN Rails

Compatible with:

SunSaver MPPT Controller

SunSaver Controller

SunSaver Duo Controller

SunLight Controller

• Rugged plastic clips match SunSaver and

SunLight mounting holes

• Provide a simple way to install controllers to

DIN rails

• Enables removal of controllers from DIN rails without removing the clips

• Polypropylene clips

• Fits all 35mm standard DIN rails

• Includes mounting screws

12

© 2014 Morningstar Corporation. All rights reserved.

www.morningstarcorp.com

ALL.DAT.CATALOG.04/14.EN

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
