Epson Stylus Photo 1400

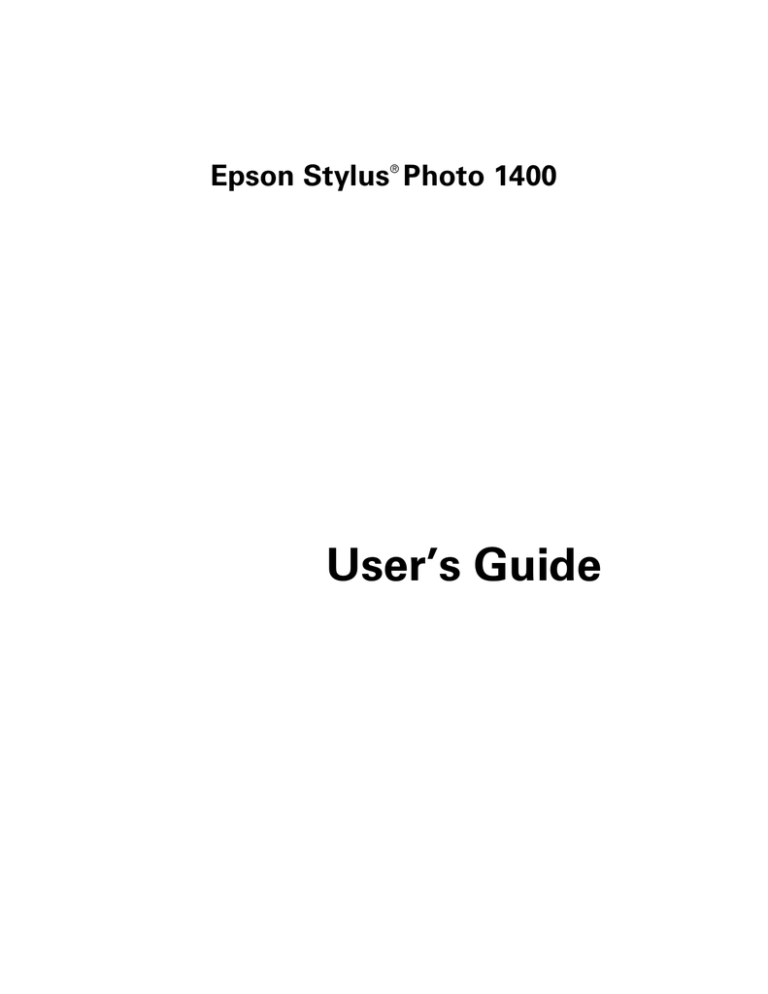

User’s Guide

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other equipment.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or

Epson Approved Products by Seiko Epson Corporation.

A Note Concerning Responsible Use of Copyrighted Materials

Epson encourages each user to be responsible and respectful of the copyright laws when using any

Epson product. While some countries' laws permit limited copying or reuse of copyrighted material in certain circumstances, those circumstances may not be as broad as some people assume. Contact your legal advisor for any questions regarding copyright law.

Trademarks

Epson, Epson Stylus, and MicroPiezo are registered trademarks, and Claria and

USB DIRECT-PRINT are trademarks of Seiko Epson Corporation.

BorderFree and RPM are registered trademarks, PhotoEnhance is a trademark, and Epson

Connection and Epson Store are service marks of Epson America, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.

CPD-22650

2

© 2006 Epson America, Inc.

12/06

Contents

Welcome

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Exif Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

About Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Printing from Start to Finish

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Special Papers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Printing with Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Selecting Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Printing with a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Selecting the Correct Paper Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Printing Borderless Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Borderless Printing with Windows . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Borderless Printing with a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . 27

Storing and Displaying Your Prints . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Printing on CDs and DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Cleaning the Rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Inserting a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Designing and Printing a CD/DVD with Windows . . . . . . . . . . . . . . 33

Designing and Printing a CD/DVD with a Macintosh . . . . . . . . . . . . 37

Direct Printing from a Digital Camera or Camera Phone . . . . . . . . . . . . . . 42

Maintaining Your Printer

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Checking the Print Head Nozzles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Cleaning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Replacing an Ink Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Checking the Ink Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Purchasing Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Ink Cartridge Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Removing and Installing Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . 49

3

Aligning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Cleaning the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Transporting the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Solving Problems

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Diagnosing Printer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Running a Printer Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Setup and Software Installation Problems . . . . . . . . . . . . . . . . . . . . . 60

Printer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Print Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Problems with Paper Feeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

CD/DVD Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Miscellaneous Printout Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Uninstalling Printer Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Where To Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Epson Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Purchase Supplies and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Other Software Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Requirements and Notices

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Windows System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Macintosh System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Ink Cartridge Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Epson America, Inc. Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

4

Contents

Welcome

Your Epson Stylus

®

Photo 1400 is a full-featured, wide-format photo printer.

With its exceptional speed and print resolution, you can print superior photographs and enlargements and use it for all of your everyday printing. It provides you with these advanced features:

Claria

Hi-Definition ink for the ultimate combination of photo quality and longevity

Smooth gradations and sharp detail with Epson’s patented MicroPiezo

®

print head and DX5 technology

Automatic photo correction when printing from Windows

®

True BorderFree

®

frame-ready prints on select 4 × 6, 5 × 7, 8 × 10, letter-size,

11 × 14, 11 × 17, 13 × 19, and even 12 × 12 scrapbook-size papers

CD and DVD printing on ink jet-printable CDs and DVDs

PictBridge

or USB DIRECT-PRINT

printing directly from your digital camera or camera phone

Exif Print

The Exif (Exchangeable Image File) Print format includes information about your digital camera settings in JPEG/TIFF files so your printer and application can use them to create accurate print settings. Most digital cameras store Exif Print information such as shutter speed, metering, flash, exposure settings, resolution, and lens use in the JPEG/TIFF image file. Your printer uses the information to ensure the most accurate image reproduction.

Welcome

5

About Your Documentation

To set up your printer and install its software, see the Start Here sheet.

This book contains instructions on loading paper, printing with Windows and

Macintosh,

®

printing borderless photos, printing on CDs and DVDs, direct printing from a digital camera or camera phone, maintaining your printer, and solving basic problems.

For more information about your printer, see the on-screen Reference Guide by double-clicking the icon for it on your desktop.

Please follow these guidelines throughout:

Warning:

Warnings must be followed carefully to avoid bodily injury.

Caution:

Cautions must be observed to avoid damage to your equipment.

Note:

Notes contain important information about your printer.

Tip:

Tips contain hints for better printing.

6

Welcome

Printing from Start to Finish

Follow the steps in these sections to load paper, CDs, or DVDs, and print from your computer, digital camera, or camera phone.

“Loading Paper” below

“Printing with Windows” on page 14

“Printing with a Macintosh” on page 18

“Selecting the Correct Paper Type” on page 21

“Printing Borderless Photos” on page 23

“Printing on CDs and DVDs” on page 30

“Direct Printing from a Digital Camera or Camera Phone” on page 42

Loading Paper

The type of paper you choose affects the way your printout looks, so be sure to select the correct paper for your job. For the best results, you’ll want to use one of

Epson’s special ink jet papers designed for your printer. For guidelines, see page 10.

1. Open the paper support and slide out its extensions.

Printing from Start to Finish

7

2. Open the front flap, then pull out the output tray and its extension.

3. Press in the release button on the left edge guide and slide the guide to the left.

Release button

8

Printing from Start to Finish

4. Insert the paper, printable side up, against the right edge guide and behind the tab. The printable side is usually whiter or glossier than the other side.

Larger paper Tab Smaller paper Tab

Always load the short edge first, even for landscape printing.

You can load about 120 sheets of plain paper. (See page 13 for capacity

guidelines on special paper, such as photo or matte paper.)

5. Press in the release button on the left edge guide and slide the guide against the left edge of the paper (but not too tightly).

Larger paper Smaller paper

Release button

Release button

Note:

The left edge guide moves slightly during paper handling and printing. Do not adjust the guide if it moves.

Loading Paper

9

Follow these guidelines when loading paper:

Don’t load paper above the arrow mark on the left edge guide. Make sure the paper is under the tabs on the left and right edge guides.

Load the printable side face-up. It’s often glossier or whiter than the other side.

Always load the short edge first, even when printing in landscape mode.

Load letterhead or preprinted paper into the printer top edge first.

If you experience paper feeding problems, try loading fewer sheets.

If you’re using special paper, check the package for additional instructions on loading and using the paper.

Special Papers

You can achieve good results with most types of plain bond paper. Coated papers, however, provide superior printouts because they absorb less ink. Epson provides special papers that are formulated for the ink used in Epson ink jet printers and recommends these papers to ensure high-quality results.

Note:

When you use special paper, check the package for special instructions on loading and using the paper.

Caution:

If your Epson ® special paper includes a cleaning sheet, don’t use it with this printer; the sheet may jam inside your printer.

Epson offers the following special papers for the Epson Stylus Photo 1400:

Paper name

Epson Ultra Premium Photo Paper Glossy

Epson Ultra Premium Glossy Photo Paper

Epson Premium Photo Paper Semi-gloss

Epson Premium Semigloss Photo Paper

Size

Borderless 4 × 6 inches

Letter (8.5 × 11 inches)

Borderless 4 × 6 inches

Letter (8.5 × 11 inches)

Super B (13 × 19 inches)

Part number

S041934

S041935

S041982

S041331

S041327

10

Printing from Start to Finish

Paper name

Epson Premium Photo Paper Glossy

Epson Premium Glossy Photo Paper

Epson Photo Paper Glossy

Epson Glossy Photo Paper

Size

Borderless 4 × 6 inches

Part number

S041808

S041727

S041464 Borderless 5 × 7 inches

Borderless 8 × 10 inches S041465

Letter (8.5 × 11 inches) S041286

S041667

Borderless 11 × 14 inches S041466

US B (11 × 17 inches) S041290

A3 (11.7 × 16.5 inches)

Super B (13 × 19 inches)

Borderless 4 × 6 inches

S041288

S041289

Letter (8.5 × 11 inches)

S041809

S042038

S041134

S041671

S041141

S041649

S041271

S041272

US B (11 × 17 inches)

Super B (13 × 19 inches)

Letter (8.5 × 11 inches)

S041156

S041143

S041586 Epson Bright White Paper

Epson Premium Bright White Paper

Epson Premium Presentation Paper Matte

Epson Matte Paper Heavyweight

Borderless 8 × 10 inches S041467

Letter (8.5 × 11 inches) S041257

Borderless 11 × 14 inches S041468

A3 (11.7 × 16.5 inches)

Super B (13 × 19 inches)

S041260

S041263

Loading Paper

11

Paper name

Epson Premium Presentation Paper Matte

Double-sided

Epson Double-Sided Matte Paper

Epson Ultra Premium Presentation Paper

Matte

Epson Enhanced Matte Paper

Epson Presentation Paper Matte

Epson Photo Quality Ink Jet Paper

Epson Ultra Premium Photo Paper Luster

Epson Premium Luster Photo Paper

Size

Letter (8.5 × 11 inches)

Letter (8.5 × 11 inches)

A3 (11.7 × 16.5 inches)

Super B (13 × 19 inches)

Letter (8.5 × 11 inches)

Legal (8.5 × 14 inches)

US B (11 × 17 inches)

Super B (13 × 19 inches)

Letter (8.5 × 11 inches)

A3 (11.7 × 16.5 inches)

Super B (13 × 19 inches)

Part number

S041568

S041341

S041343

S041339

S041062

S041067

S041070

S041069

S041405

S041406

S041407

S041604

S041153 Epson Iron-on Cool Peel Transfer paper

Epson Iron-On Transfer Paper

Letter (8.5 × 11 inches)

Epson Photo Quality Self Adhesive Sheets A4 (8.3 × 11.7 inches) S041106

You can purchase genuine Epson ink and paper from an Epson authorized reseller.

To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

12

Printing from Start to Finish

When loading Epson special papers, follow these capacity guidelines:

Paper name

Epson Presentation Paper Matte

Epson Photo Quality Ink Jet Paper

Loading capacity

A3 or larger sizes:

50 sheets

Smaller sizes:

100 sheets

80 sheets Epson Bright White Paper

Epson Premium Bright White Paper

Epson Ultra Premium Photo Paper Glossy

Epson Ultra Premium Glossy Photo Paper

Epson Premium Photo Paper Glossy

Epson Premium Glossy Photo Paper

Epson Premium Photo Paper Semi-gloss

Epson Premium Semigloss Photo Paper

Epson Photo Paper Glossy

Epson Glossy Photo Paper

Epson Ultra Premium Presentation Paper Matte

Epson Enhanced Matte Paper

Epson Premium Presentation Paper Matte

Epson Matte Paper Heavyweight

Epson Ultra Premium Photo Paper Luster

Epson Premium Luster Photo Paper

Epson Premium Presentation Paper Matte Double-sided

Epson Double-Sided Matte Paper

Epson Iron-on Cool Peel Transfer paper

Epson Iron-On Transfer Paper

Epson Photo Quality Self Adhesive Sheets

20 sheets

A3 or larger sizes:

10 sheets

Smaller sizes:

20 sheets

One sheet

Loading Paper

13

Printing with Windows

Follow the instructions in this section to print a basic document or photo. For

instructions on printing borderless photos, see page 23. For more advanced

printing instructions, see your on-screen Reference Guide.

1. Open the

File

menu and select

Print

. You see a print window like this one:

Select your printer here

Click here to open your printer software

2. Make sure

EPSON Stylus Photo 1400 Series

is selected.

3. Click the

Properties

or

Preferences

button. (If you see a

Setup

,

Printer

, or

Options

button, click it. Then click

Properties

or

Preferences

on the next screen.)

14

Printing from Start to Finish

4. On the Main tab, select the basic print settings:

Select the type of document you’re printing

Select

Sheet

Select your paper Type

Select your paper Size

Select your document or image orientation

Select

PhotoEnhance ™ to automatically correct photos

Click here for more options

Select from these

Quality Option

settings:

Draft

: For rough drafts with reduced print quality

Text

: For text-only documents with higher text quality

Text & Image

: For documents with text and images with higher quality


: For photos and graphics with good quality and speed

Best Photo

: For photos or graphics with high print quality

5. Select

Sheet

as the Source setting.

6. Make sure the paper Type and Size settings match the paper you’ve loaded in

the printer. See “Selecting the Correct Paper Type” on page 21.

7. Select the direction you want your image or document to print as the

Orientation setting. Select

Portrait

for vertical orientation or

Landscape

for horizontal.

8. Select

PhotoEnhance

to automatically correct your photos.

Printing with Windows

15

9. For more printing options, click the

Advanced

button. Then select the following settings as necessary.

Select a color management method

(To choose No Color Adjustment, click ICM first)

Select Paper & Quality

Options as necessary

Select Photo RPM for the best print quality on certain paper types

Select Print Options as necessary

Note:

When you select Photo RPM for the highest print quality, printing will take longer.

For more information about advanced settings, or instructions on saving them as a group so you can reuse them later, click the Help button or click the ? button and then click on the area you need help with.

10. If you want to change the layout settings, click the

Page Layout

tab and select settings as necessary.

11. Click

OK

to save your settings, then click

OK

or

Print

to start printing.

16

Printing from Start to Finish

During printing, the following window appears and shows the progress of your print job. You can use these buttons to cancel, pause, or resume printing. You can also see an estimate of your ink levels.

Click to pause or resume printing

Click to cancel printing

Click to purchase ink

Tip:

You can also press the ) paper button on your printer to cancel printing.

Selecting Default Settings

When you change the printer settings within a program, they only apply to that program. If you want to change the default printer settings for all your Windows programs, follow these steps:

1. Right-click the printer icon in the lower right corner of your screen

(taskbar).

2. Select

Printer Settings

.

3. Select the default settings you want for all your applications, then click

OK

.

You can still change the printer settings in your individual programs, when necessary.

Printing with Windows

17

Printing with a Macintosh

Follow the instructions in this section to print a basic document or photo. For

instructions on printing borderless photos, see page 23. For more advanced

printing instructions, see your on-screen Reference Guide.

1. Open the

File

menu and select

Page Setup

. You see the Page Setup window:

Select Stylus

Photo 1400

Select your Paper Size

Select your document or image orientation

2. Select

Stylus Photo 1400

from the Format for pop-up menu.

3. Select your Paper Size. For borderless printing, select a paper size with the

Sheet Feeder - Borderless

option. See page 23 for details.

4. Select portrait or landscape as the Orientation setting.

5. Click

OK

.

6. Open the

File

menu and select

Print

. You see a window like this one:

Select Stylus

Photo 1400

Select Print Settings

7. Select

Stylus Photo 1400

from the Printer pop-up menu.

8. Select

Print Settings

from the pop-up menu.

18

Printing from Start to Finish

Note:

In certain programs you may need to select Advanced before you can select Print

Settings.

9. Select the following Print Settings as necessary:

Select your

Media Type

Select Color or

Grayscale

Select higher quality or faster printing (if available)

Click Print

Note:

For more information about printer settings, click the ? button.

10. Depending on your settings, you can choose other options from the pop-up menu, including:

Copies & Pages:

Layout:

Select the number of copies you want or a page range.

Select page layout options.

Paper Handling

: Select page printing options, such as

Reverse print order.

ColorSync

or

Color Management

: Select ColorSync

®

or adjust the color controls or gamma setting, or turn off color adjustments in the printer software.

Expansion

: Reduce or enlarge the image size for borderless printing. See

page 29 for details.

Extension Settings:

Select a wider platen gap if ink smears.

Summary

: View a list of all your selections.

Printing with a Macintosh

19

11. Click the

Advanced

button and select the following settings as necessary.

Select Photo RPM for the best print quality on certain paper types

Select various print options here

Note:

When you select Photo RPM for the highest quality, printing will take longer.

12. Click

Print

.

13. To monitor the progress of your print job, click the printer icon when it appears in the dock on the bottom of your desktop.

If you’re using Mac OS X 10.2.8, click the Print Center icon instead, then double-click

Stylus Photo 1400

in the Printer List window.

20

Printing from Start to Finish

The following window appears and shows the progress of your print job. If necessary, you can click the print job to select it, then use these buttons to cancel, pause, or resume printing.

Pause printing Resume printing

Cancel printing

Tip:

You can also press the ) paper button on your printer to cancel printing.

14. When you’re finished, close the printer window or Print Center.

Selecting the Correct Paper Type

Select the correct paper

Type

or

Media Type

setting so your printer knows what kind of paper you’re using and adjusts the ink coverage accordingly.

For this paper

Plain paper

Epson Bright White Paper

Epson Premium Bright White Paper

Epson Iron-on Cool Peel Transfer paper

Epson Iron-On Transfer Paper

Epson Ultra Premium Photo Paper Glossy

Epson Ultra Premium Glossy Photo Paper

Select this paper Type or Media Type setting

Plain Paper / Bright

White Paper

Ultra Premium Photo

Paper Glossy

Selecting the Correct Paper Type

21

For this paper

Epson Premium Photo Paper Glossy

Epson Premium Glossy Photo Paper

Epson Photo Paper Glossy

Epson Glossy Photo Paper

Epson Presentation Paper Matte

Epson Photo Quality Ink Jet Paper

Epson Photo Quality Self Adhesive Sheets

Epson Premium Photo Paper Semi-gloss

Epson Premium Semigloss Photo Paper

Epson Ultra Premium Photo Paper Luster

Epson Premium Luster Photo Paper

Epson Ultra Premium Presentation Paper Matte

Epson Enhanced Matte Paper

Epson Premium Presentation Paper Matte

Epson Matte Paper Heavyweight

Epson Premium Presentation Paper Matte Double-sided

Epson Double-Sided Matte Paper

Envelopes

Select this paper Type or Media Type setting

Premium Photo Paper

Glossy

Photo Paper Glossy

Presentation Paper

Matte

Premium Photo Paper

Semi-Gloss

Ultra Premium Photo

Paper Luster

Ultra Premium

Presentation Matte

Premium Presentation

Paper Matte

Envelope

22

Printing from Start to Finish

Printing Borderless Photos

You can print your photos with no margins, extending the image all the way to the edges of the page. Although borderless printing is a bit slower, you get beautiful snapshots and enlargements, without trimming. You can print borderless photos on these papers and sizes:

Paper name

Epson Ultra Premium Photo

Paper Glossy

Epson Ultra Premium Glossy

Photo Paper

Epson Premium Photo Paper

Glossy

Epson Premium Glossy Photo

Paper

Epson Photo Paper Glossy

Epson Glossy Photo Paper

Epson Presentation Paper Matte

Epson Photo Quality Ink Jet

Paper

Epson Premium Photo Paper

Semi-gloss

Epson Premium Semigloss

Photo Paper

Epson Ultra Premium Photo

Paper Luster

Epson Premium Luster Photo

Paper

Sizes

4 × 6 inches

Letter (8.5 × 11 inches)

4 × 6 inches

5 × 7 inches

8 × 10 inches

Letter (8.5 × 11 inches)

11 × 14 inches

US B (11 × 17 inches)

A3 (11.7 × 16.5 inches)

Super B (13 × 19 inches)

4 × 6 inches

Letter (8.5 × 11 inches)

US B (11 × 17 inches)

Super B (13 × 19 inches)

Letter (8.5 × 11 inches)

US B (11 × 17 inches)

Super B (13 × 19 inches)

4 × 6 inches

Letter (8.5 × 11 inches)

Super B (13 × 19 inches)

Premium Photo

Paper Glossy

Photo Paper Glossy

Presentation Paper

Matte

Premium Photo

Paper Semi-Gloss

Letter (8.5 × 11 inches)

A3 (11.7 × 16.5 inches)

Super B (13 × 19 inches)

Paper Type or

Media Type setting

Ultra Premium

Photo Paper Glossy

Ultra Premium

Photo Paper Luster

Printing Borderless Photos

23

Paper name

Epson Ultra Premium

Presentation Paper Matte

Epson Enhanced Matte Paper

Epson Premium Presentation

Paper Matte

Epson Matte Paper

Heavyweight

Sizes

Letter (8.5 × 11 inches)

A3 (11.7 × 16.5 inches)

Super B (13 × 19 inches)

8 × 10 inches

Letter (8.5 × 11 inches)

11 × 14 inches

A3 (11.7 × 16.5 inches)

Super B (13 × 19 inches)

Paper Type or

Media Type setting

Ultra Premium

Presentation Matte

Premium

Presentation Paper

Matte

See these sections for instructions on selecting printer settings:

“Borderless Printing with Windows” below

“Borderless Printing with a Macintosh” on page 27

“Storing and Displaying Your Prints” on page 29

Borderless Printing with Windows

These instructions cover printing from the Windows XP Picture and Fax Viewer, but you can print borderless photos using these driver setting instructions from any Windows application.

1. Locate the photo you want to print on your computer.

2. Right-click the photo, highlight

Open With

, and select

Windows

Picture and Fax Viewer

.

Note:

In Windows Vista,

you can select a photo on your system and click

Print. Then select your printer, paper size, and type on the next screen. To select the rest of your print options, click Options at the bottom of the screen and select Printer

Properties. Then continue with

step 7 to select the necessary

options.

Print icon

24

Printing from Start to Finish

3. Click the Print icon at the bottom of the screen.

4. Click

Next

. You see a Picture Selection window:

5. Select the photo(s) you want to print and click

Next

. You see the Printing

Options window:

Select EPSON Stylus

Photo 1400 Series

Click Printing

Preferences

Printing Borderless Photos

25

6. Select

EPSON Stylus Photo 1400 Series

and click

Printing Preferences

.

You see the printer settings window:

Borderless check box

7. Select


or

Best Photo

as the Quality Option setting.

8. Select one of the following for the paper Type option, to match the paper you’re using:

Ultra Premium Photo Paper Glossy

Premium Photo Paper Glossy

Photo Paper Glossy

Presentation Paper Matte

Premium Photo Paper Semi-Gloss

Ultra Premium Photo Paper Luster

Ultra Premium Presentation Matte

Premium Presentation Paper Matte

Note:

If you’re not sure which Type to select, see the table on page 23.

9. Click the

Borderless

check box. Read the message and click

OK

.

10. Select your paper Size setting to match the paper you’re using. See the list of

supported borderless sizes beginning on page 23.

26

Printing from Start to Finish

11. Select

Portrait

or

Landscape

as the Orientation setting.

Note:

If you need to adjust the amount of image expansion necessary for borderless printing, click the Page Layout tab and adjust the Expansion slider.

12. Click

OK

.

Note:

In Windows Vista, follow the on-screen instructions.

13. Click

Next

. You see a Layout Selection window:

Full page photo print

14. Select

Full page photo print

and click

Next

to begin printing.

Borderless Printing with a Macintosh

1. Open the photo you want to print in a printing application.

2. Open the

File

menu and select

Page Setup

. You see the Page Setup window:

Select Stylus Photo 1400

3. Select

Stylus Photo 1400

from the Format for pop-up menu.

Printing Borderless Photos

27

4. Select your Paper Size setting to match the paper you’re using. See the list of

supported borderless sizes beginning on page 23.

5. Select portrait or landscape as the Orientation setting.

6. Click

OK

.

7. Open the

File

menu and select

Print

.

Select Stylus Photo 1400

Select Print Settings

8. Select

Stylus Photo 1400

in the Printer pop-up menu.

9. Select

Print Settings

from the pop-up menu.

Note:

In certain programs you may need to select Advanced before you can select Print

Settings.

The automatic photo correction feature is not available with Macintosh.

28

Printing from Start to Finish

10. Select one of the following Media Types to match the paper you’re using:

Ultra Premium Photo Paper Glossy

Premium Photo Paper Glossy

Photo Paper Glossy

Presentation Paper Matte

Premium Photo Paper Semi-Gloss

Ultra Premium Photo Paper Luster

Ultra Premium Presentation Matte

Premium Presentation Paper Matte

Note:

If you’re not sure which Media Type to select, see the table on page 23.

11. Select

Quality

(for higher quality) or

Speed

(for faster printing) using the slider, if it is available.

Note:

If you need to adjust the amount of image expansion necessary for borderless printing, select Expansion from the pop-up menu and adjust the Expansion slider.

12. Click

Print

to start printing.

Storing and Displaying Your Prints

The special Epson Claria inks designed for your printer provide the ultimate combination of photo quality and longevity when printed on Epson papers and properly displayed or stored. For best results, always use Epson papers.

With proper care, photographs from your Epson Stylus Photo 1400 will last for many years. As with traditional photos, Epson recommends proper care that will minimize color changes and lengthen display life:

Frame prints under glass or a protective plastic sleeve to protect them from atmospheric contaminants like humidity, smoke, and high levels of ozone.

As with all photographs, keep your prints away from direct sunlight.

Keep your prints away from high temperatures.

For proper storage, keep your prints in a photo album or plastic photo storage box in acid-free, archival sleeves commonly available from most camera stores.

Always keep unused paper in the original package.

Printing Borderless Photos

29

Printing on CDs and DVDs

Your printer includes a special tray that lets you print customized text, graphics, and photos directly on any ink jet-printable CD or DVD. The Epson Print CD software makes it easy to import your own photos, add text, and modify your designs with a variety of special effects. You can print on both regular 12-cm and

8-cm mini CDs and DVDs.

Caution:

Use only ink jet-printable CDs and DVDs for printing. Thermal-printable and regular CDs and DVDs should not be used with this printer; otherwise the ink may smear.

Follow the steps in these sections to print on CDs or DVDs:

“Cleaning the Rollers” below

“Inserting a CD or DVD” on page 31

“Designing and Printing a CD/DVD with Windows” on page 33

“Designing and Printing a CD/DVD with a Macintosh” on page 37

Cleaning the Rollers

Before you print on CDs or DVDs, you need to clean the rollers inside your printer. You can do this by feeding and ejecting several sheets of plain paper.

1. Make sure your printer is turned on and several sheets of letter-size paper are loaded.

2. Press the ) paper button to feed a sheet of paper through the printer.

3. Repeat step 2 several times.

30

Printing from Start to Finish

Inserting a CD or DVD

Make sure the data, music, or video is burned on your ink jet-printable CDs or

DVDs before you print. Otherwise, dirt or scratches on the surface may cause errors when you burn the data.

1. Turn on your printer.

Note:

Before you insert a CD or DVD, make sure the printer is turned on. Otherwise, the disc may not be positioned correctly. Then follow these steps:

2. Remove any paper from the sheet feeder.

3. If the output tray is open, push it all the way in.

4. Lift up the printer cover, then press and release the front cover as shown to open the CD/DVD tray guide.

5. Close the printer cover.

Printing on CDs and DVDs

31

6. Place the CD or DVD on the CD/DVD tray with the white or printable side face-up. Make sure the disc lies flat in the tray.

To print on a small CD or DVD (8-cm), place the small CD/DVD ring on the tray first, then place the CD or DVD inside the ring.

Caution:

Make sure you always use the small CD/DVD ring when printing on 8-cm CDs or

DVDs and that the disc and ring lie flat on the tray; otherwise the printer may be damaged.

12-cm disc 8-cm disc

CD/DVD ring

(Always use this piece with 8-cm discs)

7. Slide the tray into the CD/DVD guide. Push in the tray until the arrows on the tray and the tray guide are aligned, as shown below.

8. Follow the instructions on page 33 (Windows) or page 37 (Macintosh) to

design and print with Epson Print CD.

32

Printing from Start to Finish

Designing and Printing a CD/DVD with Windows

You can use Epson Print CD to create and print a disc design with images, graphics, and text.

Designing a CD/DVD with Windows

1. Double-click the

EPSON Print CD

icon on your desktop.

2. To add a background image, click the background icon. You see a window like this:

Note:

If you have already chosen a background, you see a different screen. Click Select

Image.

3. Do one of the following:

To select one of the background images provided with Epson Print CD, click the

Background

tab, select the image, and click

OK

.

To select one of your own images, click the

File

tab, click locate your image folder, then click

OK

. You see thumbnail images of all the files in the folder. Select your image and click

OK

.

Browse

to

Printing on CDs and DVDs

33

4. To add text, click the button. Enter your text and use the tabs to apply formatting and special effects, then click

OK

. (To open the window again, double-click any block of text.)

5. To curve a single line of text, click the text in the main window and drag the red “handle” up or down. Then adjust it using the other handles that appear.

6. When you’re finished, choose

Save as

from the

File

menu to save your file.

Note:

For additional help with Epson Print CD, open the Help menu in Epson Print CD and select Help Topics.

Printing on a CD/DVD with Windows

After you have created your design and loaded a CD or DVD, you’re ready to print.

1. Open the

File

menu and select

Print

.

Select EPSON Stylus

Photo 1400 Series

Select your CD or DVD type

Click None

34

Printing from Start to Finish

2. Make sure

EPSON Stylus Photo 1400 Series

is selected.

3. Select

CD/DVD

or

CD/DVD Premium Surface

as the Media Type setting.

4. Select

None

as the Print Confirmation Pattern setting.

5. Click

Print

.

Note:

When you set the copies setting to 2 or more, remove each CD or DVD from the tray after it has been printed, and then place the next disc on the tray (see

page 31). Press the ) paper button to resume printing.

After you print, handle the CD or DVD carefully. To allow the ink to dry, wait at least 24 hours before playing the disc or inserting it in a drive. Keep printed discs away from moisture and direct sunlight.

Note:

If printing on a full face (hub-printable) disc, you may need to adjust the print position to maximize the print area.

If you need to adjust the print position or color, see the next section or page 36.

Adjusting the Print Position with Windows

If your printed images and text are not centered or positioned the way you want on your CD or DVD, you may need to adjust the printing position. You can also use these steps to check the position before you print on a CD or DVD.

1. Place an extra ink-jet printable CD or DVD on the CD/DVD tray and insert

it into the printer, as described on page 31.

2. Start Epson Print CD.

3. Open the

File

menu and select

Print

.

Click Print Position

Confirmation Pattern

Printing on CDs and DVDs

35

4. Make sure

EPSON Stylus Photo 1400 Series

is selected, then click

Print

Position Confirmation Pattern

.

5. Click

Print

. The confirmation pattern is printed on the

CD or DVD.

6. Remove the CD or DVD and measure the distance from the edge of the hole to the small cross marks labeled

Top and

Right

. You’ll need a metric ruler with millimeters for accurate measurements.

7. Open the

File

menu, select

Print

, then select

Adjust Print Position

.

You see a screen like this:

8. Click

Enter Values

, then input the

Top distance (from your measurement) in the Height (Top) box. Enter the Right distance (from your measurement) in the Width

(Right) box.

9. Click

OK

to save the measurements.

Adjusting the Print Density with Windows

If ink smears on your printed CDs or DVDs, you may need to adjust the color saturation or ink density. CDs and DVDs from different manufacturers may absorb ink differently, so you may need to adjust the density for each type of disc.

Follow these instructions to print a color saturation check pattern, and then make adjustments as necessary.

1. Place an extra ink-jet printable CD or DVD on the CD/DVD tray and insert

it into the printer, as described on page 31.

2. Start Epson Print CD.

3. Open the

File

menu and select

Print

.

4. Make sure

EPSON Stylus Photo 1400 Series

is selected, then click

Print

Density Confirmation Pattern

.

5. Click

Print

.

36

Printing from Start to Finish

6. After the pattern is printed, examine the print.

If you need to adjust the color, make the

Print Color Correction

setting lighter or darker as necessary. Then repeat these steps, but select either

Second

or

Third

as the Print Density Confirmation Pattern

Position

setting to print your second or third pattern on the disc.

Note:

You can print three density patterns on one disc. Each pattern is printed in a different location.

7. Remove the CD or DVD and let it dry for at least 24 hours. Then check the saturation levels again.

Note:

You can also use the Brightness and Contrast settings in Epson Print CD to adjust color saturation. For additional information, open the Help menu in Epson Print CD and select Help Topics.

Designing and Printing a CD/DVD with a

Macintosh

You can use Epson Print CD to create and print a disc design with images, graphics, and text.

Designing a CD/DVD with a Macintosh

1. Open the

Applications

folder, open the

EPSON Print CD

folder, then select

EPSON Print CD

.

2. To add a background image, click the background icon. You see the following window:

3. To select a background image, click

Select

Background

, locate the folder your images are stored in, select the one you want, then click

Open

.

4. Click

OK

in the Adjust Background window.

Printing on CDs and DVDs

37

5. To add text, click the button. In the Text Settings window, type your text, then use any of the options in the window to format it. You can also use options in the Color Settings and Object Settings windows.

6. To curve a single line of text, click the text in the main window and drag the red “handle” up or down. Then adjust it using the other handles that appear.

7. When you’re finished, choose

Save as

from the

File

menu to save your file.

Note:

For additional help with Epson Print CD, open the Help menu in Epson Print CD and select EPSON Print CD Help.

Printing on a CD/DVD with a Macintosh

After you have created your design and loaded a CD or DVD, you’re ready to print.

1. Open the

File

menu and select

Print

.

2. Click the

Select Printer

button and select

Stylus Photo 1400

from the printer list, then click

OK

.

3. Select

CD/DVD

or

CD/DVD Premium Surface

as the Media Type setting.

4. Select

None

as the Test Print Pattern setting.

38

Printing from Start to Finish

5. Click

Print

.

Click here and select

Stylus Photo 1400

Select your CD or

DVD type

Click None

Note:

When you set the copies setting to 2 or more, remove each CD or DVD from the tray after it has been printed, and then place the next disc on the tray (see

page 31). Press the ) paper button to resume printing.

After you print, handle the CD or DVD carefully. To allow the ink to dry, wait at least 24 hours before playing the disc or inserting it in a drive. Keep printed discs away from moisture and direct sunlight.

Note:

If printing on a full face (hub-printable) disc, you may need to adjust the print position to maximize the print area.

If you need to adjust the print position or color, see the next section or page 41.

Adjusting the Print Position with a Macintosh

If your printed images and text are not centered or positioned the way you want, you may need to adjust the printing position. You can also use these steps to check the position before you print on a CD or DVD.

1. Place an extra ink jet-printable CD or DVD on the CD/DVD tray and insert

it into the printer, as described on page 31.

2. Start Epson Print CD.

Printing on CDs and DVDs

39

3. Open the

File

menu and select

Print

.

Click Print Position

Check Pattern

4. Make sure

Stylus Photo 1400

is selected, then click

Print Position Check

Pattern

.

5. Click

Print

. The confirmation pattern is printed on the

CD or DVD.

6. Remove the CD or DVD and measure the distance from the edge of the hole to the small cross marks labeled Top and Right. You’ll need a metric ruler with millimeters for accurate measurements.

7. Open the

File

menu, select

Print

, then select

Position

Adjustment

. You see a screen like this:

8. Click

Value Entry

, then input the Top distance (from your measurement) in the Top Space box. Enter the Right distance

(from your measurement) in the

Right Space box.

9. Click

OK

to save the measurements.

40

Printing from Start to Finish

Adjusting the Print Density with a Macintosh

If ink smears on your printed CDs or DVDs, you may need to adjust the color saturation or ink density. CDs and DVDs from different manufacturers may absorb ink differently, so you may need to adjust the density for each type of disc.

Follow these instructions to print a color saturation check pattern, and then make adjustments as necessary.

1. Place an extra ink jet-printable CD or DVD on the CD/DVD tray and insert

it into the printer, as described on page 31.

2. Start Epson Print CD.

3. Open the

File

menu and select

Print

.

4. Make sure

Stylus Photo 1400

is selected, then click

Print Density Check

Pattern

.

5. Click

Print

.

6. After the pattern is printed, examine the print.

If you need to adjust the color, make the

Color Correction

setting lighter or darker as necessary. Then repeat these steps, but select either

Second Time

or

Third Time

as the Print Density Check Pattern

Position

setting to print your second or third pattern on the disc.

Note:

You can print three density patterns on one disc. Each pattern is printed in a different location.

7. Remove the CD or DVD and let it dry for at least 24 hours. Then check the saturation levels again.

Note:

You can also use the Brightness and Contrast settings in Epson Print CD to adjust color saturation. For additional information, open the Help menu in Epson Print CD and select EPSON Print CD Help.

Printing on CDs and DVDs

41

Direct Printing from a Digital Camera or

Camera Phone

You can connect a digital camera or camera phone that supports PictBridge or

USB DIRECT-PRINT printing to the Epson Stylus Photo 1400 and use the camera or phone to control printing of your photos. (A cable may not be included with your camera or phone.)

Check your camera or phone manual to see if it supports PictBridge or USB

DIRECT-PRINT. If it doesn’t, the red H ink and ) paper lights flash alternately when you connect your camera or phone. Epson cannot guarantee the compatibility of any cameras or phones.

The file format of your images must be JPEG, and the size of each image must be at least 80 × 80 pixels but not more than 9200 × 9200 pixels.

1. Make sure your Epson Stylus Photo 1400 is turned on, but not printing.

2. Load the type of paper you want to use. See page 7.

3. Connect the USB cable that came with your camera or phone to the

PictBridge port on the front of the printer.

4. Connect the other end of the cable to your camera or phone.

5. Turn on your camera or phone.

6. Use your camera or phone to select the photos you want to print, adjust any necessary settings, and print your photos. See your camera or phone manual for details.

42

Printing from Start to Finish

Maintaining Your Printer

Follow the steps in these sections to keep your Epson Stylus Photo 1400 in great shape and transport it, if necessary.

“Checking the Print Head Nozzles” below

“Cleaning the Print Head” on page 44

“Replacing an Ink Cartridge” on page 46

“Aligning the Print Head” on page 53

“Cleaning the Printer” on page 54

“Transporting the Printer” on page 55

Checking the Print Head Nozzles

You can run a nozzle check to see if the print head needs cleaning. Follow the instructions below.

Before you check the print head nozzles, make sure the CD/DVD tray is not inserted in the printer.

1. Make sure the printer is turned on but not printing, and the red H ink light is not on. (If the red H ink light is on, you need to replace a cartridge; see

page 46 for details.)

2. Make sure letter-size plain paper is loaded in the printer.

3. Windows: Right-click the printer icon on your taskbar (in the lower right corner of your screen). Select

Nozzle Check

.

Macintosh: Open the

Applications

folder and select

EPSON Printer

Utility2

. Select

SP 1400 Series

in the printer list, click

OK

, and select

Nozzle Check

.

Maintaining Your Printer

43

4. Follow the instructions on the screen to print the nozzle check pattern.

Print head does not need to be cleaned:

Print head needs to be cleaned:

5. If there are no gaps or lines, click

Finish

.

If there are gaps or lines, or the test patterns are faint, click

Clean

and follow the on-screen instructions to clean the print head.

Cleaning the Print Head

If your printouts are unexpectedly light or dots or lines are missing, you may need to clean the print head. This unclogs the nozzles so they can deliver ink properly.

Print head cleaning uses ink, so clean it only if quality declines.

Note:

Before you clean the print head, check the print head nozzles first to confirm that the

print head needs to be cleaned. This saves ink. For more information, see page 43.

This section explains how to clean the print head using the Head Cleaning Utility.

You can also clean the print head by holding down the H ink button on the printer for three seconds. (This only works when the red H ink light is off.)

Before you clean the print head, make sure the CD/DVD tray is not inserted in the printer.

Caution:

When you don’t turn on your printer for a long time, print quality can decline, so turn it on and print a few pages at least once a month to maintain the best print quality.

44

Maintaining Your Printer

1. Make sure the printer is turned on but not printing, and the red H ink light is off. (If the red H ink light is flashing or on, you need to replace a cartridge; see

page 46 for details.)

2. Do one of the following:

Windows: Right-click the

printer icon on your taskbar (in the lower right corner of your screen). Select

Head Cleaning

.

Macintosh: Open the

Applications

folder and select

EPSON Printer

Utility2

. Select

SP 1400 Series

in the printer list, click

OK

, then select

Head Cleaning

.

3. Follow the instructions on the screen to clean the print head.

The printer cleans the print head and the green P power light flashes.

Cleaning takes about two minutes.

Caution:

Never turn off the printer while head cleaning is in progress. You may damage it.

4. When the green P power light stops flashing, make sure paper is loaded in the printer, click

Print Nozzle Check Pattern

, then click

Print

.

The nozzle check pattern prints.

Print head does not need to be cleaned:

Print head needs to be cleaned:

5. If there are no gaps or lines, click

Finish

.

If there are gaps or lines, or the test patterns are faint, click

Clean

and follow the on-screen instructions to clean the print head again.

If you don’t see any improvement after cleaning four times, turn the printer off and wait at least 6 hours. This allows any dried ink to soften. Then, try cleaning the print head again.

If you still don’t see any improvement, refer to “Problems and Solutions” on page 60.

Cleaning the Print Head

45

Replacing an Ink Cartridge

When the red H ink light flashes, one or more ink cartridges are low on ink.

When the red H ink light stays on, you need to replace one or more cartridges.

Ink button and light

You’ll also see a message on your screen when you print telling you which cartridge is low or expended.

When a cartridge is more than six months old, you may need to replace it if printouts don’t look their best. If the quality doesn’t improve after cleaning and aligning the print head, you can replace the cartridge even if the red H ink light is off.

Checking the Ink Status

To check the ink status, do one of the following:

Windows: Double-click

the printer icon on your taskbar (in the lower right corner of your screen). You see a window like this one:

Note:

To see the part numbers for the ink cartridges currently installed in your printer, click Information.

Click here to display information about your cartridges

46

Maintaining Your Printer

Macintosh: Open the

Applications

folder and select

EPSON Printer

Utility2

. Select

SP 1400 Series

in the printer list, click

OK

, then select

EPSON StatusMonitor

.

You see a window like this one:

Click a cartridge image to display information about it.

Purchasing Ink Cartridges

Use these Epson ink cartridges within six months of installing them and before the expiration date on the package:

Ink cartridge Part Number

Cyan

Magenta

Yellow

Light Cyan

Light Magenta

79 (T079220)

79 (T079320)

79 (T079420)

79 (T079520)

79 (T079620)

Caution:

To ensure the best results, use genuine Epson ink cartridges and do not refill them.

Other products may cause damage to your printer not covered by Epson’s warranty.

Replacing an Ink Cartridge

47

You can purchase genuine Epson ink and paper from an authorized Epson reseller.

To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). Or you can purchase online at http://www.epsonstore.com (U.S. sales) or

http://www.epson.ca (Canadian sales).

Ink Cartridge Precautions

Warning:

Keep ink cartridges out of the reach of children and do not drink the ink.

Be careful when you handle used ink cartridges; there may be ink remaining around the ink supply port. If ink gets on your skin, wash it off with soap and water. If it gets in your eyes, flush them immediately with water.

Caution:

After bringing an ink cartridge inside from a cold storage site, allow it to warm up at room temperature for at least three hours before using it.

Do not use an ink cartridge beyond the date printed on the package. For best results, use up the ink cartridges within six months of first installing them.

Do not shake ink cartridges after opening their packages; this can cause leakage.

Do not remove or tear any label or seal on the cartridge other than the yellow tab; this can cause leakage.

Do not touch the green IC chip on the side of the cartridge. Doing so may prevent normal operation and printing.

Install an ink cartridge immediately after you remove it from its package. Leaving the cartridge unpacked for a long time before using it can result in reduced print quality.

If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust, and store it in the same environment as the printer. A valve in the ink supply port makes covers or plugs unnecessary, but the ink may stain items that come into contact with this area of the cartridge. Do not touch the ink supply port or the surrounding area.

Do not dismantle ink cartridges or try to refill them. This could damage the print head.

Store ink cartridges with their labels facing upward. Do not store cartridges upside down.

Store ink cartridges in a cool, dark place.

48

Maintaining Your Printer

Note:

You cannot continue printing with one ink cartridge expended, even if the other cartridges still contain ink. Before printing, replace the expended cartridge.

The IC chip on these ink cartridges retains a variety of cartridge related-information, such as the ink cartridge status, so that the cartridge may be removed and reinserted freely. However, each time the cartridge is inserted, some ink is consumed because the printer automatically performs a reliability check.

If you remove a cartridge that is low (for which you have received an “Ink low” message), you cannot reuse it.

Removing and Installing Ink Cartridges

Be sure you have a new ink cartridge before you begin. Once you start replacing a cartridge, you must complete all the steps in one session.

Caution:

Leave the expended cartridge installed until you have obtained a replacement, or the ink remaining in the print head nozzles may dry out.

To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson’s warranty.

Do not open ink cartridge packages until you are ready to install the ink. Cartridges are vacuum packed to maintain reliability.

1. Make sure the CD/DVD tray is not inserted in the printer.

2. Make sure the printer is turned on, but the green P power light is not flashing.

3. Open the printer cover.

4. Press the H ink button. The P power light begins to flash.

Caution:

Don’t hold down the H ink button for more than 3 seconds or the printer will start to clean the print head.

Replacing an Ink Cartridge

49

If one of the cartridges is low or expended, the print head moves that cartridge

to the _ mark. Go to step 5.

If no cartridges are low or expended, the cartridge holder moves directly to the

ink cartridge replacement position. Go to step 6.

Caution:

To avoid damaging the printer, never move the print head by hand.

Do not touch the area shown below when you are changing ink cartridges.

5. Press the H ink button again.

If more than one cartridge is low or expended, the next low or expended cartridge moves to the _ mark. Press the H ink button to continue checking the cartridges.

After the printer identifies all the low or expended ink cartridges, the print head moves to the ink cartridge replacement position.

50

Maintaining Your Printer

6. Open the cartridge cover.

7. Squeeze the tab at the back of the cartridge and lift it straight out. Dispose of it carefully. Don’t take the used cartridge apart or try to refill it.

Warning:

If ink gets on your hands, wash them thoroughly with soap and water. If ink gets in your eyes, flush them immediately with water.

8. Remove the new cartridge from its package.

Caution:

Do not touch the green IC chip on the side of the cartridge. Doing so may prevent normal operation and printing.

Replacing an Ink Cartridge

51

9. Remove the yellow tape from the bottom of the ink cartridge.

Caution:

You must remove the yellow tape from the cartridge before you install it; otherwise, print quality may decline or you may not be able to print.

Don’t remove any other seals from the cartridge; this can cause leakage.

10. Place the new ink cartridge into the cartridge holder and push it down until it clicks into place.

11. Replace any other cartridges that need to be replaced.

52

Maintaining Your Printer

12. Close the cartridge cover.

13. Close the printer cover and press the H ink button. The printer begins charging ink.

The green P power light flashes and the printer makes noise. Charging takes about two minutes. When it’s finished, the green P power light stops flashing and stays on, and the red H ink light goes out.

Caution:

Never turn off the printer while the green P power light is flashing, or you’ll waste ink.

Note:

If the red H ink light stays on, an ink cartridge may not be installed correctly. Open the printer cover and press the H ink button two or more times. Then open the cartridge cover and press down all the cartridges until they click into place. Close the cartridge and printer covers, and press the H ink button to charge the ink.

Aligning the Print Head

If your printouts look grainy or blurry, or you see light or dark lines, you may need to align the print head.

Note:

You may also see lines in your printouts if your cartridges are low on ink or you need to clean the print head.

Before you align the print head, make sure the CD/DVD tray is not inserted in the printer.

1. Turn on the printer.

2. Load several sheets of plain, letter-size paper.

Aligning the Print Head

53

3. Make sure the ) paper and H ink lights are not flashing or on.

4. Do one of the following:

Windows: Right-click the

printer icon on your taskbar (in the lower right corner of your screen). Select

Print Head Alignment

.

Macintosh: Open the

Applications

folder and select

EPSON Printer

Utility2

. Select

SP 1400 Series

in the printer list, click

OK

, then select

Print Head Alignment

.

5. Follow the instructions on the screen to print the alignment pattern. You see a window like this one:

Note:

Do not cancel printing while the alignment sheet is printing.

6. Look at the three sets of patterns in your printout. For each set, if you see a pattern with no streaks or lines, enter its number in the corresponding box on the screen.

If every pattern in a set contains lines or streaks, select the pattern that looks the best. Click

Realignment

, then click

Print

to print another alignment sheet and repeat this step.

7. Click

Finish

to exit the Print Head Alignment utility.

Cleaning the Printer

To keep your printer working at its best, you should clean it several times a year.

1. Turn off the printer, unplug the power cord, and disconnect the USB cable.

2. Remove all the paper, then use a soft brush to clean the sheet feeder.

3. If the outer case or inside of the sheet feeder are dirty, clean them with a soft cloth dampened with mild detergent. Keep the printer cover closed to prevent water from getting inside.

54

Maintaining Your Printer

4. If ink accidentally gets inside the printer, wipe it off with a damp cloth in the area shown.

Warning:

Don’t touch the gears or any other parts inside the printer.

Clean plastic area here

Caution:

Never use a hard or abrasive brush, or benzine, alcohol, or paint thinner for cleaning; they can damage the printer components and case.

Don’t get water on the printer components and don’t spray or apply lubricants, oils or grease inside the printer.

Don’t use any cleaning sheets included with special paper; they may jam inside the printer.

Transporting the Printer

If you need to ship your printer, you must prepare it for transportation by packing the printer in its original box or one of a similar size.

Caution:

Leave the ink cartridges installed. Removing the cartridges can dry out the print head and may prevent the printer from printing.

1. Turn off the printer.

2. Remove any paper from the sheet feeder and close the paper support.

3. Push in the output tray extensions and close the tray.

4. Unplug the power cord from the electrical outlet. Then disconnect the USB cable from the printer.

5. Repack the printer in the original box using the protective materials that came with it.

Caution:

During transport, do not tilt the printer, stand it up vertically, or turn it upside down, or ink may leak from the cartridges.

After transporting the printer, plug it in and turn it on. If you notice a decline in

print quality, clean the print head (see page 44); if output is grainy or blurry, align

the print head (see page 53).

Transporting the Printer

55

56

Maintaining Your Printer

Solving Problems

If your Epson Stylus Photo 1400 has any problems, see these sections for solutions:

“Diagnosing Printer Problems” below

“Problems and Solutions” on page 60

If you need to uninstall and reinstall your software to solve a problem, see

“Uninstalling Printer Software” on page 70.

If the solutions here don’t solve your problem, see “Where To Get Help” on page 71.

Diagnosing Printer Problems

)

paper light

H

ink light

P

power light

First, check the printer’s lights (see below) or run a printer check (see page 59).

Lights

Green P power light flashes

Red ) paper light is on and green P power light flashes

Explanation

The printer is receiving a print job, replacing an ink cartridge, charging ink, or cleaning the print head, or a camera is connected to the PictBridge port.

If you’re printing on paper, your paper ran out or multiple pages have fed at once. Load or reload your paper, then press the ) paper button to resume printing.

If you’re printing on a CD or DVD, the CD/DVD tray is not

inserted. Follow the instructions beginning on page 31 to

insert the tray, then press the ) paper button.

Solving Problems

57

Lights

Red

)

paper light flashes and green P power light flashes

Explanation

If you’re printing on paper, it is jammed in the printer.

Press the ) paper button to eject the paper. If that doesn’t work, turn off the printer, open the cover, and pull the paper out from the front, including any torn pieces.

Then turn on the printer, reload paper, and press the

) paper button.

If you’re printing on a CD or DVD, the CD/DVD tray has not ejected. Pull out the tray and press the

)

paper button.

Red H ink light flashes An ink cartridge is nearly expended. Check the message that appears on your screen to determine which cartridge

is nearly expended or follow the instructions on page 46.

Make sure you have a replacement cartridge.

Red H ink light and green P power light are on

An ink cartridge is expended or not installed. Make sure you have a replacement cartridge, then follow the steps

on page 46 to install it.

If you have just installed a new cartridge, it may be incompatible with the printer or incorrectly installed.

Reinstall it or replace it with the correct cartridge, as

described on page 46.

Red

)

paper and red

H

ink lights flash rapidly

Green P power light is on; red ) paper and red H ink lights flash alternately

The P power light is off; red ) paper and red H ink lights flash

Paper is loaded for printing, but the CD/DVD tray guide is open. If you want to print on paper, close the CD/DVD tray guide. If you want to print on a CD or DVD, remove the paper from the sheet feeder.

An unsupported device is connected to the PictBridge port. Only devices compatible with PictBridge or USB

DIRECT-PRINT can be connected to this port. See

page 42 for more information.

Paper may be blocking movement of the print head or the printer may have an internal error. Turn off the printer, then open the cover and remove any jammed paper or other foreign objects. Wait a few seconds, then turn the printer back on again. If the lights are still flashing, contact

Epson as described on page 71.

58

Solving Problems

Running a Printer Check

You can run a printer check to determine whether a problem comes from the printer or some other source.

Before you run a printer check, make sure the CD/DVD tray is not inserted in the printer.

1. Turn off both the printer and computer. Then disconnect the USB cable from the printer.

2. Make sure letter-size plain paper is loaded in the printer.

3. Press the ) paper and P power buttons together to turn on the printer.

Continue holding down the ) paper button until the green P power light starts to flash, then release it.

)

paper button

P

power button

A test page prints showing the printer’s ROM version number and a nozzle check pattern. (If the pattern has gaps, you need to clean the print head as

described on page 44.)

4. Turn off the printer after it prints the test page. Then reconnect the USB cable and turn on your printer and computer.

If the test page prints, the problem probably lies in your software settings, the USB cable, or your computer, or your software may not be installed

correctly. To uninstall and reinstall the software, see page 70.

If the test page doesn’t print, you may have a problem with your printer.

Try the suggestions in “Problems and Solutions” on page 60. If nothing

works, contact Epson as described in “Where To Get Help” on page 71.

Diagnosing Printer Problems

59

Problems and Solutions

Tip:

If you don’t find the information you’re looking for in this section, please check the on-screen Reference Guide.

Setup and Software Installation Problems

Tip:

Periodically, it’s a good idea to check Epson’s support website at epson.com/support for free updates to your Epson Stylus Photo 1400 printer software. Download instructions are posted for your convenience. With Windows, you can also click Start or

, select Programs or All Programs, select EPSON, and click

EPSON Stylus Photo 1400 Series Driver Update for printer driver updates.

The printer makes noise after ink cartridge installation.

The first time you install ink cartridges, the printer must charge its print head for three minutes or so. Wait until charging finishes (the green P power light stops flashing) before you turn off the printer, or it may charge improperly and use excess ink the next time you turn it on.

If the print head stops moving or the printer stops making noise, but the green P power light is still flashing after 5 minutes, turn off the printer. If the light is still flashing when you turn it back on, contact Epson as described in

“Where To Get Help” on page 71.

Turn off the printer, then make sure the ink cartridges are inserted completely and the ink cartridge cover is closed completely. Also make sure no packing material remains in the printer. Wait a moment, then turn the printer back on to clear the error.

You’re having problems installing the printer software.

Carefully follow the installation instructions on the Start Here sheet. Do not connect your printer to the computer until you are instructed to do so and make sure the cable is securely connected. Also make sure your system meets

the requirements shown on page 73.

Close your other programs, including any screen savers and virus protection software, and install the software again.

60

Solving Problems

If you are using a Macintosh and you do not see the printer name in the

Format for menu on the Page Setup screen, you may need to set up your printer in the Printer Setup Utility or Print Center. See the Start Here sheet for instructions.

If you’re using Windows 2000 and you see an error message or your software doesn’t install correctly, you may not have software installation privileges.

Contact your System Administrator.

Make sure Windows 2000 or XP was preinstalled on your system. The USB

Printer Device Driver may not install correctly if you’ve upgraded from

Windows 95.

Make sure the USB Controller is working properly in Device Manager. See your Windows help system for details. If it’s not working, contact your computer manufacturer.

If you’re printing on a network, see your on-screen Reference Guide for instructions on configuring your printer for use on a network.

Printer Problems

The printer is on, but nothing prints.

Make sure the USB cable is connected securely and that the cable meets the

system requirements on page 73.

Run a printer check as described on page 59. If the test page prints, make sure

your software is installed correctly. You may need to uninstall and reinstall it as

described on page 70.

Make sure there is no packing material in the printer.

If you’re printing on a network, you need to set up your printer for network printing, as described in your on-screen Reference Guide.

If you print continuously for an extended period, the paper may temporarily stop feeding or the print head carriage may pause for a while to prevent the printer mechanism from overheating and being damaged. If this happens, you can continue to print but Epson recommends that you stop and leave the printer on for about 30 minutes. After 30 minutes, turn the printer off and on and it should print at normal speed.

Problems and Solutions

61

The printer sounds as though it is printing, but nothing prints.

If you’re using Windows, make sure your printer is selected. If you’re using a

Macintosh, make sure your printer is selected in the Page Setup and Print windows.

The print head nozzles may need cleaning; see page 44 for instructions.

Make sure the printer software settings are appropriate for the paper size you’re using.

The printer won’t operate properly if it’s tilted or at an angle. Place it on a flat, stable surface that extends beyond the printer base in all directions.

Your printer makes noise when you turn it on or after it has been sitting for awhile.

Your printer is performing routine maintenance.

Printing is too slow.

Make sure your system meets the requirements listed on page 73. If you’re

printing a high-resolution image, you need more than the minimum requirements listed. You may also need to:

Clear space on your hard drive or run a defragmentation utility.

Close open programs that you’re not using.

Increase your system’s memory (RAM).

For the fastest printing, try these tips:

Set the Quality Option to

Speed

(Macintosh).

Draft

(Windows) or the Quality/Speed slider to

If your printer is connected to a USB hub, disconnect USB devices that you’re not using.

Note:

Borderless printing takes longer, especially near the edges of the paper.

62

Solving Problems

Print Quality Problems

You see banding (light lines).

The print head nozzles may need cleaning;

see page 44 for instructions.

Select a higher print quality and turn off

High Speed mode; see page 15 (Windows)

or page 19 (Macintosh) for instructions.

Make sure the Type or Media Type setting matches the paper you loaded; see

page 21 for guidelines.

Make sure the printable side of the paper is face-up. It’s usually brighter or whiter.

The ink cartridges may need replacing; see page 46 for instructions.

Make sure you’re using genuine Epson ink cartridges and you use them within six months after you open the packages.

If you have a Macintosh, try using Automatic mode; see page 18 for

instructions.

Align the print head; see page 53 for instructions.

Your printout is blurry or smeared.

Make sure your paper isn’t damp or curled, or loaded face down (the printable side should be face up).

Make sure your paper is not damaged, dirty, or too old.

Make sure the Type or Media Type setting

matches the paper you loaded; see page 21 for guidelines.

Use a support sheet with special paper or load your paper one sheet at a time.

Make sure your paper meets the specifications listed in the on-screen Reference

Guide.

Use Epson papers to ensure proper saturation and absorption of genuine

Epson inks.

Problems and Solutions

63

Make sure you’re using genuine Epson ink cartridges and you use them within six months after you open the packages.

The printer won’t operate properly if it’s tilted or at an angle. Place it on a flat, stable surface that extends beyond the printer base in all directions.

The print head nozzles may need cleaning; see page 44 for instructions.

Align the print head; see page 53 for instructions.

Remove each sheet from the output tray as it is printed.

Avoid handling printouts for a few hours to allow the ink to set.

If ink smears on the back of a printout, clean the inside of the printer; see

page 54 for instructions.

Your printout is faint or has gaps.

The print head nozzles may need cleaning;

see page 44 for instructions.

The ink cartridges may be old or low on ink.

To replace an ink cartridge, see page 46.

Make sure the Type or Media Type setting

matches the paper you loaded; see page 21

for guidelines.

Make sure your paper isn’t damaged, old, dirty, or loaded face-down. For best results, use genuine Epson paper.

Caution:

Don’t open Epson Status Monitor, pause printing, or respond to any ink messages when your printer is printing. This may cause your printer to pause and leave an uneven surface on your printout. If your ink is running low, wait until printing finishes before checking ink levels or attempting to replace a cartridge. If you must replace an ink cartridge in the middle of a print job, the quality of your printout may decline. For best results, check your ink levels and replace ink cartridges, if necessary, before printing large or high-resolution print jobs.

64

Solving Problems

Your printout is grainy.

Make sure the printable side of the paper is face-up. It’s usually brighter or whiter.

Try using a higher quality paper or select a higher Quality Option or Print

Quality setting; see page 15 (Windows) or page 19 (Macintosh) for

instructions.

Run the Print Head Alignment utility; see page 53 for instructions.

You may need to increase the image resolution or print it in a smaller size; see your software documentation.

You see wrong or missing colors.

Clear the

Grayscale

setting in your printer software (Windows) or change the ink setting in your printer software to

Color

(Macintosh).

The print head nozzles may need cleaning; see page 44 for instructions.

The ink cartridges may be old or low on ink; see page 46.

If you’re using Windows, try turning off PhotoEnhance.

Try changing the

Gamma

setting; see your on-screen Reference Guide for more information.

After you print, the colors on your printout will take some time to set as the ink dries. During this time, the colors may look different than you expect. To reduce the drying time, avoid stacking your prints on top of each other.

Your printed colors can never exactly match your on-screen colors. However, you can use a color management system to get as close as possible. You can also use your printer’s color management features. See your on-screen

Reference Guide for more information.

Problems with Paper Feeding

Paper doesn’t eject fully or is wrinkled.

If the paper doesn’t eject fully, you may have set the wrong paper size. Press the

)

paper button to eject the paper, then select the correct paper size.

If it’s wrinkled when it ejects, the paper may be damp or too thin. Make sure your paper meets the specifications listed in the on-screen Reference Guide.

Problems and Solutions

65

Paper doesn’t feed correctly or jams in the printer.

Make sure the paper support extension is pulled up.

If paper doesn’t feed, remove it from the sheet feeder, reload it against the right edge, then slide the left edge guide against the paper.

If multiple pages feed at once, remove the paper from the sheet feeder, fan the edges to separate the sheets, and carefully reload it.

If paper jams, press the ) paper button to clear the jam. If that doesn’t work, turn off the printer, open the cover, and pull the paper out from the front, including any torn pieces. Then turn on the printer, reload paper, and press the ) paper button.

If your paper loads incorrectly or jams frequently:

Use new, smooth, high-quality paper, loaded printable side up. Make sure the paper is not curled, creased, wrinkled, too thin, or too old.

Fan the edges of the stack of paper to separate the sheets.

Don’t load paper above the arrow mark on the left edge guide.

Place the paper against the right edge behind the tab. Slide the left edge guide against it, but not too tightly.

Store paper flat to prevent curling.

Paper dust may have built up on the paper rollers. Use Epson Ink Jet Printer

Cleaning Sheets (part number S041150) to clean the rollers as follows:

Caution:

Do not use the cleaning sheets that come with Epson special papers; they may jam inside your printer.

1. Remove any paper loaded in the printer’s sheet feeder.

2. Remove the instruction sheet from the sticky side of the cleaning sheet.

Caution:

Do not follow the loading instructions on the sheet; they are not correct for your printer. Follow the steps here instead.

66

Solving Problems

3. Position the cleaning sheet in the printer’s sheet feeder with the cut corner in the lower left. Make sure the sticky side of the cleaning sheet is face up.

Sticky side of cleaning sheet

Cut corner

4. Press the ) paper button to feed the sheet through the printer.

5. When the sheet ejects, repeat steps 3 and 4 to feed the sheet through two

more times. Then discard the cleaning sheet.

CD/DVD Printing Problems

Images and text are not centered on the CD/DVD.

Adjust the print position as described on page 35 (Windows) or page 39

(Macintosh).

Ink smears on the CD/DVD or printing is too light.

Make sure you’re using ink jet-printable CDs or DVDs.

Handle the disc carefully and allow the ink to dry for at least 24 hours before playing the disc or inserting it in a drive.

Adjust the print density as described on page 36 (Windows) or page 41

(Macintosh).

Adjust the brightness or contrast. See the Epson Print CD on-screen help.

Problems and Solutions

67

Printed CDs or DVDs are dirty.

Clean the rollers as described on page 30.

The CD/DVD won’t feed into the printer.

Turn on your printer and gently insert the CD/DVD tray along the tray guide until the arrows on the CD/DVD tray and tray guide match each other. For more

information, see page 31.

The CD/DVD tray is ejected or not fed correctly when a print job is sent.

Reinsert the CD/DVD tray correctly; see page 31 for instructions.

If the tray is ejected when you start a print job, the printer is not ready. Wait until you see a message on your screen asking you to insert the tray. Then reinsert the tray and press the ) paper button.

Miscellaneous Printout Problems

The image is inverted, as if viewed in a mirror.

Turn off the

Mirror Image setting in the printer software or your application program. (If you’re printing on Epson Iron-on Cool Peel Transfer paper, the image

should be inverted.)

The printer prints blank pages.

If you’re using Windows, make sure your printer is selected. If you’re using a

Macintosh, make sure your printer is selected in the Page Setup and Print windows.

The print head nozzles may need cleaning; see page 44 for instructions.

The margins are incorrect.

Make sure the paper settings are correct for your paper size. For instructions,

see page 14 (Windows) or page 18 (Macintosh).

Choose the correct margins for your paper size.

If you’re using a Macintosh, make sure you choose the same printer in the

Page Setup window and the Print window.

68

Solving Problems

Use the

Print Preview

option in your printer software to check your margins before you print.

Make sure the paper is positioned all the way to the right of the sheet feeder.

Slide the left edge guide against the paper.

The image size or position is incorrect.

Make sure the paper and layout options are set correctly. See page 14

(Windows) or page 18 (Macintosh) for instructions.

Your images may not match the width/height proportions of the paper size or layout you’re using, and may be cropped to fit.

You see incorrect characters.

Make sure the USB cable is securely connected and meets the system

requirements on page 73. Then try printing again.

If you’re using a switch box or USB hub with your printer, connect the printer directly to your computer instead.

Too many copies are printing.

Make sure that the Copies option in your printer software or program is not set for multiple copies.

Output is not what you expect when printing borderless photos.

Make sure you are printing on paper that supports borderless printing. See the

list of supported borderless paper types and sizes on page 23.

Use the expansion setting to adjust how the image fits on the page. See

“Printing Borderless Photos” on page 23.

Don’t choose a custom paper size setting when printing borderless photos.

Problems and Solutions

69

Uninstalling Printer Software

You may need to uninstall and then reinstall your printer driver and utilities. For example, this might be necessary when you upgrade your operating system. You don’t need to uninstall Epson Print CD or your on-screen Reference Guide.

Windows

1. Turn off the printer and disconnect its USB cable.

2. Click

Start

or , and select

Programs

or

All Programs

.

3. Point to

Epson

or

Epson Printers

, then select

Epson Printer Software

Uninstall

.

With Windows Vista, when you see the User Account Control screen, click

Continue

.

4. In the next window, select

EPSON Stylus Photo 1400 Series

and click

OK

.

Then follow the on-screen instructions.

5. Restart your computer, then see the Start Here sheet to reinstall your software.

Macintosh

1. Insert the Epson printer software CD-ROM into your Macintosh.

2. Open the

Epson

CD-ROM desktop icon.

3. Double-click the

English

folder, then double-click the

OSX

folder.

Note:

You may have to scroll down to see these folders.

4. Double-click the

Installer

icon.

5. When the Installer window appears, select

Uninstall

from the pop-up menu in the upper left and click

Uninstall

.

6. Follow the on-screen instructions to uninstall the printer software.

Note:

If the name of your printer remains in the Print Center or Printer Setup Utility, select it from Printer List and click Delete.

7. Restart your Macintosh, then see the Start Here sheet to reinstall your software.

70

Solving Problems

Where To Get Help

Epson Technical Support

Epson provides these technical support services:

Internet Support

Visit Epson’s support website at epson.com/support and select your product for solutions to common problems. You can download drivers and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.

Speak to a Support Representative

Before you call Epson for support, please have the following information ready:

Product name (Epson Stylus Photo 1400)

Product serial number (located on the back of the Epson Stylus Photo 1400)

Proof of purchase (such as a store receipt) and date of purchase

Computer configuration

Description of the problem

Then call:

U.S.: (562) 276-7282, 6

AM and 7

AM

to 4

PM

, Saturday.

to 8

PM

, Pacific Time, Monday through Friday,

Canada: (905) 709-2567, 6

Friday.

AM

to 6

PM

, Pacific Time, Monday through

Toll or long distance charges may apply.

Purchase Supplies and Accessories

You can purchase genuine Epson ink and paper from an Epson authorized reseller.

To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at http://www.epsonstore.com (U.S. sales) or

http://www.epson.ca (Canadian sales).

Where To Get Help

71

Other Software Technical Support

Adobe Photoshop Elements

Telephone: (206) 675-6358

Web: www.adobe.com/support

72

Solving Problems

Requirements and Notices

Windows System Requirements

To use your printer and its software, your system should have:

A Microsoft

®

Windows compatible PC with a Pentium

(Pentium 4 processor, 2 GHz or faster recommended)

®

III 800 MHz processor

Microsoft Windows 2000, Windows XP, Windows XP Professional x64 Edition, or

Windows Vista

512MB RAM (2GB or more recommended)

300MB free hard disk space (1GB or more recommended)

SVGA monitor with at least a 256 color display

CD or DVD drive for installing the printer software

USB connection requires a computer with preinstalled Windows 2000, Windows XP,

Windows XP Professional x64 Edition, or Windows Vista; a Windows-compliant

USB port (Windows-compliant Hi-Speed USB 2.0 port recommended); and a shielded USB 2.0 “AB” cable. Using an improperly shielded cable or a USB 1.1 cable may cause the printer to malfunction.

Macintosh System Requirements

To use your printer and its software, your system should have:

Macintosh PowerPC

®

G4 733 MHz or faster, or Intel

Macintosh OS X 10.2.8, or 10.3.9 to 10.4.x

512MB RAM (2GB or more recommended)

® ™

processor

A shielded USB 2.0 “AB” cable. Using an improperly shielded cable or a USB 1.1 cable may cause the printer to malfunction.

Core

300MB free hard disk space (1GB or more recommended)

SVGA monitor with at least a 256 color display

CD or DVD drive for installing the printer software

A built-in USB port (Hi-Speed USB 2.0 port recommended)

Requirements and Notices

73

Important Safety Instructions

Before using the printer, read and follow these safety instructions.

Be sure to follow all warnings and instructions marked on the printer.

Use only the type of power source indicated on the printer’s label.

Use only the power cord that comes with the printer. Use of another cord may result in fire or electric shock.

Place the printer near a wall outlet where the plug can be easily unplugged.

Do not let the power cord become damaged or frayed.

If you use an extension cord with the printer, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed the cord’s ampere rating. Also, make sure that the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet’s ampere rating.

Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and off.

Avoid electrical outlets controlled by wall switches or automatic timers.

Keep the entire computer system away from potential sources of electromagnetic interference, such as loudspeakers or the base units of cordless telephones.

Avoid locations that are subject to rapid changes in temperature or humidity, shocks or vibrations, or dust.

Do not place the printer near a radiator, heating vent, or other heat source, or in strong light or direct sunlight.

Leave enough room around the printer to allow for sufficient ventilation.

Do not block or cover openings in the printer case or insert objects through the slots.

Place the printer on a flat, stable surface that extends beyond the base in all directions.

It will not operate properly if it is tilted at an angle.

Make sure the back of the printer is at least 4 inches (10 cm) away from the wall.

Do not spill liquid on the printer.

Do not put your hand inside the printer or touch the ink cartridges during printing.

Do not use aerosol products that contain flammable gases inside or around this product. Doing so may cause fire.

Do not move the print head by hand; otherwise, you may damage the printer.

Always turn the printer off using the P power button. When this button is pressed, the green P power light flashes. Do not unplug the printer or turn off the power to the outlet until the green P power light stops flashing.

74

Requirements and Notices

Before transporting the printer, make sure that the print head is in the home (far right) position and the ink cartridges are in place.

Leave the ink cartridges installed. Removing the cartridges can dehydrate the print head and may prevent the printer from printing.

Except as specifically explained in your documentation, do not attempt to service the printer yourself.

Unplug the printer and refer servicing to qualified service personnel under the following conditions: if the power cord or plug is damaged; if liquid has entered the printer; if the printer has been dropped or the case damaged; if the printer does not operate normally or exhibits a distinct change in performance. Adjust only those controls that are covered by the operating instructions.

When connecting the printer to a computer or other device with a cable, ensure the correct orientation of the connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.

When storing or transporting the printer, do not tilt it, stand it on its side, or turn it upside down; otherwise, ink may leak from the cartridges.

Ink Cartridge Safety Instructions

Keep ink cartridges out of the reach of children and do not drink the ink.

Do not shake ink cartridges after opening their packages; this can cause leakage.

Be careful when you handle used ink cartridges; there may be ink remaining around the ink supply port. If ink gets on your skin, wash it off with soap and water. If it gets in your eyes, flush them immediately with water.

Do not remove or tear any label or seal on the cartridge other than the yellow tab; this can cause leakage.

Install an ink cartridge immediately after you remove it from its package. Leaving the cartridge unpacked for a long time before using it can result in reduced print quality.

Do not use an ink cartridge beyond the date printed on the package. For best results, use up the ink cartridges within six months of first installing them.

Do not dismantle ink cartridges or try to refill them. This could damage the print head.

After bringing an ink cartridge inside from a cold storage site, allow it to warm up at room temperature for at least three hours before using it.

Store ink cartridges in a cool, dark place.

Do not touch the green IC chip on the side of the cartridge. Doing so may prevent normal operation and printing.

Important Safety Instructions

75

The IC chip on these ink cartridges retains a variety of cartridge related-information, such as the ink cartridge status, so that the cartridge may be removed and reinserted freely. However, each time the cartridge is inserted, some ink is consumed because the printer automatically performs a reliability check.

If you remove an ink cartridge for later use, protect the ink supply area from dirt and dust, and store it in the same environment as the printer. A valve in the ink supply port makes covers or plugs unnecessary, but the ink may stain items that come into contact with this area of the cartridge. Do not touch the ink supply port or the surrounding area.

Store ink cartridges with their labels facing upward. Do not store cartridges upside down.

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

76

Requirements and Notices

WARNING: The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC Certification of this device and may cause interference levels which exceed the limits established by the FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment interface cable with this device. If this equipment has more than one interface connector, do not leave cables connected to unused interfaces. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Declaration of Conformity

According to 47CFR, Part 2 and 15 for Class B Personal Computers and Peripherals; and/ or CPU Boards and Power Supplies used with Class B Personal Computers:

We:

Located at:

Epson America, Inc.

MS: 3-13

3840 Kilroy Airport Way

Long Beach, CA 90806-2469

Telephone: (562) 290-5254

Declare under sole responsibility that the product identified herein, complies with 47CFR

Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards.

Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Trade Name: Epson

Type of Product: Ink Jet Printer

Model: B321B

Declaration of Conformity

77

Epson America, Inc. Limited Warranty

What Is Covered: Epson America, Inc. (“Epson”) warrants to the original retail purchaser that the Epson printer covered by this limited warranty statement, if purchased and operated only in the United States or Canada, will be free from defects in workmanship and materials for a period of one (1) year from the date of original purchase. For warranty service, you must provide proof of the date of original purchase.

What Epson Will Do To Correct Problems: Should your Epson printer prove defective or (905) 709-2567 (Canada) for warranty repair instructions and return authorization. An

Epson service technician will provide telephone diagnostic service to determine whether the printer requires service. If service is needed, Epson will, at its option, exchange or repair the printer without charge for parts or labor. If Epson authorizes an exchange for the defective unit, Epson will ship a replacement printer to you, freight prepaid, so long as you use an address in Canada or the U.S. (excluding Puerto Rico and U.S. Possessions).

Shipments to other locations will be made freight collect. You are responsible for securely packaging the defective unit and returning it to Epson within five (5) working days of receipt of the replacement. Epson requires a debit or a credit card number to secure the cost of the replacement printer in the event that you fail to return the defective one. If your printer is being repaired, Epson will direct you to send your printer to Epson or its authorized service center, where the printer will be fixed and sent back to you. You are responsible for packing the printer and for all costs to and from the Epson authorized service center. When warranty service involves the exchange of the printer or a part, the item replaced becomes Epson property. The replacement printer or part may be new or refurbished to the Epson standard of quality, and, at Epson’s option, may be another model of like kind and quality. Epson’s liability for replacement of the covered printer will not exceed the original retail selling price of the covered printer. Exchange products and parts assume the remaining warranty period of your original product covered by this limited warranty.

What This Warranty Does Not Cover: This warranty does not apply to refurbished or reconditioned products. This warranty covers only normal use in the United States and

Canada. Using this product for continuous production or similar high duty purposes is not considered normal use; damage, maintenance or service from such use will not be covered under this warranty. This warranty is not transferable. This warranty does not cover any color change or fading of prints or reimbursement of materials or services required for reprinting. This warranty does not cover damage to the Epson product caused by parts or supplies not manufactured, distributed or certified by Epson. This warranty does not cover ribbons, ink cartridges or third party parts, components, or peripheral devices added to the Epson product after its shipment from Epson, e.g., dealer or useradded boards or components. Epson is not responsible for warranty service should the

Epson label or logo or the rating label or serial number be removed or should the product

78

Requirements and Notices

fail to be properly maintained or fail to function properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as fire, flood, and lightning, improper electrical current, software problems, interaction with non-

Epson products, or service other than by an Epson Authorized Servicer. If a claimed defect cannot be identified or reproduced, you will be held responsible for the costs incurred.

THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN

LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY,

NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SOME

LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. IF

THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE

LIMITED TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS

STATED HEREIN, ANY STATEMENT OR REPRESENTATIONS MADE BY ANY

OTHER PERSON OR FIRM ARE VOID. EXCEPT AS PROVIDED IN THIS

WRITTEN WARRANTY, NEITHER EPSON AMERICA, INC. NOR ITS

AFFILIATES SHALL BE LIABLE FOR ANY LOSS, INCONVENIENCE, OR

DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY

TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF

WARRANTY OR ANY OTHER LEGAL THEORY.

In Canada, warranties include both warranties and conditions.

Some jurisdictions do not allow limitations on how long an implied warranty lasts, and some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary from jurisdiction to jurisdiction.

To find the Epson Authorized Reseller nearest you, visit our website at: http://www.epson.com.

To find the Epson Customer Care Center nearest you, visit http://support.epson.com.

You can also write to:

Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-3012

Epson America, Inc. Limited Warranty

79

80

Requirements and Notices

Index

A

Accessories, 71

Aligning print head, 53 to 54

Automatic mode, Macintosh, 19

B

Banding, 63

Basic printing

Macintosh, 18 to 21

Windows, 14 to 17

Blank pages, 68

Blurry images, 63

Borderless expansion

Macintosh, 29

Windows, 27

Borderless printing, 23 to 29

Cleaning

print head, 44 to 45

printer, 54 to 55

rollers, 30, 66 to 67 sheets, 55, 66 to 67

Color management

Macintosh, 19

Windows, 16

Color problems, 65

ColorSync, 19

Copies setting, Macintosh, 19

D

Declaration of Conformity, 77

Default printer settings, Windows, 17

Digital camera, printing from, 42

Displaying photos, 29

DVDs, see CDs

C

Cable, USB, 73

Camera/phone, printing from, 42

Cancelling printing

Macintosh, 21

Windows, 17

CDs

adjusting print density, 36 to 37, 41

adjusting print position, 35 to 36, 39 to

40

designing, 33 to 41

feeding problems, 68

inserting in printer, 31 to 32

printing on, 30 to 41

printing problems, 67 to 68

Cell phone, printing from, 42

Characters, incorrect, 69

Checking printer, 59

E

Edge-to-edge printing, 23 to 29

Epson

accessories, 71 help, 71 to 72

ink, 47

paper, 10, 13, 21, 23

Print CD, 33 to 41

Store, 71

warranty, 78 to 79

Expansion, borderless

Macintosh, 29

Windows, 27

Index

81

F

Faint images, 64

FCC Compliance, 76 to 77

Full bleed printing, 23 to 29

G

Gamma setting, Macintosh, 19

Grainy prints, 65

H

Head Cleaning utility, 44 to 45

Help, Epson, 71 to 72

I

Incorrect characters, 69

Incorrect colors, 65

Incorrect margins, 68

Ink cartridge

ordering, 47

replacing, 46 to 53

safety instructions, 48, 75 to 76

status, 46 to 47

Ink status, checking, 46 to 47

Inverted image, 68

J

Jams, paper, 66 to 67

L

Layout problems, 69

Layout settings

Macintosh, 19

Windows, 16

Lights, status, 57 to 58

Loading paper, 7 to 10

82

Index

M

Macintosh

basic printing, 18 to 21

borderless printing, 27 to 29

system requirements, 73

uninstalling software, 70

Maintaining printer, 43 to 55

Marginless printing, 23 to 29

Margins, incorrect, 68

Media Type setting, 21

Mirror image, 68

Monitoring ink status, 46 to 47

Moving printer, 55

N

Noise, printer, 62

Nozzle check, 43 to 44

O

Orientation setting

Macintosh, 18

Windows, 15

P

Page Setup, Macintosh, 18

Paper

Epson, 10, 13, 21, 23

feeding problems, 65 to 67

loading, 7 to 10

orientation, Macintosh, 18

orientation, Windows, 15

size, Macintosh, 18

size, Windows, 15

Paper Type setting, 21

Phone, printing from, 42

Photos

displaying and storing, 29

printing, 23 to 29

Print head

aligning, 53 to 54

cleaning, 44 to 45

Print Head Alignment utility, 53 to 54

Print quality problems, 63 to 65

Print window

Macintosh, 18

Windows, 14

Printer

check, 59

cleaning, 54 to 55

maintaining, 43 to 55

noise, 62

problems, 61 to 62

transporting, 55

Printing

basic, 14 to 21

borderless photos, 23 to 29

CDs and DVDs, 30 to 41

controlling, Macintosh, 21

controlling, Windows, 17

Printing, slow, 62

Problems

CD printing, 67 to 68

color, 65

installing software, 60 to 61

miscellaneous, 68 to 69

paper feeding, 65 to 67

print quality, 63 to 65

printer, 61 to 62

solving, 57 to 72

Q

Quality Option setting, 15

Quality/Speed setting, 19

R

Rollers, cleaning, 30, 66 to 67

S

Safety instructions, 48, 74 to 76

Service, 71

Slow printing, 62

Software

Epson Print CD, 33 to 41

problems, solving, 60 to 61

uninstalling, 70

Stopping printing

Macintosh, 21

Windows, 17

Storing photos, 29

Support, 71

System requirements, 73

T

Transporting printer, 55

Troubleshooting, 57 to 72

Type setting, 21

U

Uninstalling software, 70

USB

cable, 73

port for camera/phone, 42

Utilities

Head Cleaning, 44 to 45

Nozzle Check, 43 to 44

Print Head Alignment, 53 to 54

W

Warranty, 78 to 79

Windows

basic printing, 14 to 17

borderless printing, 24 to 27

system requirements, 73

uninstalling software, 70

Index

83

Epson Paper and Ink—

Designed to Work Together

For the best prints, use genuine Epson paper and ink. You can purchase them online at

www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales). You can also purchase genuine Epson paper and ink from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766).

Epson Papers

Epson papers are specially coated to work with genuine Epson inks for optimal image quality and maximum longevity.

Paper category

Photo Papers

Matte Papers

Description

For lab quality photos—from everyday snapshots to professional portraits. Available in glossy, semi-gloss, and luster finishes.

Non-glare paper with a smooth or textured finish for professional quality photos, brochures, or art projects.

Scrapbooking Papers Acid-free, lignin-free paper for archival quality photos, backgrounds, headlines, and other page elements.

Fine Art Papers

Specialty Papers

Luxurious weight, texture, and finish give these fine art papers a true museum quality appearance.

For projects that showcase your favorite photos, including greeting cards, iron-on transfers, and transparencies.

See the inside back cover for a list of just some of the Epson paper types and sizes you can use with the Epson Stylus Photo 1400. See your

User’s Guide for a complete list of compatible Epson papers.

Genuine Epson Inks

Look for the number below to find your cartridges.

It’s as easy as remembering your number!

Black T079120

Cyan T079220

Lt. Cyan T079520

Magenta T079320

Lt. Magenta T079620

Yellow T079420

Paper name

Epson Ultra Premium Photo Paper Glossy

Epson Ultra Premium Glossy Photo Paper

Epson Premium Photo Paper Glossy

Epson Premium Glossy Photo Paper

Epson Premium Photo Paper Semi-gloss

Epson Premium Semigloss Photo Paper

Epson Photo Paper Glossy

Epson Glossy Photo Paper

Epson Premium Presentation Paper Matte

Epson Matte Paper Heavyweight

Epson Ultra Premium Presentation Paper Matte

Epson Enhanced Matte Paper

Epson Presentation Paper Matte

Epson Photo Quality Ink Jet Paper

Epson Ultra Premium Photo Paper Luster

Epson Premium Luster Photo Paper

Size

Borderless 4 x 6 inches

Letter (8.5 x 11 inches)

Borderless 4 x 6 inches

Borderless 5 x 7 inches

Borderless 8 x 10 inches

Letter (8.5 x 11 inches)

Borderless 11 x 14 inches

US B (11 x 17 inches)

A3 (11.7 x 16.5 inches)

Super B (13 x 19 inches)

Borderless 4 x 6 inches

Letter (8.5 x 11 inches)

Super B (13 x 19 inches)

Borderless 4 x 6 inches

Letter (8.5 x 11 inches)

US B (11 x 17 inches)

Super B (13 x 19 inches)

Borderless 8 x 10 inches

Letter (8.5 x 11 inches)

Borderless 11 x 14 inches

A3 (11.7 x 16.5 inches)

Super B (13 x 19 inches)

Letter (8.5 x 11 inches)

A3 (11.7 x 16.5 inches)

Super B (13 x 19 inches)

Letter (8.5 x 11 inches)

Legal (8.5 x 14 inches)

US B (11 x 17 inches)

Super B (13 x 19 inches)

Letter (8.5 x 11 inches)

A3 (11.7 x 16.5 inches)

Super B (13 x 19 inches)

Part number

S041671

S041141

S041649

S041271

S041272

S041156

S041143

S041467

S041257

S041290

S041288

S041289

S041982

S041331

S041327

S041809

S042038

S041134

S041934

S041935

S041808

S041727

S041464

S041465

S041286

S041667

S041466

S041468

S041260

S041263

S041341

S041343

S041339

S041062

S041067

S041070

S041069

S041405

S041406

S041407

S041604

4108129 Rev.1

1-B C

4108129 Rev.1

1-B M

4108129 Rev.1

1-B Y

4108129 Rev.1

1-B K

Epson Paper and Ink—

Designed to Work Together

For the best prints, use genuine Epson paper and ink. You can purchase them online at

www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales). You can also purchase genuine Epson paper and ink from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766).

Epson Papers

Epson papers are specially coated to work with genuine Epson inks for optimal image quality and maximum longevity.

Paper category

Photo Papers

Matte Papers

Description

For lab quality photos—from everyday snapshots to professional portraits. Available in glossy, semi-gloss, and luster finishes.

Non-glare paper with a smooth or textured finish for professional quality photos, brochures, or art projects.

Scrapbooking Papers Acid-free, lignin-free paper for archival quality photos, backgrounds, headlines, and other page elements.

Fine Art Papers

Specialty Papers

Luxurious weight, texture, and finish give these fine art papers a true museum quality appearance.

For projects that showcase your favorite photos, including greeting cards, iron-on transfers, and transparencies.

See the inside back cover for a list of just some of the Epson paper types and sizes you can use with the Epson Stylus Photo 1400. See your

User’s Guide for a complete list of compatible Epson papers.

Genuine Epson Inks

Look for the number below to find your cartridges.

It’s as easy as remembering your number!

Black T079120

Cyan T079220

Lt. Cyan T079520

Magenta T079320

Lt. Magenta T079620

Yellow T079420

Paper name

Epson Ultra Premium Photo Paper Glossy

Epson Ultra Premium Glossy Photo Paper

Epson Premium Photo Paper Glossy

Epson Premium Glossy Photo Paper

Epson Premium Photo Paper Semi-gloss

Epson Premium Semigloss Photo Paper

Epson Photo Paper Glossy

Epson Glossy Photo Paper

Epson Premium Presentation Paper Matte

Epson Matte Paper Heavyweight

Epson Ultra Premium Presentation Paper Matte

Epson Enhanced Matte Paper

Epson Presentation Paper Matte

Epson Photo Quality Ink Jet Paper

Epson Ultra Premium Photo Paper Luster

Epson Premium Luster Photo Paper

Size

Borderless 4 x 6 inches

Letter (8.5 x 11 inches)

Borderless 4 x 6 inches

Borderless 5 x 7 inches

Borderless 8 x 10 inches

Letter (8.5 x 11 inches)

Borderless 11 x 14 inches

US B (11 x 17 inches)

A3 (11.7 x 16.5 inches)

Super B (13 x 19 inches)

Borderless 4 x 6 inches

Letter (8.5 x 11 inches)

Super B (13 x 19 inches)

Borderless 4 x 6 inches

Letter (8.5 x 11 inches)

US B (11 x 17 inches)

Super B (13 x 19 inches)

Borderless 8 x 10 inches

Letter (8.5 x 11 inches)

Borderless 11 x 14 inches

A3 (11.7 x 16.5 inches)

Super B (13 x 19 inches)

Letter (8.5 x 11 inches)

A3 (11.7 x 16.5 inches)

Super B (13 x 19 inches)

Letter (8.5 x 11 inches)

Legal (8.5 x 14 inches)

US B (11 x 17 inches)

Super B (13 x 19 inches)

Letter (8.5 x 11 inches)

A3 (11.7 x 16.5 inches)

Super B (13 x 19 inches)

Part number

S041671

S041141

S041649

S041271

S041272

S041156

S041143

S041467

S041257

S041290

S041288

S041289

S041982

S041331

S041327

S041809

S042038

S041134

S041934

S041935

S041808

S041727

S041464

S041465

S041286

S041667

S041466

S041468

S041260

S041263

S041341

S041343

S041339

S041062

S041067

S041070

S041069

S041405

S041406

S041407

S041604

4108129 Rev.1

1-B C

4108129 Rev.1

1-B M

4108129 Rev.1

1-B Y

4108129 Rev.1

1-B K

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
