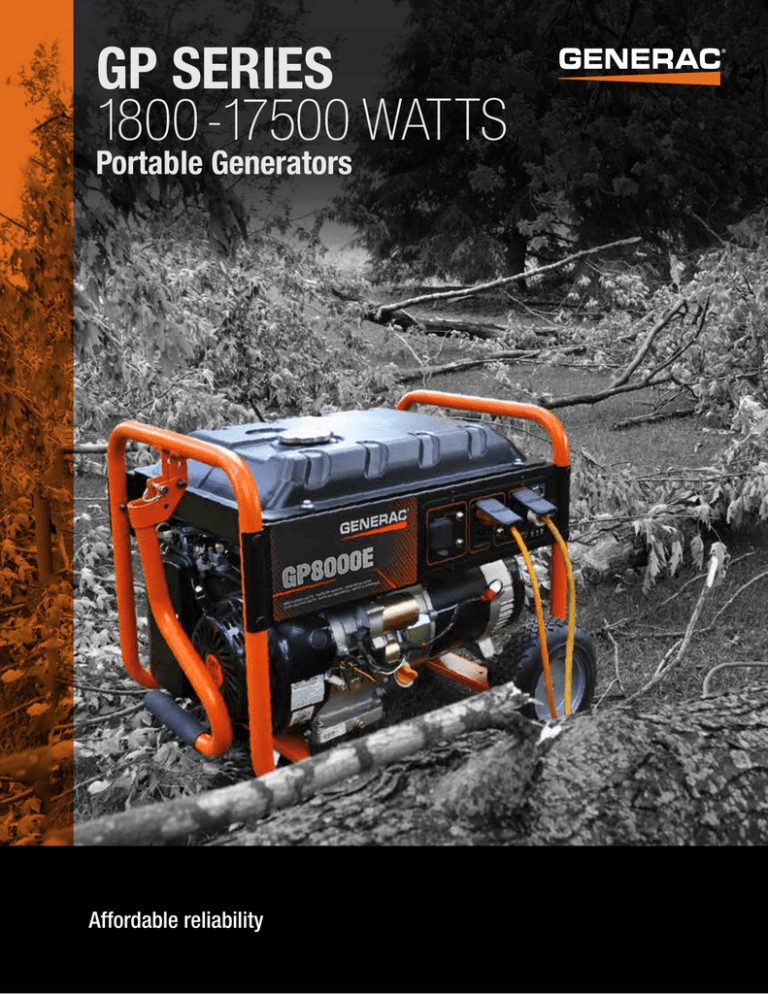

GP SERIES
1800-17500 WATTS
Portable Generators
Affordable reliability
GP SERIES
1800 -17500 WATT PORTABLE GENERATORS
Power the fun stuff or cover an emergency with a GP Series portable generator. Affordable reliability and
features not usually found on basic portable models make these a favorite for home use, camping, job
sites or outdoor events.
FEATURES AND BENEFITS
LARGE-CAPACITY
STEEL FUEL TANK
With easy-to-read fuel gauge for
durability and extended run times
(GP15000E & GP17500E resin tanks)
1-¼" STEEL CRADLE
For added durability and strength
LOW OIL SHUTDOWN
Detects low oil level and automatically
shuts engine down to prevent
potential engine damage
HEAVY-DUTY,
NEVER-FLAT WHEELS
For reliable portability
(not available on GP1800)
GP15000E & GP17500E
THE MOST POWERFUL PORTABLE
GENERATORS AVAILABLE
The GP Series 15000 and 17500 Watt units are the
ultimate option, with enough power to run up to a 5-ton
air conditioner and more. These models feature Generac's
OHVITM engine, for extended run times and longer life.
CONTROL PANEL FEATURES
GP15000E & GP17500E
GP5500 - GP8000E
CIRCUIT BREAKERS
Provide overload protection
HOUR METER
To track maintenance
requirements
IDLE CONTROL
To conserve fuel
and reduce noise
12VDC OUTLET
To charge automotive
style batteries
CIRCUIT BREAKERS
Provide overload
protection
OUTLET COVERS
Protection from the elements
DEVICE
HOW MUCH POWER DO YOU NEED?
2
RECORD AND ADD THE RUNNING WATTS LISTED
FOR EACH DEVICE THAT YOU NEED TO POWER.
3
RECORD THE STARTING WATTS LISTED FOR
EACH DEVICE.
4
SELECT THE ONE DEVICE WITH THE HIGHEST STARTING
WATTS. ADD THAT NUMBER TO THE TOTAL RUNNING WATTS
TO DETERMINE THE TOTAL WATTAGE REQUIREMENT.
Refrigerator
700
2200
Sump Pump
1050
2150
Belt Sander
1200
2400
Circular Saw
1400
2300
Total
4350
+
2400 =
GENERATOR
SIZE
Minimum starting
watts for your needs
watts
6750 starting
RECREATION
RUNNING ADDITIONAL
STARTING
WATTS
WATTS
JOBSITE
CHOOSE WHICH DEVICES YOU WANT TO POWER
AT THE SAME TIME.
HOUSEHOLD
Sizing a portable generator is easy. Check out this sample:
1
HOUR METER
To track maintenance
requirements
STARTING CONTROLS
Electric-start models only
VARIETY OF OUTLETS
For multiple charging
possibilities
DEVICE
PLUG-IN BATTERY
CHARGER JACK
Electric start units only
RUNNING
WATTS
ADDITIONAL
STARTING
WATTS
Coffee Maker
Computer with a 17" Monitor
Electric Range - 8" Element
Electric Water Heater
Garage Door Opener - 1/2 HP
Microwave - 1000 Watts
Refrigerator/Freezer
Sump Pump 1/2 HP
Television - 27"
Washing Machine
Well Pump - 1/2 HP
Central AC - 24,000 BTU
Furnace Fan Blower - 1/2 HP
Heat Pump
Window AC - 12,000 BTU
Air Compressor - 1/2 HP
Airless Paint Sprayer- 1/3 HP
Belt Sander - 3"
Circular Saw - 7-1/4"
Hand Drill - 1/2"
Reciprocating Saw
Quartz Halogen Work Light
Table Saw, 10"
CD / DVD Player
Color TV - 13"
Inflator Pump
Outdoor Light String
Slow Cooker
1500
800
2100
2000
875
1000
700
1050
500
1150
1000
3800
875
4700
3250
1000
600
1200
1400
600
960
1000
2000
100
150
50
250
250
1000
2350
2200
2150
2300
2100
4950
2300
4500
3950
2000
1200
2400
2300
900
2000
150
-
RV Air Conditioner (13,500 BTU)
1500
700
*Watts listed are approximate. Check your appliance for actual requirements.
Total wattage requirements assumes intermittent starting of devices.
1800-17500 WATT PORTABLE GENERATOR
SPECIFICATIONS
SERIES
GP1800
GP3250
GP5500
GP6500
GP6500E
GP8000E
Model Number (49- State)
5981
5982
5939
5940
5941
6954
Model Number (CSA / CARB)
5981 / –
5982 / 5789
5975 / 5945
5976 / 5946
–
6954 / –
Running Watts
1800
3250
5500
6500
6500
8000
Starting Watts
2050
3750
6875
8125
8125
10000
Engine Displacement
163cc
208cc
389cc
389cc
389cc
420cc
Engine Type
OHV
OHV
OHV
OHV
OHV
OHV
Manual
Manual
Manual
Manual
Electric/Manual
Electric/Manual
Included
Starting Method
Battery
Low Oil Shutdown
Fuel Tank Capacity (Gallons)
Run Time at 50% Load
Hour Meter
Outlets
Covered Outlets
–
–
–
–
Included
Yes
Yes
Yes
Yes
Yes
Yes
3.5 Gal.
3.35 Gal./4 Gal.
6.8 Gal.
6.77 Gal.
6.77 Gal.
7.5 Gal.
10.5 Hours
10.25 Hours/12.5 Hours
11 Hours
10 Hours
10 Hours
11 Hours
No
No
Yes
Yes
Yes
Yes
(2) 120V 20A 5-20R
Duplex
(1) 120/240V 30A
L14-30R Twistlock
(2) 120V 20A 5-20R
Duplex
(1) 120/240V 30A
L14-30R Twistlock
(2) 120V 20A 5-20R
GFCI Duplex
CARB Model 5789(2) 120V 20A GFCI
5-20R Duplex
CARB Model 5945(2) 120V 20A GFCI
5-20R Duplex
(1) 120/240V 30A
L14-30R Twistlock
CARB Model 5946(2) 120V 20A GFCI
5-20R Duplex
(1) 120/240V 30A
L14-30R Twistlock
(2) 120V 20A 5-20R
Duplex
(1) 120/240V 30A
L14-30R Twistlock
(1) 120/240V 30A
L14-30R Twistlock
No
Yes
Yes
Yes
Yes
(1) 120V 20A 5-20R
Duplex
(1) 120V 20A 5-20R
Duplex
(1) 120/240V 20A
L14-20R Twistlock
No
Handle Style
-
Folding
Folding/Locking
Folding/Locking
Folding/Locking
Folding/Locking
Wheel Type
-
8" Solid Wheels
9.5" Solid Wheels
9.5" Solid Wheels
9.5" Solid Wheels
9.5" Solid Wheels
22.75 x 16.75 x 17.2
22.75 x 22 x 21
27.25 x 27 x 25
27.25 x 27 x 25
27.25 x 27 x 25
28.9 x 27.3 x 25.8
84
110 / 101.5
171
175 / 177
186
197
Warranty - Residential
2 Year Ltd.
2 Year Ltd.
2 Year Ltd.
2 Year Ltd.
2 Year Ltd.
2 Year Ltd.
Warranty - Commercial
1 Year
1 Year
1 Year
1 Year
1 Year
1 Year
Dimensions (L" x W" x H")
Product Weight
SERIES
Model Number
GP15000E
GP17500E
5734
5735
49-State
49-State
Running Watts
15000
17500
Starting Watts
22500
26250
Engine Displacement
992cc
992cc
Generac OHVI
Generac OHVI
Emissions Configuration
Engine Type
Idle Control
Yes
Yes
Starting Method
Electric
Electric
Battery
Included
Included
Low Oil Shutdown
Yes
Yes
Fuel Tank Capacity (Gallons)
16.0 Gal.
16.0 Gal.
Run Time at 50% Load
10 Hours
10 Hours
Hour Meter
Outlets
Yes
Yes
(1) 120V 20A 5-20R Duplex
(1) 120V 20A GFCI 5-20R Duplex
(2) 120V L5-30R 30A TwistLock
(1) 125/250V 30A L14-30R
TwistLock
(1) 125/250V 14-50R 50A
Straight Blade
(1) 12VDC 10A
(1) 120V 20A 5-20R Duplex
(1) 120V 20A GFCI 5-20R Duplex
(2) 120V L5-30R 30A TwistLock
(1) 125/250V 30A L14-30R
TwistLock
(1) 125/250V 14-50R 50A
Straight Blade
(1) 12VDC 10A
Handle Style
Fixed
Fixed
Wheel Type
12.3" Pneumatic
12.3" Pneumatic
Dimensions (L" x W" x H")
48.5 x 31 x 39.5
48.5 x 31 x 39.5
Product Weight
363
390
Warranty - Residential
2 Year Ltd.
2 Year Ltd.
Warranty - Commercial
1 Year
1 Year
All portable specifications and models subject to change without notice.
generac.com
Generac Power Systems, Inc.
S45 W29290 Hwy. 59, Waukesha, WI 53189
1-888-GENERAC (1-888-436-3722)
0189200SBY REV. B 06/2016
©2015 Generac Power Systems, Inc. All Rights Reserved.
Specifications are subject to change without notice.
